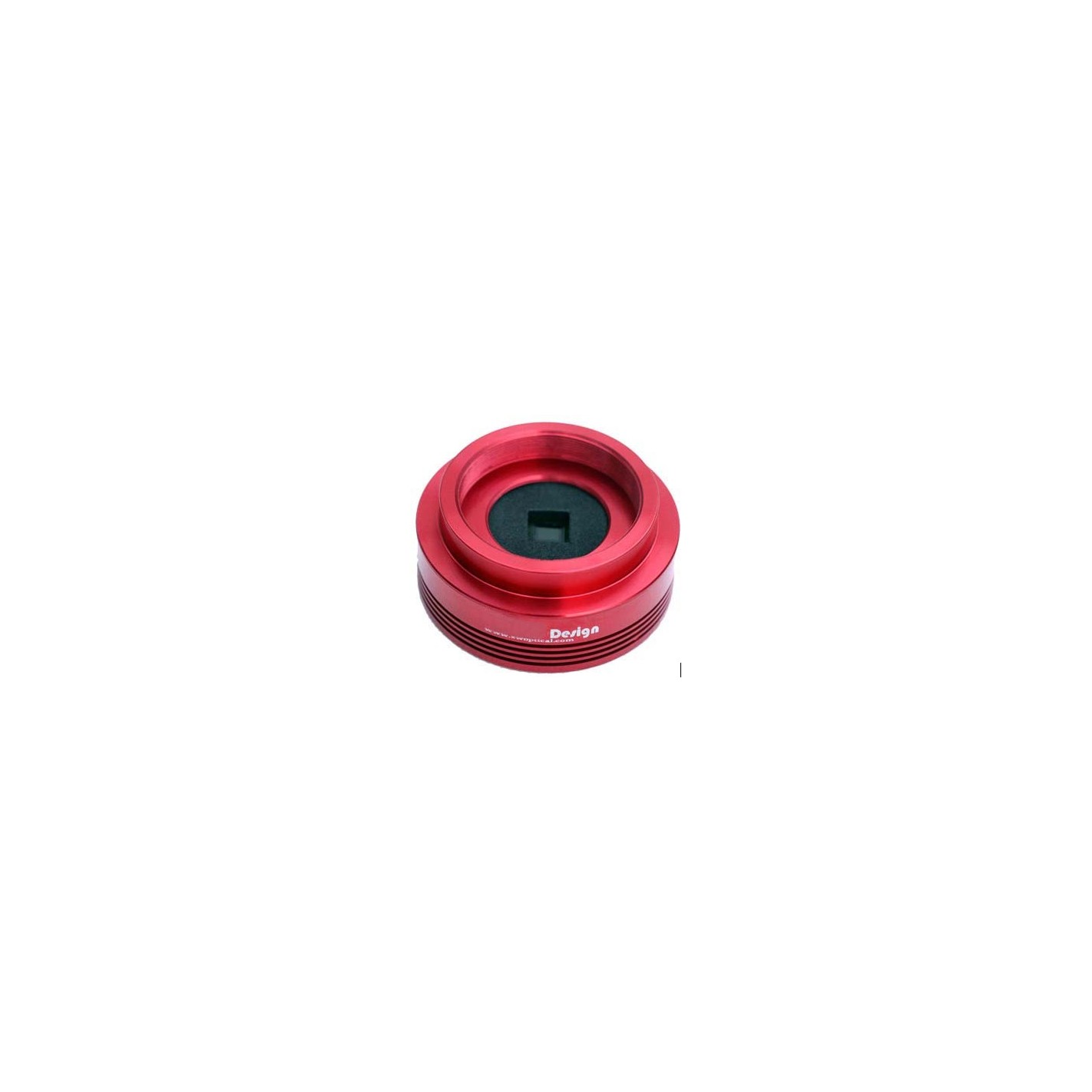

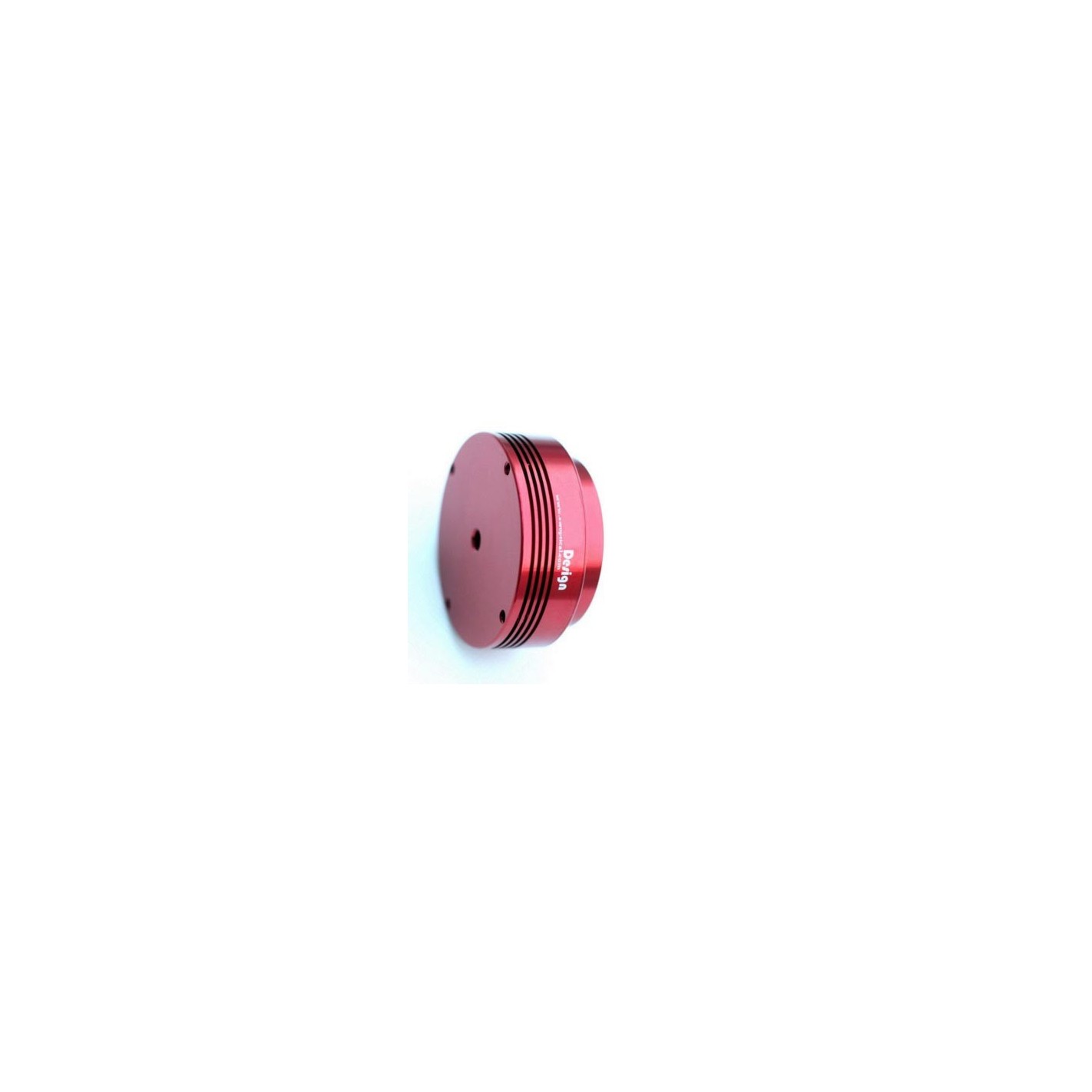

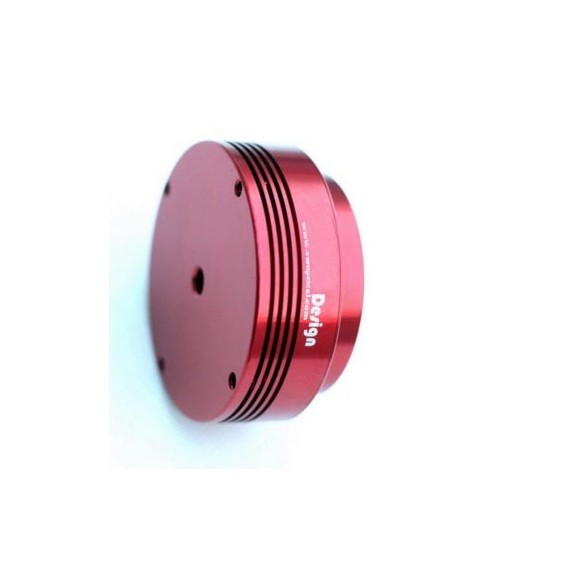

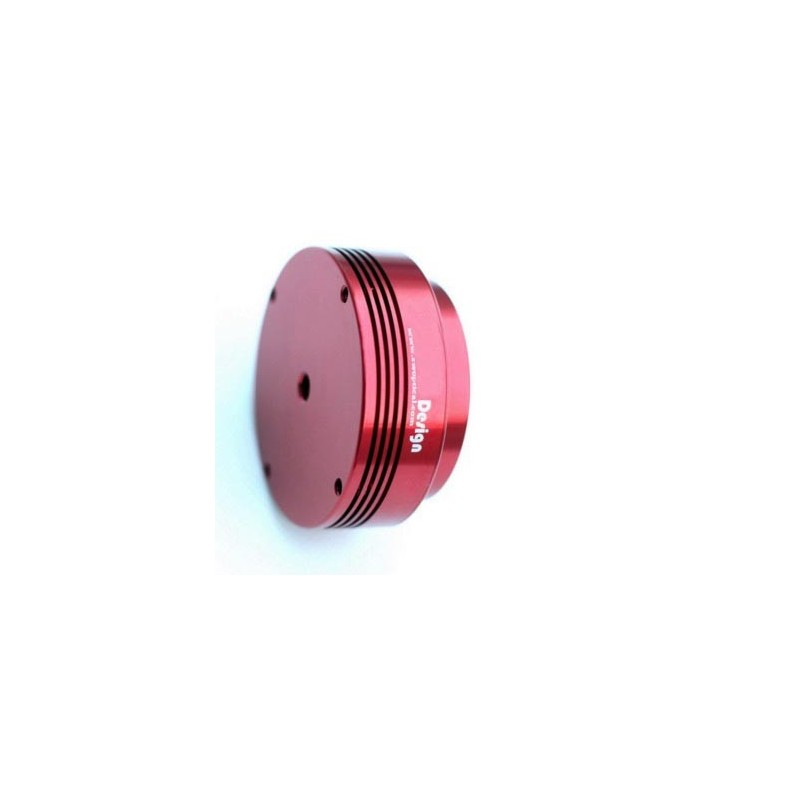

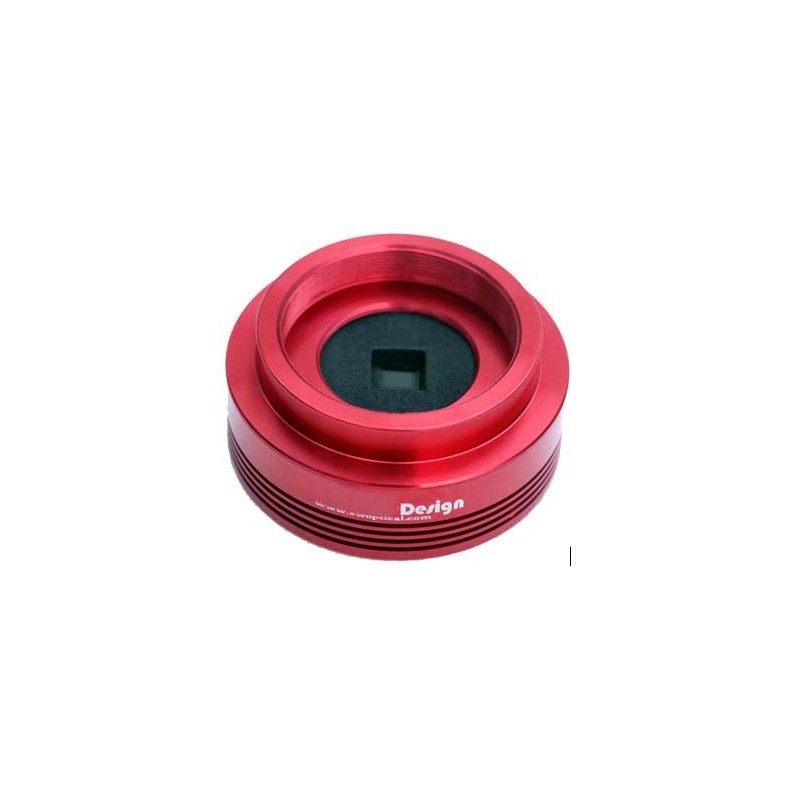

CCD Camera ZWO ASI120MM-S Monochrome USB3.0

CCD Camera ZWO ASI120MM-S MONO USB3.0.

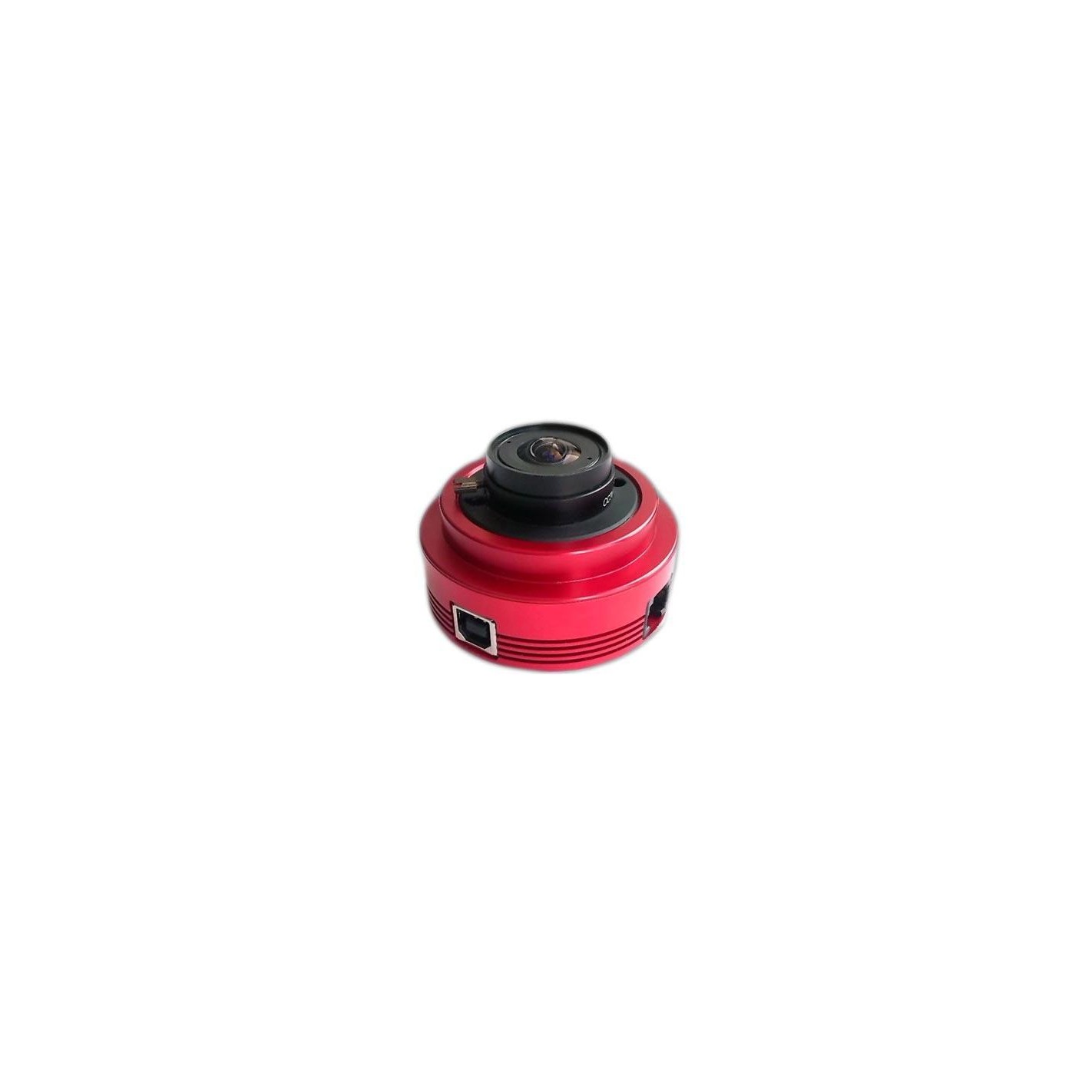

The new high quality astrophotography camera ZWO ASI120MM Mono incorporates a large CMOS sensor with high resolution. This camera is a very good alternative for all planetary astrophotographers who also want to be able to take short exposure deep sky photographs with only one camera. Now with Mono sensor and high-speed USB3.0 connection.

The ASI 120 is a very fast and sensitive camera at an unbeatable price.

The camera delivers sixty frames per second (fps) at a maximum resolution of 1280x960 pixels. They can be sent smoothly and quickly to a laptop computer thanks to the high-speed USB 3.0.

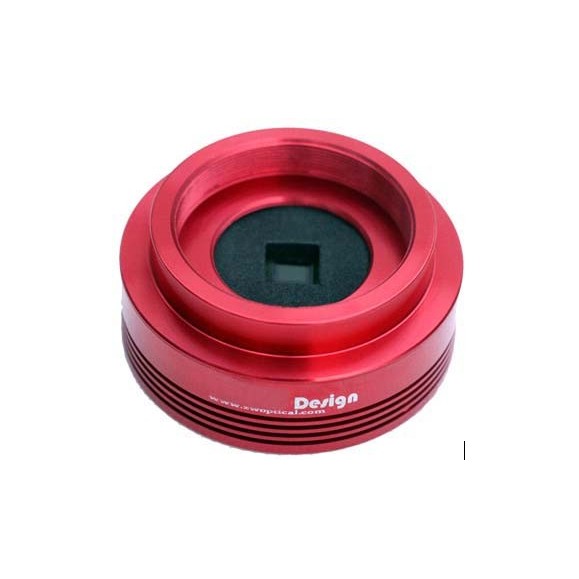

The camera can be attached to the telescope using the T-2 thread on the camera housing, or with the included adapters, just like an eyepiece.

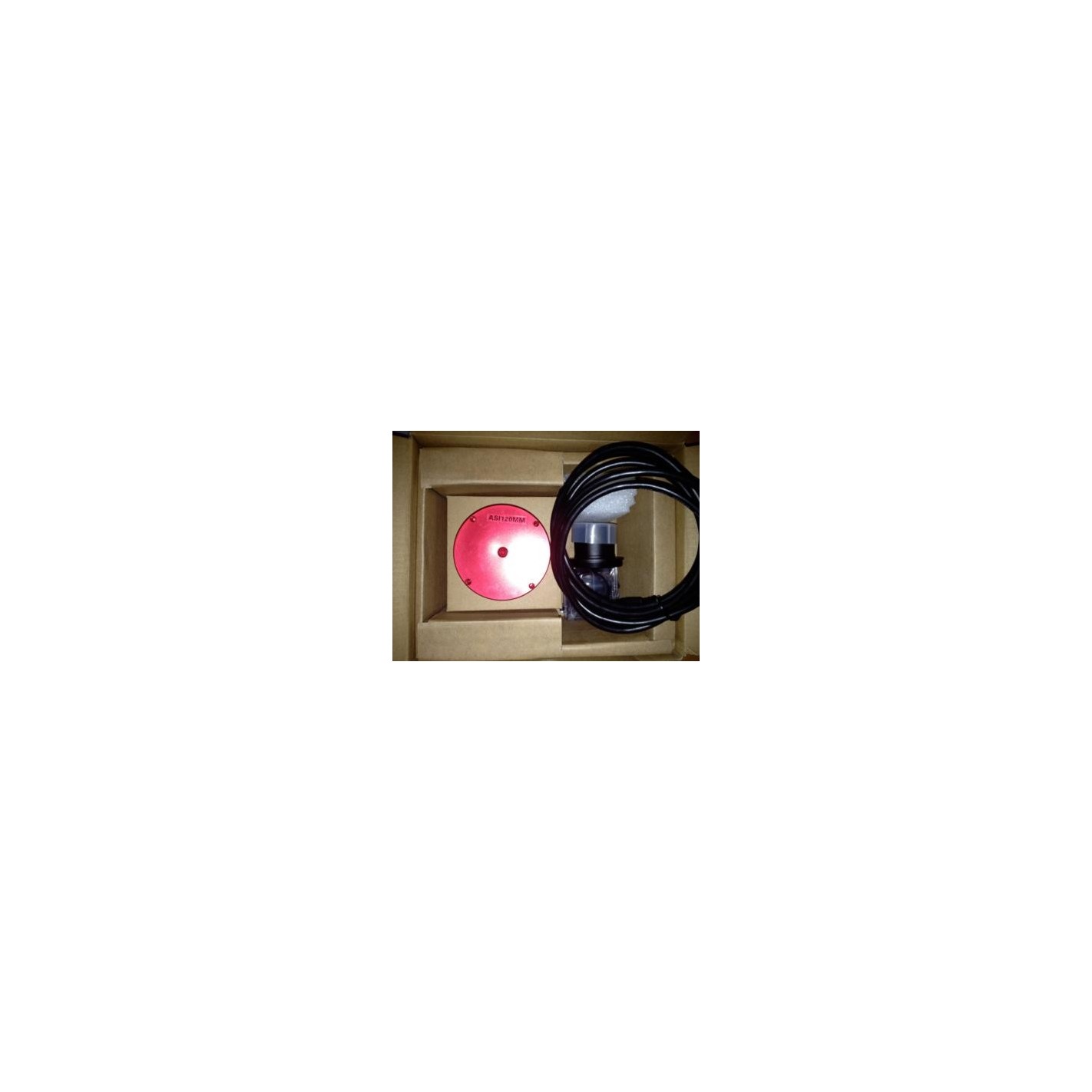

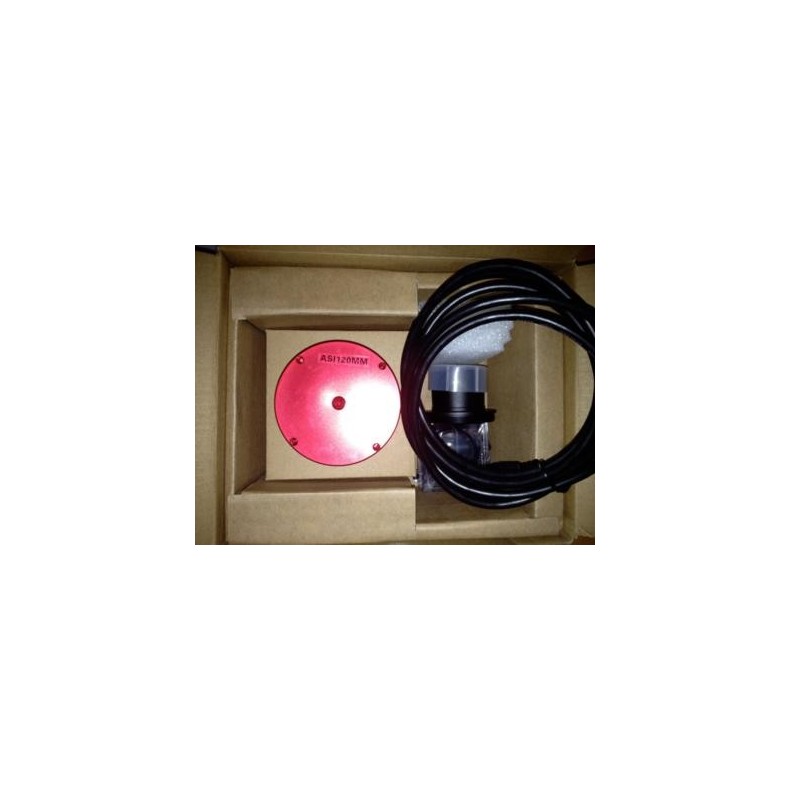

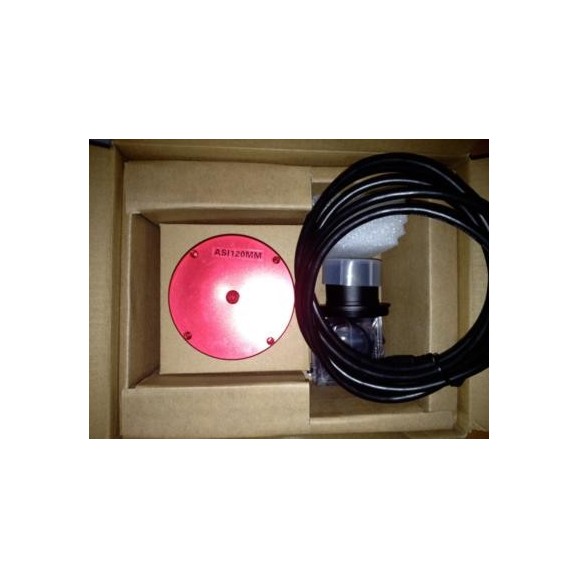

In addition to the software, the camera is delivered with connecting cables and the 1.25" barrel.

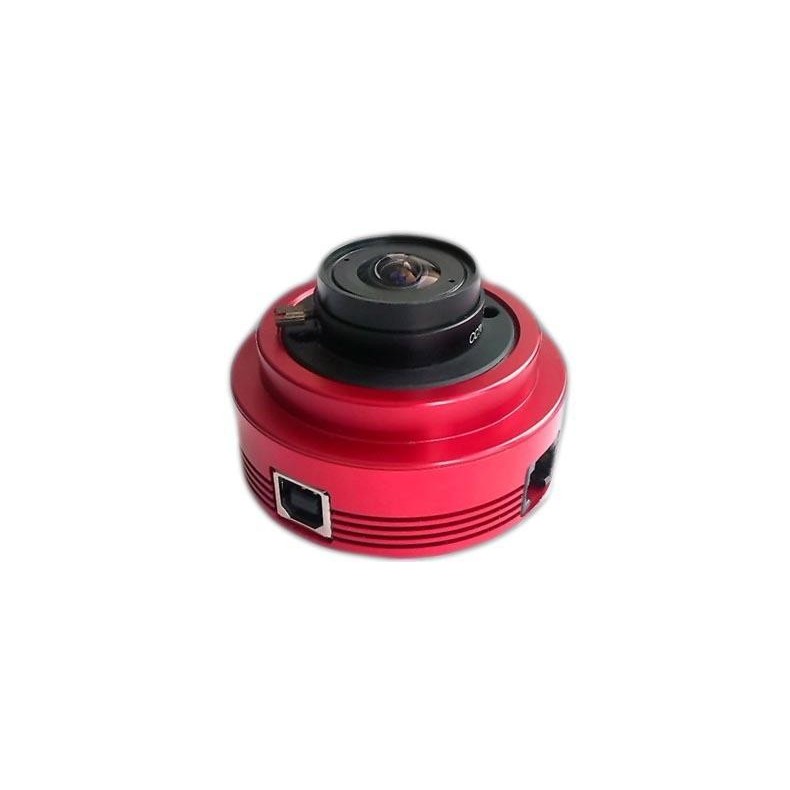

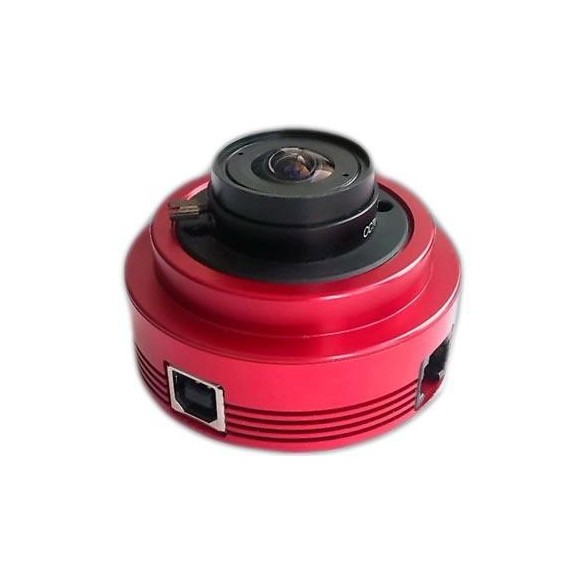

NEW: The ASI120MM is supplied with a 2.1mm objective lens that can be screwed directly onto the camera body and provides a 150° field of view. Thus the device can be used as a surveillance camera in your observatory or even as an allsky camera for recording fireballs and meteors and also timelapse. For these uses it incorporates a practical 1/4" photographic tripod connection. Attention: the lens must be screwed on carefully without exceeding the infinity focus point to avoid damaging the sensor.

The applications in which this camera excels are:

• • • • • Planetary photography
        • Lunar photography
        • Solar photography (with appropriate filter)
        • Deep sky photography (camera is not cooled, but the CMOS sensor offers good response with very low noise)
        • Self-tracking camera
        • Surveillance camera
        • Allsky camera for recording of fireballs and meteors

System requirements:

• • • • • Computer with USB 2.0 available and supported by the operating system

Technical features:

• • • • • Sensor: Aptina 1/3 "CMOS MT9M034 MONO, 60 fps
        • Resolution: 1.2 mega pixels, 1280x960
        • Pixel size: 3.75µm
        • Distance from T2 thread to sensor: 14 mm
        • Exposure range: 64 microns - 1000 s
        • ROI: Supported
        • Autoguider port: ST-4
        • Interface: USB 3.0
        • Software requirements: USB 2.0

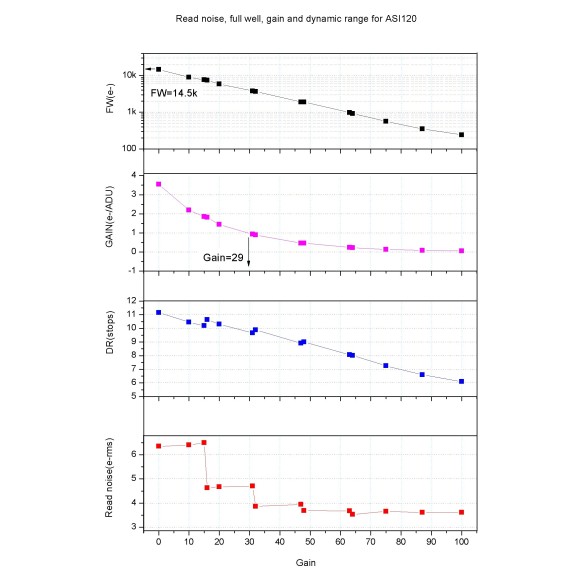

        • Bit rate: 12-bit output (12-bit ADC)
        • Built-in UV/IR filter
        • 2.1mm lens
        • Supports 2x2 binning

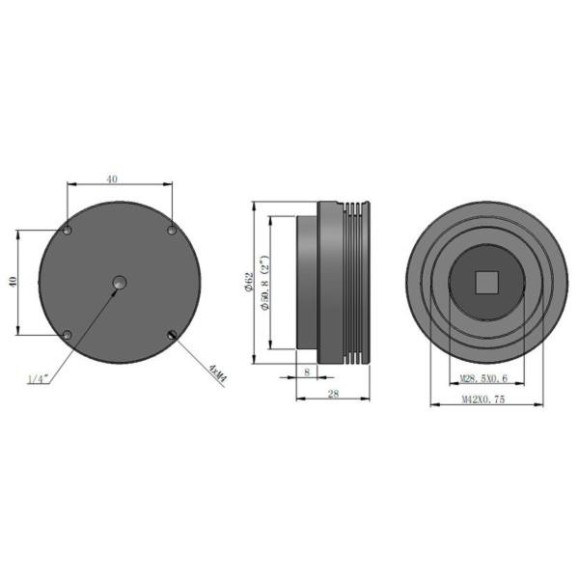

        • Adapter: 2"/ 1.25"/ M42X0.75
        • Telescope connection: T2, M28x0.6", 1.25" barrel
        • Connection to photographic tripod: 1/4" thread

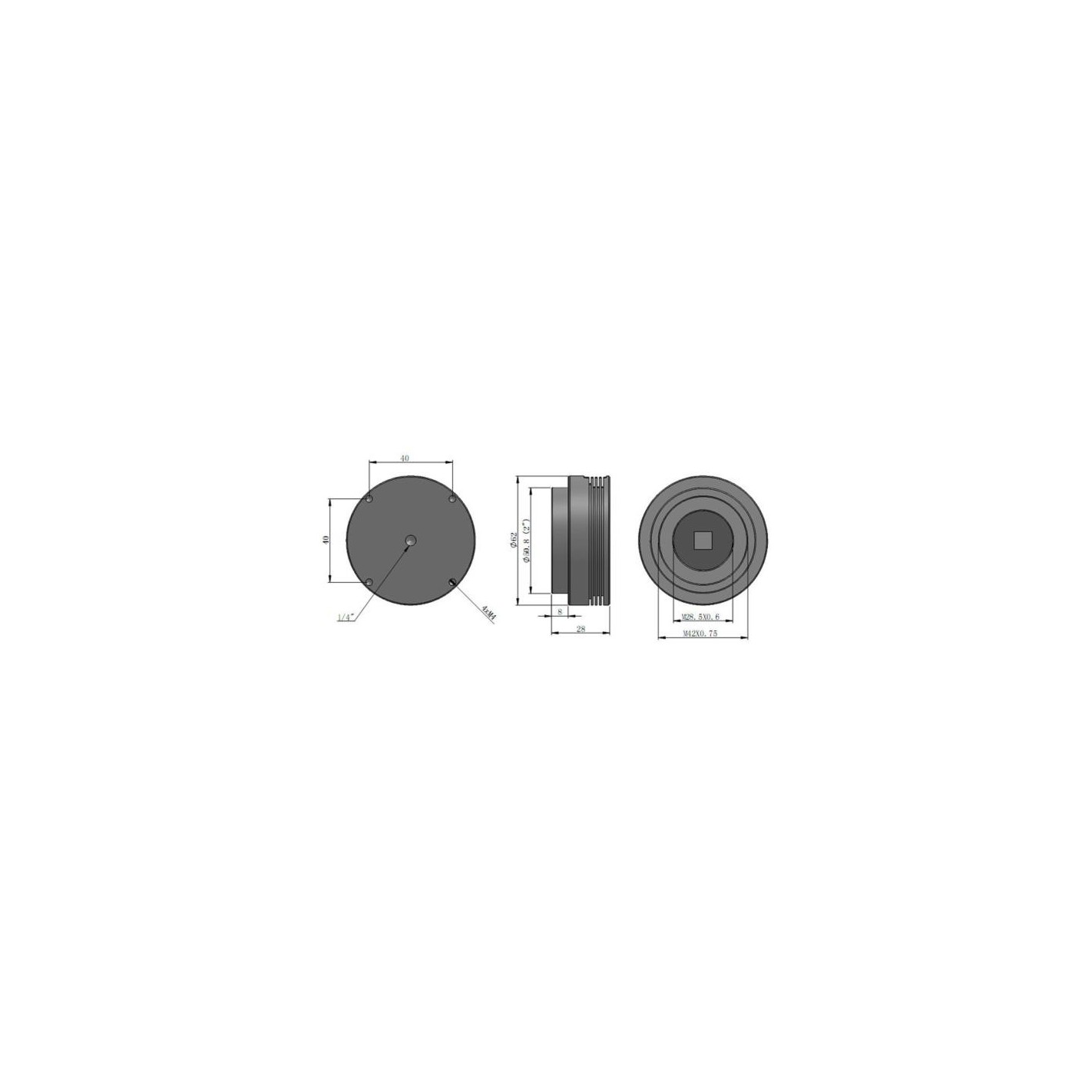

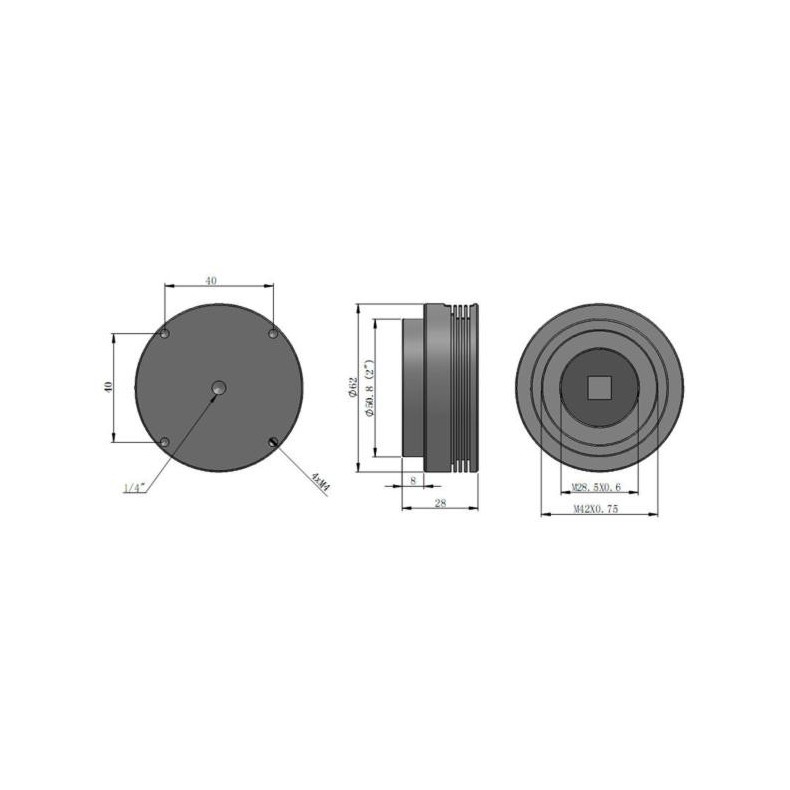

        • Dimensions: ⌀62 mm x 28 mm
        • Weight: 100 g
        • Working temperature: -5°C to 45°C (-4°F to 113°F)
        • Storage temperature: -20°C to 60°C (-4°F to 140°F)
        • Working relative humidity: 20% to 80%
        • Storage relative humidity: 20% to 95%
        • Resolutions supported
          • Binning 1×1
            • 1280X960@35FPS
            • 1280X720@46FPS
            • 1280X600@55FPS
            • 1280X400@80FPS
            • 960X960@46FPS
            • 1024X768@54FPS
            • 1024X600@69FPS
            • 1024X400@101FPS
            • 800X800@66FPS
            • 800X640@74FPS
            • 800X512@102FPS
            • 800X400@108FPS
            • 800X320@158FPS
            • 640X560@98FPS
            • 640X480@113FPS
            • 512X440@123FPS
            • 512X400@135FPS
            • 480X320@165FPS
            • 320X240@215FPS
          • Binning 2×2
            • 640X480@45FPS
