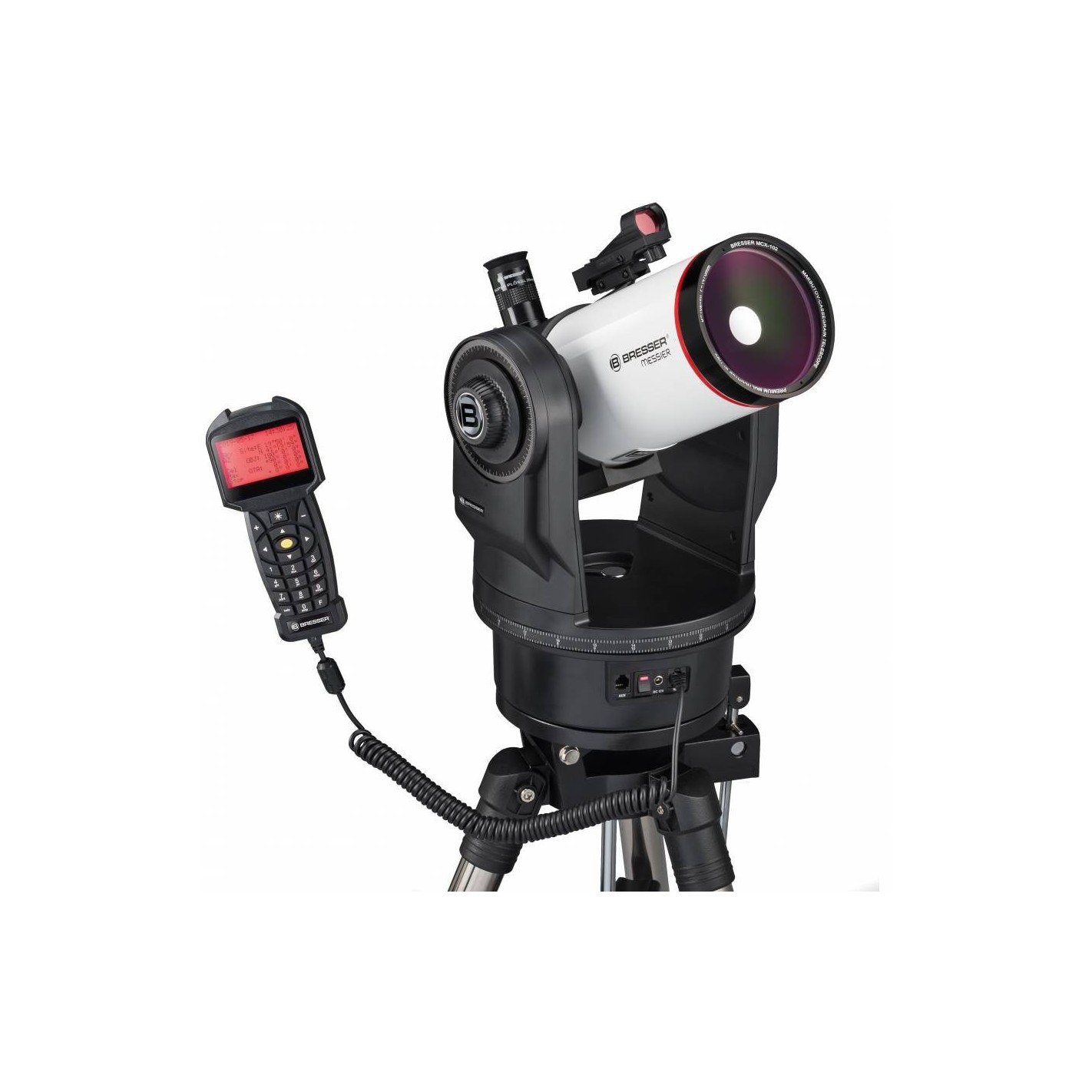

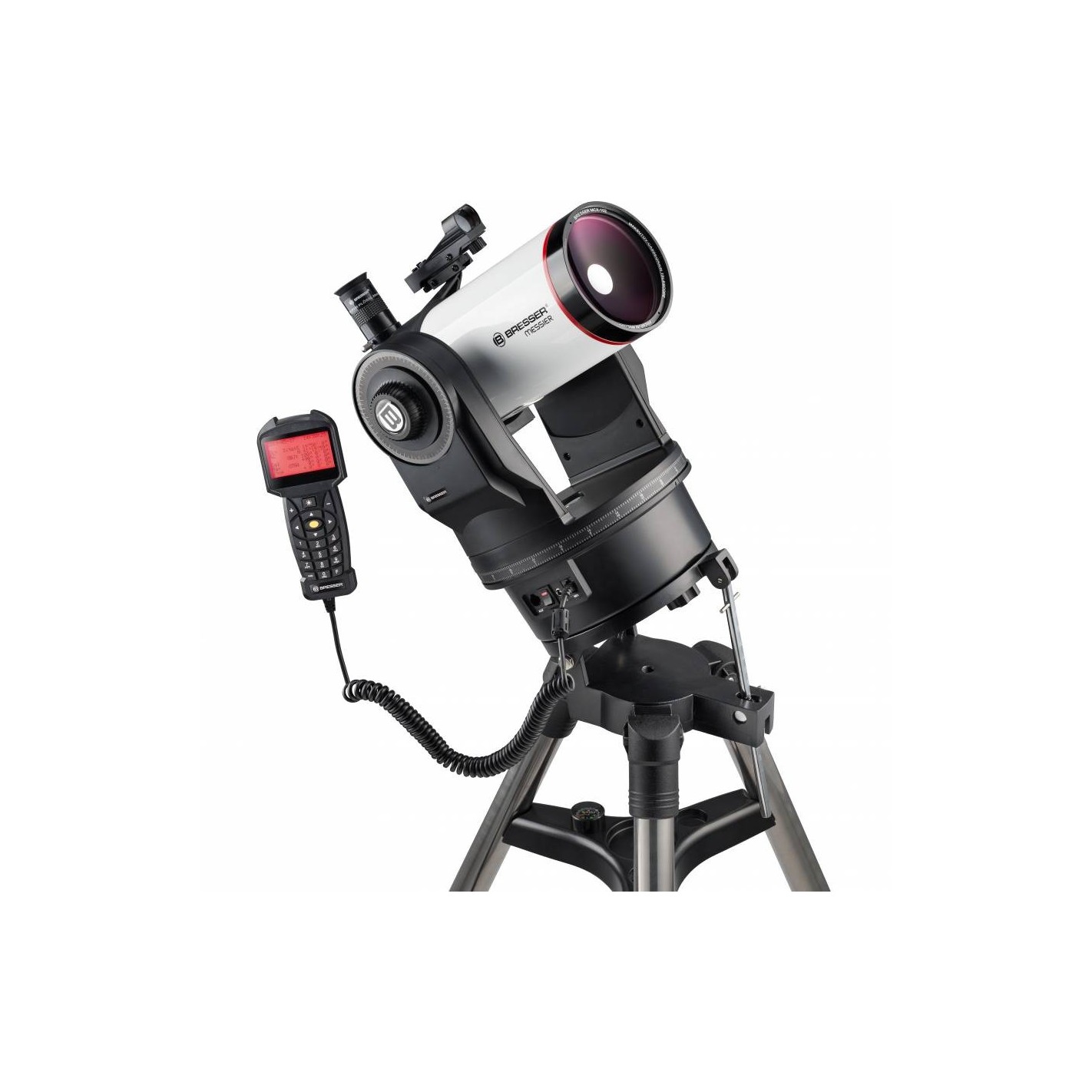

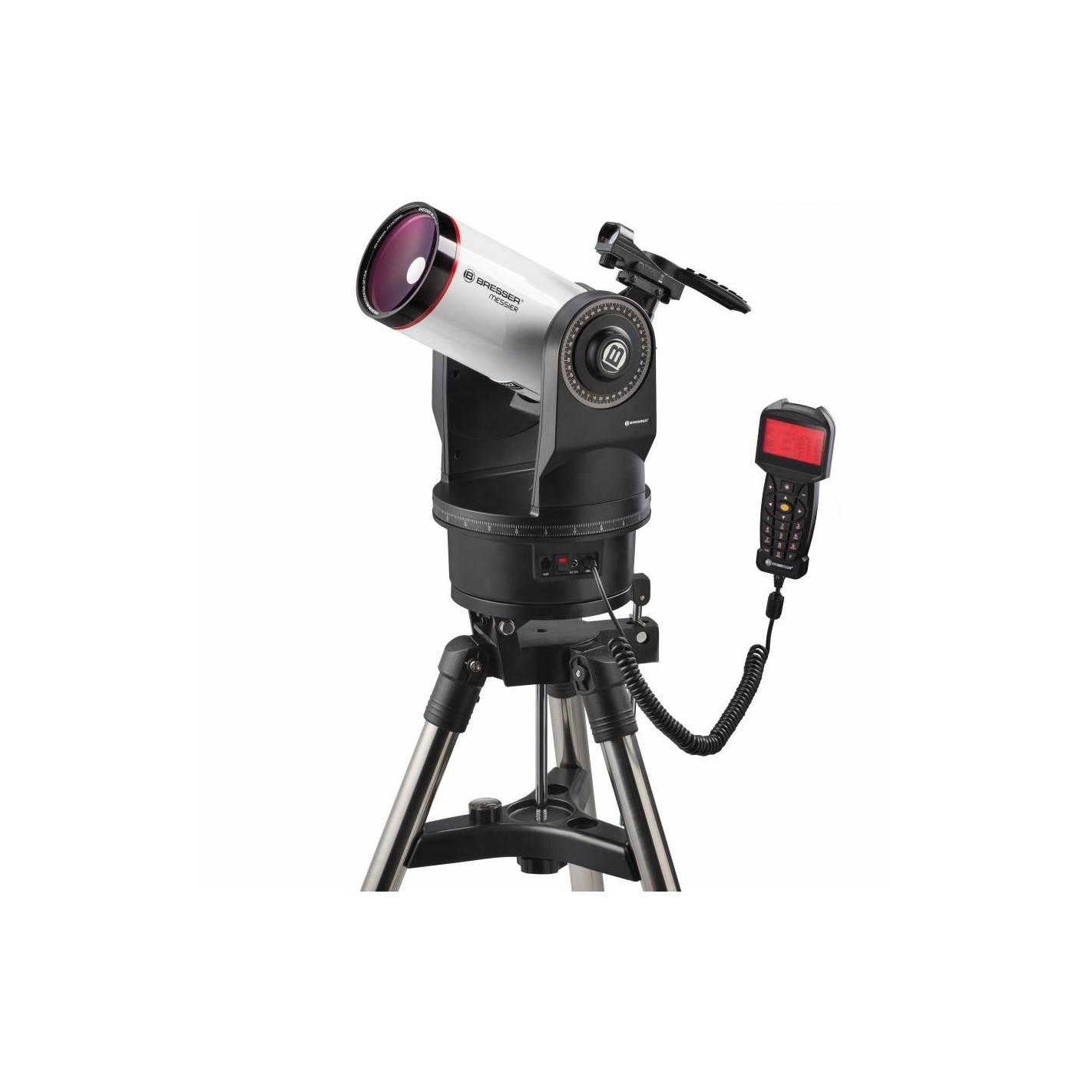

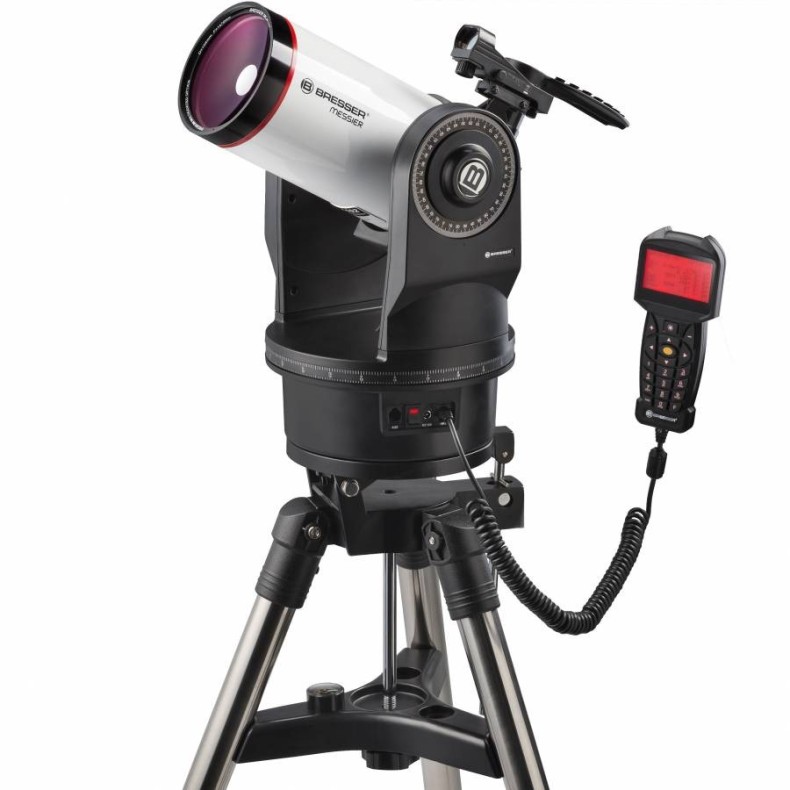

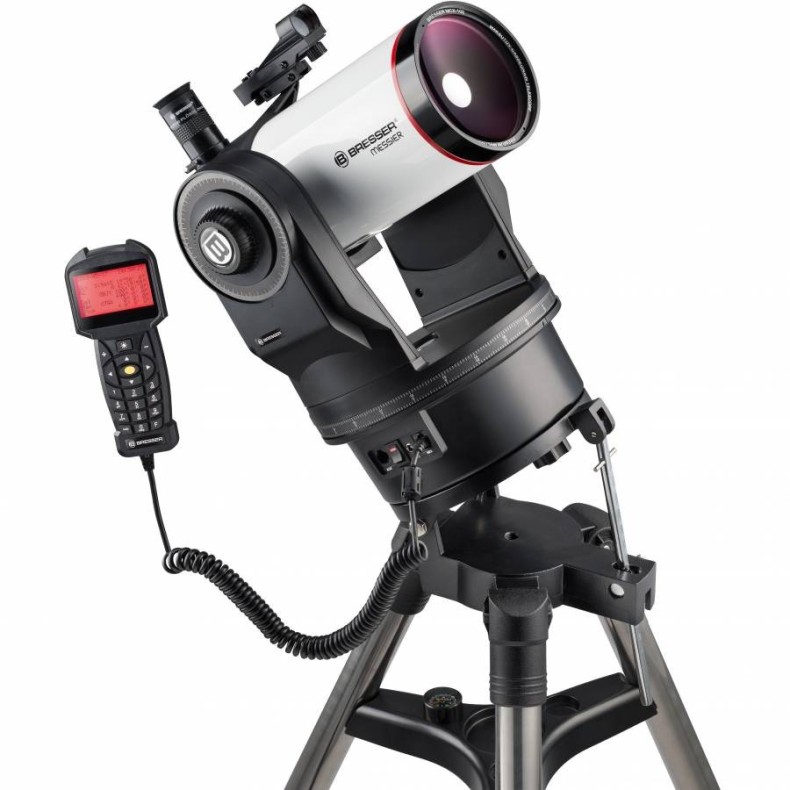

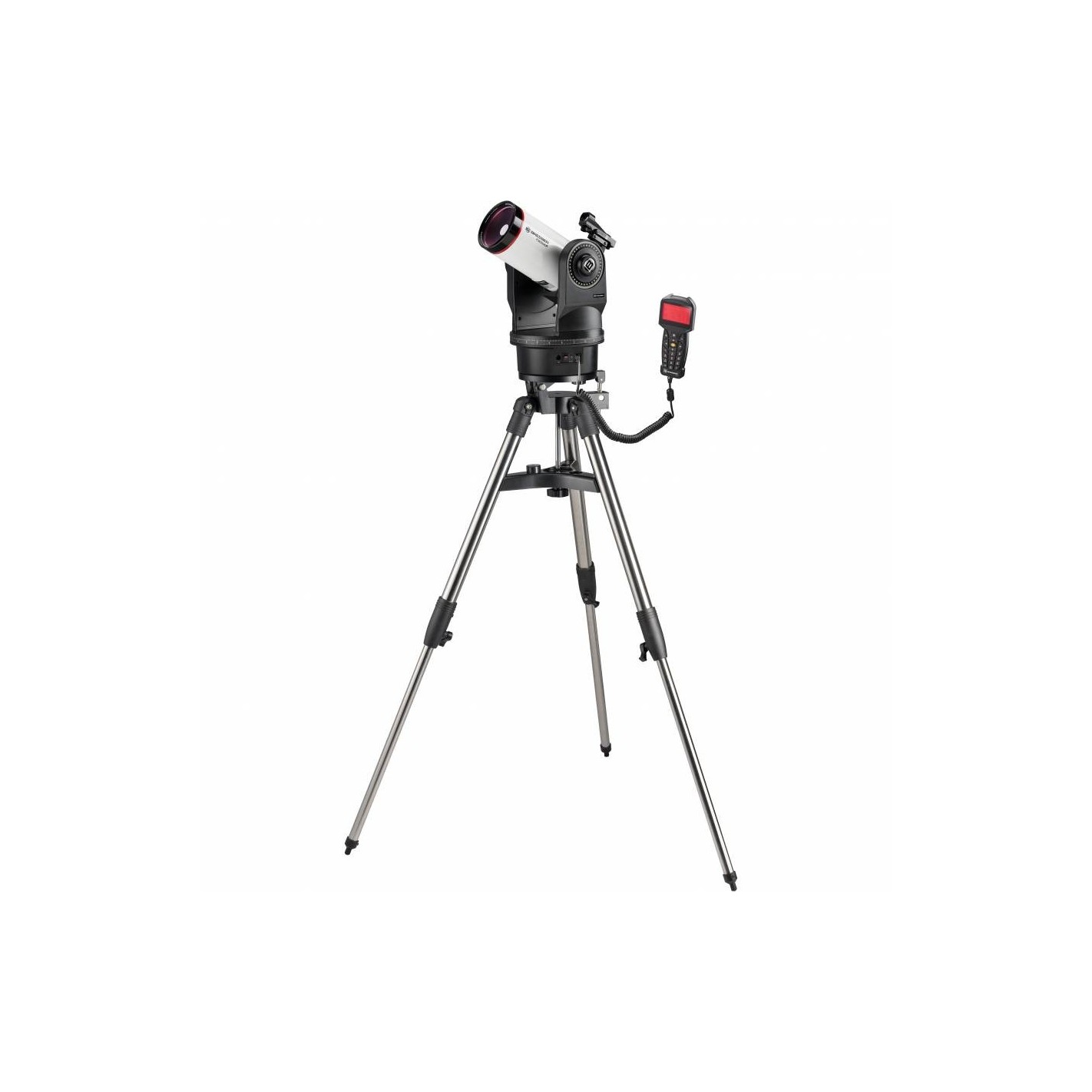

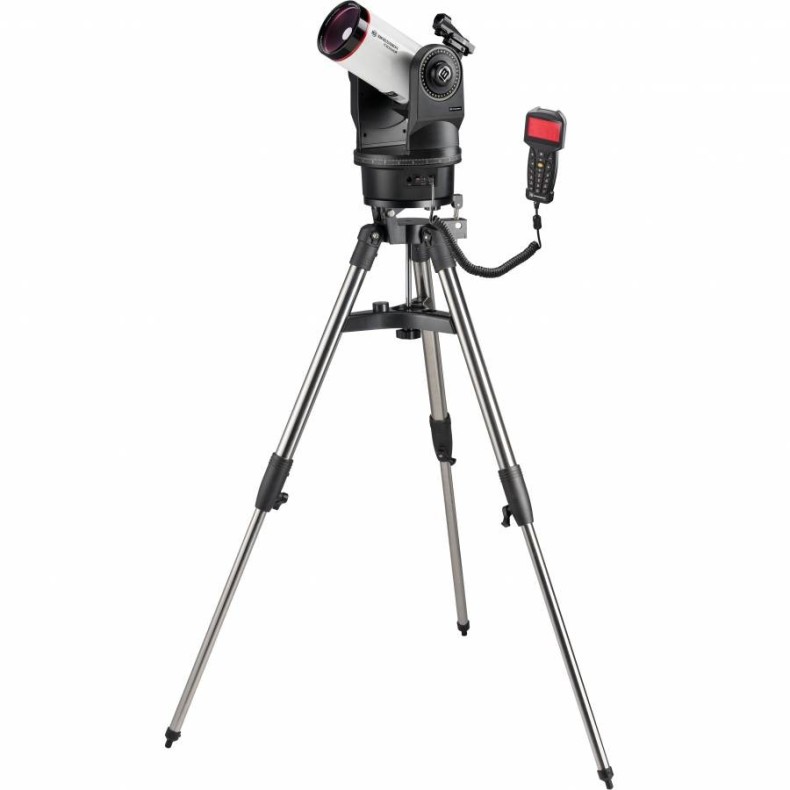

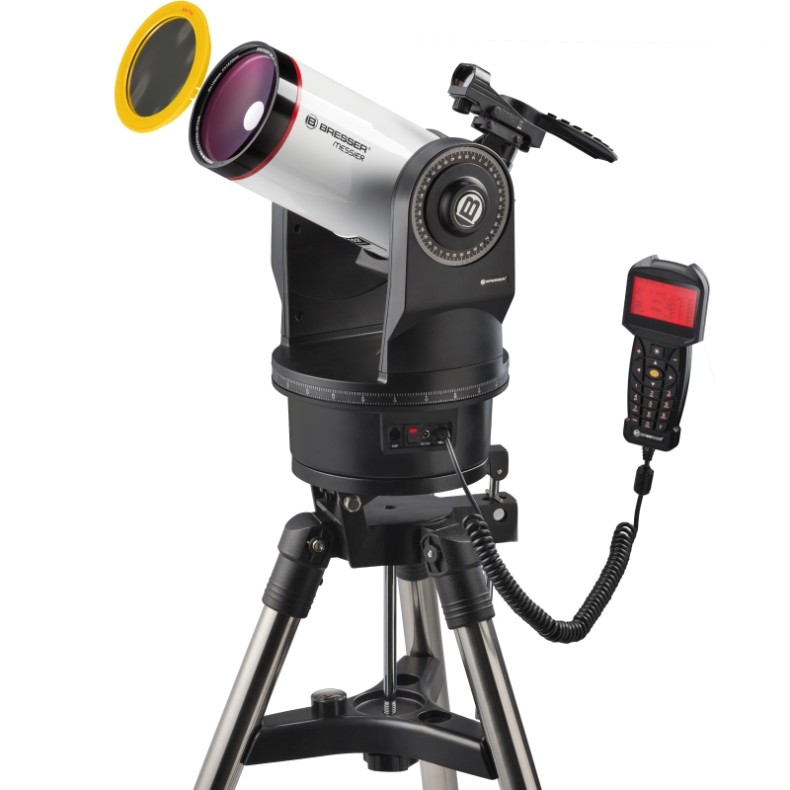

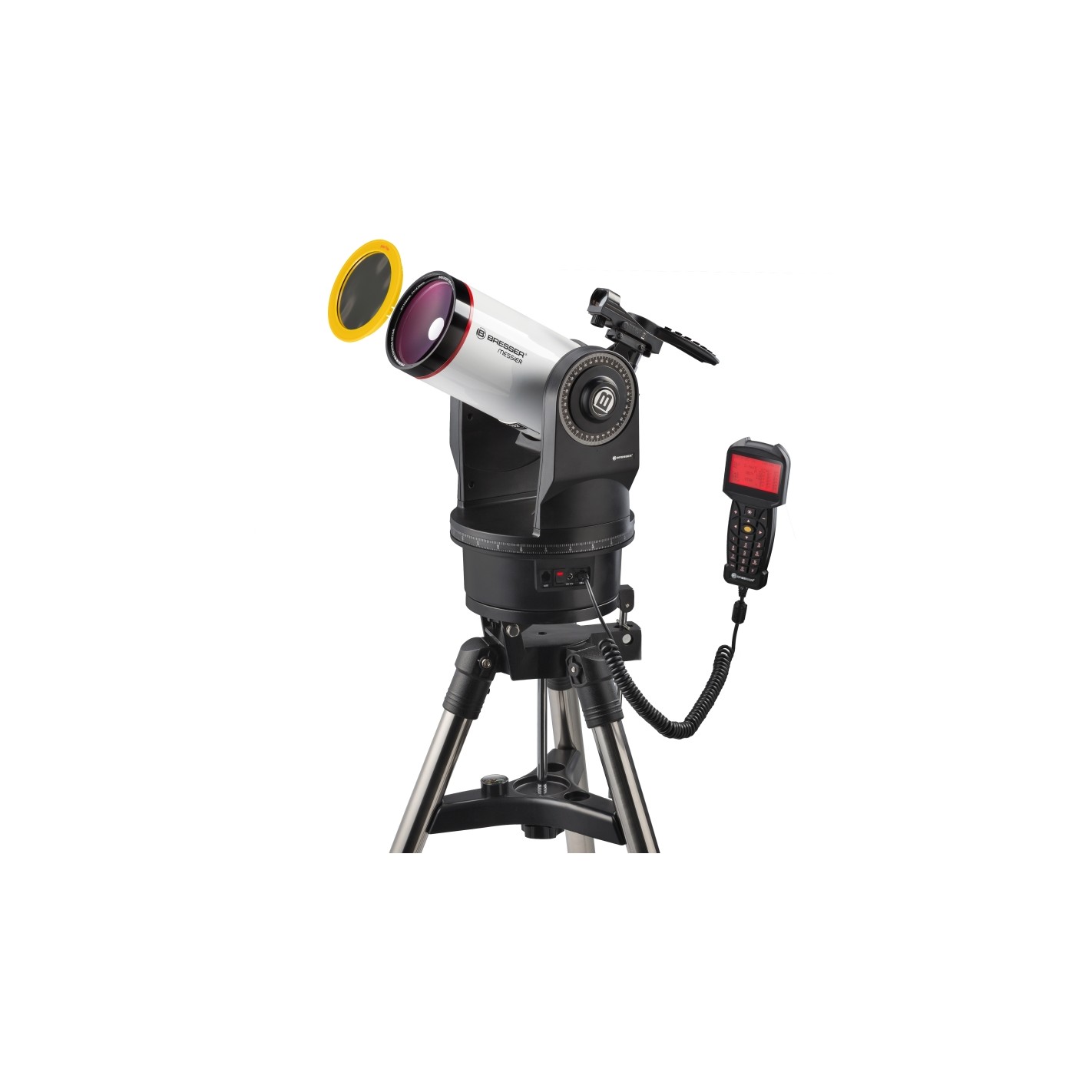

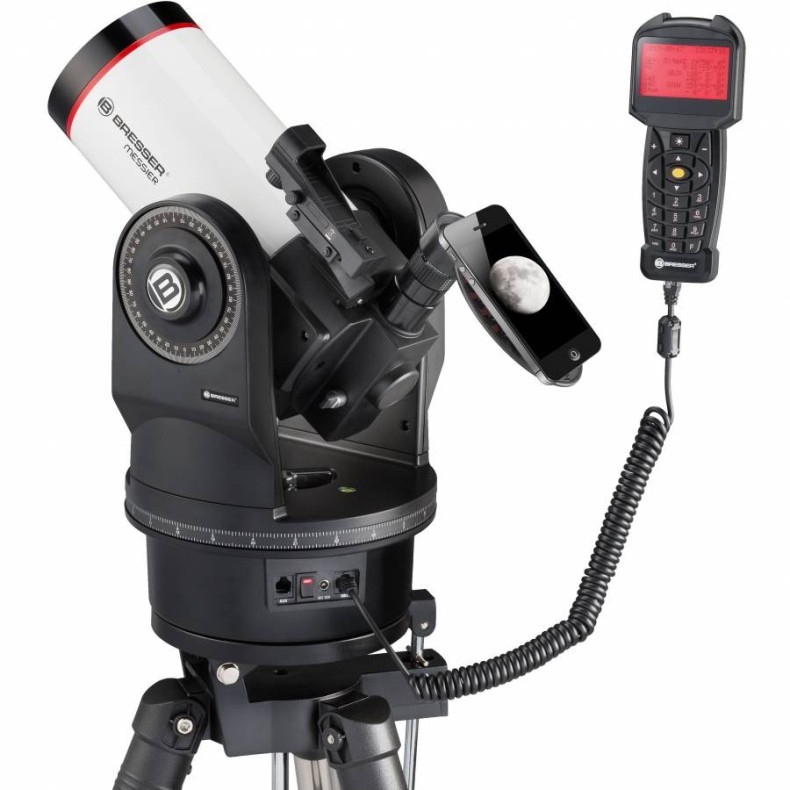

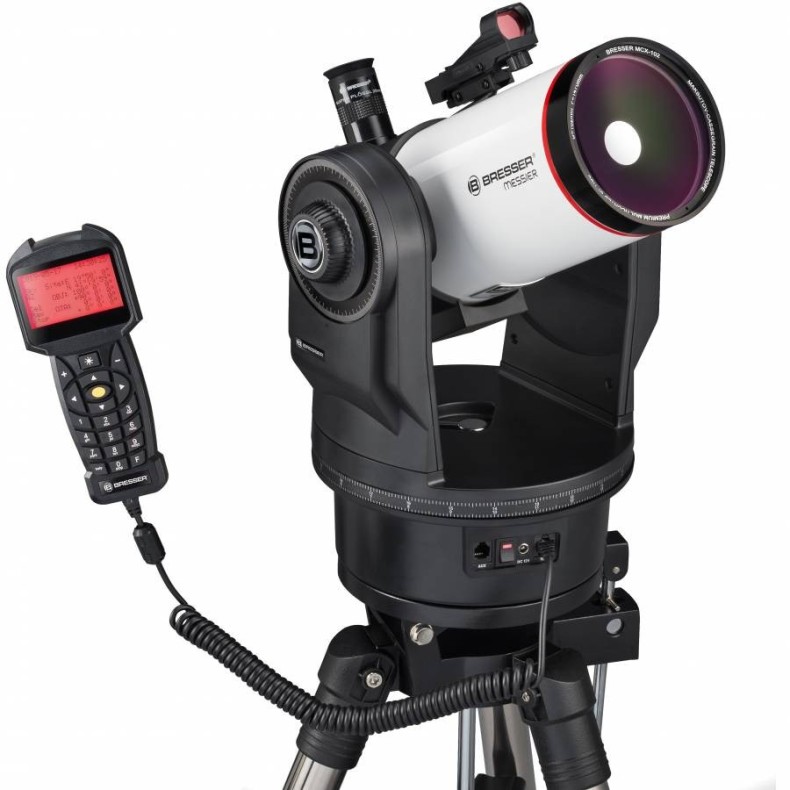

Telescope BRESSER MESSIER EQ/AZ MCX-102 GOTO 4701102
Summary of general characteristics:
- Compact universal starter telescope with GoTo function
- Proven, high-resolution BRESSER Maksutov-Cassegrain optical system with high resolution
- Proven GoTo control for navigation in the sky
- Handheld computer terminal with very large illuminated display
- Objects in database: more than 100 000 objects
- Rugged stainless steel telescopic tripod with polar wedge (AZ+EQ mode possible)
- LED-illuminated finder with CR-2032 battery included
The MESSIER MCX-102 telescope is your own small observatory with GoTo computer control. Simple to operate, easy to transport and universally usable.Observe the Moon, planets, galaxies and nebulae through
BRESSER's Maksutov-Cassegrain optics, which have proven themselves for years. The main features of this optical system are a sharp, high-contrast image and its very compact and enclosed construction - a universal telescope for those who enjoy quick observations!GoTo systems are important for astronomy enthusiasts, as they ensure that users spend less time searching for certain objects and more time with observation and photography. The BRESSER Messier GoTo control system allows you to operate the telescope with the included computer hand terminal. After entering basic data such as date, time and location, at least 1 known reference star is approached and confirmed. The
desired objects can then be selected from among several thousand objects integrated in the database and the MCX telescope can locate and track them.One of the outstanding features of the MCX telescopes is the
very sturdy aluminum fork mount and the universal stainless steel field tripod. Both guarantee secure support and minimization of unwanted vibrations during observation. In
addition, the drives of both axes are equipped with precision ball bearings and precise steel/brass helical gears. This
provides smooth and quiet star tracking.With the included smartphone holder you can adapt your smartphone camera directly behind the SPL26mm eyepiece or mount your camera on the M35 threaded connection and take astronomical photos of the Moon and planets. You'll be amazed at what this MCX microscope is capable of with little effort. The 90° folding mirror at the
rear of the telescope allows you to switch quickly and conveniently between using an eyepiece or a camera.For following the stars with a telescope or a camera, there is nothing to compare with the precision of a German equatorial or parallactic mount. It's all about tracking objects as accurately as possible when they rise in the east and set in the west. For users, with a German equatorial/parallax mount, it is very easy to keep the celestial object in the center of the eyepiece for a longer time. This setup option (EQ mode) is already included in the new MCX telescope. For this purpose, the polar wedge on the tripod head can be tilted appropriately and adjusted to the degree of latitude of your location. Therefore, you can quickly switch between these two types of installation (AZ/EQ), without having to buy additional accessories!Of course, quick use of the MCX telescope without a tripodis also possible , only as a tabletop device!This telescope has so many advantages that it is really worth the purchase. You will be thrilled!FEATURES
- Compact universal starter telescope with GoTo function
- Easy to operate and easy to transport
- Proven, high-resolution BRESSER Maksutov-Cassegrain optical system with high resolution
- Aperture diameter: 102 mm; focal length 1470 mm
- Fully FMC-coated optics for a clearer image
- Rugged aluminum fork mount with drive motors on both axes
- Proven GoTo control for navigation in the sky
- Computer handheld terminal with very large illuminated display
- Multi-language menu: DE, GB, FR, ES, IT, ES, IT
- Objects in database: more than 100 000 objects

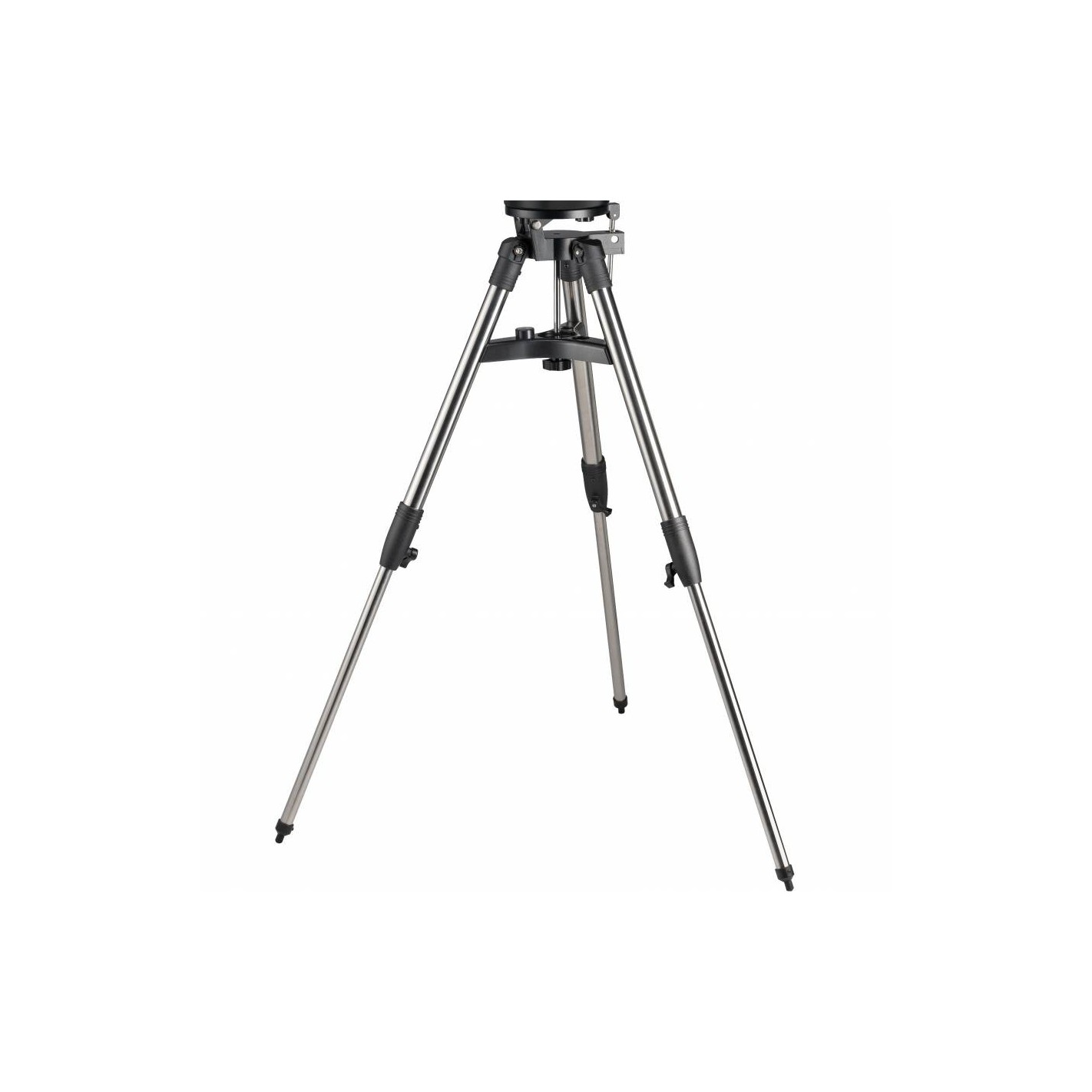

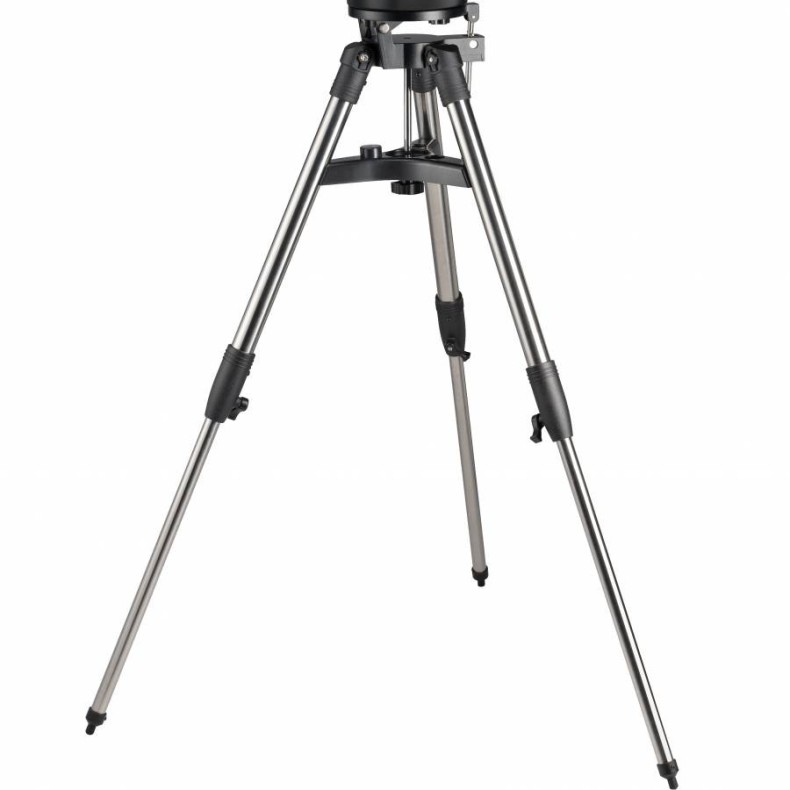

- Sturdy stainless steel telescopic tripod with polar wedge (AZ+EQ mode possible)
- Can also be used without tripod as a table-top device
- 90° folding mirror: allows faster switching between eyepiece and camera
- Integrated battery compartment in base for 8 AA batteries (batteries not included)
- Integrated spherical level for easy leveling
- Enlarged main mirror (116 mm) for a clearer image
- Precise steel/brass worm gear on both axes
- Manual gear clamping devices on both axes

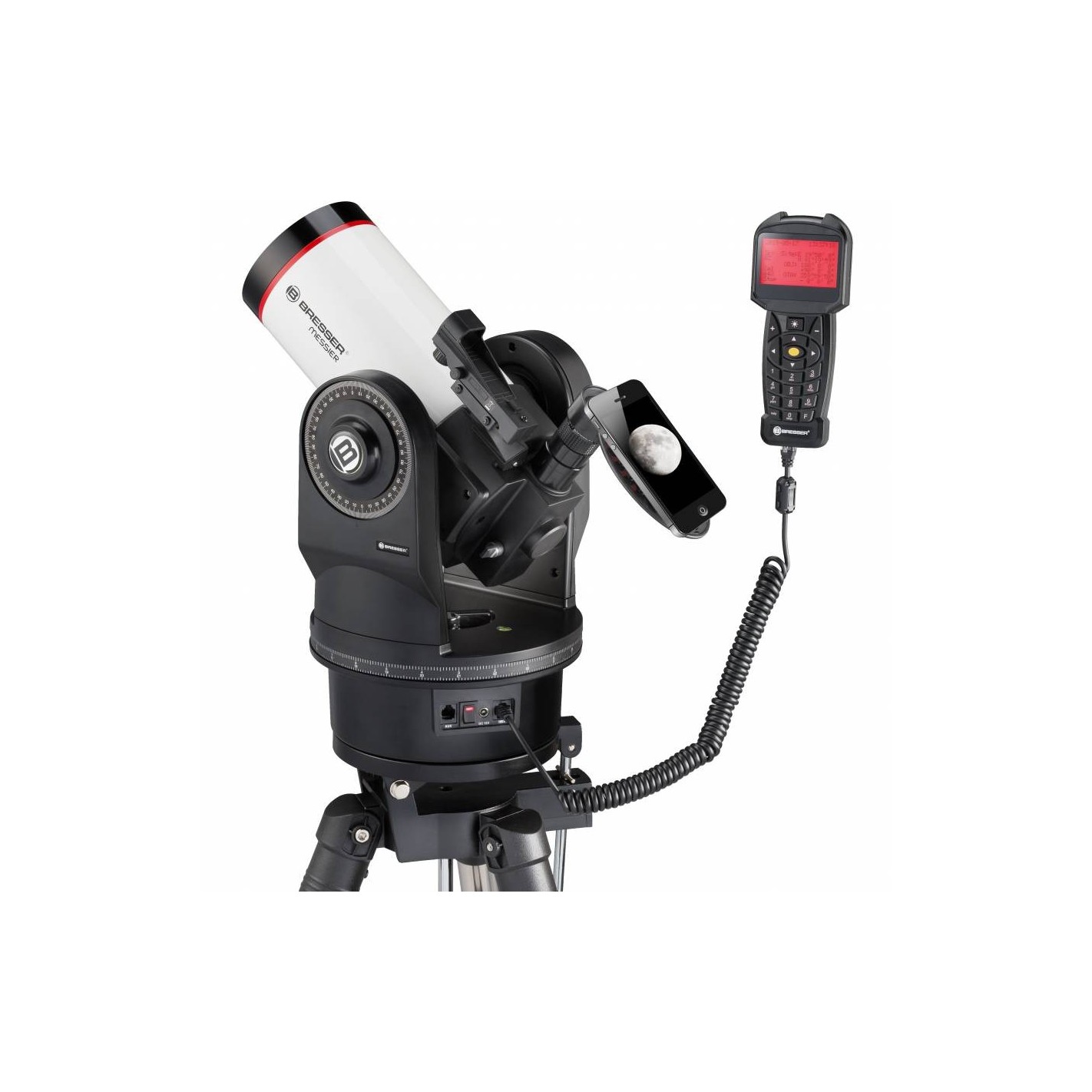

- Smartphone holder included for taking pictures through the telescope
- LED illuminated finder with CR-2032 battery included
- BRESSER Super Plössl 26 mm (1.25") eyepiece included (56x)
- Eyepiece diameter: 31.7 mm (1.25")
- Camera connection thread: M35 x 1 mm (1.25")
- External connection for 12 volt power supply: yes
- Adjustable working height on tripod: 105 - 155 cm (105 - 155 in.)
- Reasonably achievable magnifications: 36x - 204x
SCOPE OF
DELIVERY

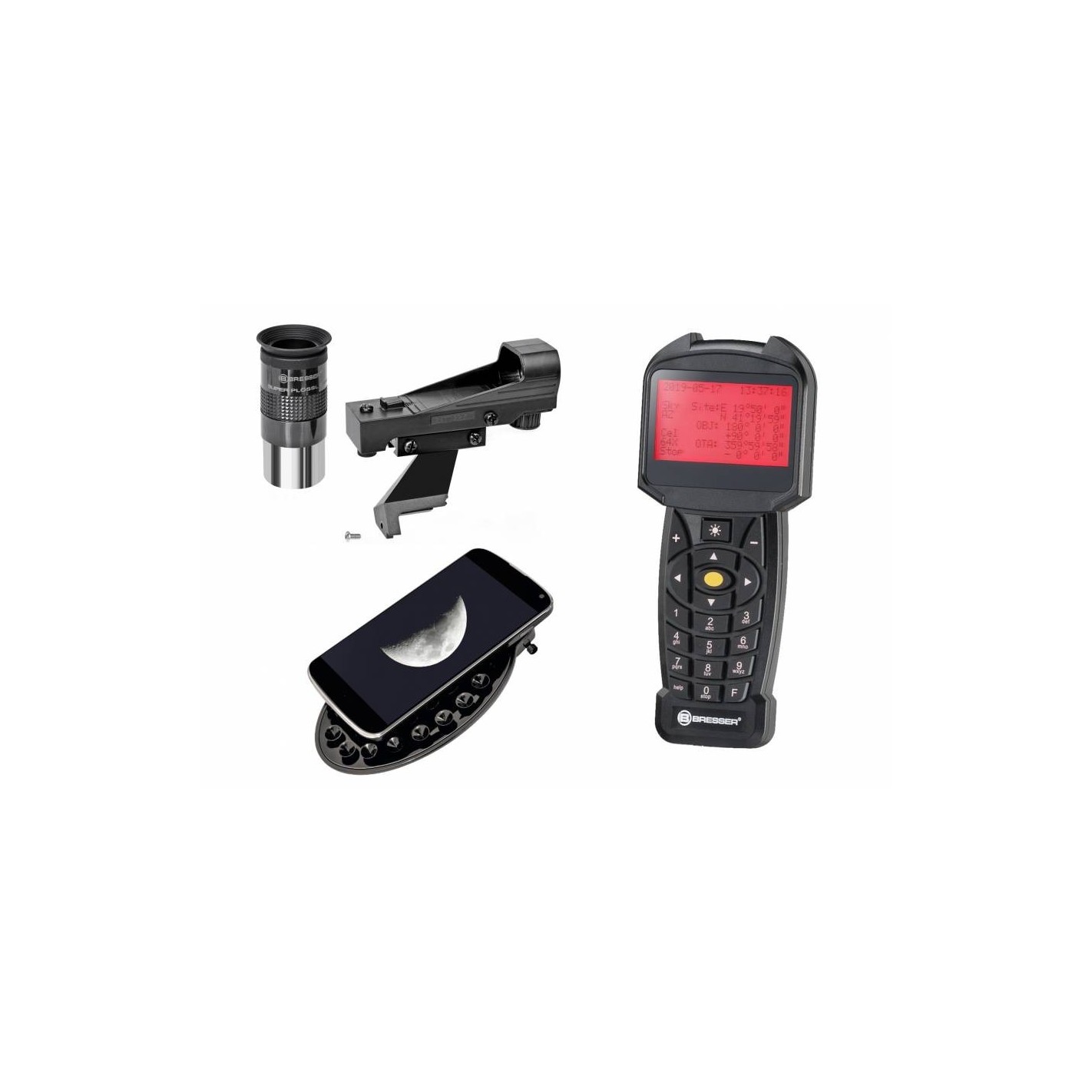

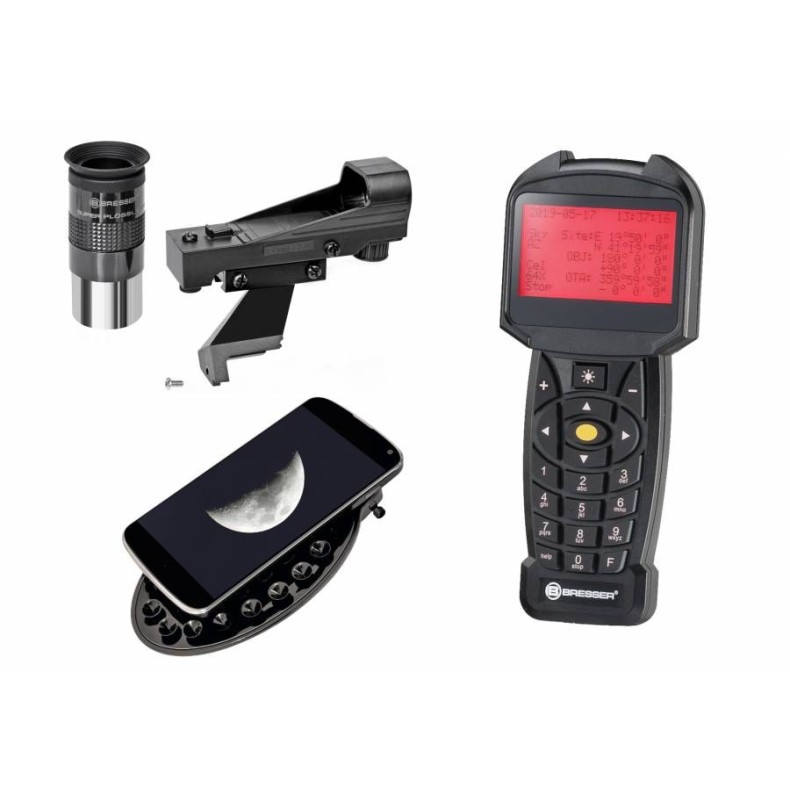

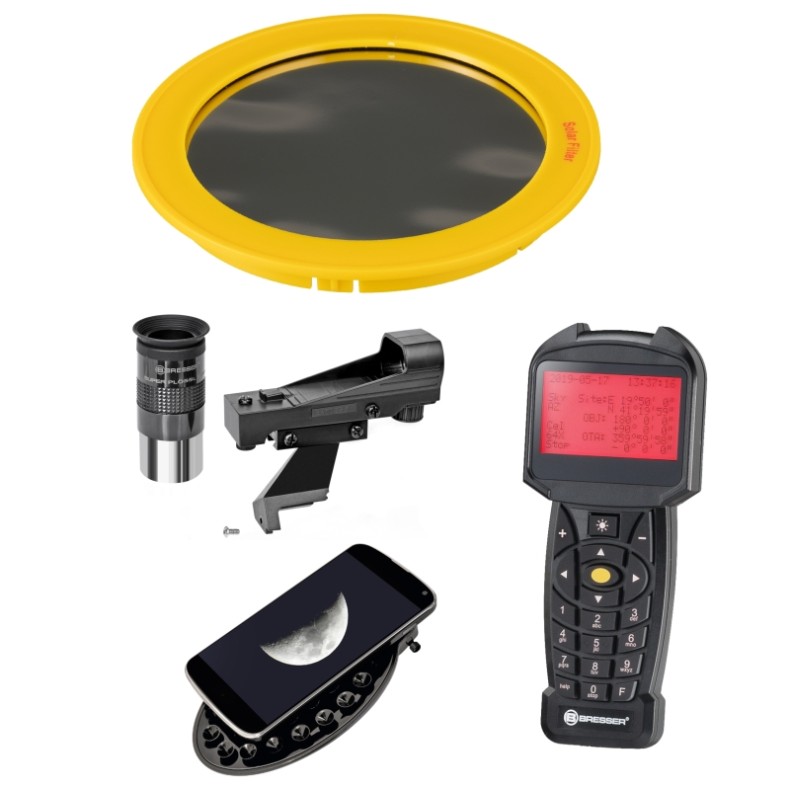

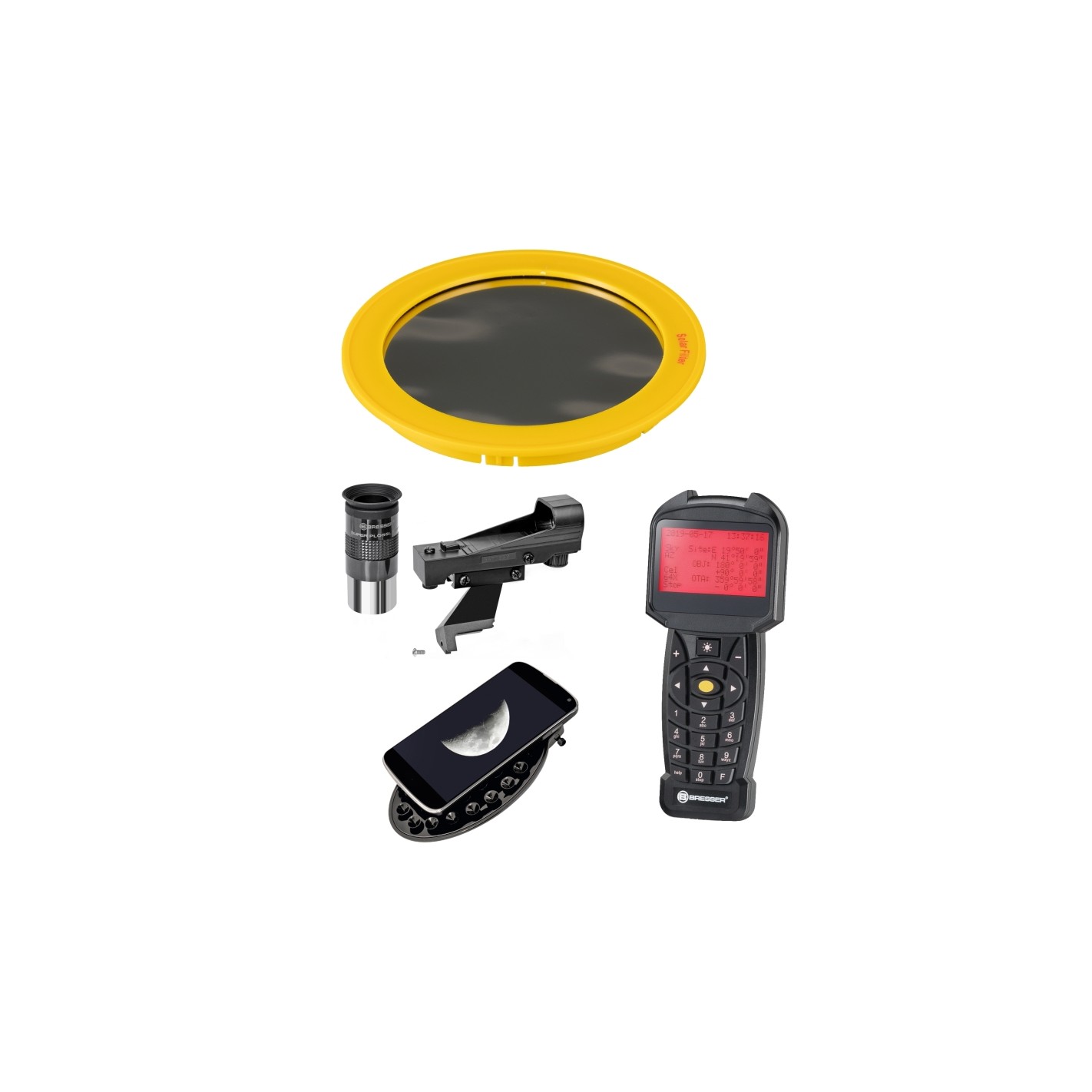

- MCX optical tube on fork mount
- GoTo handheld computer terminal with strap
- Field tripod with AZ/EQ polar wedge
- Smartphone holder for taking pictures through the telescope
- BRESSER Super Plössl 26 mm (1.25") eyepiece
- LED illuminated finder
- Dust protection caps
- Operating instructions
| OPTICAL SPECIFICATIONS |
|---|
| Optical design |
Maksutov-Cassegrain |
| Magnification of |
36 |
| Maximum useful magnification |
204 |
| Primary Mirror Material |
BK-7 |
| Mirror diameter |
116 mm |
| Material Front lens/Corrector plate |
BK-7 |
| Focal length |
1470 mm |
| Focal ratio |
14.4 |
| Resolution |
1.35 seconds of arc |
| Treatment type |
Multi coated |
| Mount type |
Altazimuthal and equatorial hairpin mount |
