Field flattener TS PHOTOLINE FLAT 3 connection M92

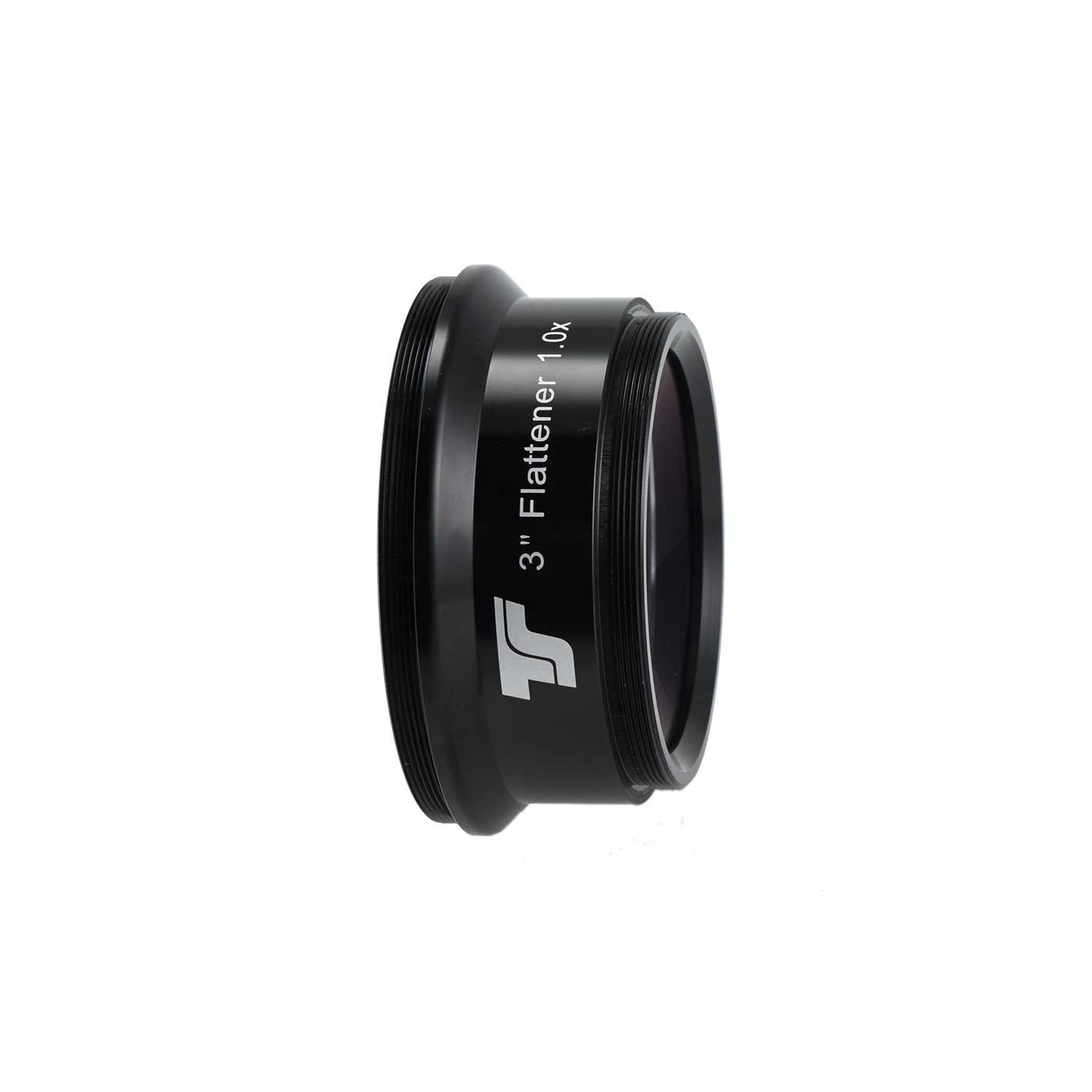

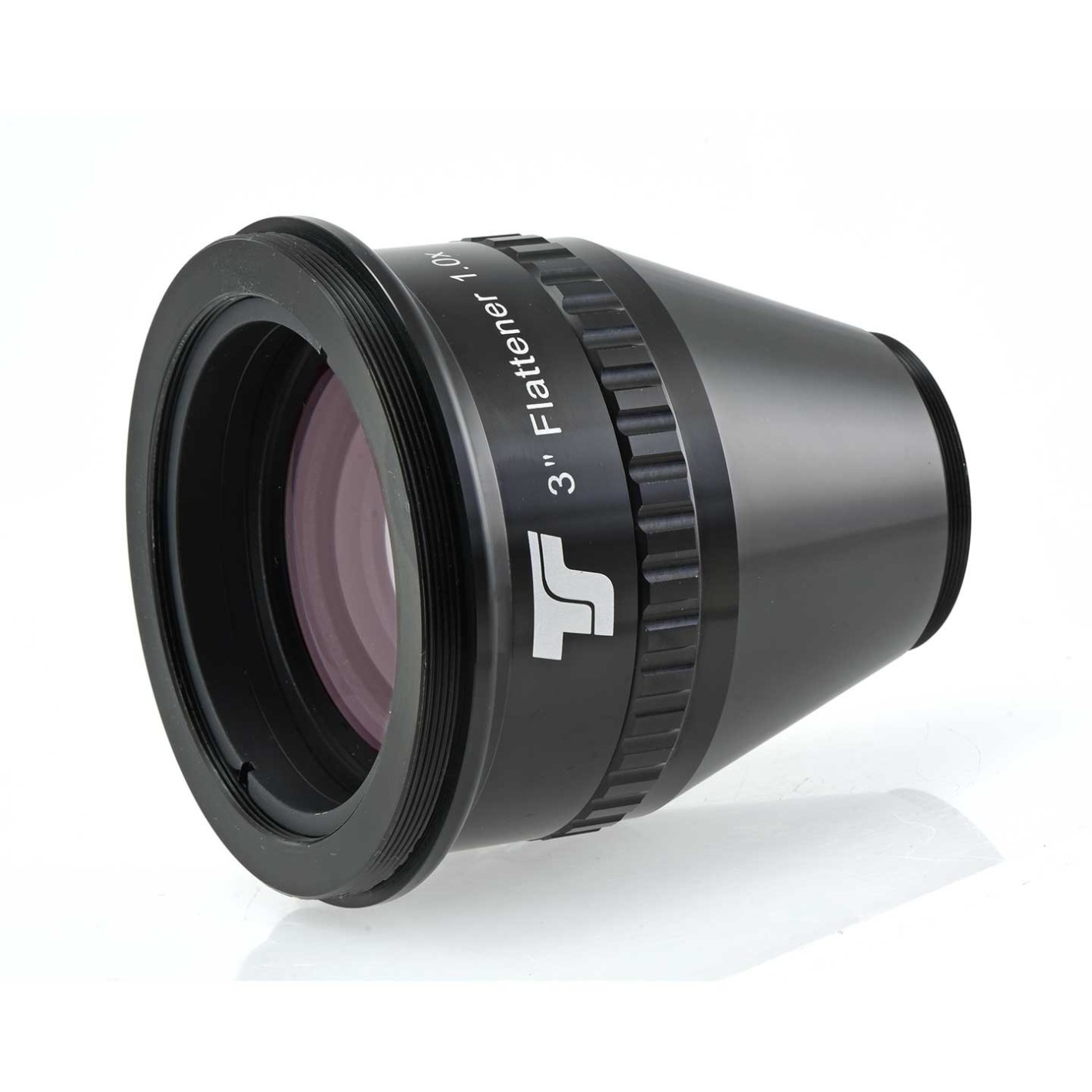

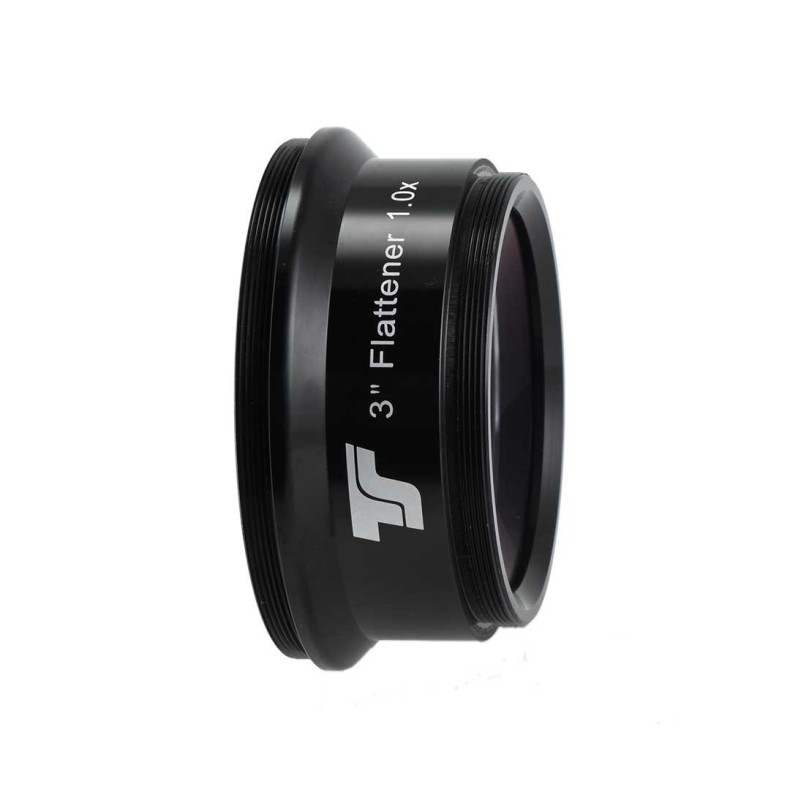

The TS PHOTOLINE 3" field flattener is perfect for professional Astrophotography with 3" focusers .Perfect for flattening large CCD fields thanks to its 68mm aperture.

The PHOTOLINE TS Flatteners with a 68mm free aperture have been designed for large format sensors. It corrects field curvature without altering the focal length. The flattener is screwed directly to the focuser to optimize the rigidity of the system.

The field flattener TS, apart from offering superb image quality, has another great advantage: its backfocus is significantly larger than 55mm, which is the usual value offered by most field flattener.This allows additional accessories to be used between the flattener and the camera, such as off-axis radial guides, filter-holder wheels...

Especially suitable for the following equipment:

William Optics FLT APOs of 98, 110 and 132mm (with 3.5" focuser)
Astro Professional Triplet APO of 115 and 130mm (with 3" focuser)
Triplets TS of 102mm, 115mm and 130mm.
TS PHOTOLINE ED APOS Deluxe with 3 " focusers
TS 152mm - Wide field refractor.

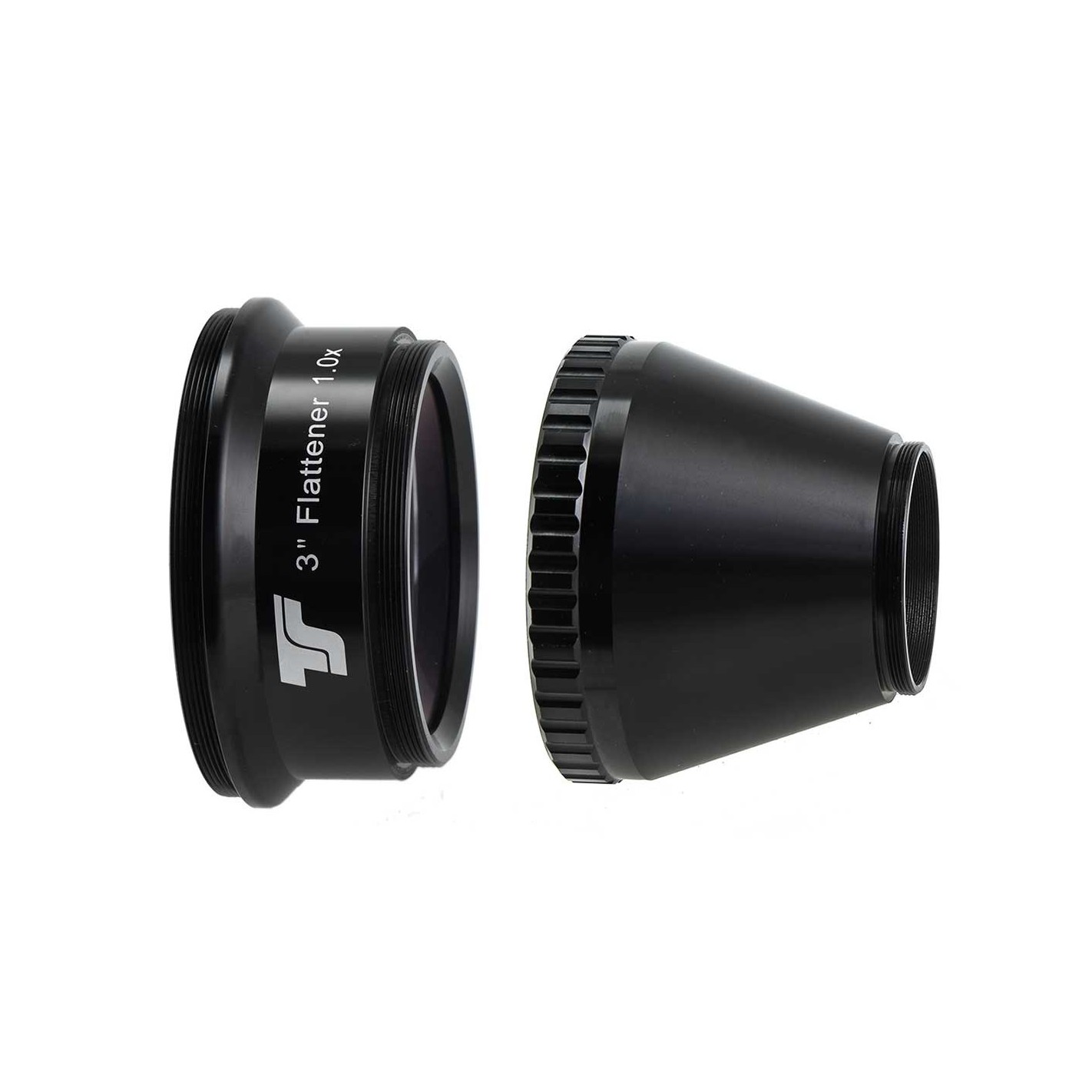

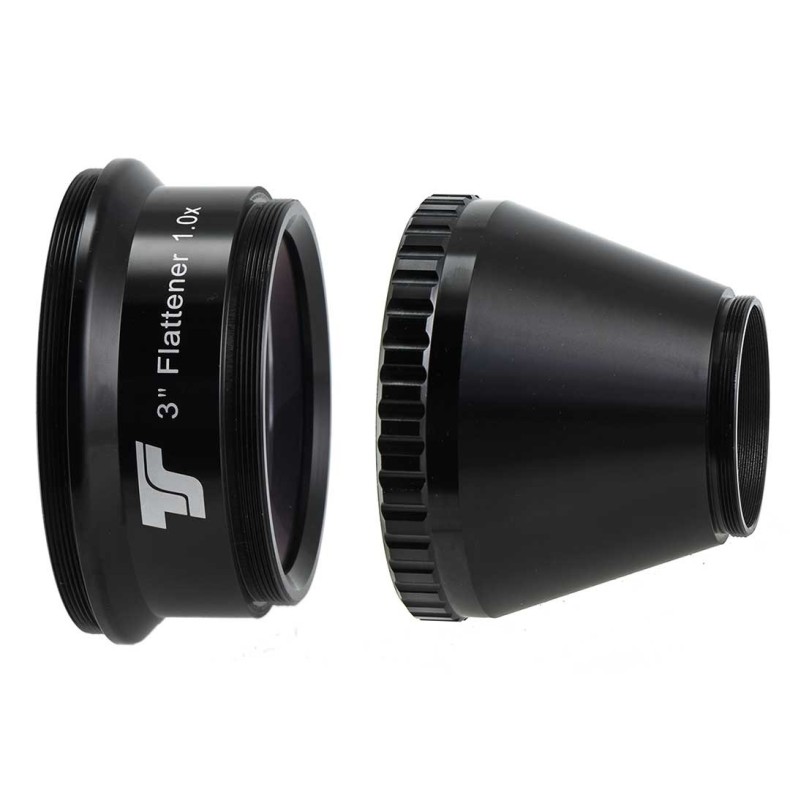

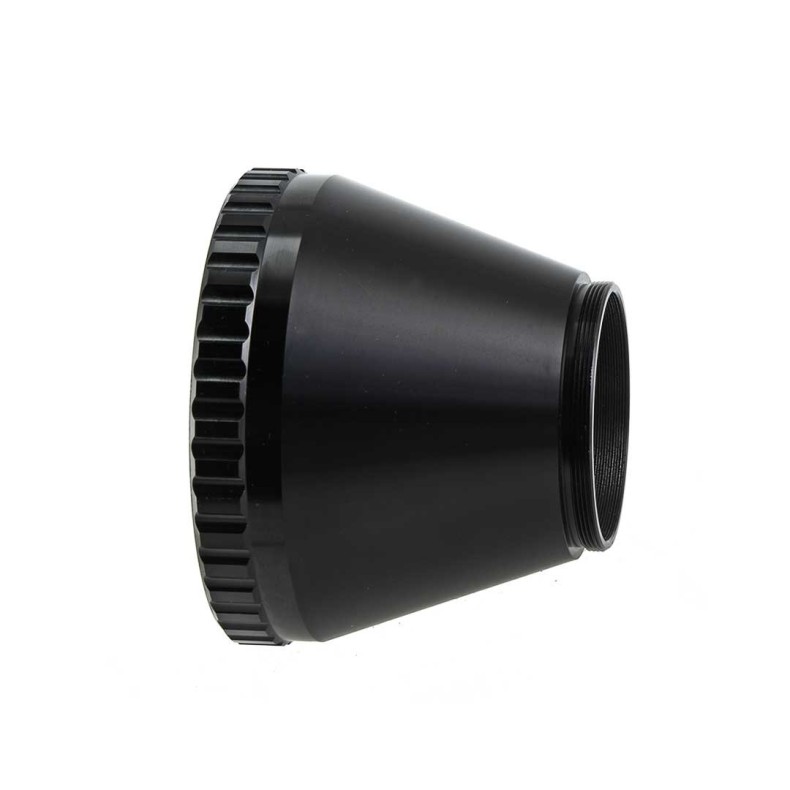

The appropriately sized focuser connection thread allows the full aperture of the 68mm focuser to be used.With an M48 bayonet adapter mounted, the distance is automatically corrected to accommodate DSLR cameras on most refractors.

Technical specifications:

• Type: Flattening and field corrector for refractors
• Treatment: Fully multi-coated
• Telescope side connection: M92x1 thread (male) - length 6.5 mm
• Connection on camera side: M80x1 thread (male) - length 7.5 mm

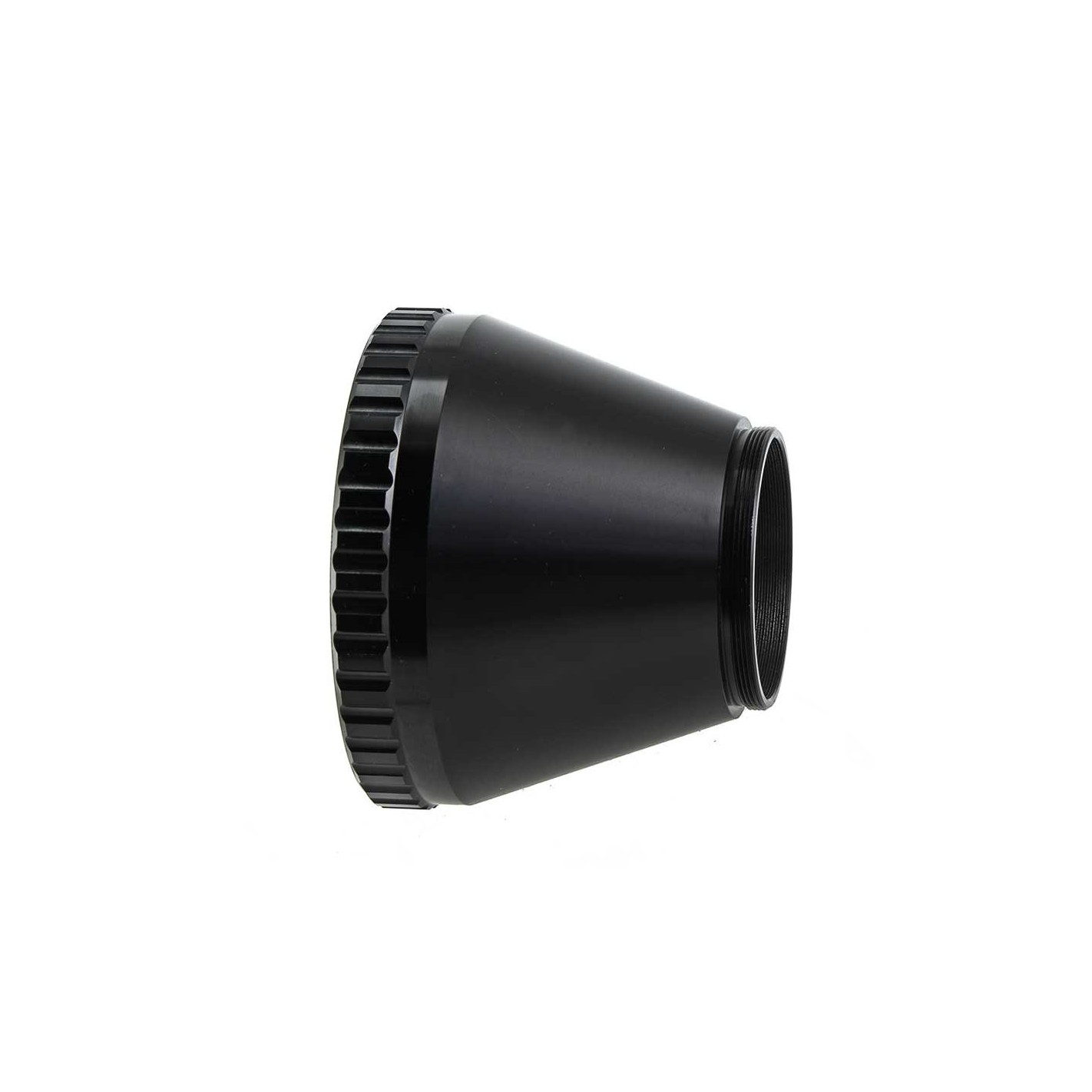

• Length of the adapter to M48x0.75: 61 mm

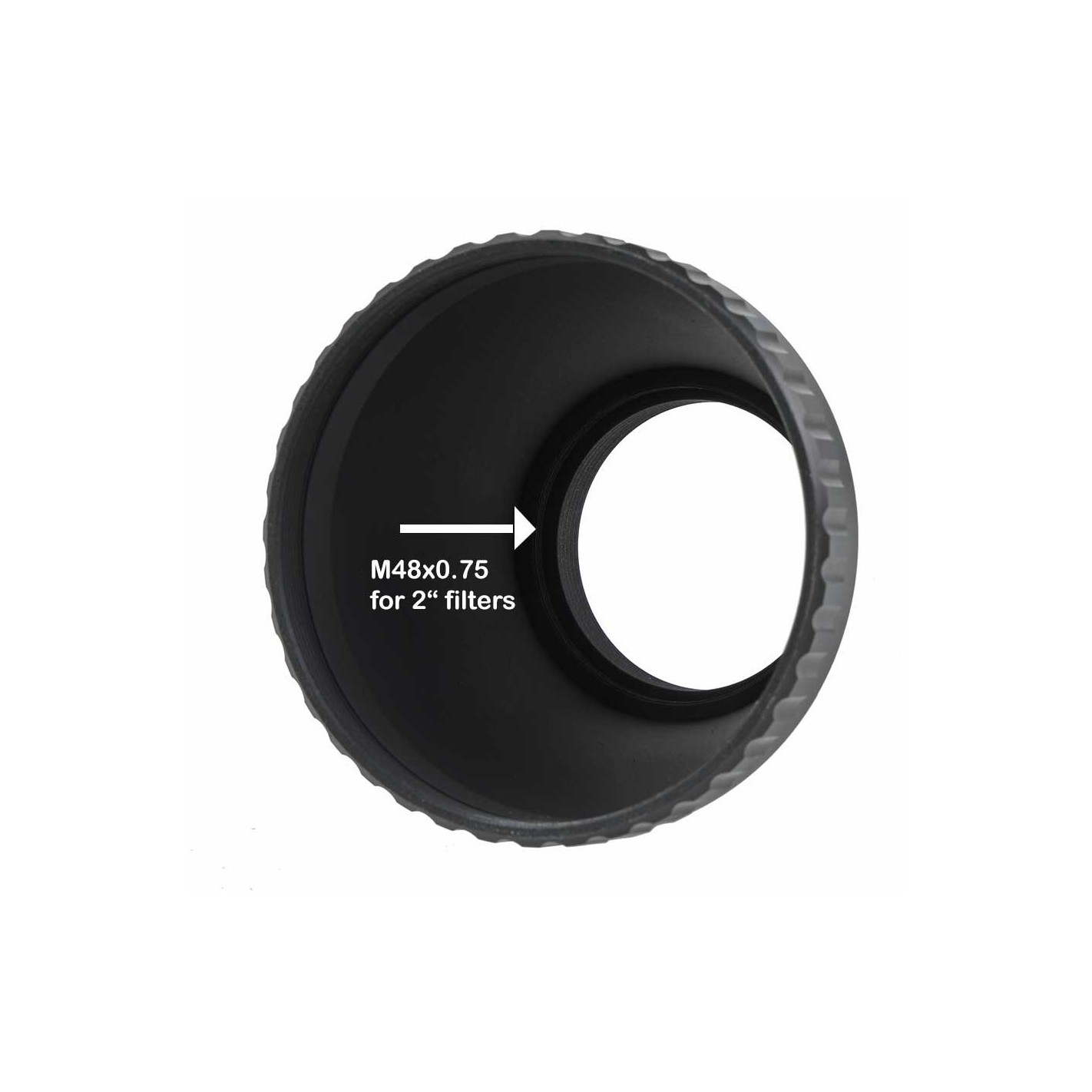

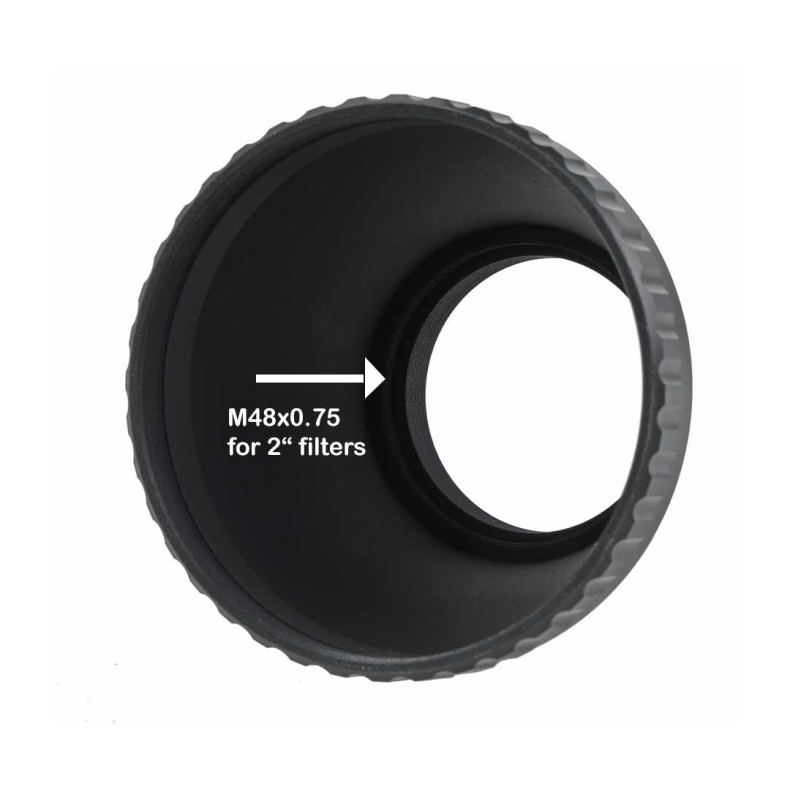

• Adapter connection thread on camera side: thread M48x0.75 (male) - length 5.5 mm
• Working distance of the M80x1 thread: 116 mm
• Working distance of the M48x0.75 thread of the adapter: 55 mm
• Diameter of the corrector: 96 mm
• Length of corrector: 29 mm (without male threads, without M48 adapter)
• Weight: approx. 400 g
