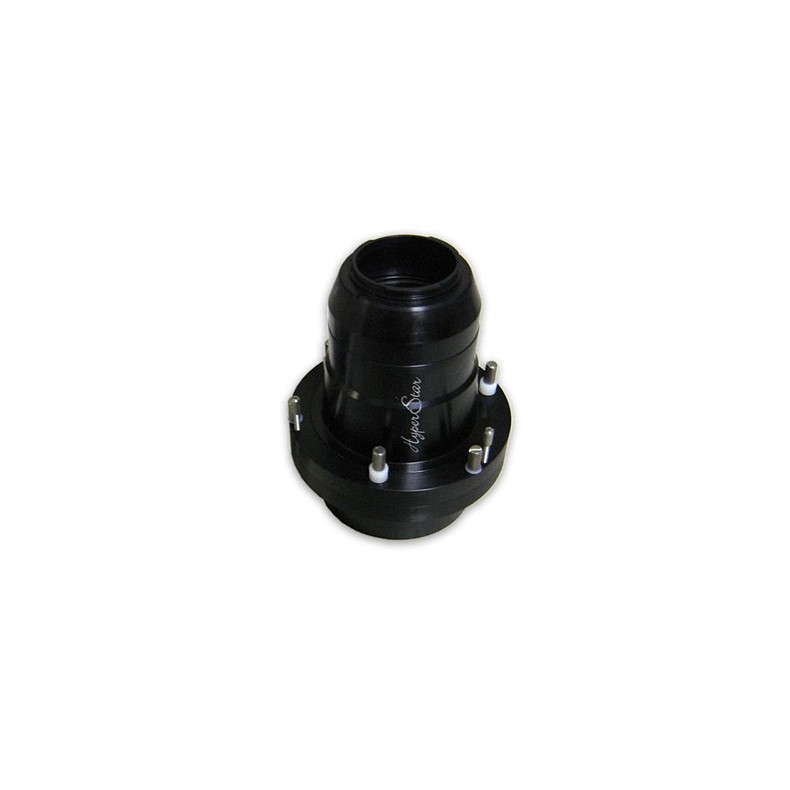

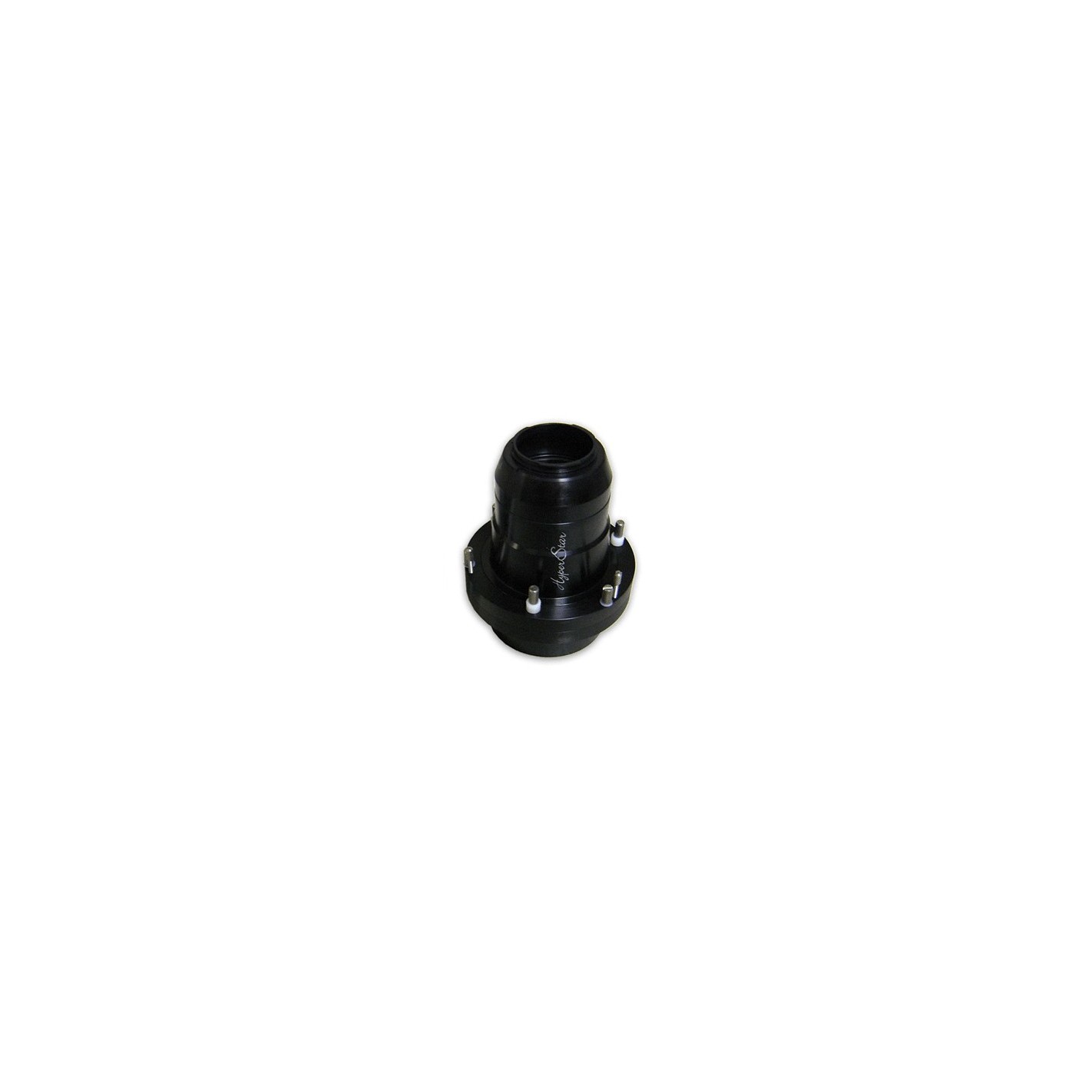

The HyperStar for C14 has been designed based on the innovative Fastar feature of CELESTRON's traditional SC tubes. This feature allows easy removal of the secondary mirror of CELESTRON Schmidt-Cassegrain telescopes that are compatible with Fastar systems (indicated on the front of the tube, just in front of the secondary mirror). By installing the HyperStar lens in its place, a CCD camera can be attached to the front of the telescope allowing a wider field image to be captured and the possibility of much brighter astrophotography.
Removing the HyperStar to return to the telescope's original f/10 setting is simple and quick. It only takes a minute or two, does not require the use of tools, and since the secondary mirror has a marking that makes its position unique, the telescope does not need to be recollimated.
The HyperStar lens system works with a wide variety of cameras, such as the ATIKoRION, MEADE, MALLINCAM, SBIG, STARLIGHT XPRESS and many more. Each camera may require a different coupling adapter to preserve the HyperStar's critical backfocus distance.
An adapter is included with the order of a HyperStar system. Please specify the camera to be used at the time of ordering.
A stand is included so that the secondary mirror can be safely stored while the HyperStar is installed.
The HyperStar system allows the 14" CELESTRON telescope to operate at a focal ratio of f/1.9 . Fantastic images can be obtained in just a few seconds!!!!
Technical Specifications:
Focal ratio: f/1.9
Focal length: 675mm
Maximum usable CCD sensor size: 27mm diagonal (APS format)
Field of view (with 27mm sensor): 2.4 degrees
Compatible with DSLR cameras
Camera adapter with 2" (48mm) thread for 2" filters
Backfocus (from threaded ring to focal plane): 67.4mm (2.65")
Length (without camera adapter): 12.95cm
Diameter: 12.5cm
Weight: 1600gr.
