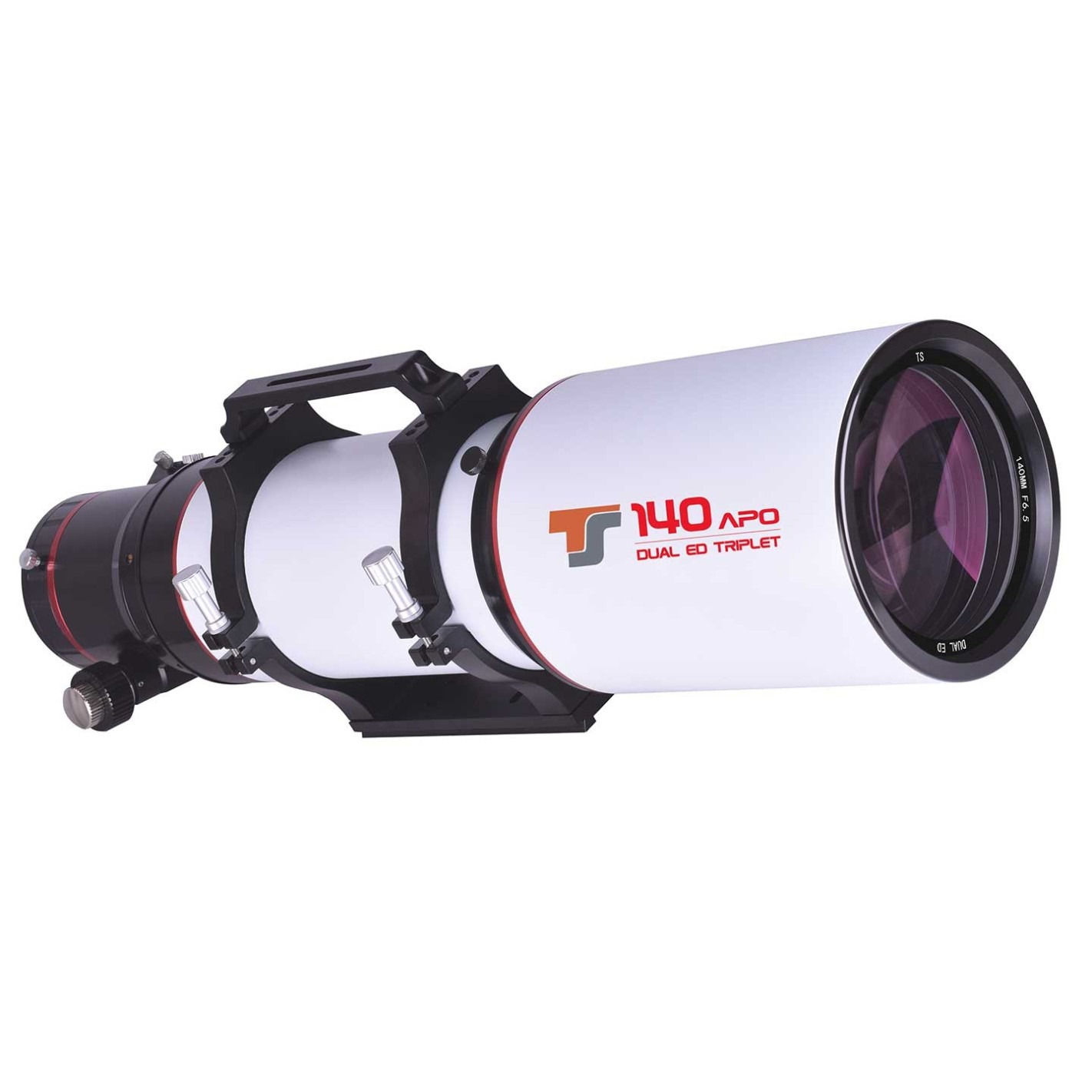

Telescope TS-Optics Photoline 140 mm f/6.5 Super Triplet Apo with 2 ED elements
Apochromatic TS-Optics 140 mm f/6.5 Photoline Triplet
This apo is manufactured by Sharpstar for Teleskop-Service. The apochromatic is still portable and ideal for mobile astrophotography. Of course, the apo is also a good telescope for the observatory. The 140 mm aperture and the false-color-free image due to the triplet design allow a wide range of applications.
The 3-element objective is fully adjustable. Two ultra-low dispersion ED elements allow for an image free of chromatic aberration. Even bright stars will not have a color fringing.
The apochromatic with the large 4" rack focuser allows for astrophotography at the highest level. With the 0.75x 3" reducer you can achieve a fast f/4.8 with full image field correction up to full frame format. This allows you to easily expose an object in one night.
So the telescope service tests every 140mm f/6.5 apo:
♦ The telescope is checked cosmetically and the mechanics (focuser) are optimally adjusted.
♦ Collimation is checked on the optical bench (autocollimation) and improved if necessary.
♦ A series of images is taken, which is included with each telescope. Extra and intrafocal stellar image, focused stellar image and a Ronchi image.
Corrector connection for astrophotography
The apo offers a generous working distance, so you can work with the TSAPORED075 (0.74x reducer) and still focus.
If you want to adapt the TSFLAT25DEL (1.0x flattener), you need the following components.
♦ M68a-M63i - adapter to extend the M63 thread of the corrector to M68x1.
♦ 2x TSVM6815 30 mm M68x1 extension - to achieve smooth focusing. The extensions are placed between the M68x1 thread of the focuser and the adapter.
General features:
♦ Aperture 140 mm
focal length 910 mm
♦ Fast focal ratio f/6.5
♦ Air-spaced triplet lens - 2 ED elements provide an image free of chromatic aberration

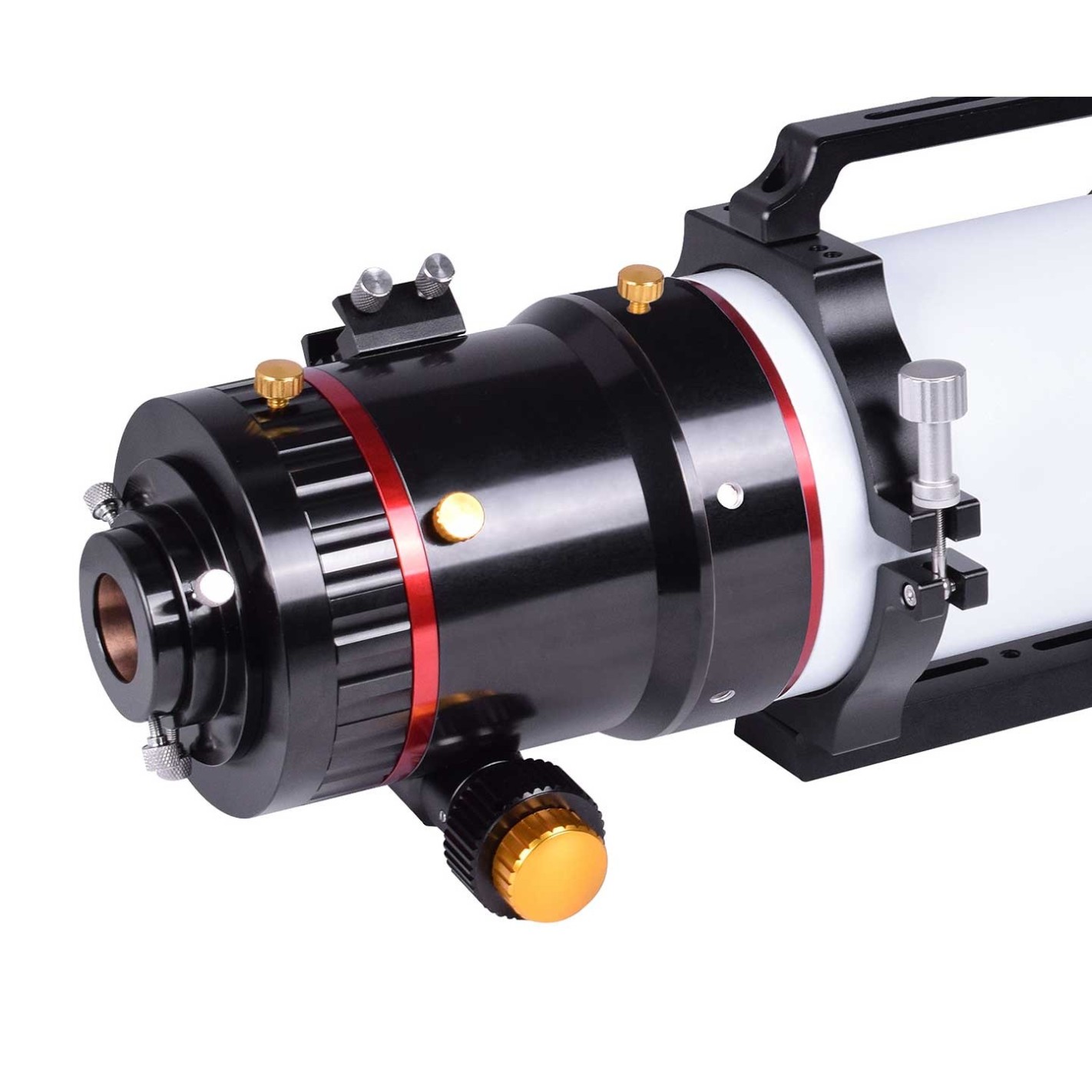

♦ Solid 4" rack and pinion focuser with dual speed - ideal for astrophotography
♦ Intermediate threads for threaded adaptations, e.g. M68x1 female thread
♦ Retractable spray shield
♦ CNC tube rings, carrying handle and dovetail bar are included in the scope of delivery
♦ Delivery in transport box
♦ Each apochromatic is checked by the manufacturer and Teleskop-Service before shipment
♦ Each apo receives a serial number and is delivered with a photographic proof certificate
Technical specifications:
- Optical design: Triplet apochromatic with 2 ED elements
- Aperture: 140 mm
- Focal length: 910 mm
- Focal ratio: f/6.5
- Coating: Multi-coating on all glass-to-air surfaces
- Tube length: 770 mm with the spray hood retracted
- Tube diameter: 148 mm
- Diameter of spray cap: 179 mm
- Optical tube weight 11.5 kg
- Focuser: Thread for photographic adaptations, 2" and 1.25" adaption
- Focusing point: 200 mm behind 2" (drawtube retracted)
- Focuser travel: 110 mm

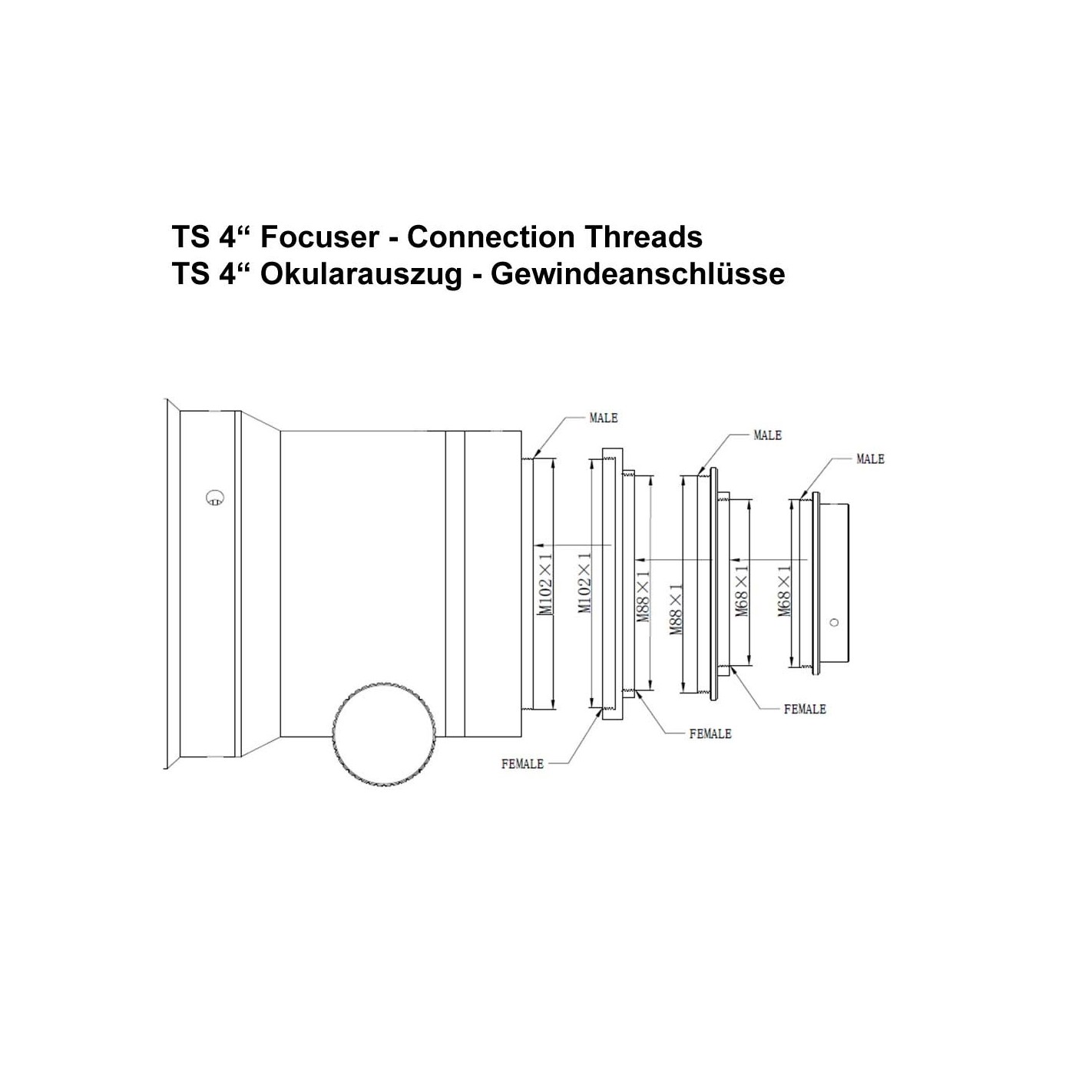

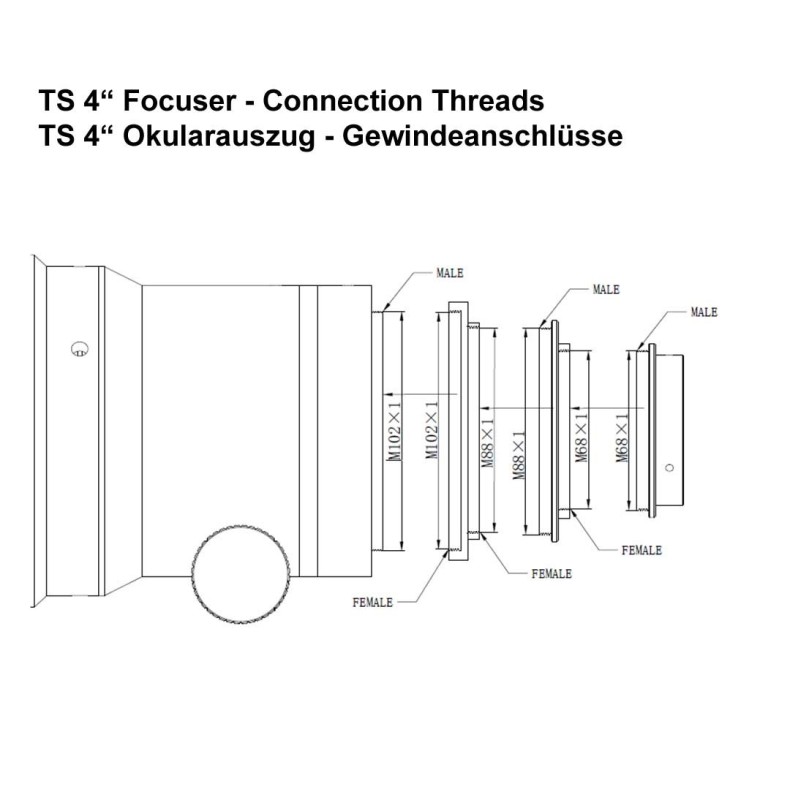

- Camera side threads M102x1 male, M88x1 female, M68x1 female
- 360° rotation: yes
what is included in the box?
♦ 140 mm apochromatic
♦ Finder shoe
♦ CNC tube rings
♦ Carrying handle
♦ Dovetail style dovetail bar Losmandy
♦ Carrying case
