Dome ScopeDome of 4 meters in diameter without cylinder.
THE PRICE OF TRANSPORT TO DESTINATION MUST BE QUOTED SEPARATELY
Dome of 4 meters ScopeDome, manual, without cylinder. Made of fiberglass with high quality standards.
With this fantastic dome you can easily and comfortably install your own observatory, protecting your equipment and avoiding the tedious task of assembling and disassembling the telescope in each observation.

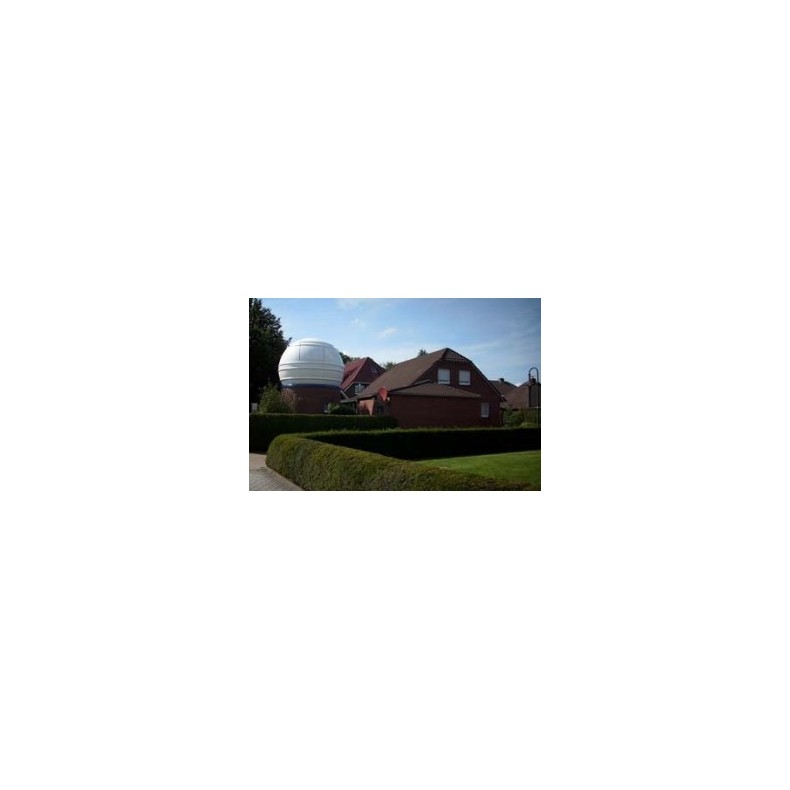

The 4 meter diameter ScopeDome allows you to keep your equipment permanently installed in your observing site. This way, the instrument will always be aligned with the sky: you can keep either the polar alignment (if you have an equatorial mount), or the alignment stars (if your mount supports the parking function). Forget all the hard work that needs to be done every time you want to use your telescope, and spend more time having fun: every time you want to use the instrument to discover the wonders of the Universe, it will be ready to use in seconds!
The dome ScopeDome offered by Telescopiomania, can be optionally installed also fully motorized and automated to allow the control and operation of the same through software thanks to the compatibility with the ASCOM platform and with USB port connection.

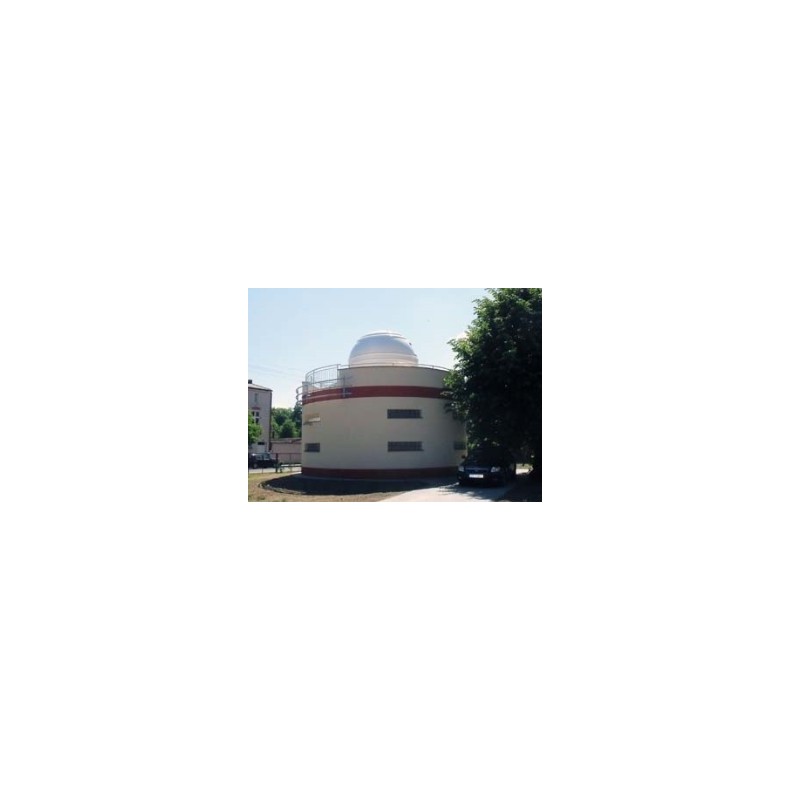

The dome ScopeDome can be installed on any flat surface made of masonry or wood. In order to help you with the installation, we add, together with the materials necessary for the installation of the dome and the instructions for use, a brief guide with instructions for the correct dimensioning of the dome base. Attention: under this reference only the manual dome is supplied, without the support cylinder and only with the adaptation ring on wood or concrete base.
For fixing, it is suggested to use Hiltianchors and to seal all contact surfaces of the base ring with the dome with silicone.
The dome is light enough to be opened and rotated by hand in case of emergency or power failure.

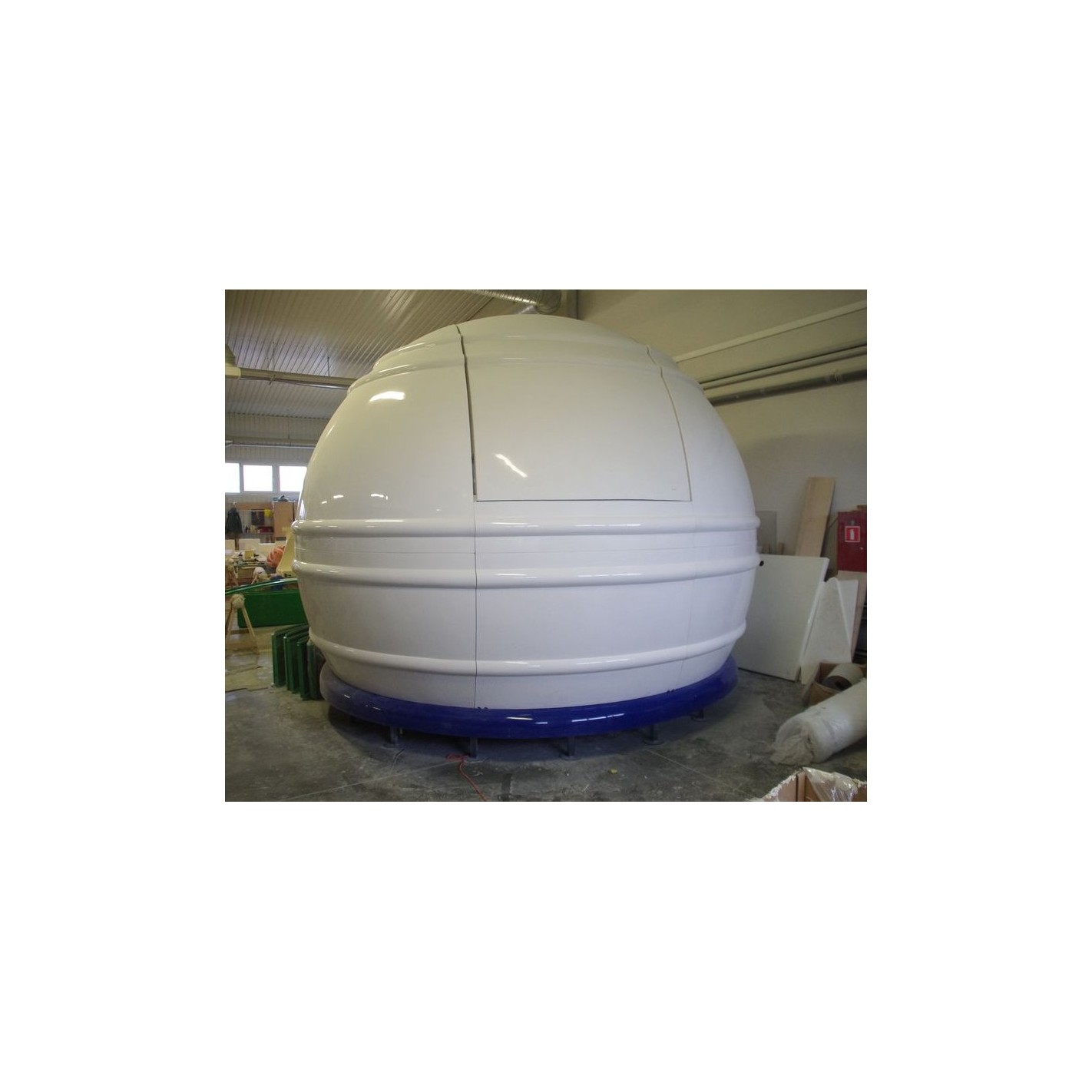

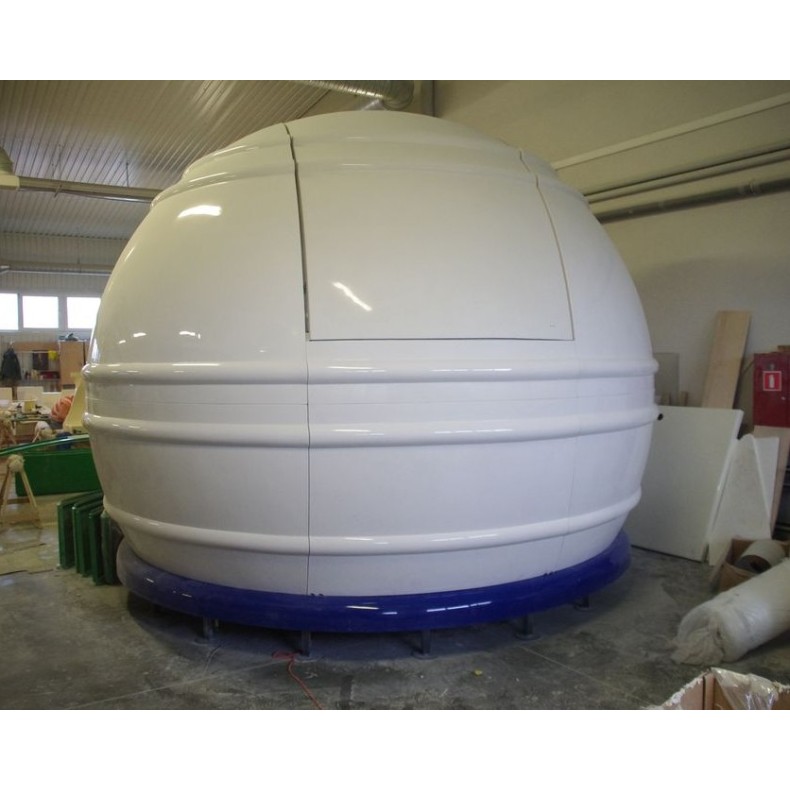

The dome is made of polyester glass laminate up to 6 mm thick, which provides full resistance to all weather conditions, and the guarantee of high durability and great aesthetics at the same time. In addition, the dome is reinforced by special convex profiles on the outside and reinforcements placed inside the structure. The dome consists of 8 basic elements, which greatly facilitates transport and assembly on tall buildings.

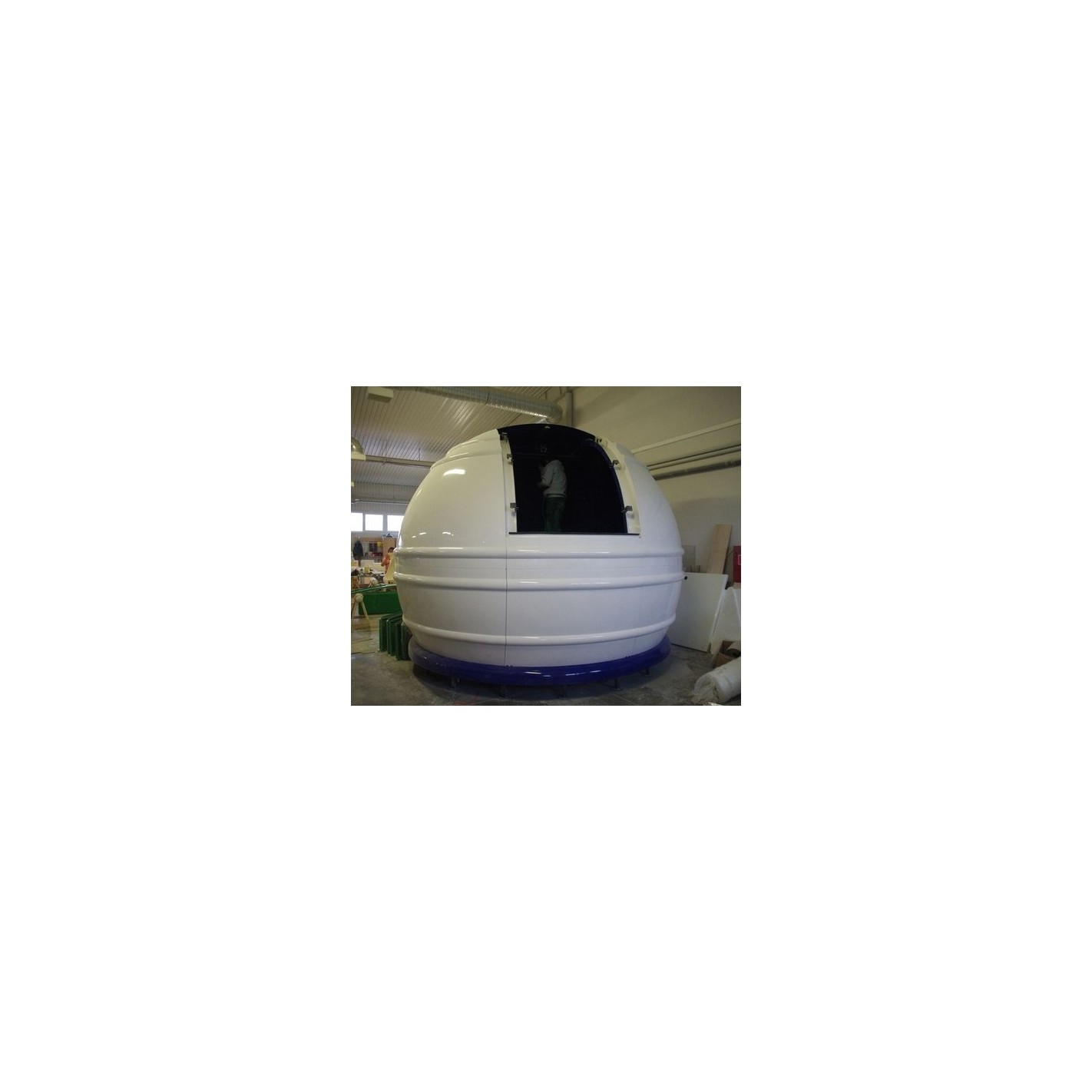

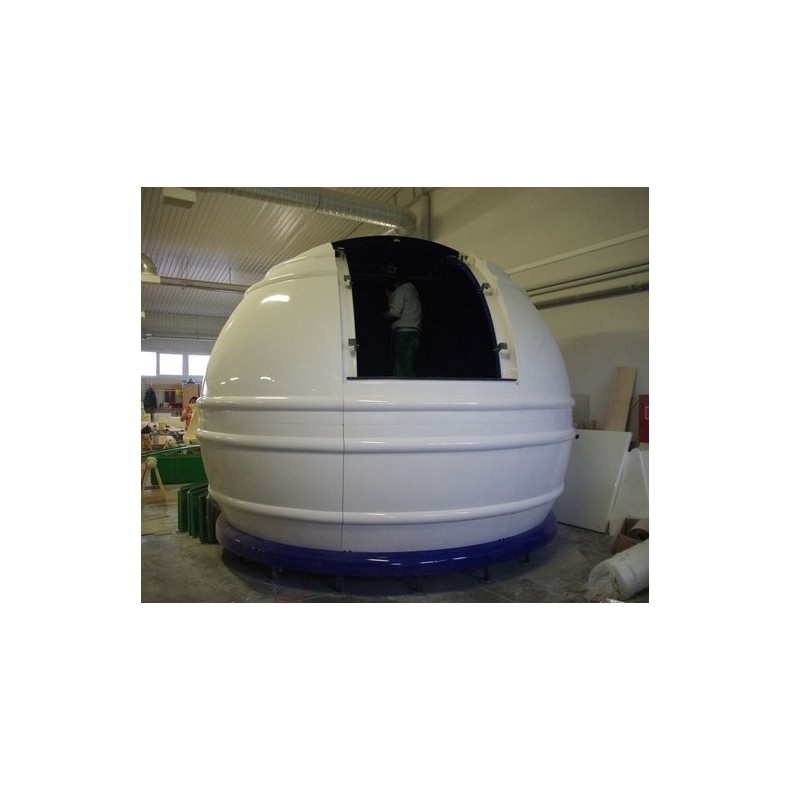

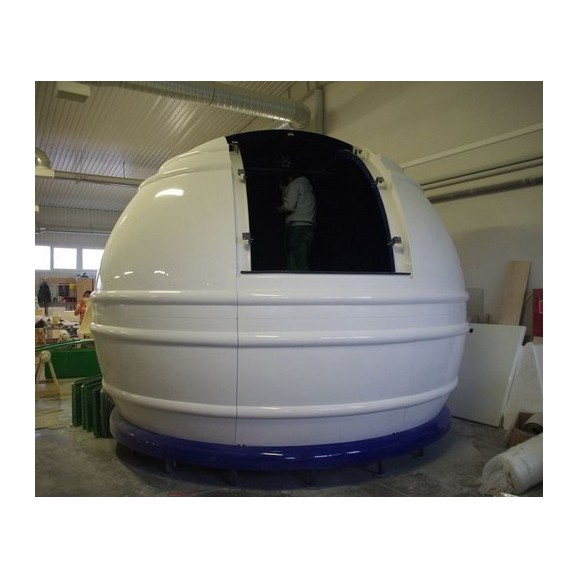

The watertightness of the dome is guaranteed by its special construction which prevents water seepage inside. The glossy cover with special paint helps prevent overheating. The one meter wide opening at the edge of the dome allows free observations using telescopes up to 120 cm in diameter. The observation window is designed so that the telescope also provides a clear view of the zenith. The rotation of the dome is achieved by a robust system of 16 plastic rollers.
Under this reference the dome is supplied in its manual version, but multiple options of motorization, etc. can be added. Please contact us for a customized quotation.
The motorized dome is moved by two low power motors that operate at 220V. One controls the rotation of the dome, and the other allows you to open and close the observation window. A special encoder mounted on an integrated circuit synchronizes the motors to always keep the dome perfectly aligned with the telescope.
The new ScopeDome 4M is the new version of the 4-meter dome that has been in production for more than 5 years. After manufacturing more than 250 domes some improvements have been implemented based on our experience and customers and their comments and suggestions.
The most important new features are:
- Door on the side panel of the dome
- Redesigned shutter and dome control system
- New shutter control system to allow the shutter to be opened and closed in any position
- Wider view around the zenith
- Improvements to the entire sealing system
- Easier and faster dome installation
- Improved aesthetics with a new color pattern
- All domes are initially assembled and tested in our factory and then disassembled and carefully prepared for transportation
- Ability to automatically open the shutter at any azimuth using the built-in actuator mechanism
- All rollers and operating bearings of the shutter and rotating mechanism are concealed inside the dome to protect them from the weather. Thanks to its innovative design and 3D and CNC production technologies, the space between the rotating parts of the dome has been minimized, allowing them to be installed inside the dome.
Basic data:
- Dome diameter: 4000 mm
- Width of the observation window: 1400 mm
- Height of the dome: 2960 mm
- Base diameter: 3500 mm
- Base height: 1100 mm
- Dome weight: 400 kg
- Total weight with pallets: 550 kg
- Easy and quick installation of the dome
- The dome is delivered already assembled and tested, so installation is not complicated and the dome is ready for operation immediately after unpacking it
Available options:
- Dome door: 871 Eu
- Rotating motor with position encoder: 944 Eu
- Shutter motor: 835 Eu
- ScopeDomeUSB, limit switch system, start sensor, thermometer and hygrometer: 895 Eu
- Wiring with waterproof housings and heating system: 985 Eu
- Semi-wiring for dome 4M: 569 Eu
- Heating system for motors: 278 Eu
- Optional custom color - wide range of colors, except metallic -, for one color: 411 Eu
Dome ScopeDome of 4 meters diameter without cylinder.
