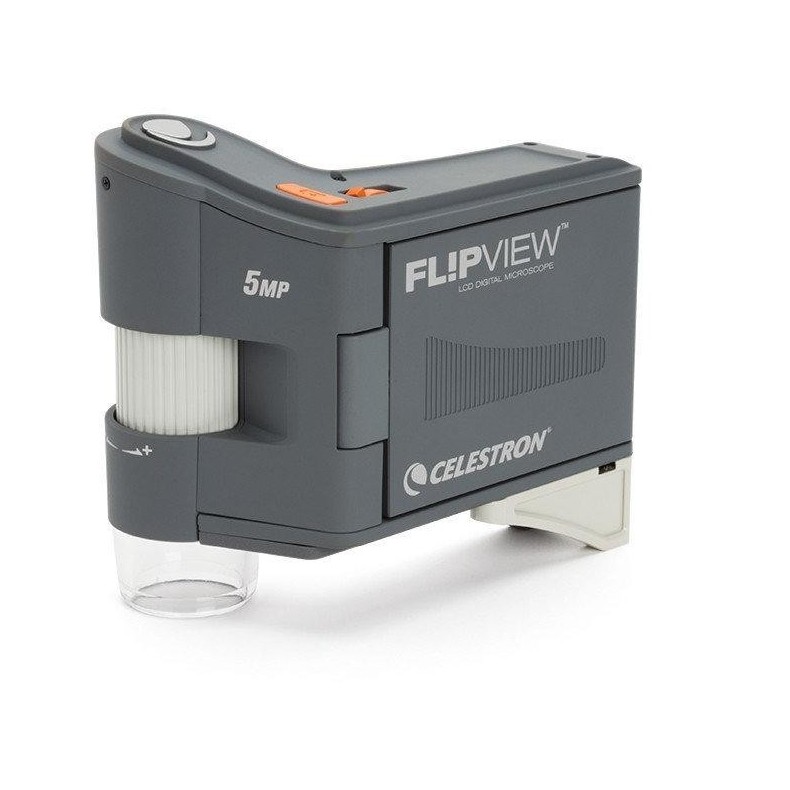

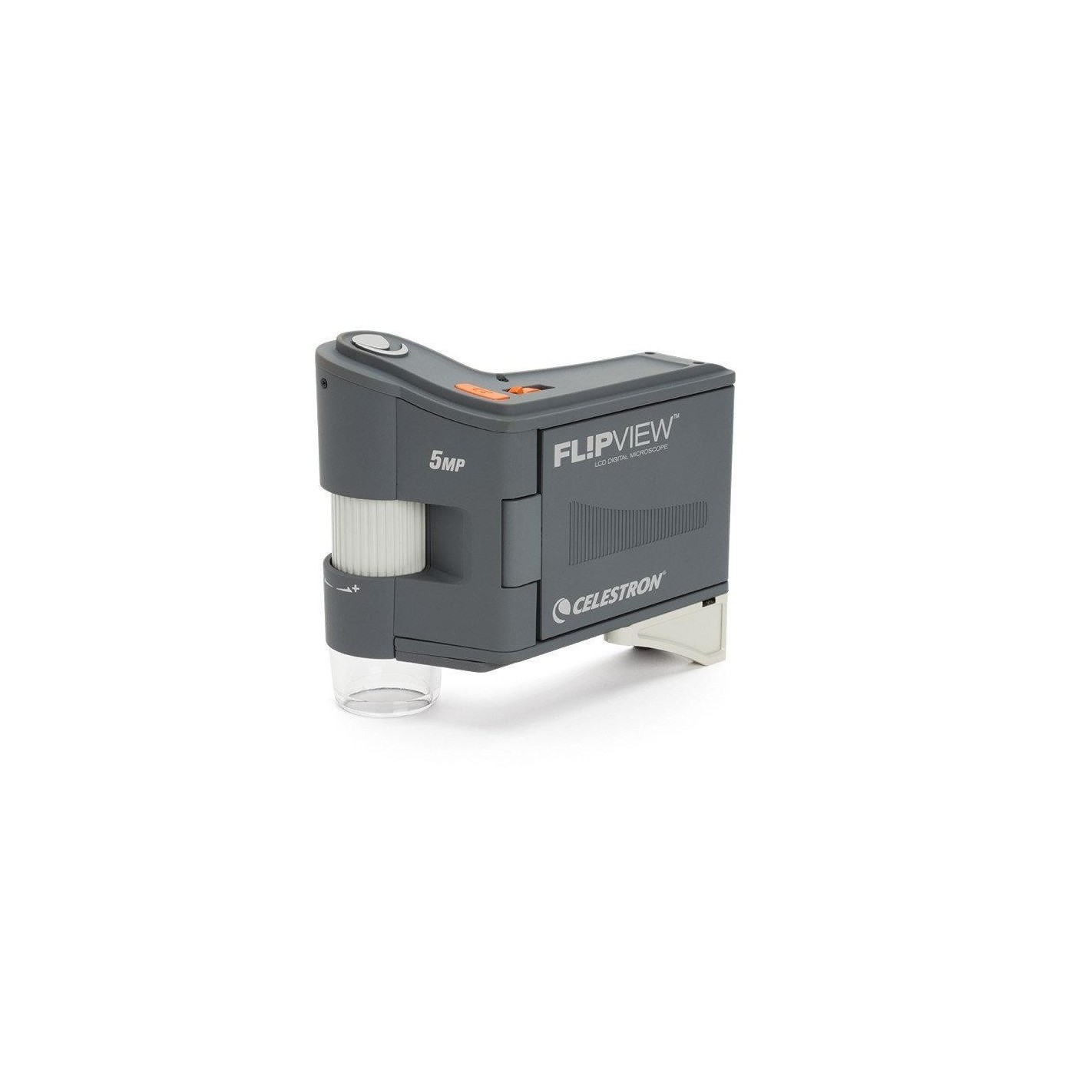

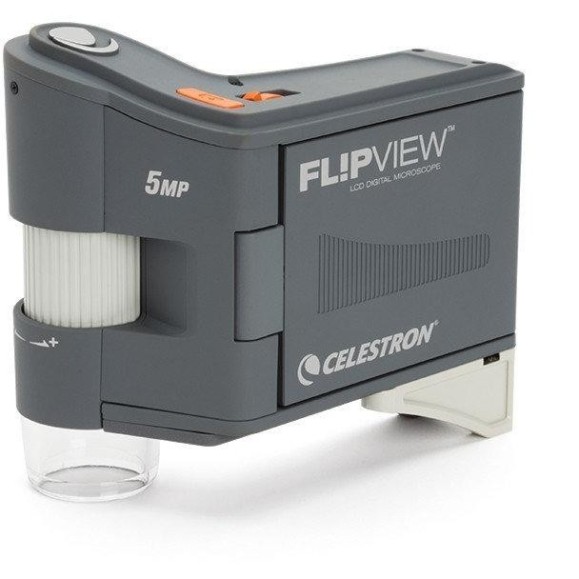

Celestron FlipView LCD digital microscope.
This compact yet powerful digital microscope is the perfect companion for close-up observation on the go. The built-in 3-inch TFT color LCD display flips out when you need it, then folds into the microscope body for perfect portability. A rechargeable lithium-ion battery provides hours of viewing in the classroom or on a nature walk. FlipView, with its 10x to 120x magnification is a low-power microscope perfectly designed to view a wide variety of 3D samples, from beach sand to insects, coins and stamps, documents, circuit boards and more.
With its built-in 5 MP sensor, FlipView offers the best resolution you'll find in a digital microscope Celestron. Combine that with the 5-element IR cut-off lens and you get sharp images and spectacular videos of your specimens. An adjustable 8 LED ring provides the perfect illumination for your shots.

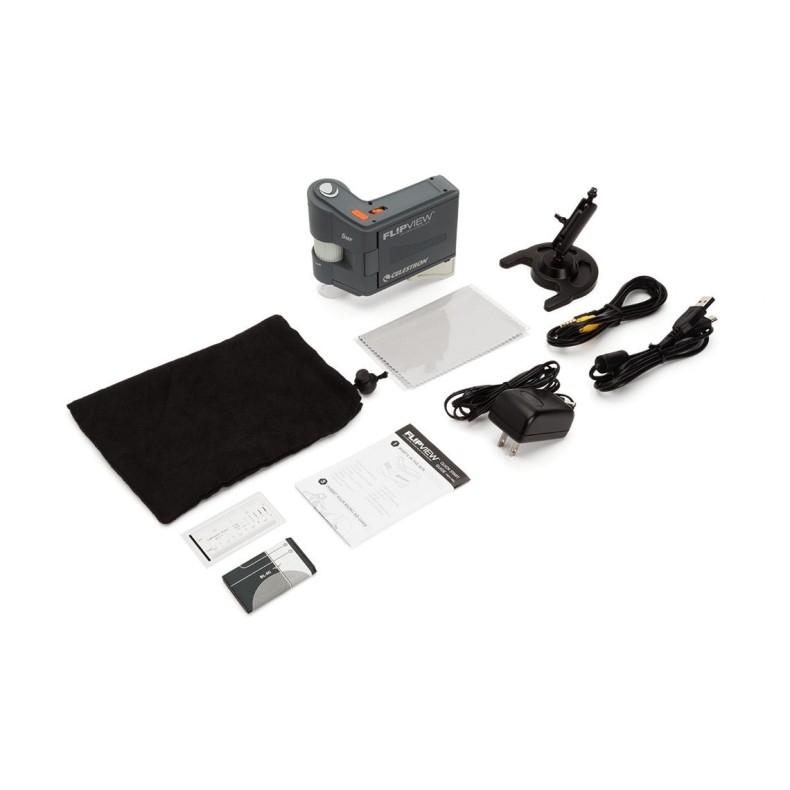

Insert any Micro SD card (up to 32 GB) to save images and videos, or connect the microscope to your computer via the included USB cable and capture images using Celestron's Portable Capture Pro software. Or stream FlipView's view to a TV or projector with the included video output cable.
With one of Celestron's most versatile designs, FlipView can be used in three configurations depending on the sample you are viewing:

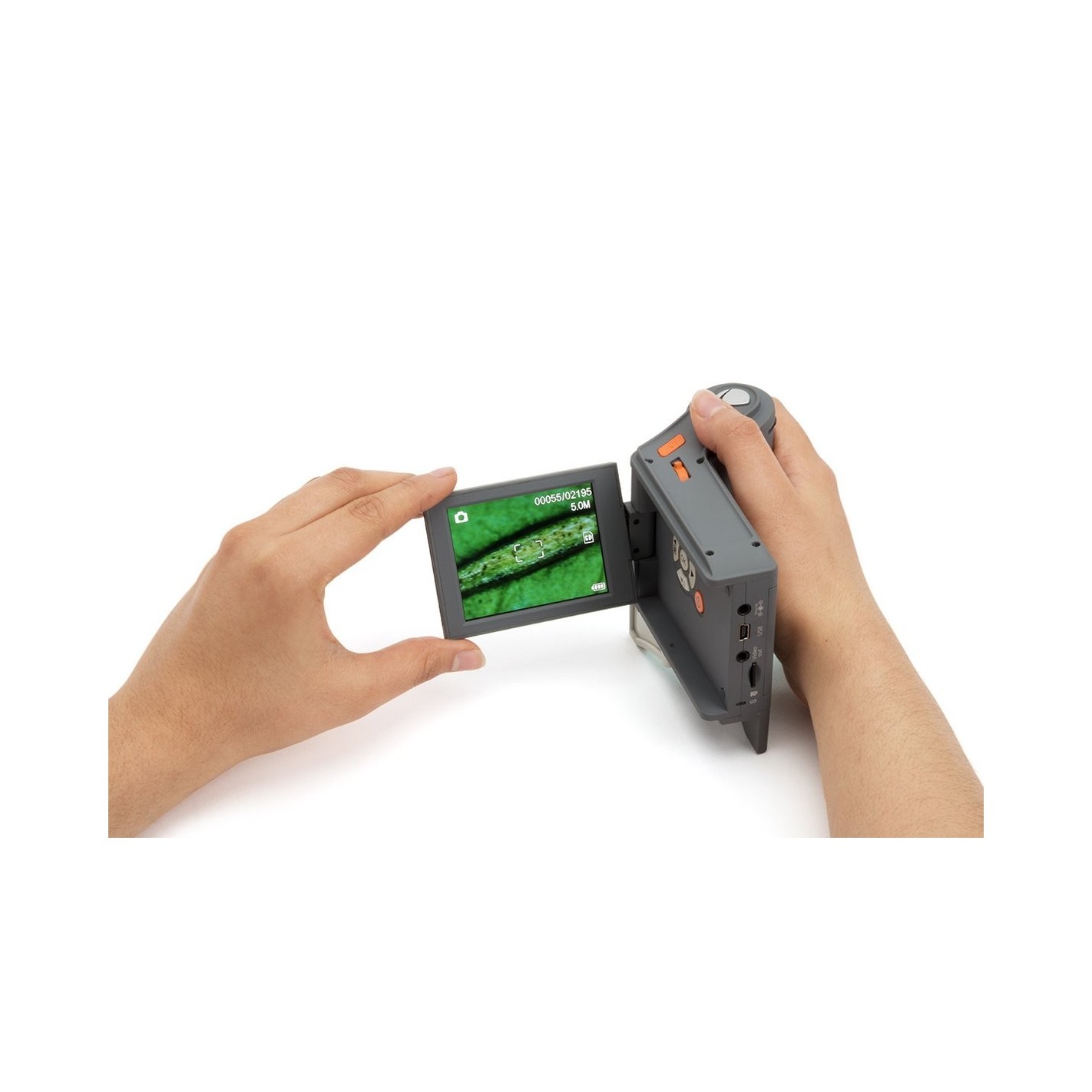

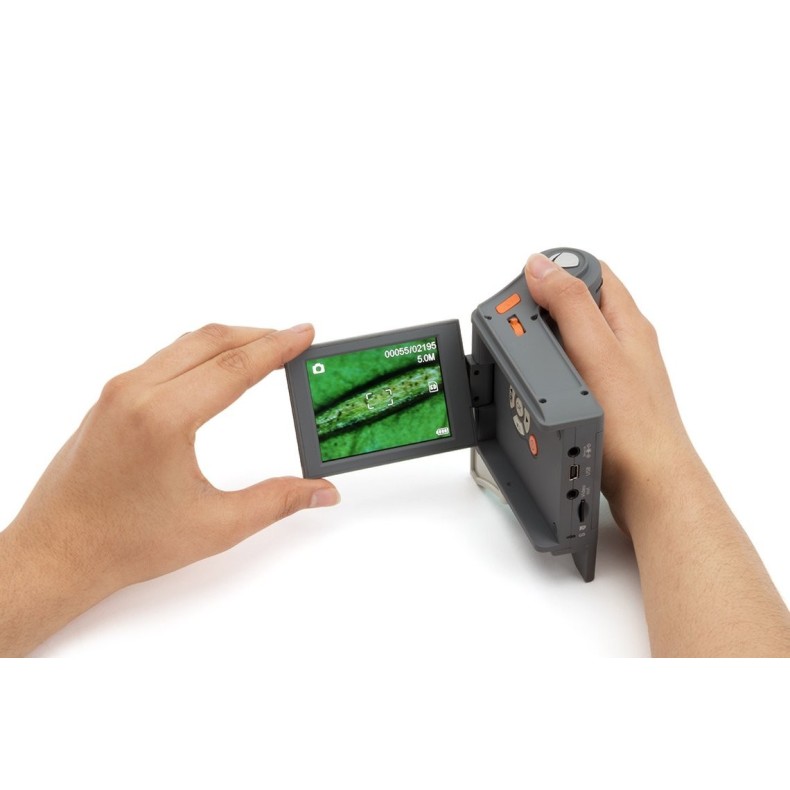

- Use it in handheld mode for quick and easy observations.
- Lift the attached base and FlipView sits on any flat surface. Perfect for viewing flat objects such as stamps, coins and more.

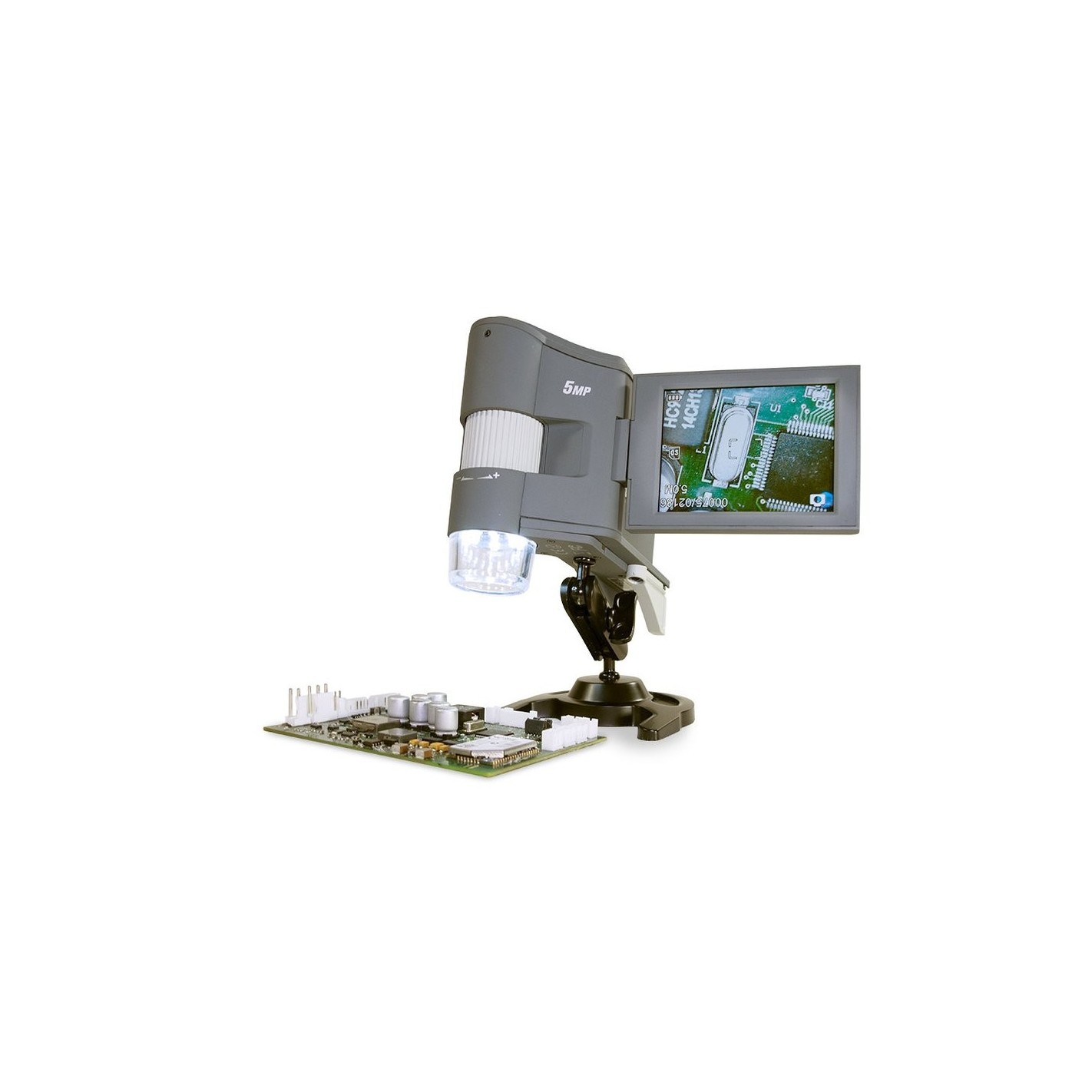

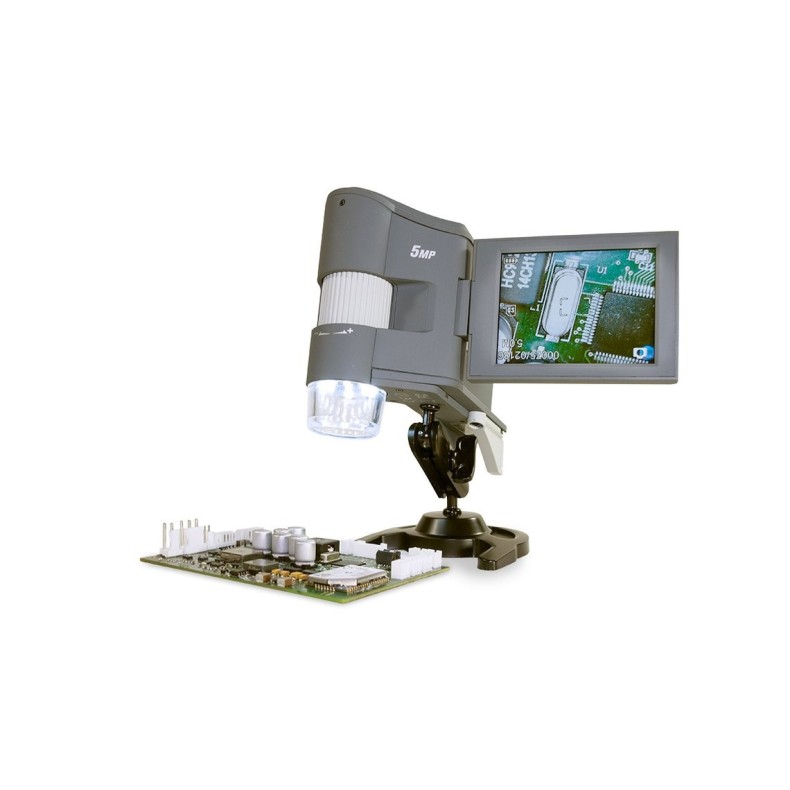

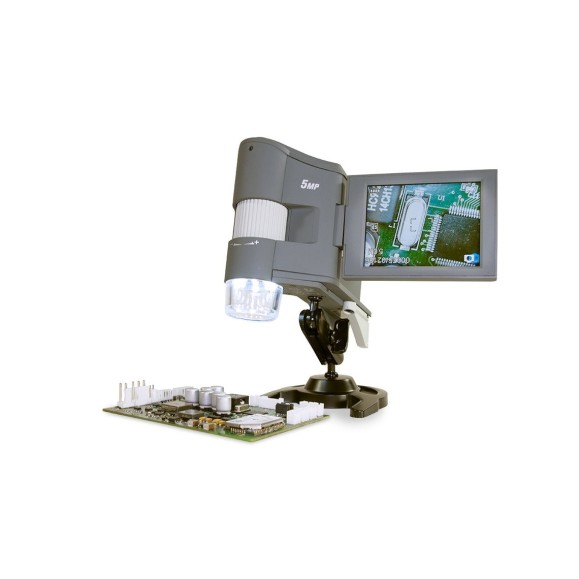

- For longer viewing sessions of 3D objects, mount FlipView to the included metal stand using the ¼-20 connector. The stand has two articulation points and can be adjusted to precisely aim at the subject.
Highlights:

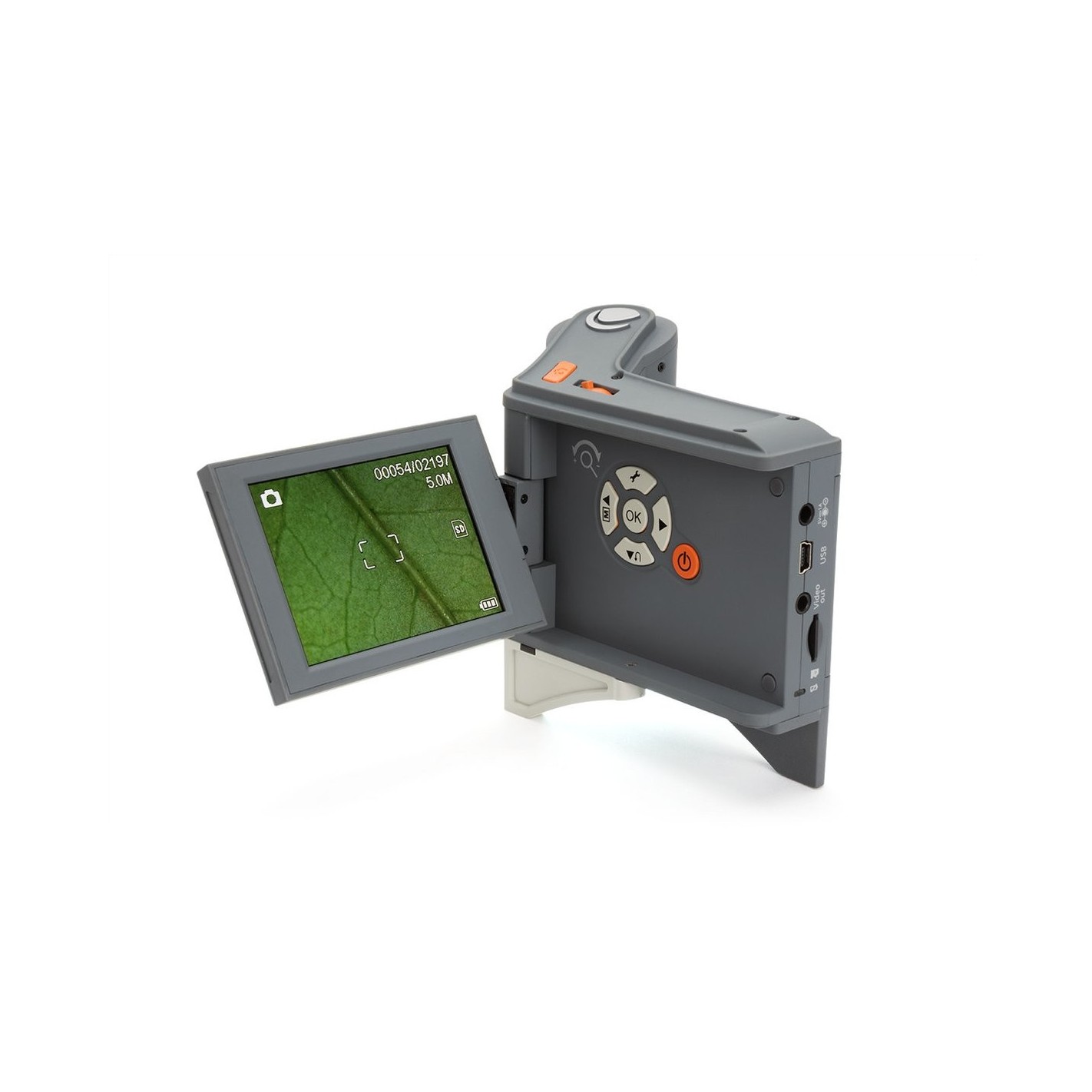

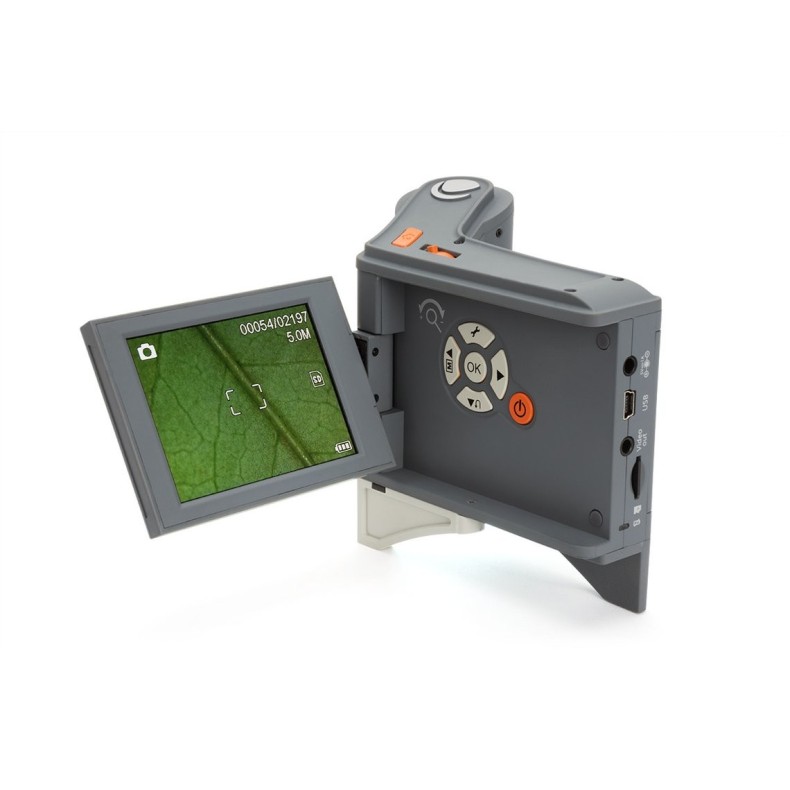

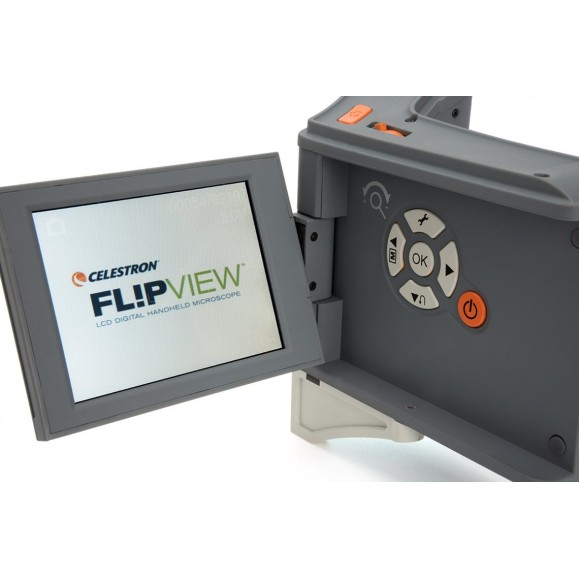

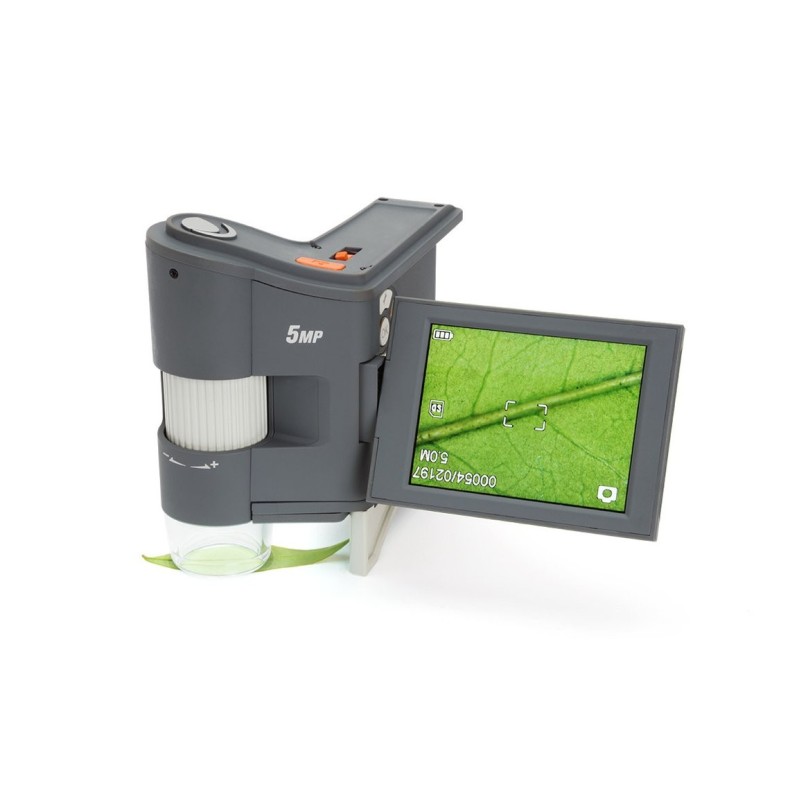

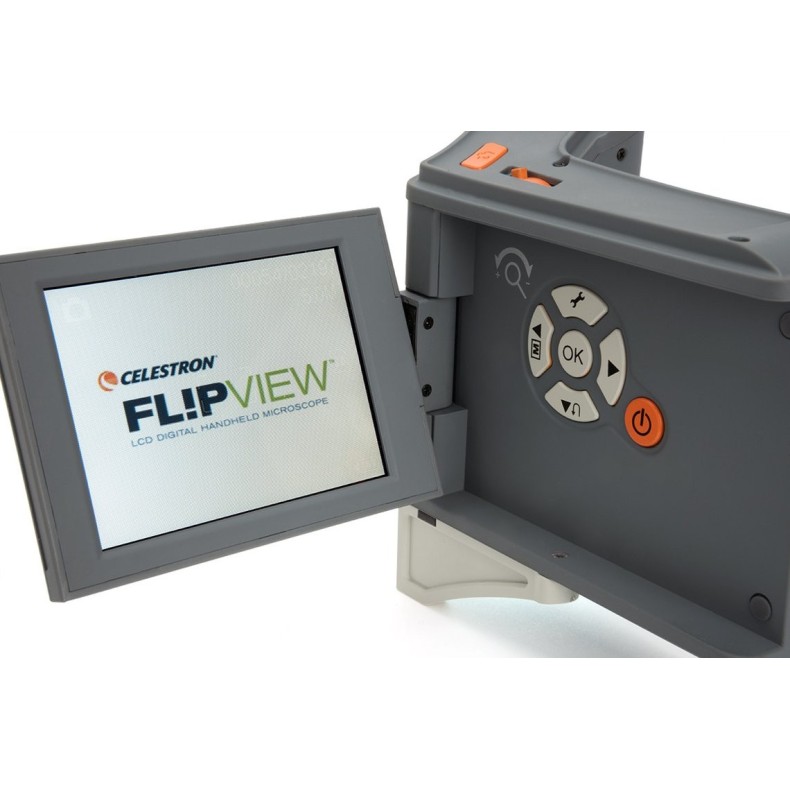

- Portable digital microscope with integrated 3-inch color TFT LCD color display that activates and rotates 270 degrees

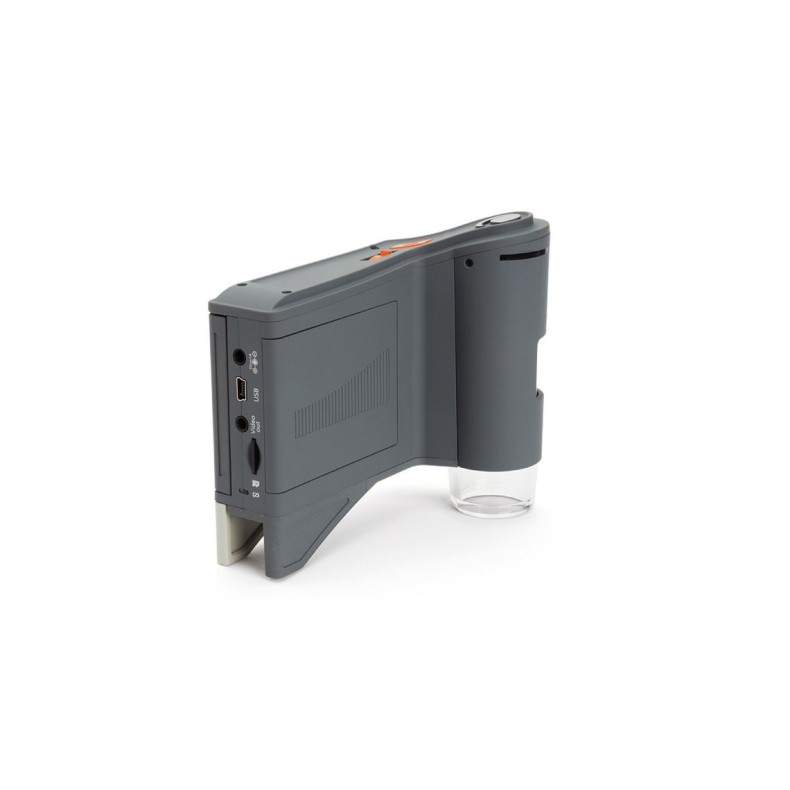

- Ergonomic and versatile design can be used in three ways: handheld, on a flat surface with a flip-up leg, or with the included metal stand and ¼-20 connection
- 5 MP sensor and 5-element IR cut lens configuration captures high-definition images and video
- 10x to 120x magnification (up to 300x on PC)
- Rechargeable lithium-ion battery
Technical Specifications:
- Magnification range: 10x-300x (1200x with 4x digital zoom)
- 5MP CMOS sensor: 1/3.2"
- LCD Display: 3.0" full color TRF display (hinges on both X (90") and Y (270?) axes)
- High quality 5-element IR Cut (infrared reduction) glass lens, EFL (effective focal length): 15.8 mm, image distortion: 0.10%, FOV: 13.0 "
- Focusing range: Manual focus from 10 mm to infinity
- Illumination: 8 adjustable white LEDs in ring configuration
- Shutter release: on computer and via software interface when used via PC option
- Frequency: 50Hz / 60Hz
- Still image resolution: 5MP, 3MP, 1.3MP, VGA (12MP interpolation)
- Video capture resolution: VGA, 30 fps
- Video compression format: MJPEG
- Video output: AV output (cable included)
- PC connection interface: 2.0 USB
- Supported OS Systems: Windows: XP / Vista / 7/8 - Mac: OSX 10.6 -10.9
- Memory: Micro SD card slot (not included) (supports up to 32G)
- Internal rechargeable lithium-ion battery (1050 mAh) | AC adapter Universal input 100 to 240 volts 50/60 Hz (US version only)
- Measurement software via Celestron's Micro Capture Pro, with note-taking capability. Calibration tool included.
- Supported software languages: English, German, French, Spanish, Russian, Italian, Portuguese, Dutch, Polish, Japanese, Korean, Chinese
- Microscope dimensions: 117.5 mm x 63.5 mm x 108 mm
- Stand Dimensions: 76.2 mm x 44.5 mm x 70 mm
- Microscope weight: 212 g
- Weight of the entire assembly: 317 g
Digital microscope Celestron FlipView LCD.
