Introducing the new EAF, the latest innovation from the engineers at ZWO. This electronic focuser allows precise and dynamic focus control for planetary and deep sky imaging.c
| Carrier | Description | Estimated Delivery | ||
|---|---|---|---|---|
 |
Home delivery - International | Home delivery - International |
Thursday, 28 November - Thursday, 5 December |
|
Home delivery - International
Home delivery - International
Estimated delivery:
Thursday, 28 November - Thursday, 5 December

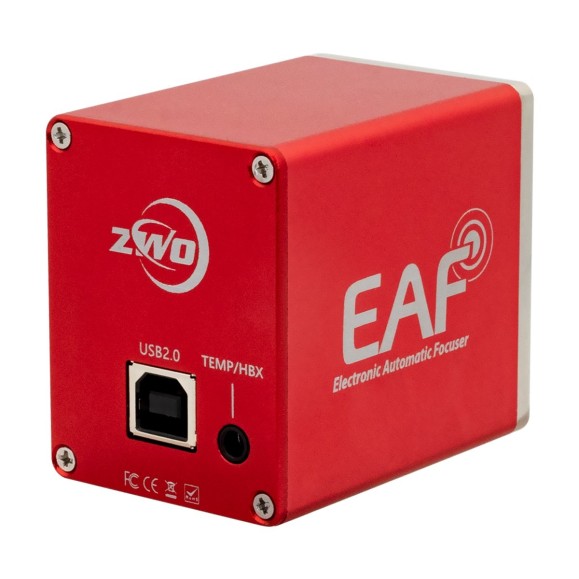

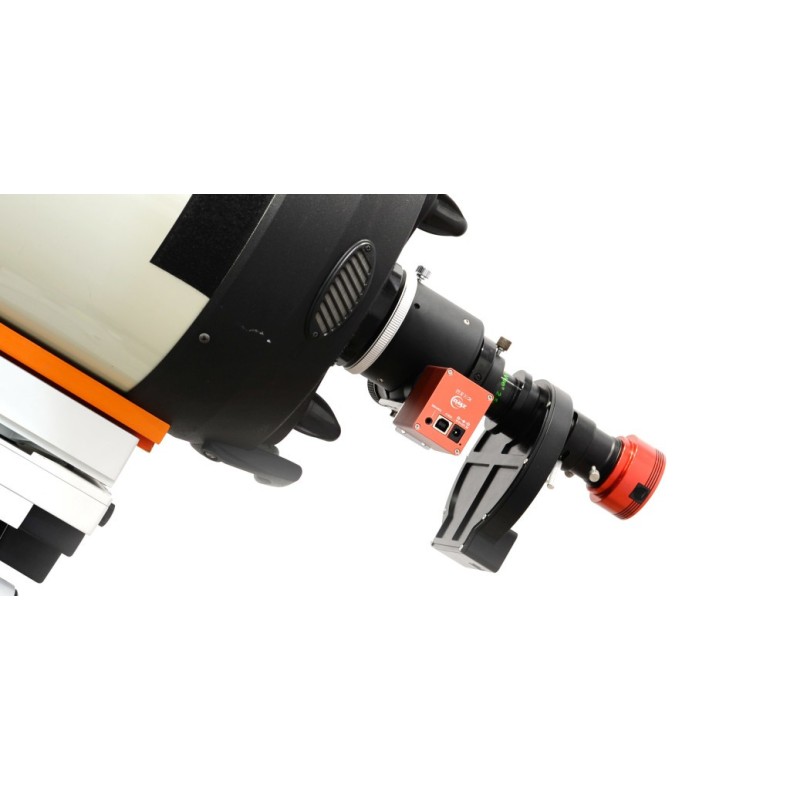

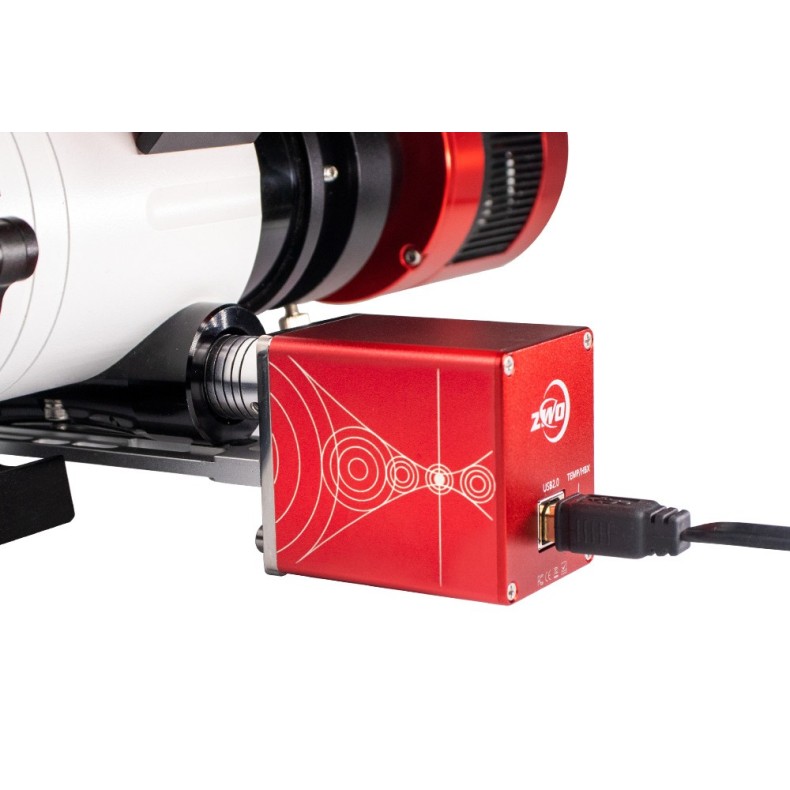

Focusing engine ZWO EAF advanced version
Features:

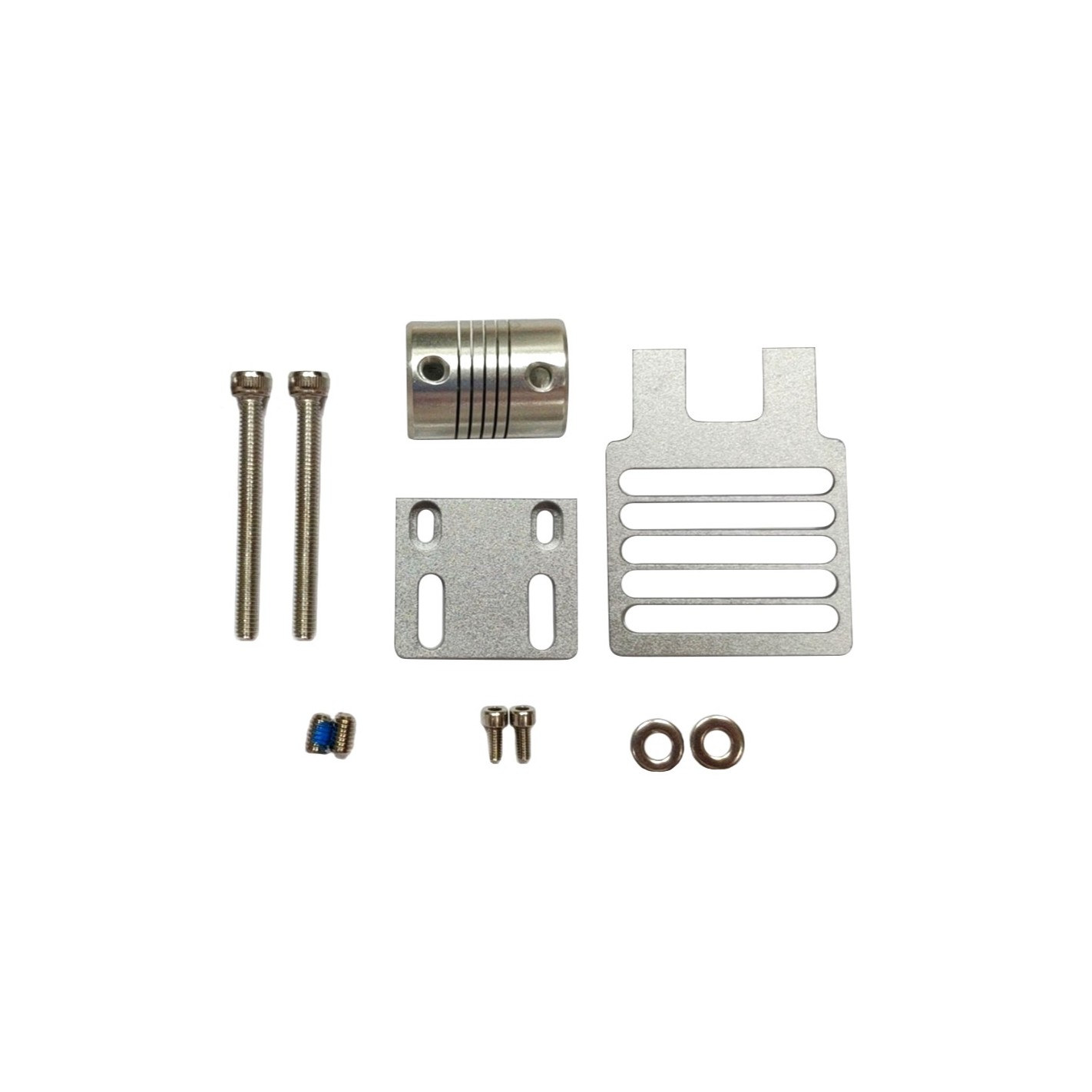

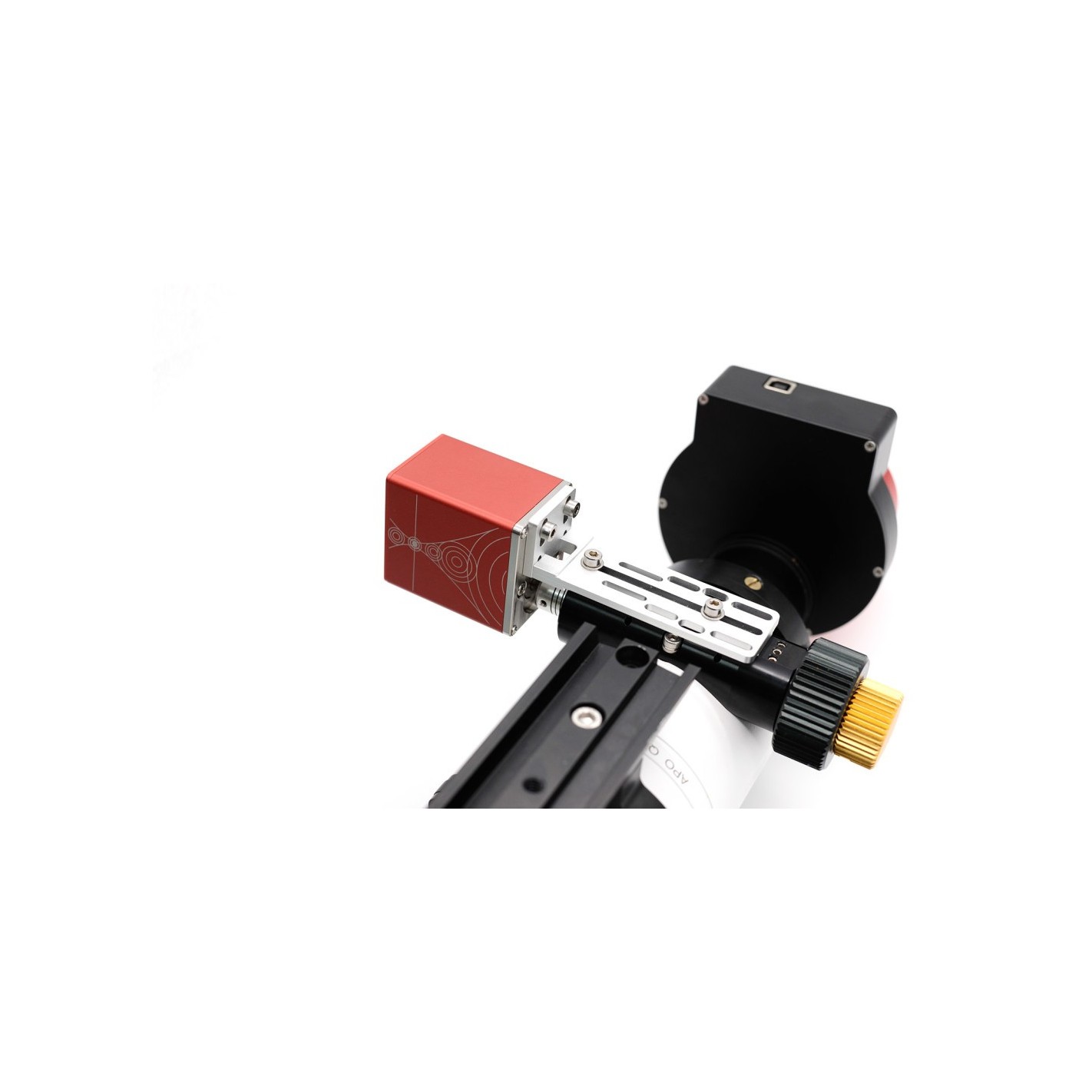

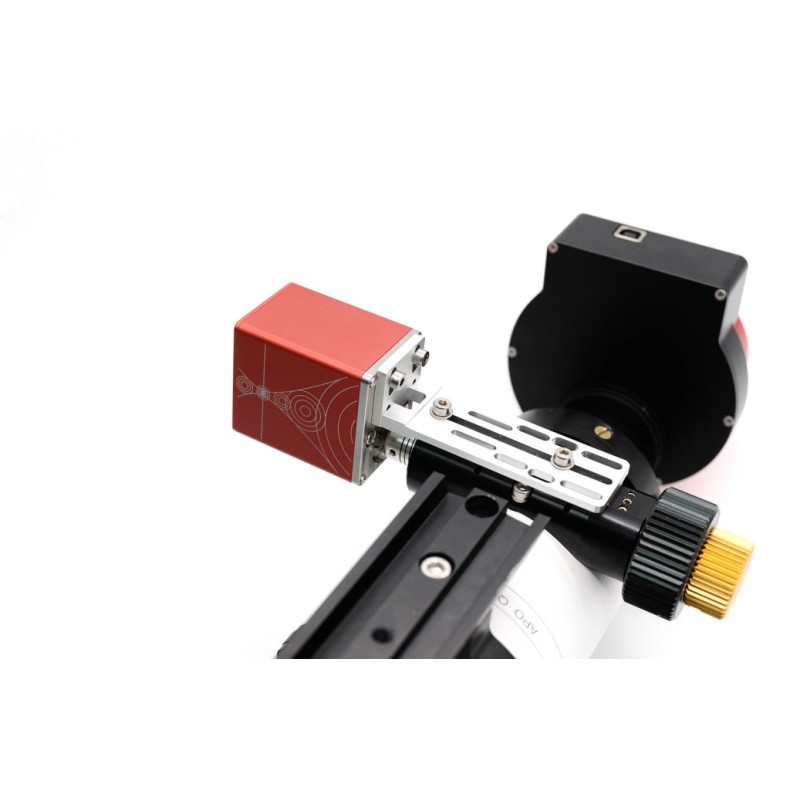

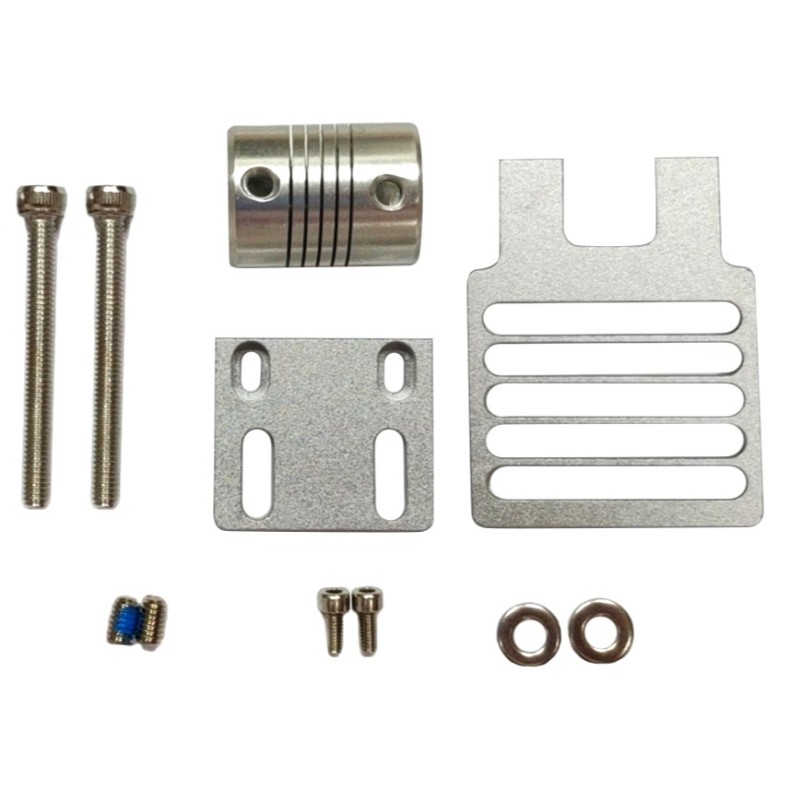

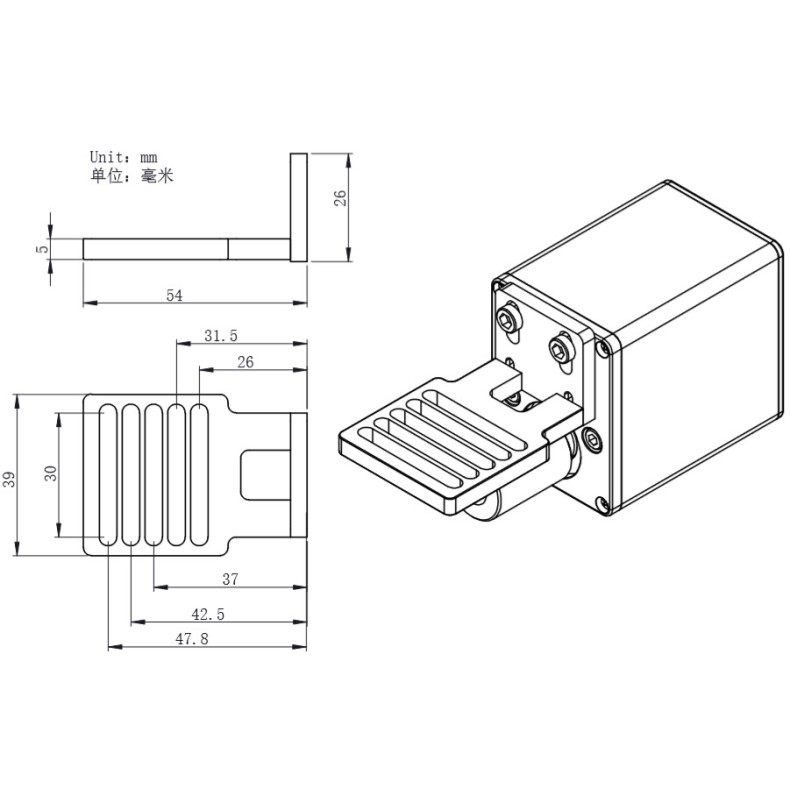

The EAF comes in 2 versions: The advanced version, presented here, includes: EAF body, flexible coupling, motor bracket, USB2.0 cable, hand controller, temperature sensor.

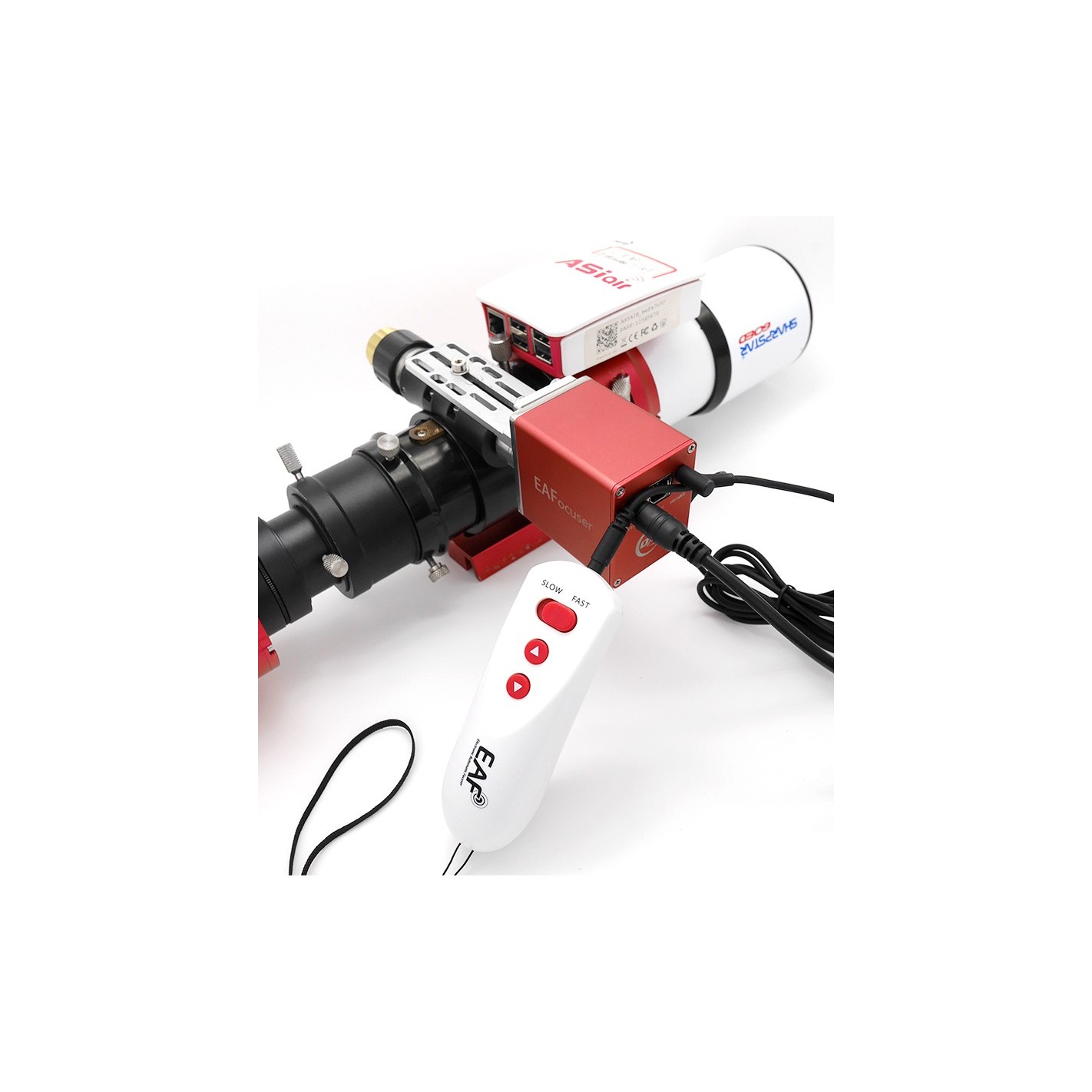

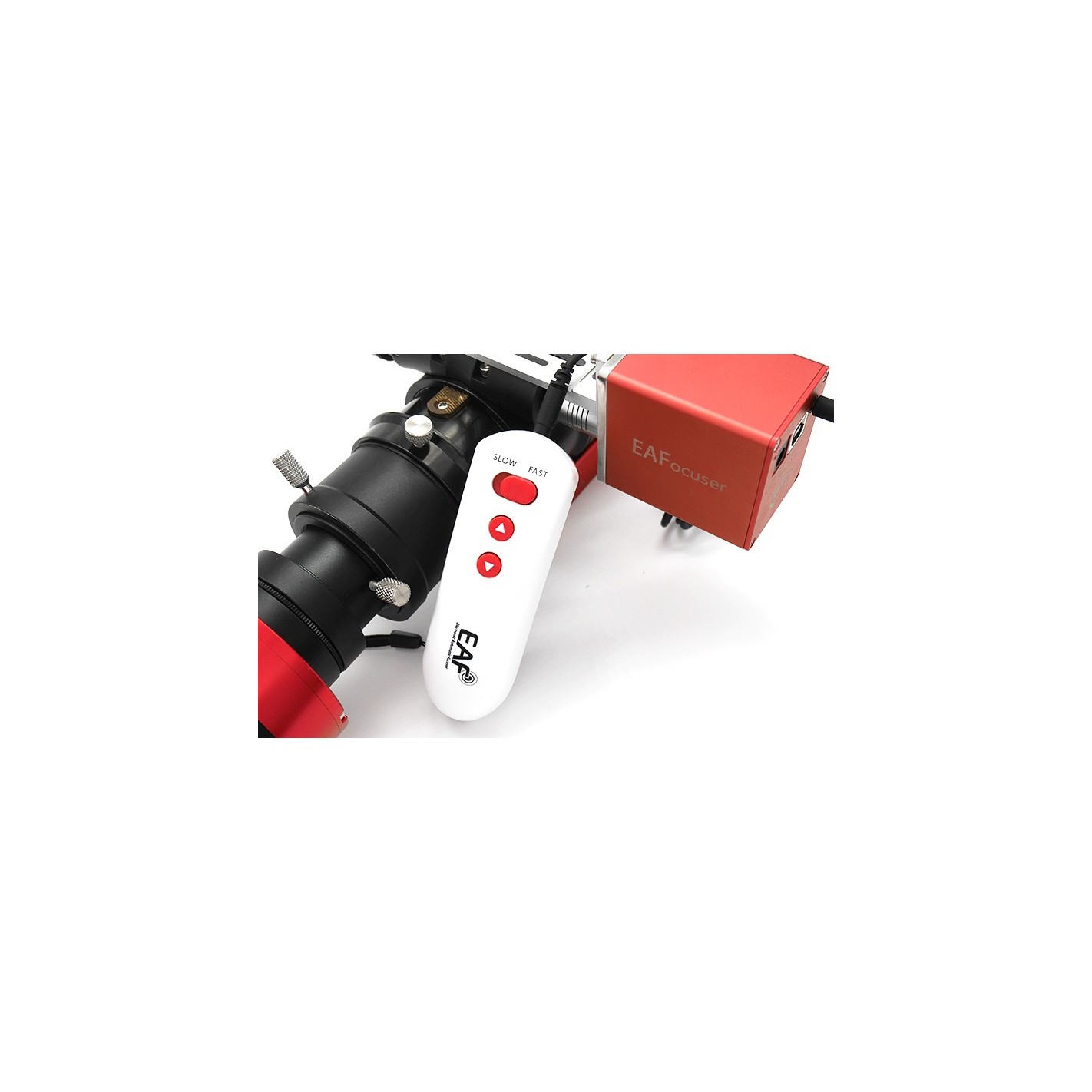

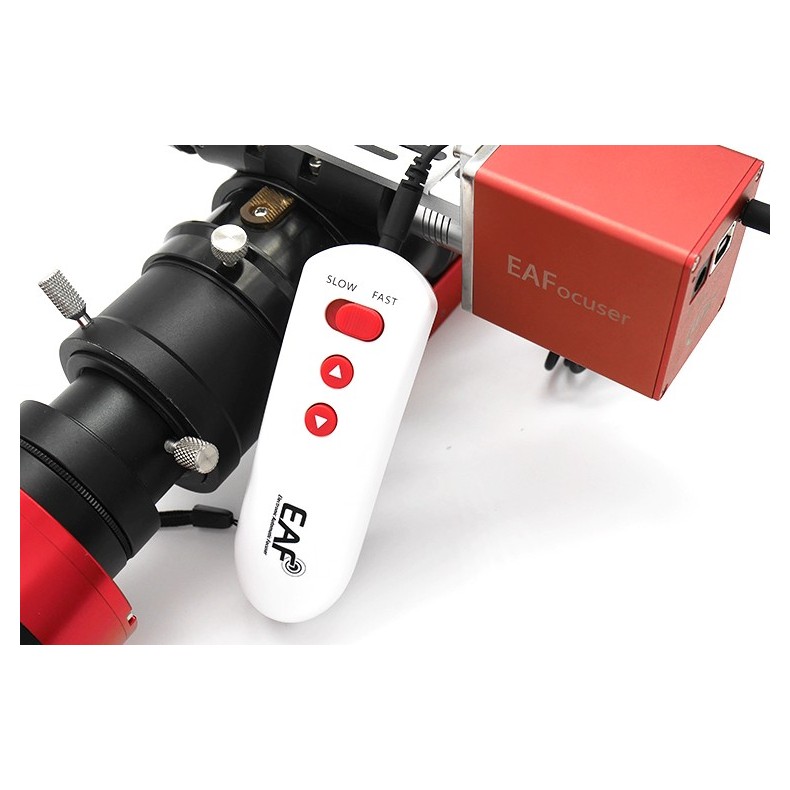

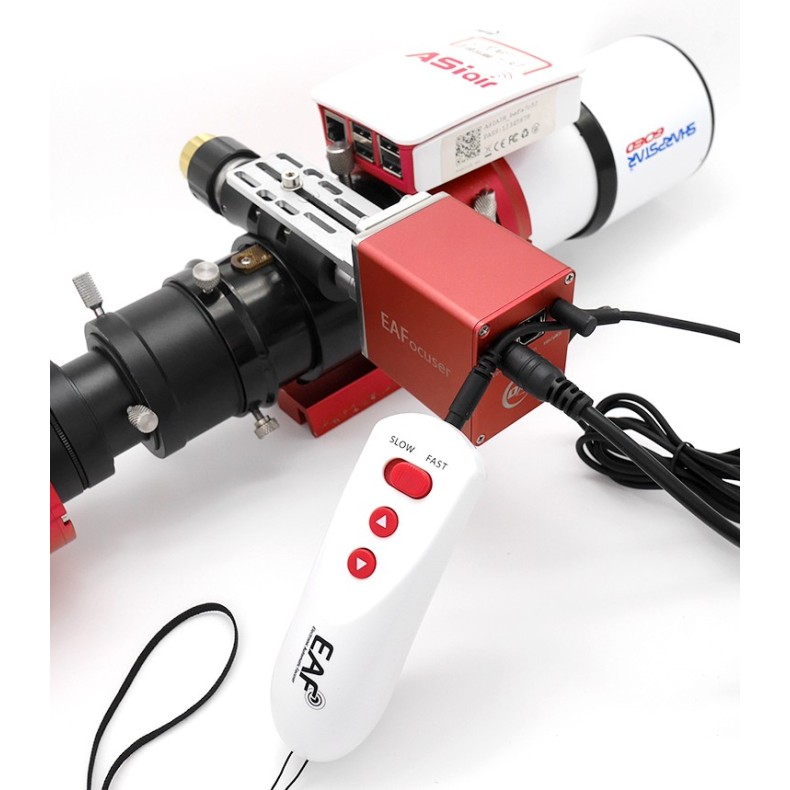

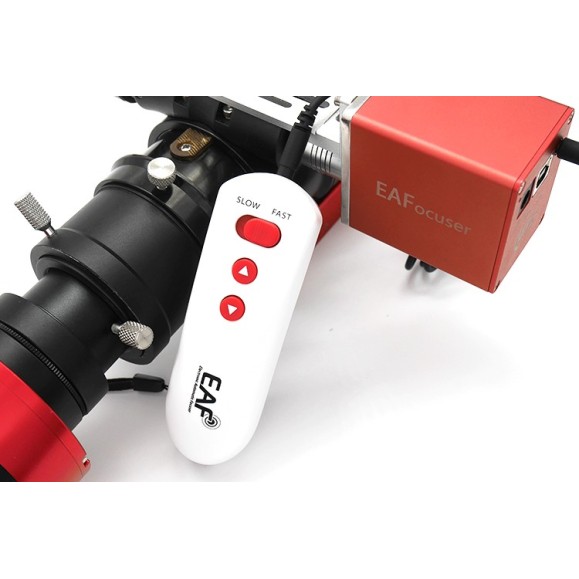

The hand controller is connected to ZWO EAF (Electronic Auto Focuser). Its ergonomic housing, made of environmentally friendly APS material, provides a comfortable grip when handling and comes with a 3.5 mm female connector. The ZWO EAF hand controller provides an easy method of focusing the telescope, with IN and OUT buttons, a 2-line display, slow and fast speed control - a must-have for EAF users!

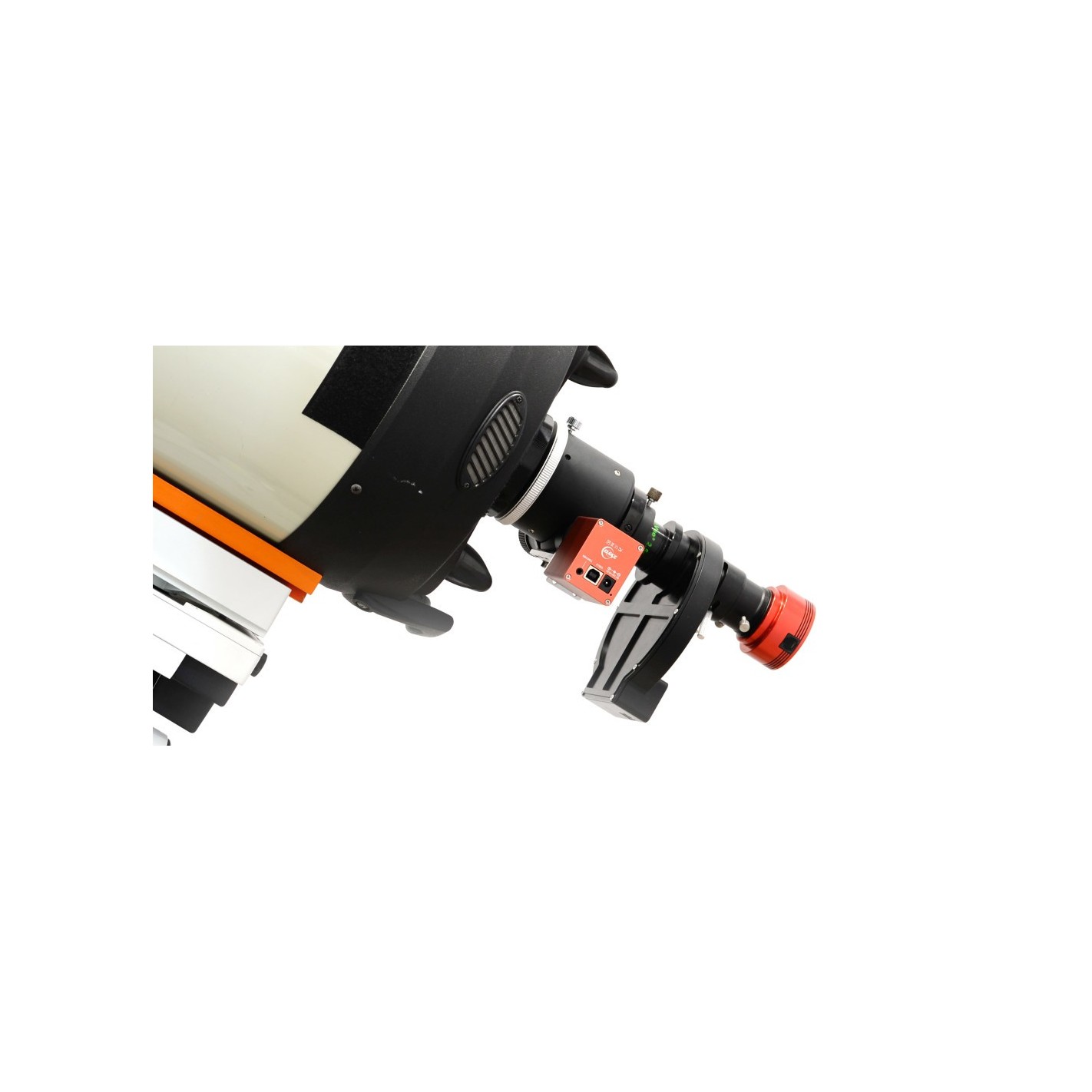

It is recommended to use the additional focuser and EAF on SCT and MCT models.
Specifications:
| Resolution | 5760 steps per revolution |

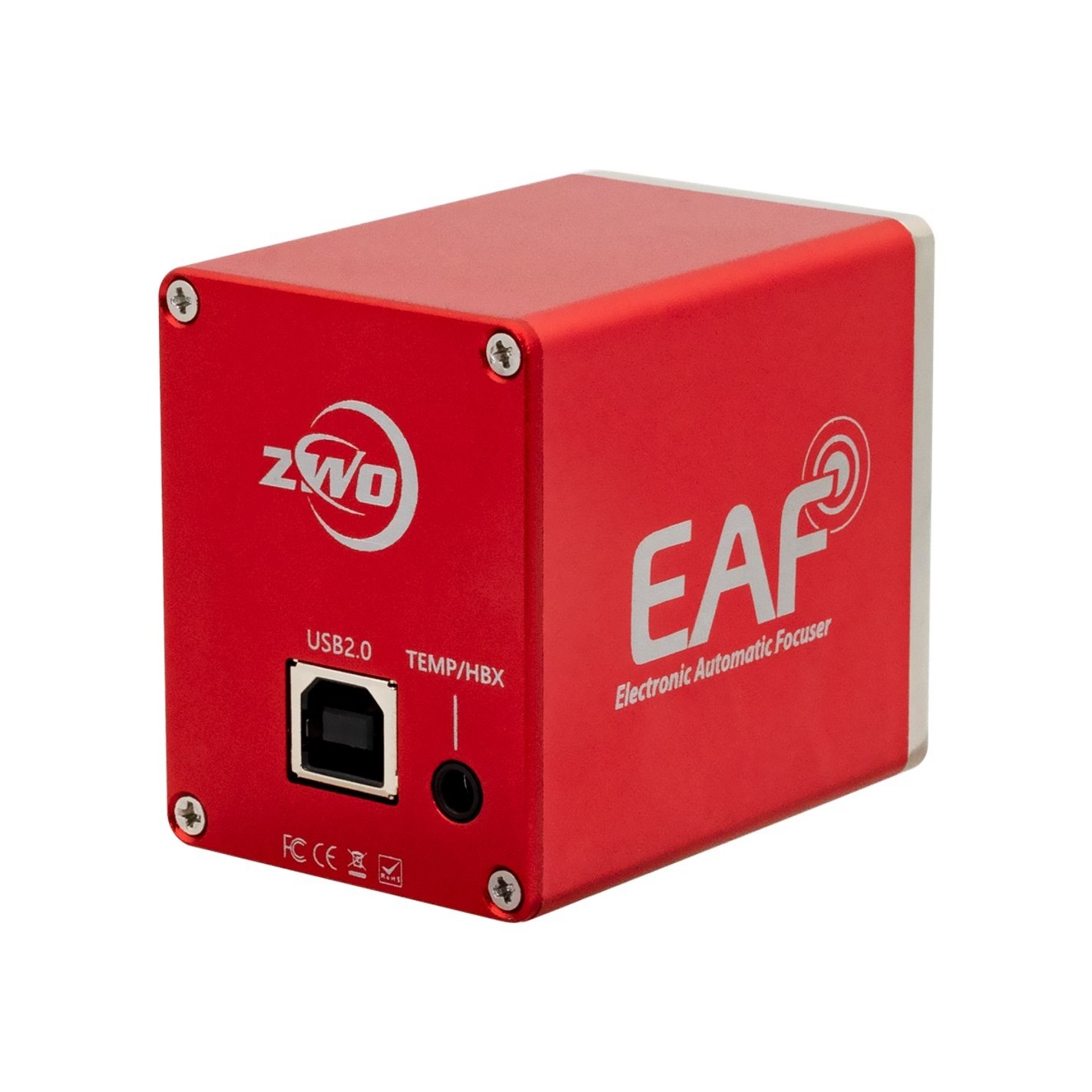

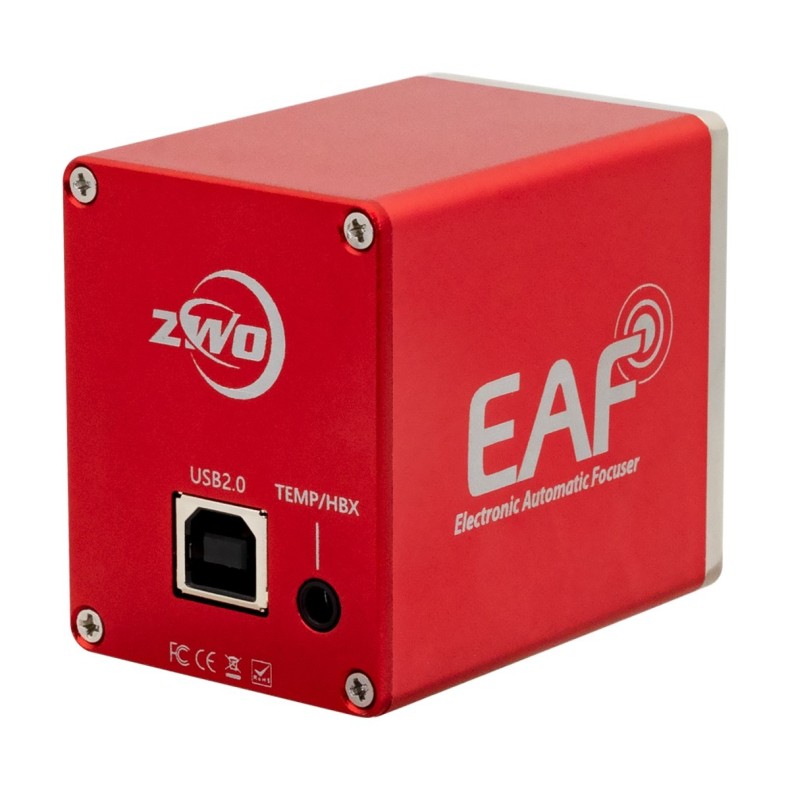

| Data transfer | USB2.0 type B port |
| Power | 5V via USB port |

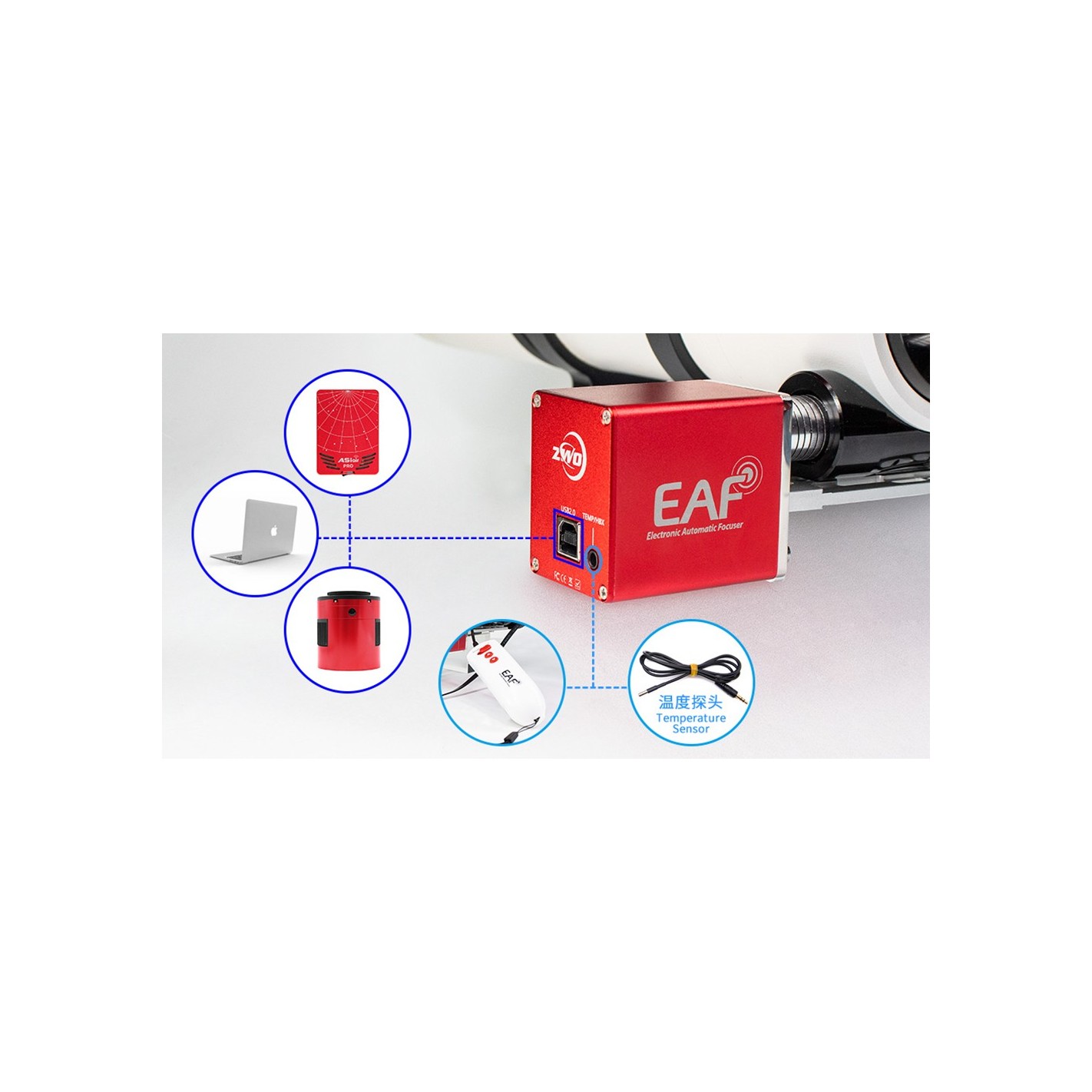

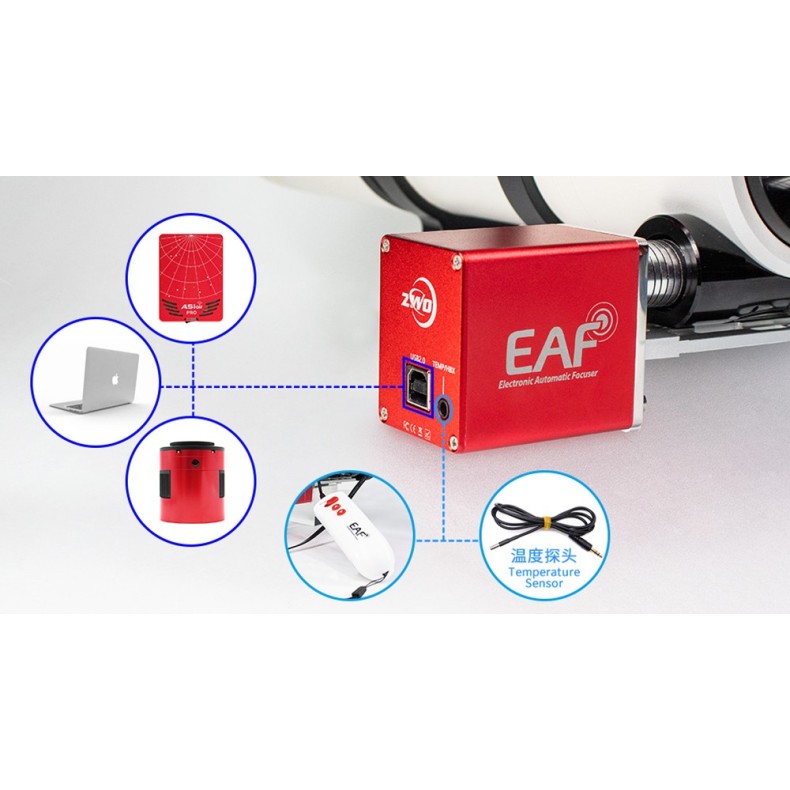

| auxiliary port | Optional manual control/thermal probe connection |
| Load capacity | 5kg |

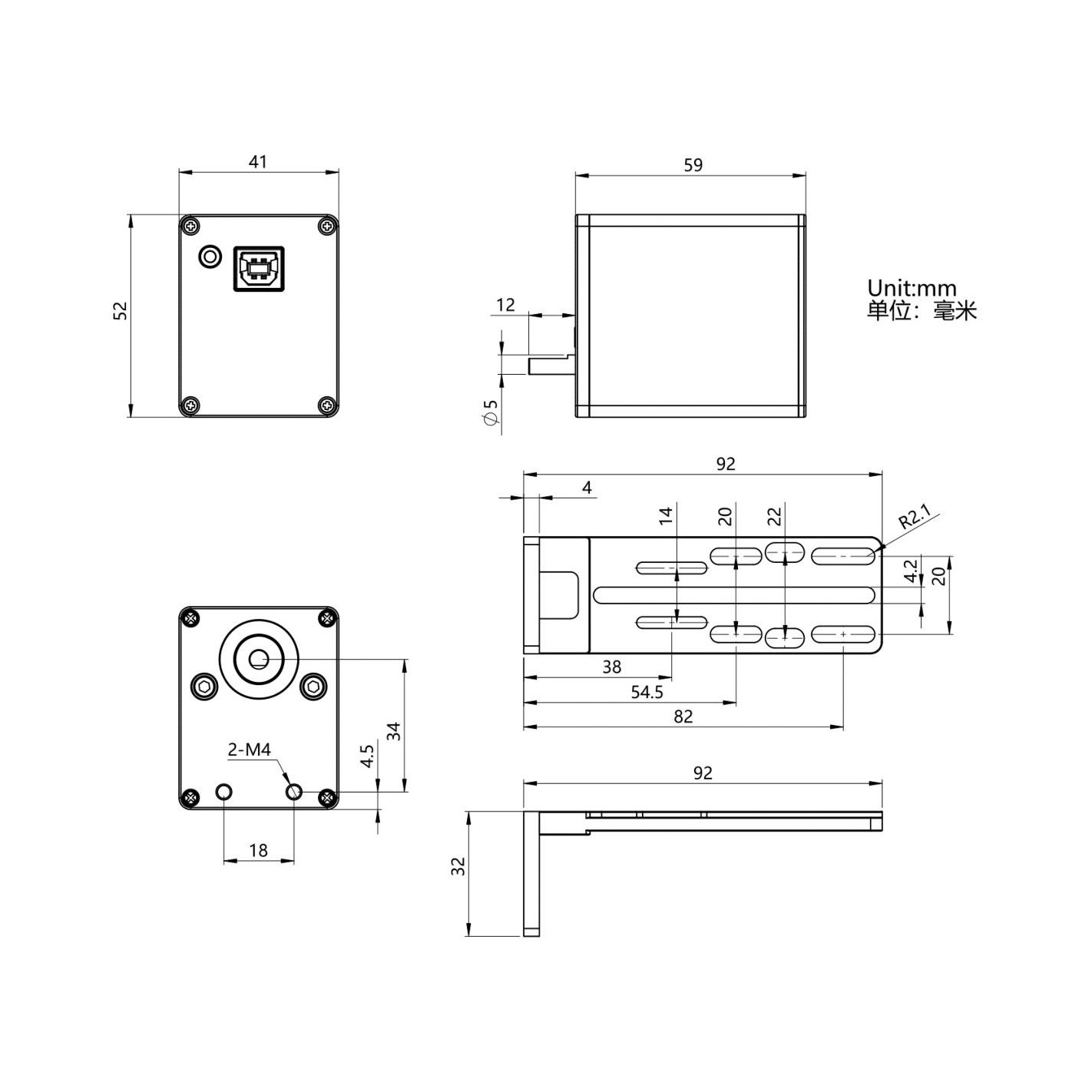

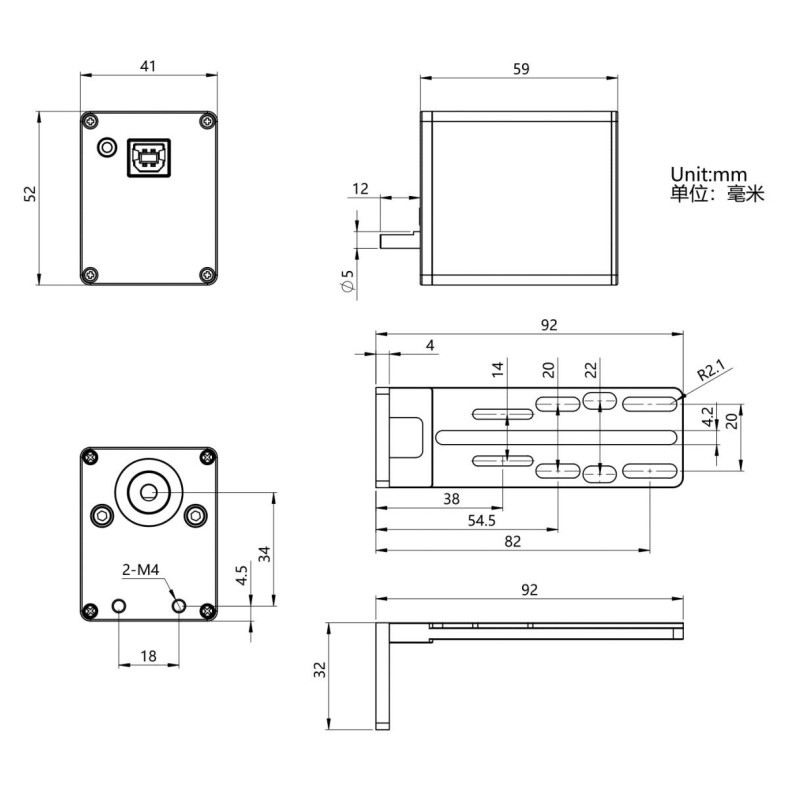

| Dimensions | 59mmx52mmx41mm |
| Weight | 277g |
Compatible telescopes:
Currently, the ZWO EAF mount for Takahashi is available (as optional accessories for ZWO EAF); with the following compatible models:
The following models are also compatible with the optional accessories for ZWO EAF:
We are working to offer more connecting brackets to existing focusers on the market. Support for other telescopes such as GSO will be available soon.
Focusing motor ZWO EAF advanced version
You might also like
Focusing motor support plate ZWO EAF for adaptation to telescopes Takahashi
Deliver it 7/14 days
Mounting kit to attach the focusing motor ZWO EAF to the William Optics RedCat. This kit is only the accessories needed to make the coupling, but DOES NOT INCLUDE THE FOCUSING MOTOR ZWO EAF.
Deliver it 13/20 days

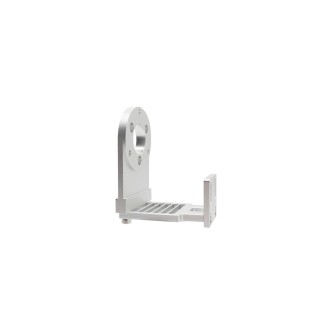

Focusing motor support plate ZWO EAF for adaptation to Celestron C8 and C925 telescopes
Deliver it 15/22 days

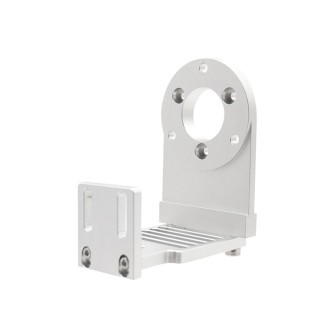

Focusing motor support plate ZWO EAF for adaptation to Celestron C11 and C14 telescopes
Deliver it 15/22 days
This adapter and mounting kit allows the connection of the ZWO EAF motors to the ACL200 telephoto lens and thus a motorized focus. As you can see, the implementation has been solved very cleverly. Now you can put the ASIAIR in front of it, all nicely compact.
Deliver it 25/32 days
With Wega's 3D printing motor assembly kit, the approach will be easy in the future. You only need a suitable ZWO EAF motor, which is not included in the delivery.
Deliver it 13/20 days
Equip TS-Optics and GSO 2" Crayford and Monorail focusers with the ZWO EAF motorized focusing system.
Deliver it 7/14 days

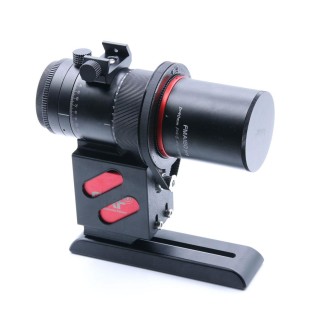

Now you can equip your telephoto lens Askar FMA180 pro with motorized focus, sensitive and pleasant even in winter.
