SMARTSCOPE inspection microscope with...

SMARTSCOPE inspection microscope with screen

SMARTSCOPE inspection microscope with screen

Name: SMARTSCOPE inspection microscope with screen
Brand: BMS
SKU: BMS756460
Price: 1107.4 EUR
Availability: InStock

Reference BMS756460

Last items in stock

1,107.40 1,264.46 -157.07

VAT excluded Shipping 24/48h

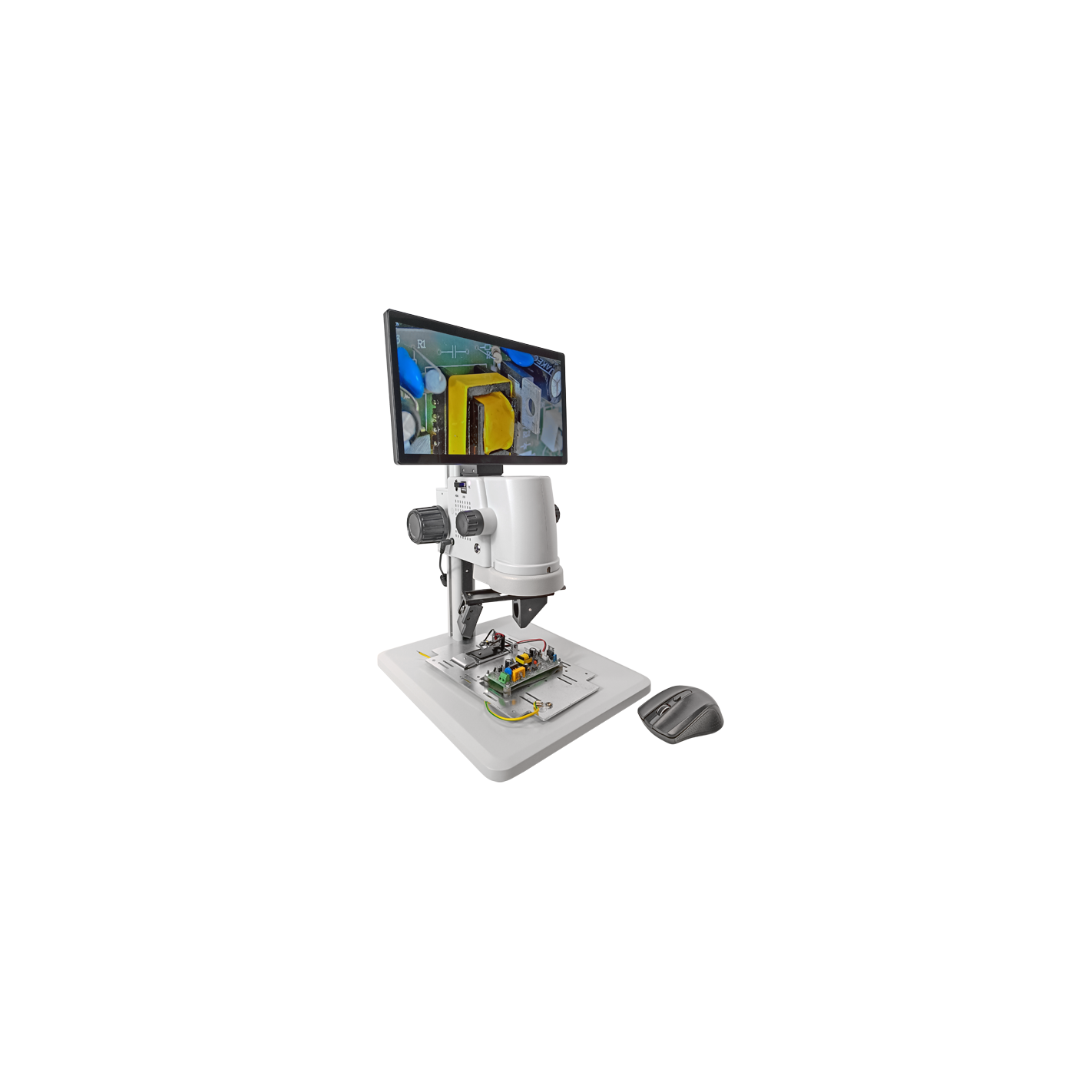

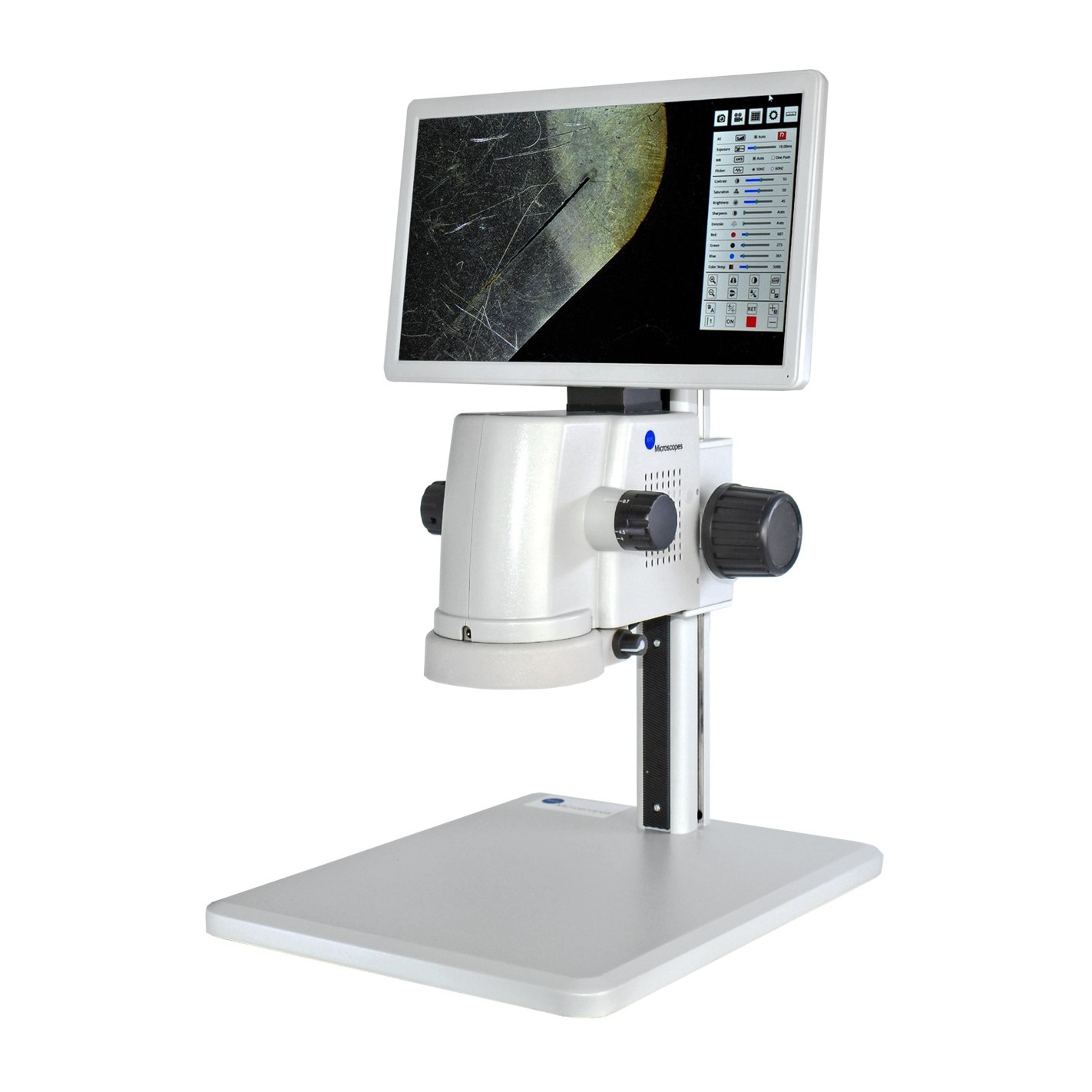

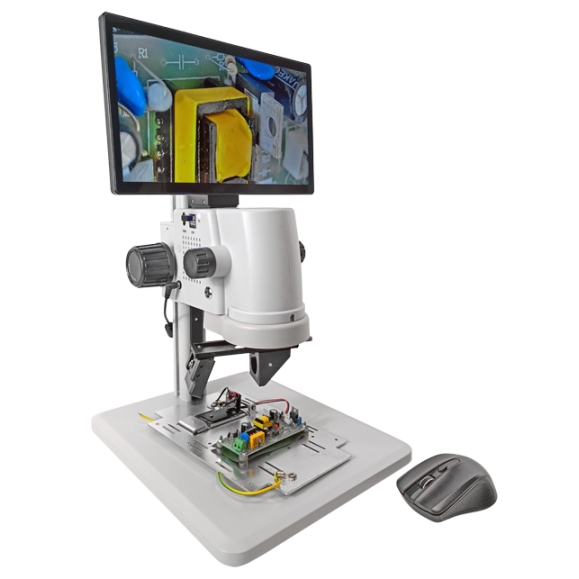

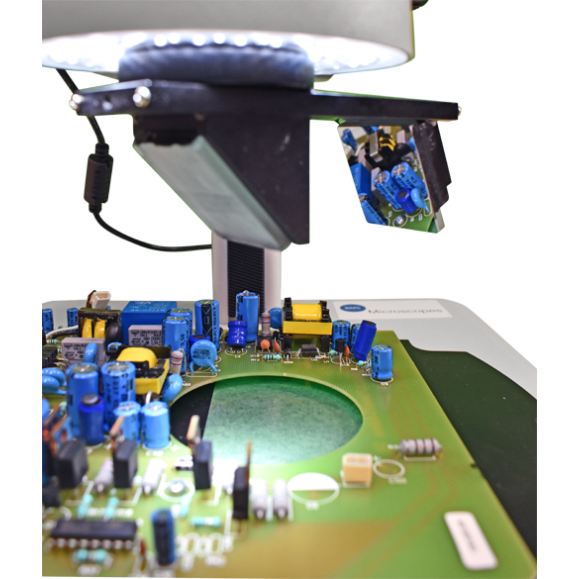

Smartscope inspection microscope supplied with an abutment and a 12" LCD monitor. It comes with a high magnification zoom lens and an integrated CCD camera. In addition to a long zoom range, it also features a long working distance, and the quality of the LCD monitor. With these features, it becomes a perfect equipment for industrial inspection.

Order it before 1 hours and 19 minutes and receive it between on Thursday, 6 February and Thursday, 13 February with Home delivery - International

Delivery Options

Carrier		Description	Estimated Delivery
	Home delivery - International	Home delivery - International	Thursday, 6 February - Thursday, 13 February

Home delivery - International

Estimated delivery:
Thursday, 6 February - Thursday, 13 February

✖

Must-have accessories

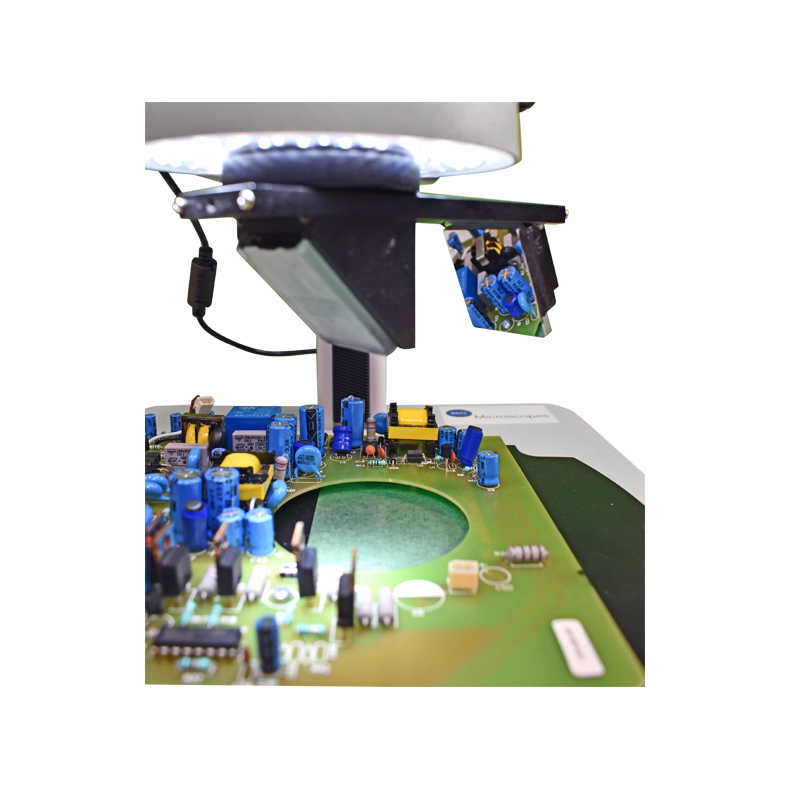

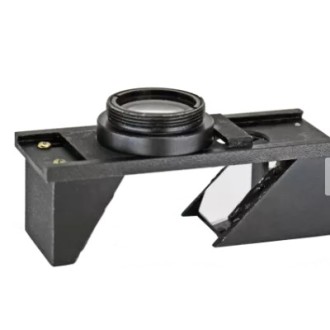

35º VIEWING ANGLE FOR DIGITAL SMARTSCOPE

+205.74

SMARTSCOPE inspection microscope with screen

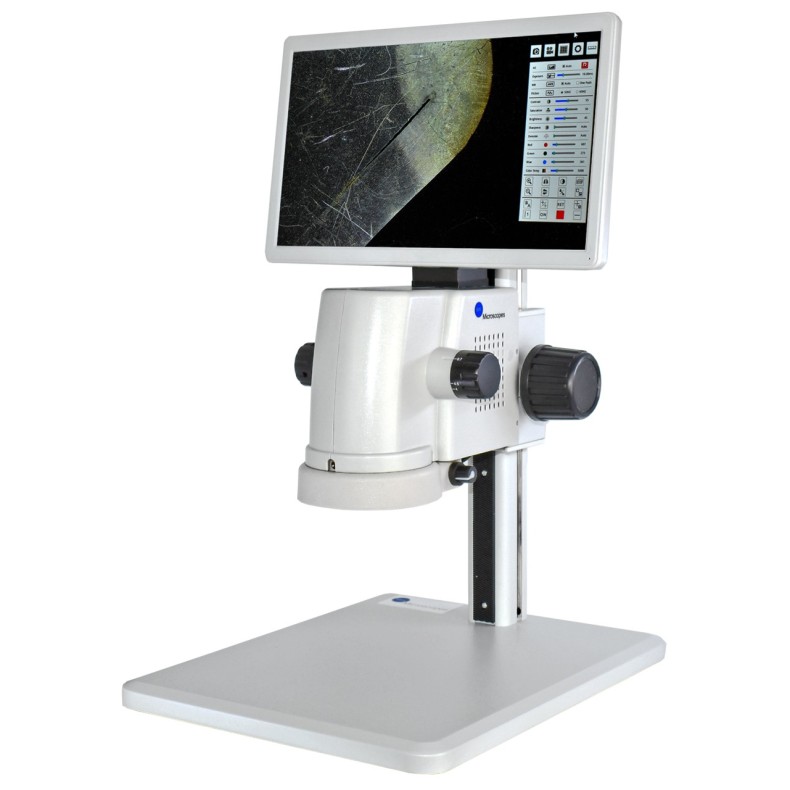

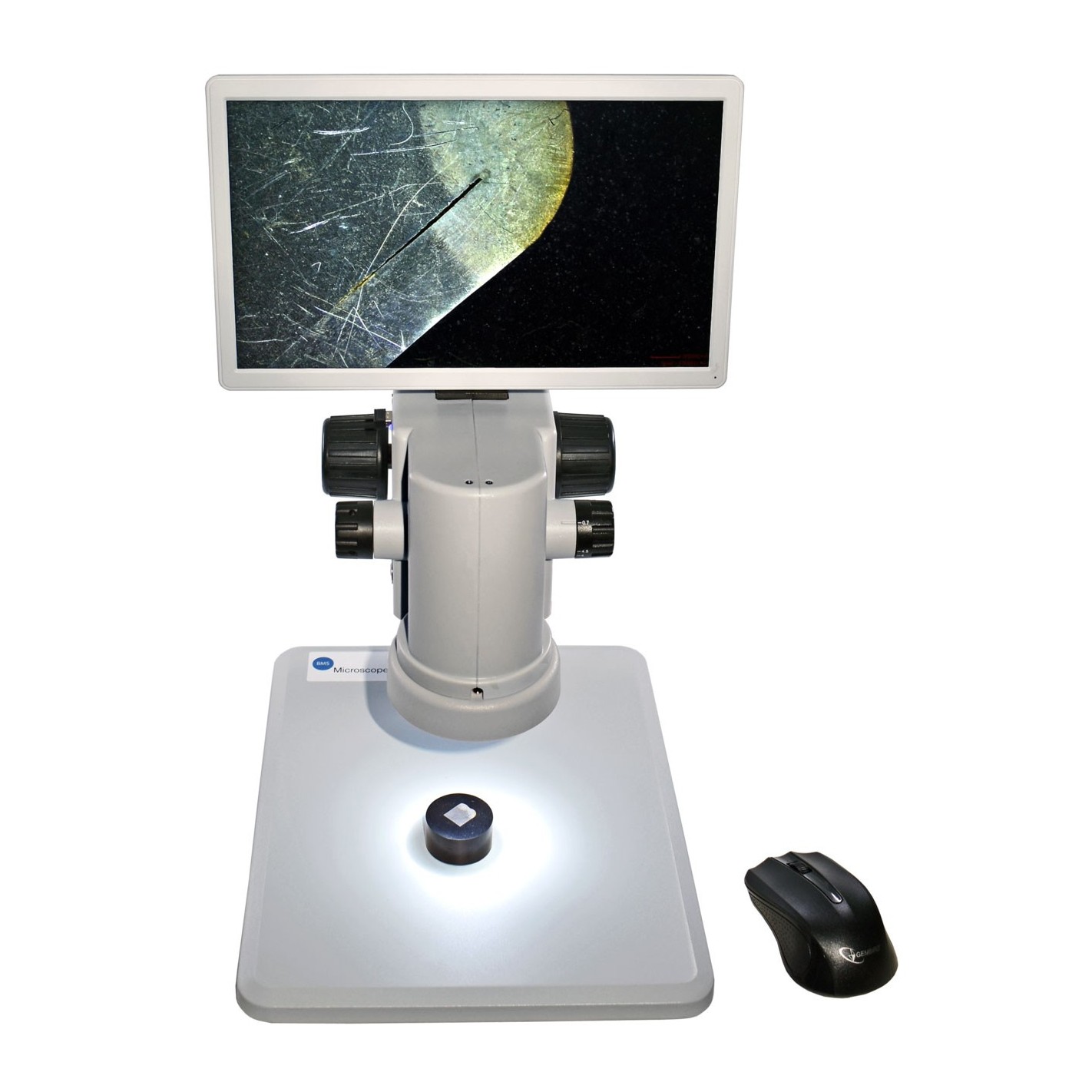

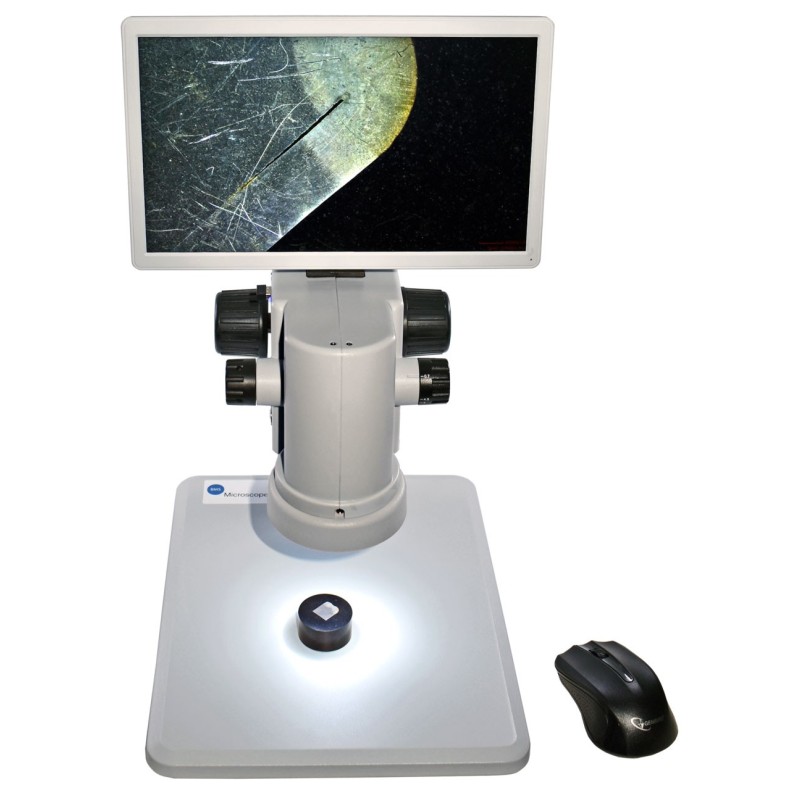

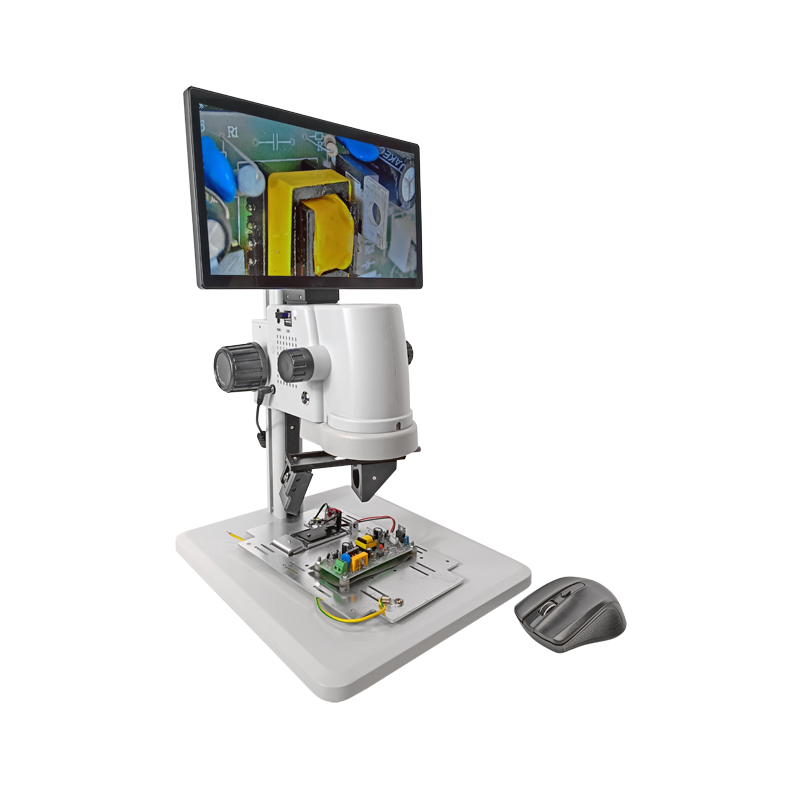

Smartscope inspection microscope comes with column stand and 12 inch LCD monitor with high ratio zoom objective and built-in CCD camera. This series microscope offers large zoom range, long working distance, especially the LCD monitor display, which is a perfect instrument for industrial inspection.

Technical Specifications:

Lens: 0.7x ~ 4.5x zoom, 7:1 ratio
Total magnification on screen: 17.2x-110.5x
Working distance: 100 mm (with standard lenses)
Built-in: Control and measurement software
Sensor: CCD, 1/3 inch, 1920 x 1080 pixel @ 60fps

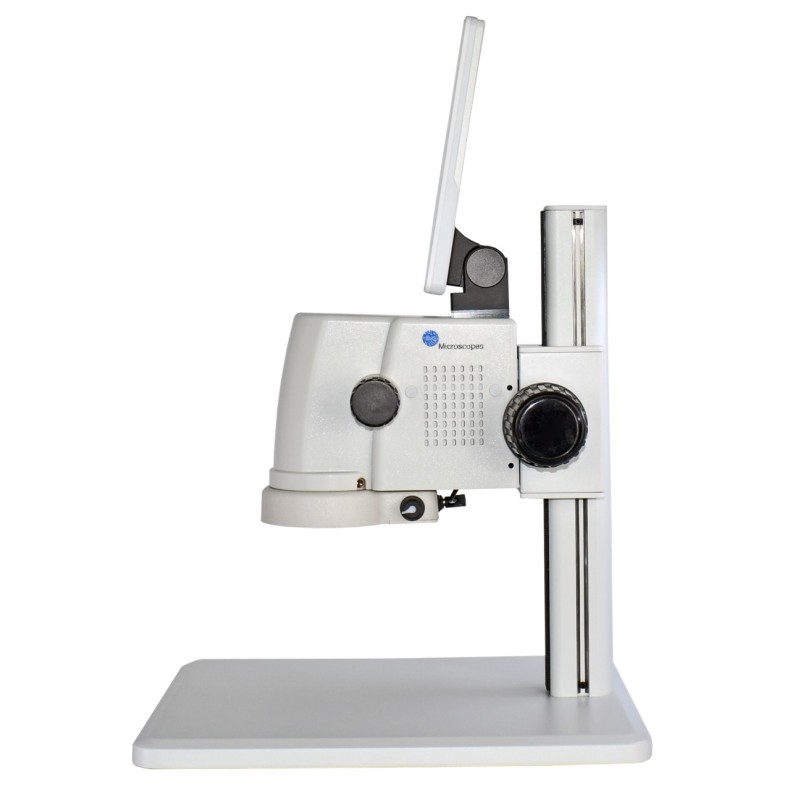

Stand size: vertical height : 350 mm, maximum focus distance: 220 mm
Base size: 320 x 260 x 16 mm

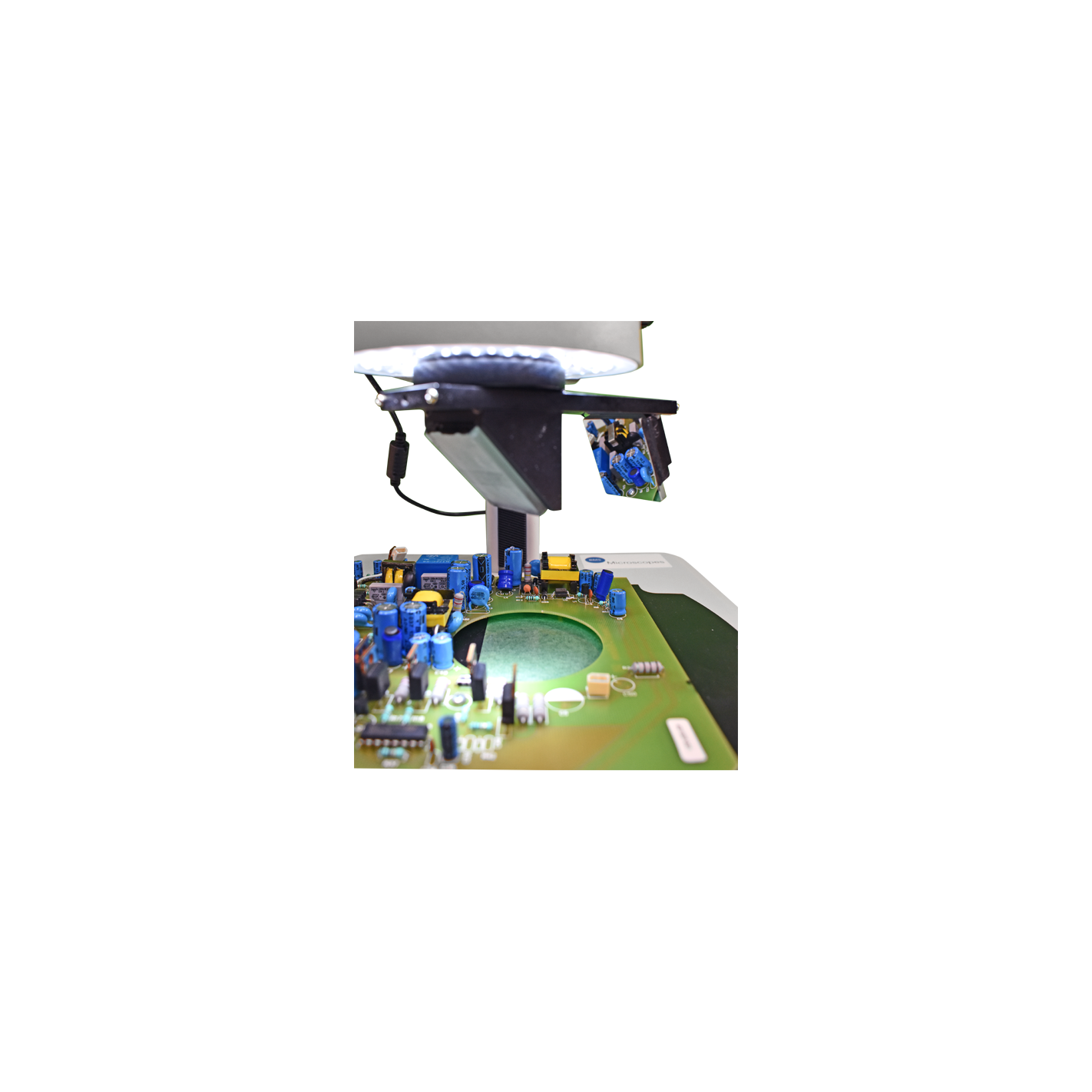

Illumination: 56-LED ring light with dimmable ring light.

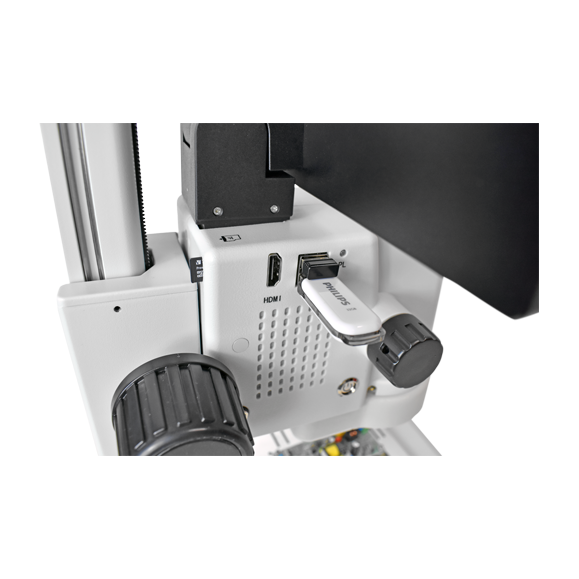

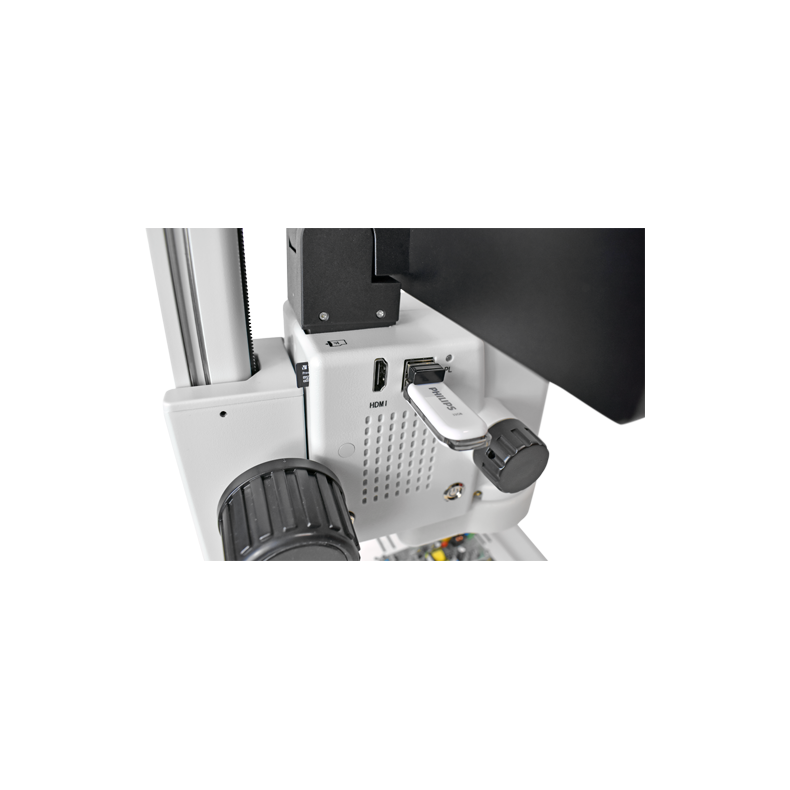

HDMI parallel output (for second Full HD monitor)
Display: IPS LCD (Super TFT), 1920 x 1080, Colors: 16.7 million

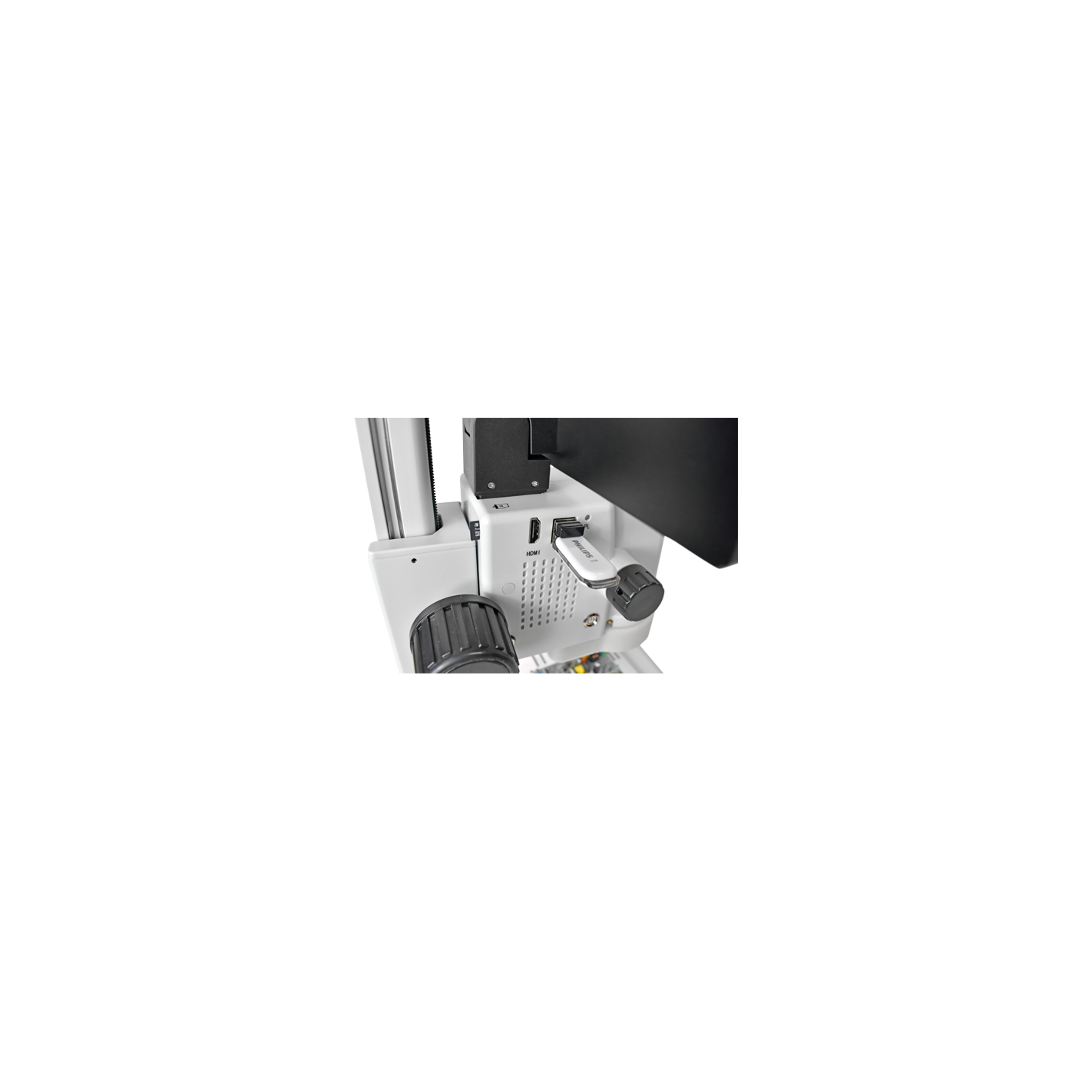

External Memory: 1x Mini SD Card Slot, 1x USB
External power supply, input 100 ~ 240 V AC 50/60 Hz, output DC 12 V/2 A

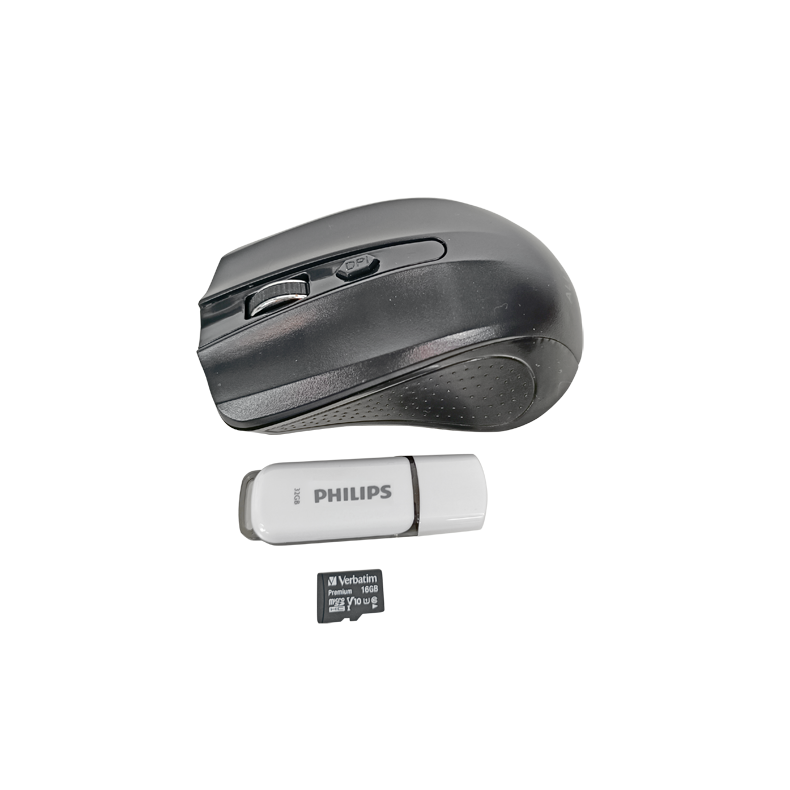

what comes in the box?

1 x LCD monitor
1x Metal microscope stand
1x Microscope objective body (built-in CCD)
1x Power cable
1x Dust cover

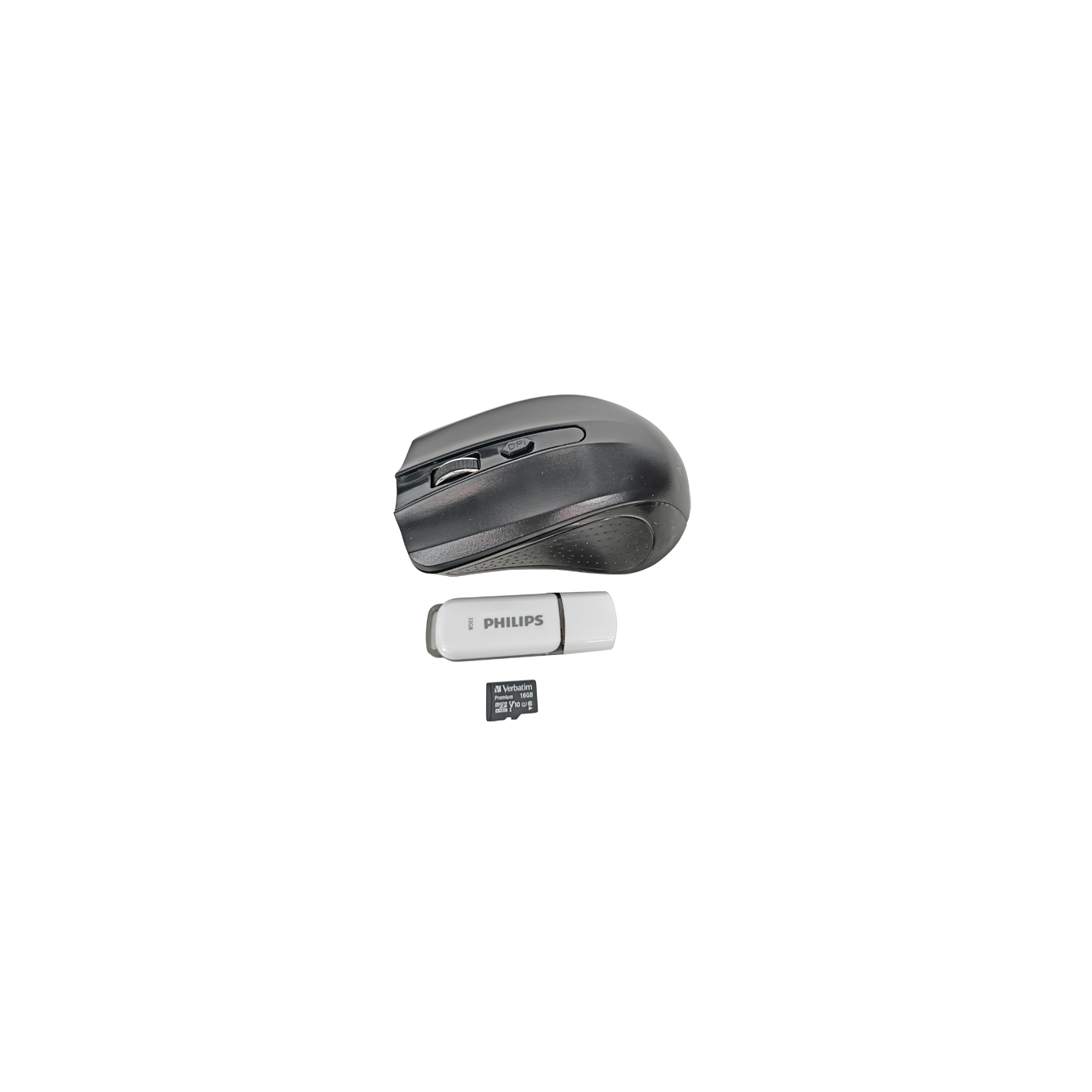

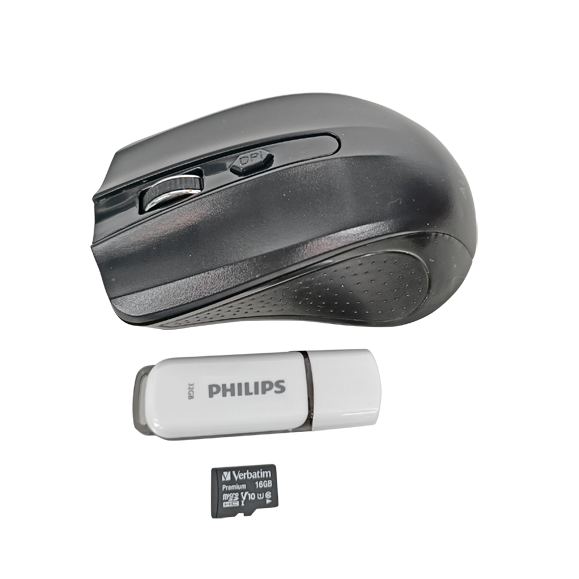

1x Wireless mouse
1x Micro-SD card for image storage

SMARTSCOPE Inspection Microscope with Display

By level of use: Advanced

Document

SmartScope Instruction Manual

Download (555.39KB)
