2-Way fluid video head with hot shoe 500 LONG

2-Way fluid video head with hot shoe 500 LONG

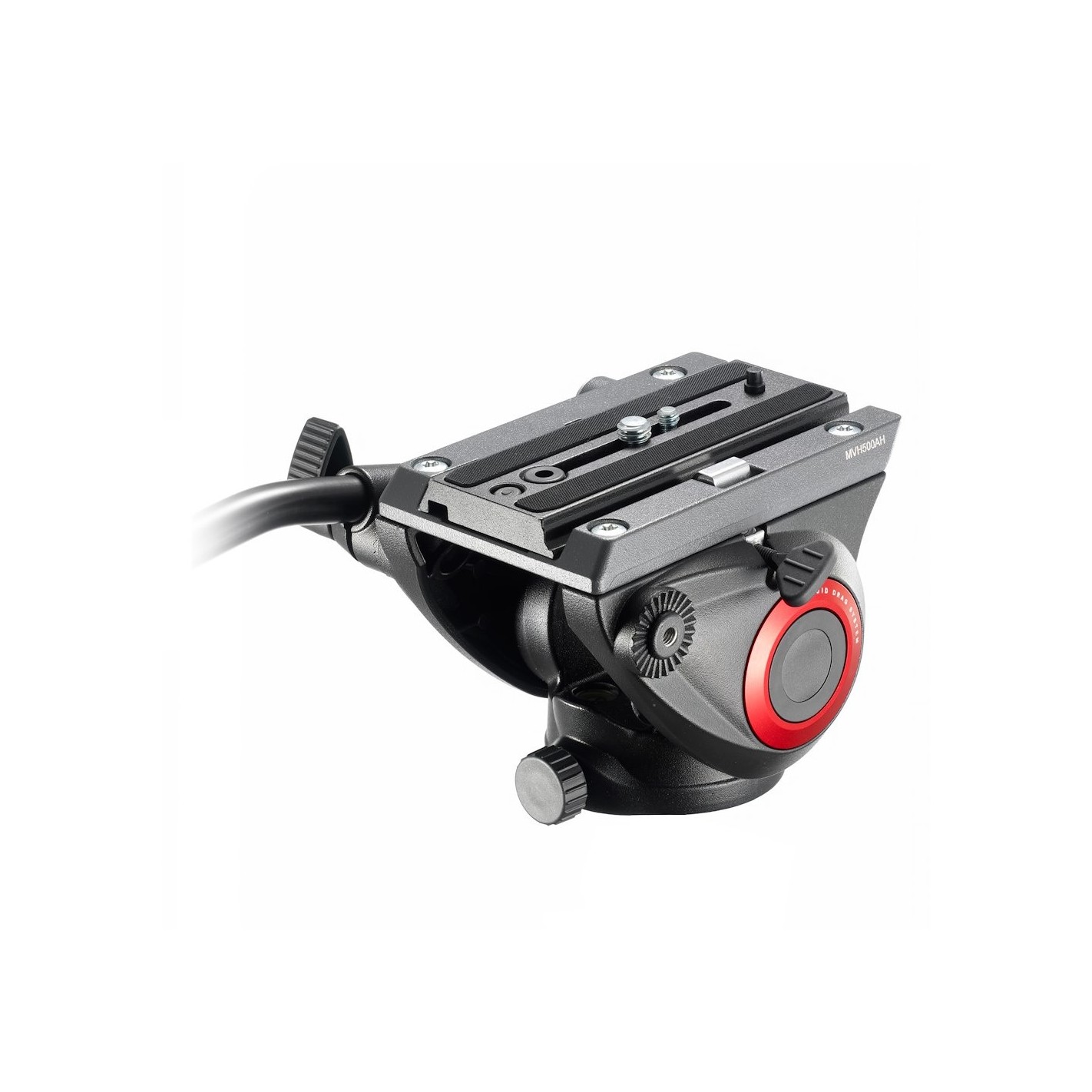

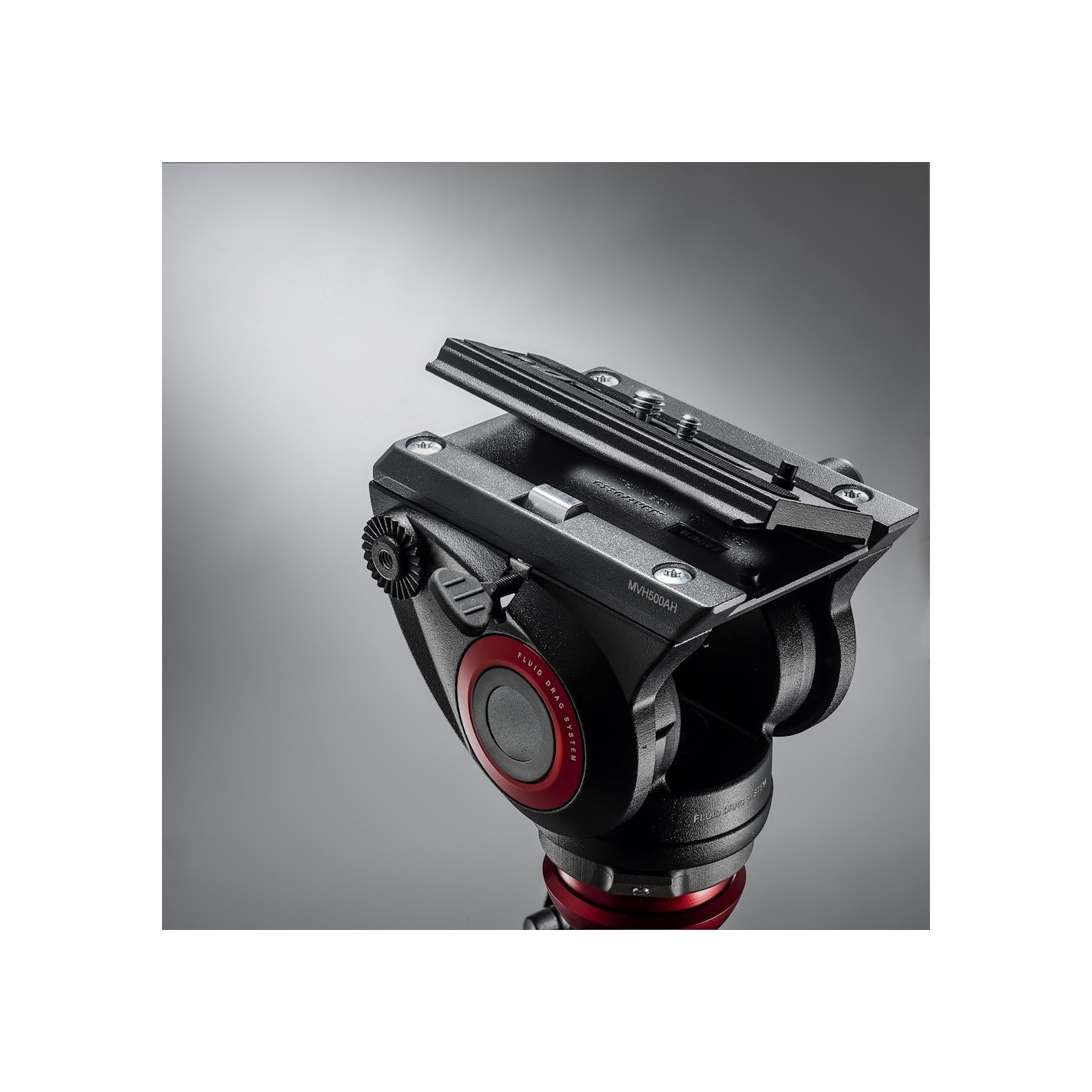

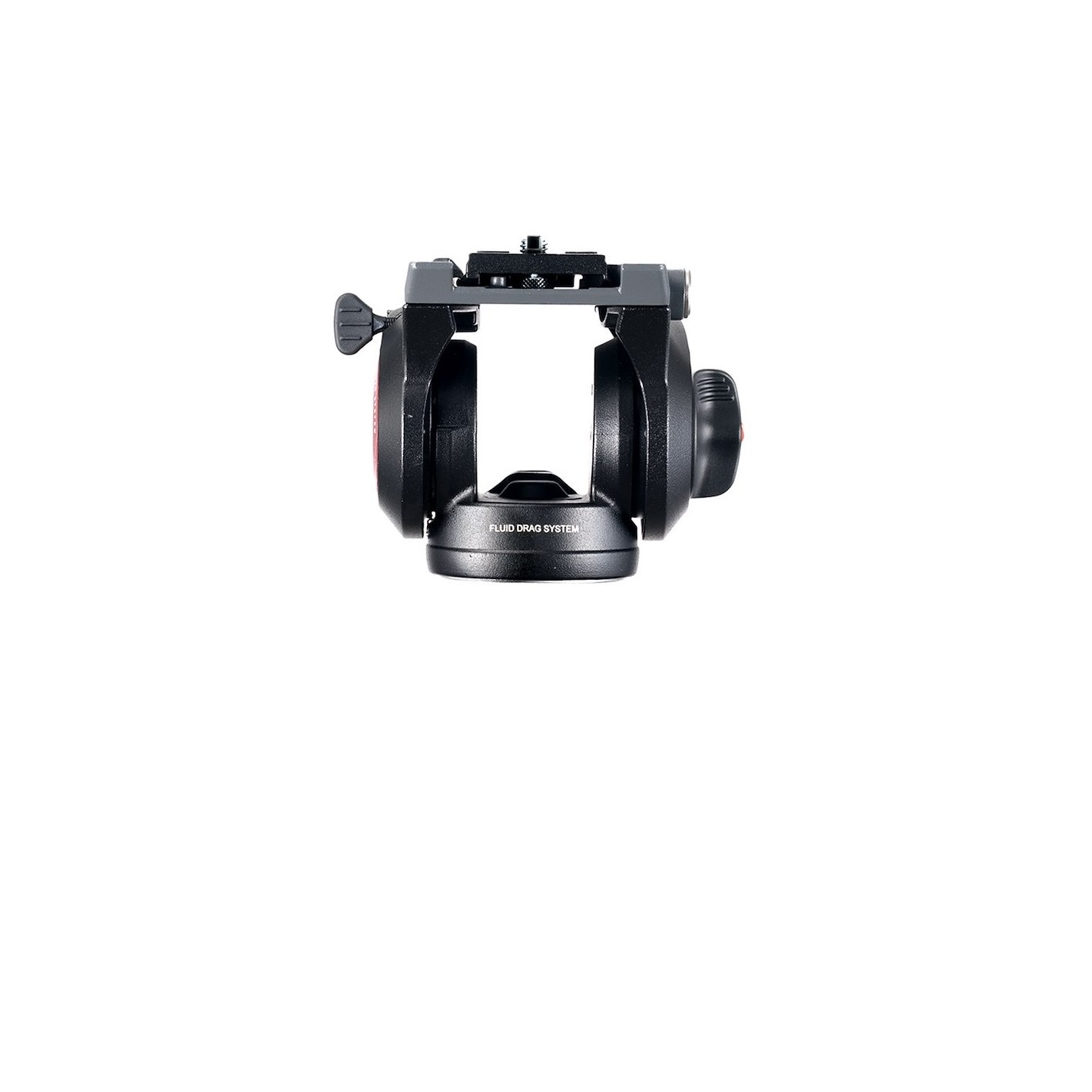

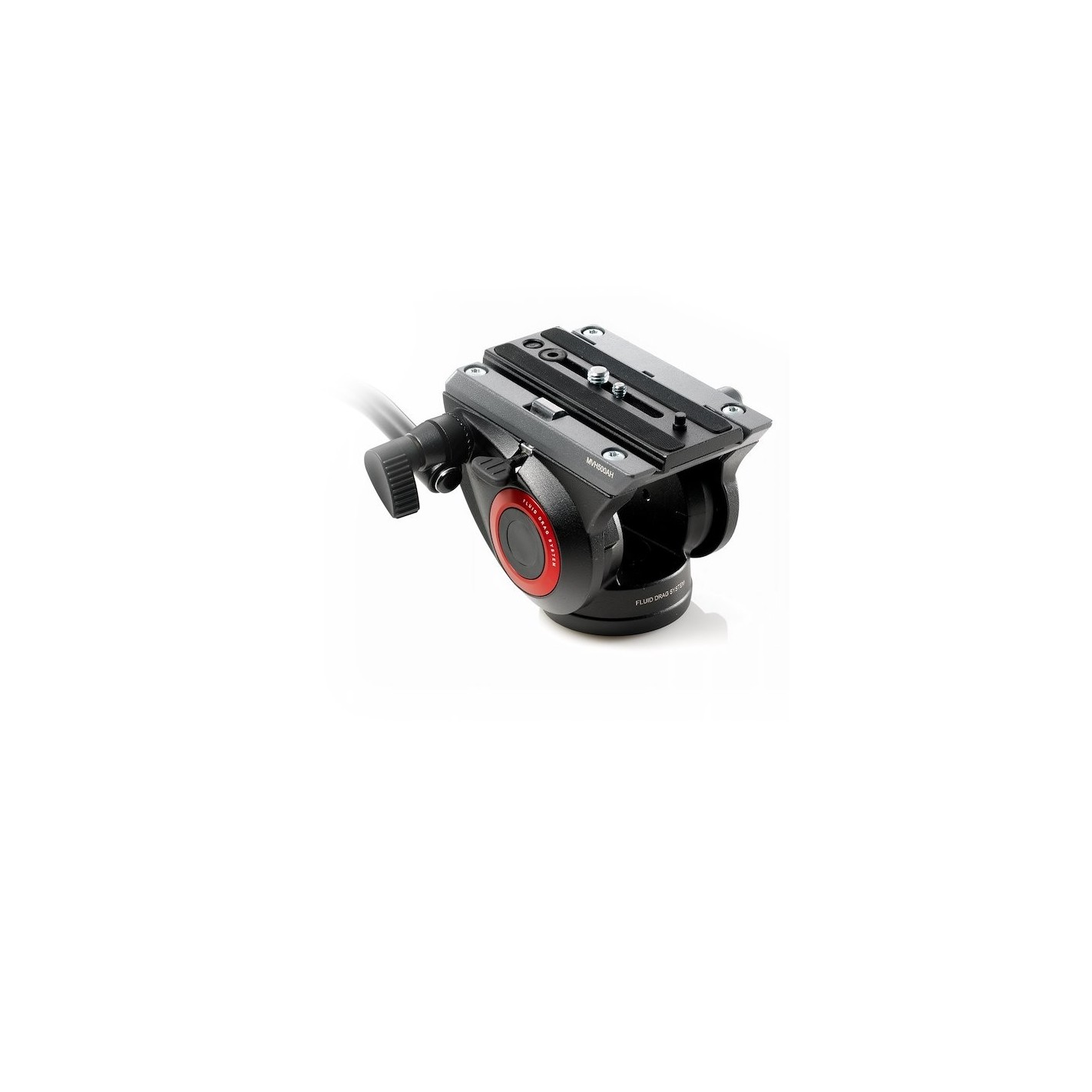

The MVH500AH 2-Way fluid head with 500LONGhot shoe is lightweight with a wider platform for HDSLR camera bodies and a sliding shoe capable of balancing interchangeable lens cameras. The 500 head ensures smooth recordings and excellent control of equipment up to 8kg.

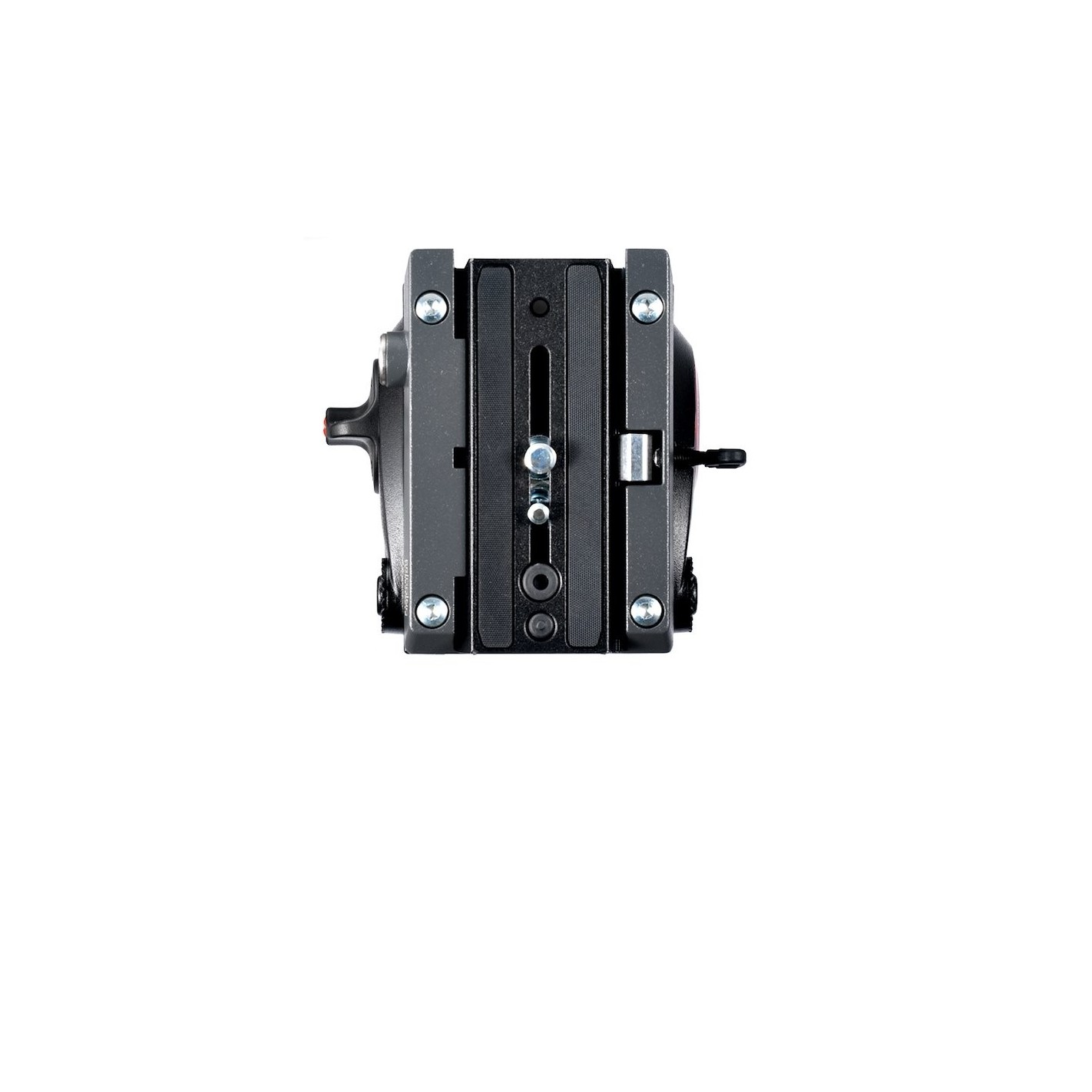

Smooth and attractive recordings: the 500 head has professional fluid cartridges in both the pan (horizontal) and tilt axes to ensure that all camera movements are smooth, controlled and precise. Faster, easier and simpler to use: the side-lock system allows the camera and QR quick release to be attached to the head from above, rather than having to align and mount from the rear. No secondary safety lock is required.

The side-lock system also makes it faster and simpler to remove the camera from the head from above. The 500 has a preset counterbalance of 2.4kg, but can support equipment up to 8kg.

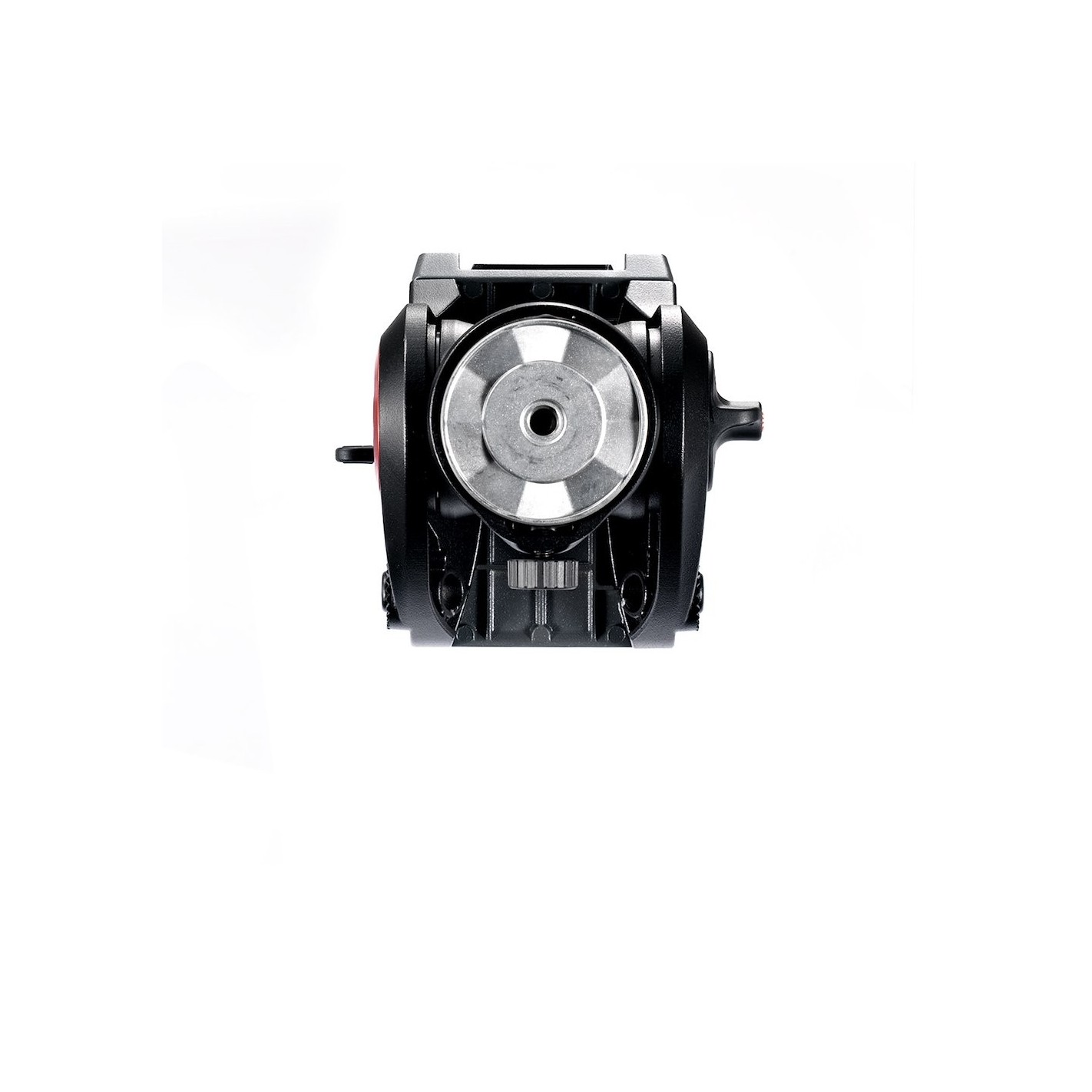

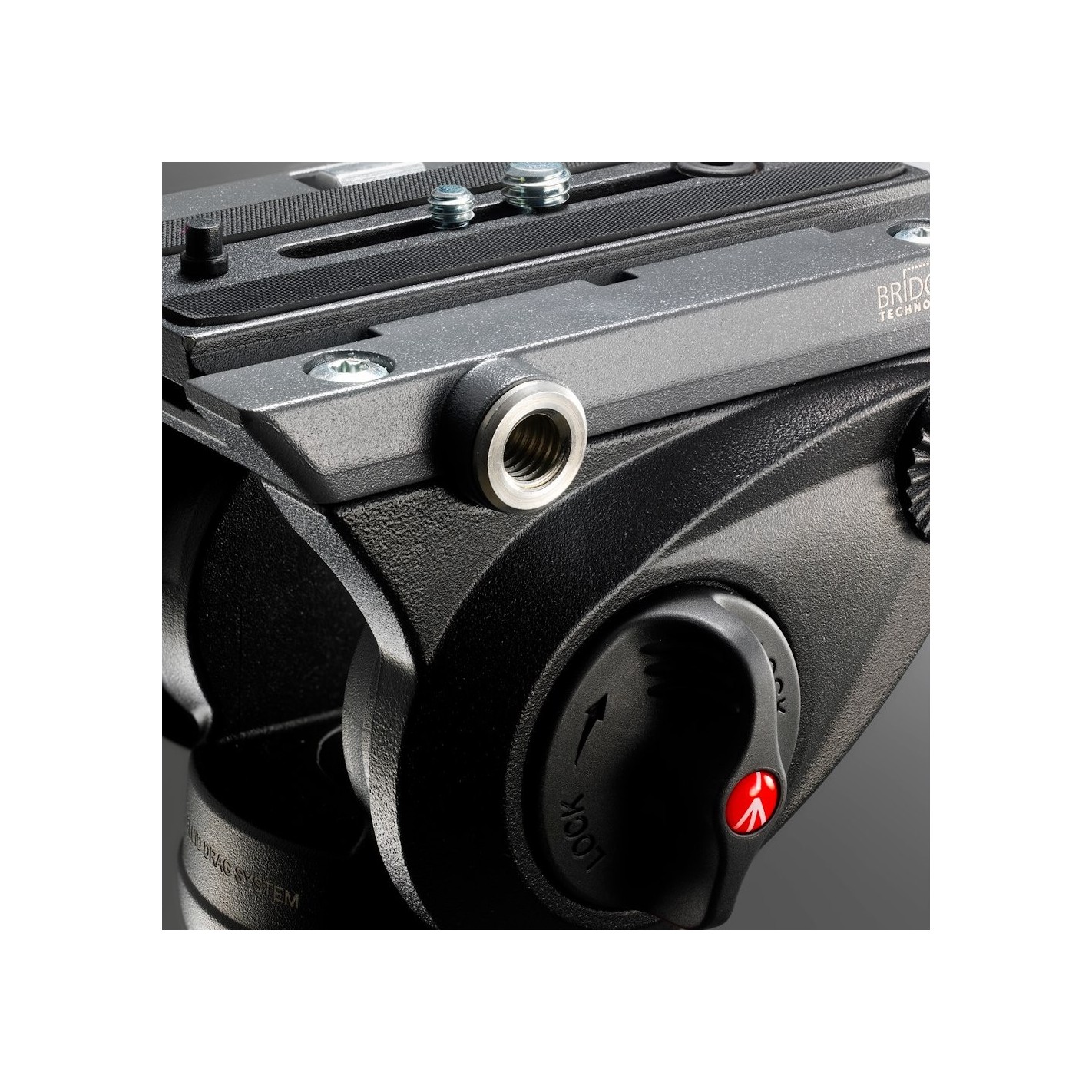

The 500 has a 3/8" Easy Link connector that allows mounting an external monitor or other accessory. The MVH500AH head has a flat base tripod mount for attachment to a hybrid photo/video tripod, a traditional photographic tripod or other supports.

Technical Specifications:

Weight
0.9 kg

Maximum load UNI/PdR 105:2021
8 kg

Counterweight System
Fixed

Counterbalance Weight
2.4 kg

Base Diameter
60 mm

Material
Aluminum

Number Of Bubble Levels
1

Center Of Gravity
55 mm

Maximum Load
5 kg

Powered By (Batteries)
0

Certified
None

Attachment (Top)
1/4″ Screw, 3/8″ Screw

Color
Black

Easy Link
Yes

Tilt Front
-70° / +90° -70° / +90

Base Type
Flat

Head Type
Fluid Video Head

Maximum Working Temperature
60 °C

Minimum Working Temperature
-20 °C

Pan Crank Included
Yes

Pan movement
fluid cartridge with fixed drag

Pan Rotation
360 ° Pan Rotation

Hot Shoe Type
500PLONG

Rapid Action Hot Shoe
Yes

Tilt Movement
fluid cartridge with fixed drag

Working Height
10.5 cm

Accessories Compatibility
500HLV, 560BALLSH
