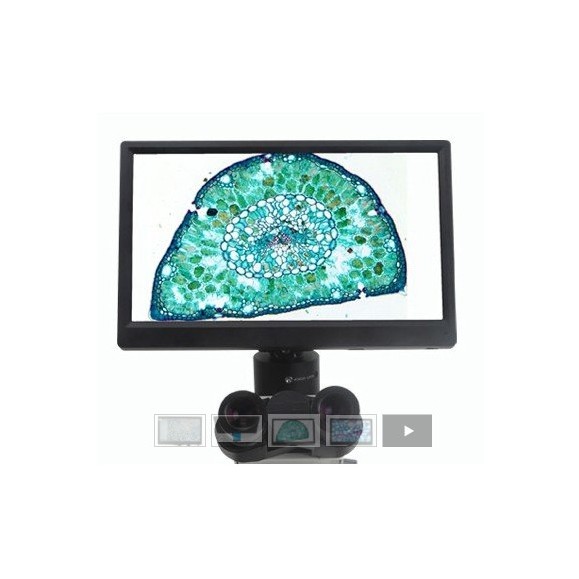

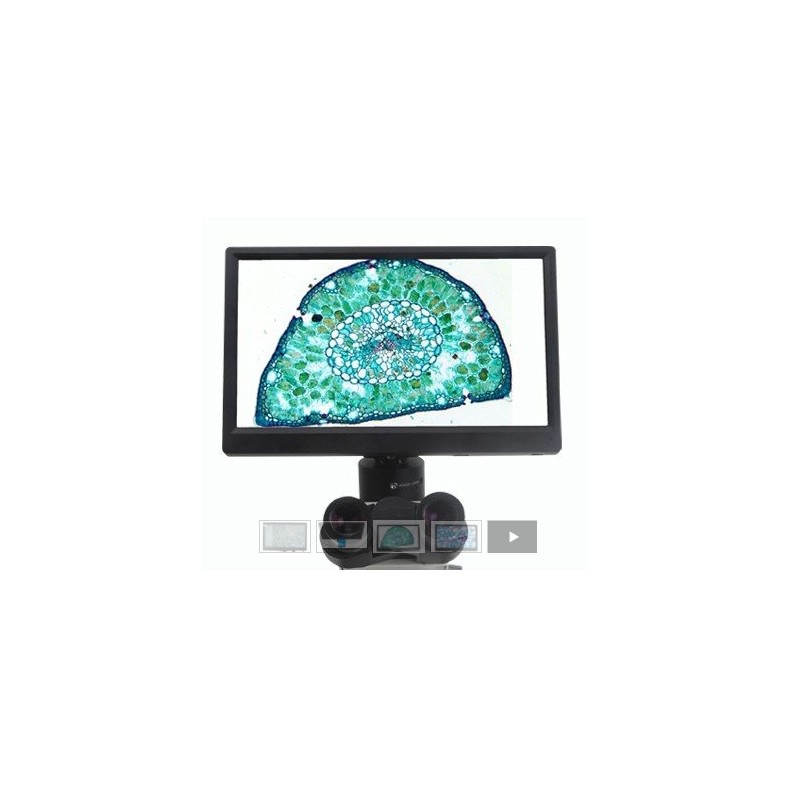

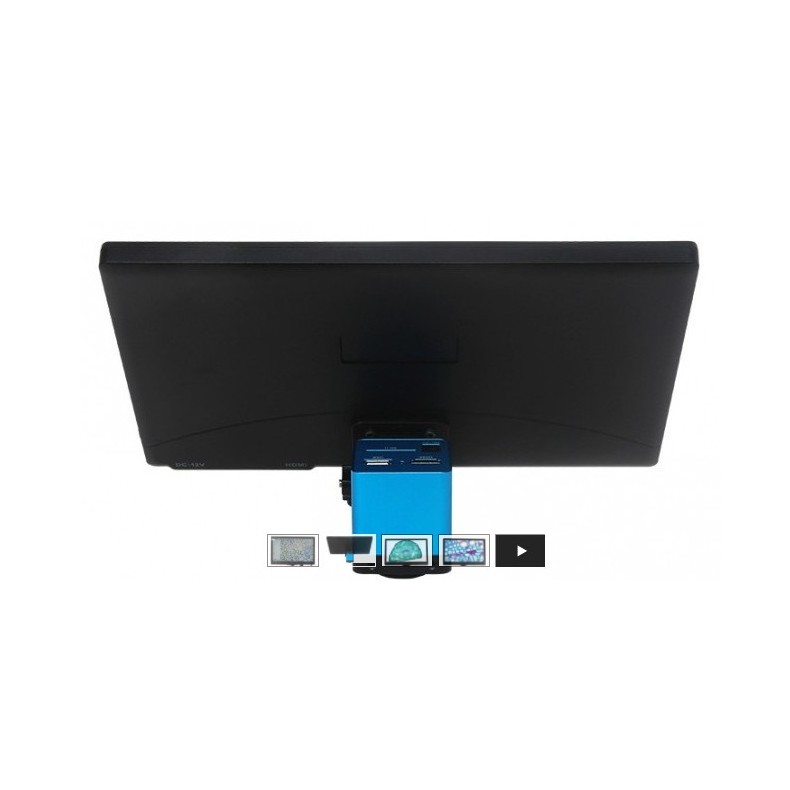

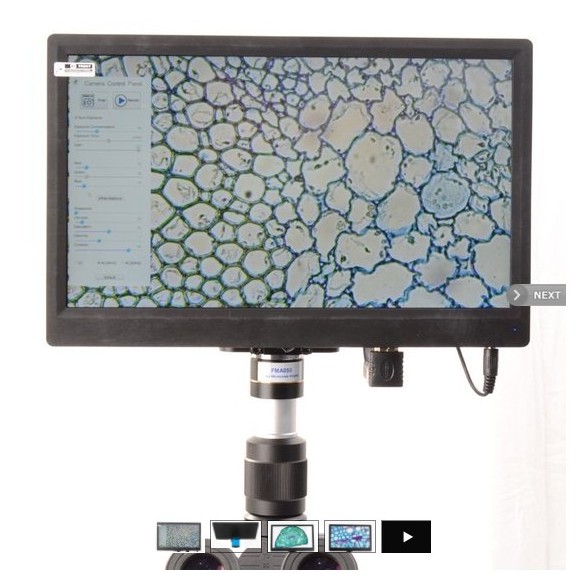

Screen BMS CellPad 3 Wifi 5Mp HDMI
BMS764797
Stock at Supplier
743.76
901.00
-157.24
VAT excluded
Shipping 5/7d
All-in-one C-mount camera (HDMI, WiFi, SD card) with high-sensitivity Sony CMOS sensor and ultra-high performance. Simultaneous HDMI and WiFi output. Mouse control via USB connection.
Delivery Options
| Carrier | Description | Estimated Delivery | ||
|---|---|---|---|---|
 |
Home delivery - International | Home delivery - International |
Thursday, 5 December - Thursday, 12 December |
|
Home delivery - International
Home delivery - International
Estimated delivery:
Thursday, 5 December - Thursday, 12 December
✖

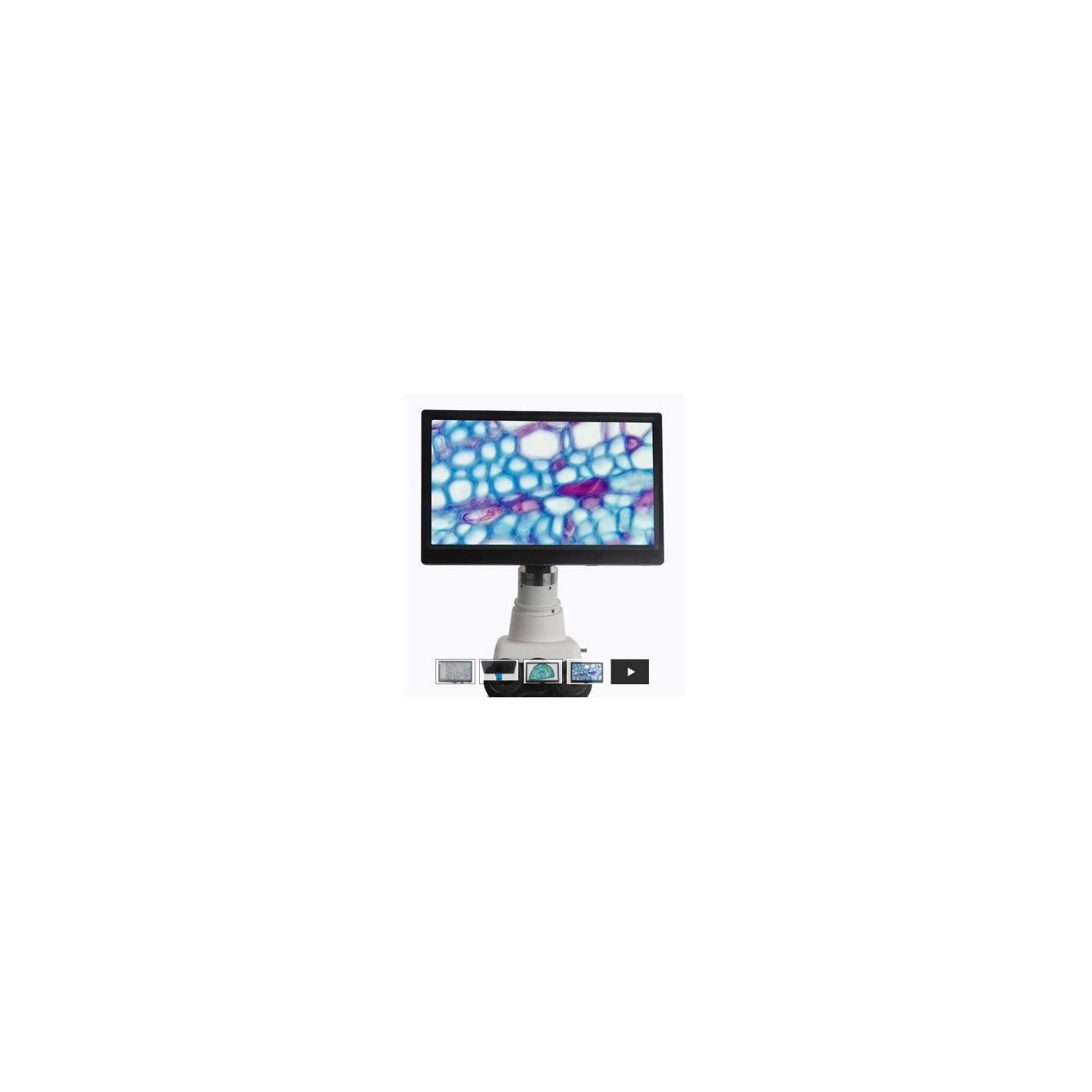

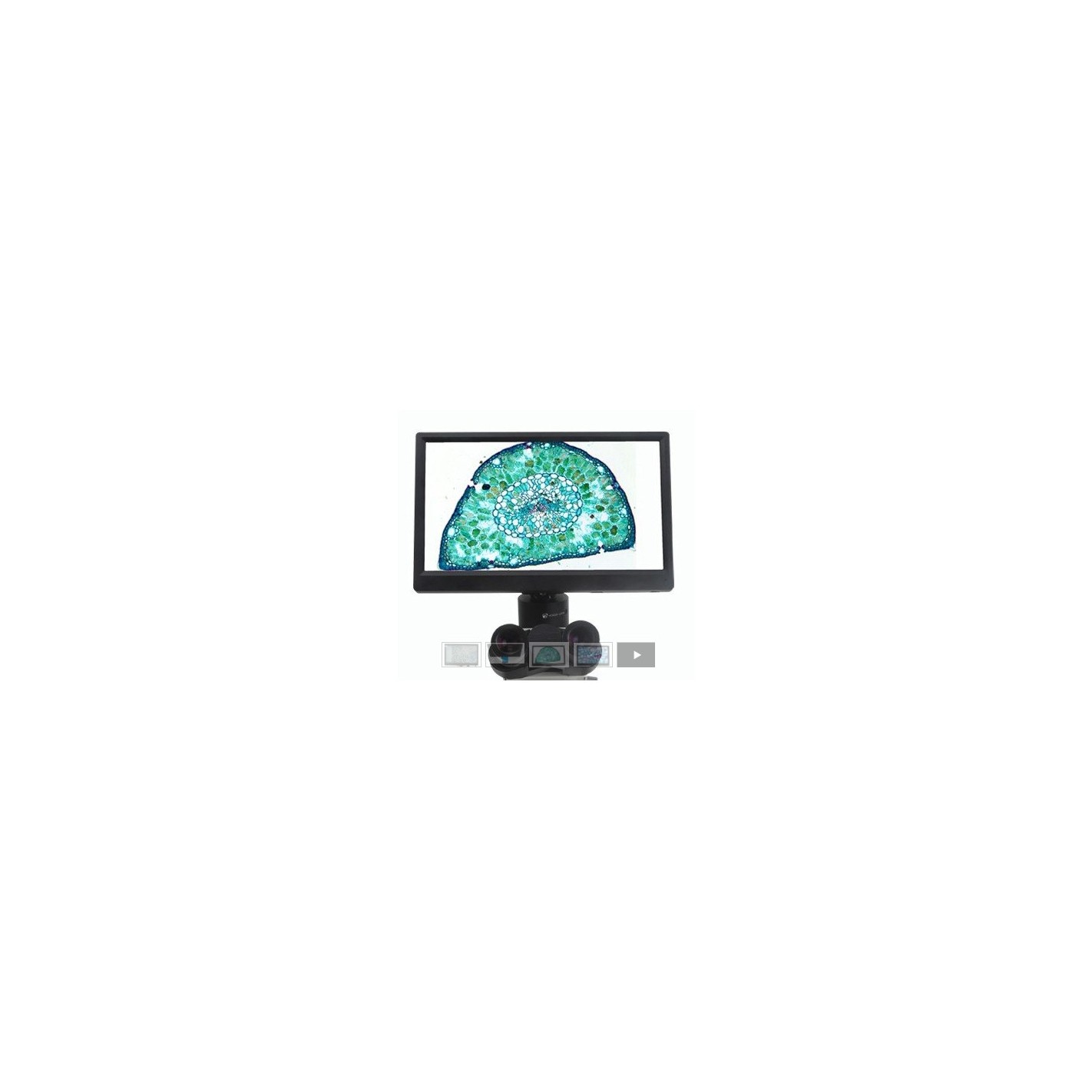

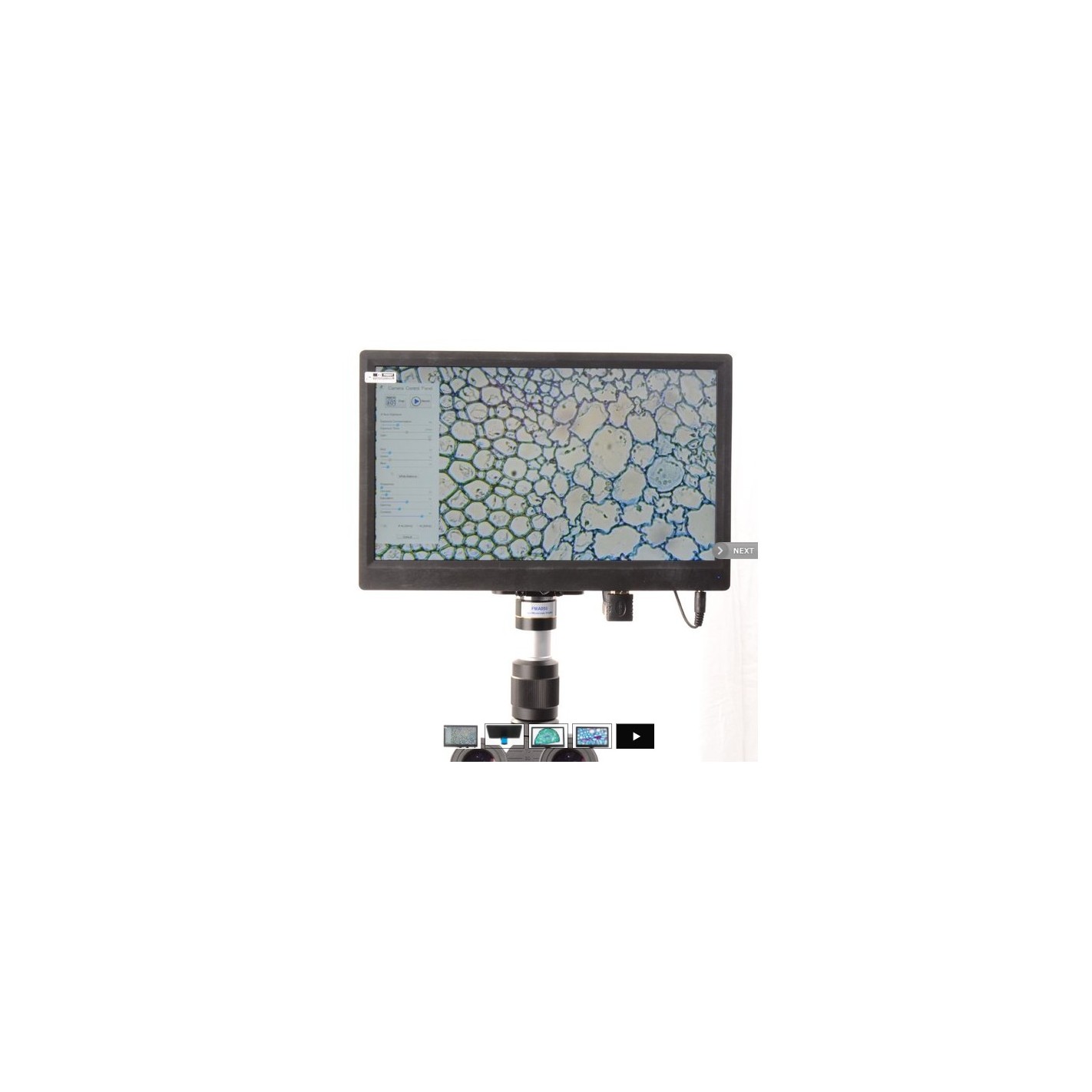

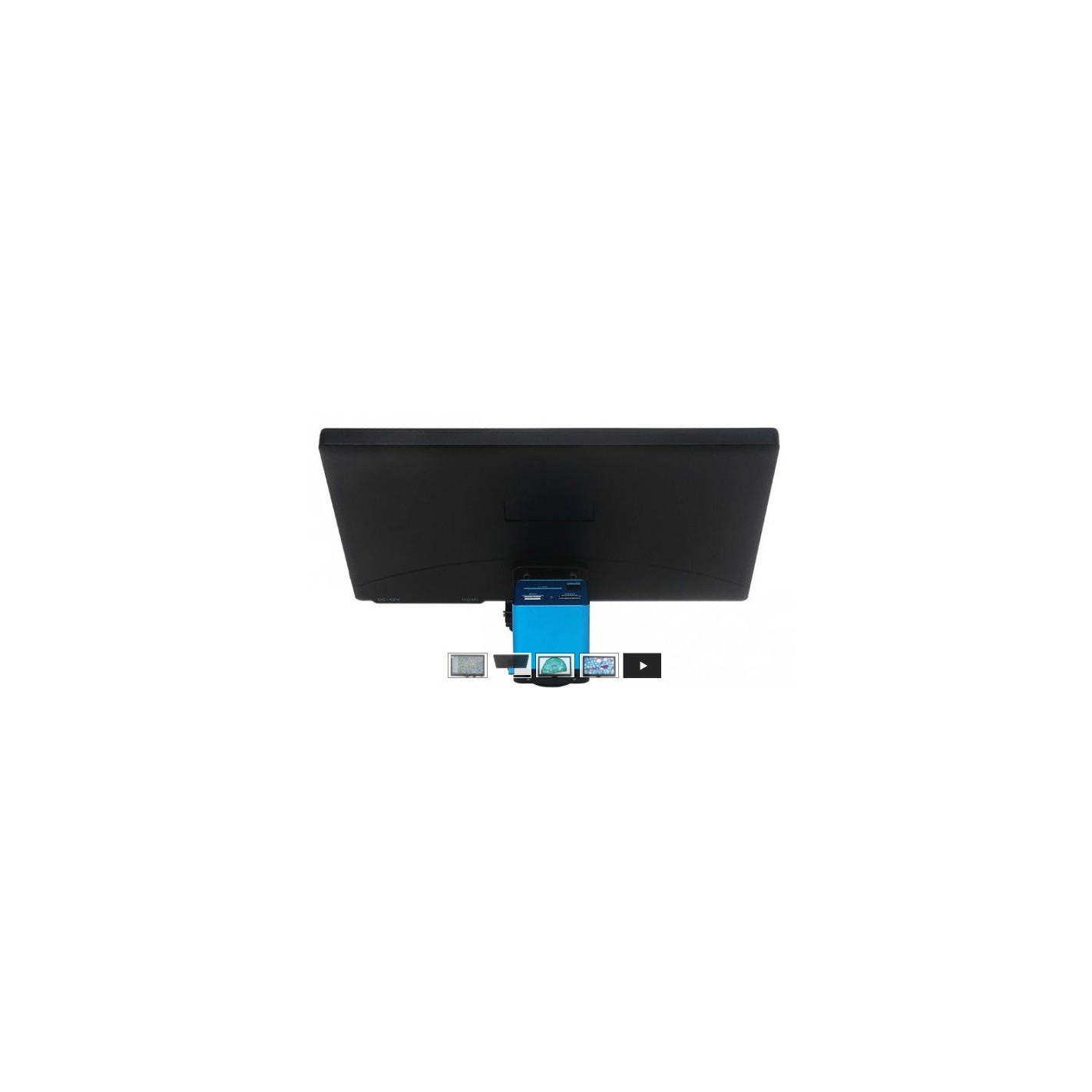

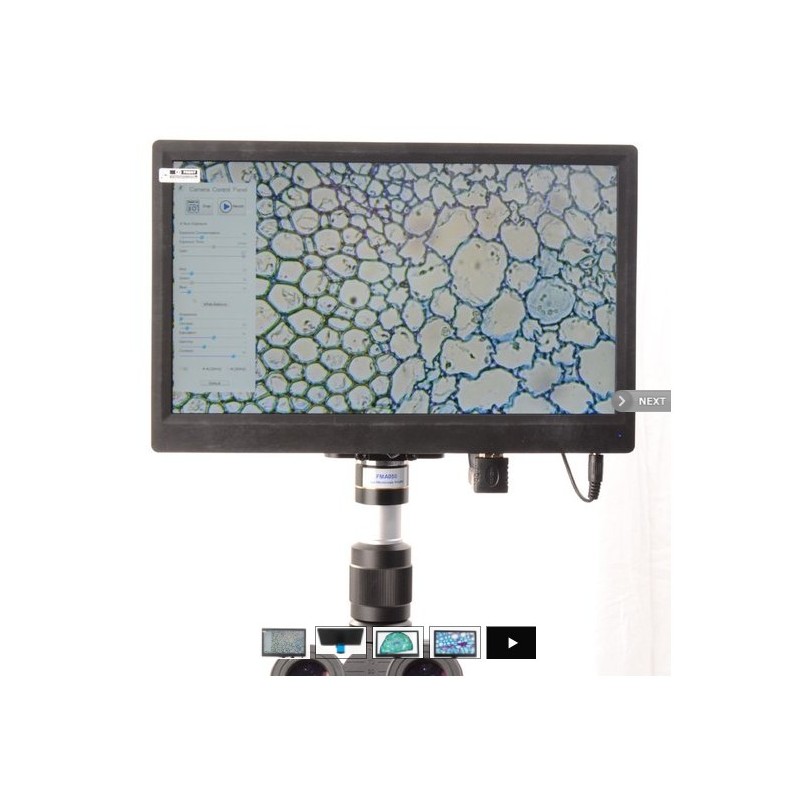

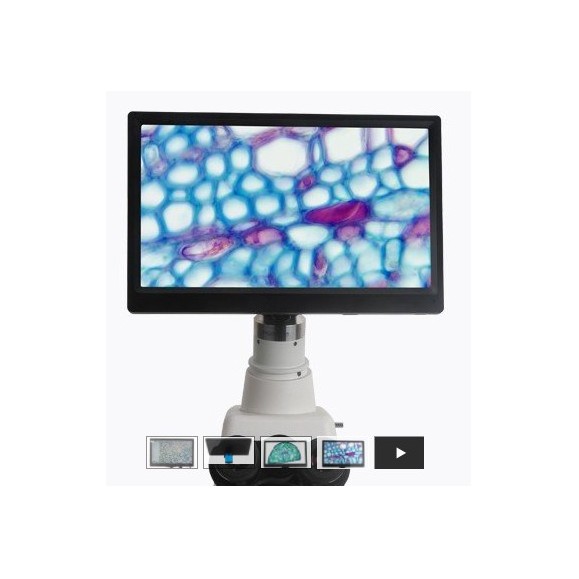

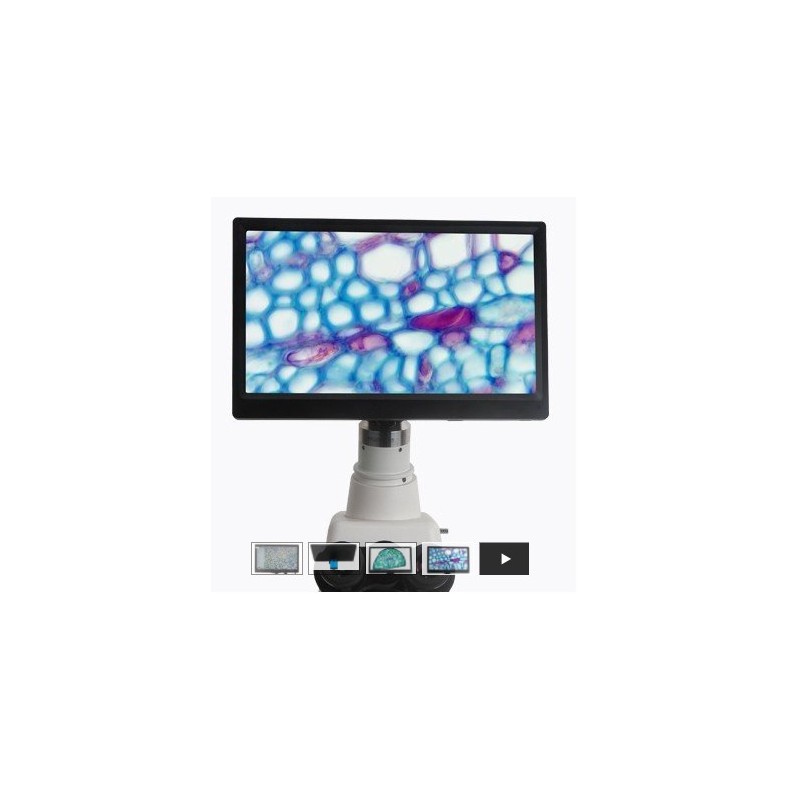

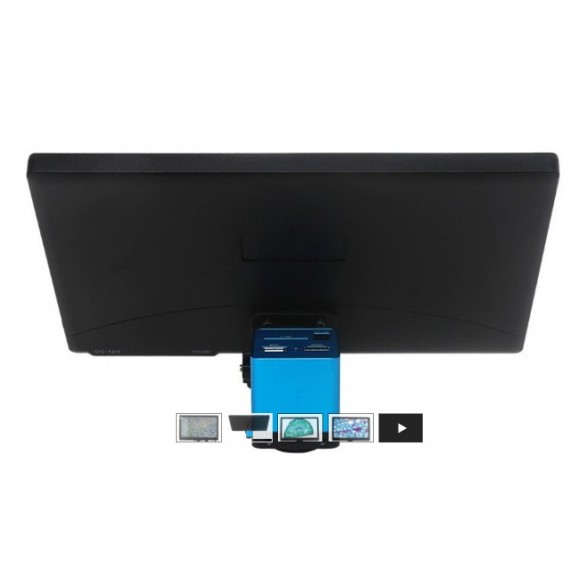

Display BMS CellPad 3 Wifi 5Mp HDMI
BMS CellPad3
All-in-one C-mount camera (HDMI, WiFi, SD card) with high-sensitivity Sony CMOS sensor and ultra-high performance. Simultaneous HDMI and WiFi output. Mouse control via USB connection. Built-in image capture and video recording via SD card. On-screen camera control panel with mouse. On-screen toolbar with zoom, mirror image, freeze, cross and browser functions. Ultra-thin color engine with perfect color reproduction capability. Supports standard SDK for Windows / Mac / Linux (USB).
HDMI and WiFi are used to transfer data to an HDMI display (screen) or a computer. For HDMI output: the camera control panel and toolbar are displayed on the HDMI screen. In this case, the USB-connected mouse can be used to configure and control the camera. For WiFi output: connect the WiFi adapter to the USB port of the camera. Connect the computer (smartphone or tablet) to the camera and open the BMS_Pix3 application. The camera can now be controlled by the computer via the on-screen display.
Technical specifications:
| Main features |
|
| Sensor |
1080P Sony CMOS 1/ 2.8" 1080P Sony CMOS 1/ 2.8 |
| Pixel (µm) |
2,8 x 2,8 |
| Frames per second |
60 @ 1920 x 1080 (510 mV at 1/30 s) 30 @ 1920 x 1080 (0.15 mV with 1/30 s) |
| Interface & Functions |
|
| USB |
uSB camera or USB mouse |
| HDMI |
HDMI output |
| DC 12V |
12 V input power |
| SD |
SD card slot |
| ON/OFF |
On / off switch |
| LED |
Power on (blue) and power off (red) |
| Specifications for HDMI output |
|
| UI Operation |
With USB mouse |
| Image capture |
High speed on SD card |
| Video record |
1030P 30 fps on SD card |
| Camera control panel |
Exposure, gain, white balance, color adjustment |
| Toolbar |
Zoom, Mirror, compare, freeze, crosshair, explorer function |
| USB port output specifications |
|
| White Balance |
Auto white balance |
| Color technique |
Ultra fine color engine (USB) |
| Capture/control API |
Standard UVC for Window/Mac (USB)/Linux |
| Recording system |
Still picture or Movie (USB) |
| Software environment (for USB 2.0 connection) |
|
| Operating system |
|
| PC requirements |
CPU: equal to Intel Core 2 2.8 GHz or higher Memory: 4GB or more USB 2.0 high speed port Display 19" or larger CD ROM |
| Operating environment |
|
| Operating temperature in ºC |
-10 to 50 |
| Operating humidity in %RH |
30 - 80 |
| Power supply |
DC 12 V/2 A adaptor |
| Exterior |
|
| Colour |
Blue cast and black sides |
| Dimensions (WxDxH) in mm |
78 x 70 x 92 |
| Weight in g |
470 |
Display:
HDMI camera display with high-definition screen. Panasonic IPS LCD panel (Super TFT) ensures a wide view and a sharp, high-contrast image. 1080P display with LED backlight and 11.6-inch active area.
Technical specs:
| Basic Performance |
| LCD panel |
Panasonic IPS LCD Screen (Super TFT) |
| Input video format |
HDMI |
| Resolution |
1920 x 1080 |
| Display type |
16:9 Ratio 11,6 inch active matrix super TFT LCD |
| Typical contrast ratio |
1000:01:00 |
| Colours |
16.7 million |
| Viewing angle |
IPS Full view |
| Active display area |
258 mm (W) x 145 mm (H) |
| Pixel pitch |
0.134 cd/sq m |
| Backlight |
LED Backlight |
| Exterior |
|
| Colour |
Black |
| Dimension (L x H x W) in mm |
281.0 x 179.0 x 15.6 |
| Weight in g |
|
| Operating environment |
|
| Operating Temperature in ºC |
-15 to 55 |
| Humidity, non condensing in % |
01-10-90 |
| Power supply |
AC 110 - 220 V/DC 12 V (1 A) |
| Power consumption |
Max. 12 Watt |
