It features an 850 nm IR emitter and integrated Laser Rangefinder with a measuring range of up to 1,000 meters and an accuracy of ± 1 m.

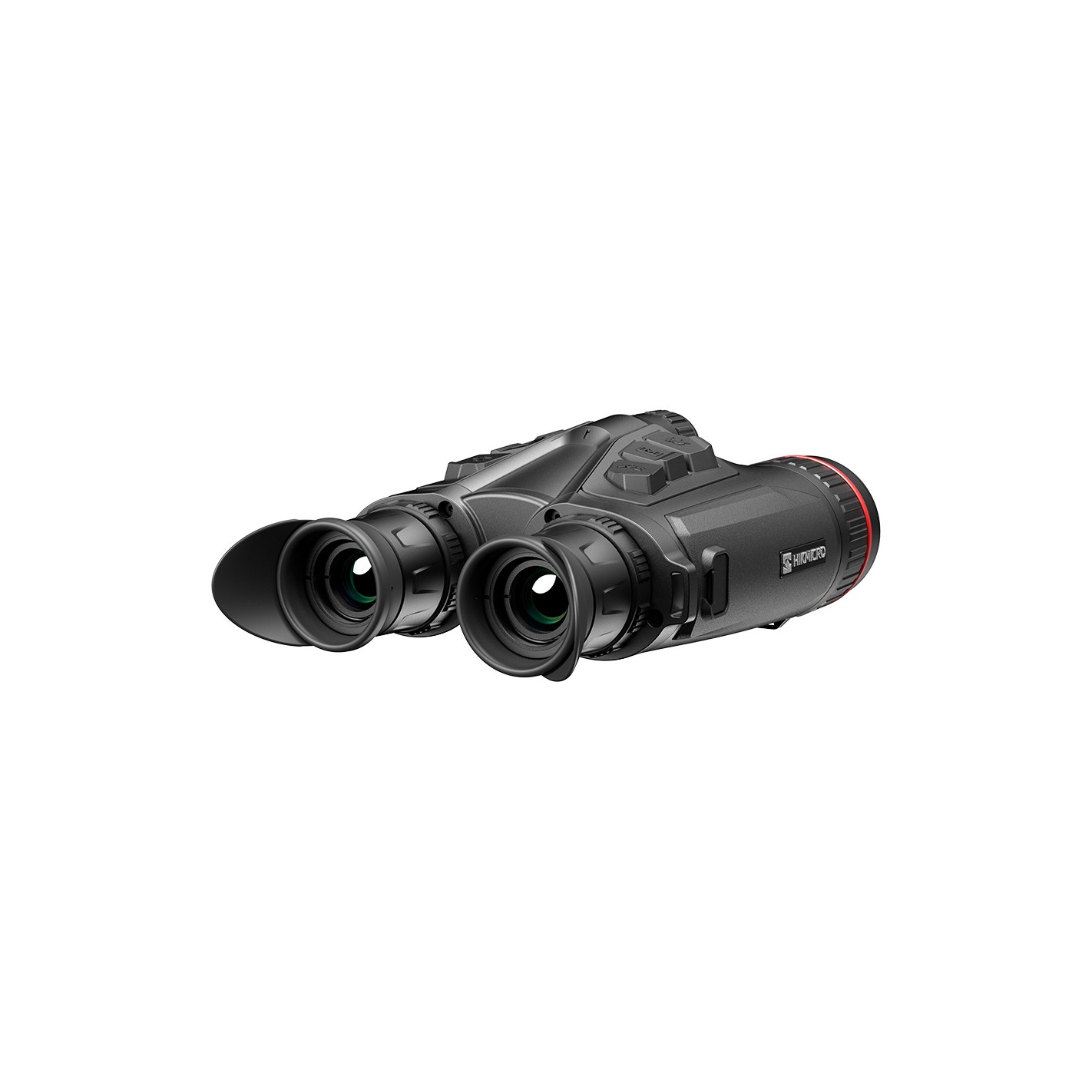

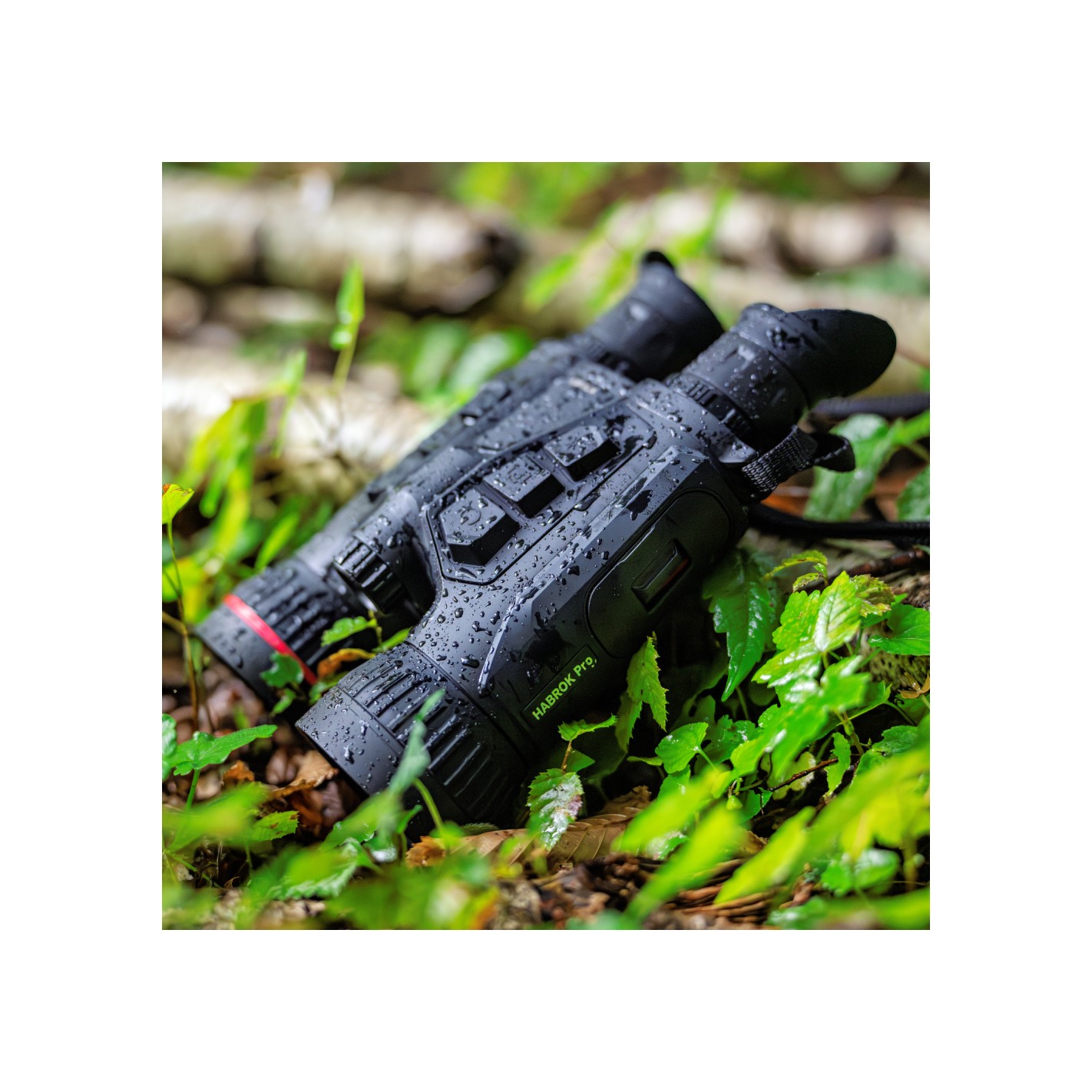

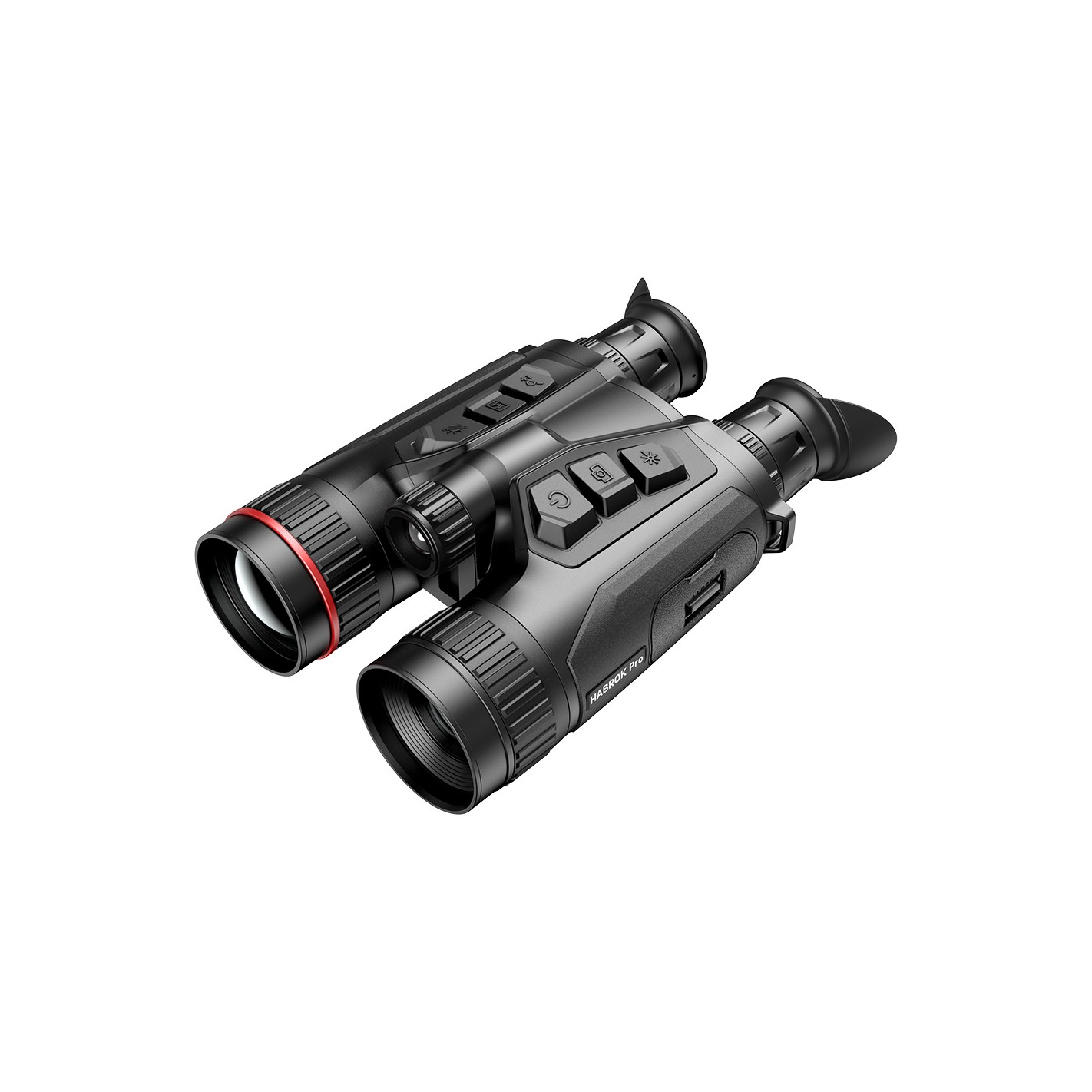

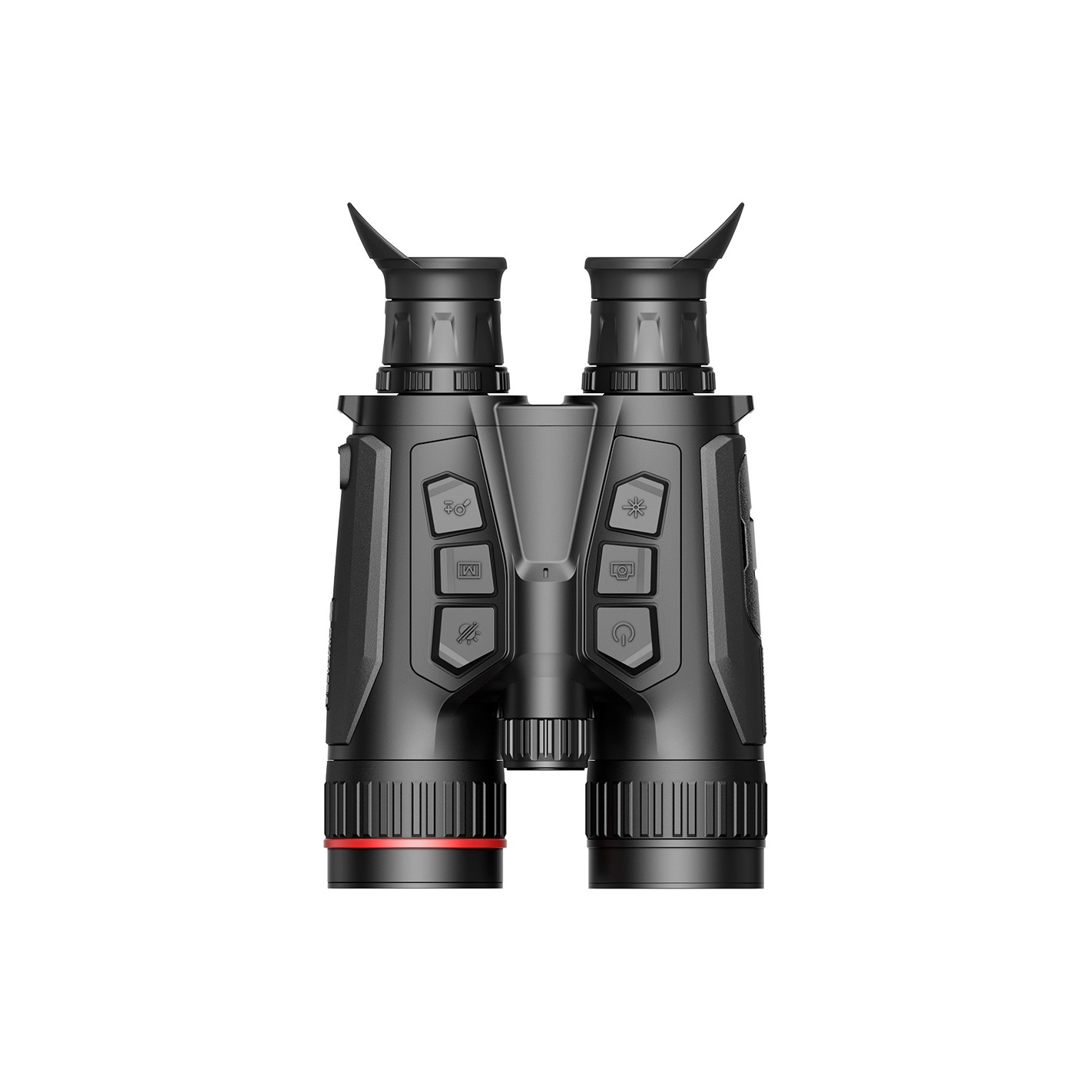

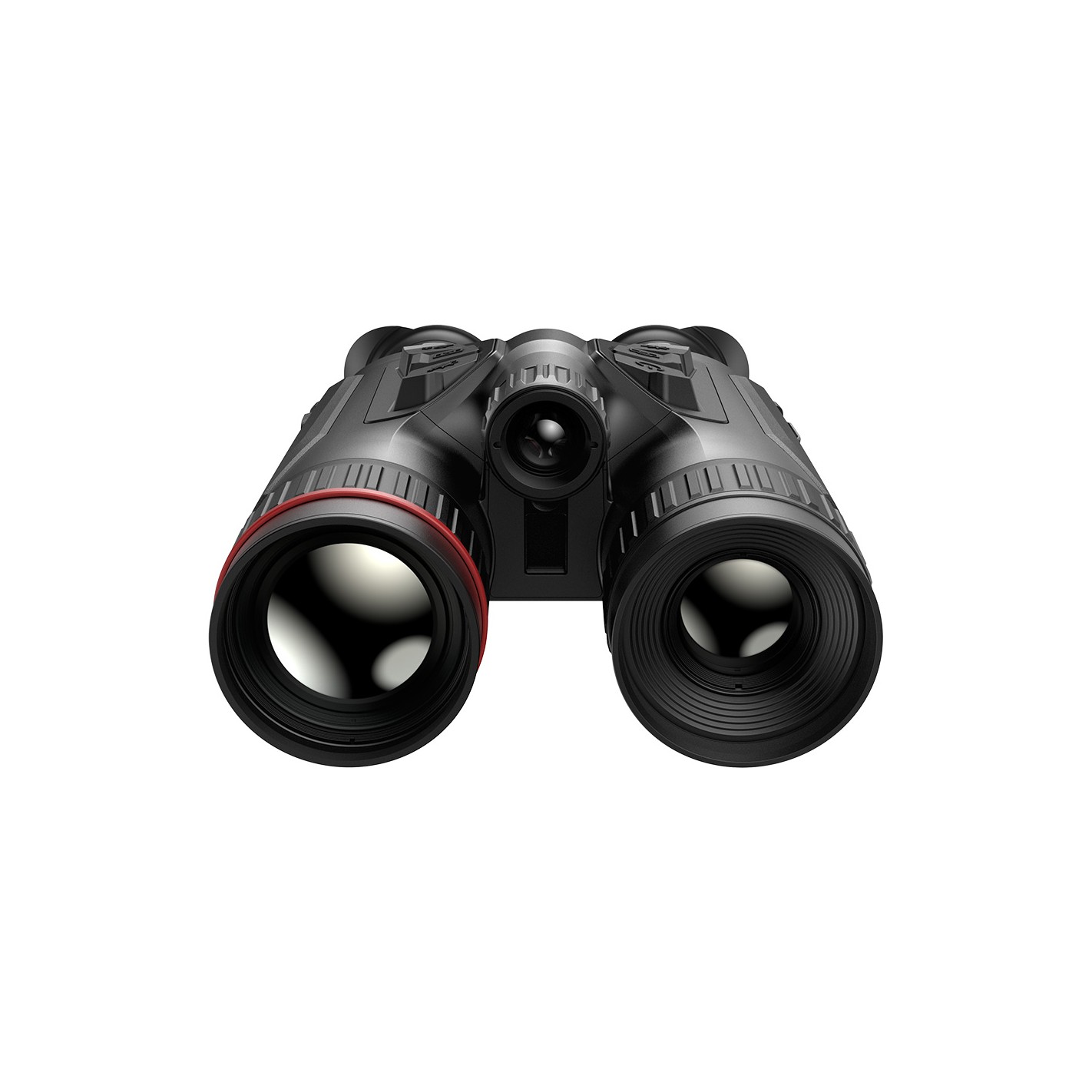

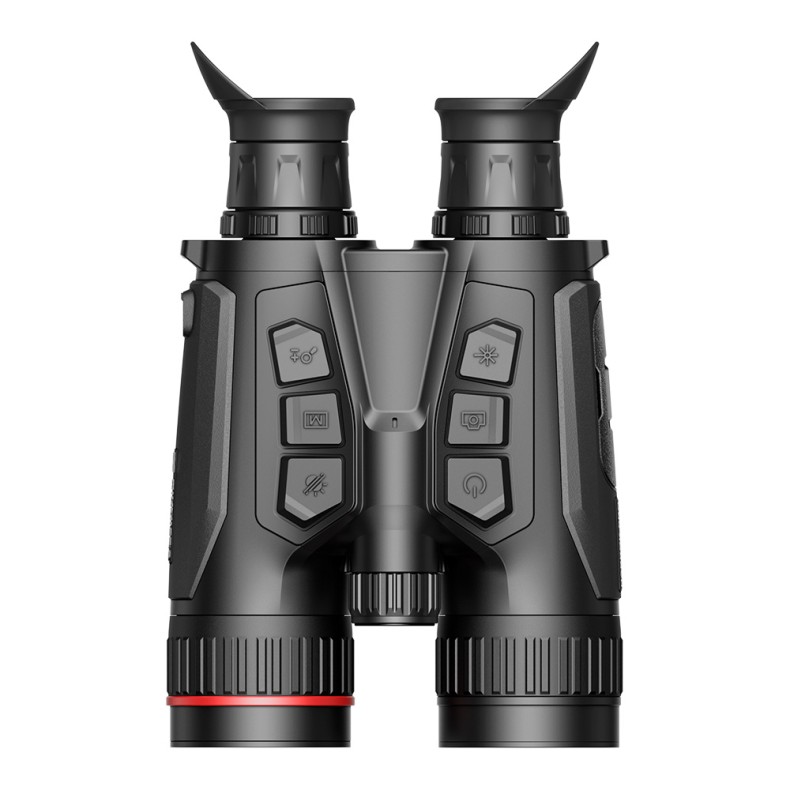

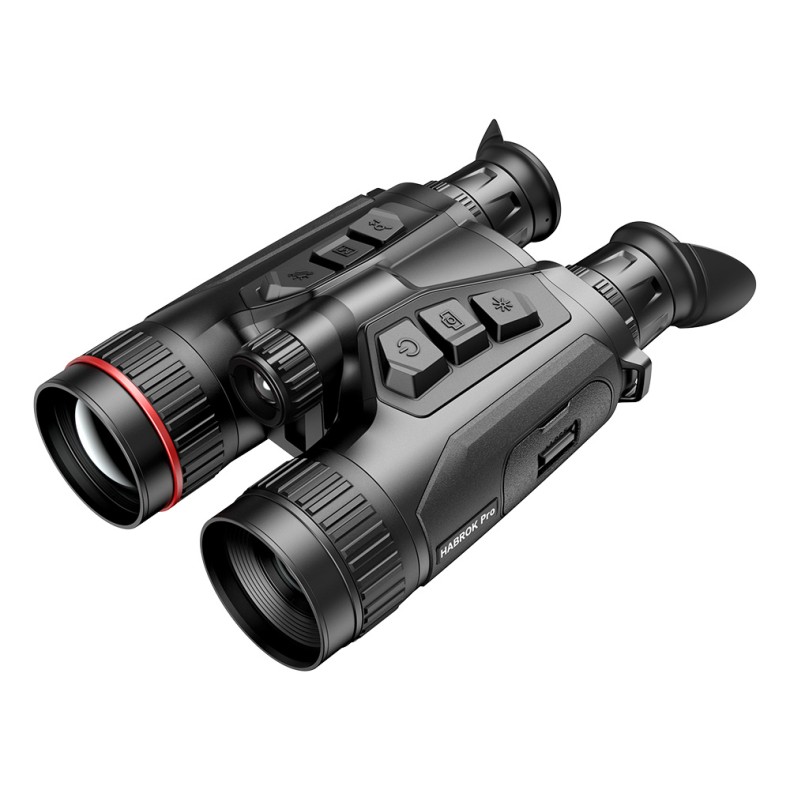

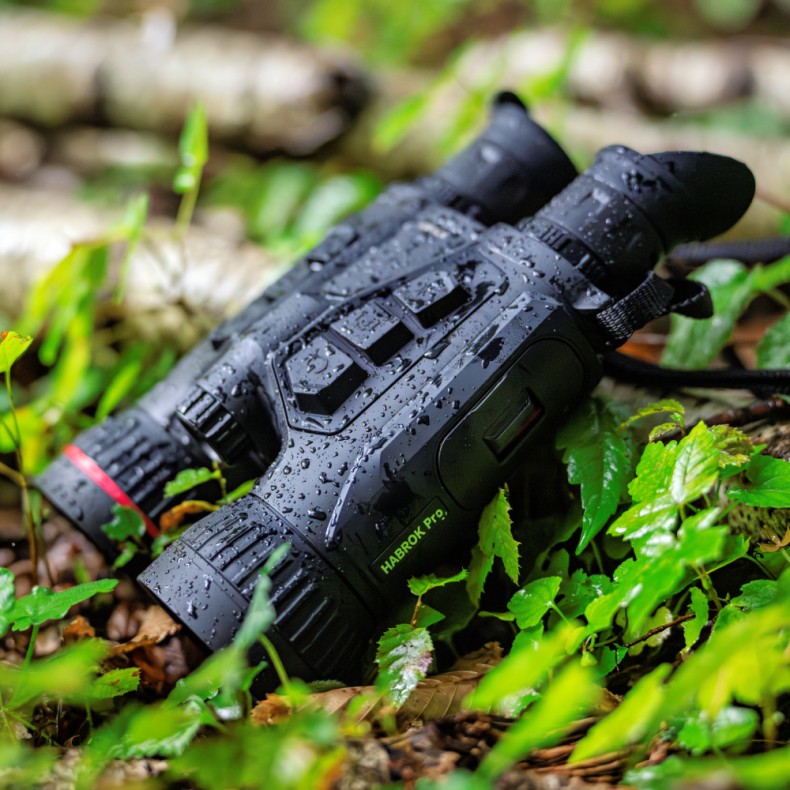

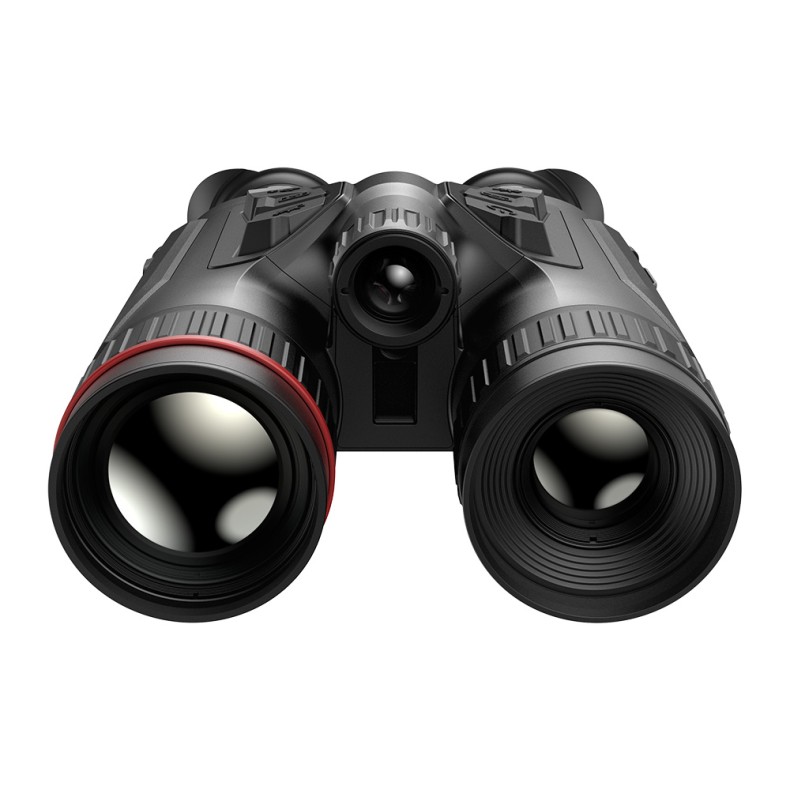

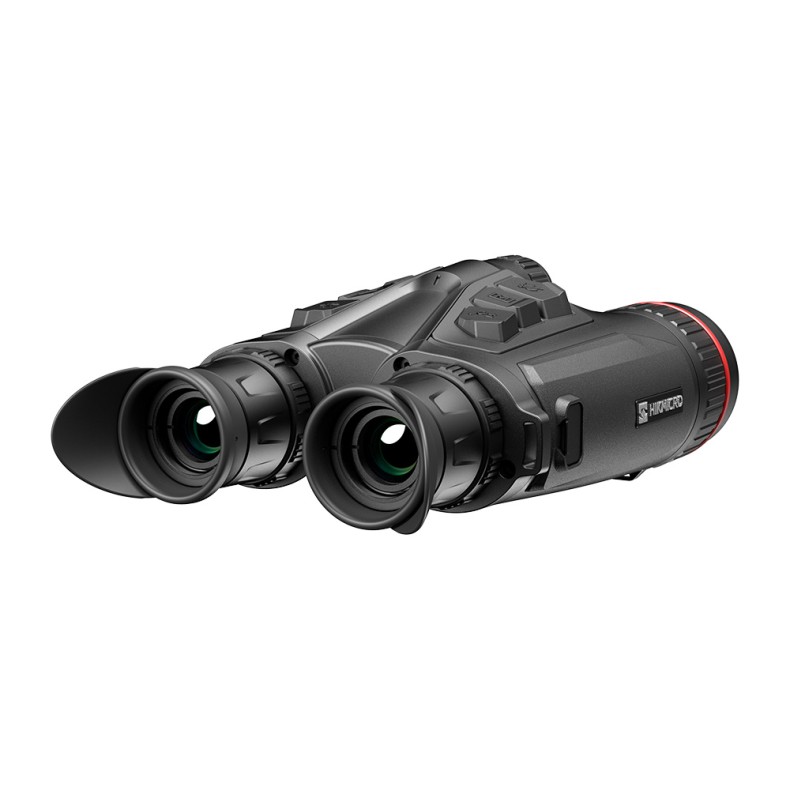

The HIKMICRO HABROK Pro HQ50L multispectral binoculars are equipped with a 640 x 512 thermal sensor and 15 mK NETD, and an advanced 4K digital detector with 50 mm lens, ensuring perfect image quality and detailed recognition in various weather and light conditions.
Combined with a 1000m laser rangefinder and a replaceable IR emitter with a wavelength of 850nm, these all-in-one binoculars can be mainly applied in forest and field hunting, bird watching, animal searching, rescue and marine scenarios.
Main features
- Thermal detector with 640 x 512 @12 μm resolution
- NETD high sensitivity thermal module
- 50 mm, F1.0 lens with a thermal detection range of up to 2600 meters
- Ultra-high resolution 4K 3840 x 2160 digital camera with 50 mm lens, F2.2
- 0.49-inch OLED display with 1920 × 1080 resolution
- Replaceable 850 nm IR emitter and 1000 meter laser rangefinder
- Continuous operating time of 9 hours or more with replaceable battery pack
- Lightweight 1000 grams, compact and ergonomic design
Technical Specifications
Thermal module
- Image Sensor: Uncooled VOx Focal Plane Arrays
- Maximum resolution: 640 x 512
- Frame rate: 50 Hz
- Pixel spacing: 12μm
- Response waveband: 8μm to 14μm
- NETD
- Lens (focal length): 50mm, F1.0
- Focusing mode: Focus ring
- Detection range: 2,600 meters
- Minimum focusing distance: 5 meters
- Magnifications: 3.4x - 54.4x (16x)
- Field of View (H × V), Degrees / m @100 m: 8.8 ° × 7.0 ° / 15.4 m × 12.2 m
Optical module
- Image sensor: 1.88" Progressive Scan CMOS
- Maximum resolution: 3840 x 2160
- Lens (focal length): 60mm, F2.2
- Focusing mode: Focus ring
- Magnification: 5.5x - 22.0x（4x)
- Field of View (H × V), Degrees / m @100 m: 6.9°× 4.1°/12.0 m × 7.2 m
- Smart IR: Yes
- Wavelength IR Illuminator: 850 nm
- Night vision range: 400 meters
Image Display
- Display: 0.49 inch, OLED, 1920 ×1080
- Thermal Palettes: Hot Black, Hot White, Hot Red, Fusion; Optical: Day, Night, Auto
- FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
- Exit pupil: 8 mm
- Eye relief: 15 mm
- Diopter (Range): -5D~+3D
- Brightness Adjustment: Yes
- Tint Adjustment: Cool, Warm
- Contrast Adjustment: Yes
- Zoom Pro: Yes
System
- Video recording: Yes
- Capture snapshots: Yes
- Record audio: Yes
- Standby Mode: Yes
- Storage: Built-in EMMC (64 GB)
- PIP: Yes
- Hotspot: Yes
- Hot Track: Yes
- Digital Magnetic Compass: Yes
- GPS: Yes
- Local Album: Yes
Power Supply
- Battery Type: Replaceable and Rechargeable Li-ion Battery Pack
- Battery Operating Time: ≥9h (25℃, with hotspot off)
- Type C Power Supply: 5V DC, 2A, Support External Power Supply
General
- Protection level: IP67
- Dimensions: 224 mm × 156 mm × 87 mm
- Operating Temperature: -30℃ ~ +55℃
- Weight: 1000g without battery
- Interpupillary Adjustment Range: 60 mm to 74 mm
- Mounting: 1/4"-20-UNC
Laser Rangefinder
- Laser Safety Class: Class 1
- Wavelength: 905 nm
- Maximum Measurement Range: 1000 m
- Measurement Accuracy: ±1m
- Minimum Measurement Range: 10 m
Box Contents
- HABROK PRO
- Binocular harness
- Neck strap
- Type-C cable
- Charger
- Batteries (x2)
- Tripod adapter
- Cleaning cloth
- Quick Start Guide
HIKMICRO SIGHT App for IOS and Android
Download the HIKMICRO SIGHT APP to be able to control the monocular from your smartphone or tablet. HIKMICRO SIGHT will allow you to use all the features of the monocular as if you were operating it from the device itself. You will also be able to download the images and videos stored in the internal memory of the monocular and for all those models that have a distance meter, it can be activated from the APP HIKMICRO SIGHT. Compatible with all models of HIKMICRO thermal monoculars.
