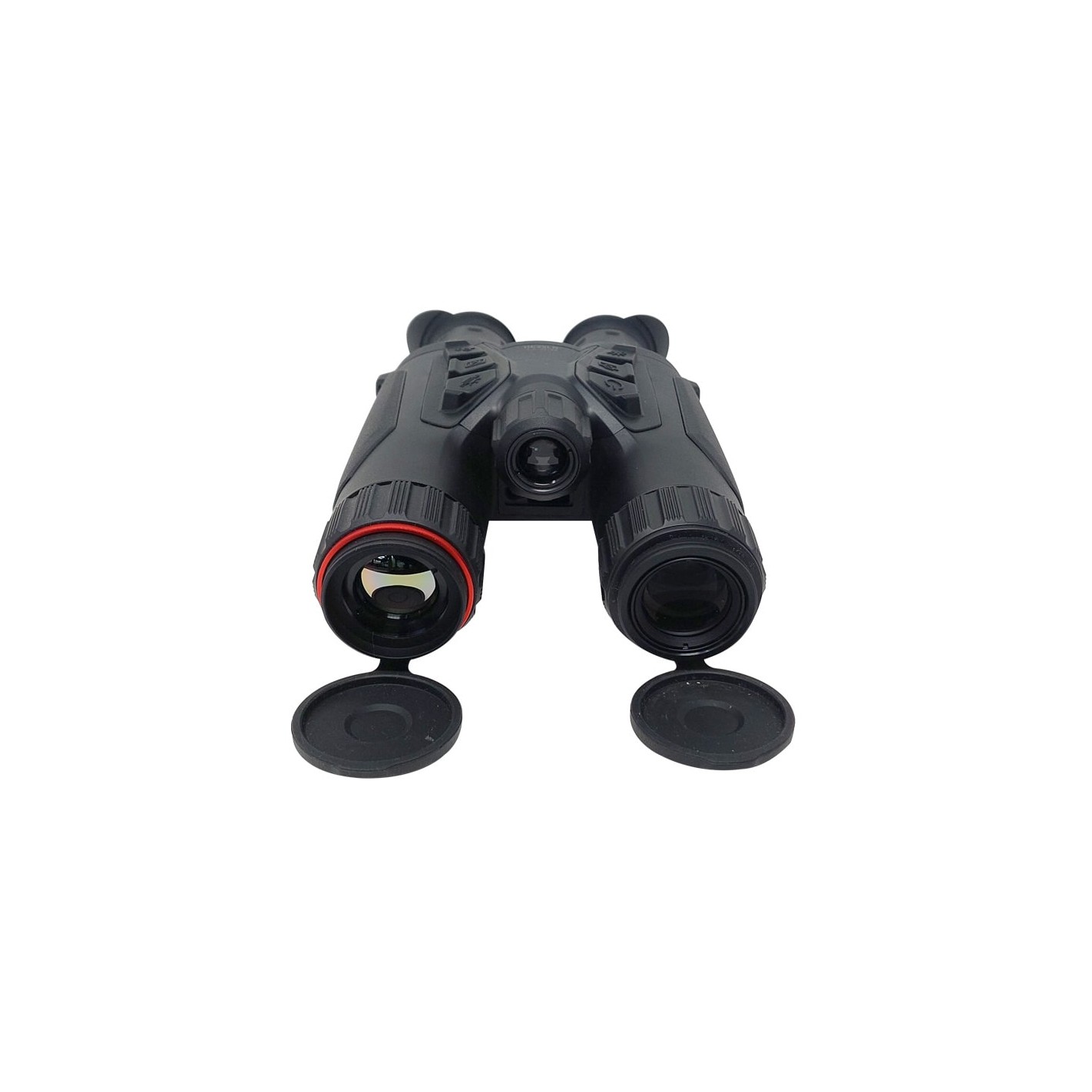

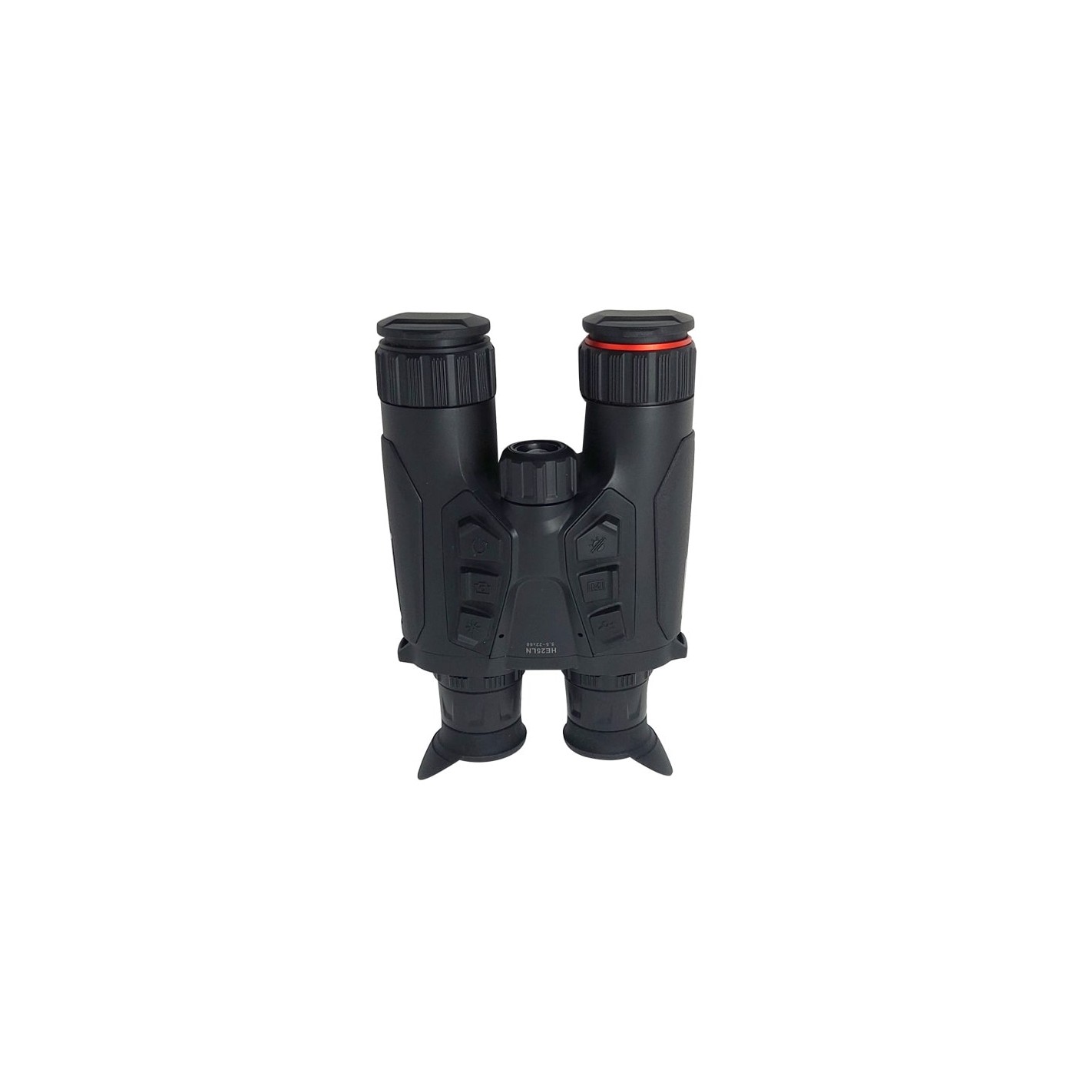

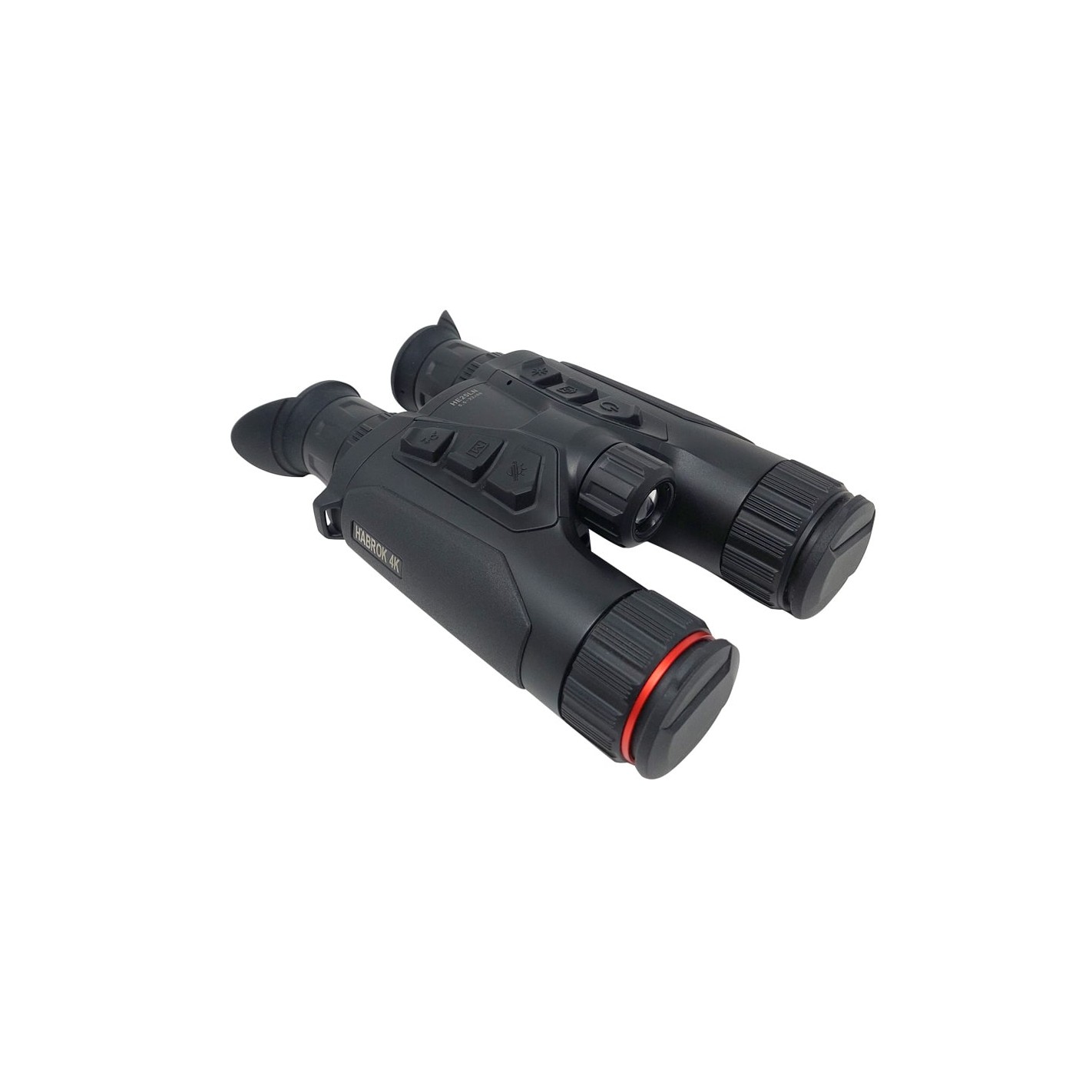

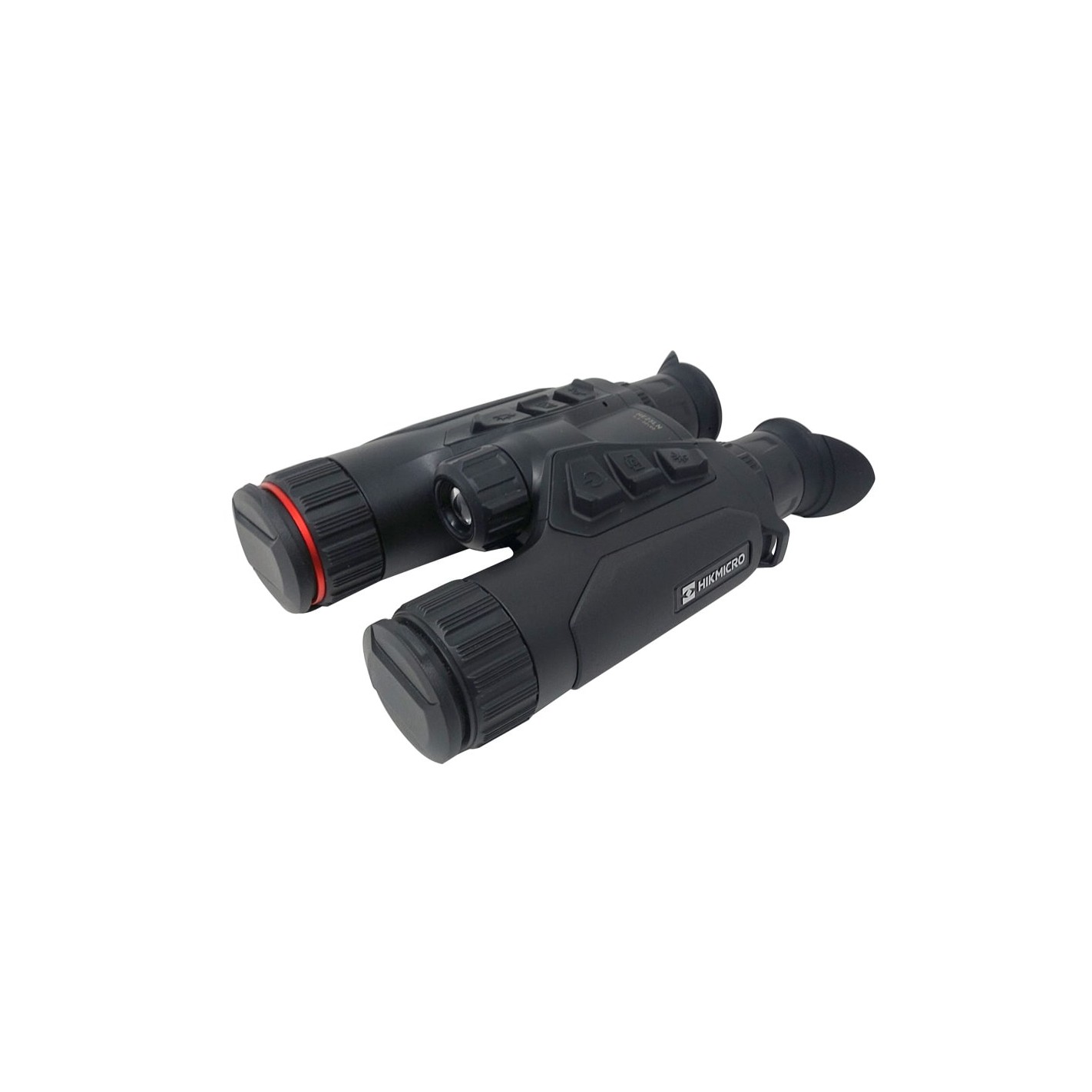

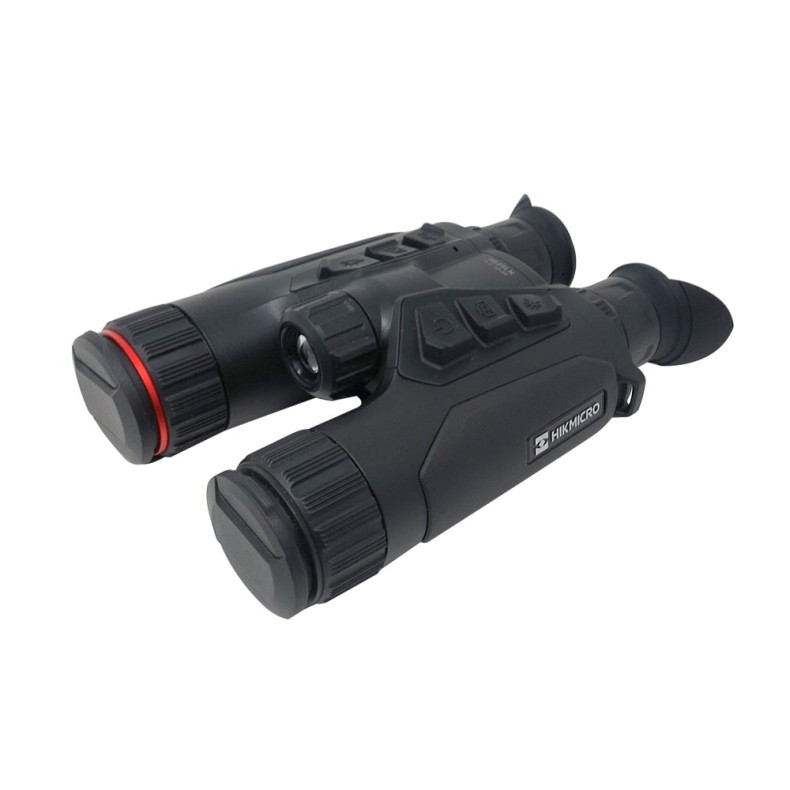

Hikmicro HABROK 4K HE25LN Hikmicro Thermal Binoculars
The new HIKMICRO HABROK 4K is a device that combines all the functions of a daytime binocular with perfect definition at long range, and also features thermal night vision and a laser rangefinder with a range of up to 1,000m.
This new HABROK model comes to enhance the hunting experience during the day, even in pre-dawn and twilight hours.
It features 4K ULTRA HD digital resolution, 60mm focal length, FOV from 12m to 100m and a powerful zoom ranging from 5.5x to 22x magnification and is available in two different versions, the HE25L and HE25LN.
In this product sheet we describe the features of the HE25LN model.

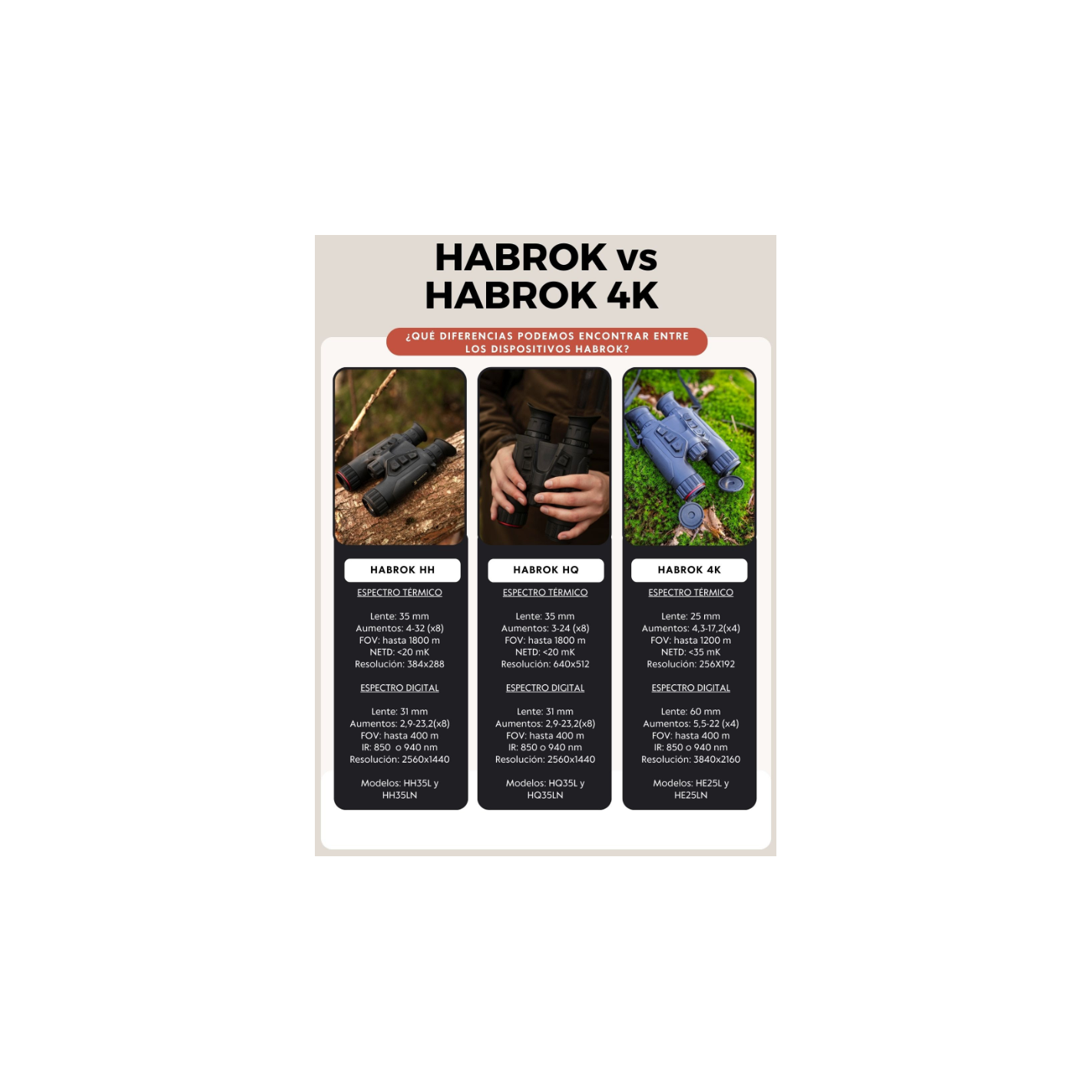

what is the main difference between Habrok and Habrok 4K?
The thermal resolution. In the case of HABROK we find a thermal resolution of 384 for the HH models and 640 for the HQ models: however, in the new HABROK 4K the thermal resolution is 256x192 with a NETD
The well-known HIKMICRO HABROK series is presented as a powerful and innovative handheld device combining thermal imaging and digital day and night vision in a multi-spectrum binocular - now the spectrum is being extended with a new 4K variant! Ultra-clear images in digital day vision mode allow you to leave your binoculars at home during the day and extend your hunting experience well into the night thanks to the integrated thermal imaging channel.
Whether in true color or thermal imaging, it offers first-class image quality for day and night observations, even in adverse weather conditions, with a detection range of up to 1200m. This versatile device is particularly suitable for activities such as forest and field. Hunting, bird watching, animal searching, adventure and rescue scenarios.
The laser rangefinder and 940 IR illuminator optimize the hunting experience at any time of the day or night. This parameter is what differentiates the HE25LN from the HE25L which has an IR 850.
Pro Image
The Image-Pro function was developed to digitally optimize the image of the Habrok 4K to create sharper contours. Depending on the prevailing weather conditions, this can also lead to a higher level of detail. HIKMICRO's Zoom Pro function is clearly intended to overcome the challenges of digital zoom. In many cases, a higher zoom level on thermal imaging devices leads to a deterioration in image quality.
HIKMICRO intelligently solves this problem with the "Zoom Pro" function, which automatically activates specific image sharpness as soon as the zoom is used. The image quality is significantly improved, especially at the first and second zoom level, which significantly increases the practicality of digital magnification.

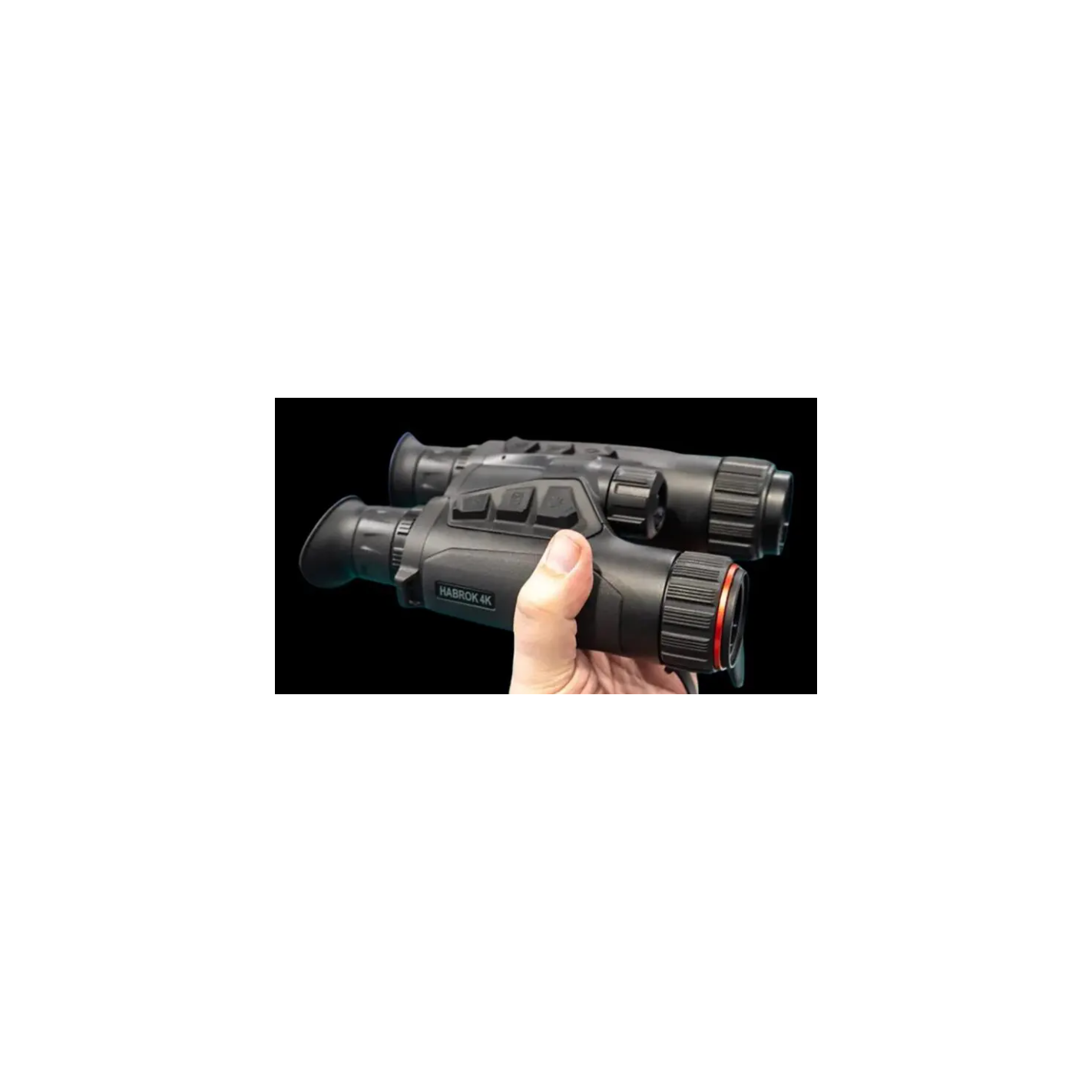

Compact but powerful
The ergonomic design of the product ensures maximum comfort during use. Thanks to its low weight of only 850 g, it is particularly light and handy. The sturdy magnesium housing ensures a durable and robust construction, which further contributes to ease of use.
Reliability and longevity
Thanks to replaceable and rechargeable 18650 batteries, a continuous power supply is guaranteed. With an impressive continuous run time of up to 6 hours, the product offers long-lasting use. Silent battery replacement allows for a smooth transition without annoying interruptions.
Pleasing visual and haptic design.
The round display of the device provides an expressive visual experience. In addition, diopter compensation allows individual adjustment of visual acuity. The flexible eye relief is another feature to ensure maximum comfort. In addition, the intuitive operation via raised buttons enables effortless control. In addition, the integrated GPS and digital compass offer the user additional orientation options. It is also worth noting that the built-in tilt sensor simply switches the device off.
The HIKMICRO HABROK 4K HE25LN has the following technical features:
Thermal level:
- Sensor: VOx uncooled
- Sensor resolution: 256 x 192 px
- Frame rate: 50Hz
- Pixel pitch: 12 µm
- NETD value/sensor sensitivity: below 35 mK
- Lens: 25mm
- Aperture: F1.0
- Discovery distance: 1200m
- Field of view: 7.0° x 5.3° Field of view (at 100 m): 7.0° x 5.3° (at 100 m)
- Field of view (at 100m): 12.2m x 9.3m
- Minimum focusing distance: 3 m
- Magnification: 5.3x - 17.2x (4x)
Optical mode:
- Sensor: 1.88" progressive scan CMOS
- Sensor resolution: 3840 x 2160 px
- Minimum illumination: 0.001 lux @ (F1.0, AGC on)
- Field of view: 6.9°x4.1° (6.9°x4.1°)
- Field of view (at 100m): 12m × 7.2m
- minimum distance: 8 m
- Detection distance at night: 350 m
- Magnification: 5.5x-22x（4x)
General
- Display type: OLED
- Display resolution: 1920 × 1080 px (round)
- Palettes: Thermal: Hot Black, Hot White, Hot Red, Fusion; Optical: Day, Night, Automatic
- Protection class: IP67
- WLAN (Wi-Fi): yes
- Photo/video/sound recording: yes/yes/yes/yes
- Internal memory: 64 GB
- Diopter adjustment for eyeglass wearers: -5D - +3D
- Power supply: removable battery; 5 VDC, 2 A; External power supply supported
- Battery life: ≥8 h (25 °C, with access point off)
- Application support: yes / Infiray-Application
- WiFi/WiFi: yes
- USB: type C
- Laser rangefinder: Class 1, maximum 1000 m
- Infrared emitter: LED, 940 nm
- Variable eye relief: 60 mm to 74 mm
- Size: 138.2 mm × 68.4 mm × 212.4 mm
- Weight: 800g without batteries
Contents:
- thermal imaging device Hikmicro Habrok 4K HE25LN
- 4 18650 batteries
- Tripod adapter
- Type C cable
- charger
- Shoulder strap for hanging
- Complete service package
