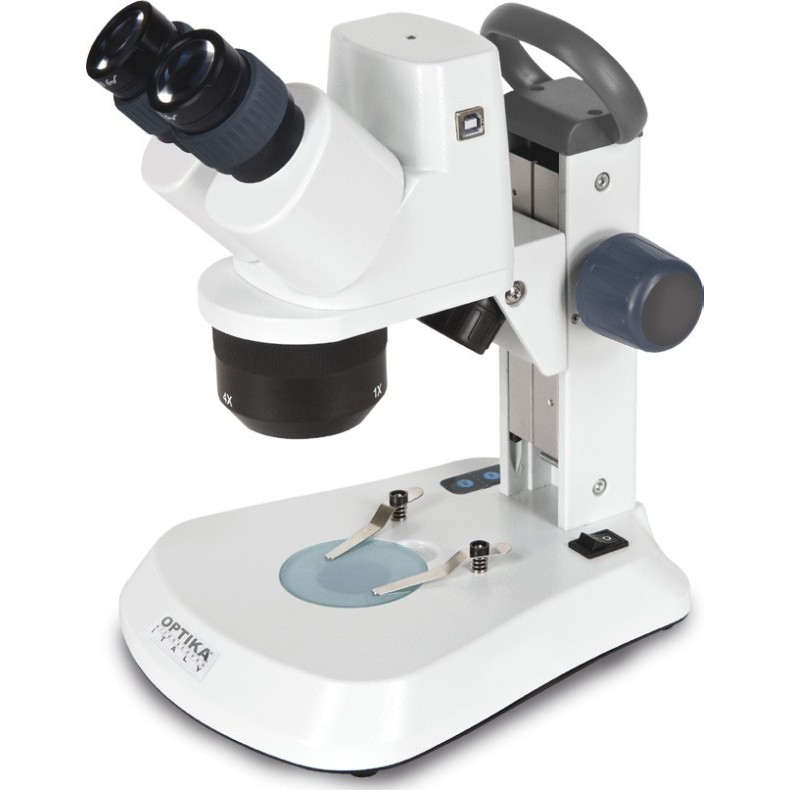

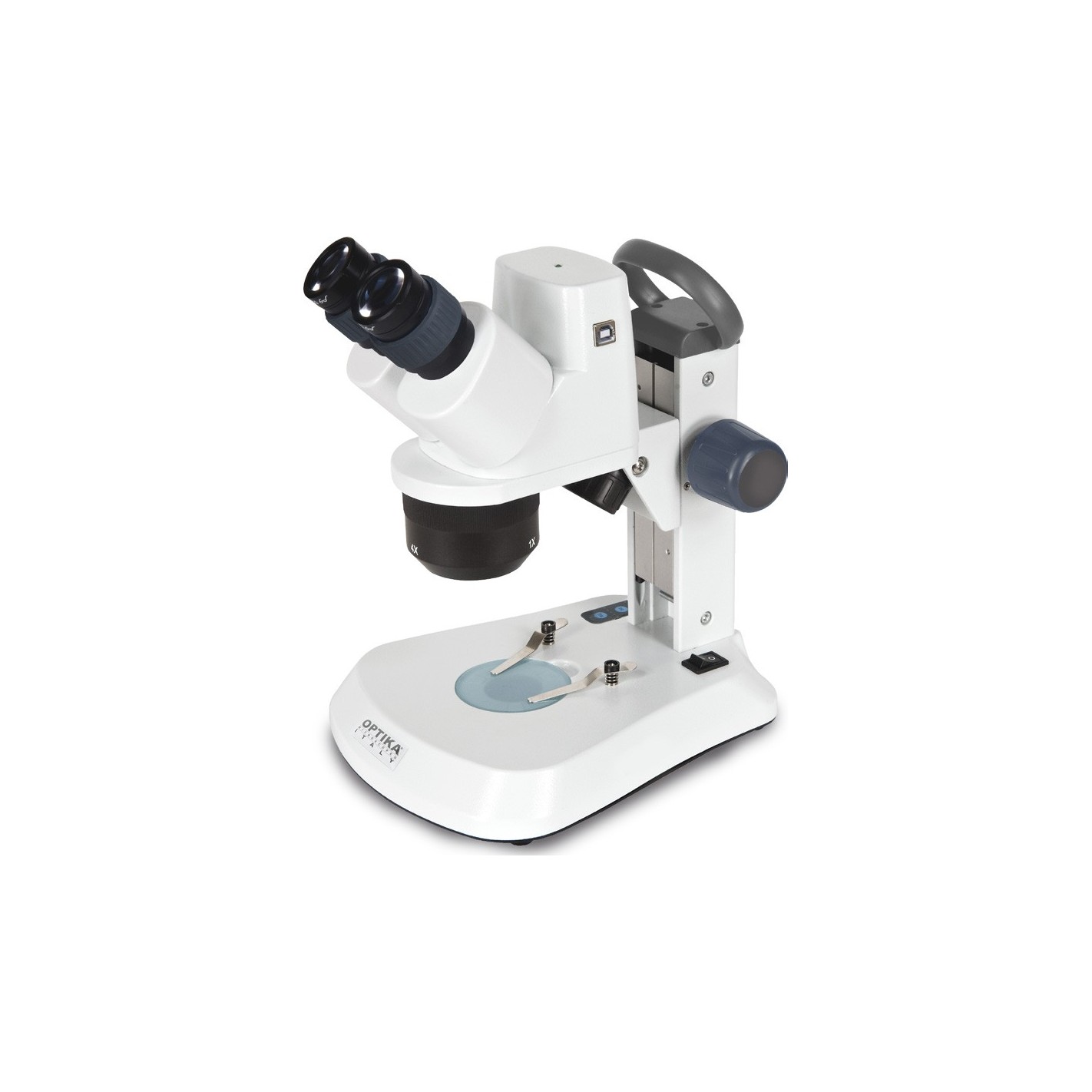

Optika SFX-91D Stereo Microscope with Digital Camera
The SFX/ESTEREO series microscopes are designed for young users. They are extremely reliable microscopes, especially recommended for elementary schools, ideal for biology and material science. They generally have a 20 mm field number and high performance LED illumination.
They have a rotating objective with up to 3x magnification and a precision stand for accurate focusing.
The new high comfort touch illumination control allows you to adjust the 5 levels of light intensity by a simple click.
The SFX/ESTEREO series offers compact, practical and intuitive to use microscopes. Good optics ensure good quality images so you can get impressive images and live videos.
They are robust and durable for a long service life and include a dust cover. In addition, they require no maintenance.
The rechargeable batteries are long lasting so you can use the microscope where it suits you best. They last up to 8 hours on a single charge.
Optika SFX-91D Stereo Microscope with Digital CameraFeatures
-Head:
Binocular, 45° inclination
Adjustable diopter compensation on both eyepieces
Adjustable interpupillary distance between 53 and 75 mm
-Eyepieces:
Wide field, WF 10x / 20
-Objectives:
1x - 2x - 4x selectable
Working distance: 60 mm
-Stand:
Corrected with precision focusing mechanism, with manual handle.
-Focusing:
Controlled by a pair of knobs placed on both sides of the microscope
-Stand base:
Equipped with a semi-transparent plastic transmitted light disk with specimen clamps.
-Illumination:
Adjustable dual illuminator for incident and transmitted light equipped with two high efficiency 1 W LED light sources.
Touch brightness control.
Input voltage: 110/240 Vac, 50/60 Hz.
Maximum power consumption: 3 W.
Internal rechargeable NiMH battery. Up to 8 hours of use on a single charge, LED at medium intensity Recharging time: approx. 8 hours.
-Dimensions:
Height 288 mm
Width 183 mm
Depth 205 mm
Weight 2.5 kg
Digital Camera Features:
Digital Camera Resolution - 3MP
Analog Camera Resolution - NO
Signal Output - USB 2.0
Audio Signal - NO
Sensor Size - 1/2"
Sensor Technology - CMOS
Image Format - 4\3
Full Image Size - 2040 x 1528
Pixel Size - 3.2 x 3.2 μm
Full resolution frame rate - 13 fps
Frame rate other resolutions - 40 fps (1016x760), 79 fps (632x472)
Sensitivity - 1.0 V/lux-sec (550 nm)
Signal to noise ratio - 43 dB
Dynamic range - 54 dB
Maximum Exposure Time - 320 msec
ADC Conversion - 8 bit
Color Depth - 8 bit
In Camera IR Filter - 680 nm
Auto White Balance - Auto - Man
Auto Gain Control - Auto - Man
Auto Backlight Control - Auto - Man
Exposure Control - Auto - Man
Software specifications:
System requirements:
Windows XP / Win 7 / Win 8 / Win 10 (32 or 64 bit) USB 2.0
Required software:
Optika Vision Lite (included)
Drivers:
Optika driver, TWAIN (included)
Capture functions:
Continuous auto white balance, continuous auto exposure, image size, image capture, compressed video capture.
Control parameters:
Image size, brightness, gain, exposure time, colors, monochrome, color enhancement, flip, speed.
-Accessories included:
1.8m USB cable
Installation CD
Manual
Dust cover
