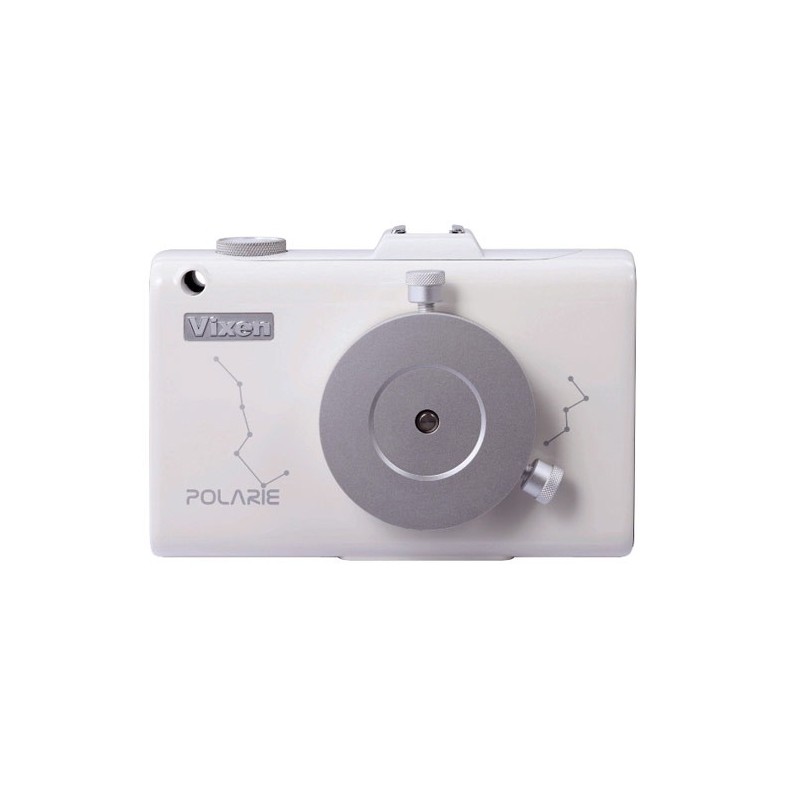

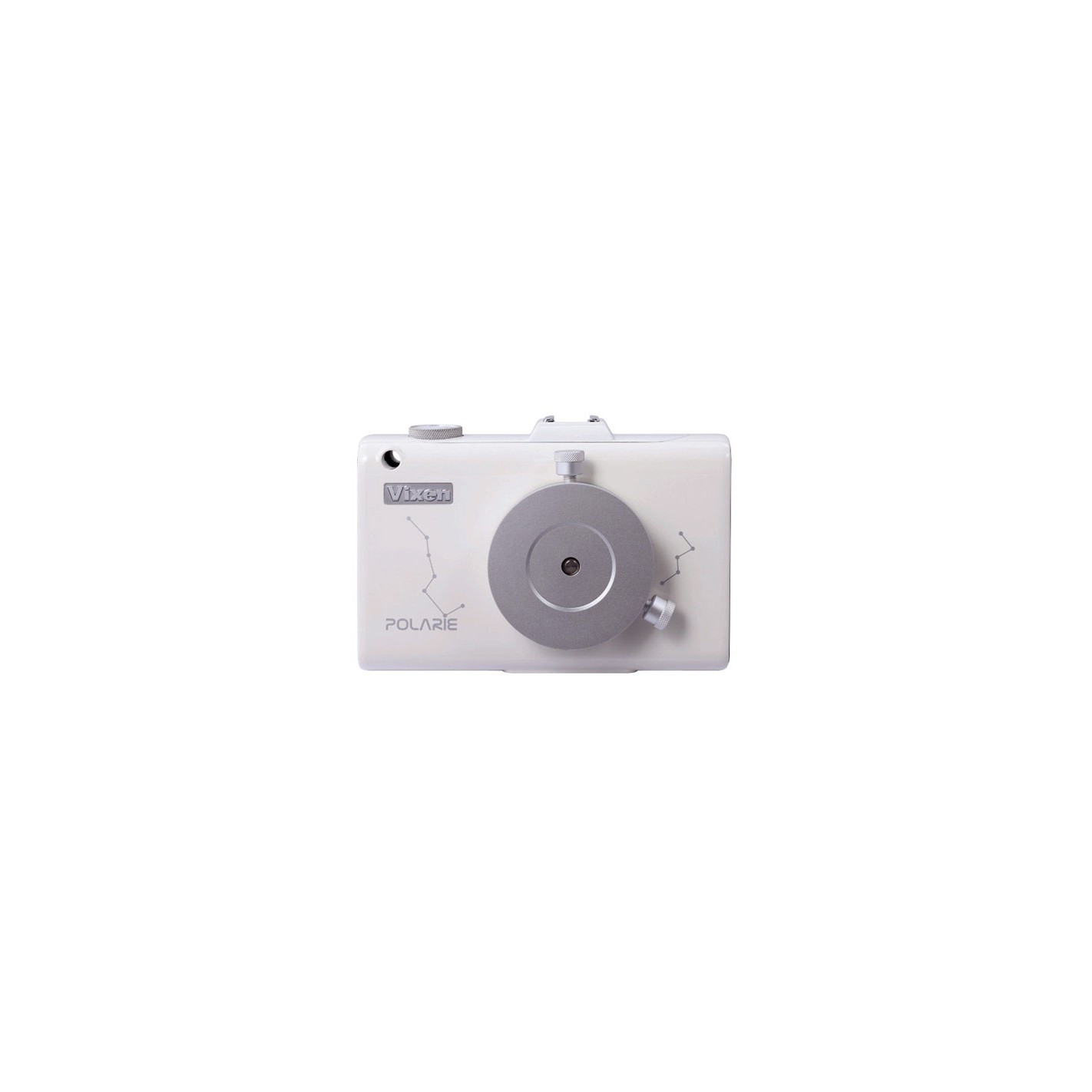

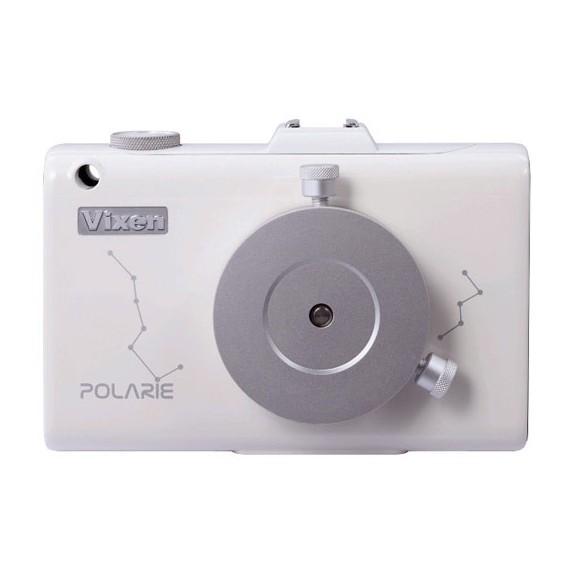

Star Tracker Polarie Vixen 35505

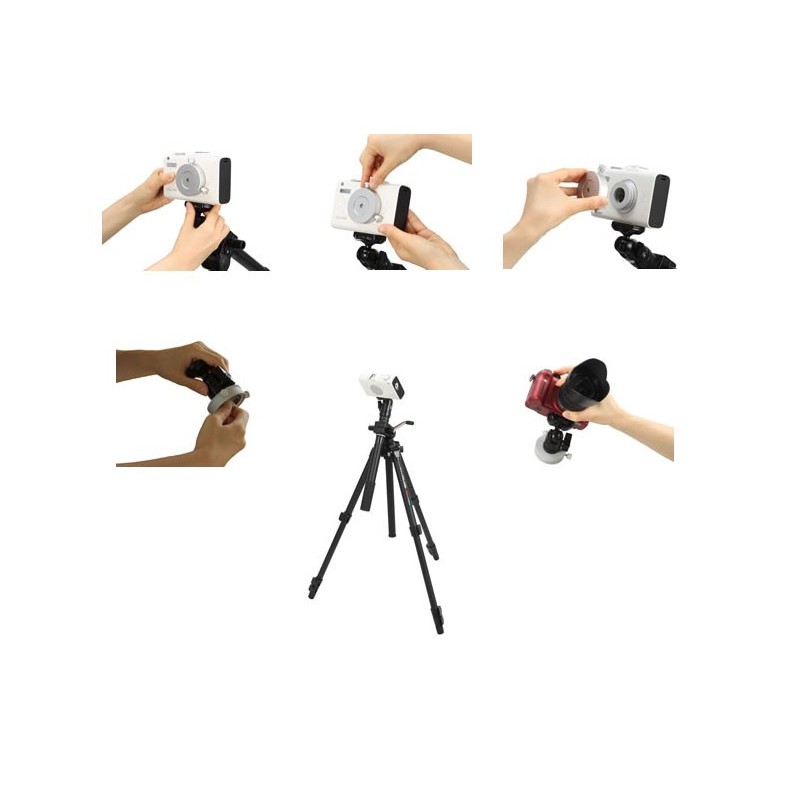

The POLARIE Star Tracker is a compact platform mount that allows you to capture images of nightscapes and stars with ease. It is very simple to mount and in a few minutes you are ready to capture wide field images.

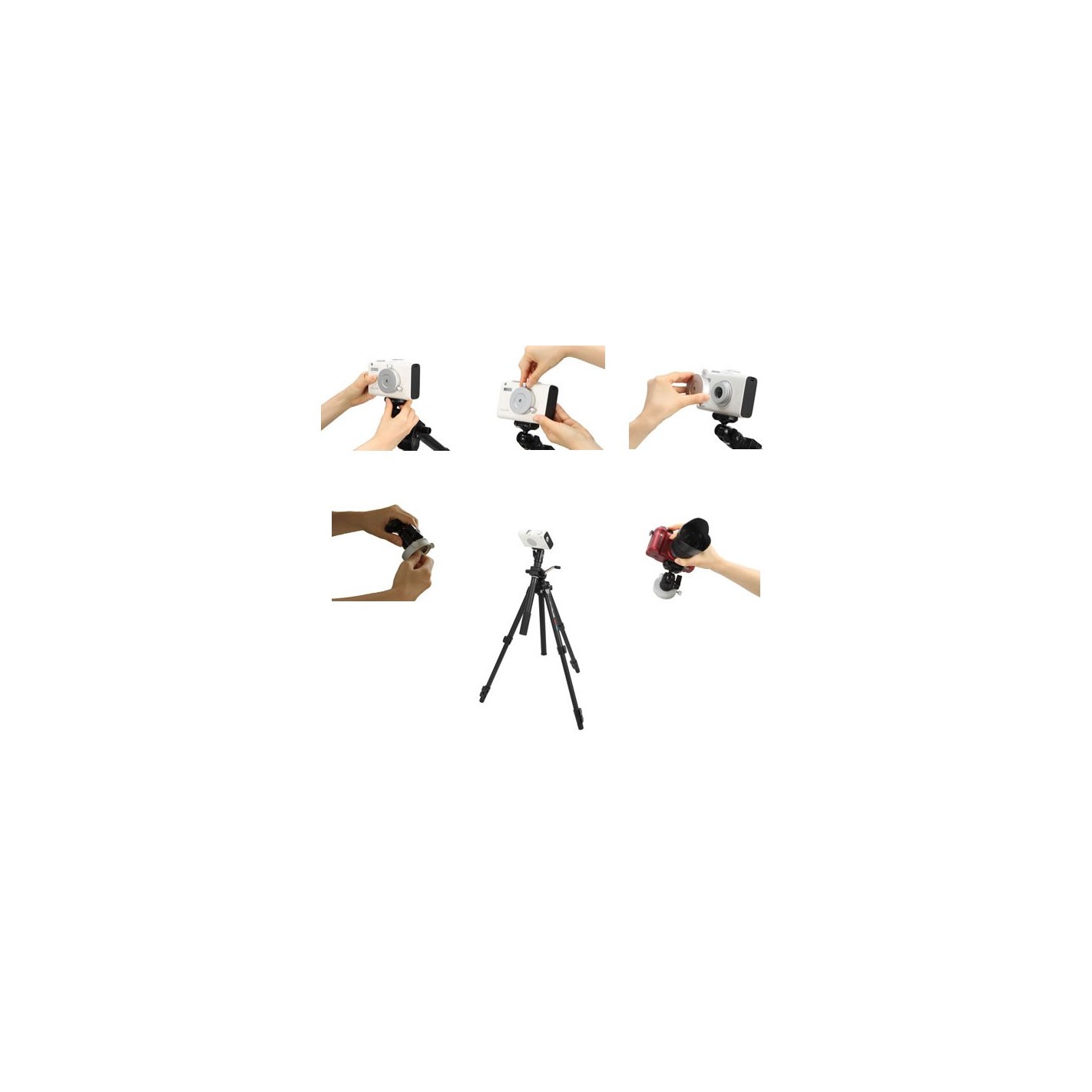

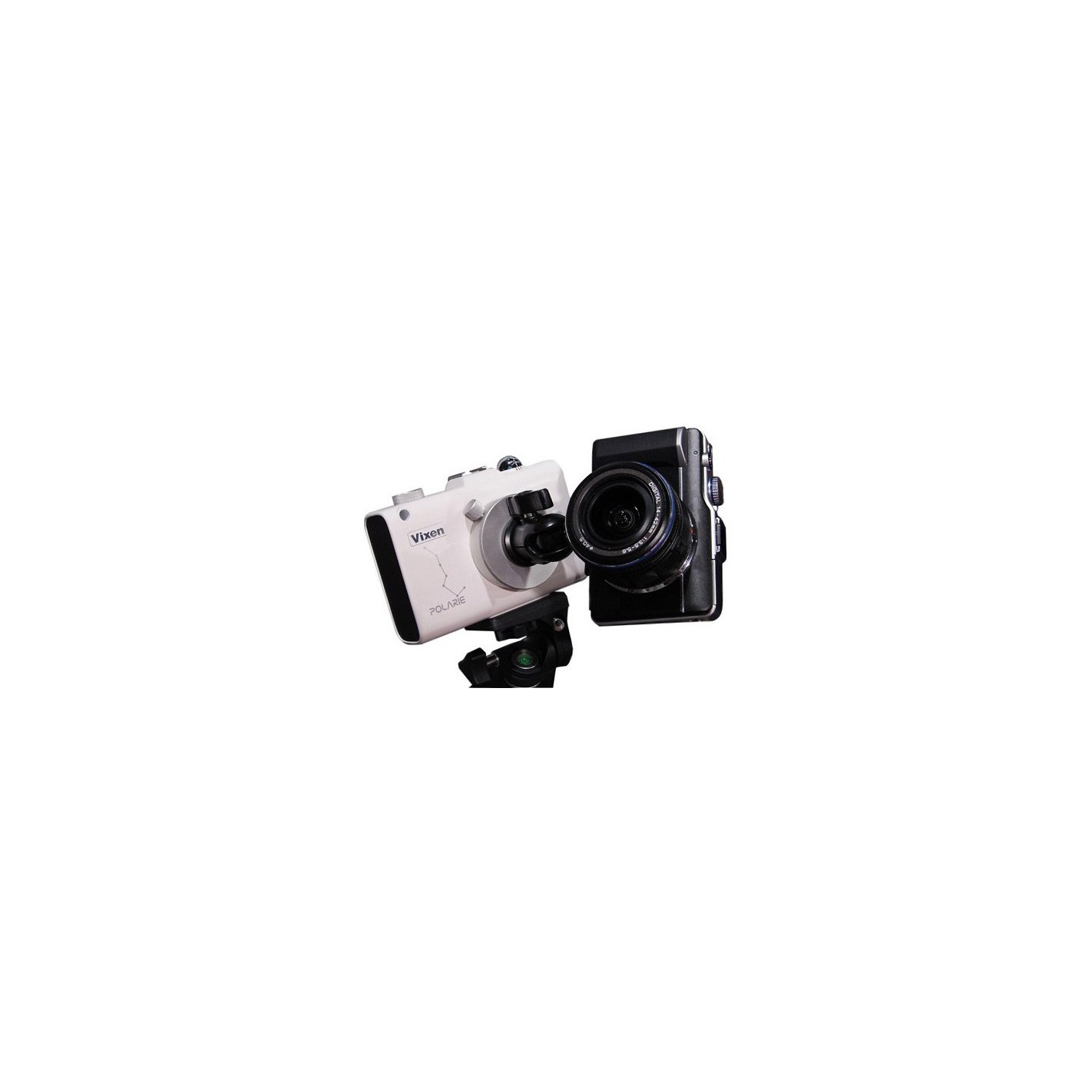

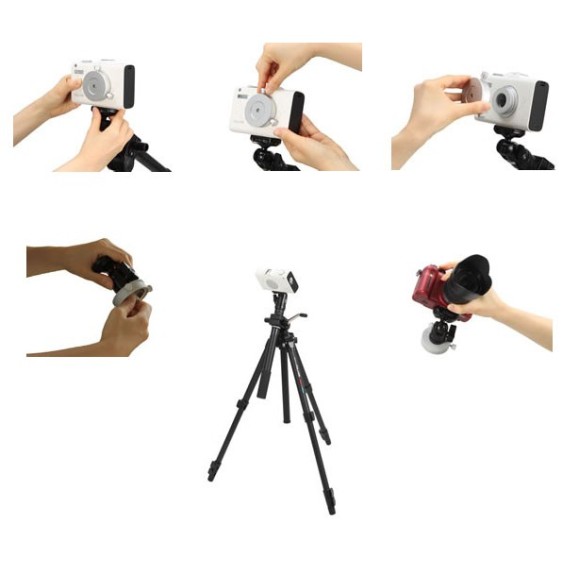

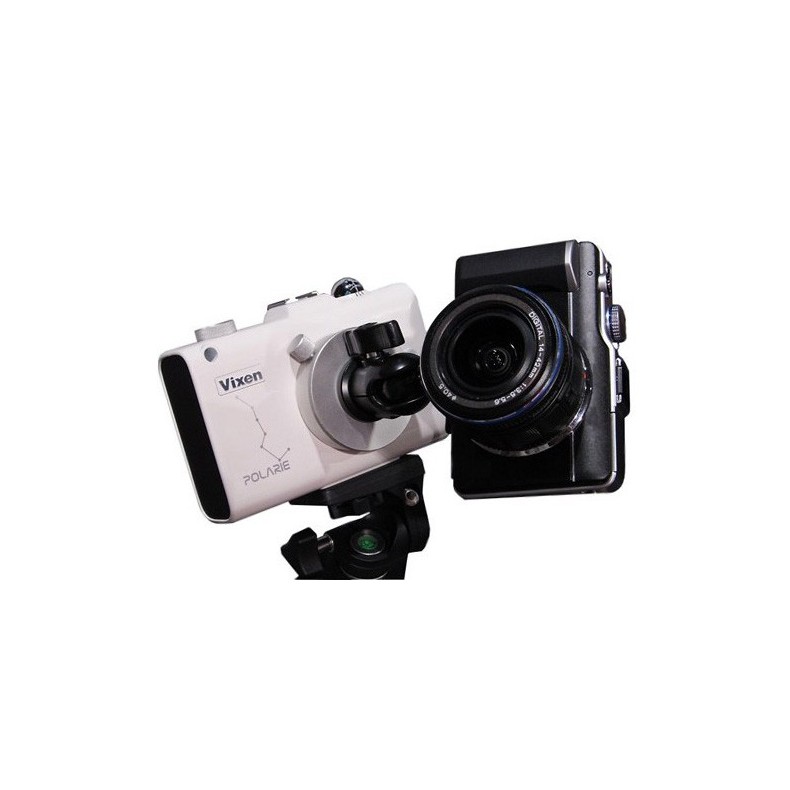

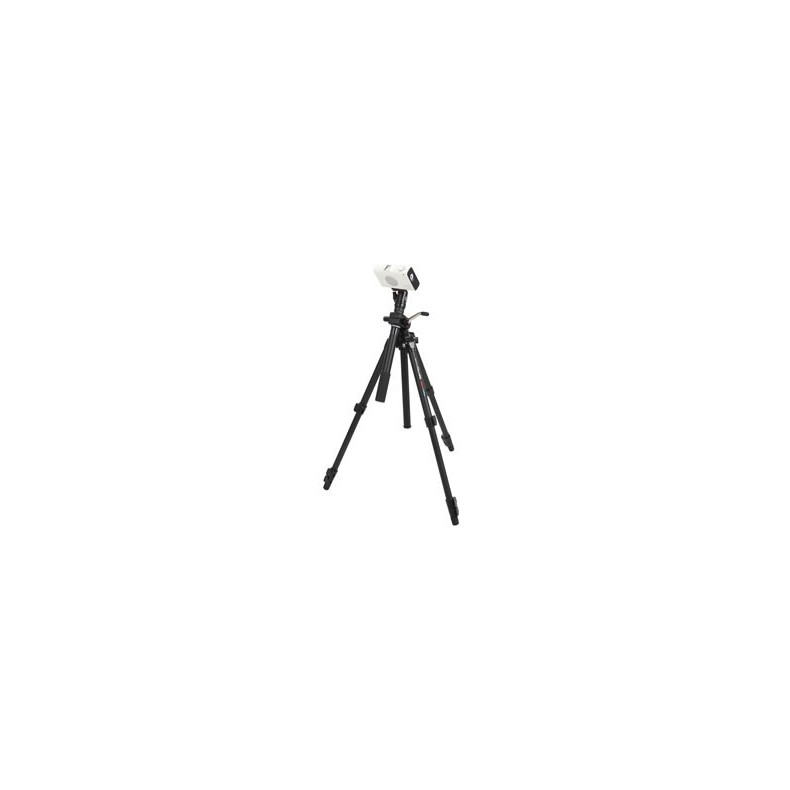

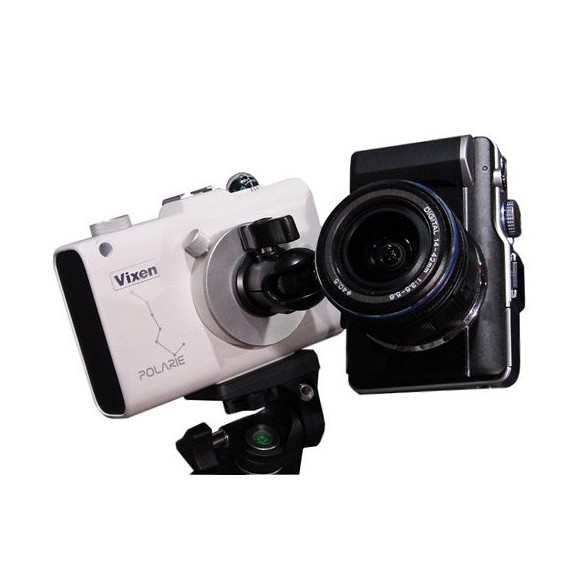

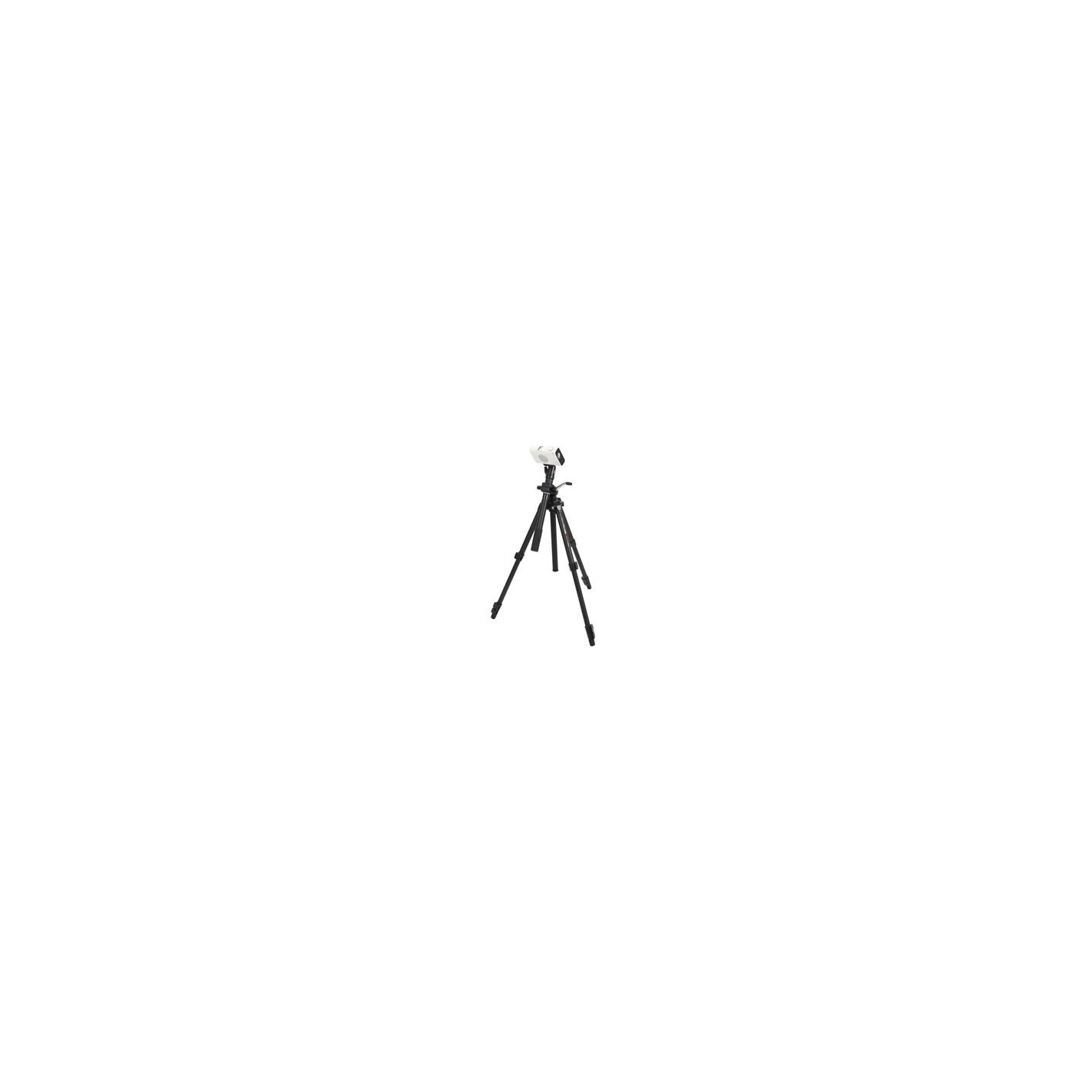

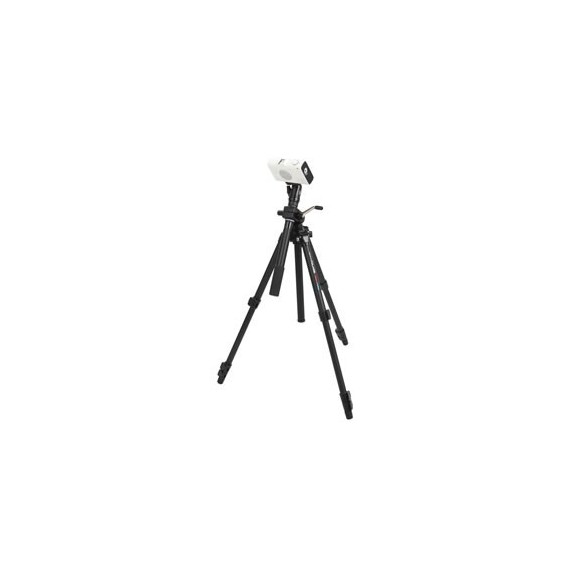

The POLARIE attaches to a conventional camera tripod and accepts any digital camera weighing no more than 3Kg. Using the POLARIE's built-in compass, the mount can be oriented to north.

The POLARIE has a hole on the upper right side that acts as a window to align with the polar star.

As an optional accessory, the polar finder can be purchased, which will help to perform this operation in a more comfortable and effective way. Once aligned and mounted, the POLARIE will start tracking the stars by activating the internal motor. In this way, the stars will remain as points and will not be moved leaving a wake that would make the photo unsatisfactory.

Instead, in this way you can get crystal clear images of the Universe.The POLARIE uses high precision stepper motors and is powered by two AA type batteries.

The POLARIE uses high precision stepper motors and is powered by two AA batteries:

-Star tracking mount (Star Tracker)
-Speed ½ of the sidereal velocity
-Sun tracking speed (Solar Time) and Moon tracking speed (Lunar Time): valid for use in both the northern and southern hemisphere.

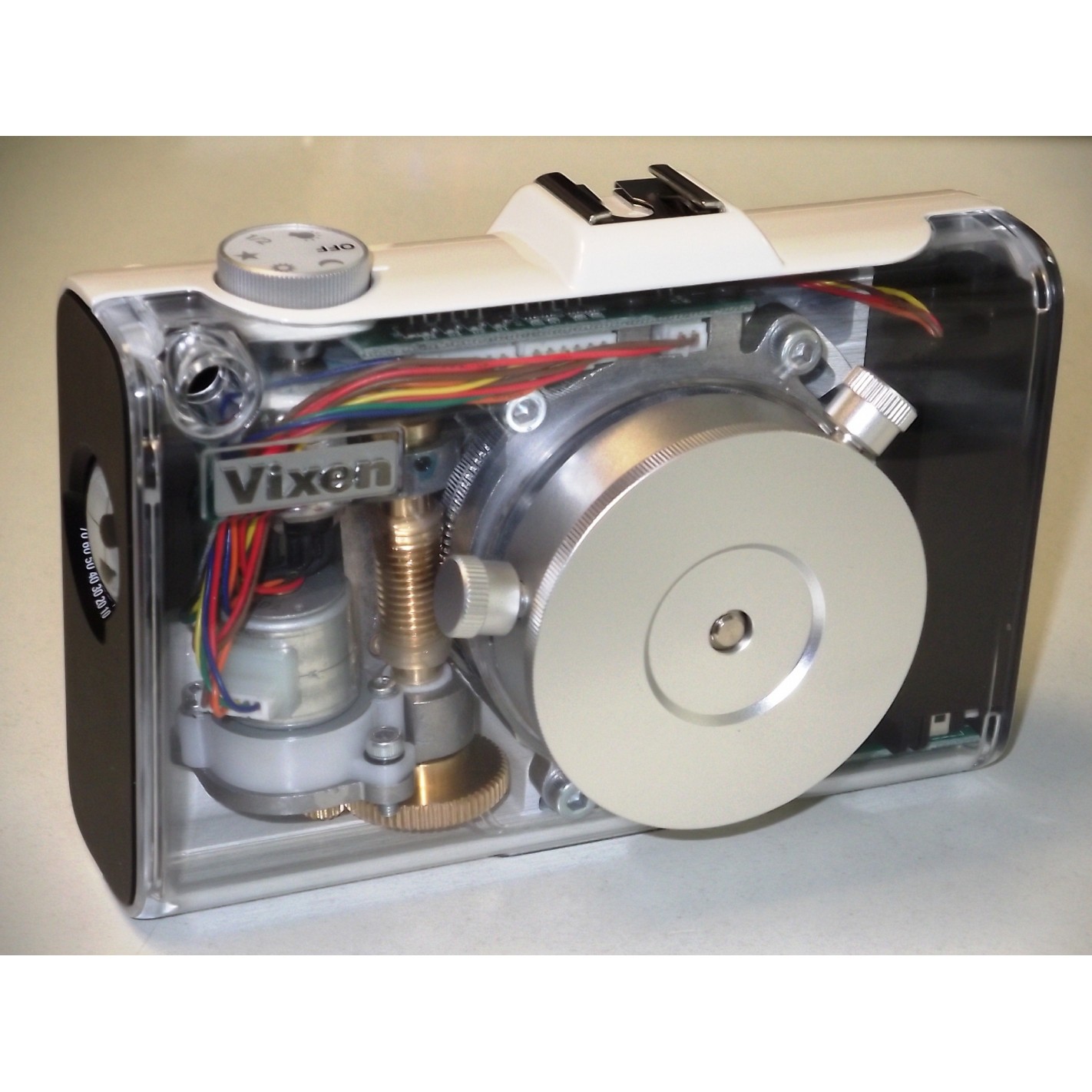

-Aluminum alloy 57.6 mm diameter sprocket with 144 teeth.
-9 mm diameter bronze bezel.
-Two-piece bearings.

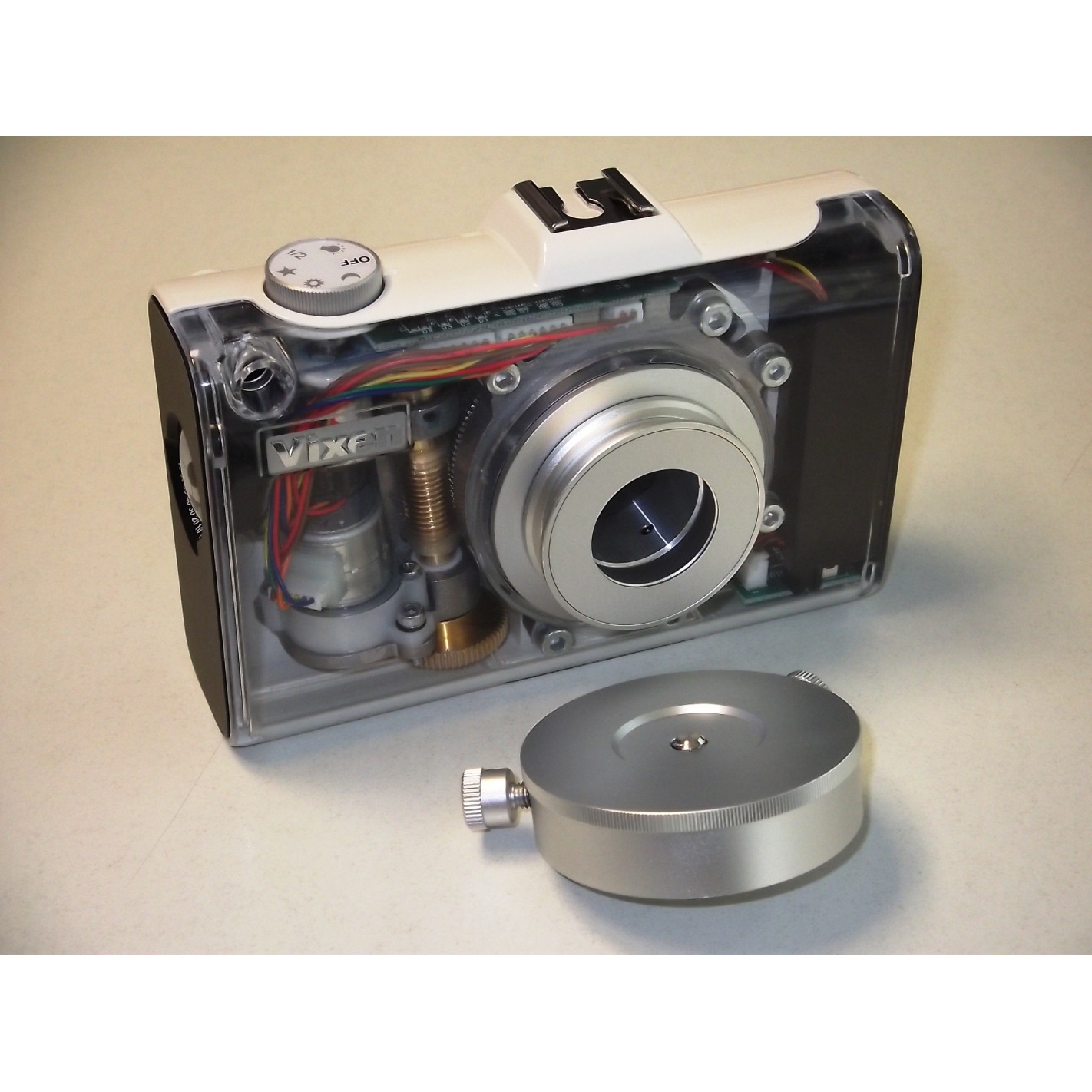

-Pulse motor (step by step).
-Optional polar finder available exclusively for the Polarie.
designed not only to be functional, but also very compact and attractively designed.
-Thanks to its compact design you can photograph anywhere in the sky without the Polarie mount colliding with any part of the tripod.
-There are no screws in sight giving it a sealed appearance, and although it is not a waterproof device, it can operate in most weather conditions.
-With a load capacity of 3Kg it uses alkaline batteries

Technical Specifications:

-Polar alignment hole provides an approximate field of view of about 8.9º.
-Includes compass to help orientate and locate north.
-Power supply: 2 AA batteries with DC 2.4-3.0V
-Possibility of external power supply: DC4.4 - 5.25V
-Weight (without batteries): 500 grams.
