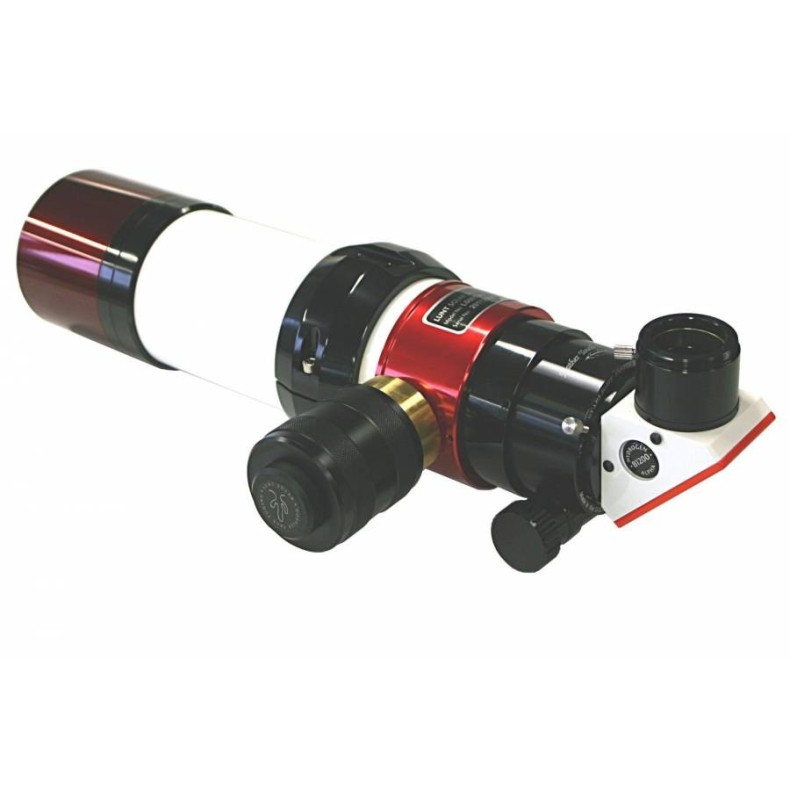

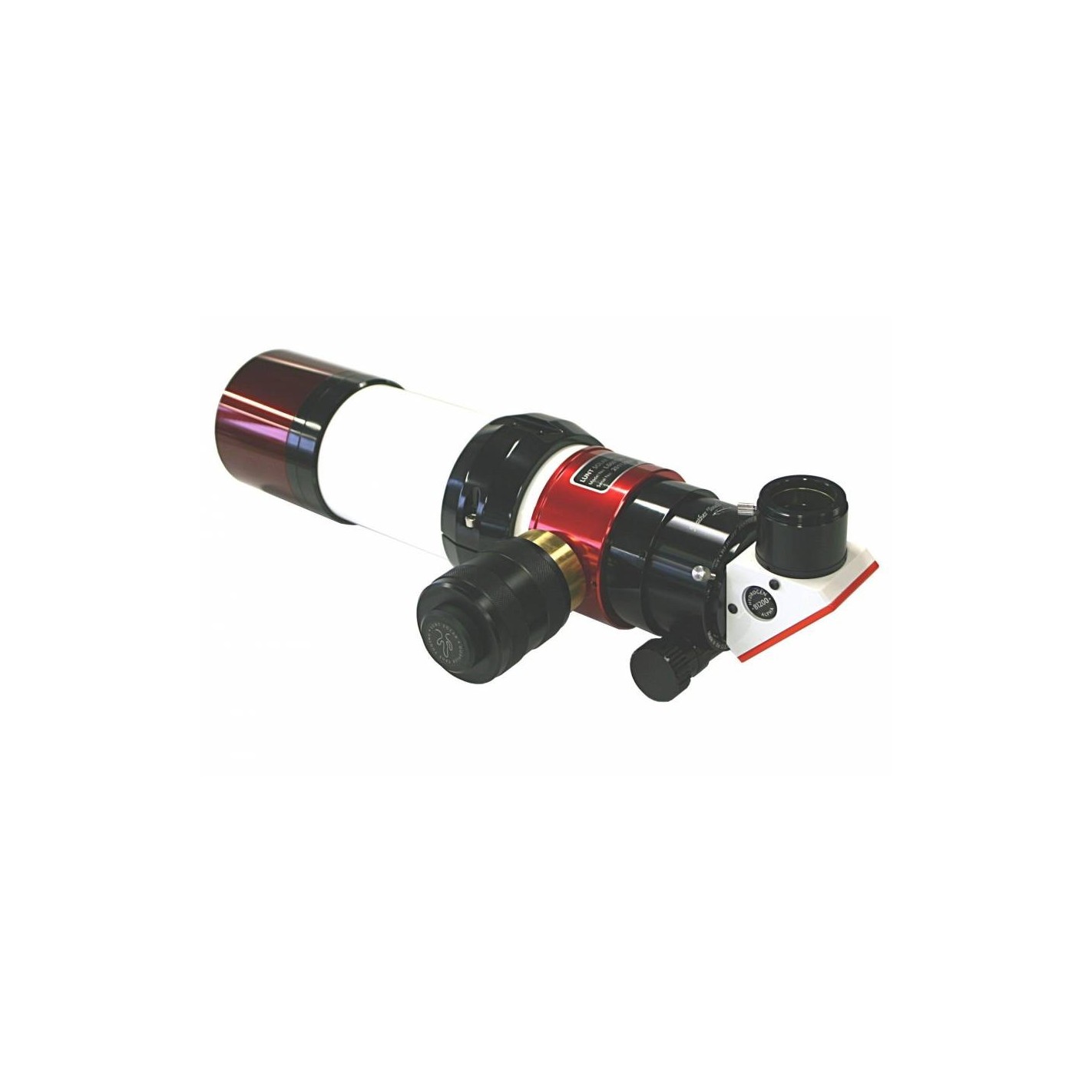

Solar Telescope H-alpha LUNT LS60THADS60/B1200FTPT

H-alpha Solar Telescope LUNT LS60THADS60/B1200FTPT

H-alpha Solar Telescope complete with 60mm aperture and additional 60mm Double-Stack filter system. The telescope can be used with wide bandwidth

This telescope is delivered with two integrated Etalons, one internal and one external. The LS60THaDS60 can only be used with the internal H-alpha filter at

Reducing the bandwidth from the estimated 0.7 Angstrom to 0.5 Angstroms will make much more detail visible on the solar surface. Adding a second Etalon to the existing one is not as easy as it might seem. Both Etalon filters need to be perfectly aligned with each other and both need to be tunable so that all ghost images can be eliminated. Ideally, the transmission curves should overlap perfectly in band to provide the best possible resolution and contrast. Both Etalons in this system are aligned and checked together at the factory to ensure that both perform flawlessly.

The telescope's internal Etalon filter is equipped with the advanced Pressure-Tuner system, based on Etalon filter control by pressure difference on both sides of the filter. The Etalon of the external Double-Stack system is provided with a mechanical type tilt adjustment system.

The blocking filter is the B1200. The B1200 is good for visual solar observation and also for solar photography.

The diagonal, where the blocking filter is installed, is equipped as standard with 1.25" eyepieces and T2 threaded camera connection.

Fine adjustment is achieved with a 2" Starlight-Instruments Feather-Touch focuser with a 38mm focusing travel and a macro-micro reduction of 10:1.


GENERAL FEATURES:

• Diameter: 60mm
• Focal length: 500mm
• Bandwidth
• Tuning internal Etalon filter: air pressure adjustment system.
• Tuning double-stack filter: mechanical Etalon tilt adjustment
• Filter lock: B1200 with 1.25" and T2 connection
• Focuser: Starlight-Instruments Feather-Touch focuser with 10:1 reduction
• Clamp with 1/4-20" thread on the base (standard tripod thread)
• Weight: 4kg
• Length: 48cm

wHAT COMES WITH THE TELESCOPE?

• H-alpha LS60THa Solar Telescope with internal Etalon filter, and 60mm aperture
• Internal Etalon filter with Pressure Tuner System
• Etalon Double-stack LS60FHa 60mm external filter
• B1200 blocking filter on the diagonal.
• 2" Starlight Feather-Touch Focuser
• 1/4-20" threaded clamp on base (standard tripod thread)
• Carrying case
• Instruction manual
• DOVETAIL NOT INCLUDED. MUST BE PURCHASED AS AN ACCESSORY
