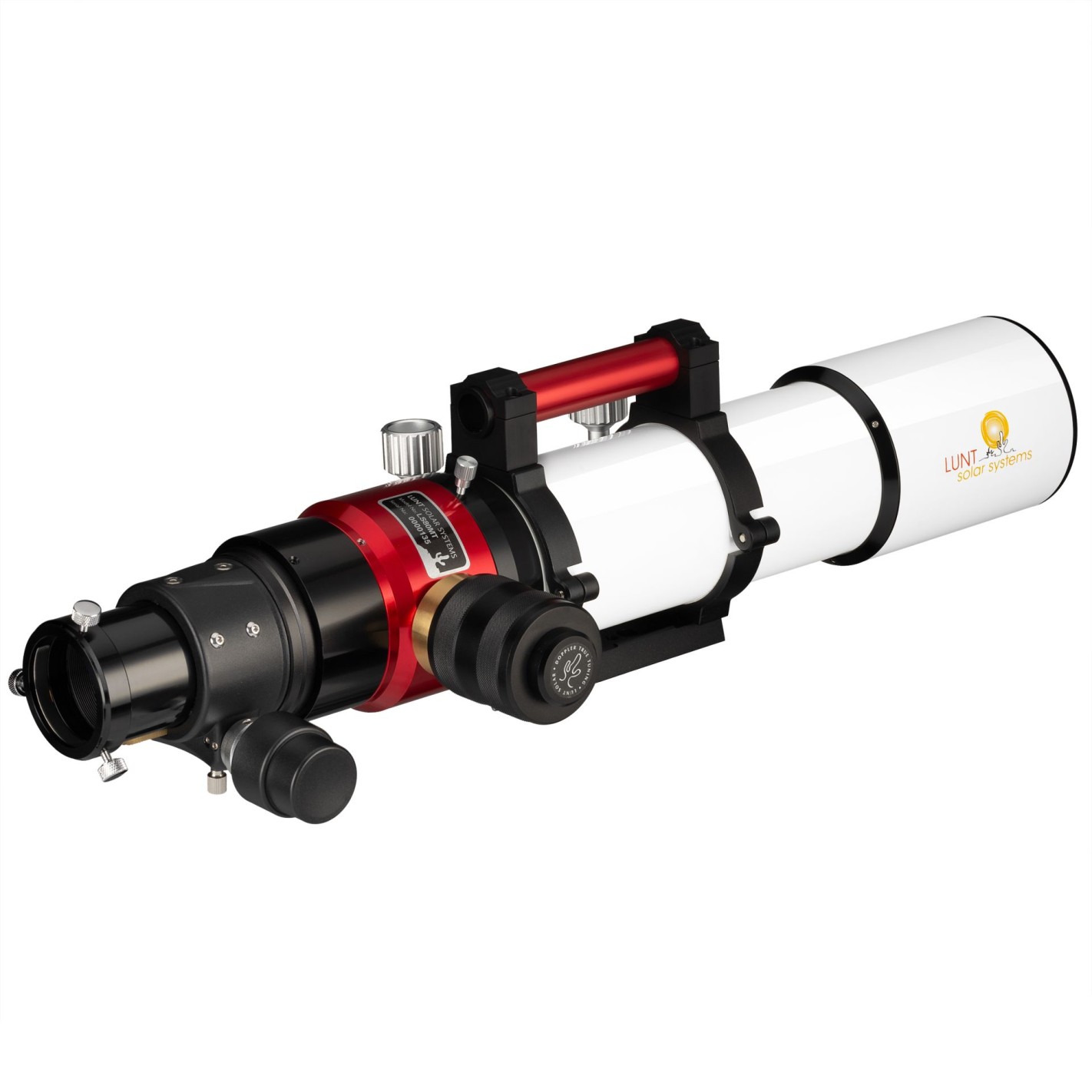

APO LUNT LS80MT/R&P OTA series multi-purpose telescope without locking filter

APO LUNT LS80MT/R&P OTA series multi-purpose telescope without a locking filter

This telescope can be combined with an additional LUNT blocking filter required for its use

Specific telescope for observing the Sun

ATTENTION Additional blocking filter required!

Also for observing the night sky, modular design

2-lens ED-refractor FPL-53, 80 mm aperture, focal length 560 mm

Observation and photography with very good image quality

Bandwidth less than 0.7 Angstrom

Solid R&P focuser with 10:1 reduction

Also for solar Ca-K and solar white light observation

Absolutely safe, no danger to eyesight

Multi-purpose telescope of modular design: H-alpha wavelength solar and night sky observation. Easy to switch from one application to another in a few simple steps. 2-lens ED Apo telescope with FPL-53 glass, 80 mm aperture and 560 mm focal length - very good image quality for H-alpha solar observation and also for starry night sky viewing.

Includes an innovative air pressure adjustment system and a good 2 inch (50.8 mm) R&P focuser. Supplied without blocking filter, note: use for H-Alpha solar observation is only possible with an additional blocking filter

This telescope is supplied without a blocking filter. We offer a wide range of additionally available blocking filters in different sizes, mounted on a 90° diagonal star or on an extension tube. All are usable with this telescope.

ATTENTION: You cannot use this telescope for H-alpha solar observing without this additional blocking filter !

H-alpha solar observing:

The LS80MT is a telescope for sun observation in H-alpha light, with 80 mm free aperture (no central obstruction) and 560 mm focal length. The H-alpha wavelength is the most impressive way to observe the sun, showing bumps on the edge of the sun, filaments and flares on the surface and much more. Its internal Etalon filter achieves a bandwidth of

It achieves fine tuning with a solid 2-inch R&P focuser with 10:1 reduction.

This version of the LS80MT is delivered without a blocking filter. Therefore, for solar observation in the H-alpha wavelength an additional blocking filter is required in this telescope . You can choose from the wide range of Lunt Solar Systems blocking filters and decide, for example, whether you want a 90° diagonal star blocking filter or one in an extension tube.

Observe the starry night sky:

With its modular design, you can remove the H-Alpha Etalon system in a few simple steps. With the additionally available conversion kit (item number 0551330), the 2-lens ED Apo refractor can be used as a normal telescope with an aperture of 80 mm and a focal length of 560 mm for observation and photography of the night sky. The FPL-53 double objective lens provides an image with low chromatic aberration. Normal 2-inch star diagonals can be used on the high quality R&P focuser in conversion kit 0551330.

Note that the optionally available 0551330 conversion kit 0551330 is absolutely necessary if you want to use the telescope at night.

More applications:

With the additional accessories available, the LS80MT offers even more possibilities

- Double-Stack (Double-Stack)

The LS80MT telescope can be optionally upgraded with the DSII/SFPT double-stack module also available (article number 0551395). The DSII system is an internal double-stack module. It thus achieves a bandwidth of

- Solar observation in white light:

To observe sunspots in white light, s you have removed the H-alpha unit, you must place a solar filter in front of the objective, or use a Herschel wedge on the focuser .

- Solar observation at Ca-K wavelength

Of course, the Lunt Solar Systems Ca-K filter modules can also be used on the LS80MT to observe and photograph supergranulation and other visible effects at this wavelength on the sun.

FEATURES

• 2-lens APO refractor, FPL-53
• Aperture: 80 mm (no central obstruction)
• Focal length: 560 mm
• Bandwidth: Internal Etalon with 0.7 Angstrom
• Tuning / Adjustment: Pressure-Tuner air pressure tuning system
• Lock-in filter not included, additionally available, the lock-in filter is absolutely necessary!
• Focuser: R&P with 10:1 reduction
• Two-tube ring with handle
• Solar finder installed inside the handle
• Dovetail bar at GP level for astronomical mounts
• Weight: 4.95kg
• Length with locking filter and dew shield: 62cm
• Length without locking filter and dew shield: 50cm




INCLUDES

• LS80MT multi-purpose telescope
• 2-inch pressure adjustment tuner
• R&P focuser with 10:1 reduction
• Tube rings with dovetail bar and solar finder
• Carrying case (78x33x23cm)
• Instruction manual
• stargazing conversion kit (0551330) NOT INCLUDED !
• Field of application: Solar observation
• Color: white
• Optical Design: Apochromatic Refractor
• Focusing system: 2" rack and pinion focuser with 10:1 reducer
• Telescope filter type: Sonnenfilter H-Alpha
• Mount Type: Mountless Optics
