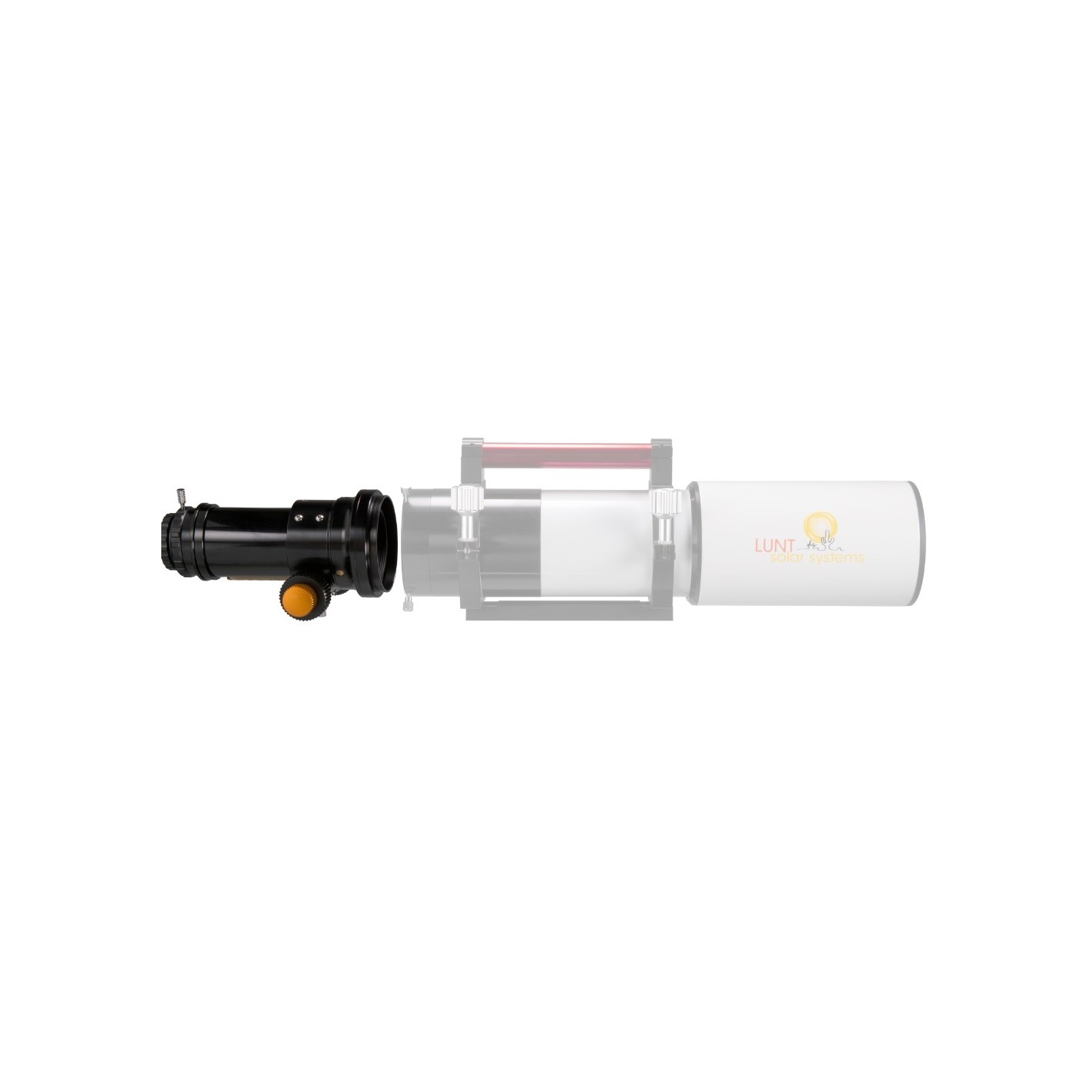

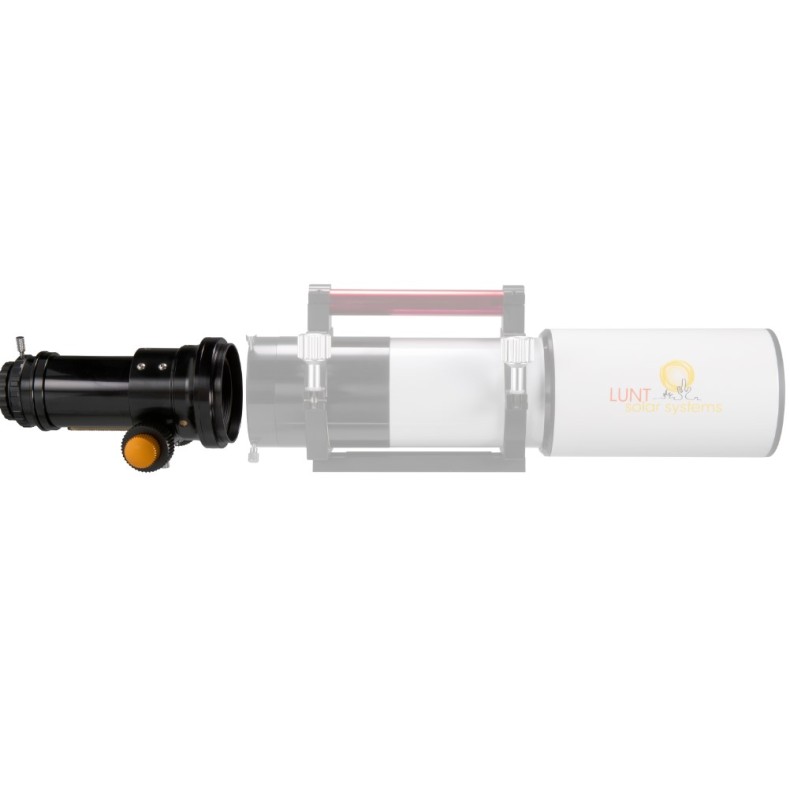

The LS100MT solar telescopes can be upgraded with this optional conversion kit. This allows the telescopes to be used as 3-lens ED apochromatic refractors for starry night sky observation and photography.
The H-Alpha system of the LS100MT telescopes can be easily replaced with this conversion kit .The conversion kit offers a solid and very high quality R&P focuser. Even heavier cameras or other accessories are held smoothly and can be focused sensitively thanks to the integrated 10:1 reduction.
Simply loosen the three knurled screws that hold the H-Alpha unit, including the focuser, on the LS100MT .Attach the new focuser here and your LS100MT is transformed into a full 3-lens apochromatic telescope. The new focuser offers a 95mm focuser shape with no backlash or tilt mechanics, even when using heavy accessories. A 2-inch ring clamp is directly on the focuser, and included in delivery is an adapter to 1.25-inch also with ring clamp.
But that's not all: with this conversion kit, Herschel wedges or Ca-K modules can be used on LS100MT telescopes for solar observing .This makes it possible to observe the sun in H-alpha, in calcium-K wavelength light or in white light, with the same telescope!
This conversion kit turns the LS100MT into a truly versatile telescope!
FEATURES
- Backlash and tilt-free mechanics
- 95 mm focus shape
- 10:1 reduction
- 2 inch and 1.25 inch ring clamping
SCOPE OF DELIVERY

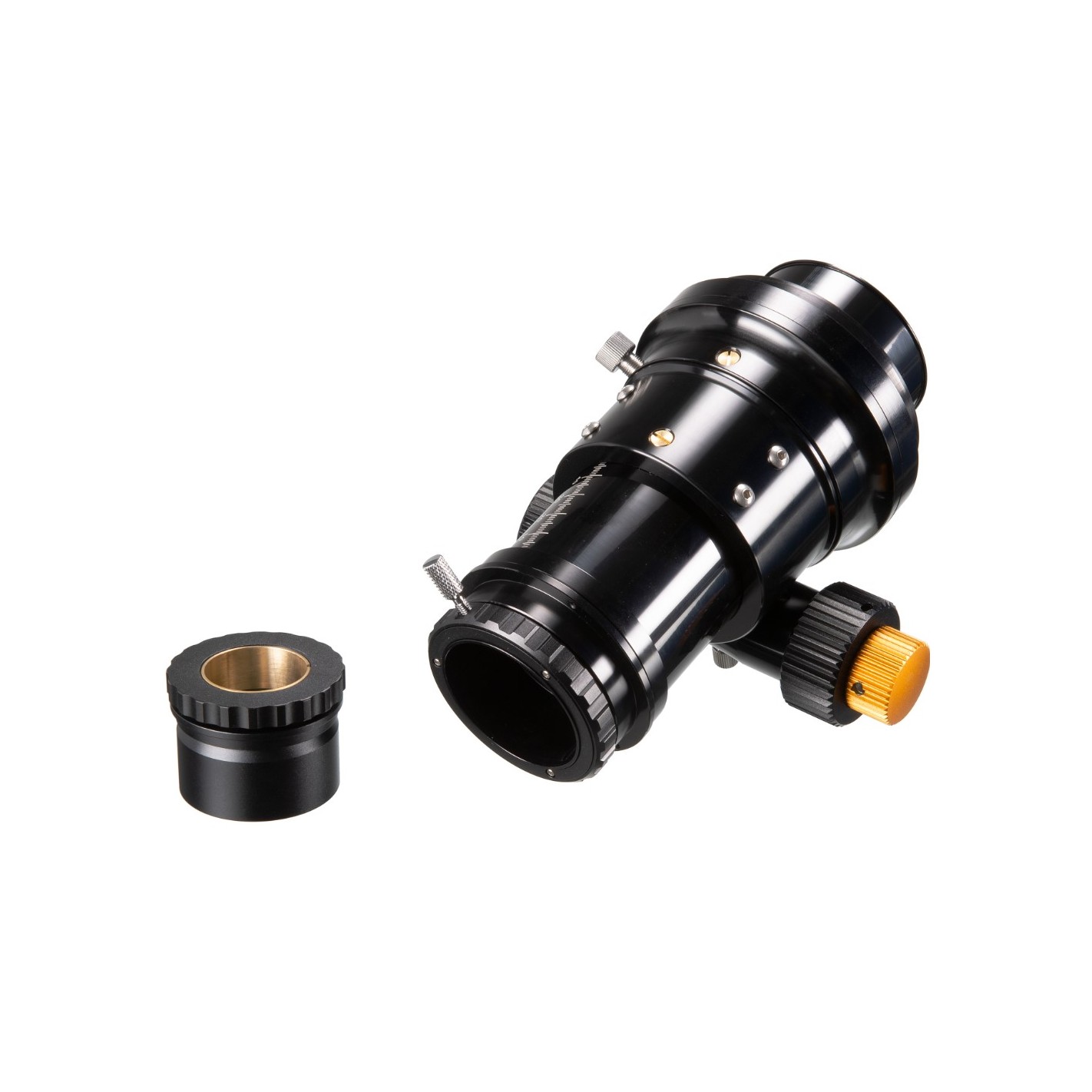

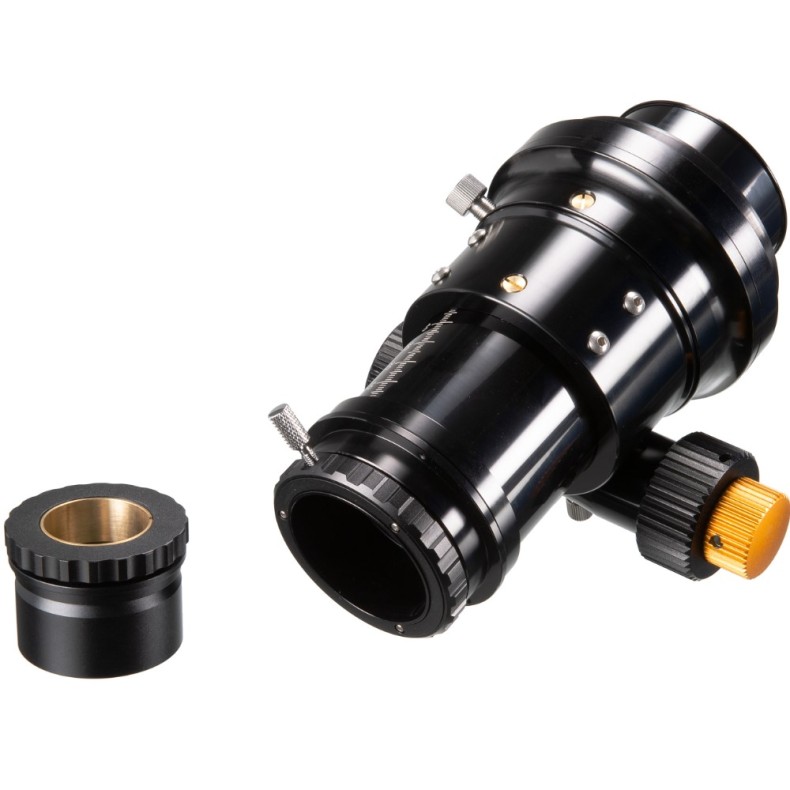

- High-quality 2-inch focuser with adapter for LS100MT telescopes
- Adapter from 2 inch to 1.25 inch
- Instruction manual
lS100MT telescope not included! Can only be used in conjunction with an LS100MT solar telescope .This conversion kit is absolutely necessary if an LS100MT telescope is to be used for night sky observation.
Technical Specifications
| FIELD OF APPLICATION |
|---|
| Field of application |
- Solar observation
- Deep Sky observation
- Deep Sky photography
- Moon observation
- Lunar photography
- Planetary observation
- Planetary photography
|
| GENERAL TECHNICAL DATA |
|---|
| External diameter |
50.8 mm |
| Extended warranty (years) |
5 |
| DIMENSIONS & WEIGHTS |
|---|
| Overall length |
230mm |
| Total width |
150mm |
| Overall height |
120mm |
