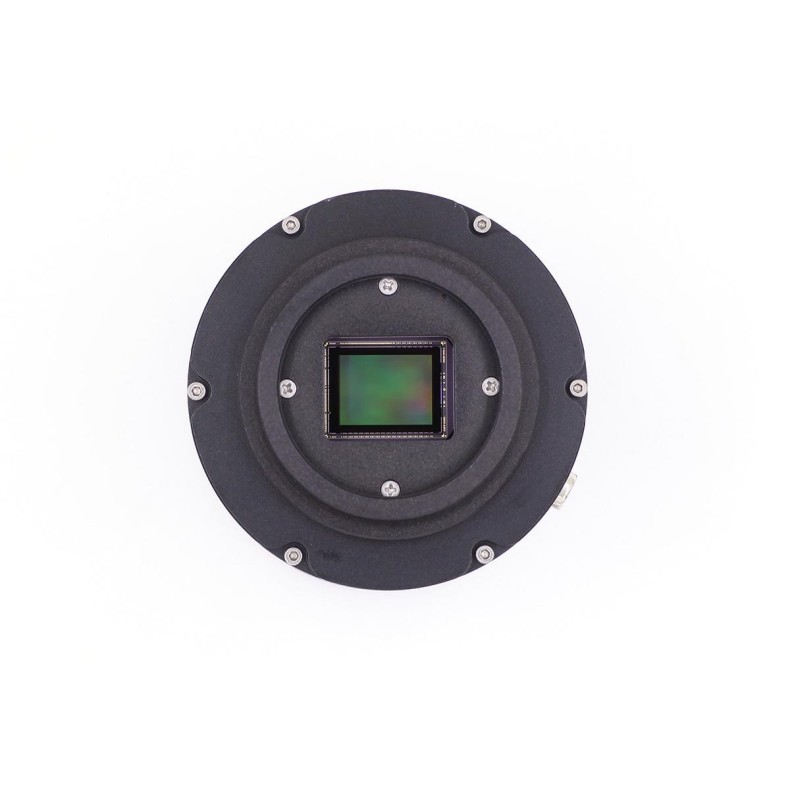

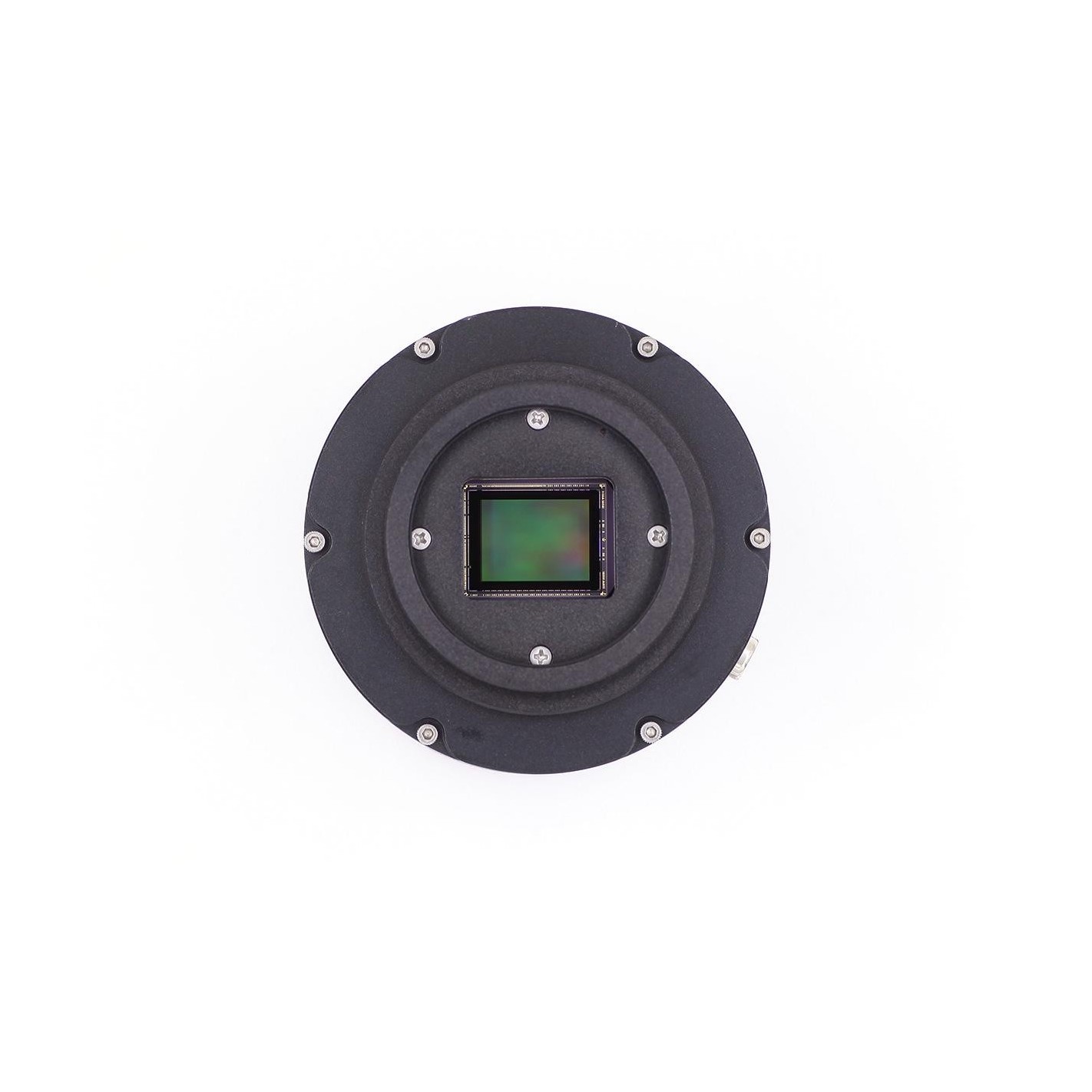

QHY-163M Monochrome Camera
Moon-QHY QHY163 Monochrome or Color. QHYCCD Medium Size Cooled USB 3.0 Planetary and Deep Sky COLDMOS Camera. 16 Megapixel CMOS sensor!
Great QHY163M/C camera. With a relatively large sensor, 4/3 inch, CMOS technology, available in both monochrome and color. It has exceptionally low read noise (as low as 1 electron), low dark current and 2-stage cooling capable of lowering the temperature to 40°C below ambient. The sensor is insulated and the window is heated to prevent condensation. It features USB 3.0 and downloads 16 megapixel images at 23 FPS, 30 FPS for 4K HD video.
128MB DDR buffer
so you won't lose a single frame in long sequences! Like the other cameras in the Cooled Cmos QHYCCD family, the QHY163 features a 128MB DDRII image buffer, which is a great help for transferring large images and prevents frame loss in long sequences. It also aids in smoother operation on slower computers or computers with a USB 2.0 port. This buffer also helps in applications with multiple cameras and avoids USB transfer problems. For example, 4 QHY163M cameras can be used on the same computer to create an LRGB image.
Complete Anti-Humidity Solution
QHY has more than 10 years of experience in the design of refrigerated chambers which has allowed it to develop an anti-humidity technology consisting of a fully air proof chamber with a CMOS window heater desiccant reservoir. This technology makes it possible to forget about dew on sensors and optical windows, even in the most humid environments.
Independent Analysis
To read an independent technical analysis of the QHY163M, click here, it contains a lot of information about readout noise, full-well capability, dark current, FFT noise and more: Step from DSLR to QHY163M
Key features:
- Cmos sensor: 4/3 inch 16 Megapixel CMOS Mono Sensor
- Effective Pixels: 4656 * 3522
- Pixel Size: 3.8um x 3.8um
- Effective Area: 17.7mm x 13.4mm
- Shutter: Electric Rolling Shutter
- Readout Type: Progressive Scan
- FullWell: 18-20ke Typical
- QE: TBD
- Readout Noise: 2.4e@low gain 1e@high gain
- System Gain: TBD
- Unity Gain: TBD
- AD Sample Depth: 10-bit/12-bit (8-bit/12-bit output)
- ROI Support: Yes. Any Area ROI
- Exposure Time: 50us - 1800 sec
- Frame Rate (on 8bit)
- 22.5FPS@16MP, 30FPS@4K HD Video
- 57FPS@1920*1080, 60FPS@1280*1024
- 80FPS@1024*768, 100fps@800*600
- In-Camera Image Buffer: Yes, 128MB DDRII Buffer
- Cooling
- 2-stage TEC, -40C below Ambient, typical.
- Temperature Regulated
- Power: USB Powered for camera and +12V powered for TEC
- Anti Dew Control: Air Connector for removable silicon gel tube - Heat board for optic window of airproof CCD chamber
- Computer Interface: USB 3.0 Super Speed
- Telescope Interface: M42/0.75 & 2-inch adapter. Optional C-mount adapter
- Color Wheel Port: 4-pin QHYCFW2 socket
- Guide Port: 6-pin RJ11 Guide Port
- Power consumption: TBD
- Electric Interface: 12V input with lock, USB3.0 socket, 4PIN QHYCFW, 6PIN RJ11
- Weight: 450g
- The camera is delivered ready to use:
- QHY163M camera
- Cables (USB 3.0, Self-locking power cable, 6-pin guide cable and cigarette lighter power cable)
- With desiccant tank
- Adapter to M42/1.25 inch
- Here is the manual of the camera (English version).
