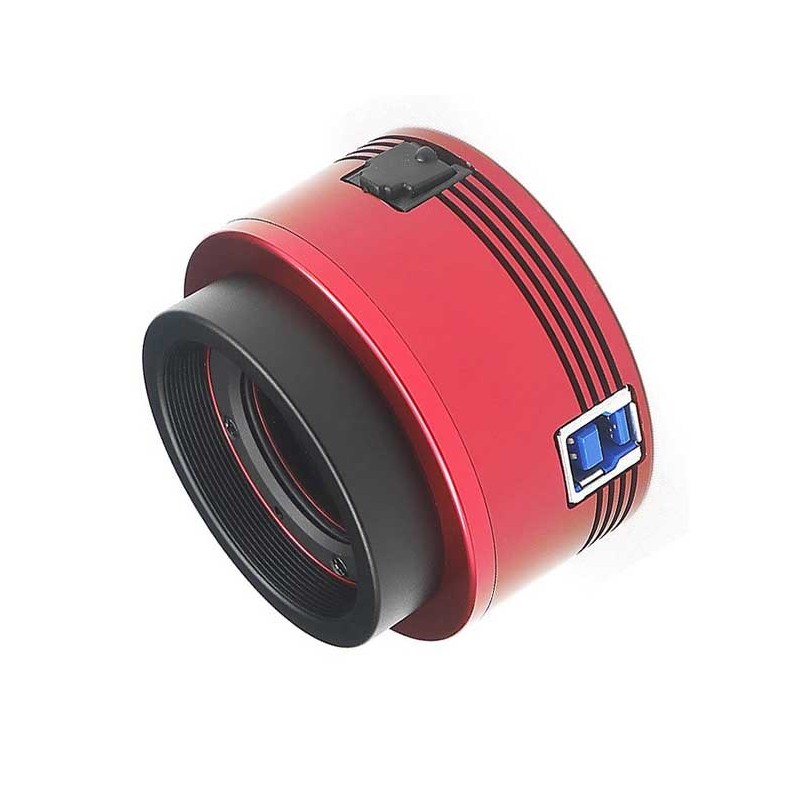

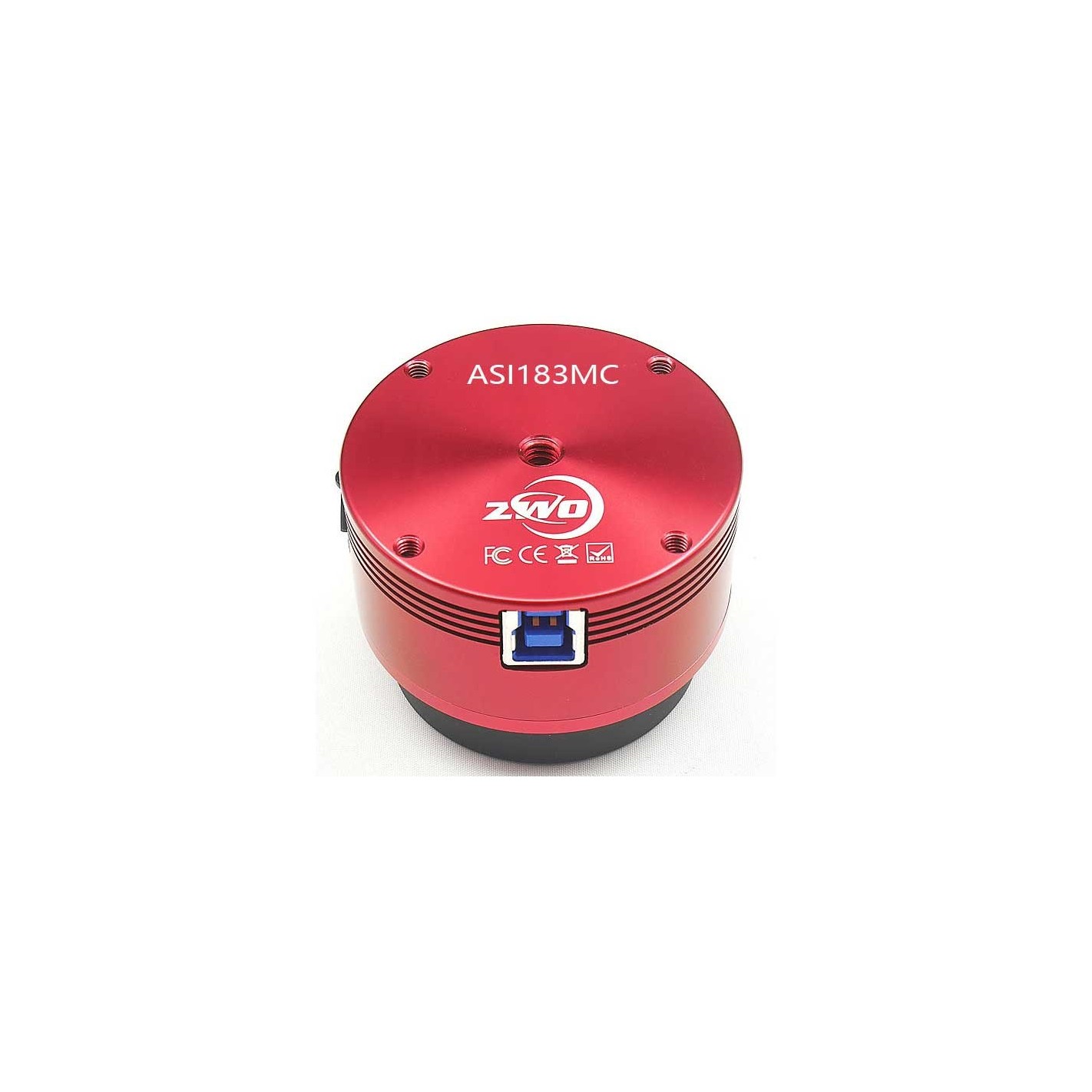

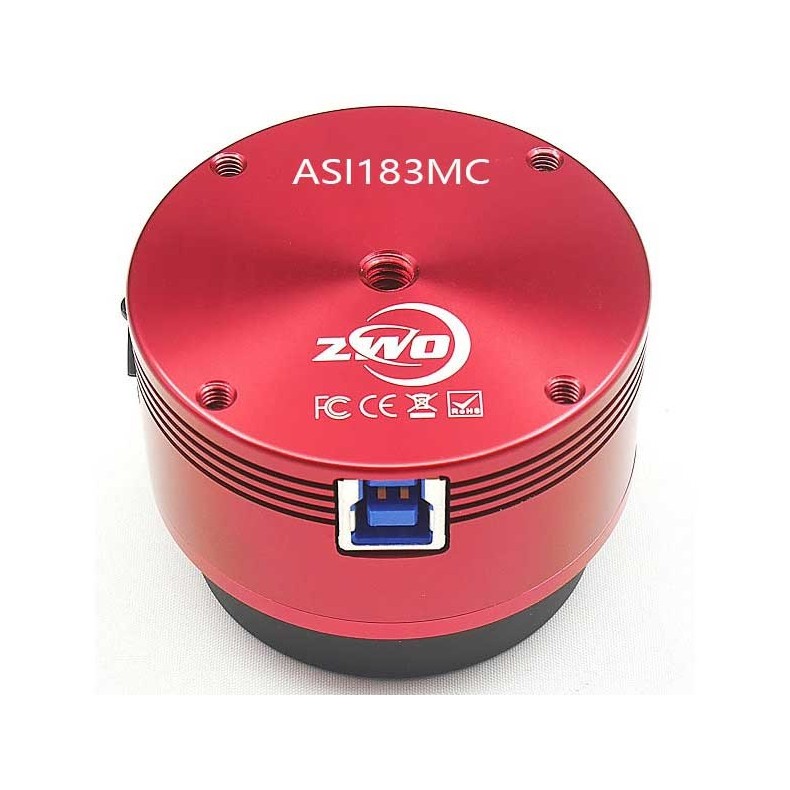

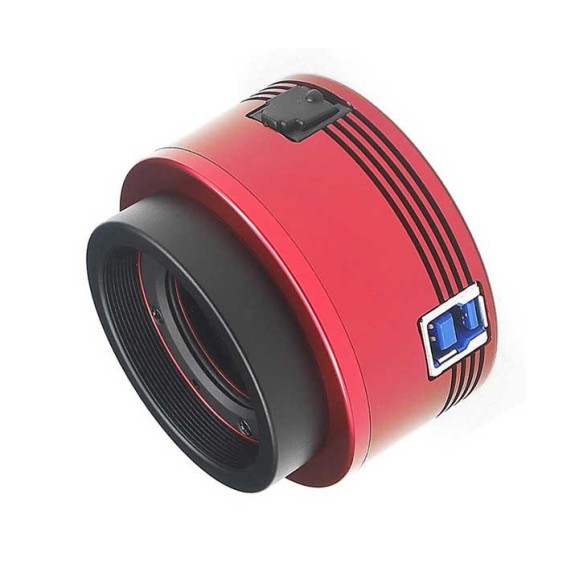

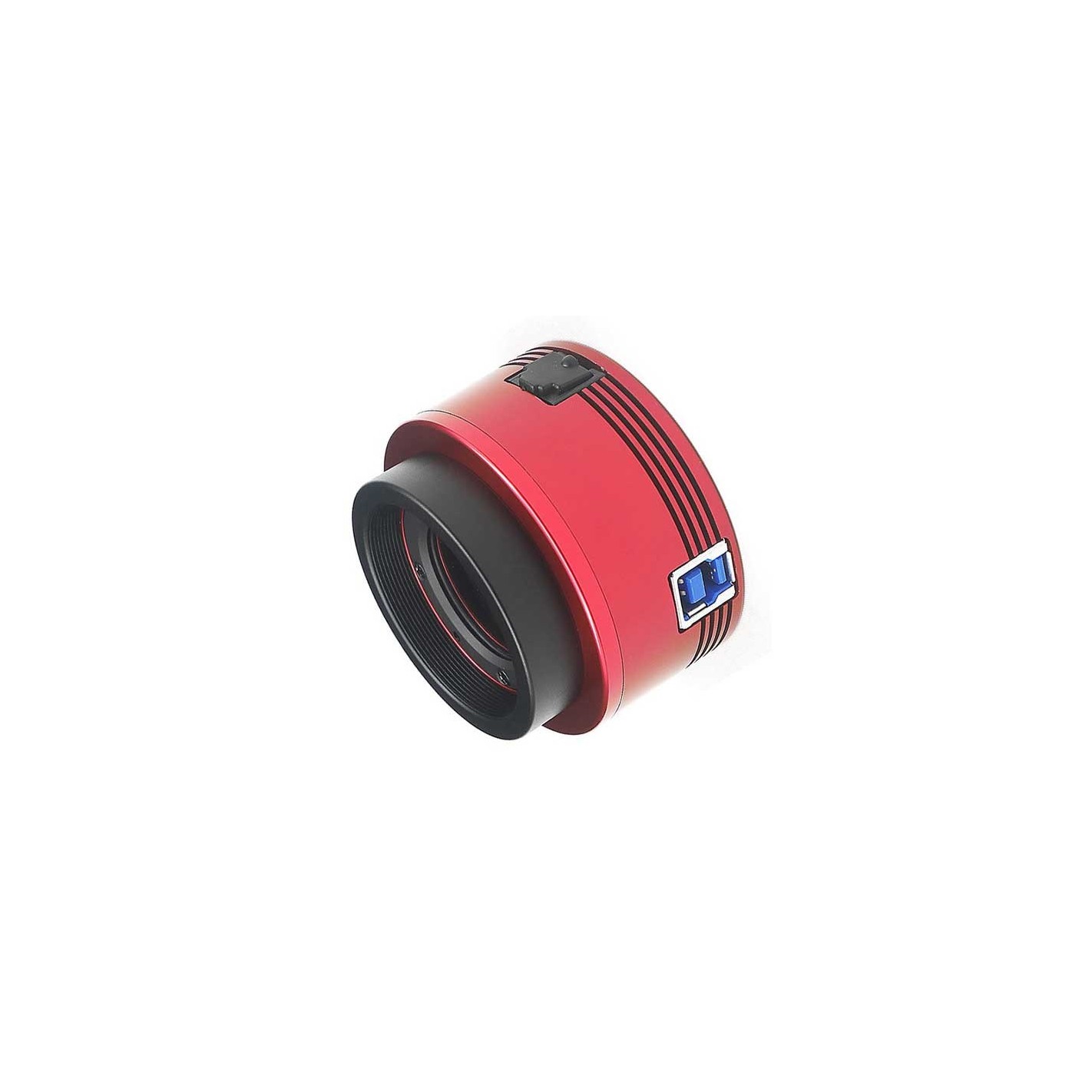

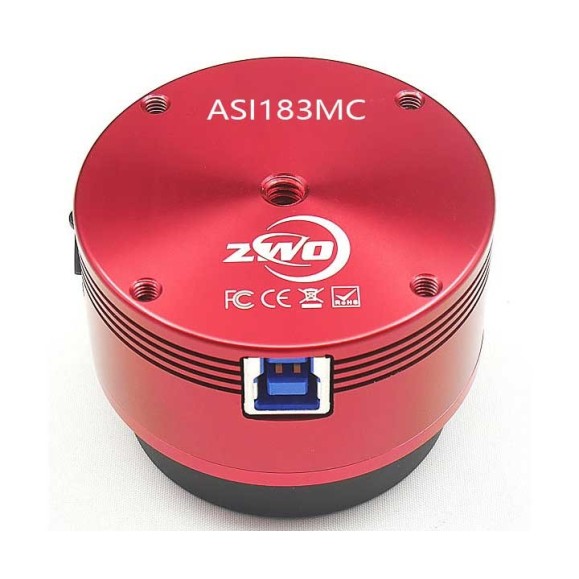

CMOS camera ZWO ASI 183MC Color.
The ZWO ASI183MC camera uses the state-of-the-art SONY Exmor R BSI IMX183 color sensor. With approximately 20 million pixels, this camera belongs to the large CMOS astronomy cameras. Due to the pixel size of only 2.4 μm, the resolution of the camera is sensational. This makes the ASI183 especially attractive for telescopes and sharp and fast camera lenses.
One of the outstanding features of the ASI183 is the sensational light sensitivity. Its quantum efficiency of 84%, thanks to BACK ILLUMINATION technology, and the very low brightness of the amplifier make the camera very suitable for all astronomical applications.
The "single-shot" color camera offers more convenience compared to monochrome cameras. Not everyone wants to follow the time-consuming L-RGB technique ideal for obtaining full-color photographs of nebulae or beautiful planetary images. Color cameras offer the possibility to obtain spectacular images without the need to use various filters. In direct comparison to DSLR cameras, the ASI183MC offered by Telescopiomania convinces with its superior light sensitivity, smoother image and more depth of field, and the stars saturate less quickly.
Fields of application of the ASI183MC color CMOS camera:
-
-
-
-
- Stunning lunar and planetary images and videos. The high sensitivity allows to "freeze" the view. Through the small pixels a high resolution of the telescope can be achieved without additional optical elements.
- Autoguiding is possible through its ST-4 interface. Thanks to its high resolution, it can guide large telescopes with guiding telescopes from an aperture of 50mm. At the same time, the camera weighs only 120 grams and barely loads the focuser.
- Deep sky images of the highest quality with short exposure times, thanks to the modern Sony sensor it incorporates. After only a few seconds, you can already see stars and deep sky objects that cannot be seen through the telescope with your eyes. Light sensitivity is much higher than with a conventional DSLR.
- Downloads, drivers: ZWO provides software and drivers online for free download.
Technical specifications:
-
-
-
-
- Sensor: 1" CMOS Color IMX183CLK-J / CQJ-J
- Diagonal: 15.9 mm
- Resolution: 20.18 megapixels 5496 * 3672
- Pixel size: 2.4 μm
- Bayer pattern: RGGB
- Shutter: Rolling shutter
- Exposure range: 32 μs - 2000 s
- ROI: Supported
- ST4 guide port: Yes
- Read noise: Gain 1.6e @ 30db
- Quantum efficiency: 84% Quantum efficiency: 84% Quantum efficiency: 84% Quantum efficiency: 84% Quantum efficiency: 84
- Full well: 15ke
- ADC: 12bit
- Interface: USB3.0 / USB2.0

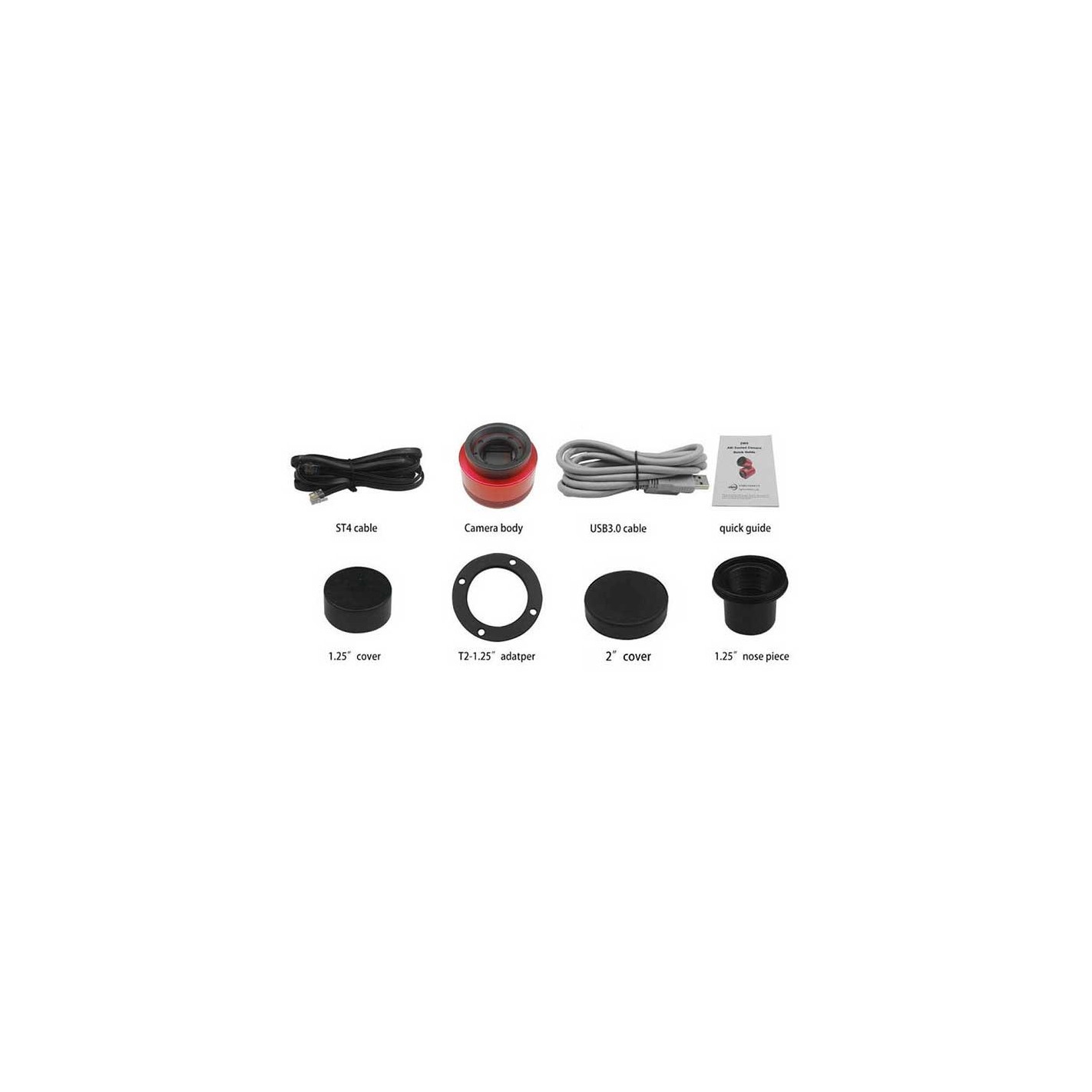

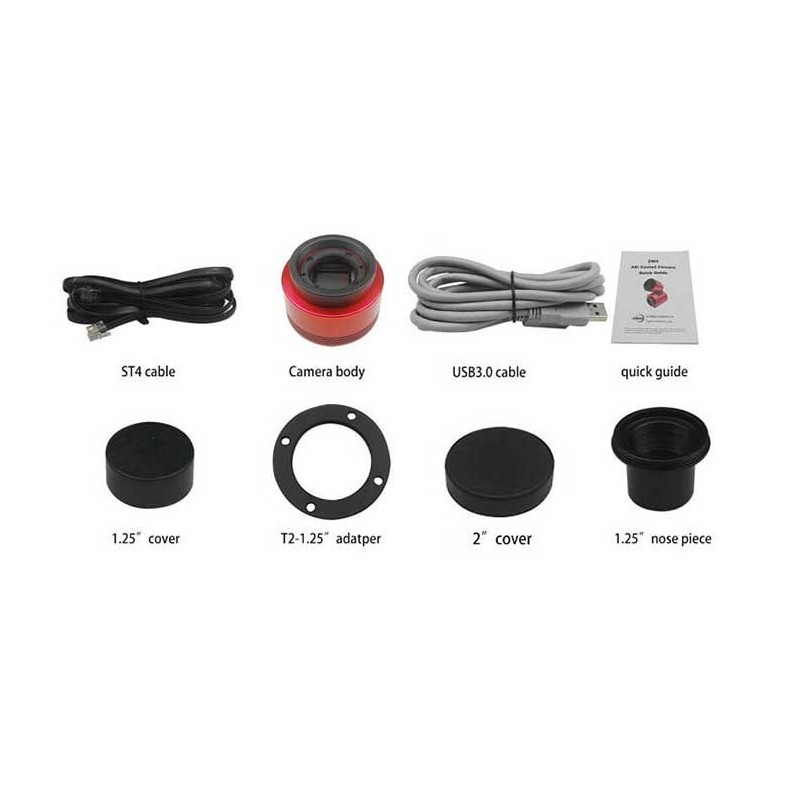

- Adapter: 2"/ 1.25" / M42X0.75

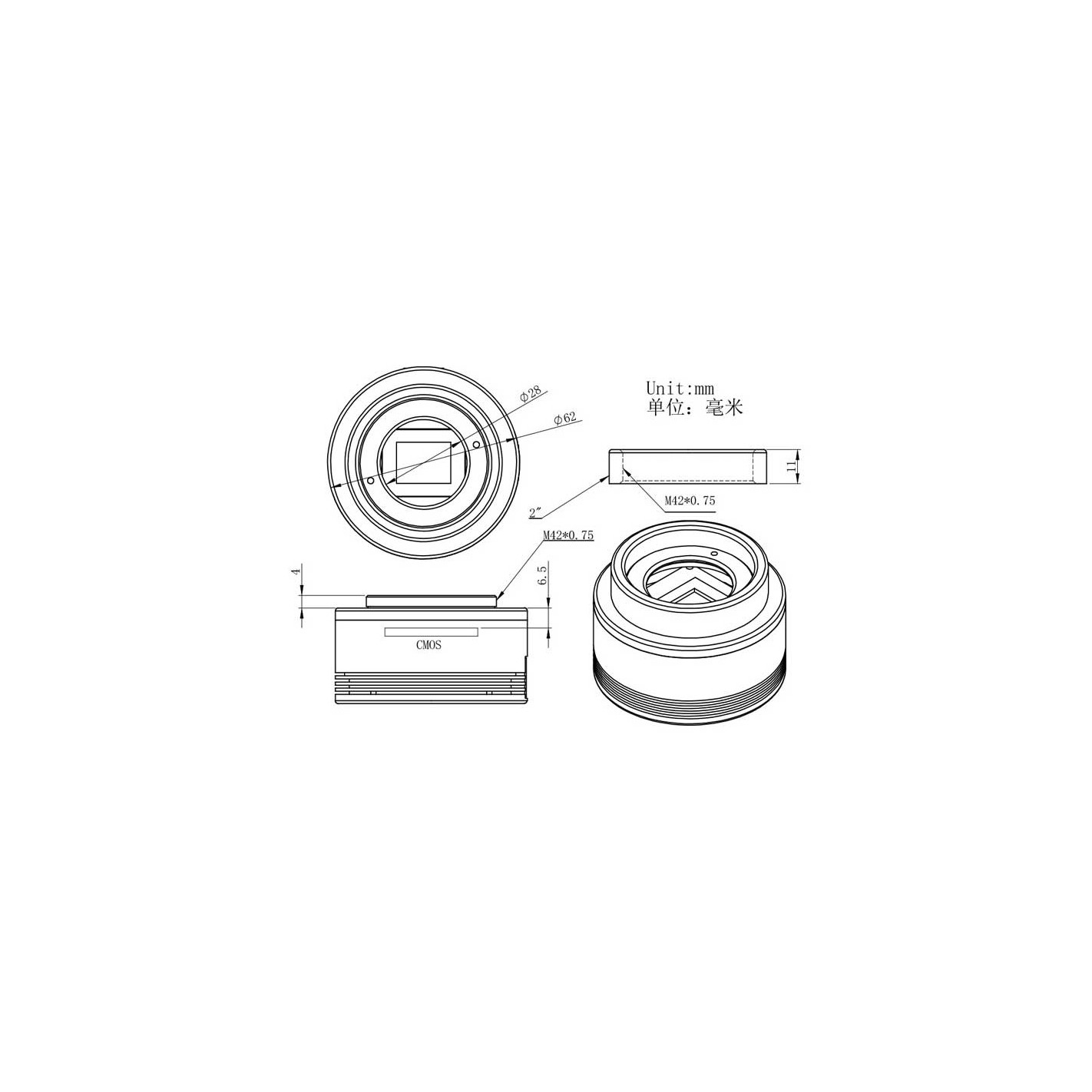

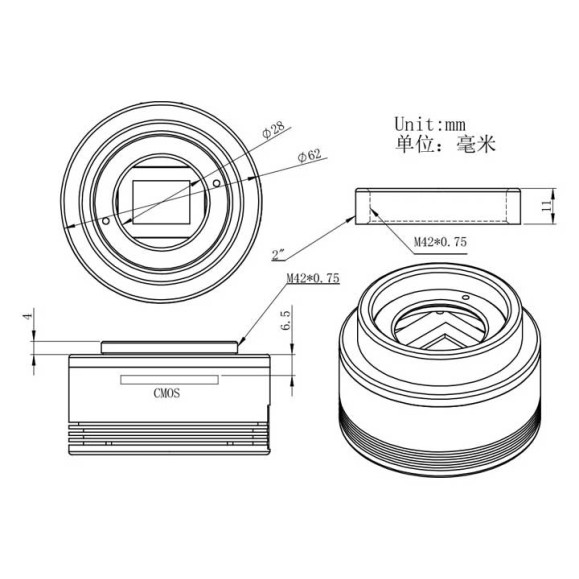

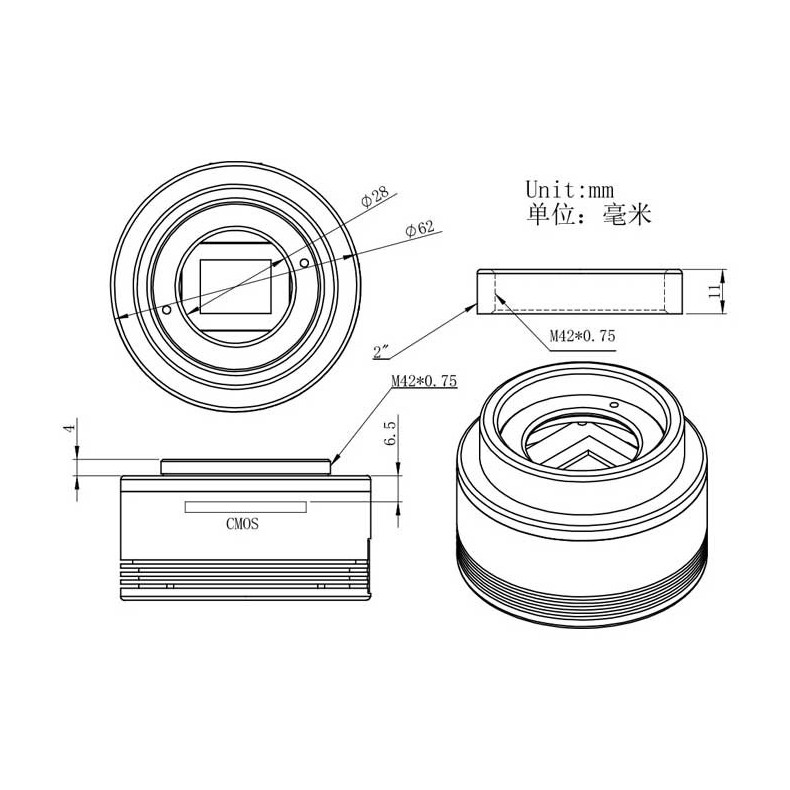

- Dimension: ⌀ 62 mm x 36 mm
- Weight: 120 grams
- Distance from sensor to T2 thread: 6.5 mm or 17.5 mm with 11 mm extension
- Working temperature: -5 ° to 45 ° C
- Storage temperature: -20 ° to 60 ° C
- Working relative humidity: 20% to 80%
- Storage relative humidity: 20% to 95%
- Max. FPS at full resolution: 10/12 bit ADC - 5496 × 3672 19 fps
