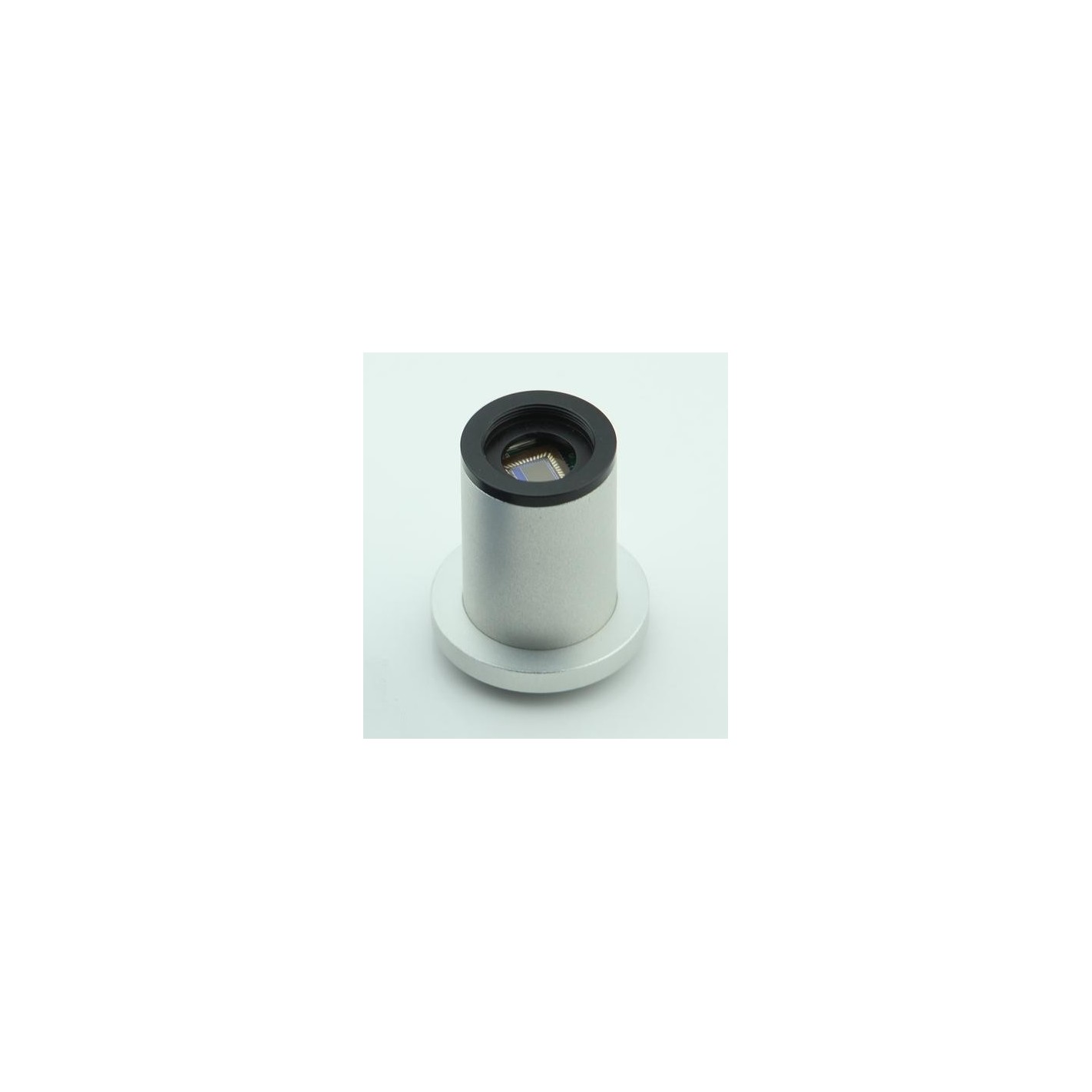

Luna-QHY 5L-II color: camera with accessories

LUNA QHY 5L-II COLOR 1.3 MPixel camera, designed for planetary. Includes software with NOISE REDUCTION and wide field.

Get great results at an affordable price!

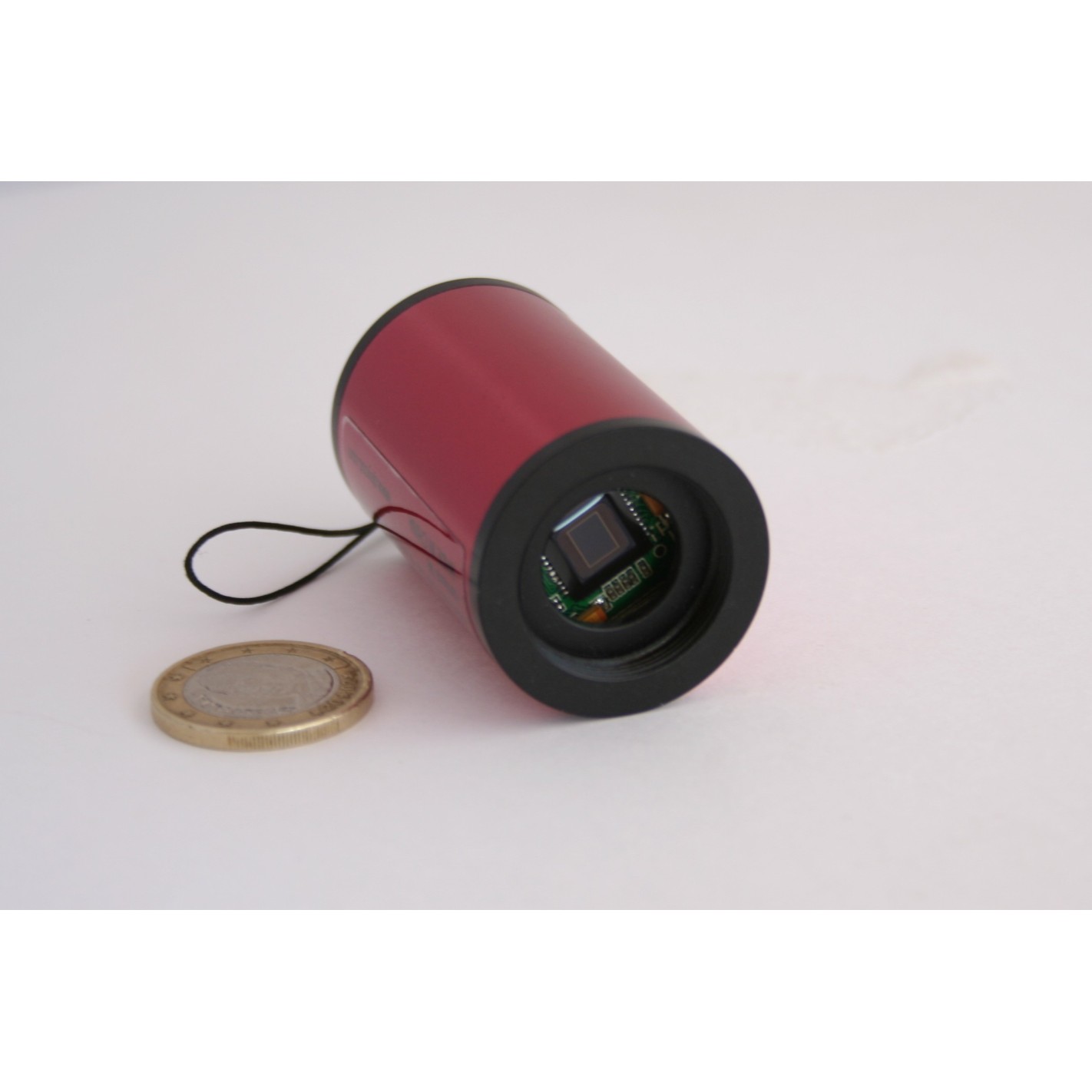

Luna-QHY 5L-II COLOR camera, with Aptina CMOS sensor. Compact, lightweight, comfortable and easy to use, no adapters needed to be placed in the eyepiece holder.

To take spectacular planetary images, and more...

Technical characteristics of the Luna-QHY 5L-II COLOR

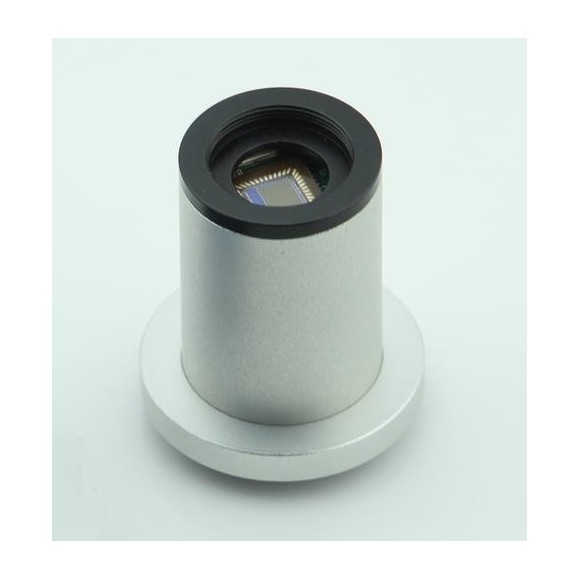

• CMOS Sensor: MT9M034, 1/3 inch, COLOR
• Effective Pixels: 1280x960 1.3 Mpixels
• Pixel size: 3.75μm*3.75μm
• Exposure time: 20μs-10min
• Readout type: Progressive Scan
• Electronic shutter (ERS)
• Does not support binning
• Maximum Quantum Efficiency (Q.E.): 74%
• Frames per second (max.)


  • 30 FPS@1280*960; 44 FPS@1024*768
  • 75 FPS@800*600; 106 FPS@640*480
  • 200 FPS@320*240

• ADC: internal 14bit analog-to-digital converter with 8bit output
• Data transfer rate: 24-74.5MHz
• Dynamic range: >115dB
• Telescope attachment: as a 1.25" eyepiece
• Backfocus: 10.4mm.
• Standard guiding port (6 pin RJ12)
• Powered by USB 2.0 High Speed

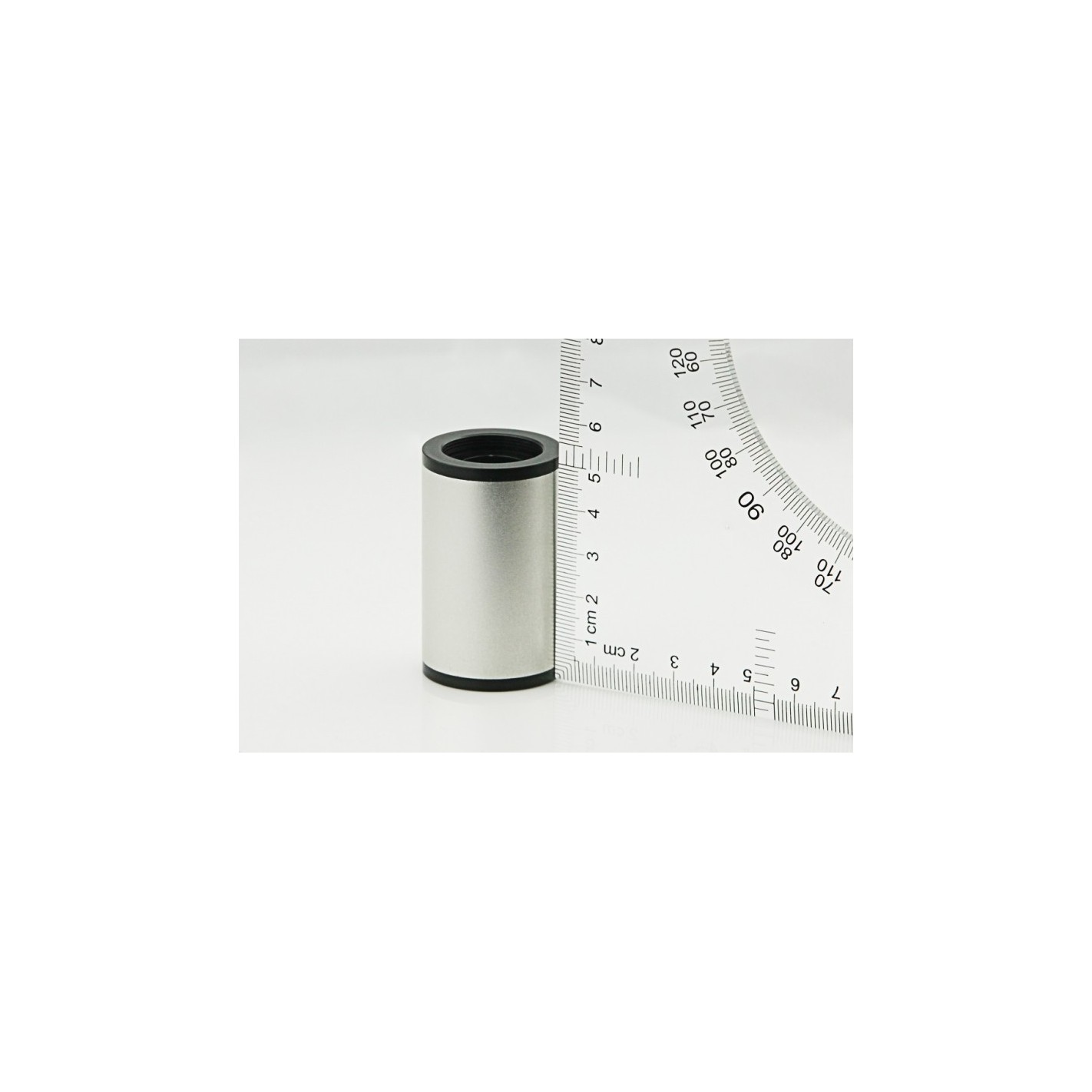

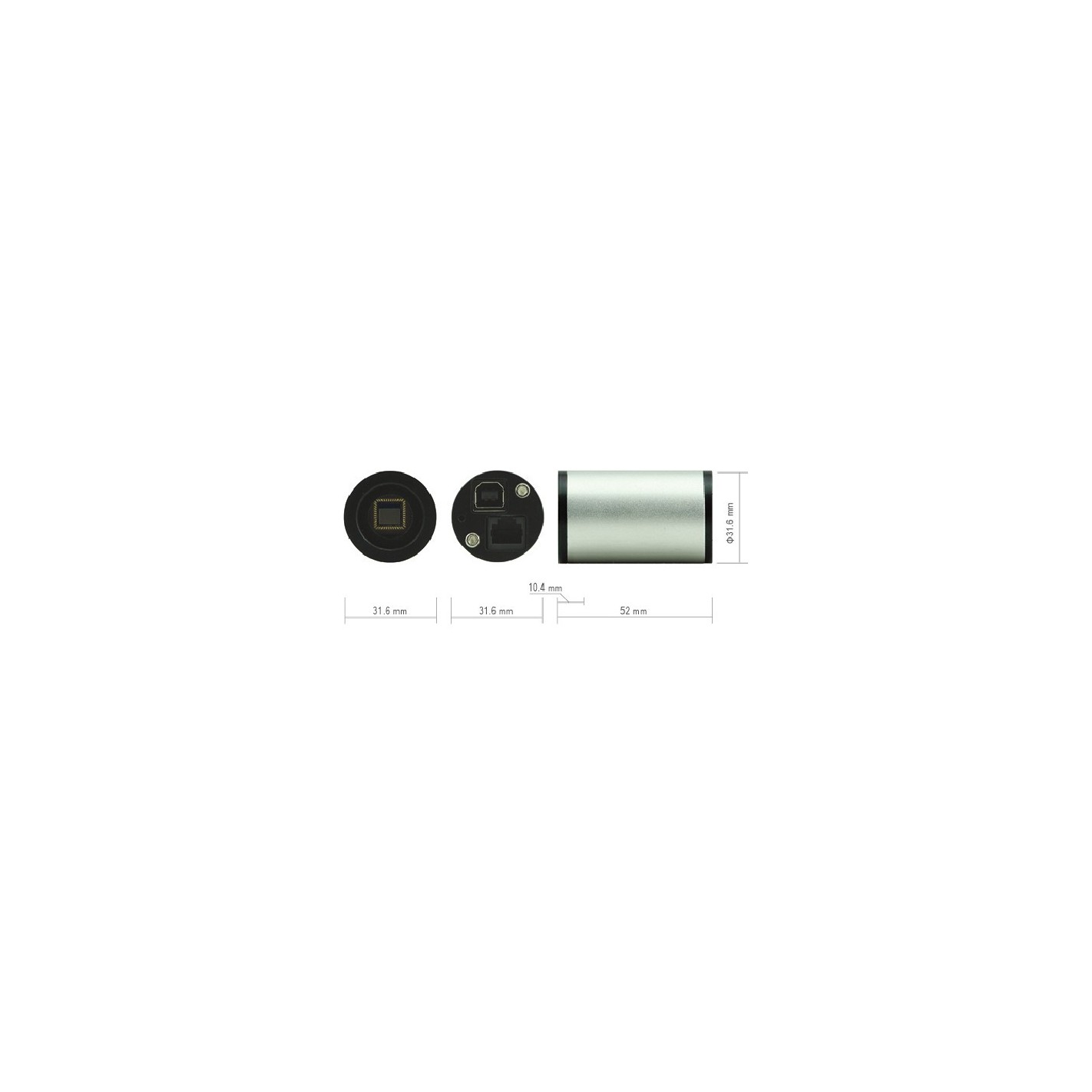

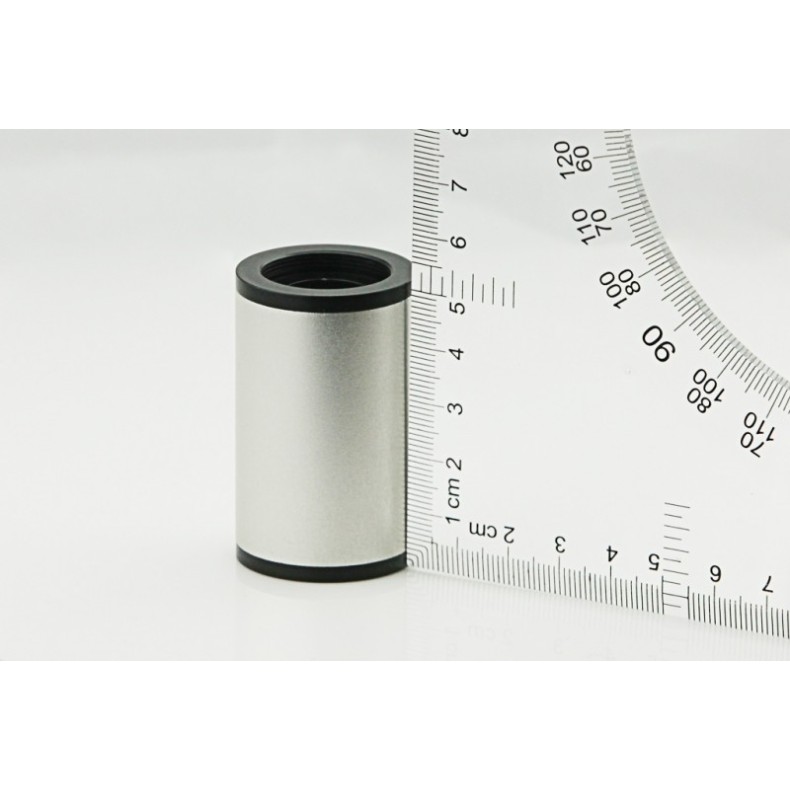

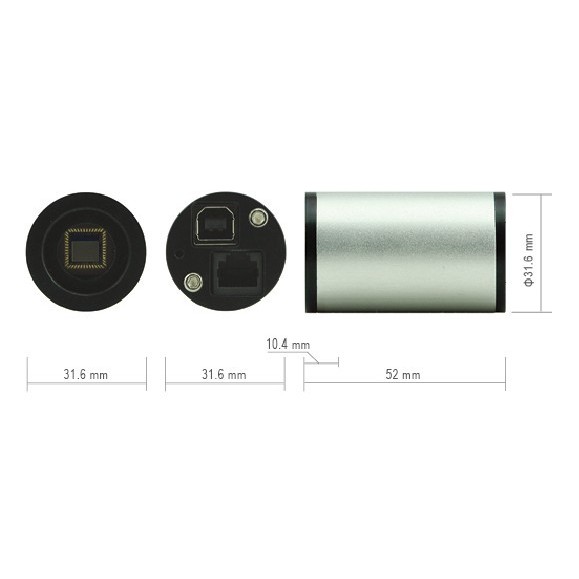

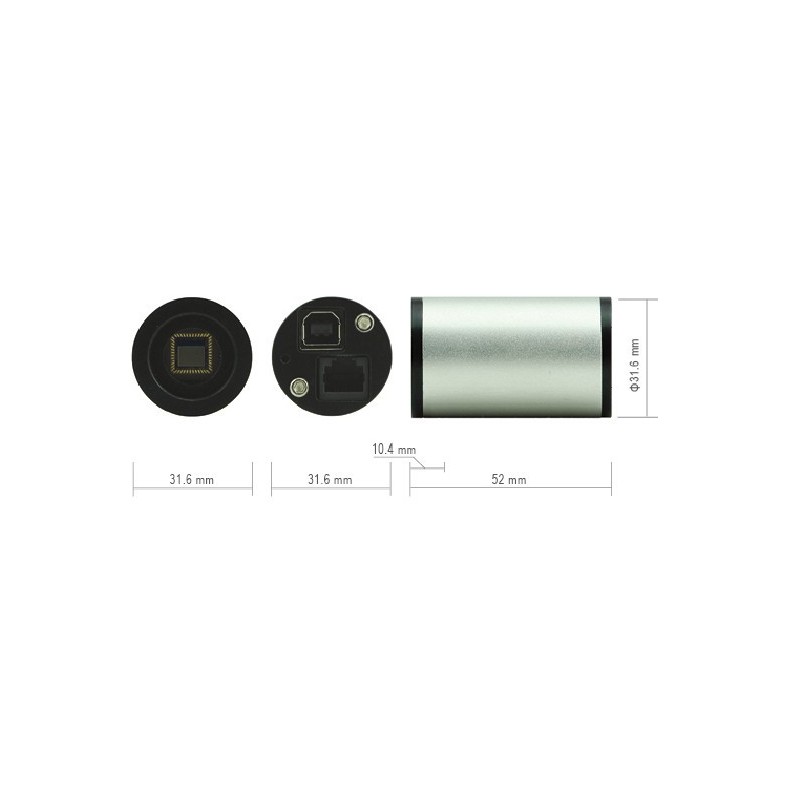

• Size: 31,6mm diameter x 52mm length
• Weight: 45 gr

The Luna-QHY 5L-II COLOR includes a powerful capture software and a generic ASCOM plug-in valid for most programs, and is supported by PHDGuiding.

Here you can download all the software and drivers needed to operate the Luna-QHY 5L-II color camera.

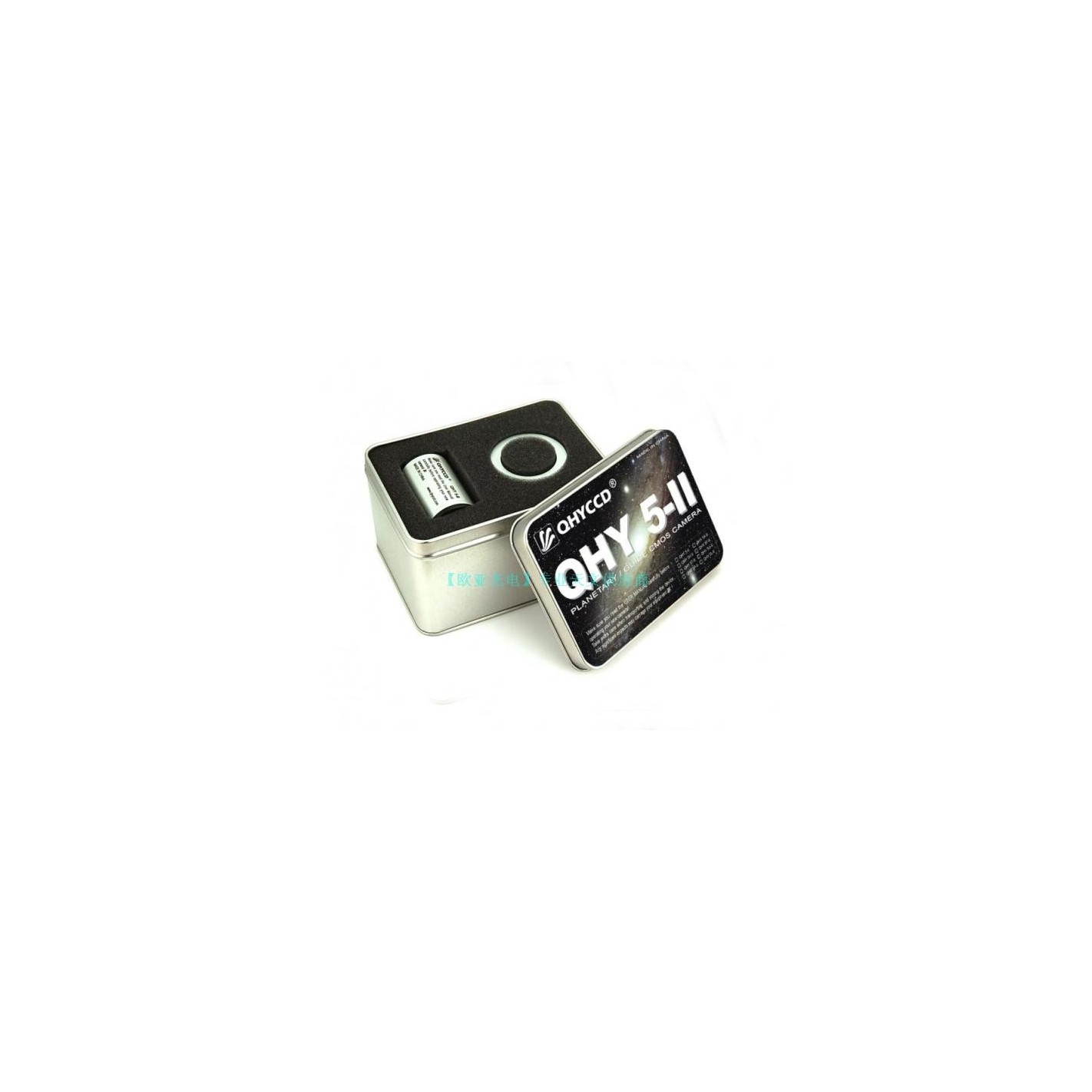

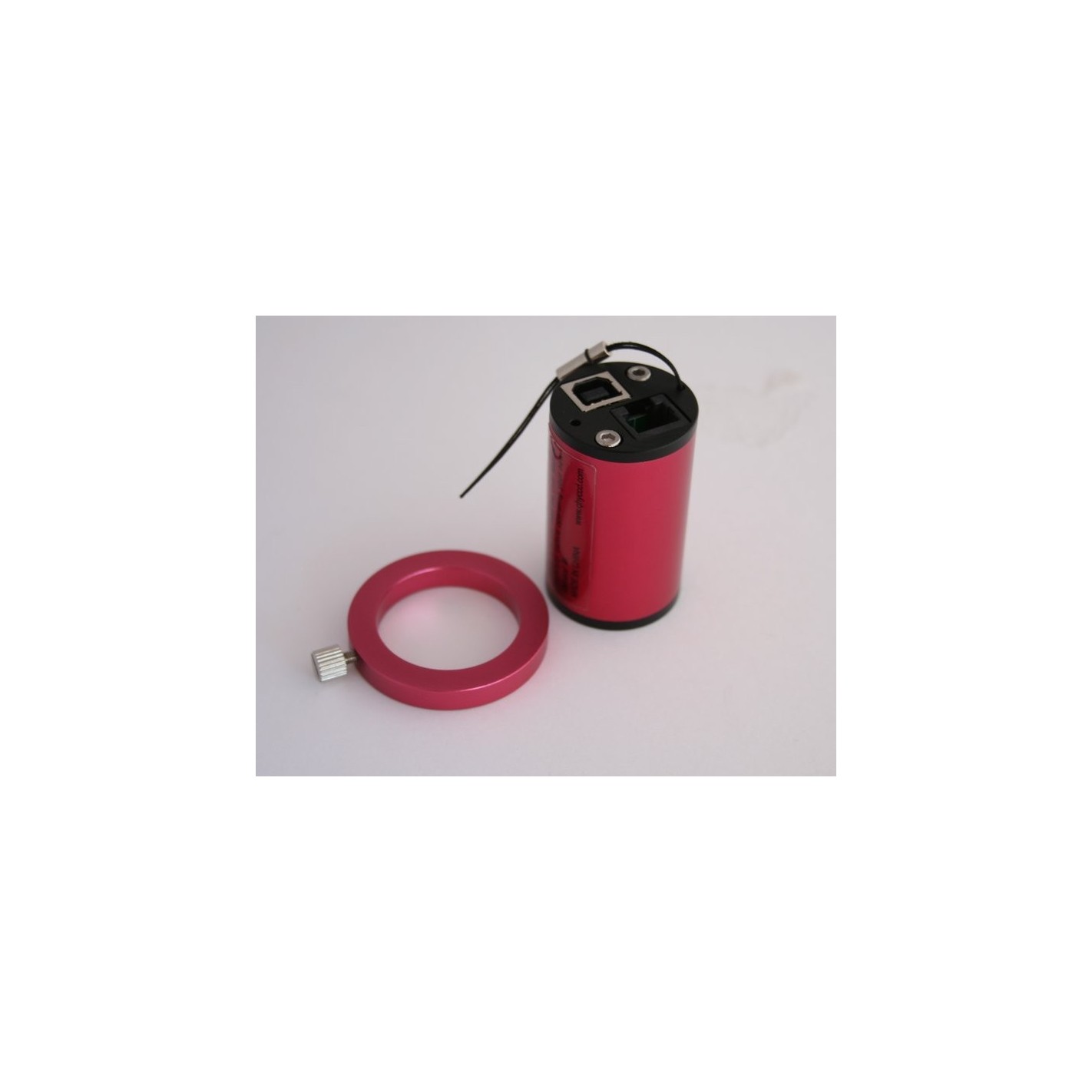

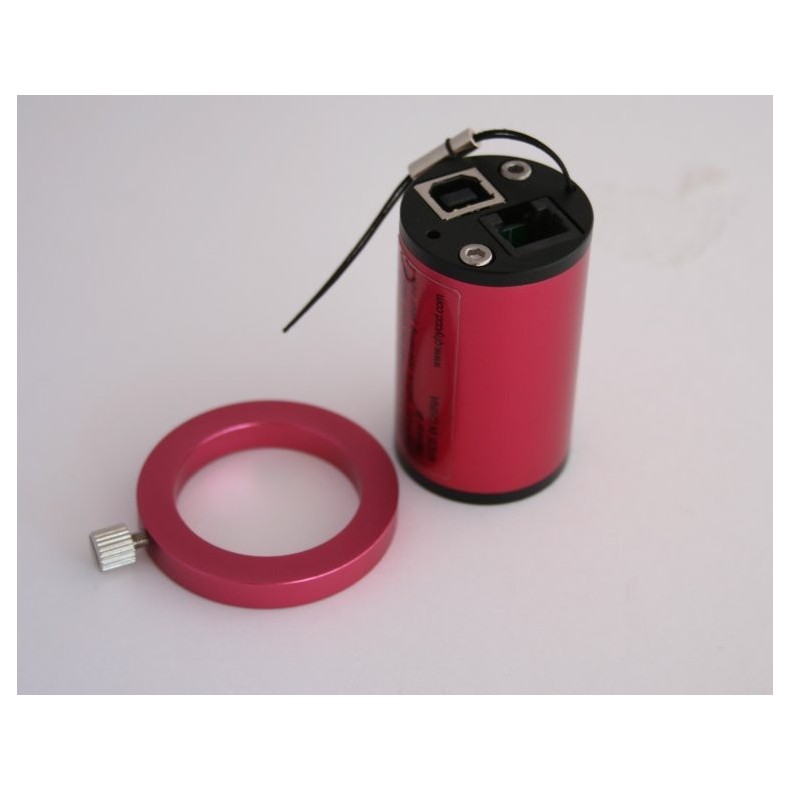

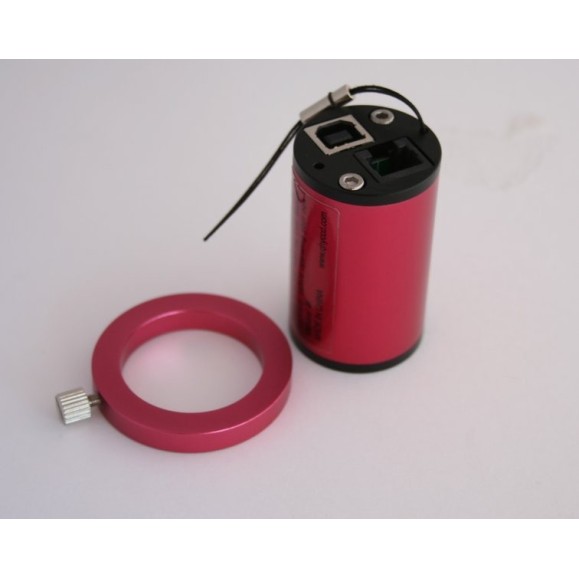

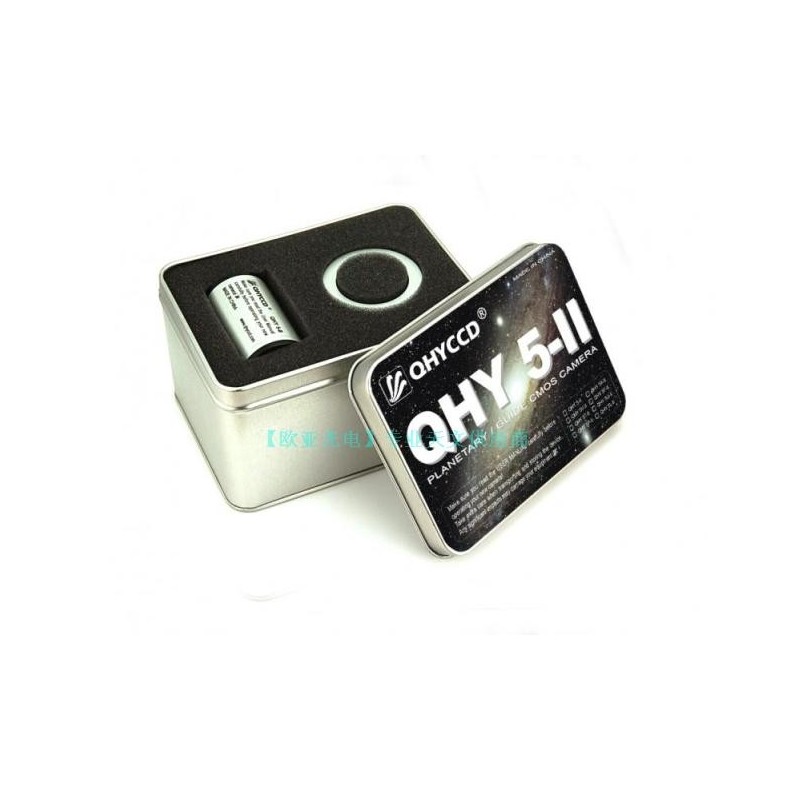

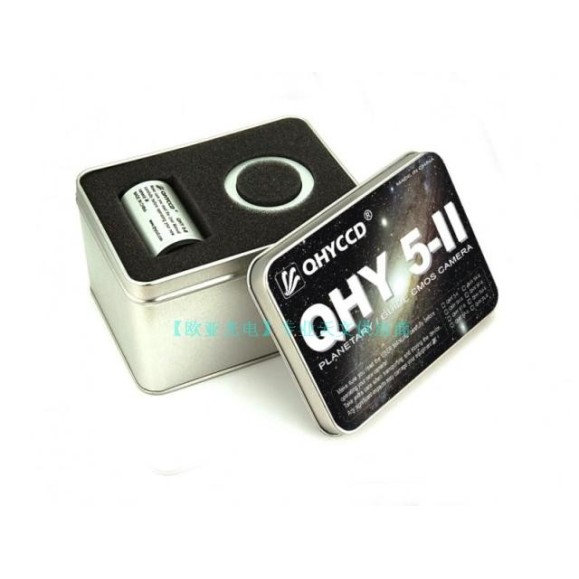

The camera is delivered in an aesthetic metal box, custom designed by the manufacturer, with the fastening ring, a USB cable and a 1.25" extension cable for the application of filters
