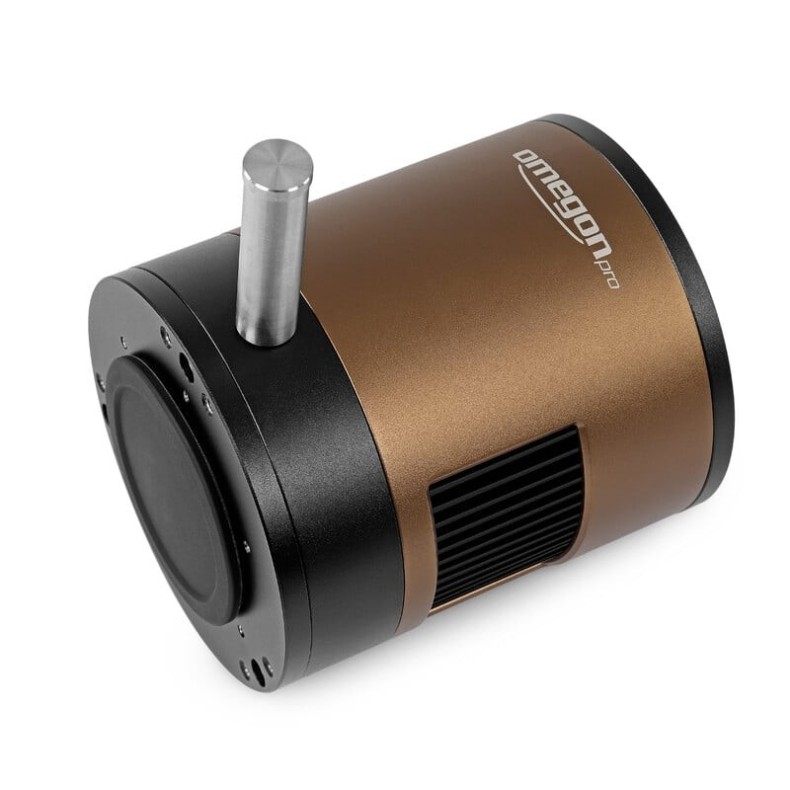

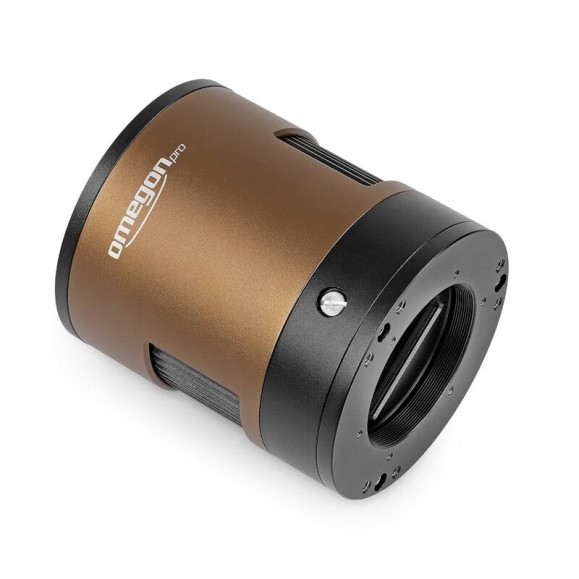

Astronomical Camera Omegon veTEC 455 C Color

PRODUCT DESCRIPTION

Details

• Powerful full frame sensor
• Pixel size: 3.8 µm
• Quantum efficiency: ~80%
• Low readout noise: ~1.5 e-
• Large total quantum well: 50 000 e- (HCG) / 100 000 e- (LCG)
• ADC: 16 bits
• Zero-Amp-Glow: no amplifier brightness
• Available as color or mono camera.

Professional deep sky astronomical photography

The huge sensor is perfect for large nebulae, star fields or the lunar surface. Unlike most planetary cameras, this sensor is comparable to the larger sensors in DSLR cameras.

Thermoelectric cooling

The cooling system reduces image noise. Up to 40 °C below ambient temperature, noise caused by dark current has almost completely disappeared. In addition, the exact temperature control of the sensor is very useful for calibrating astronomical photographs with dark frames. They can all be taken at the correct temperature. Thus the final images are very clean of noise.

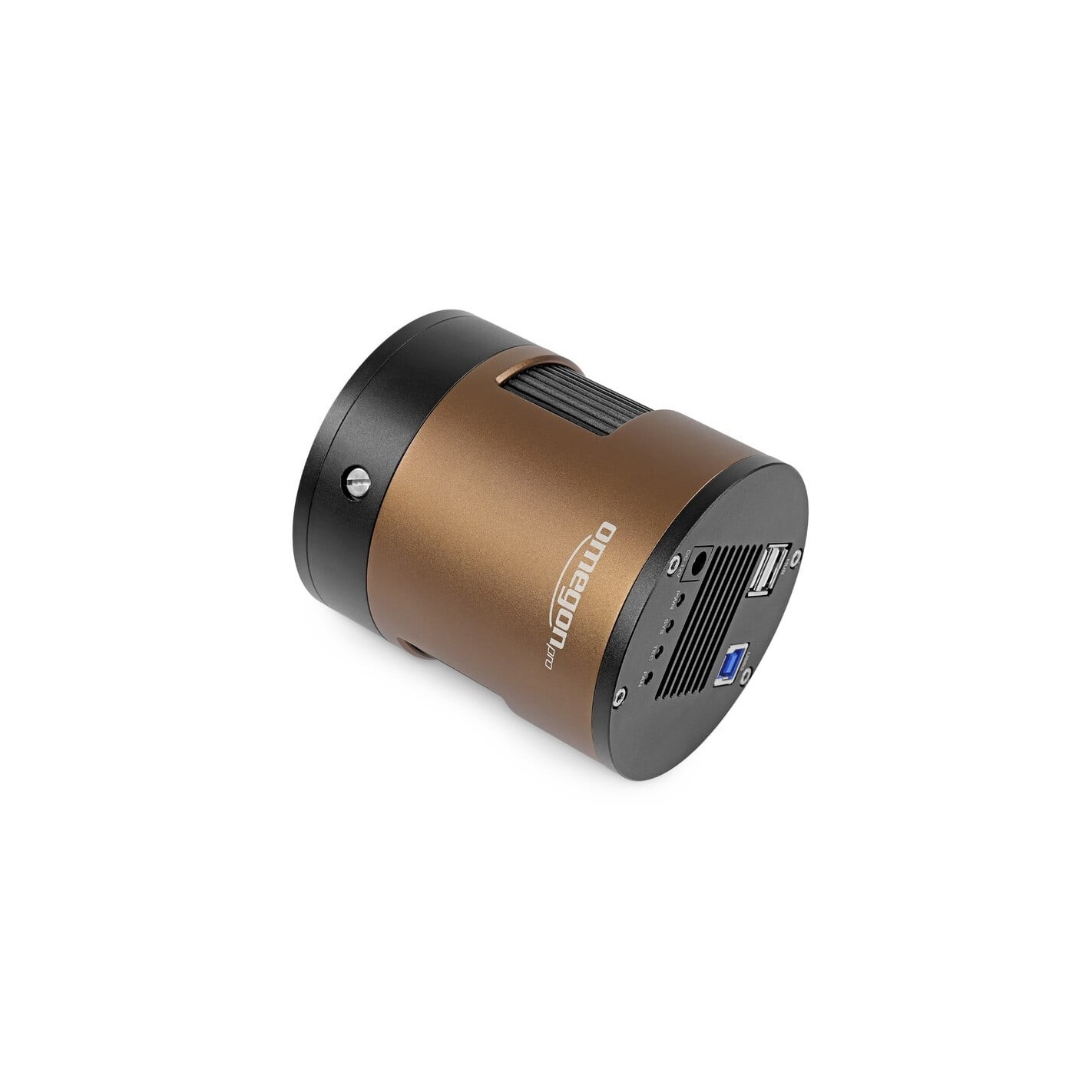

USB Hub

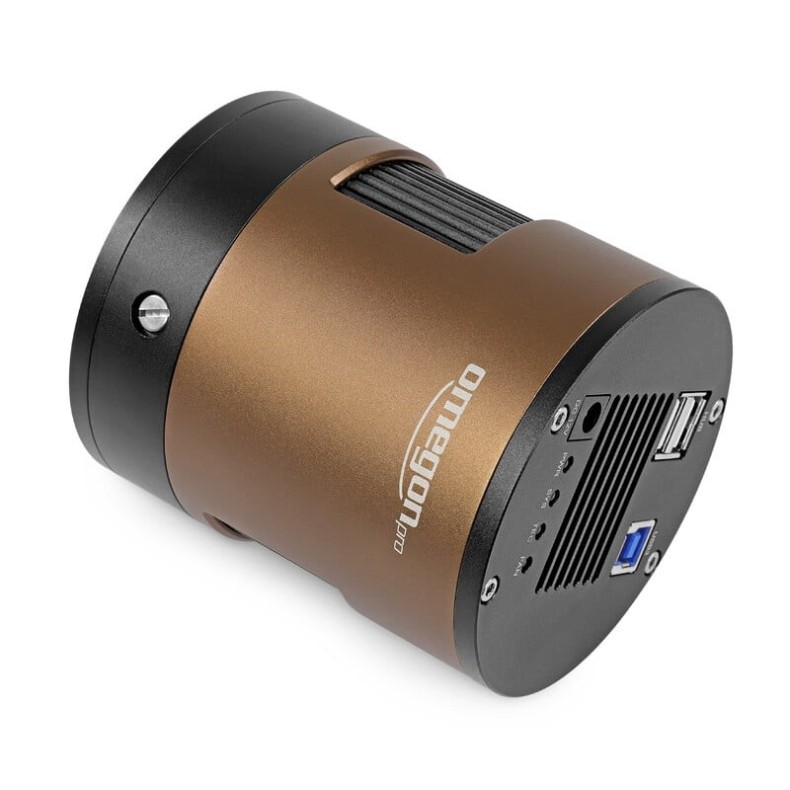

Two additional USB ports on the back of the camera reduce cable chaos. Additional devices (e.g. a camera guide) can be easily connected via this hub.

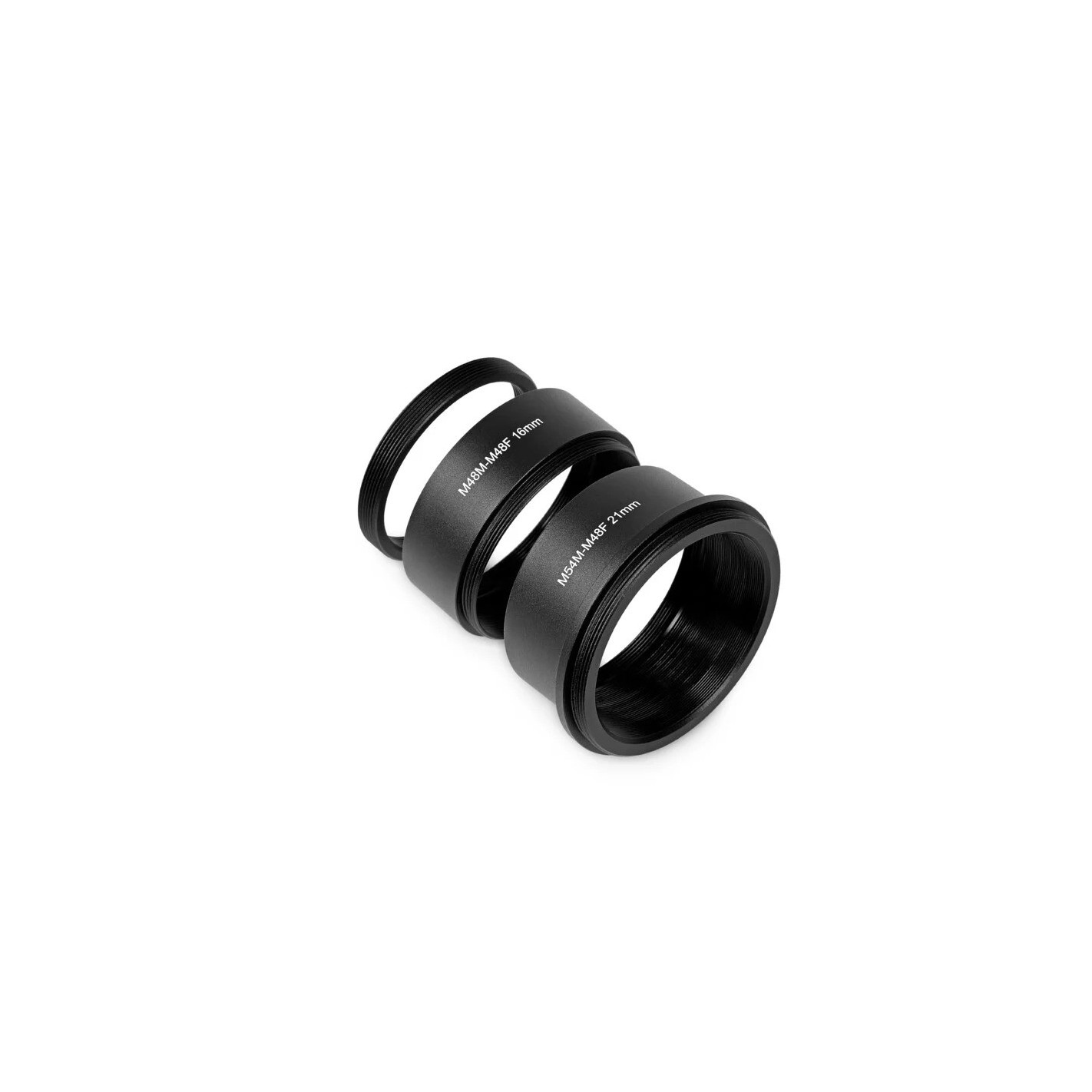

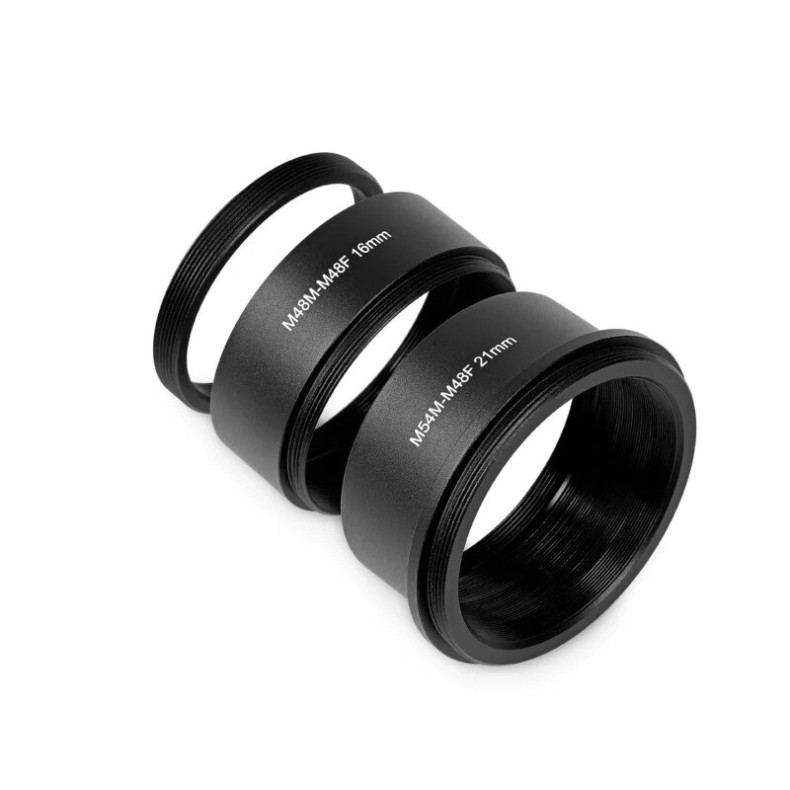

The camera can be adapted to almost any astrophotography setup, thanks to the T2 thread and sensor distance of only 17.5 mm. A 50.8 mm adapter allows any 50.8 mm eyepiece to be connected to the telescope as well.

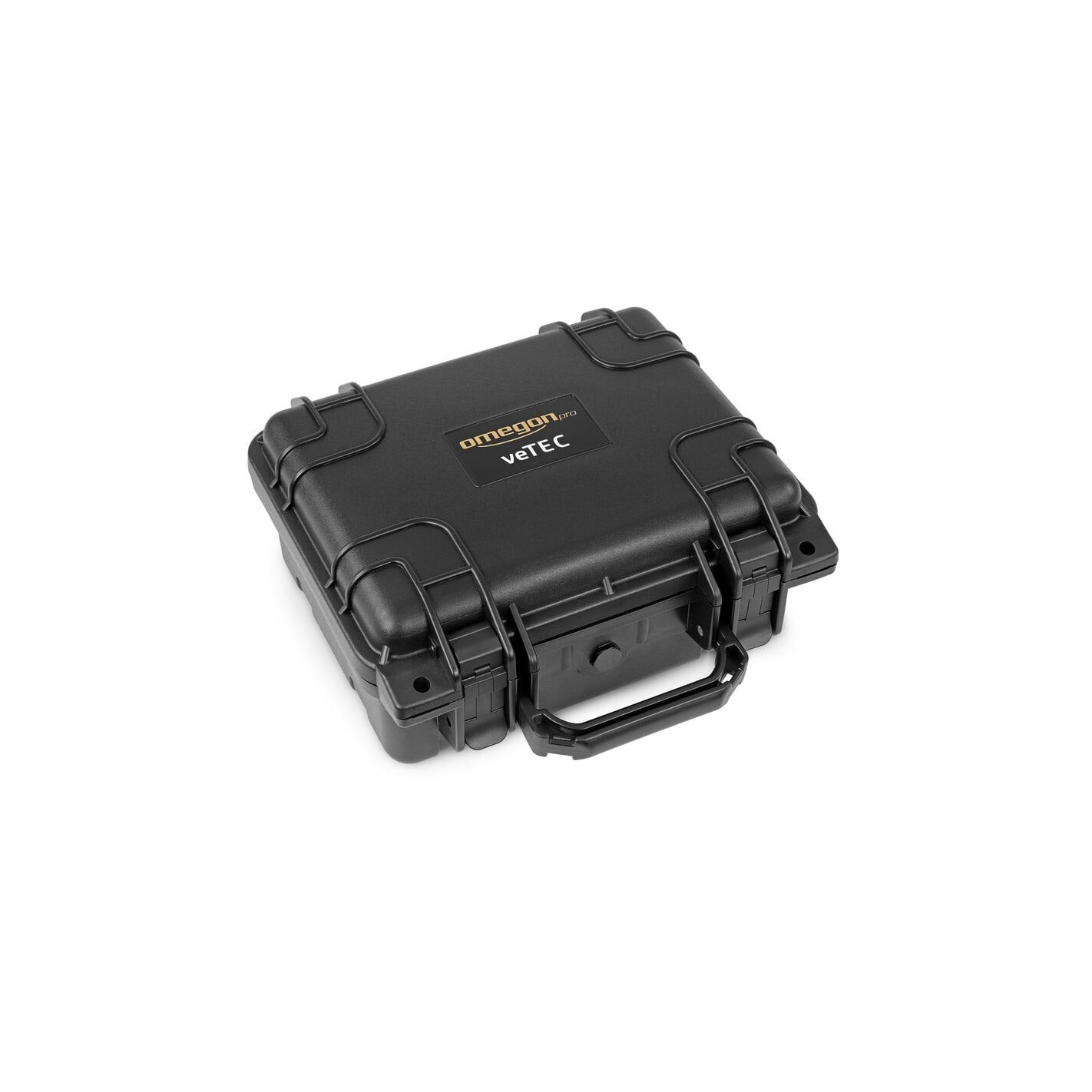

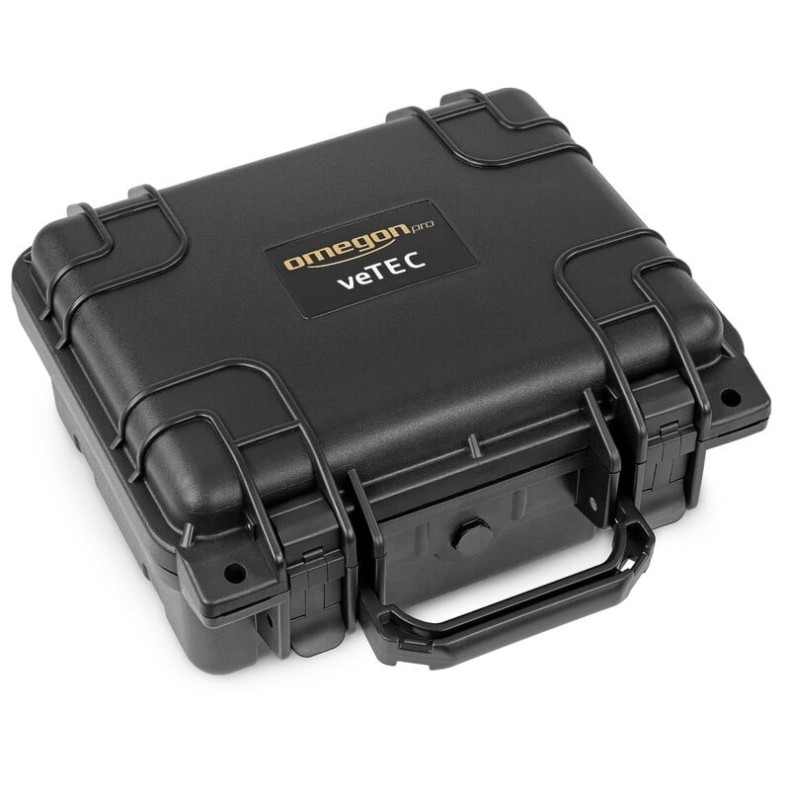

Supplied with a sturdy foam-filled case so you can transport your valuable camera safely and securely with complete peace of mind.

Professional astronomical photography of the planets, Moon and Sun

The shadows of Jupiter's moons, the splits in Saturn's rings, details of the Moon's mountain ranges and the impressive prominences on the surface of the Sun, etc. can only be photographed at a high frame rate. This freezes the turbulence in our atmosphere (so-called seeing), which hides small details. This lucky-imaging technique is now easier thanks to the sophisticated electronics and high data transfer rate of USB3.0 cameras. We recommend the Region of Interest (ROI) function of the included AstroPhotoCapture software Omegon. With it you can optimize the frame rate, because only the part of the sensor relevant to your object of interest is read.

Transmission

A filter protects the sensor camera from dust and moisture. The color cameras Omegon Pro are equipped with a filter that blocks infrared. CMOS sensors also measure incident infrared light and make correct color reproduction in the final image impossible. In contrast, the Omegon Pro mono cameras have an anti-reflective window, which lets in ultraviolet and infrared light in addition to visible light. The additional filters give you full control over the transmission curve, a fundamental requirement for advanced photographic or photometric applications.

Convenient capture software

With the included Omegon AstroPhotoCapture software you can learn how to control the camera quickly and easily. Correct camera settings are crucial in astrophotography. AstroPhotoCapture gives you full control over all essential parameters without having to navigate an overloaded interface. Simple tutorials explain the capture process step by step. The software is compatible with Windows 8 and 10.

Compatibility

The Omegon Pro cameras are compatible with a wide range of capture programs through the common ASCOM and INDI interfaces. It also has native support for a growing number of PHD2 and N.I.N.A. programs.

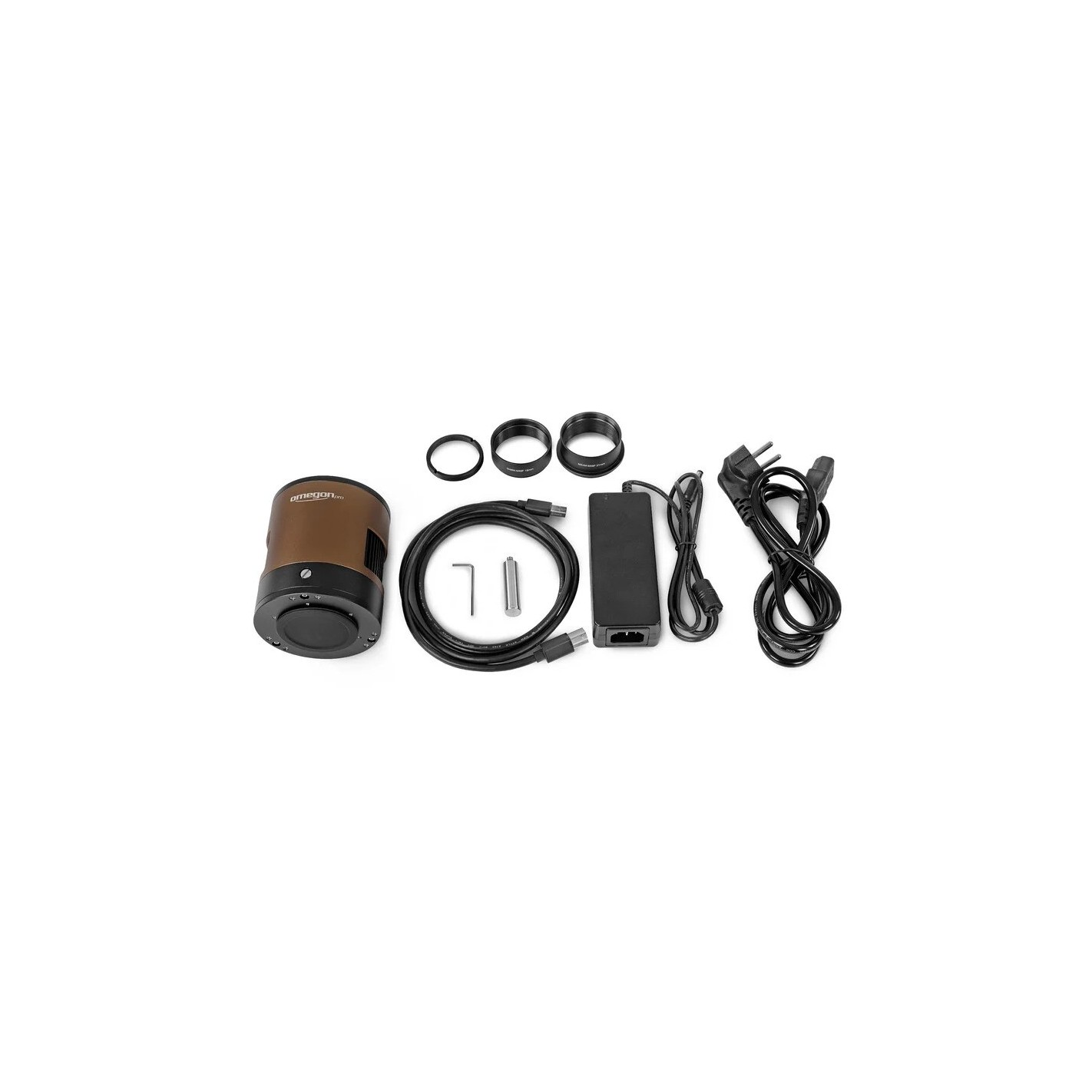

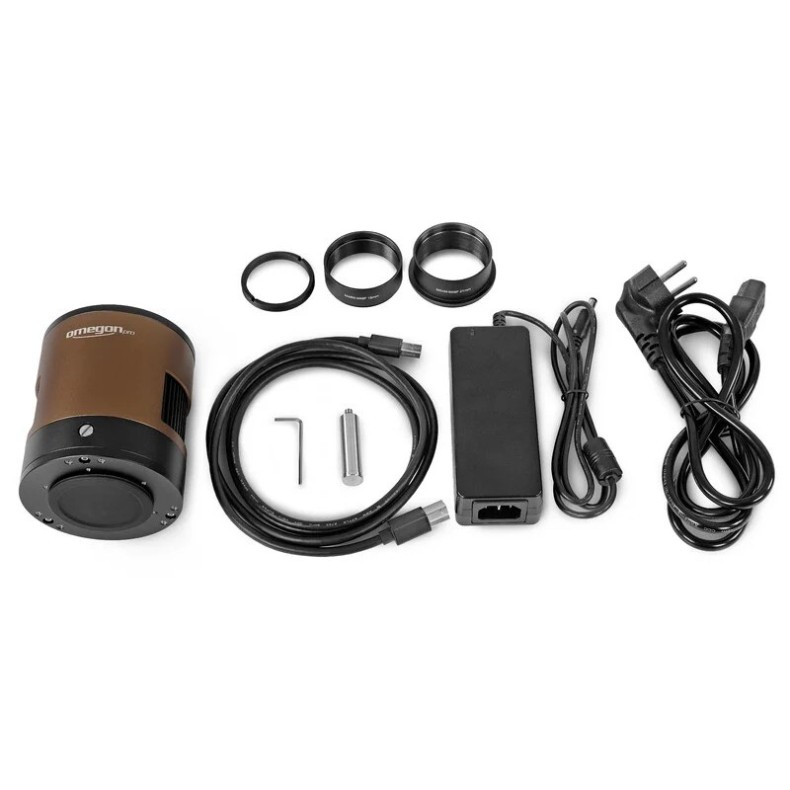

Product supplied

• Camera
• T2 to 2" adapter
• USB 3.0 cable
• 12 V 3A charger
• Rugged carrying case
• Desiccant

Capacity

• Sensor type: CMOS sensor (Sony IMX455)
• Chip size (mm): 24 x 36 (Full Frame)
• Chip diagonal (mm): 43.3
• Pixel size: 3.76
• Photo resolution: 9568 x 6380
• Megapixel: 61
• Digital sampling (Bit): 16
• Frames per second: 6
• Color camera: yes
• Cooling: yes
• Maximum cooling difference at room temperature: -35°C
• Power supply: 12 (3A)
• Interfaces: USB 3.0 (2x USB2.0 Hub)
• Autoguide: no
• Supported operating system: Windows 7/8/10 (Linux (INDI))
• Connection (telescope side): M54x0.75 (female) & 2"
• Filter thread: yes (2")
• Flange focal length (mm): 17.5
• Software: download
• Operating temperature: -10°C - +50°C
• Binning: 2x2, 3x3, 4x4 (Digital)
• Memory buffer (Megabyte): 512
• Internal memory: DDR3 RAM
• Shutter: Rolling Shutter

Equipment

• Filter wheel: no
• Transport cases: yes
• Additional contents: USB cable
• Power supply: yes

In general

• Series: veTEC
• Length (mm): 103
• Diameter (mm): 89
• Weight (g): 718
• Outer material: Aluminum
• Color: Bronze
• Type: Camera
• Construction type: Astronomy cameras

Applications

Autoguide: no

Moon and planets: yes

Nebulae and galaxies: yes

AllSky, Meteore: no
