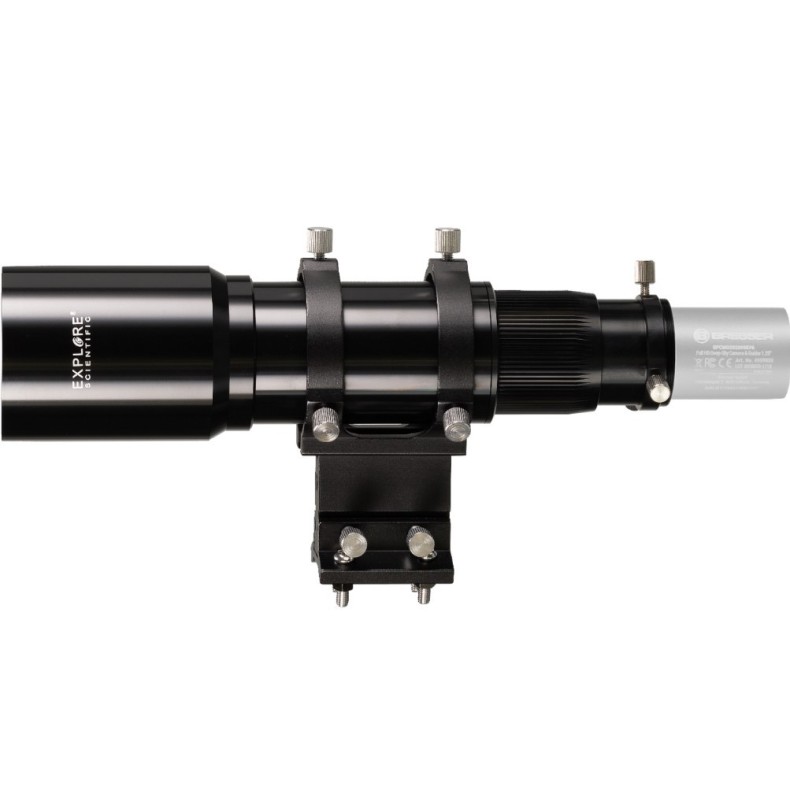

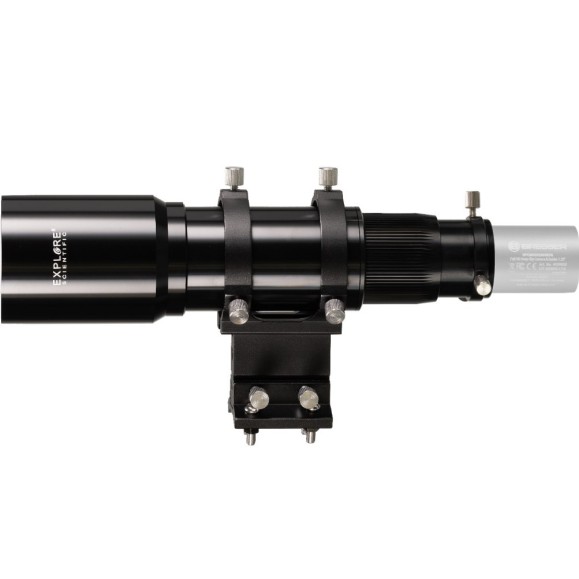

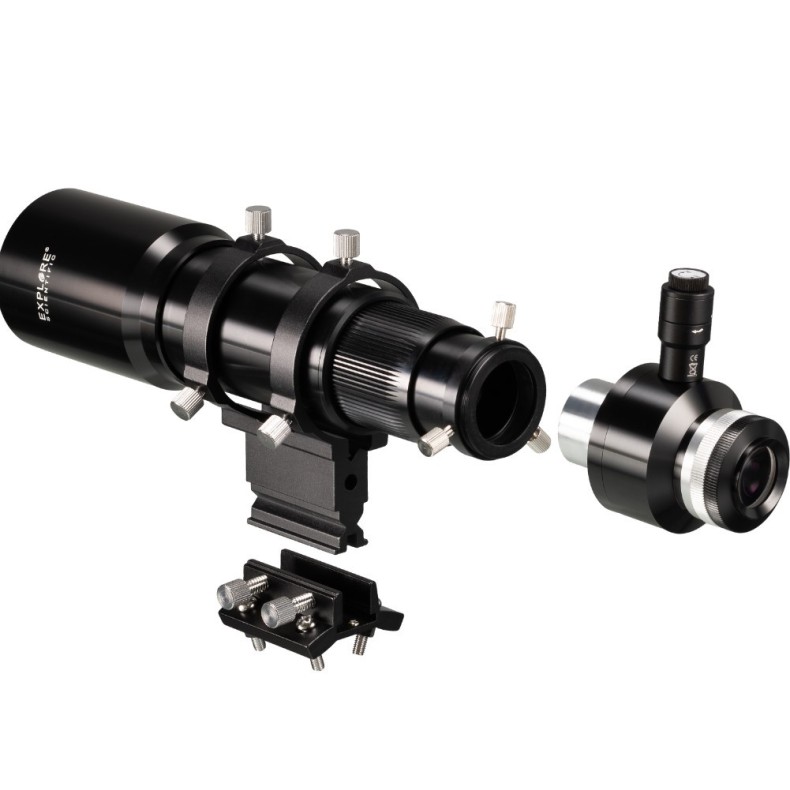

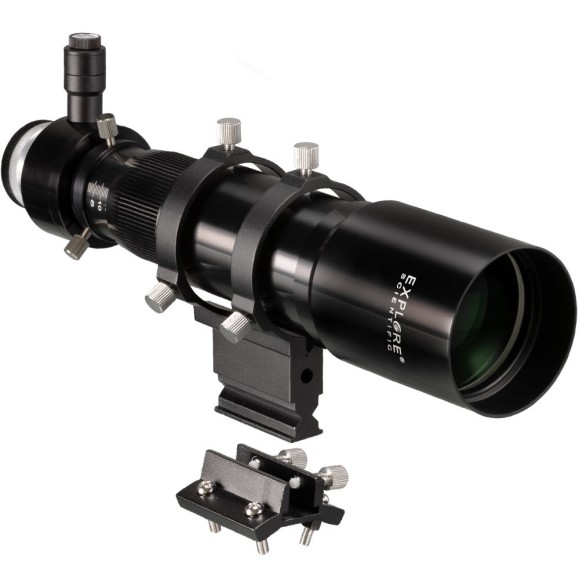

EXPLORE SCIENTIFIC 10x60 helical focus finder and guide with 1.25 in. and T2 connection
EXP0620180
Stock at Supplier
197.48
VAT excluded
Shipping 5/7d
Excellent 10x60 finder with removable eyepiece unit, illuminated reticle and precision helical focusing, as well as 1.25 inch and T2 connection for "autoguiding"
Delivery Options
| Carrier | Description | Estimated Delivery | ||
|---|---|---|---|---|
 |
Home delivery - International | Home delivery - International |
Friday, 10 January - Friday, 17 January |
|
Home delivery - International
Home delivery - International
Estimated delivery:
Friday, 10 January - Friday, 17 January
✖
- 60 mm universal guide and finder telescope for universal use
- Removable eye unit with illuminated reticle
- Compact tracking unit for autoguiding with helical focusing
- Camera mounting by means of 1.25" or T2 thread connection
- focusing plane is approx. 22 mm behind the T2 thread
- Very large 6.0-degree FOV field of view
- Lens focal length: 250 mm, focus travel: 28 mm
- FMC multi-coated lens surface - clear field of view
- Separate focus for field of view and reticle
- Suitable for EXPLORE SCIENTIFIC, BRESSER MESSIER, etc.
60 mm universal guide and finder telescope for universal usewith a focal length of 250 mm
Excellent 10x60 finder with removable eyepiece unit and reticle with adjustable red illumination. The larger aperture and focal length offer an even clearer field of view and more precise tracking due to the higher resolution. The precision helical focusing and the possibility of connection via 1.25 inch/31.7 mm connector as well as the T2 camera connection thread (M42x0.75 mm) allow the "autoguiding" necessary for long exposure to obtain a pinpoint image of the stars. Use as a mini travel telescope is also possible.
High quality 10x60 high quality finder with adjustable reticle illumination

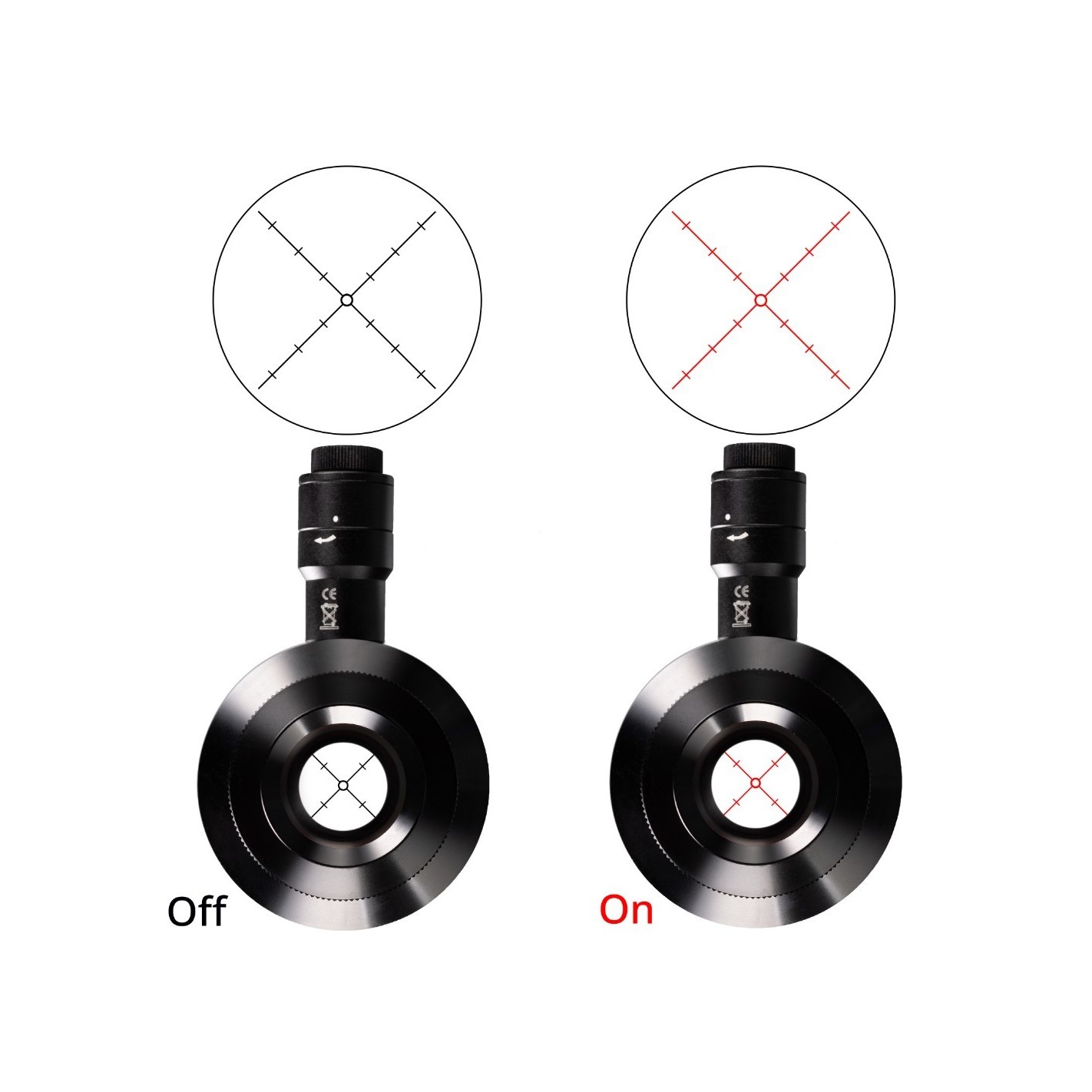

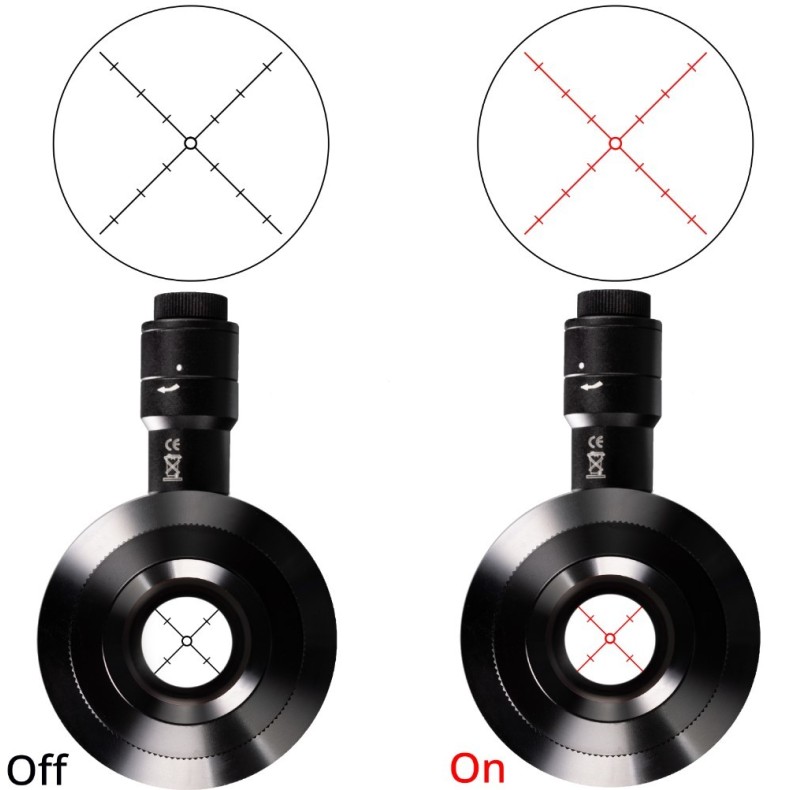

The sharpness of the images and the viewing characteristics make this finder clearly above the level of conventional 10x60 finders. The field of view generated is clear and extremely sharp. In addition, this finder has a very large field of view (FOV) of 6.0 degrees. This greatly facilitates the search for and adjustment of objects. The scale marks (division = 0.85 degrees) on the reticle are a good reference for estimating distances and the open center mark also facilitates precise object centering. All lens surfaces are weather-protected by multi-coating and ensure a clear image of the finder due to high light transmission values. The dimmable red LED illumination is powered by two LR41 button cells. The main objective and reticle can be focused independently, so you can set the perfect focus for your eyes.

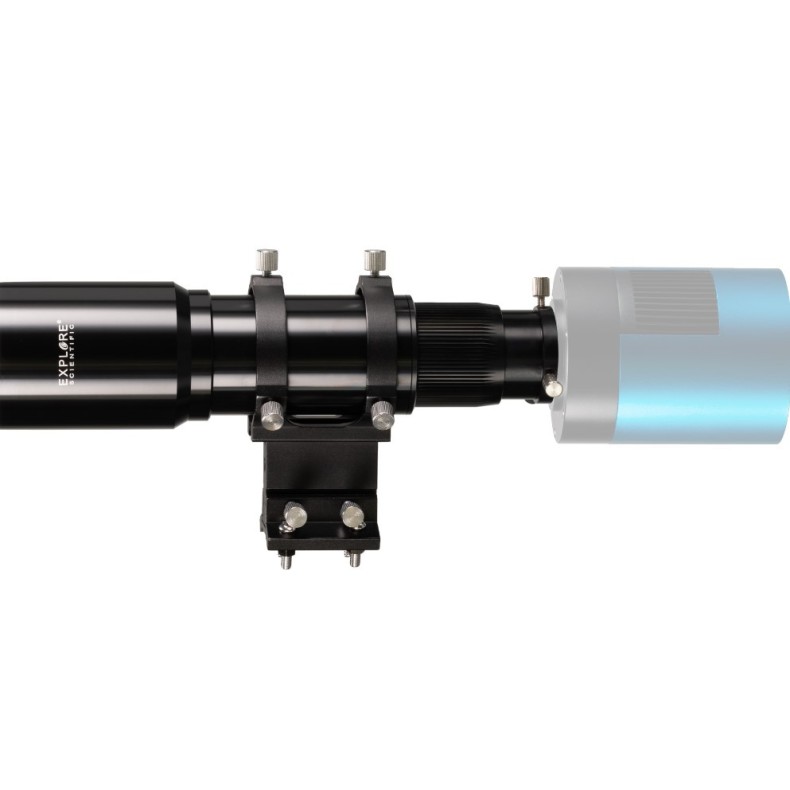

Compact tracking unit for "autoguiding"

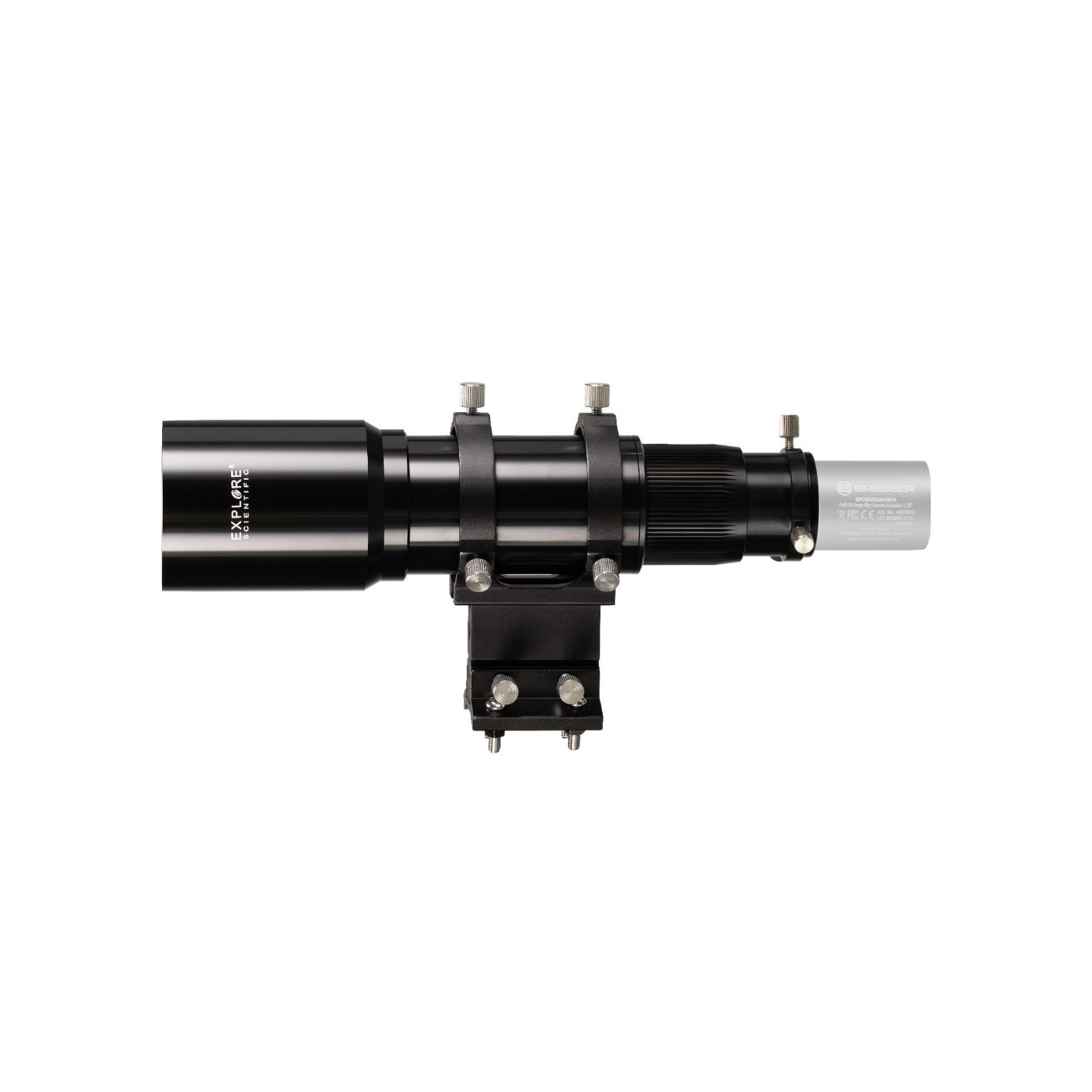

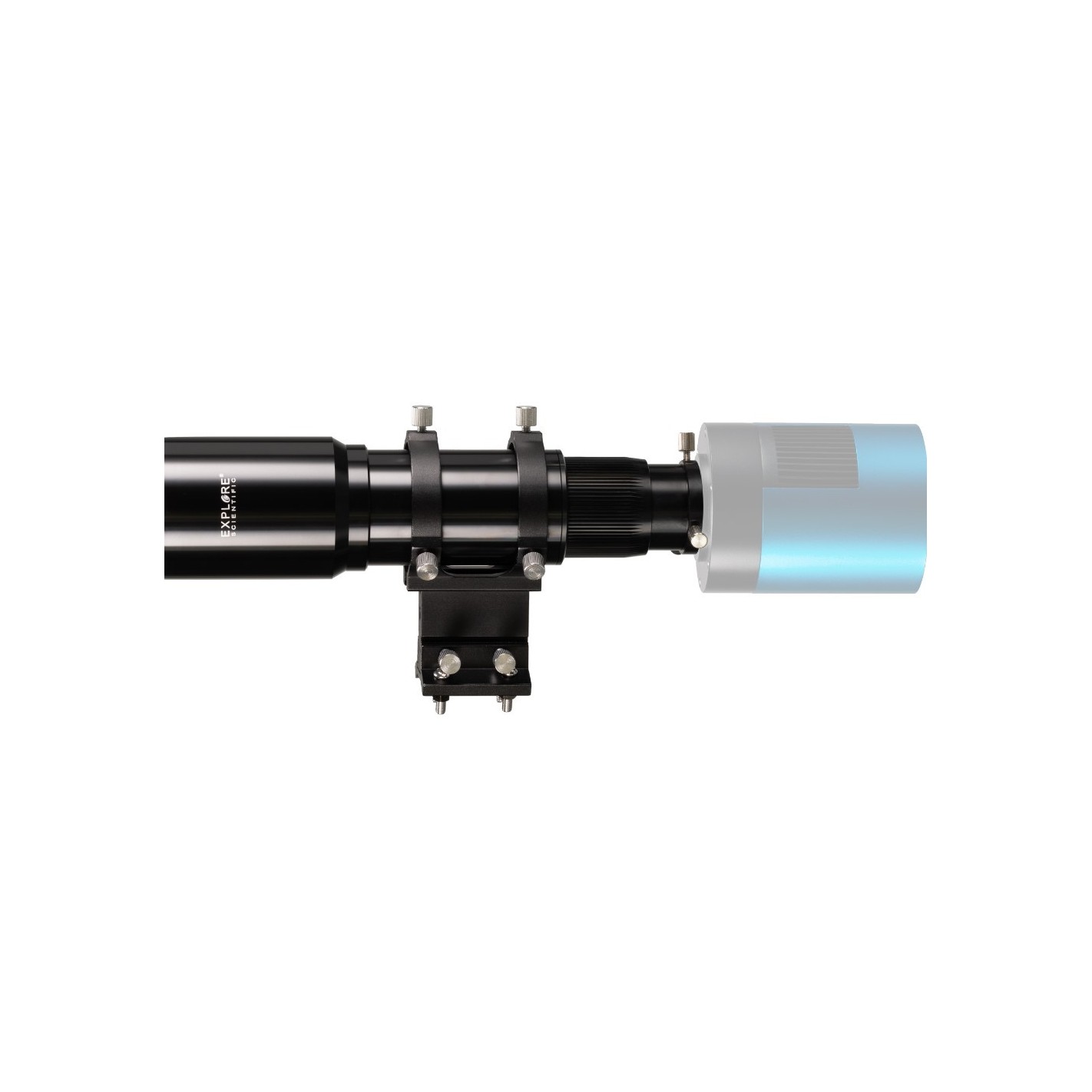

One of the main applications of this telescope is what is called "autoguiding". With this function, the usually larger photography optics are actively corrected by a smaller guiding telescope with a second tracking camera. This means that the mechanical oscillations that occur in all astronomical telescope mounts in the tracking accuracy are measured by the tracking camera and compensated appropriately. This is necessary to obtain an image of the point stars at long exposures in astrophotography, and to avoid stellar trails. For this purpose, the guide telescope is mounted on the finder shoe of the photographic optics and oriented parallel to it. If the existing finder shoe is not compatible, a suitable finder shoe, which is included, can be used. A follow camera can then be mounted with the 1.25 inch /31.7 mm connection at the rear end or via the T2 thread connection (M42x0.75 mm). This is held securely in place by a brass locking ring and three retaining screws. Please note the "back focus" required for your tracking camera. The plane of focus (back focus) is approx. 22 mm behind the T2 thread. Precise focusing to the guide star is achieved by means of a large knurled helical focusing wheel made of precision mechanics. To facilitate reproduction of the focus point, this has a laser-engraved white millimeter scale from 0 to 28 mm. Once the tracking camera has been connected directly or via computer to the telescope mount and the necessary basic adjustments have been made, the first astronomical pictures with long exposure can be taken.
Use as a mini travel telescope
This guide and finder telescope can also be used very easily as a mini travel telescope. By means of optionally available eyepieces it is possible to achieve a magnification of 9x to 50x. Almost all eyepieces with a focal length of 5 to 26 mm and a 1.25 inch/31.7 mm connection are suitable. Especially recommended are the EXPLORE SCIENTIFIC eyepieces of the LER series of 52 degrees (art. 02195xx) and 62 degrees (02196xx). Note: only direct viewing is possible.

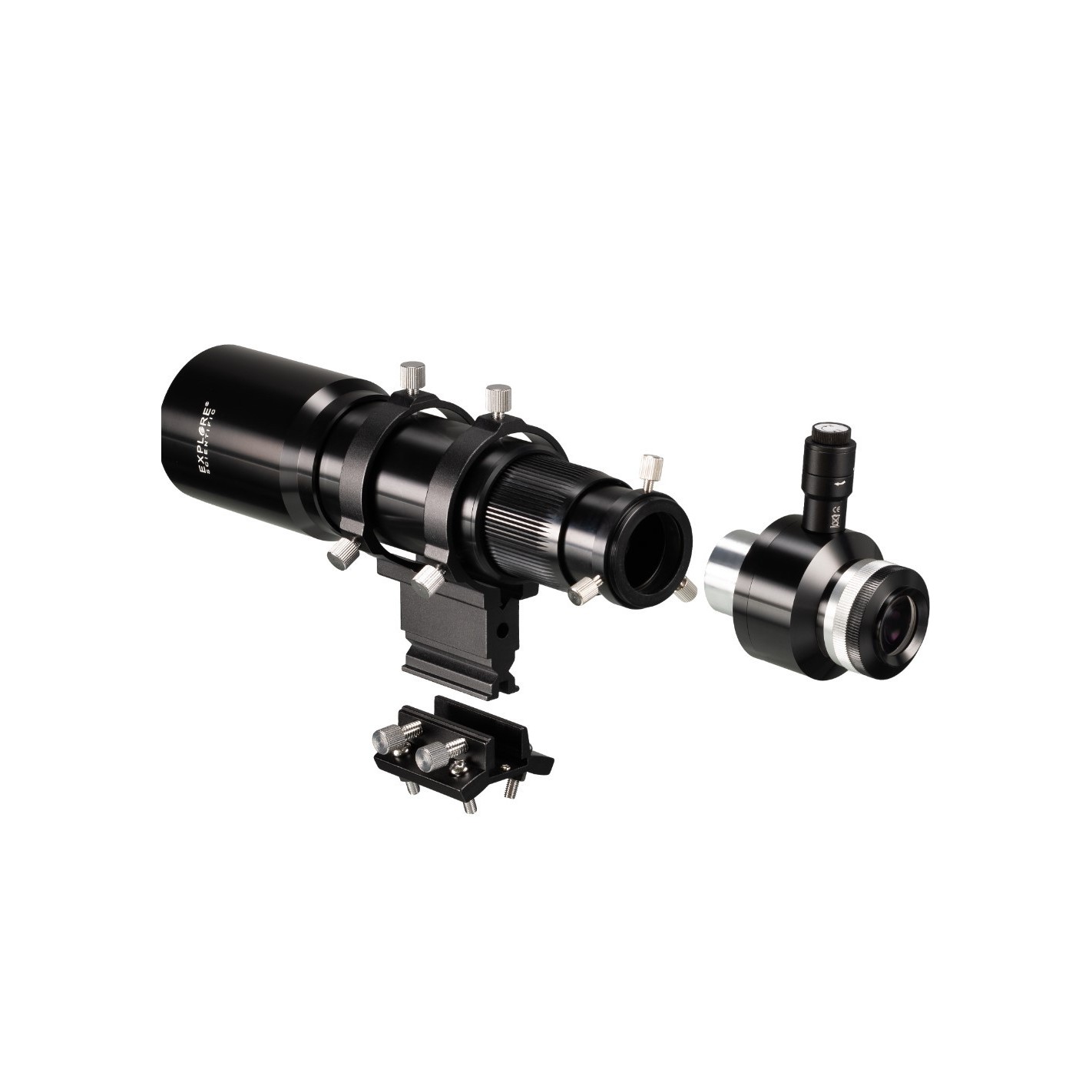

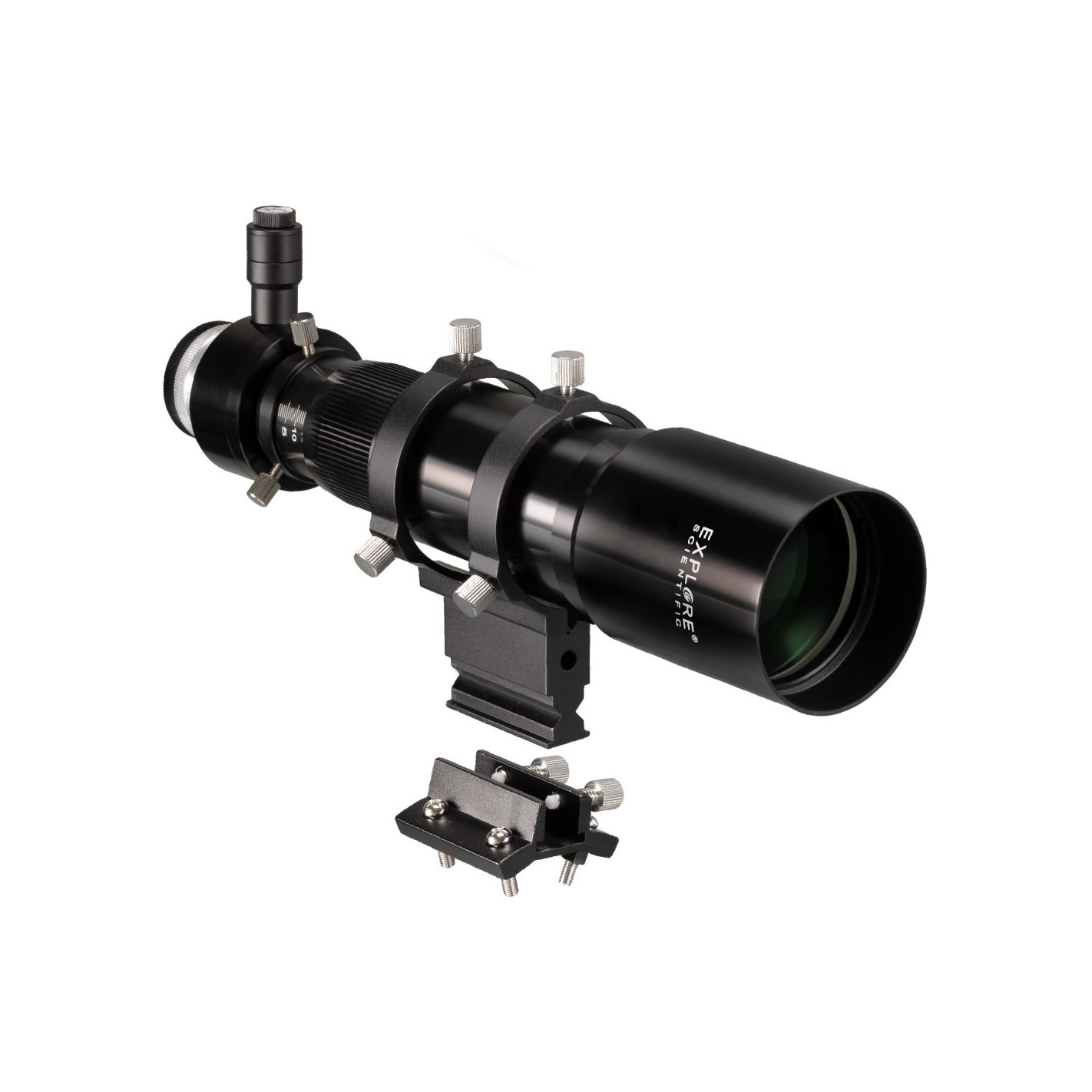

Metal finder support and finder shoe for metal finder
the stand of this telescope guide and finder is made entirely of aluminum and forms a stable base. The finder mount is suitable for many common telescope types such as EXPLORE SCIENTIFIC, BRESSER MESSIER, etc. If the existing finder shoe is not compatible, a suitable finder shoe, which is included, can be used. It can be attached to the telescope tube using four M5 screws. The distances between the holes of the finder shoe are 31.7 mm in the longitudinal and transverse axis. With the six large adjusting screws with knurled grip, the finder can be oriented effortlessly, even with numb fingers. All adjustment and clamping screws have plastic tips to effectively prevent scratching of the finder housing and holder.
CHARACTERISTICS
- Excellent 10x60 guide and finder telescope
- Can also be used as a mini-travel telescope
- Perfect image sharpness and good display characteristics
- Lens surface with FMC multi-coating
- Lens focal length: 250 mm
- Max. permissible weight of the camera: 550 g
- Removable eyepiece/reticle unit
- Camera connection via 1.25 inch/31.7 mm connector or T2 thread
- Thread T2: M42 x 0,75 mm
- Precision helical focusing to focus the field of view
- Helical focus adjustment travel: 28 mm
- Minimum focusing distance: 3 m
- Laser engraved millimeter scale from 0 to 28 mm on focusing mechanism
- The back focus plane is approx. 22 mm behind the T2 thread
- Separate focusing of the reticle in the eyepiece
- Very large 6.0-degree FOV field of view
- With dimmable red reticle illumination
- Grid scale markings with 0.85 degree division
- Power supply: two LR41 button cell batteries
- Brass locking ring and three retaining screws on 1.25 in. connection
- With optional eyepieces, magnifications from 9x to 50x can be achieved
- Suitable for almost all eyepieces with 1.25 inch/31.7 mm eyepiece connection
- The finder telescope mount is made entirely of aluminum
- Finder bracket with six large adjusting screws with knurled gripping knurls
- Searcher's shoe suitable for EXPLORE SCIENTIFIC, BRESSER MESSIER, etc.
- In addition, a suitable finder shoe is also included
- The distances between the holes of the finder shoe are 31.7 mm in the longitudinal and transverse axis
- Adjusting and clamping screws have plastic tips
SUPPLY CONTENTS
- 10x60 finder/guide telescope
- Eyepiece unit with reticle
- Reticle illumination incl. batteries
- Finder bracket with finder shoe
- Operating instructions
Technical Specifications
| GENERAL TECHNICAL DATA | |
|---|---|
| Color | black |
| Material | Aluminum |
| Extended warranty (years) | |
| DIMENSIONS & WEIGHTS | |
| Total length | 305 mm |
| Total width | 140 mm |
| Total height | 80 mm |
| Net weight (without accessories) | 950 g |
