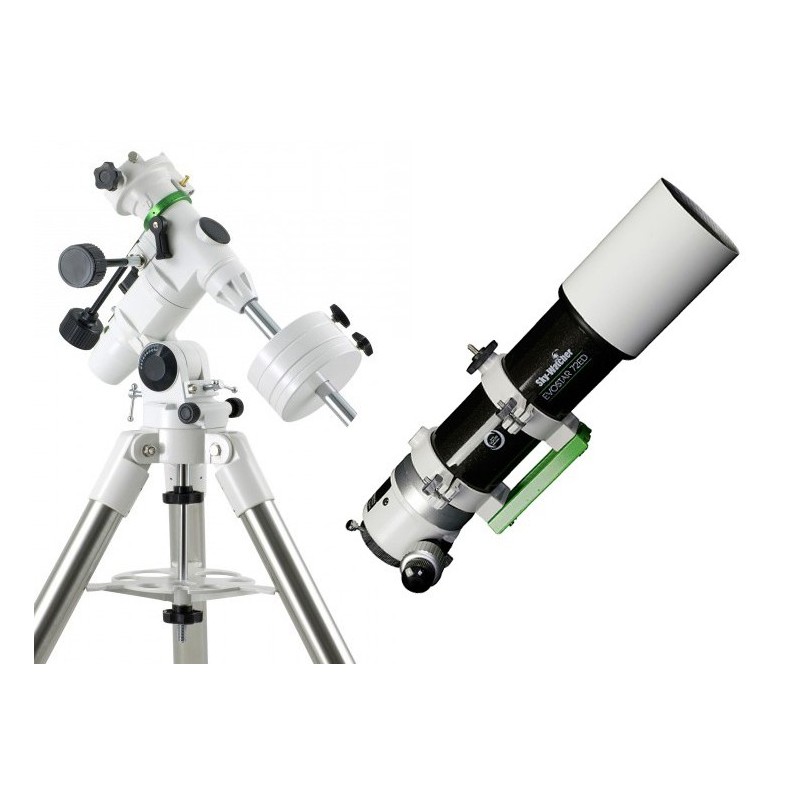

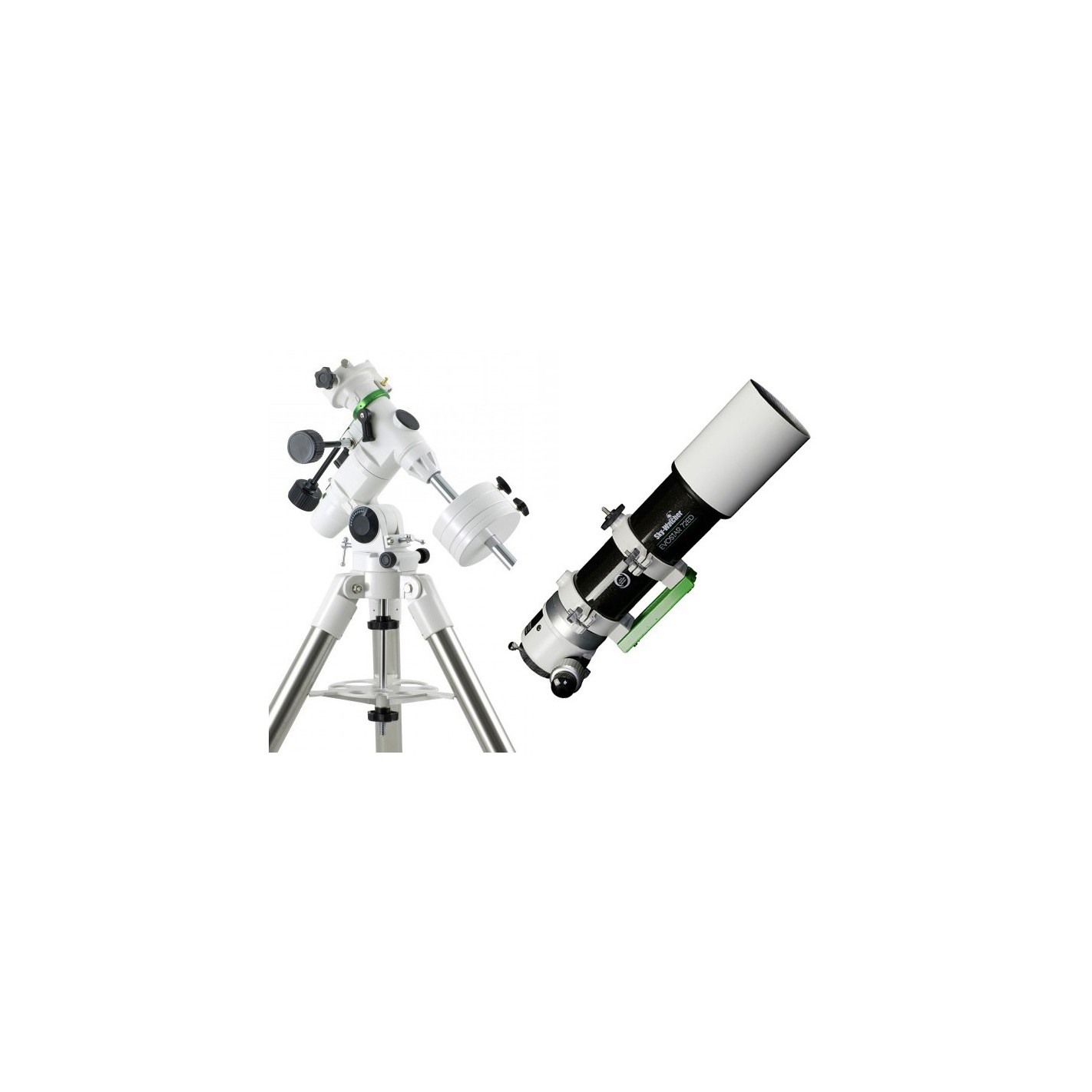

Refractor Telescope Skywatcher Black Diamond 72ED with NEQ3-2 mount

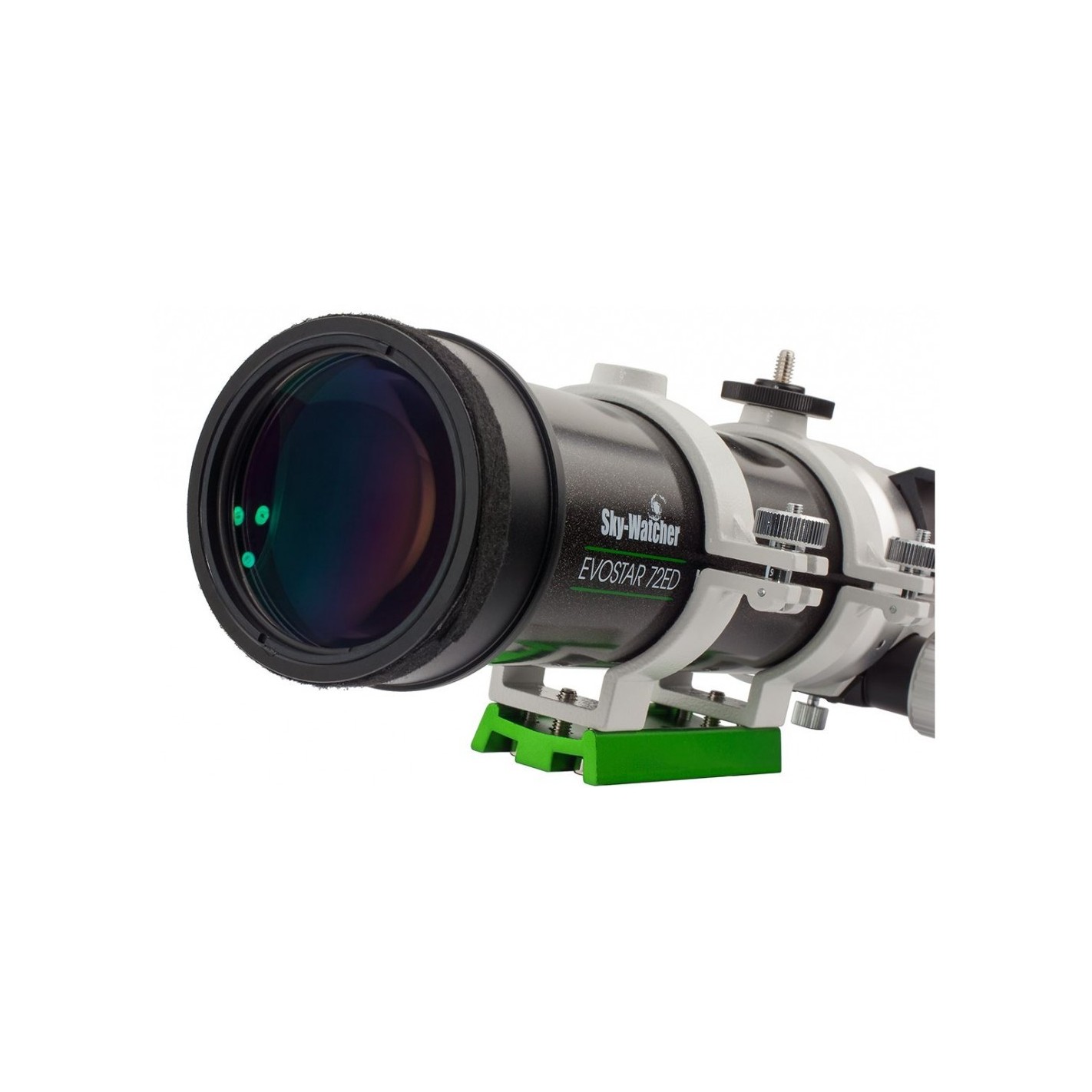

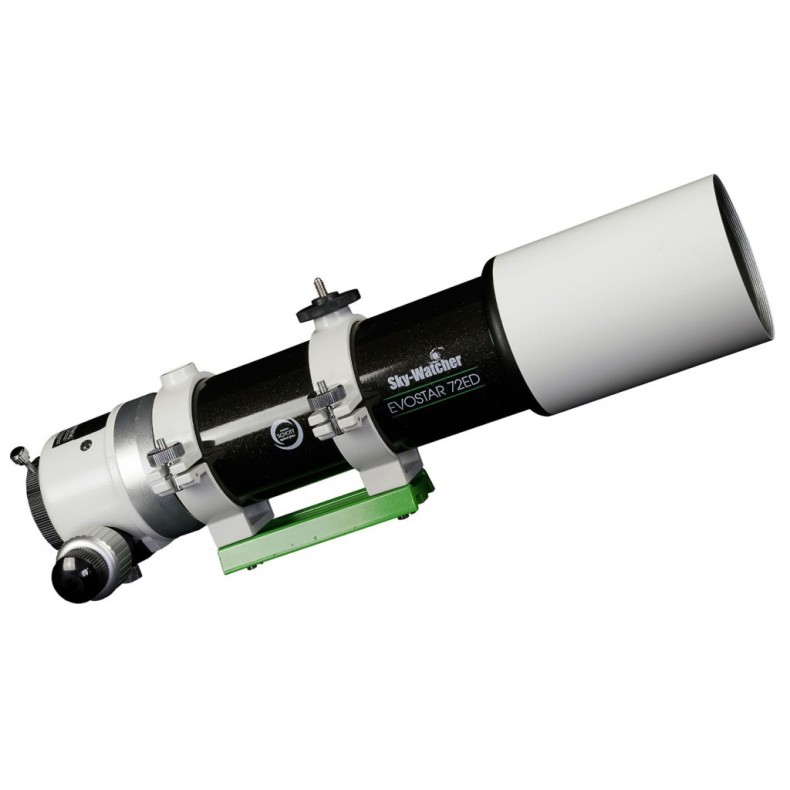

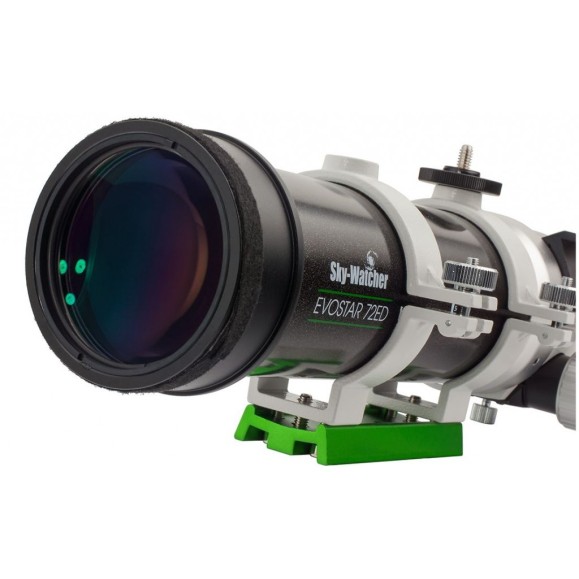

The new SkyWatcher EvoStar 72/420mm ED refractor telescope is an apochromatic telescope of 72mm diameter and 420mm focal length. Its objective consists of an apochromatic doublet (2 lenses) with multilayer treatment and a fully polished low dispersion ED glass. This results in a lens that minimizes light diffusion and improves sharpness and contrast.

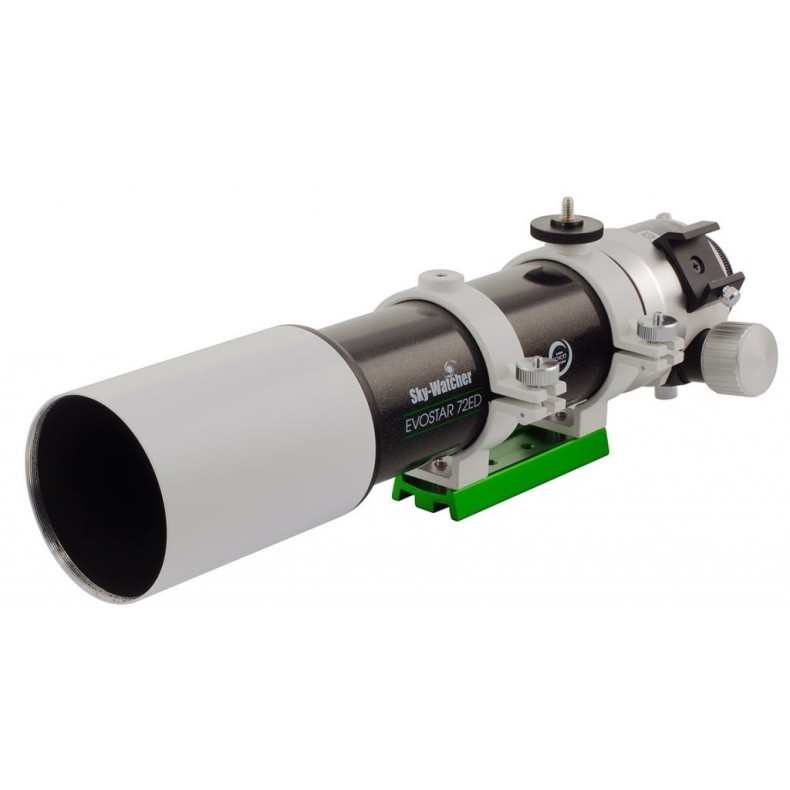

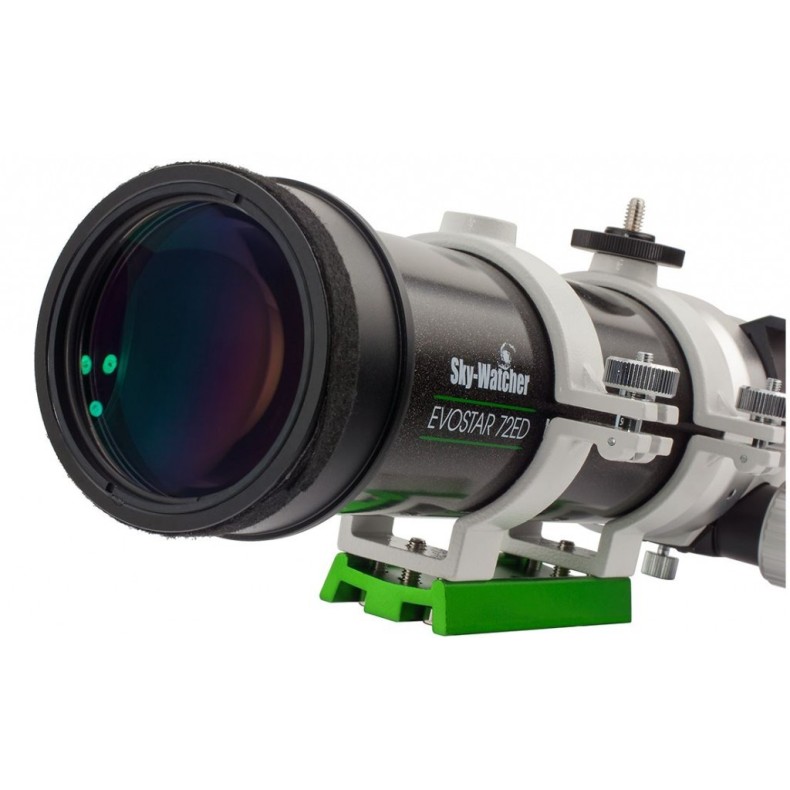

The apochromatic objective lens has multilayer coatings with high light transmission. This treatment is called MHC. In addition, the optics of the telescope Skywatcher EvoStar 72 ED is protected by a generous sunshield that will allow you to extend the observation time by delaying the appearance of dew.
Visually, it will allow you to explore the lunar surface, see the nuances of Saturn's rings, follow its satellites, the phases of Venus, admire the cloud bands of Jupiter, observe the dance of its 4 main satellites, or discover the most remarkable objects in the deep sky. Our technicians at Telescopiomania recommend working with a wide range of ED eyepieces for planetary and wide-field observation to make the most of your deep sky brightness.
In astrophotography, the 72 ED Black Diamond EvoStar will give you excellent wide-field images. It is therefore ideal for obtaining large nebulae, clusters or larger galaxies, such as the Andromeda galaxy. It is therefore ideal for imaging large field objects.

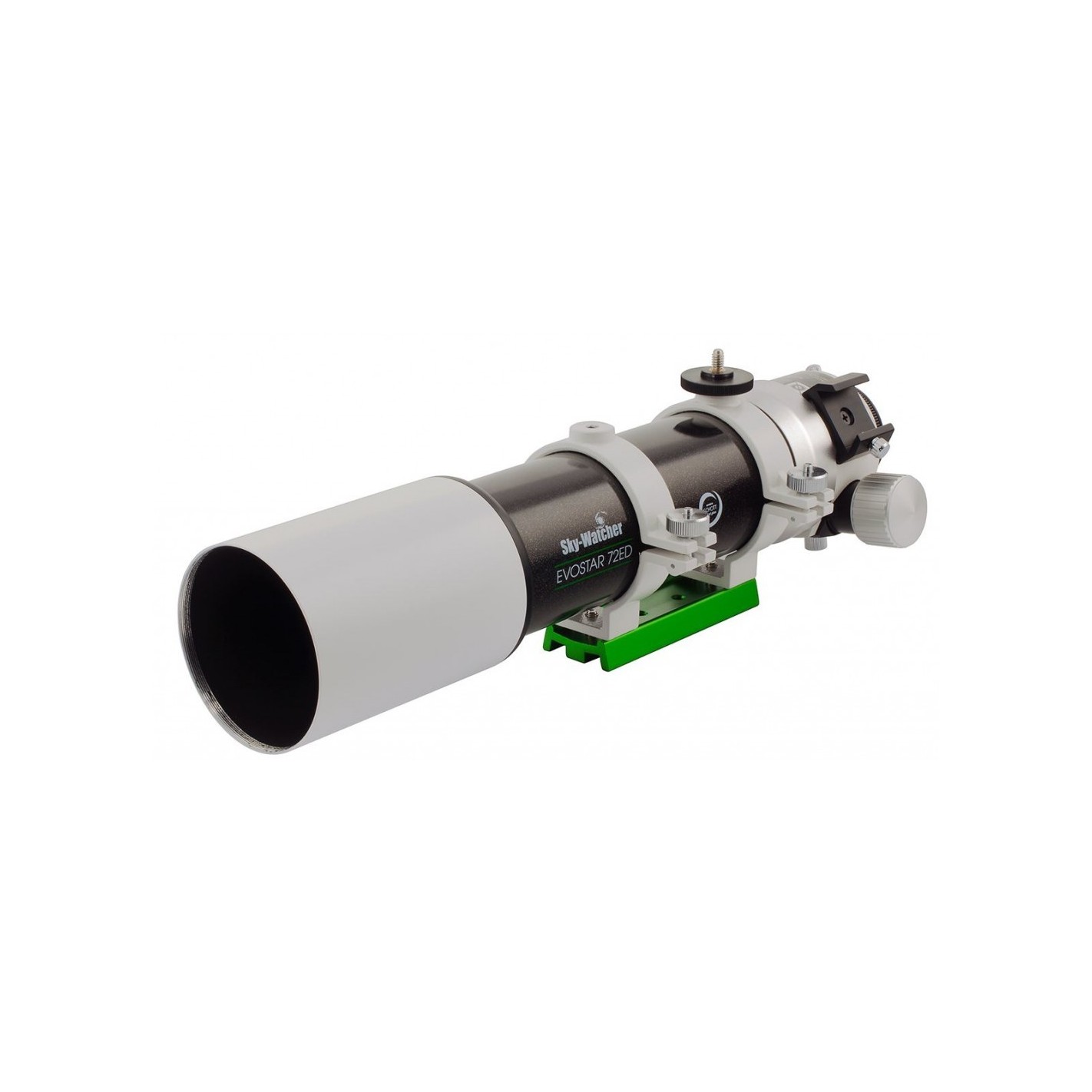

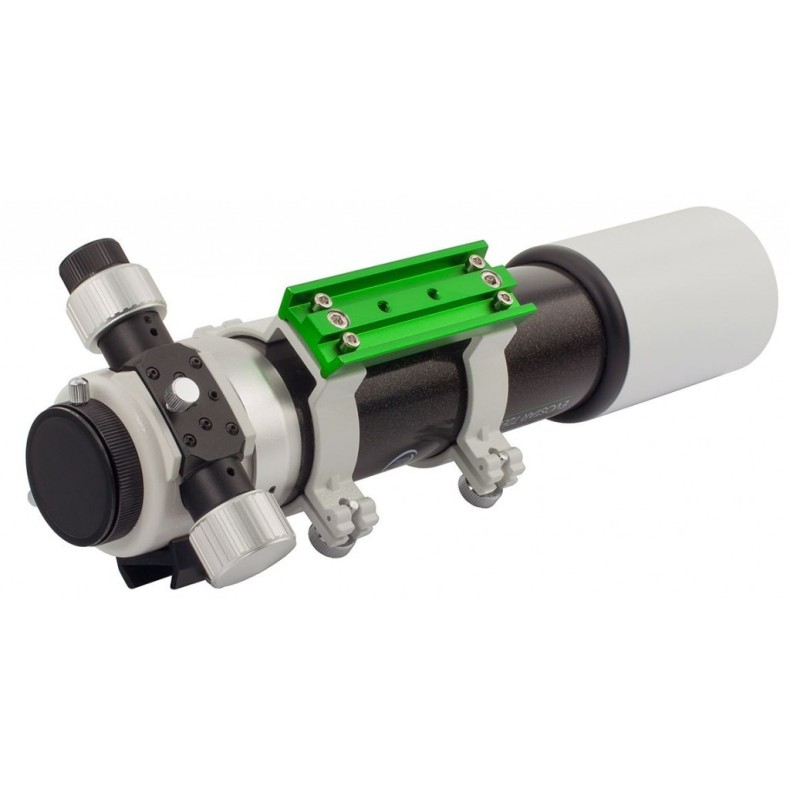

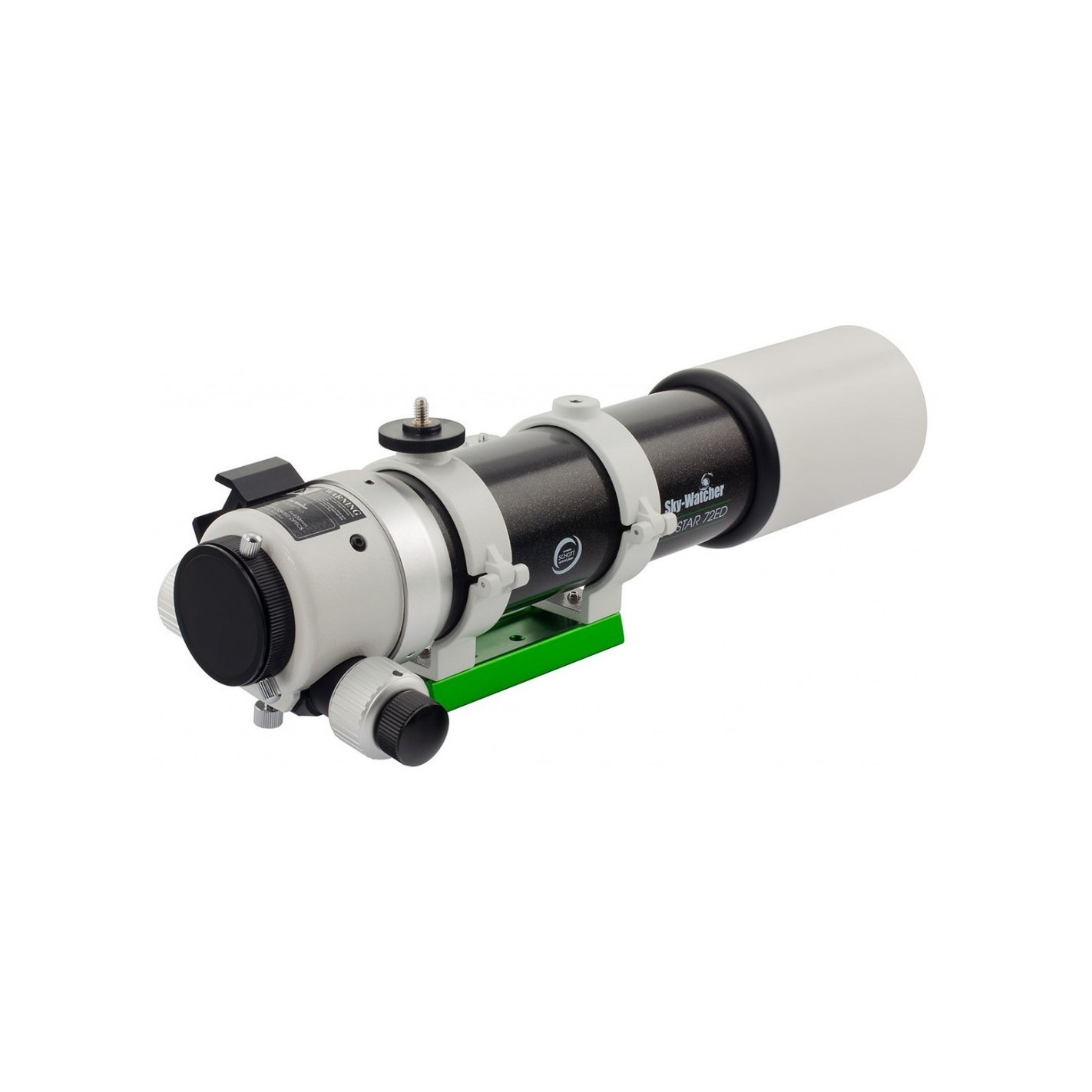

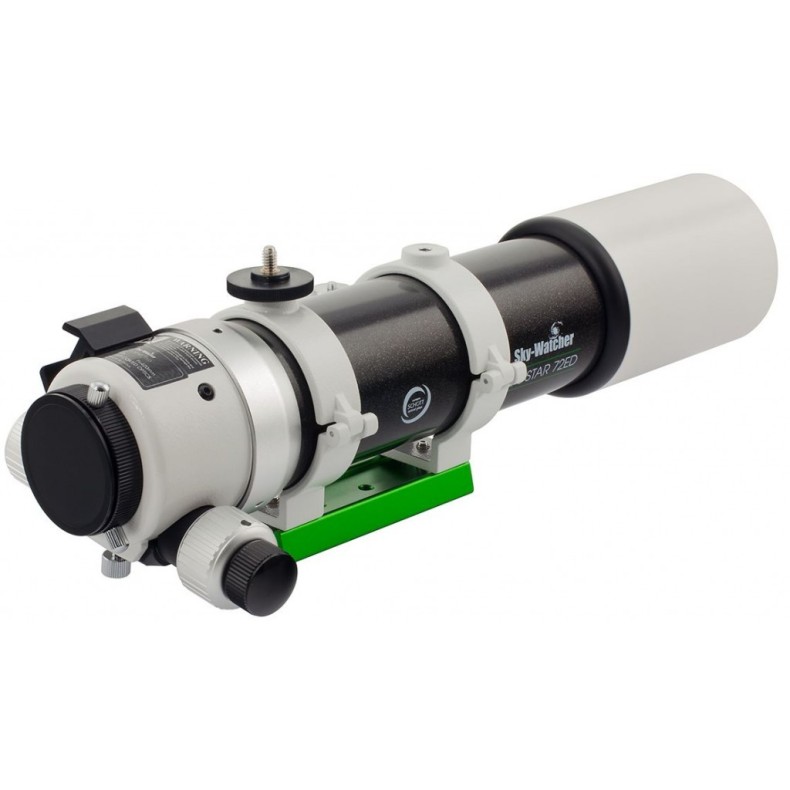

The optical tube is made of aluminum and is equipped with a Crayford focusing system with a 1:10 reduction ratio. This important reduction translates into a focusing accuracy that will facilitate the focusing process in astrophotography and also for visual focusing. With a diameter of 2" (50.8mm) it is a robust focuser with a reasonable load capacity. It also incorporates a focus locking screw.

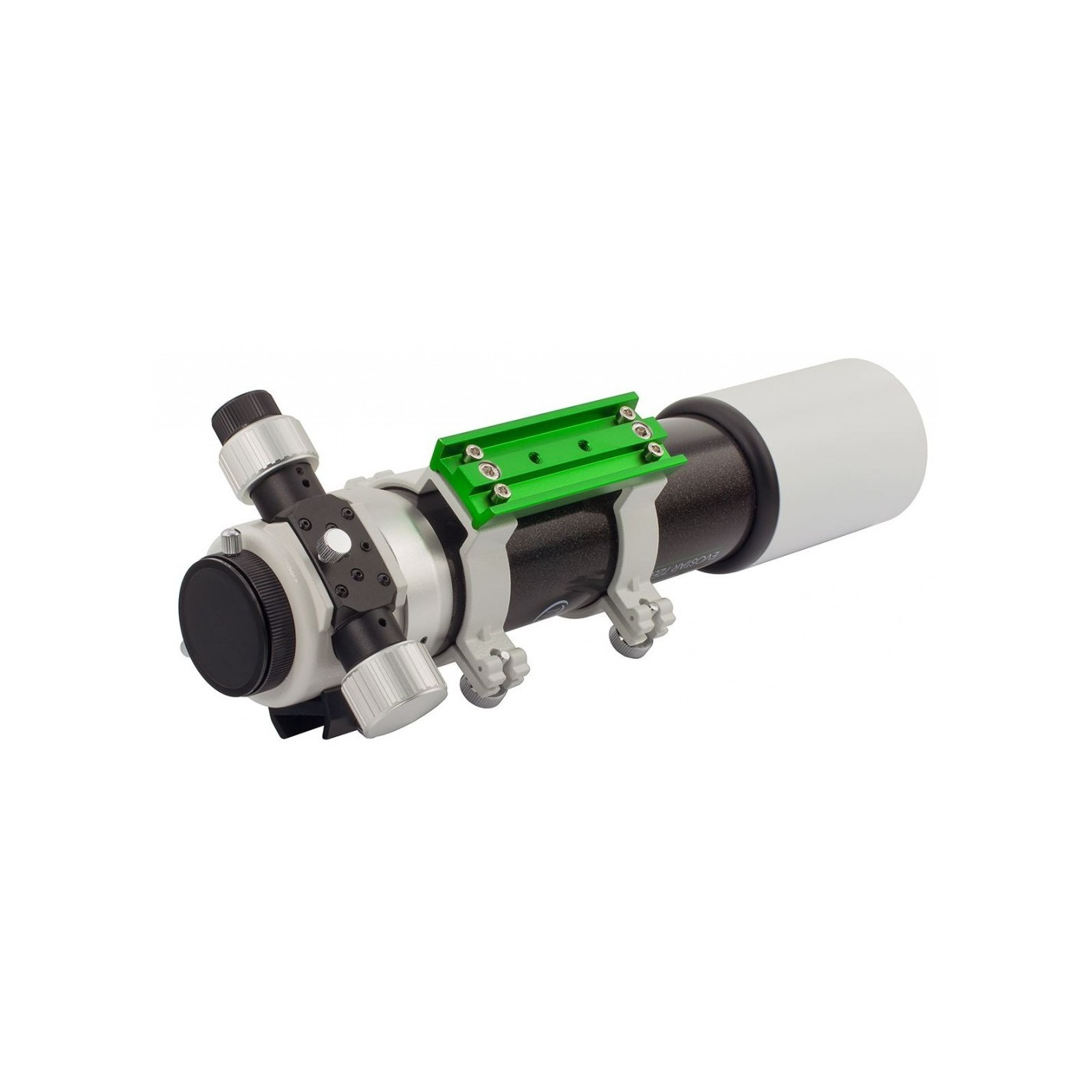

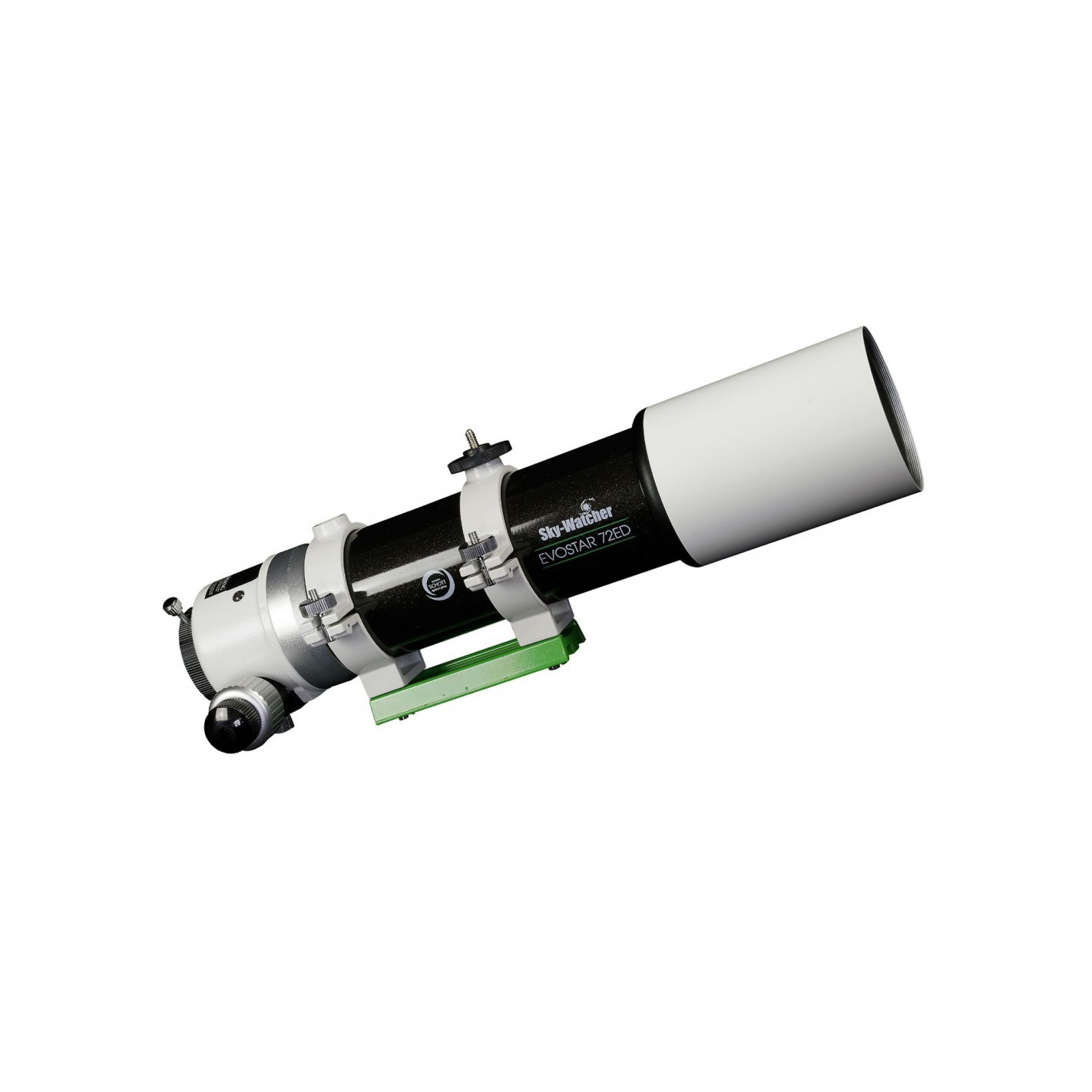

The tube has two rings that attach to a 12cm long dovetail which allows the tube to be attached to almost any type of equatorial mount. And for the safest possible transport, the telescope is supplied with an aluminum case that effectively protects it from shocks.
Technical features:
- Diameter: 72 mm
- Focal length: 420 mm
- Optical design: Doublet Apochromatic ED (Schott)
- Eyepiece carrier: 50.8 mm (2")
- Focal ratio: F/5.8
- Magnification limit: 11.3
- Maximum magnification (theoretical): 144 x
- Tube length: 42 cm
- Included: Rings and dovetails
- Optical coatings: Multi-coated and anti-reflective
- Total weight: 2.0 kg
- Focuser: Non-rotating Crayford type, with 2" output
- Supplied with aluminum case to store the telescope.

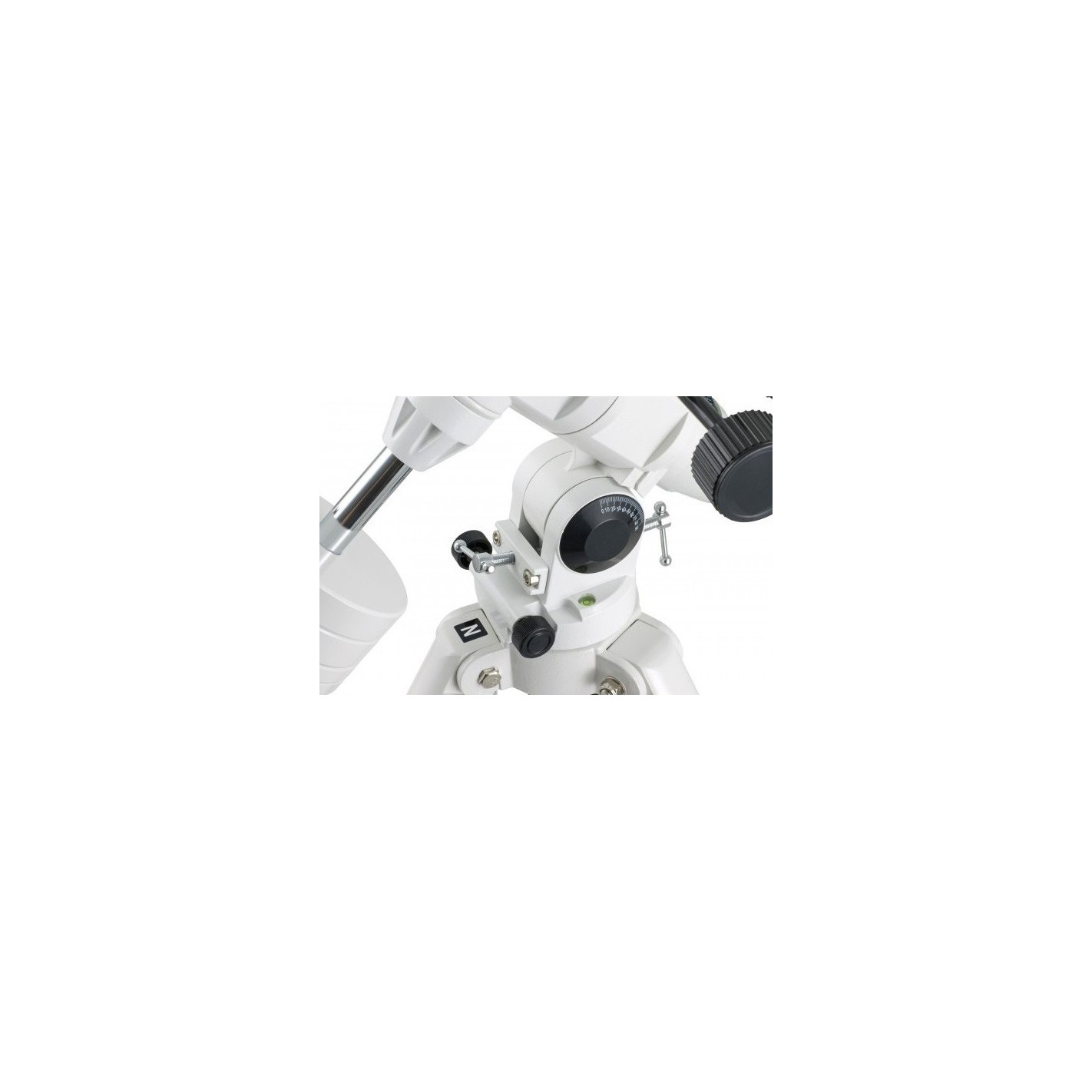

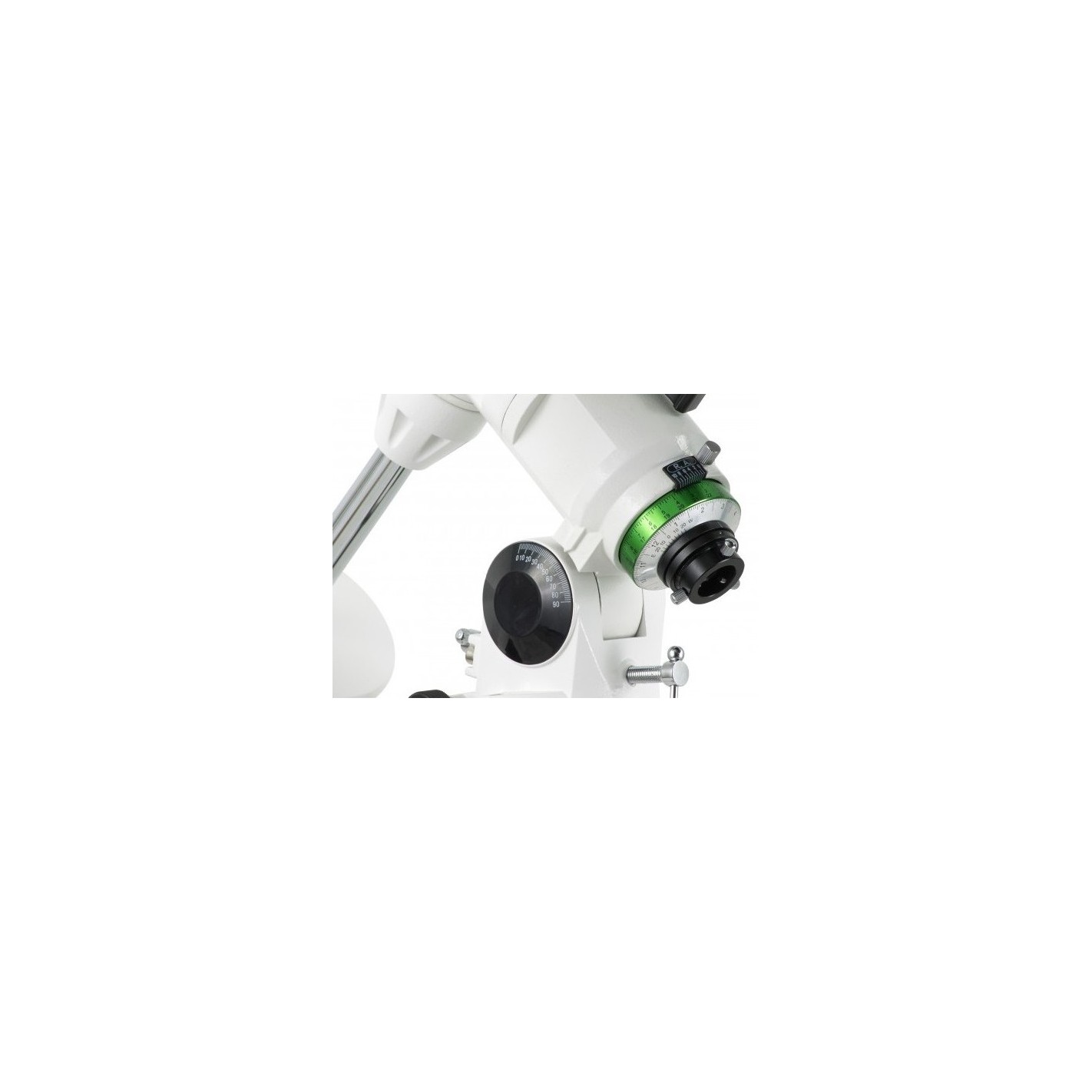

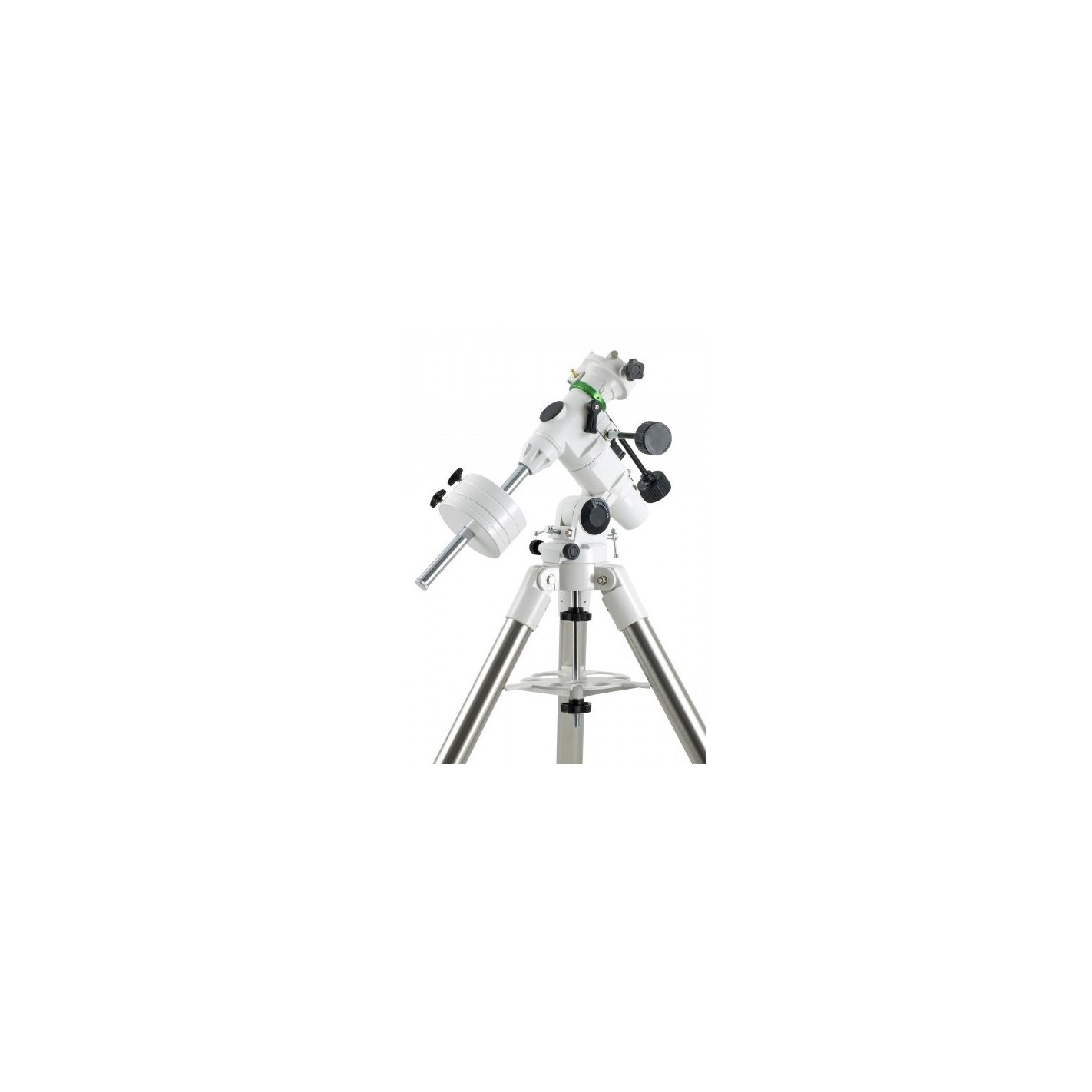

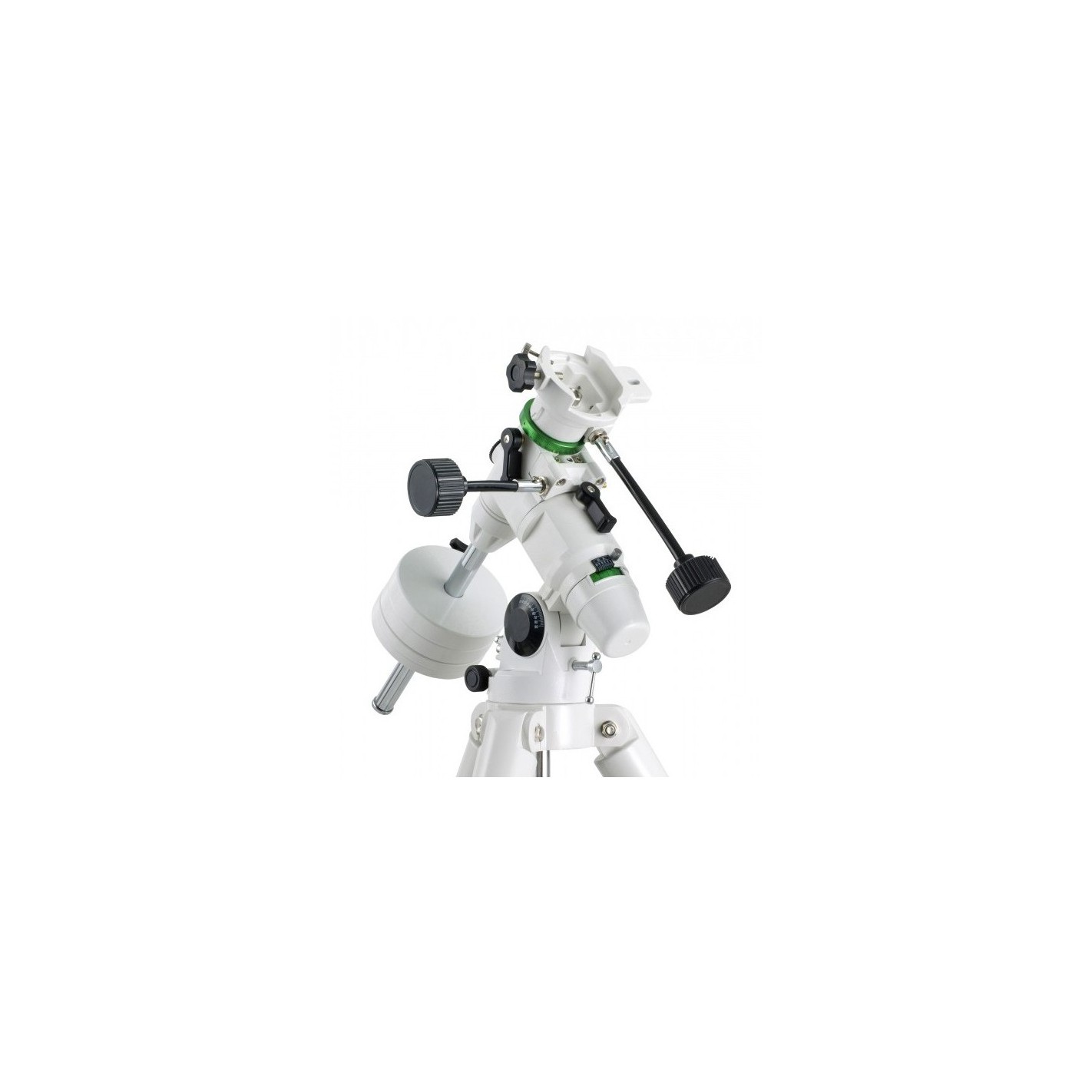

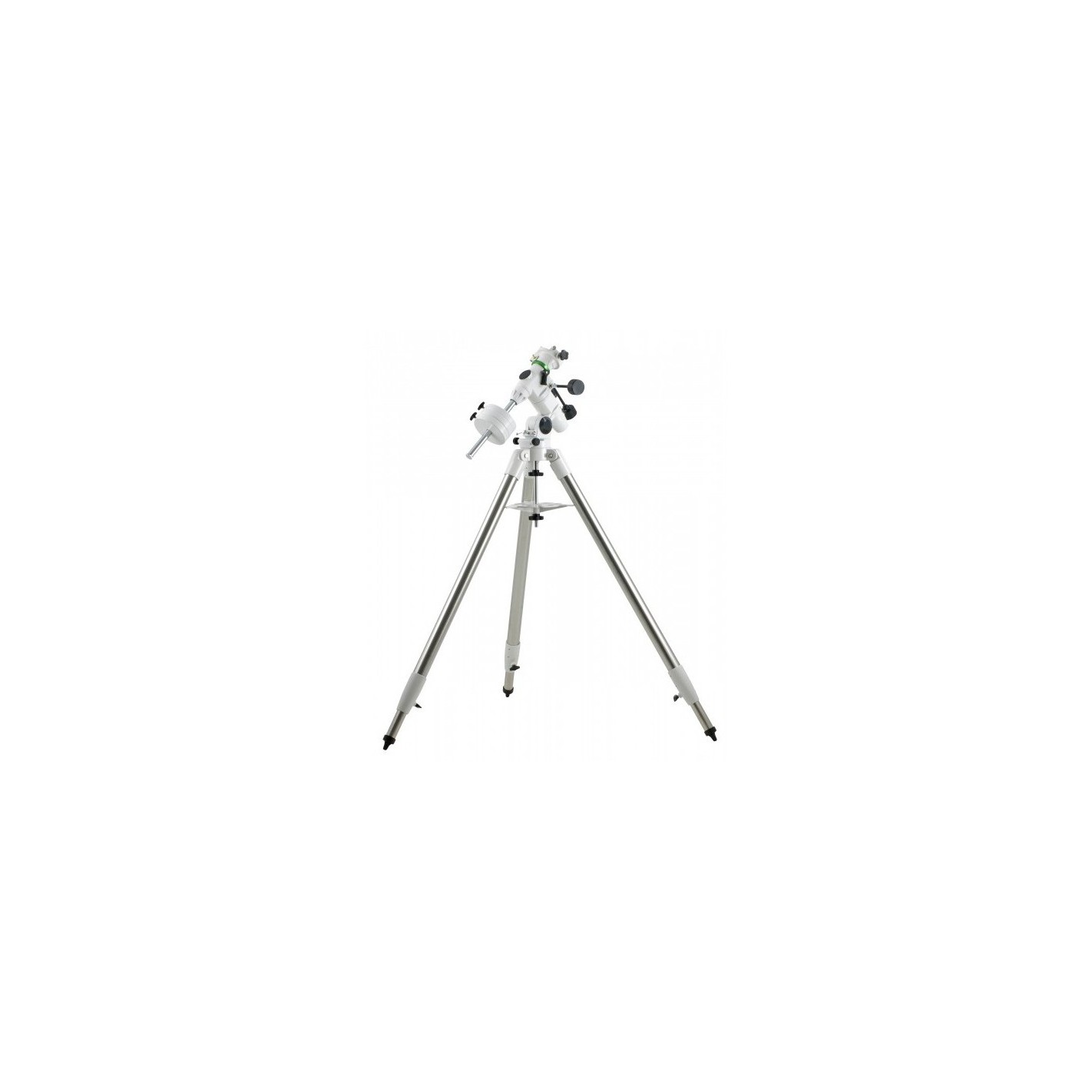

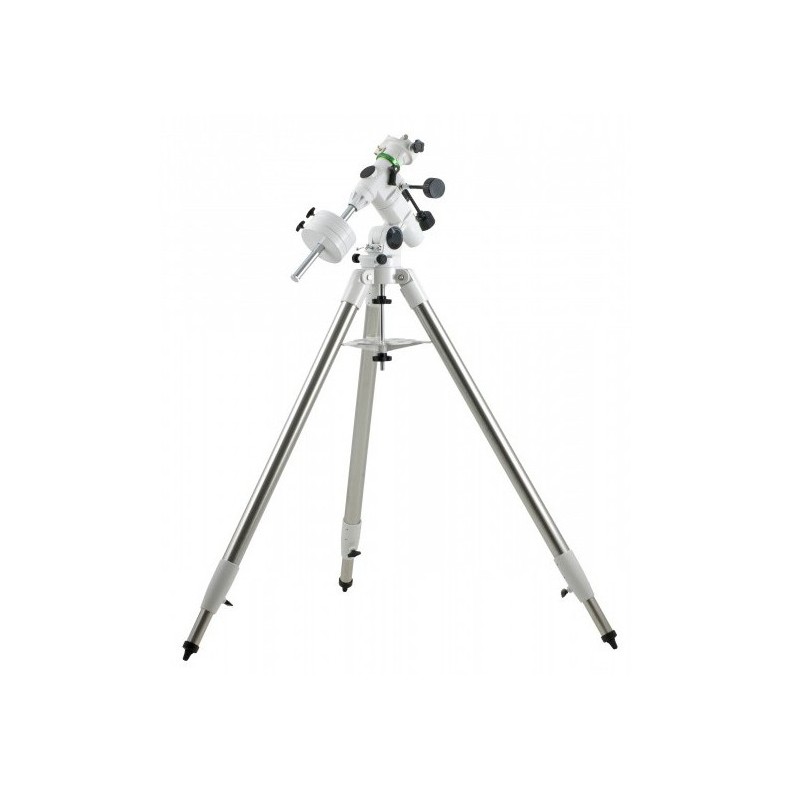

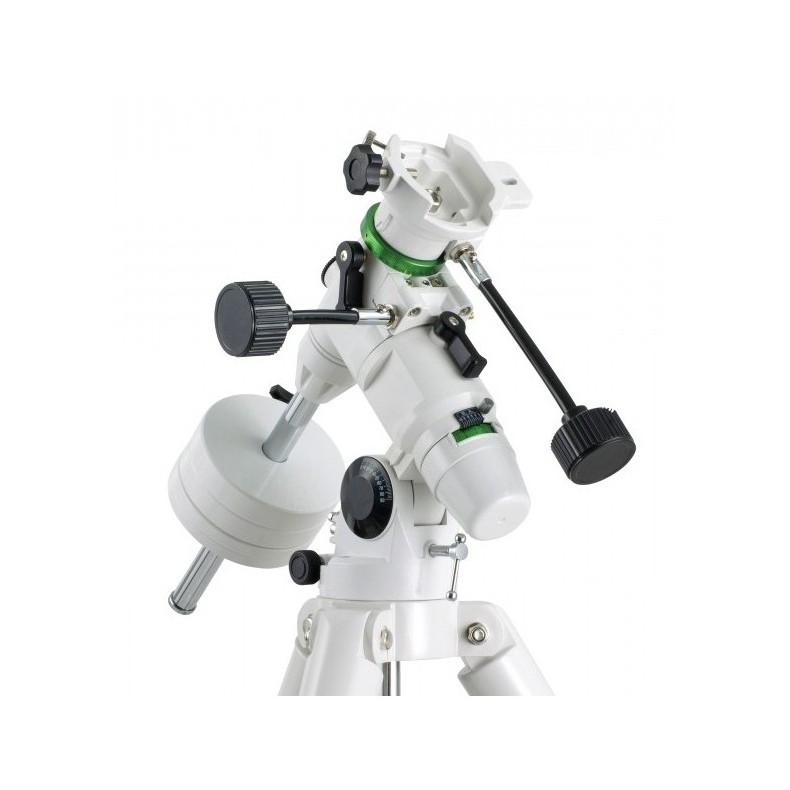

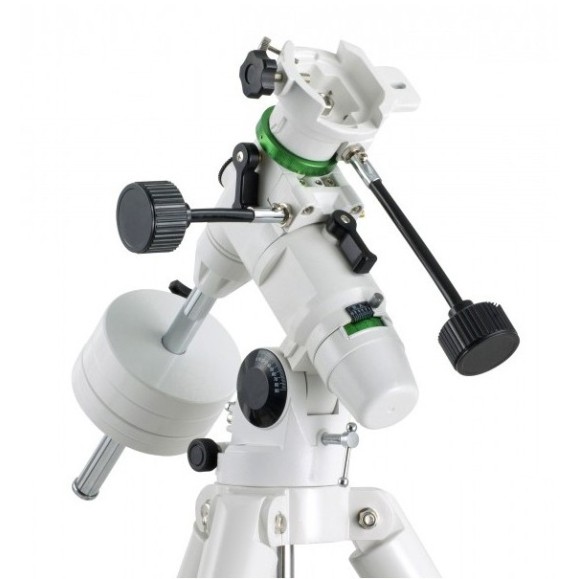

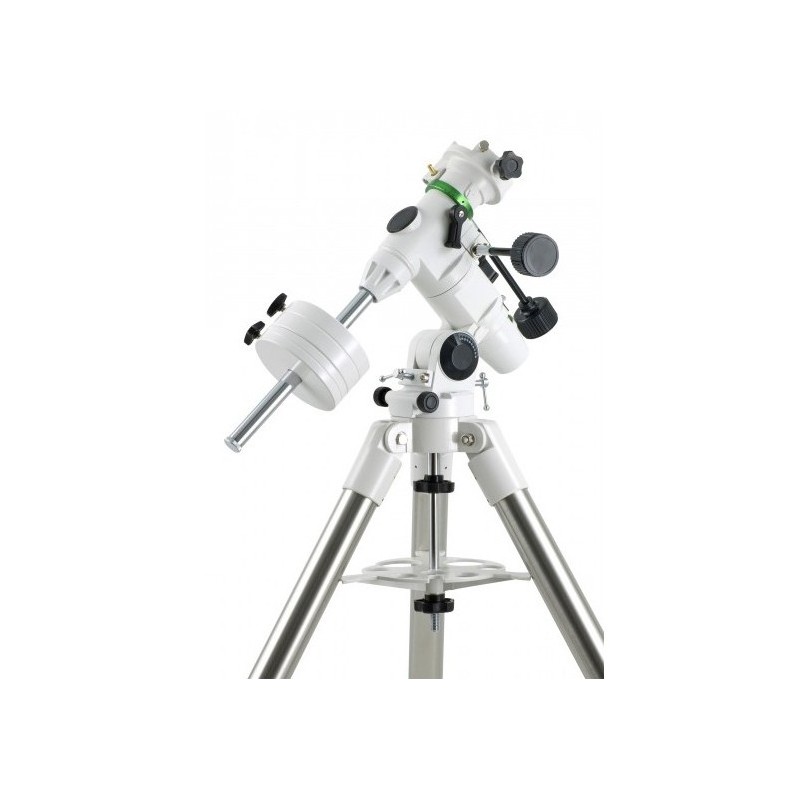

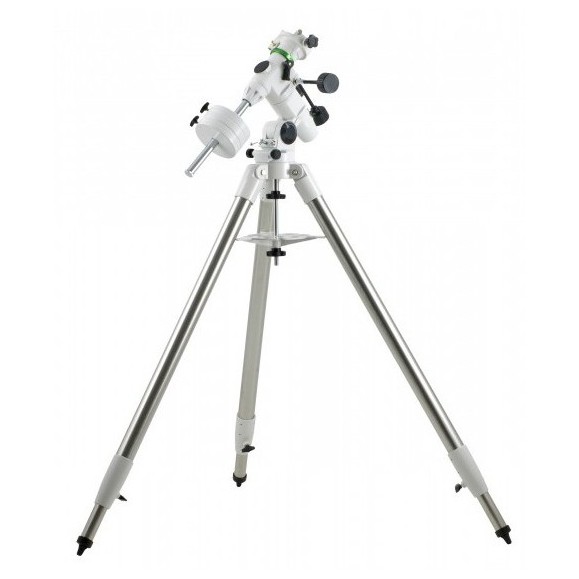

The Sky-Watcher EQ3-2 mount is a light and easy to carry mount that provides enough stability to work with medium weight optical tubes.
Technical characteristics
- Polar finder(OPTIONAL; not included)

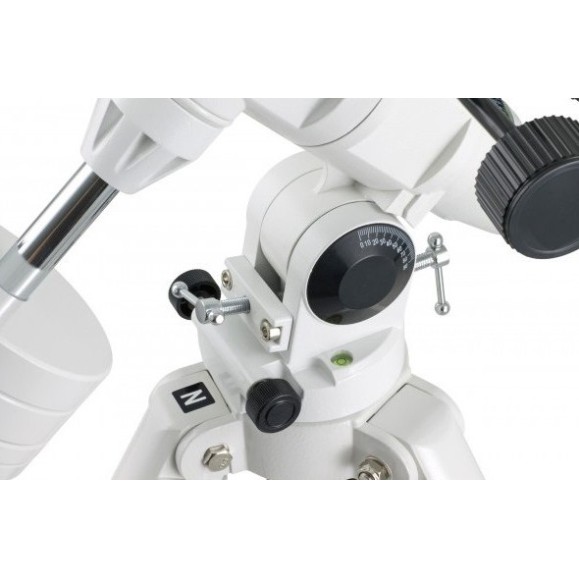

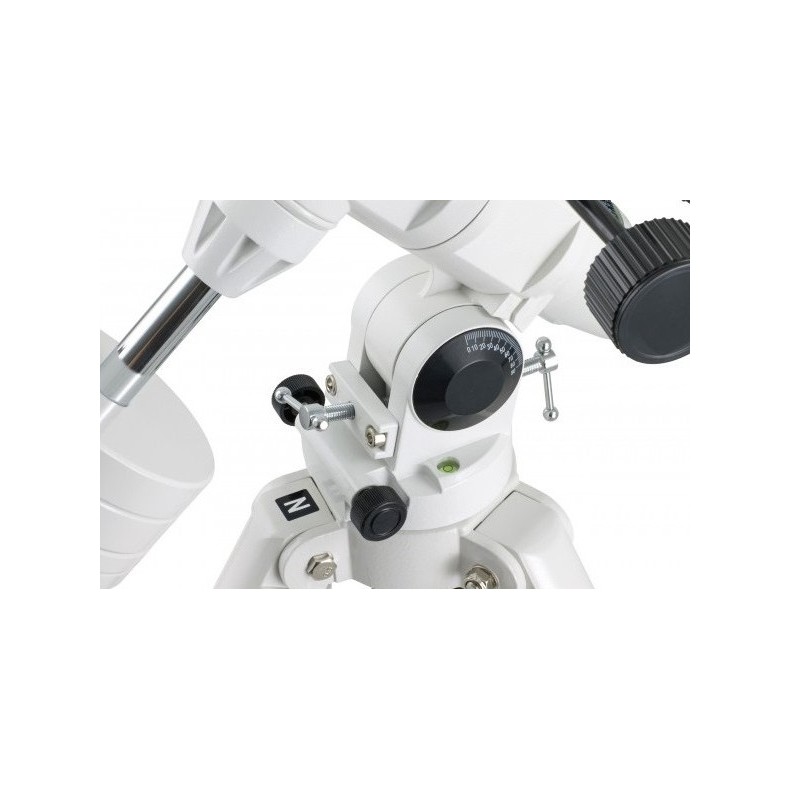

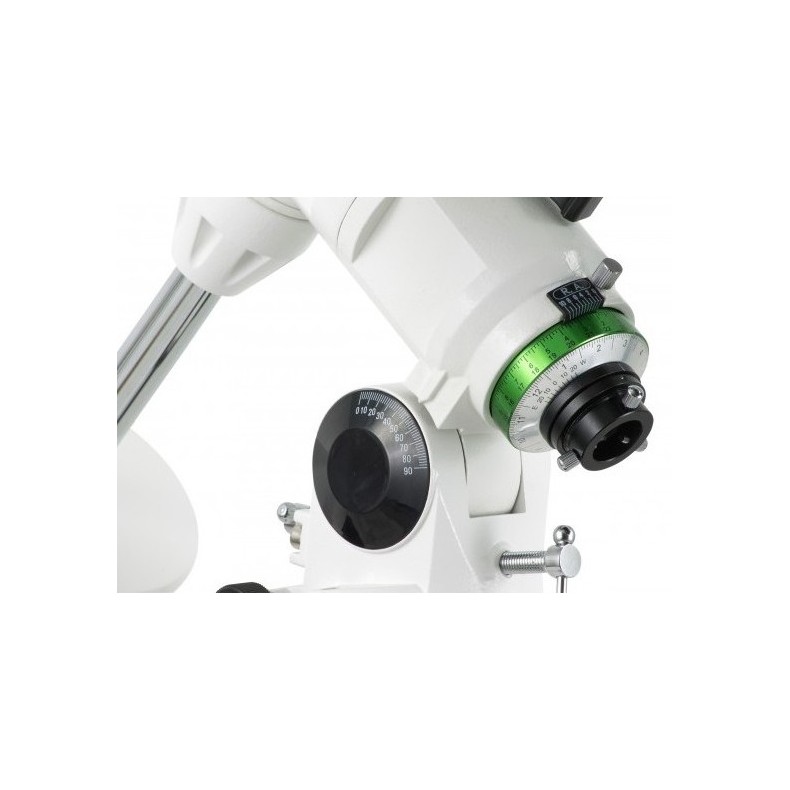

- Latitude adjustment with micrometer scale.
- Azimuth adjustment.
- Aluminum graduated circles.
- Bubble level.
- Slow movement knobs.
- Maximum load: 8 Kg

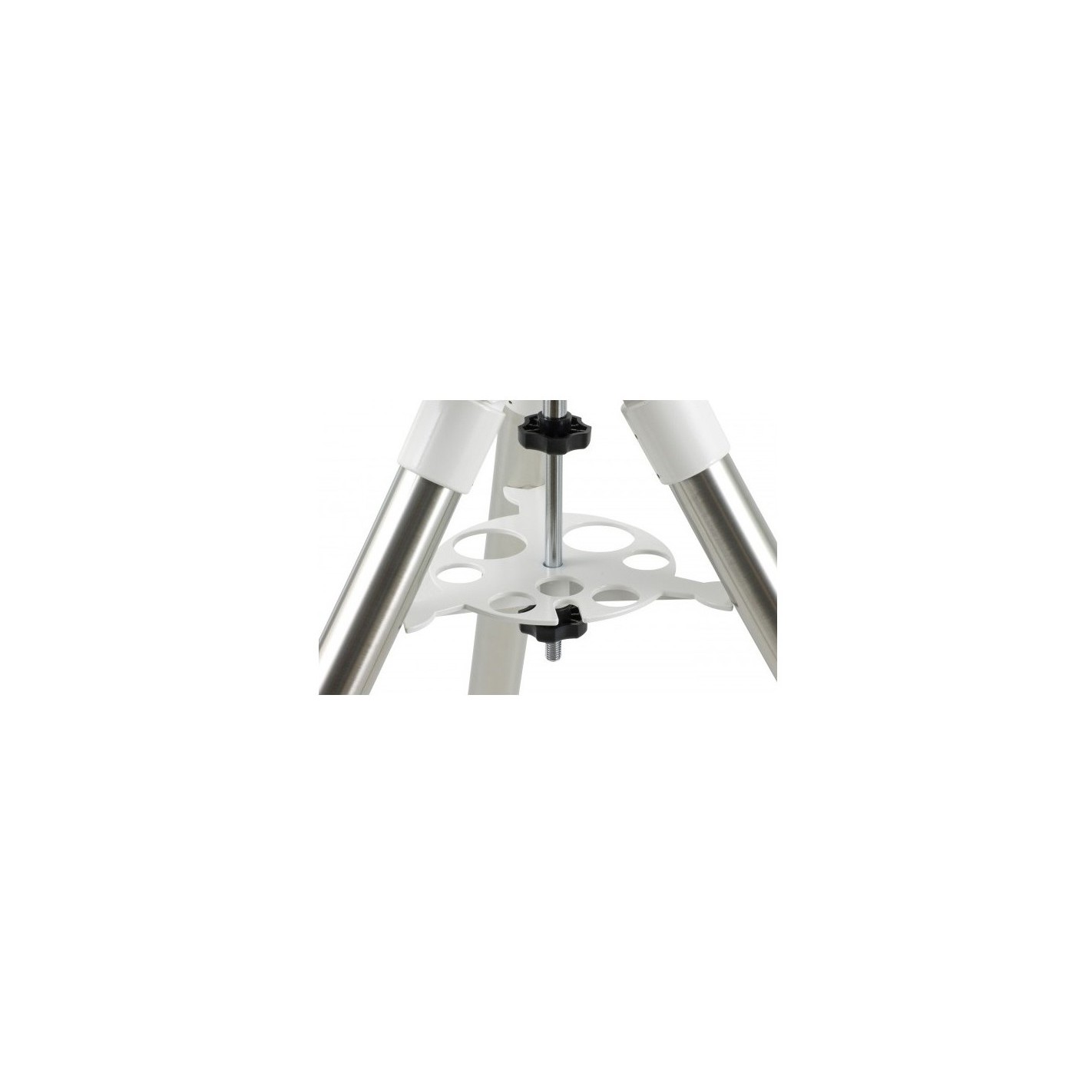

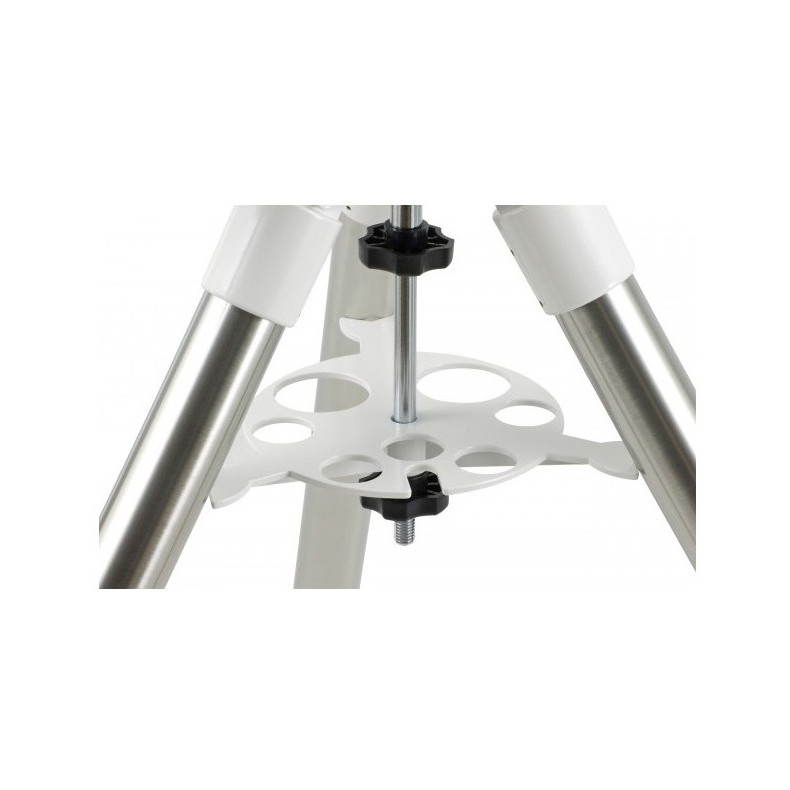

- Steel tripod.
- Includes two counterweights, one of 3.4Kg and the other of 1.8Kg.
Refractor Telescope Skywatcher Black Diamond 72ED with NEQ3-2 Mount
