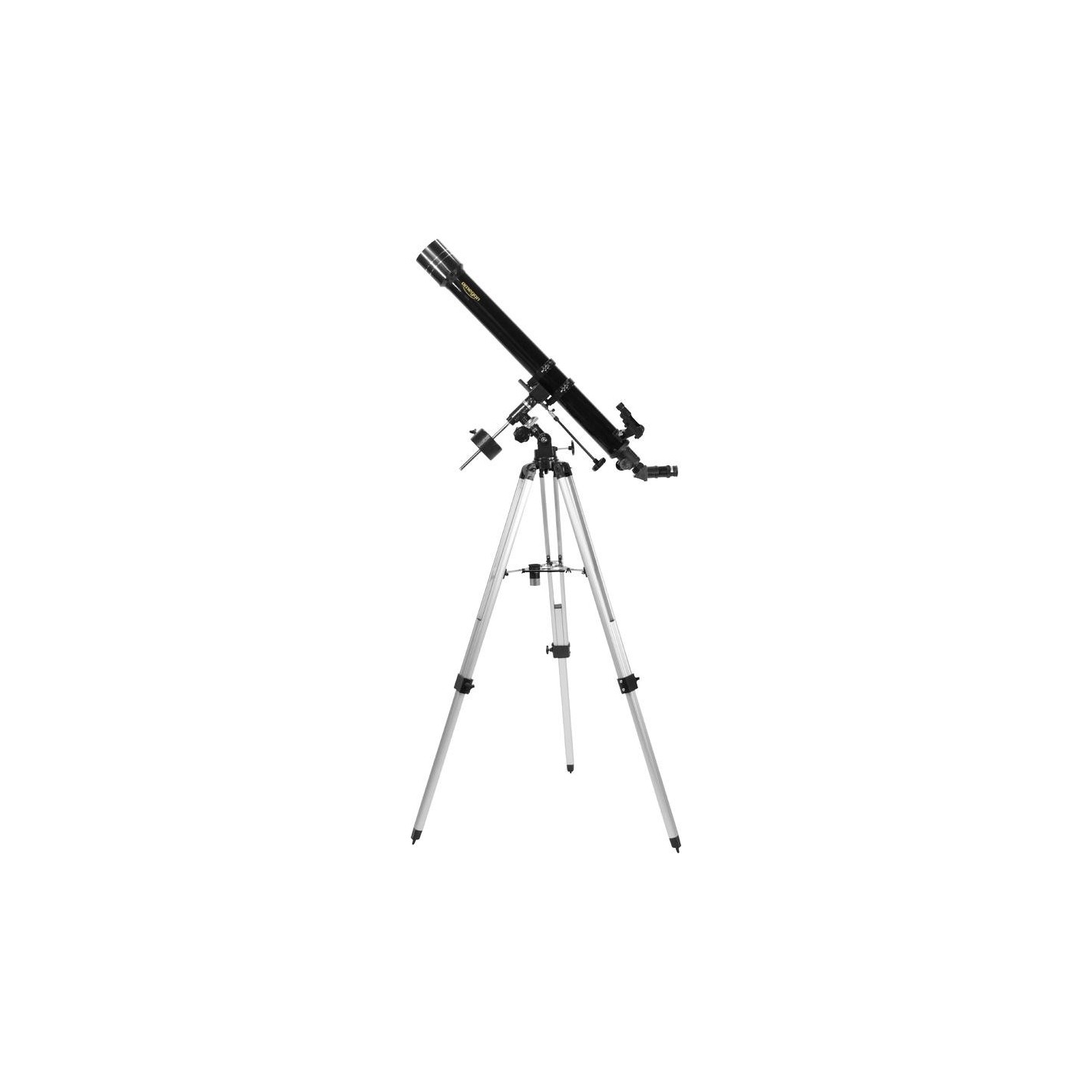

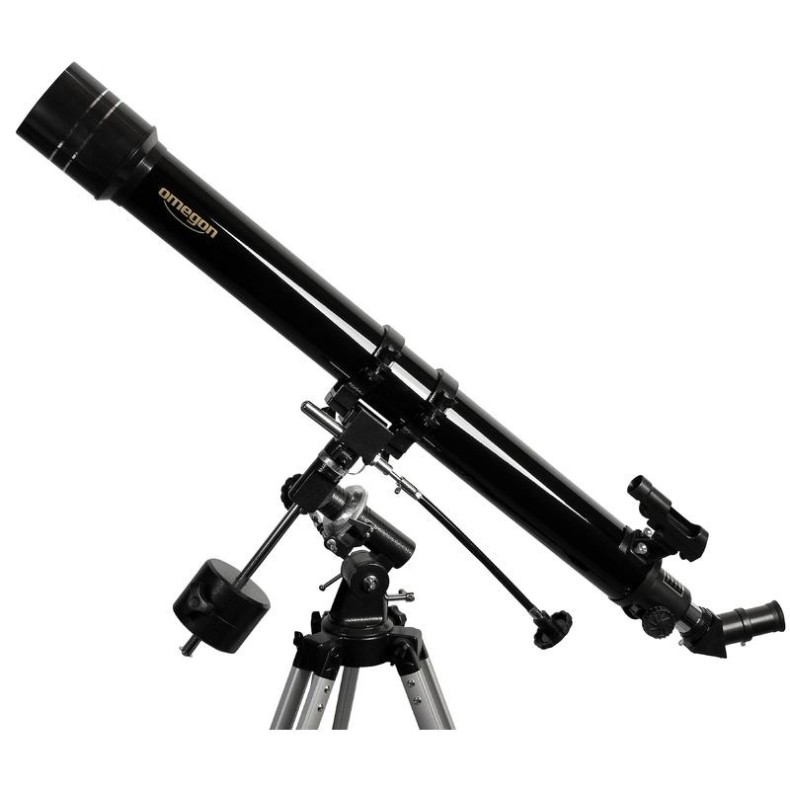

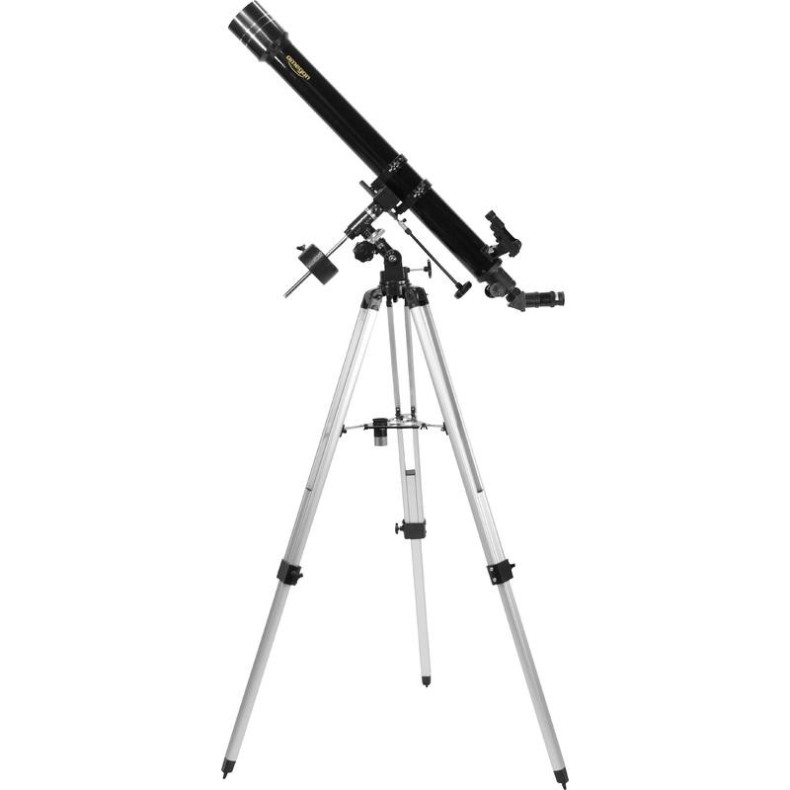

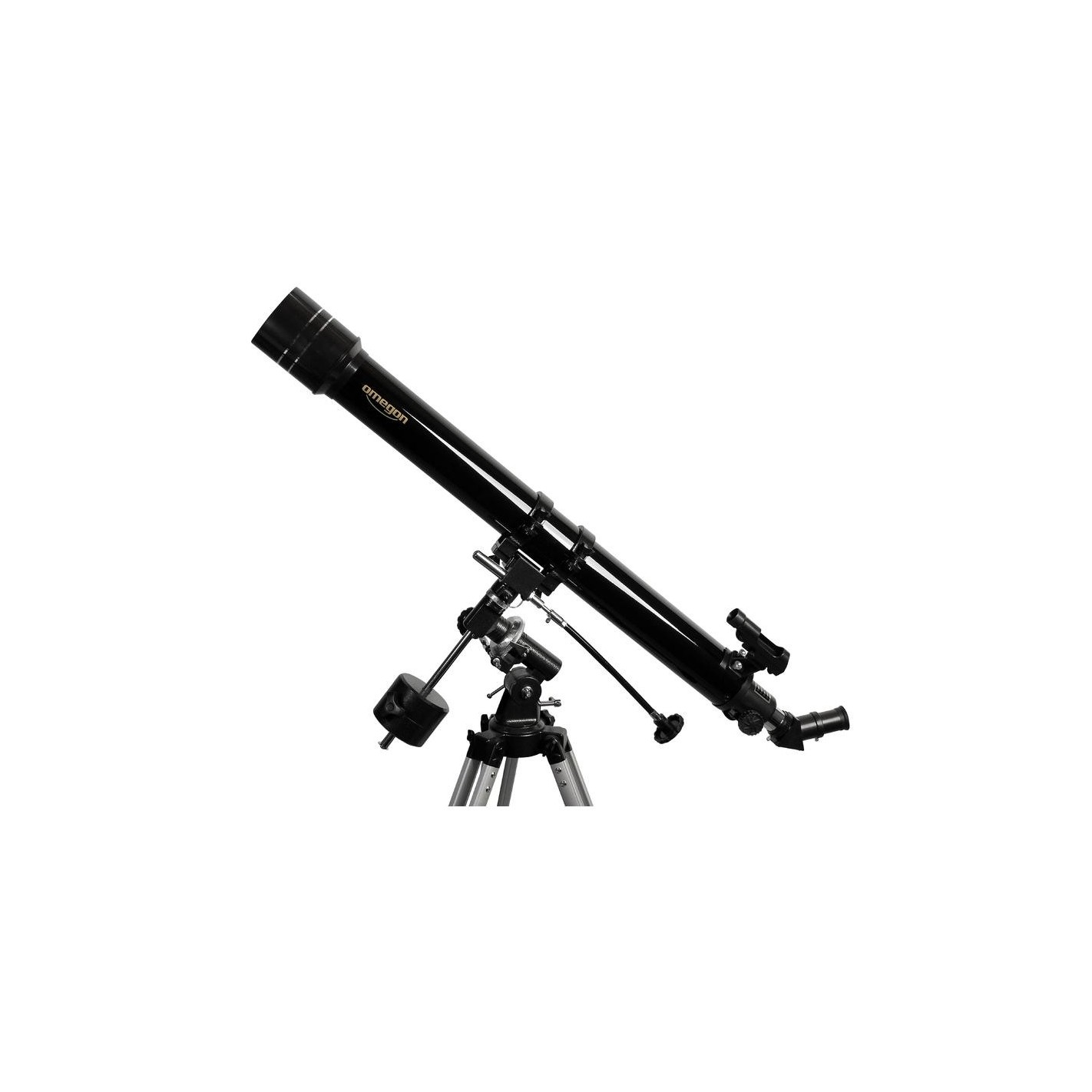

Refractor Telescope Omegon AC 70/900 EQ-1 22464

The OMEGON AC 70/900mm EQ-1 telescope is the ideal telescope to get started in the hobby of astronomy. The fascinating view of the Moon, stars and planets will delight those astronomy enthusiasts who have been waiting for a long time to discover the secrets of the Universe.

The 70/900optical system:

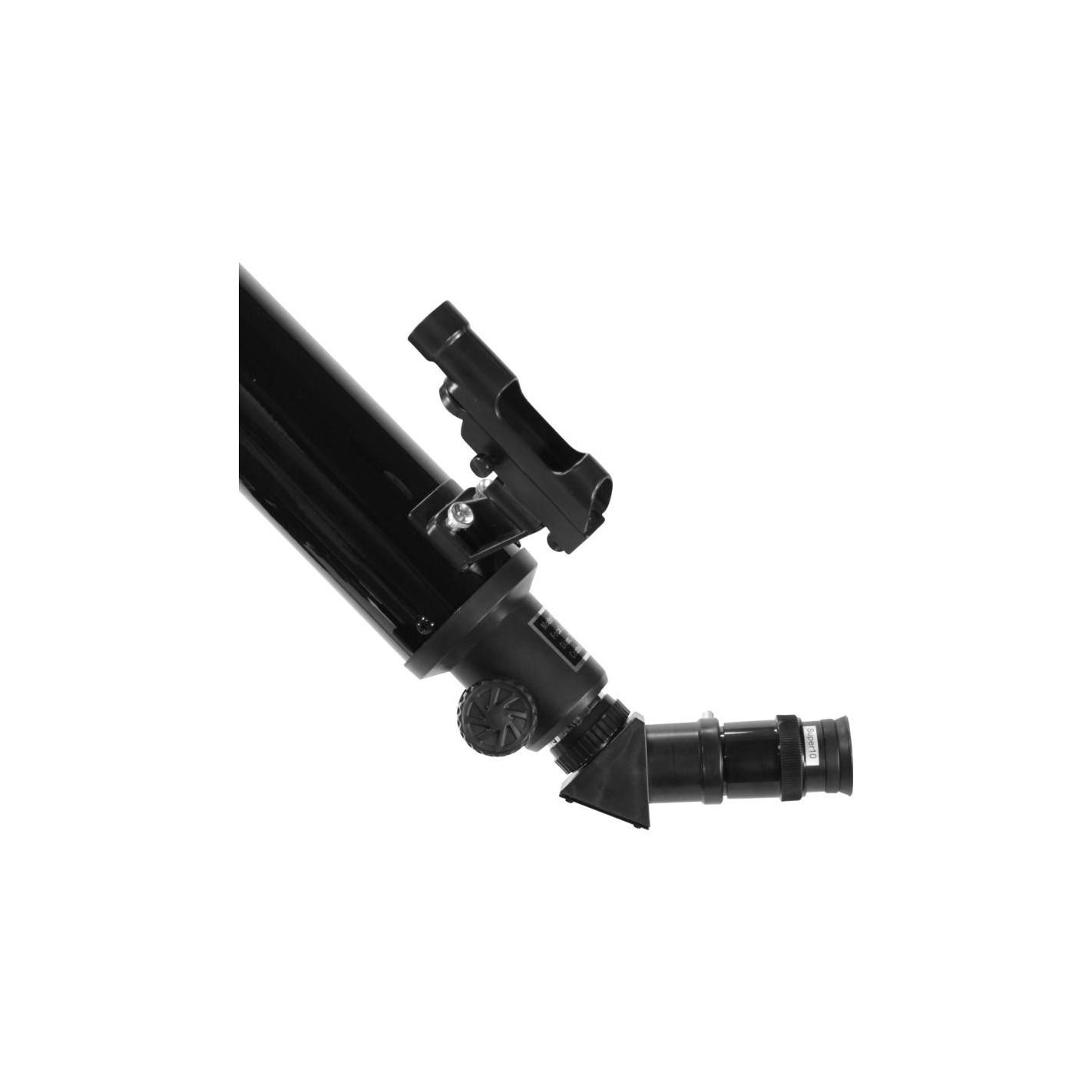

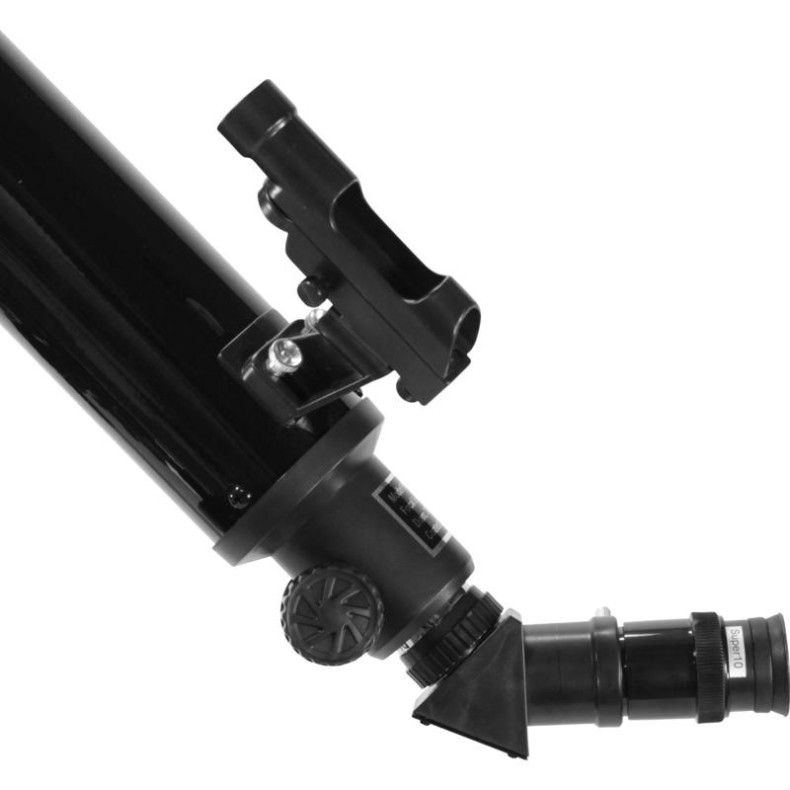

With an aperture of 70mm, this refractor has a light potential 100 times larger than the human eye and therefore considerably outperforms also classic beginner telescopes with slightly smaller aperture of 60mm. This means that it has a higher resolution and, with its maximum magnification of 140x, already provides details of the large planets such as Saturn, Jupiter and Mars . The Moon is also a very interesting object: you can get an excellent view of the lunar surface with its craters, which, depending on the phase, have different aspects. Interesting observations of nature are also possible during the day and with the support of an inverting prism or an Amici prism. You focus the system by means of a focusing wheel on the attachment tube of the eyepiece holder, which drives the rack-and-pinion system. In this way you can precisely adjust the system and set it for observation.

The optical system is also ideal for use as a guide tube, combined with a large telescope for autoguiding astrophotography

Included accessories

• 20mm eyepiece
• 10mm eyepiece
• Red dot finder for easy finding of astronomical objects
• 90° zenith mirror for observing objects near the zenith
• 2x Barlow lens for doubling eyepiece magnifications

Features

• Easy to mount in a few minutes
• 1.25" eyepiece holder
• 36% more light gathering power than a 60mm telescope
• Comes with many accessories that add value to the telescope
• Ideal for children and adults who want to get started.

The EQ-1mount:

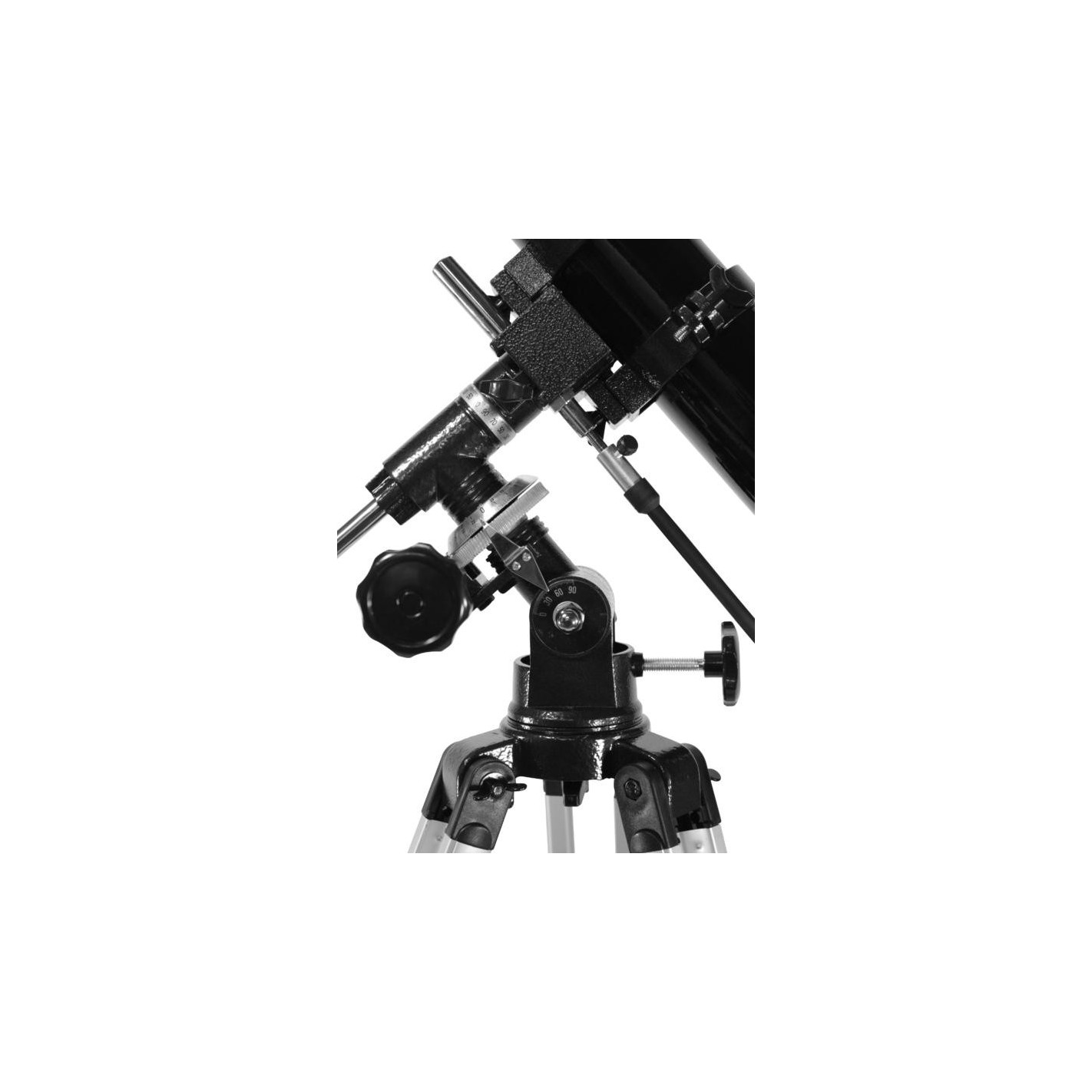

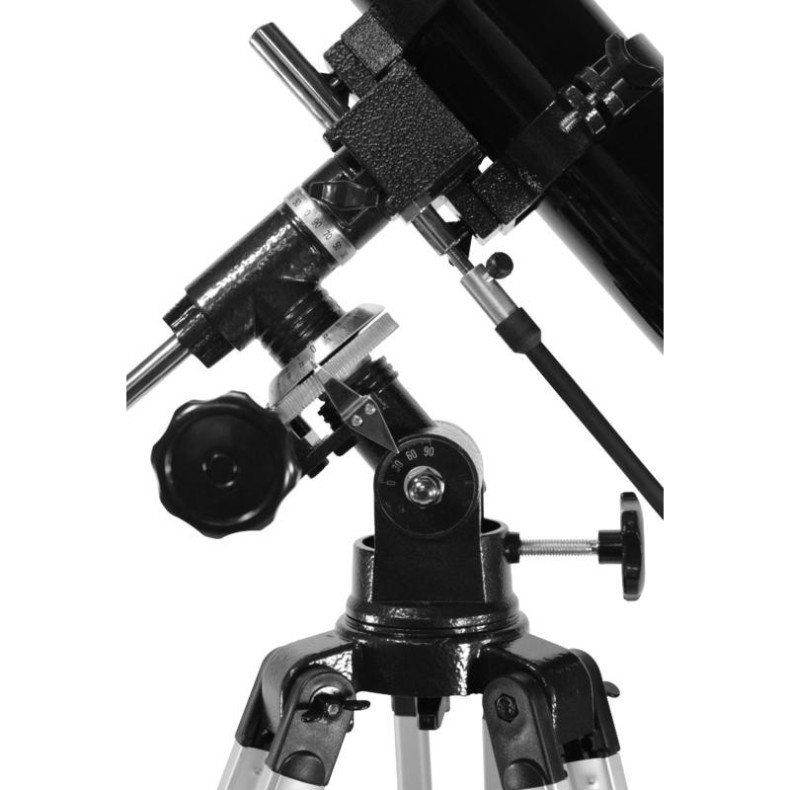

This equatorial mount allows you to perform alignment with the North Star. The inclination of the polar axis can be adjusted according to the latitude without any problems. By fine movement of the right ascension and declination axes it is possible to adjust and trackobjects. A counterweight ensures the correct balance of the optical system.

We supply the EQ-1 mount in two variants, with floor tripod or table tripod; details can be found in the technical documentation. The floor tripod can be adjusted and positioned with a height between 70cm and 120 cm, in the accessory holder you can place eyepieces or other accessories. The table tripod is very compact and lightweight, making it the ideal choice for excursions or travel. The smaller EQ mount is extremely light and compact, it fits in almost every travel bag. Novice users can mount it without any problems, even children will be able to use it. As an option we offer a tracking motor for mounting on the straight ascent axis.

Delivered with the equipment

• Equatorial mount EQ-1
• Tripod
• Adapted counterweight

Technical Specifications:

Optical system

Type: Refractor
Construction type: Achromatic
Aperture (mm): 70
Focal length (mm): 900
Focal ratio: 12.9
Resolution capability: 1.64
limit value (mag): 11
Light gathering capability: 100
Maximum useful magnification: 140
Total weight: 8Kg

Focusing tube and eyepiece holder

Construction type: Rack and pinion
Connection (eyepiece side): 1,25"

Mount

Construction Type: EQ-1
Mount Type: Equatorial
GoTo: no
Tracking: no

Tripod

Material: Aluminum
Type: Tripod
Adjustable height: 67-119cm

Included accessories

1.25" Eyepieces: Super 20mm, Super 10mm
Finder: Red dot LED
Prism: de Amici 90º and 1.25"
Barlow lens 2x

Applications

Moon and planets: yes
Nebulae and galaxies: not recommended
Nature observation: not recommended
Astrophotography: not recommended
Sun: not recommended (only with appropriate solar filter)

Recommended for

Beginners: yes
Advanced: not recommended
Advanced amateurs: no
