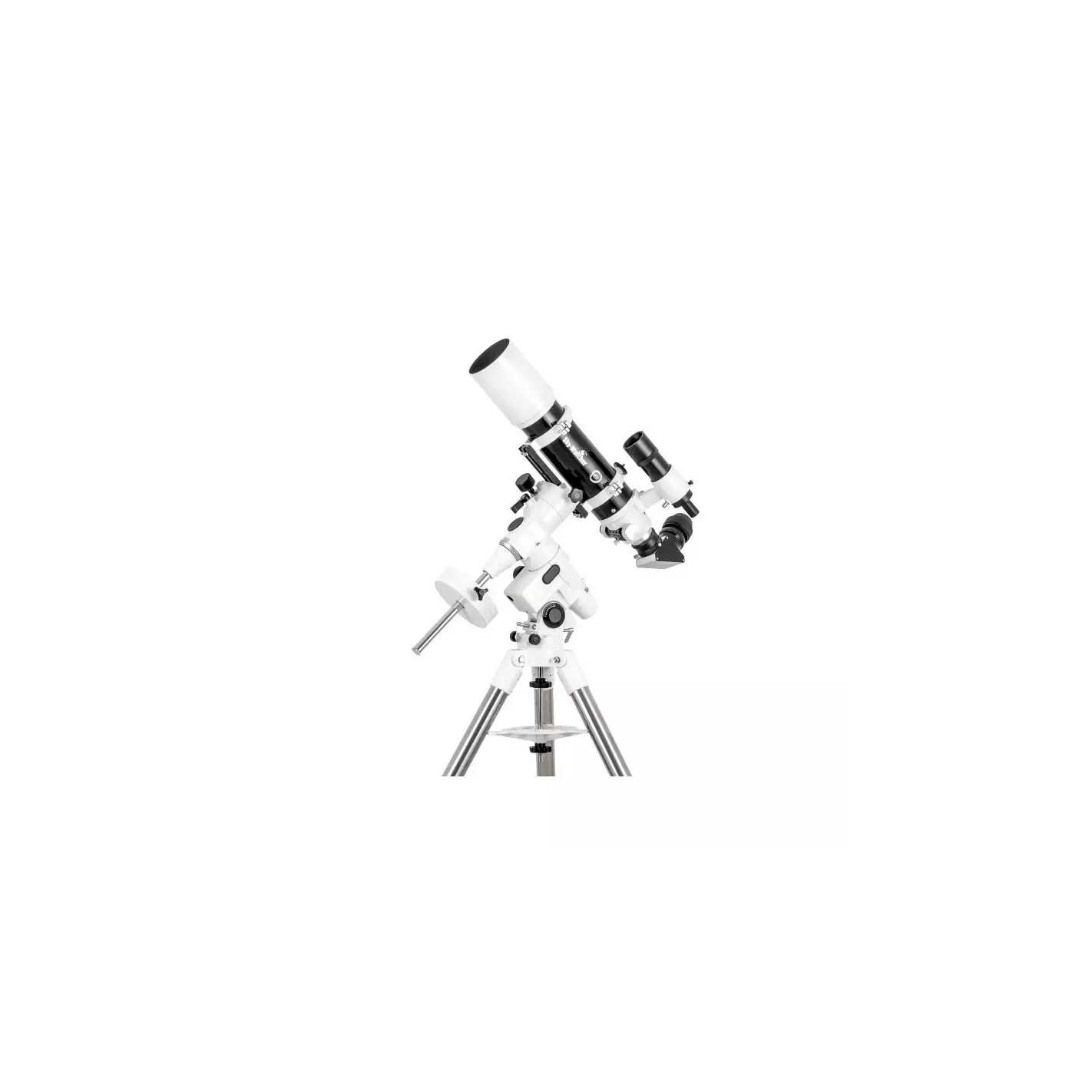

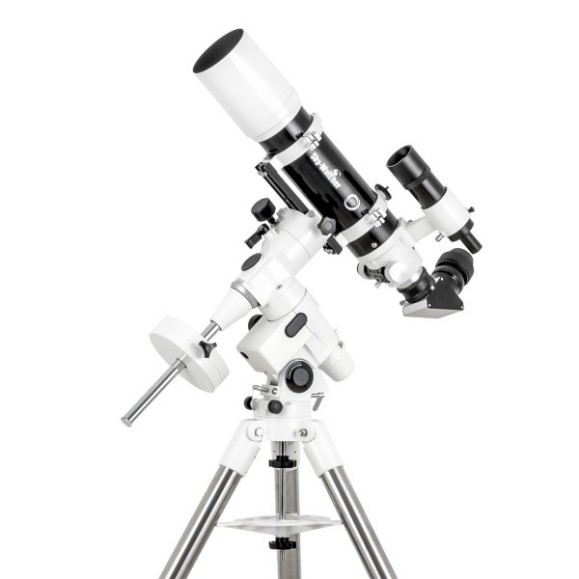

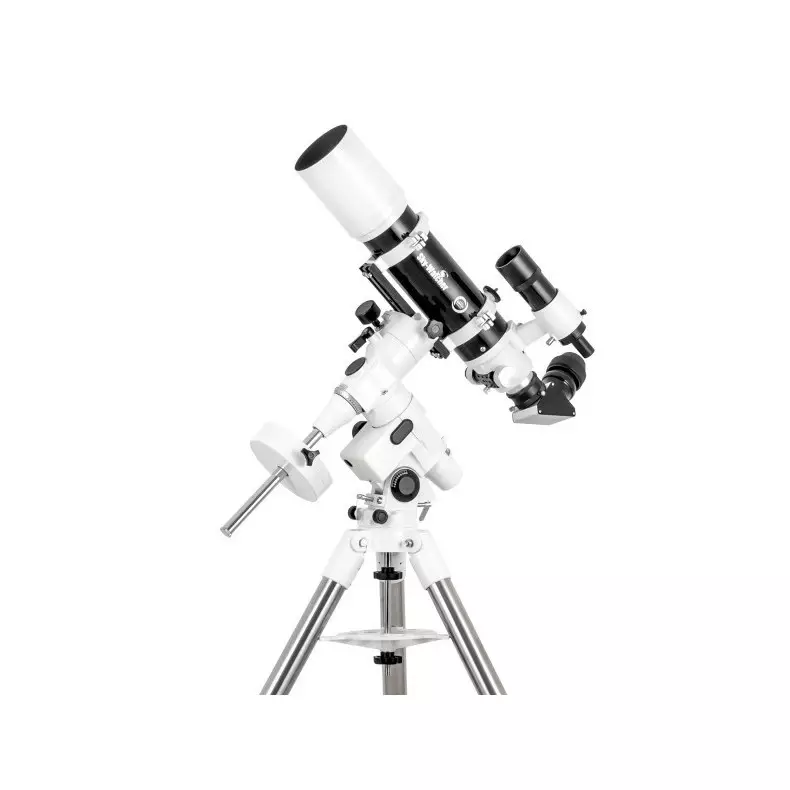

Pack SkyWatcher ED Black Diamond ED80 PRO GOTO NEQ5 Refractor Telescope with personalized initiation course
IN TELESCOPIOMANIA WE OFFER YOU NOW TOGETHER WITH YOUR TELESCOPE, OUR PERSONALIZED COURSE OF INITIATION IN ASTRONOMY AND USE OF YOUR GOTO TELESCOPE.

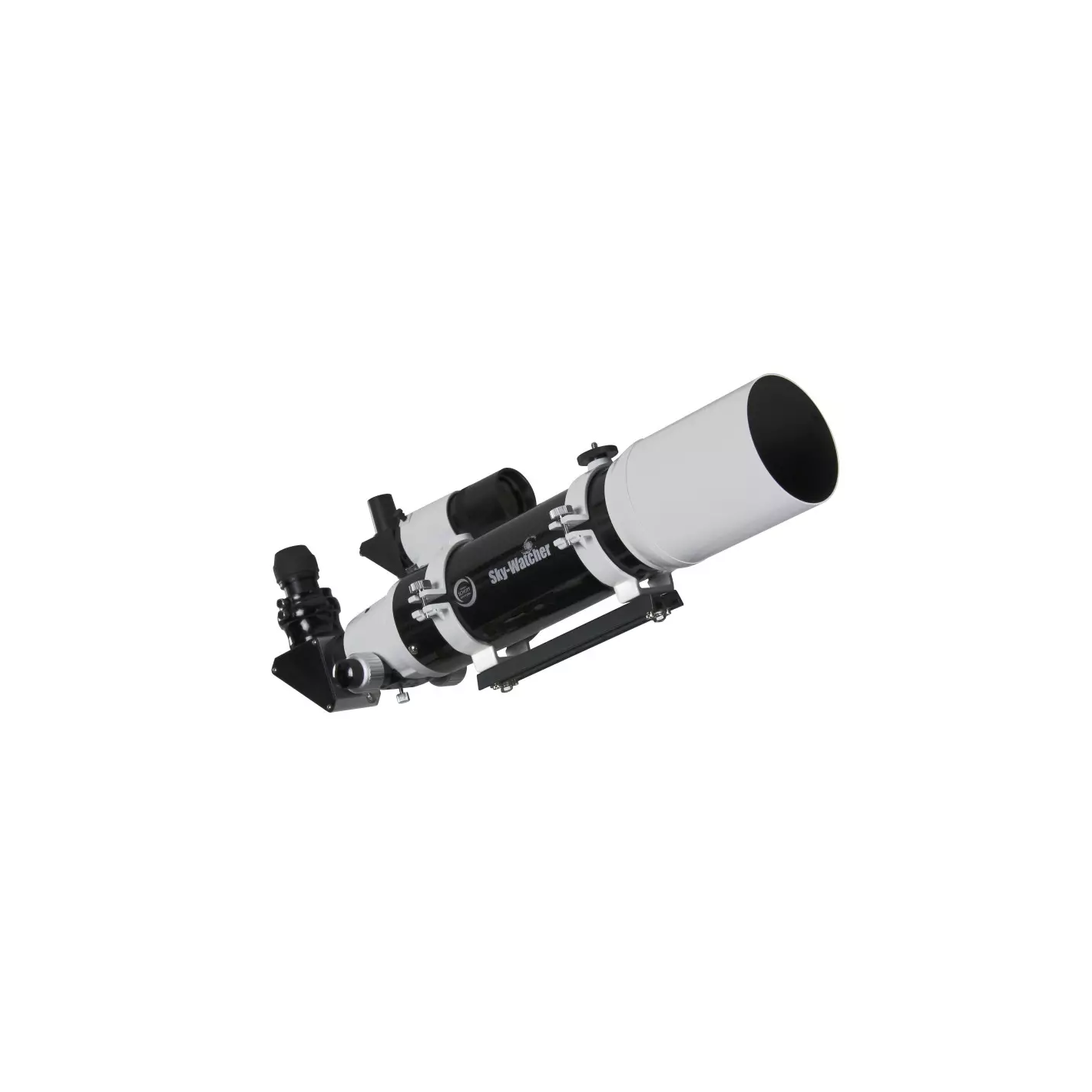

The apochromatic ED refracting tubes of the BLACK DIAMOND series from SKYWATCHER represent a range of astronomical refracting telescopes with a well-corrected field and a highly corrected chromatic aberration. Their low dispersion ED optics allow light to refract through the lens so that the light beam does not scatter much (does not open up) and therefore the image definition is greatly increased. SKYWATCHER BLACK DIAMOND refractors are constructed with a two-element air-spaced objective lens. The second lens element is constructed with the high quality fluorized glass FPL-53 (O'HARA version).
The ED optics of the BLACK DIAMOND refractor telescopes are made of SCHOTT glass. This combines the efforts of two market leaders, Synta as a manufacturer of astronomical telescopes and SCHOTT as the world's leading manufacturer of the highest quality optical glass.

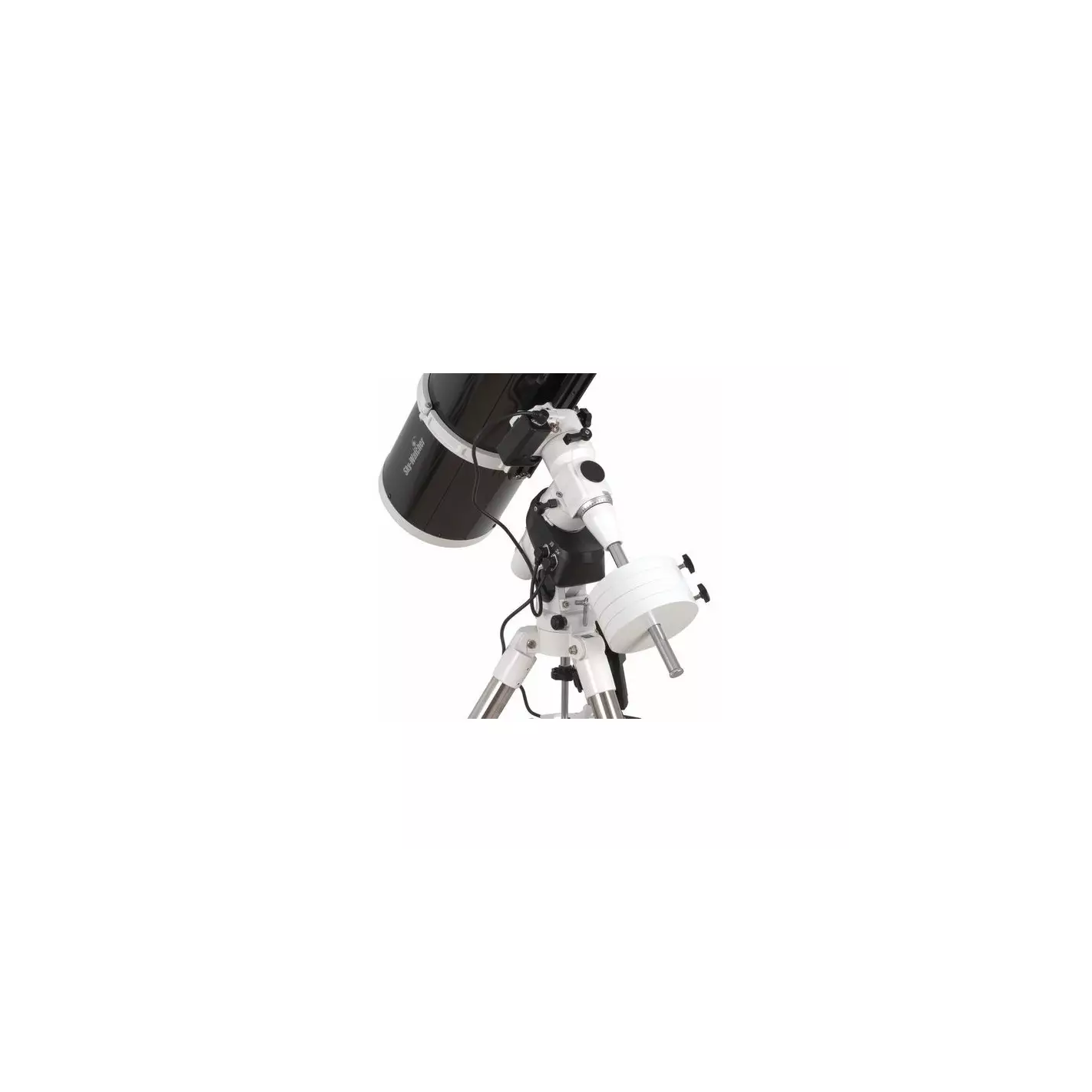

SkyWatcher offers a simple solution for users who would like to be able to attach their small telescope to a computerized mount without having to carry the weight of a HEQ5 or NEQ6 mount. The NEQ5 Pro mount uses the same GOTO system as the HEQ5 and NEQ6 PRO mounts, the SynScan system. It allows you to locate a specific object and even lets you travel from one object to another along a Tour by simply pressing a button.
Key features:
- Targeting accuracy of up to 1 arcminute. Enhanced accuracy through collimation error compensation software.
- Stepper motors with a step angle of 1.8º and 32 teeth.
- GOTO speed up to 3.4º/second (at 800x).
- Guiding speed selectable between 0.25x, 0.5x, 0.75x and 1x.
- Object database including complete Messier, NGC and IC catalogs.
- Periodic error correction.
- PC compatibility
- Upgradable control unit via firmware download over the internet.
The SKYWATCHER telescopes supplied with a German equatorial mount with integrated SynScan system are high quality observing platforms with well thought-out mechanics and electronics.
The main features of the GOTO systems are summarized below:
PC operation:

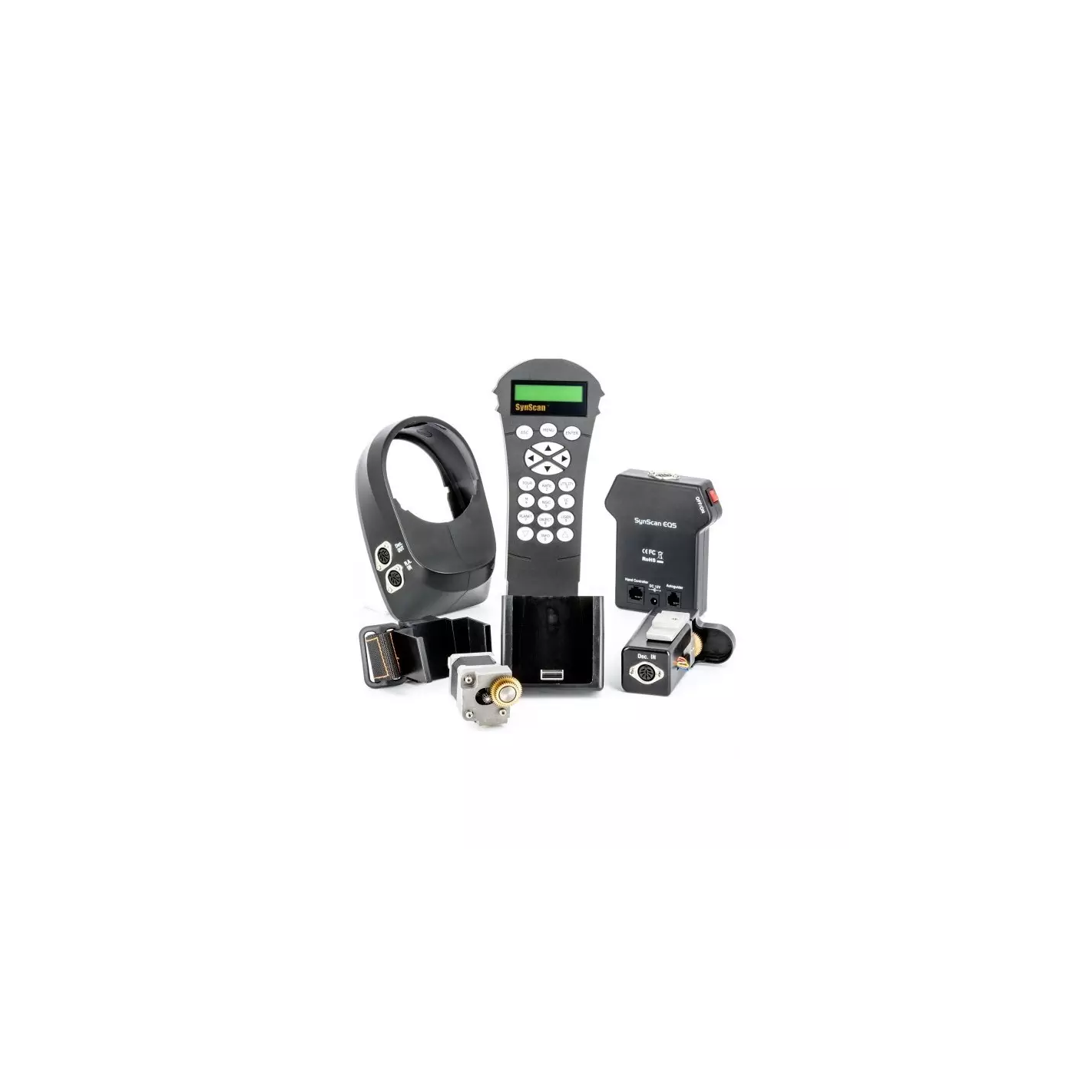

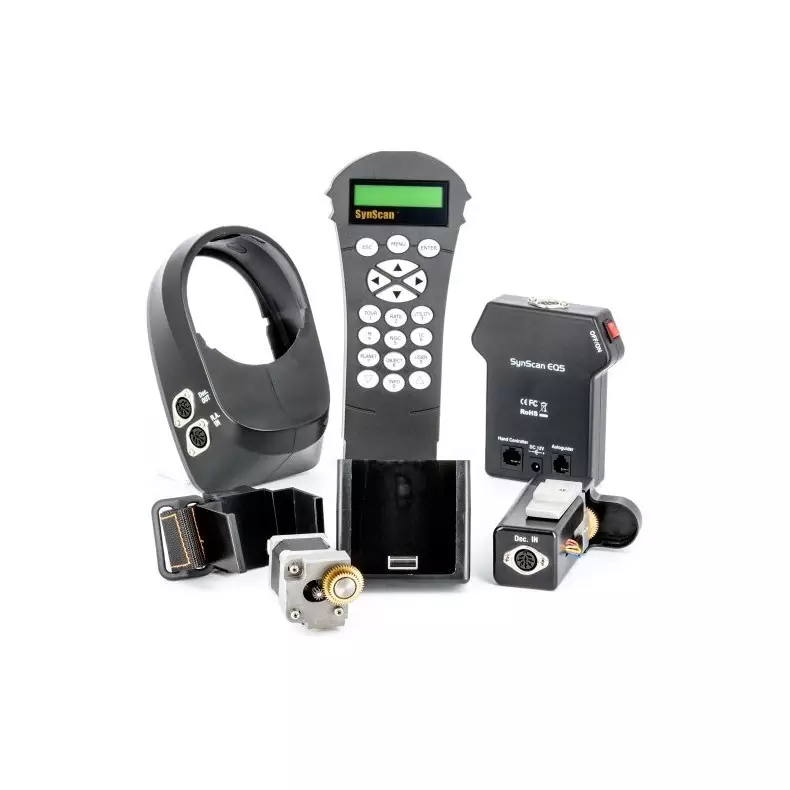

SKYWATCHER SynScan mounts include the revolutionary SynScan Computer Controller as standard. Locating an astronomical object has never been so easy and fun. The telescope responds immediately to keystrokes on the controller, executing the indicated operations. The SynScan series telescopes can also be remotely controlled from a PC using any Planetary software (Cartes du Ciel, The Sky, etc) and via RS-232 connection to the control knob. There is even the possibility to optionally purchase a GPS to facilitate the most accurate entry of time, date and location. The SynScan firmware can be upgraded via internet with a specific and free software.
Motors, crowns and bearings:
The SKYWATCHER mounts of the SynScan series use DC stepper motors with high Torque capacity and micro-stepping control technology for maximum accuracy. Bronze crown and worm gear system for precision mechanical incremental movement to minimize gear backlash.
Speeds and tracking modes
The versatility of the SynScan system allows various search and tracking speeds to be selected. The tracking modes are: Lunar, Solar and Sidereal. The mount is compatible with use in both the Northern and Southern hemispheres.
Database
The SynScan computer includes a database of more than 40,000 objects in memory. The library includes objects for advanced studies, following the existing catalog system: NGC, IC, Caldwell, Messier and other lists plus 25 user-definable objects (comets, asteroids, etc).
Astrophotography
Astrophotography enthusiasts will greatly appreciate the presence of the AUTO-GUIDER port that allows autoguider functions to be performed through a PC. The SynScan firmware includes the SynScangramming algorithm for periodic error correction (this error is natural and inherent to all corona-bisenfin systems). In addition, this algorithm can be complemented with the Backlash compensation function (technical term to describe gear backlash) for both AR and DEC. In this way it is possible to have uniform GOTO's and tracking.

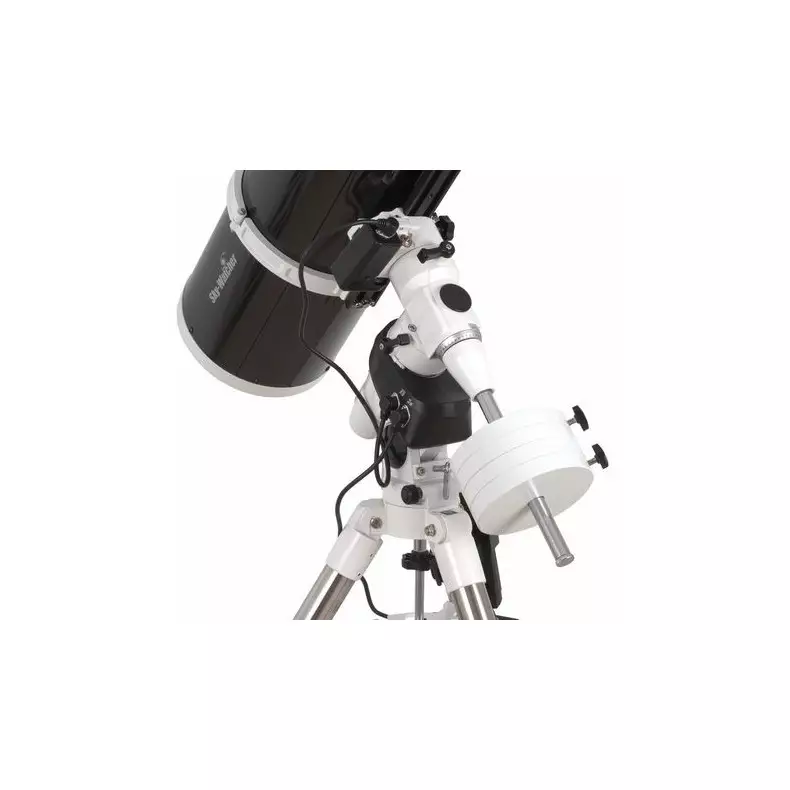

Technical Specifications mount:
- Mount type: manual German Equatorial German Equatorial
- Dovetail mount: Dovetail 1.75"
- Motion Control: AR and DEC Axes
- Control Knob: EQ SynScan
- Piggyback Bracket
- Accessory Tray: Yes
- Load capacity: 9.1Kg
- Motors: Stepper motors
- Mount weight: 5.71Kg
- Mount weight with tripod: 10.41Kg
- Counterweights: 2 x 5.1Kg
- Tripod: stainless steel tripod with adjustable height 750-1270mm

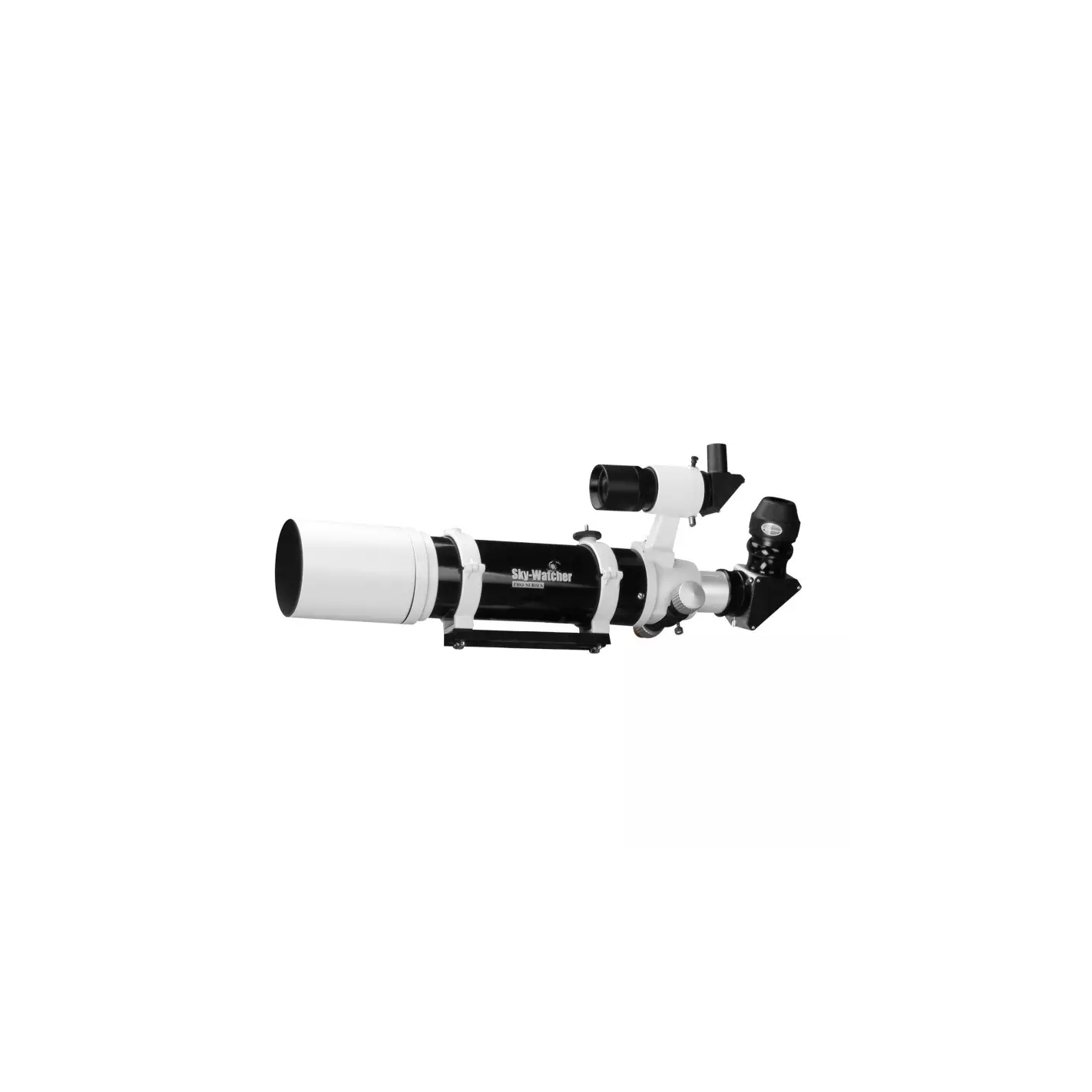

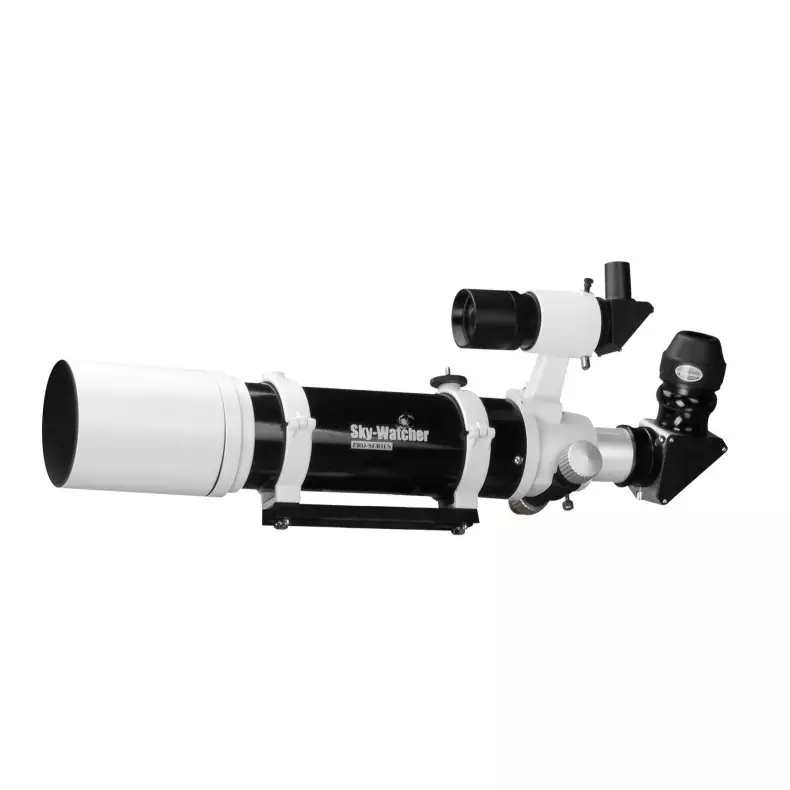

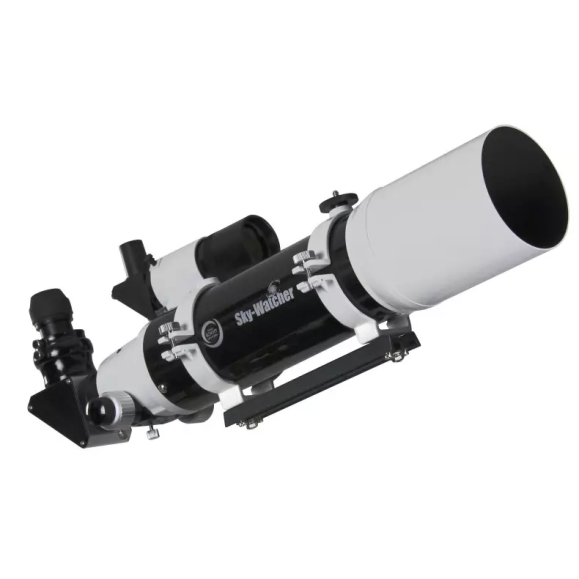

Technical Specifications tube:
- Optical Design: Apochromatic Refractor
- Diameter: 80mm
- Focal length: 600mm
- Focal ratio: f/7.5
- Maximum recommended magnification: 160x
- Stellar magnitude limit: 11.6
- Resolution power: 1.5 arcseconds
- Eyepiece holder: 2" (with adapter to 1.25")
- DS DUAL SPEED precision focuser.
- Tube dimensions: 116 x 580mm
- Weight: 3.21Kg
- Eyepieces: 28mm (2")
- Prism: Diagonal 2" with adapter to 1.25"
- Finder: 9X50mm

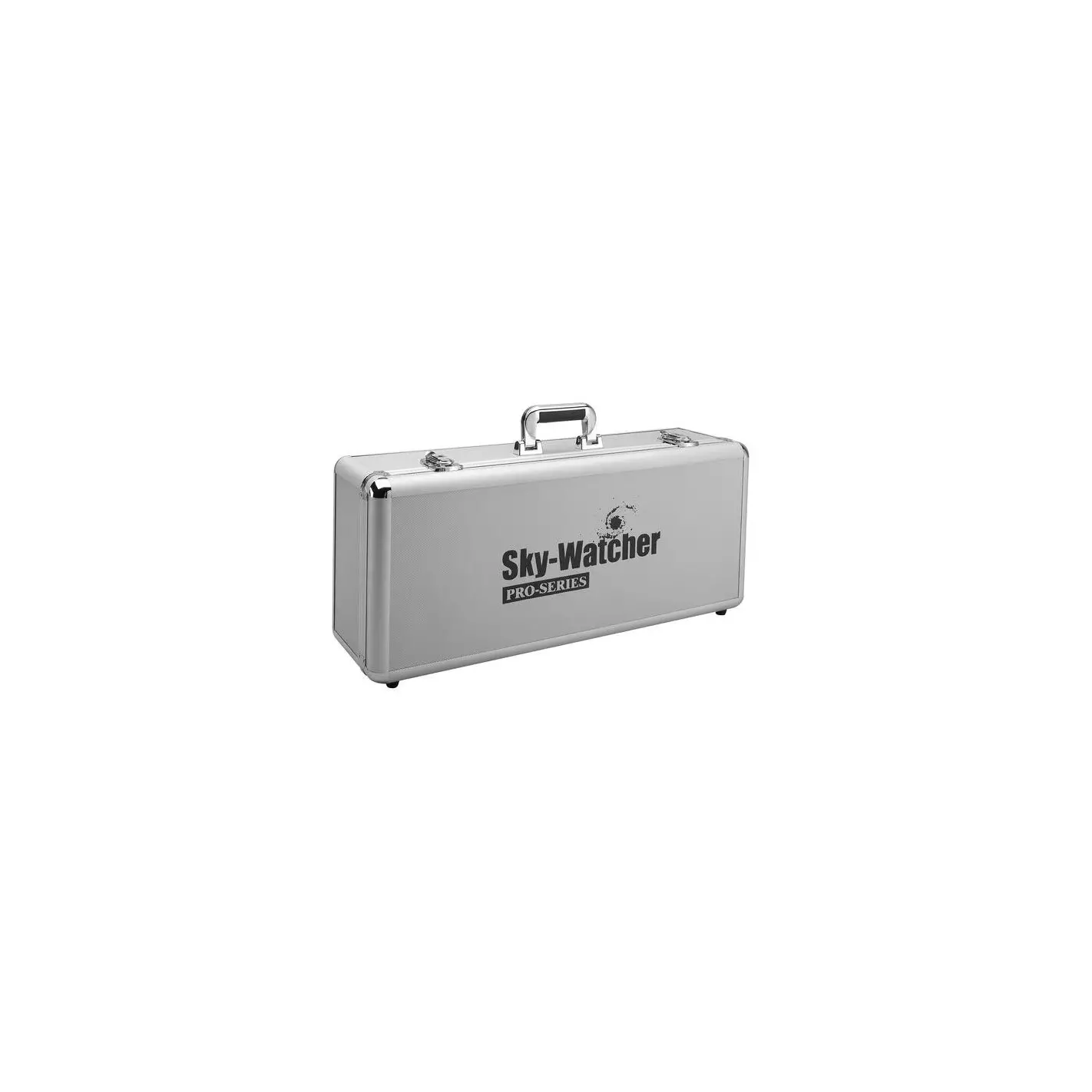

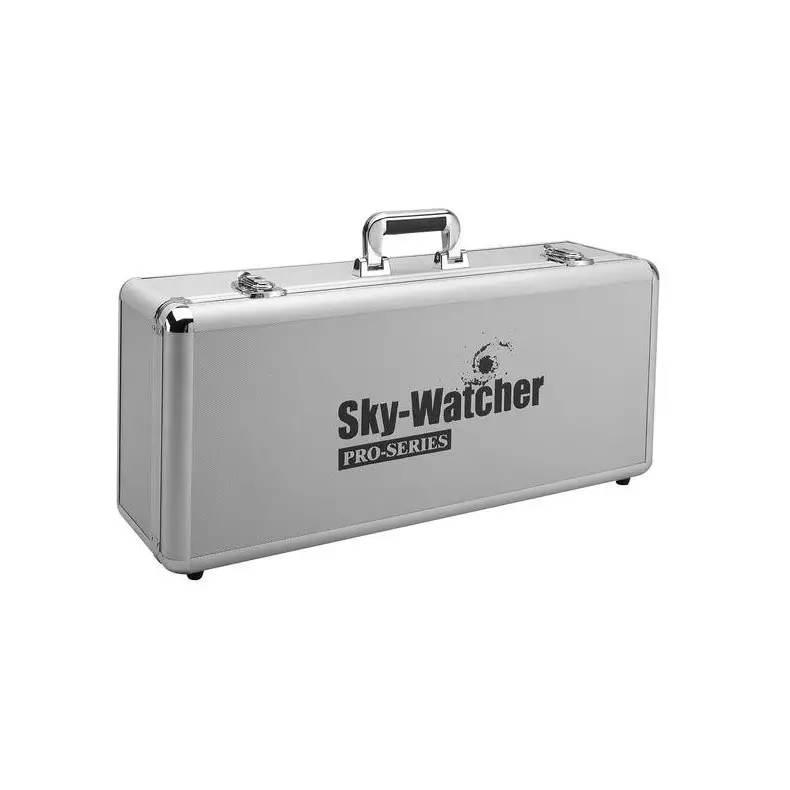

- Included: Carrying case
COURSE OFFER DETAIL:
With this course you will be able to make the most of the initiation in this exciting hobby, astronomy and you will also be able to get the most out of your Goto telescope so that the observations are the most enriching and you can observe and get to know the maximum number of celestial objects.
You will learn the following concepts:
-
Basic concepts in Astronomy, know the sky, objects and movements.
-
Main objects that can be observed
-
Know all the parts of the telescope
-
How to increase the performance of the telescope with accessories
-
Align the telescope and look for the first objects
-
Collimation and optical testing of your equipment
-
How to organize an observing night
-
How to take my first astrophotographs
-
Get to know books, sky chart applications and apps
This course will be personalized for all attendees and will be conducted via zoom or in person at our headquarters in Girona with the possibility of making all the necessary consultations to expand the knowledge acquired, these courses are done with a certain frequency in time where we offer different dates so you can adapt to the one that best suits your needs, we will inform you in advance of the calendar to make the reservation.
The people who teach the course are experts in astronomy with more than 30 years of experience using astronomy equipment and performing outreach activities where they can share with you their experiences with their equipment and the night skies.
ALL THE TRAINING THAT WE OFFER IS GIVEN LIVE BY www.astroxperiences.com WITHOUT ANY MEANS OF RECORDING WHERE YOU WILL BE ABLE TO INTERACT WITH THE EXPERT TO SOLVE YOUR DOUBTS
- Duration 2,5h
- Via zoom or live in person at our store in Girona
- It is recommended that you have your own equipment to start practicing
- You can extend this training with field observation practices (not included in this course)
