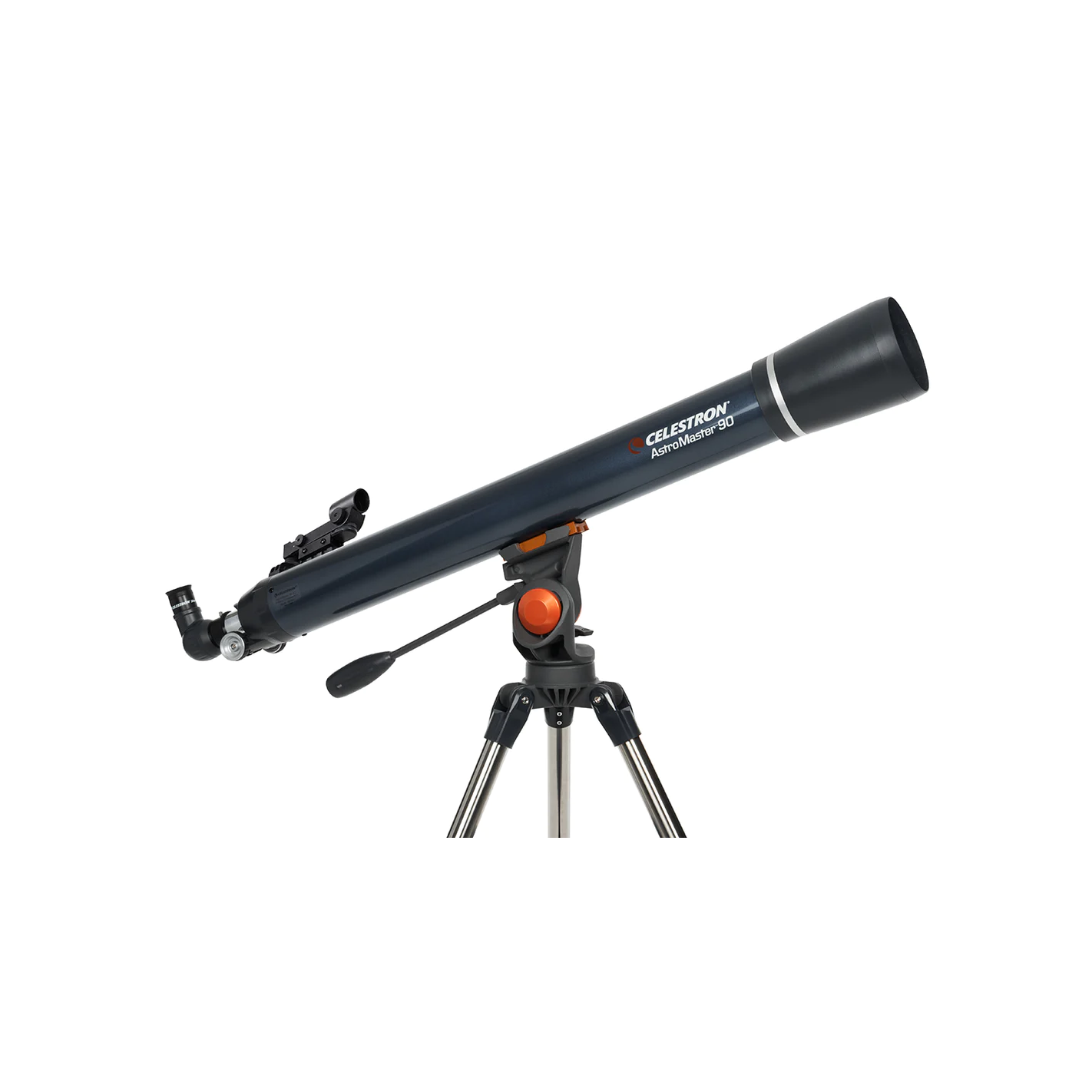

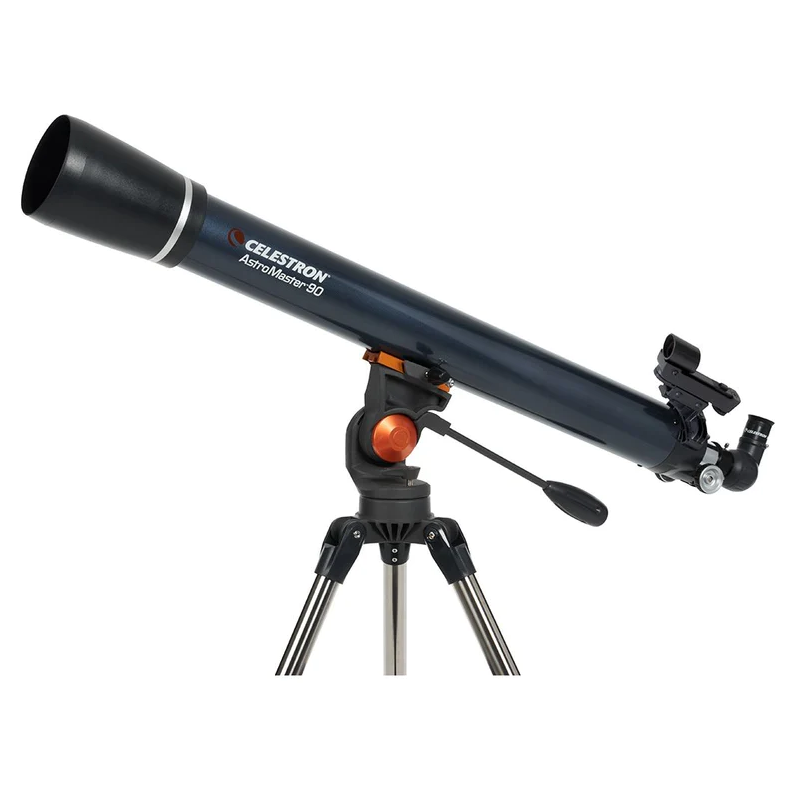

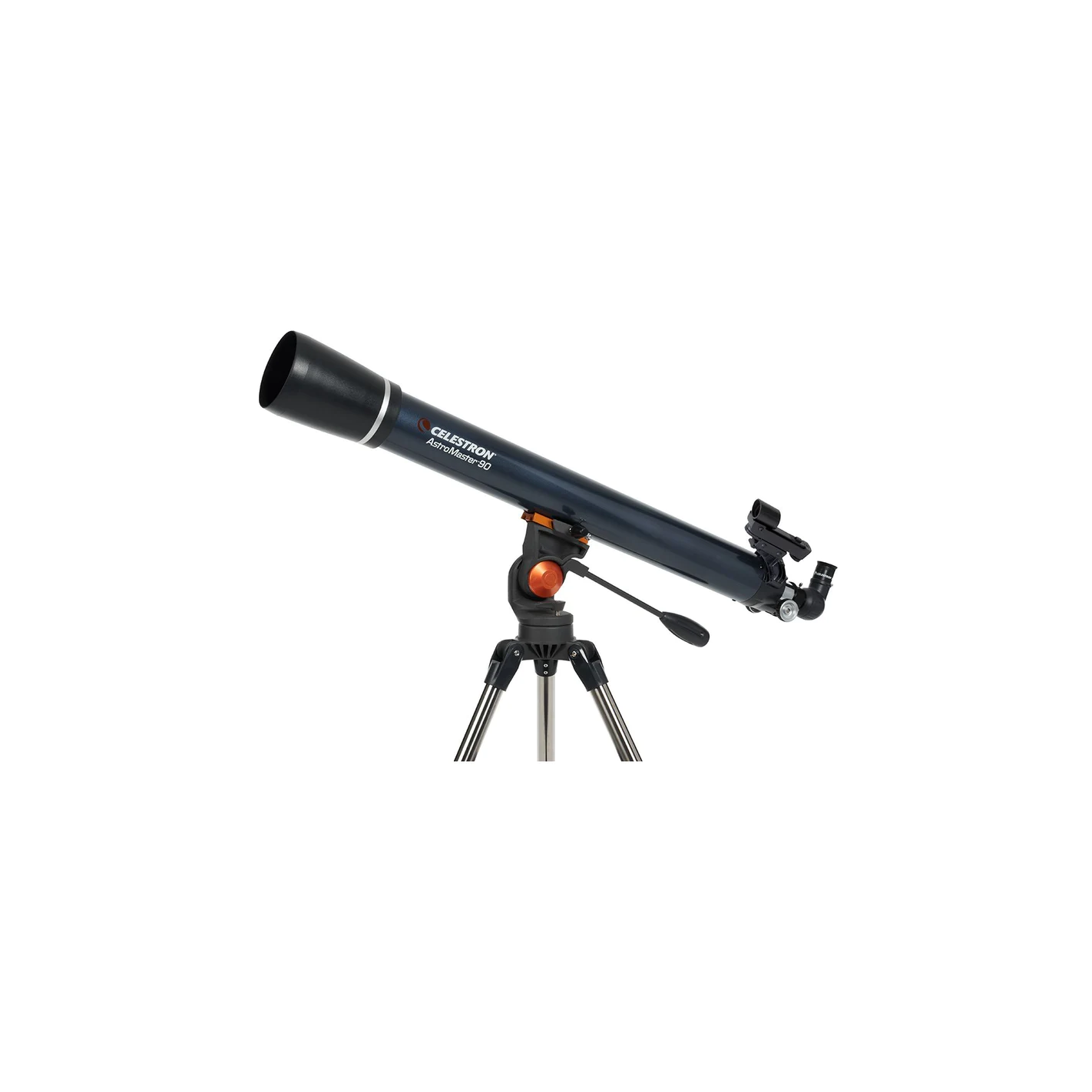

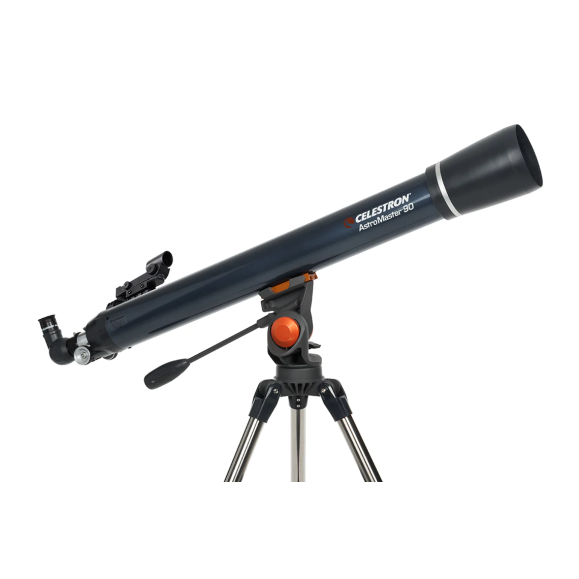

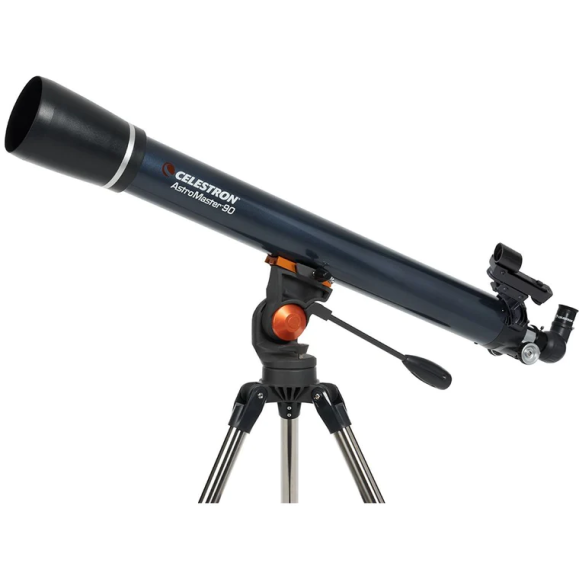

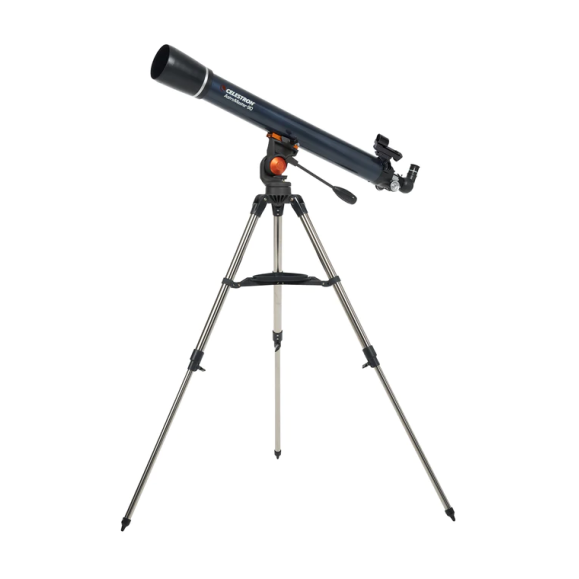

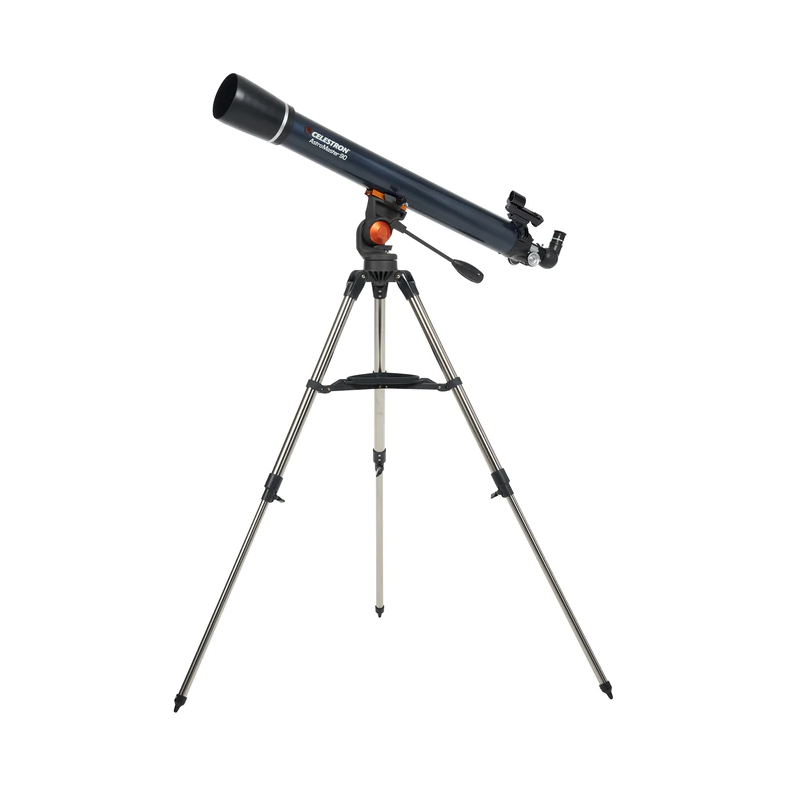

The 90AZ provides bright, clear images of the Moon, planets, star clusters and more for great nighttime observing.
Manual Altazimuth Telescope

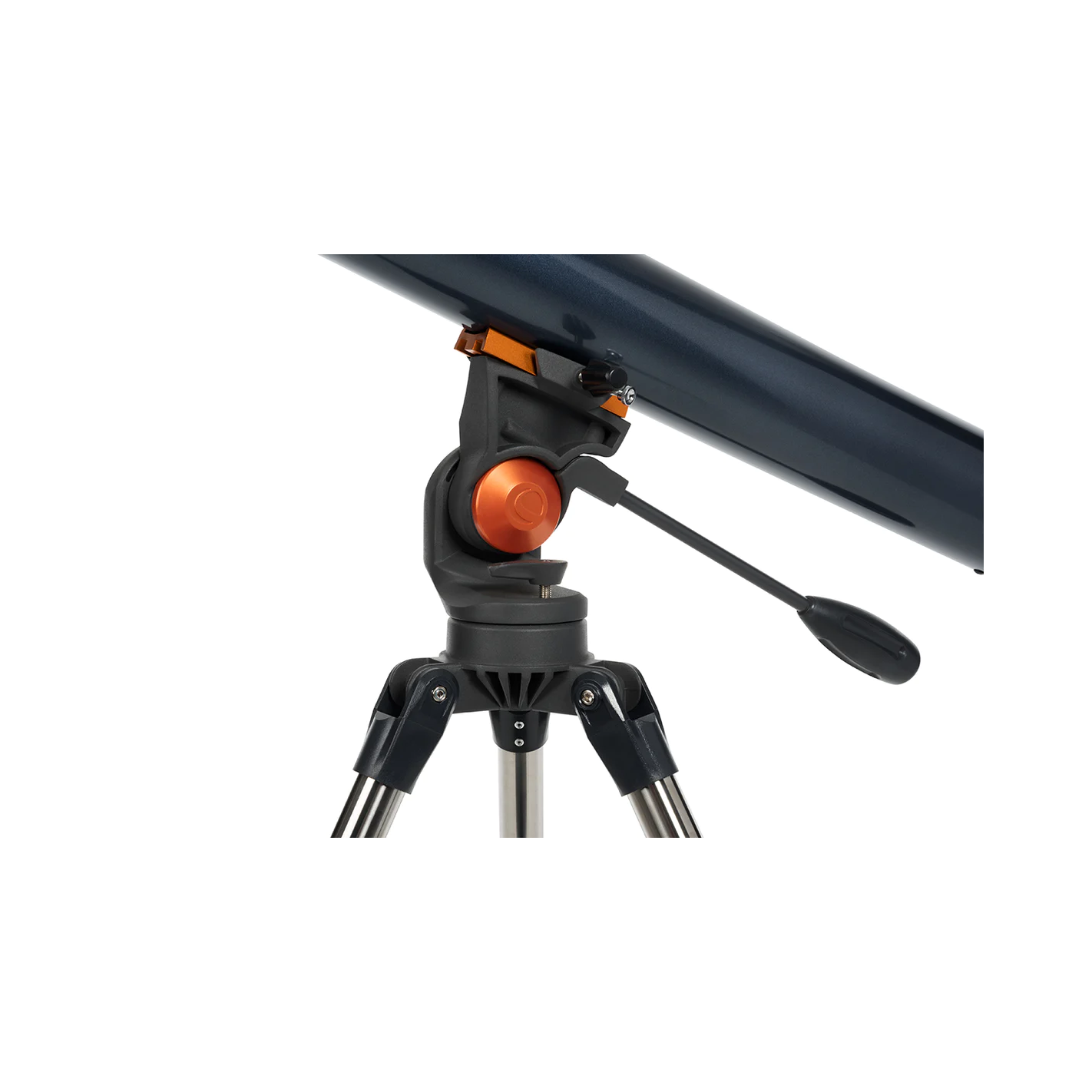

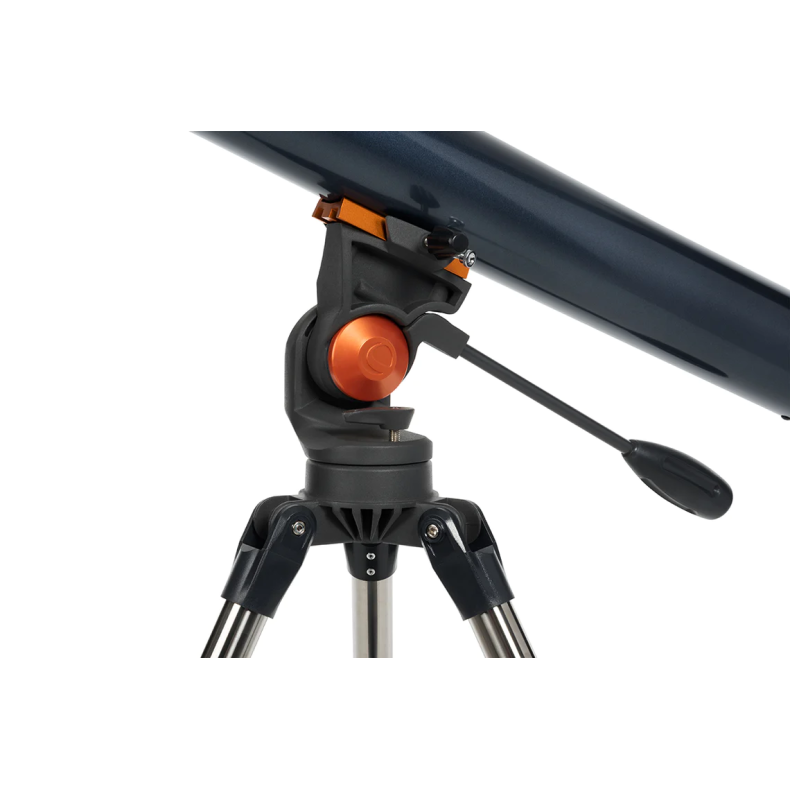

Navigate the sky with a manual Alt-Az control with clutch for smooth, precise pointing. Move the clutch up/down, left/right to follow your object in the eyepiece.
Included Accessories

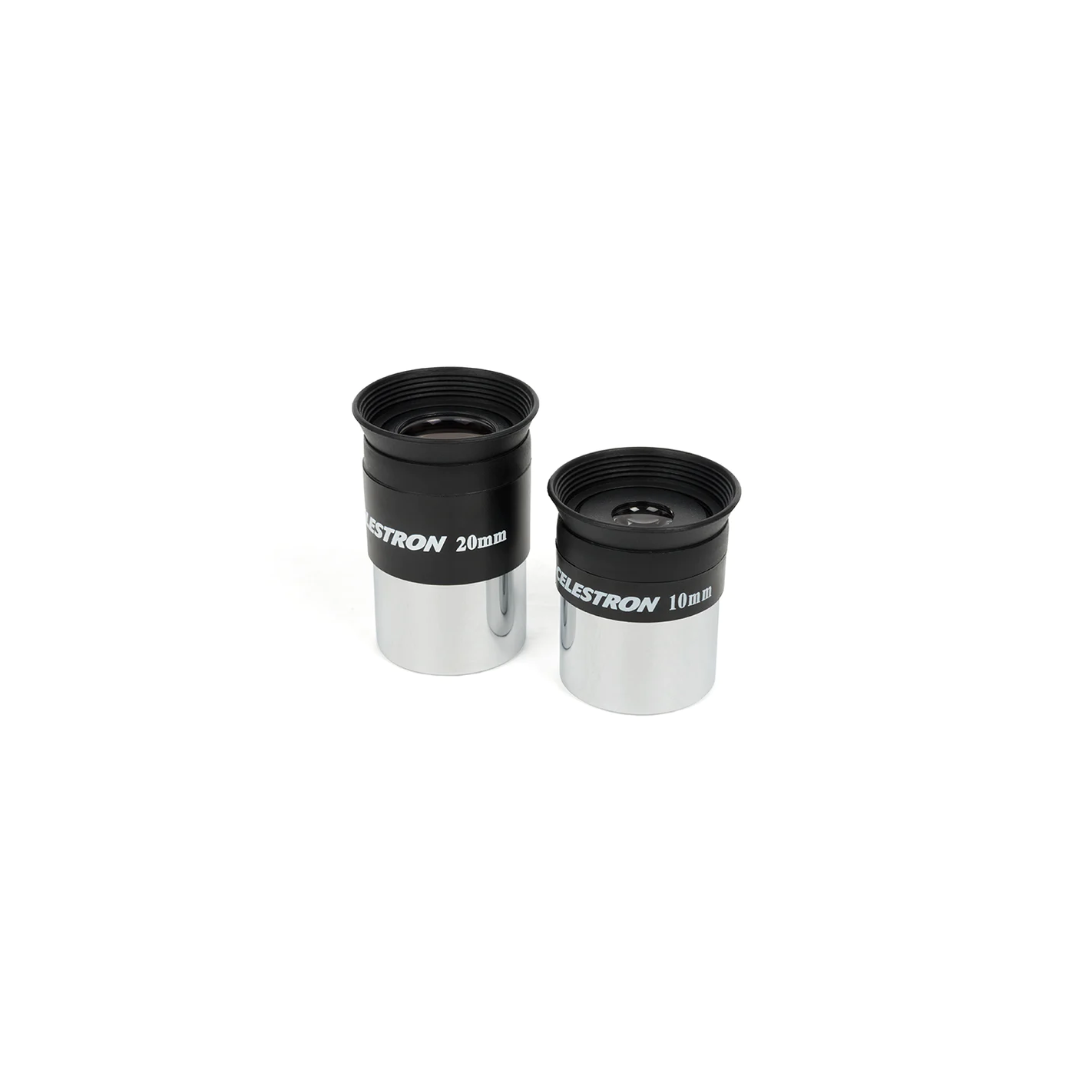

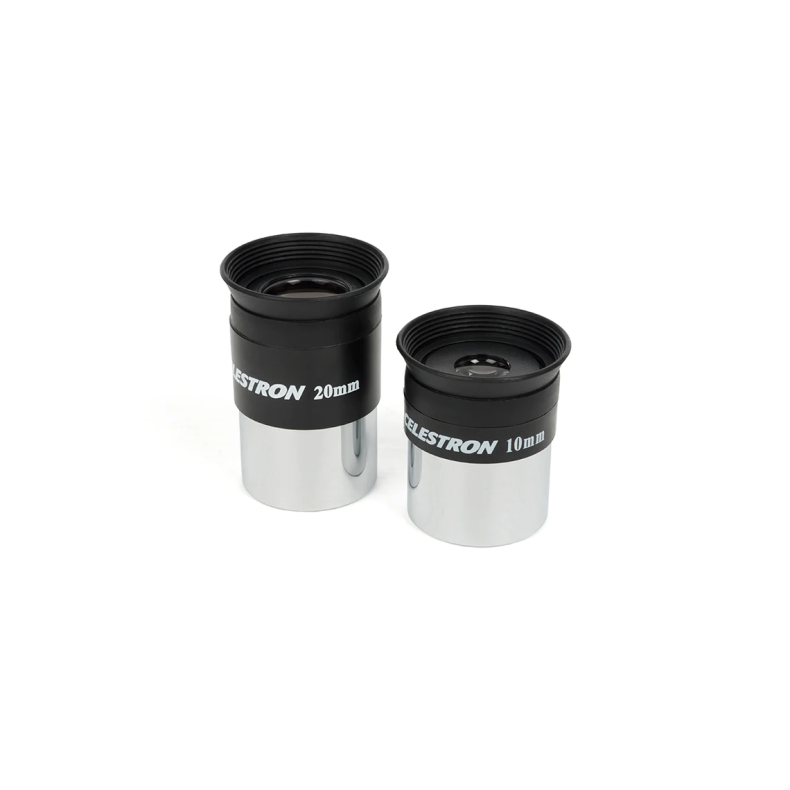

Accessories include a 20mm and a 10mm eyepiece, an erect image diagonal and a Starpointer finder. The two eyepieces offer different magnifications for low and high power views.
Starry Night Software
Download Starry Night Software from Celestron and learn about the night sky, celestial objects, and how to plan your next observing session. Celestron Starry Night Software is the premier astronomy software package on the market, providing resources and knowledge for viewing our solar system and beyond.
Features:
- 90mm refracting telescope with fully coated glass optics and lightweight mount.
- Observe in the blink of an eye with quick and easy, tool-free assembly.
- Accessories include: two eyepieces (20 mm and 10 mm), erect image star diagonal and a finder.
- Alt-Az control with clutch for smooth and precise aiming.

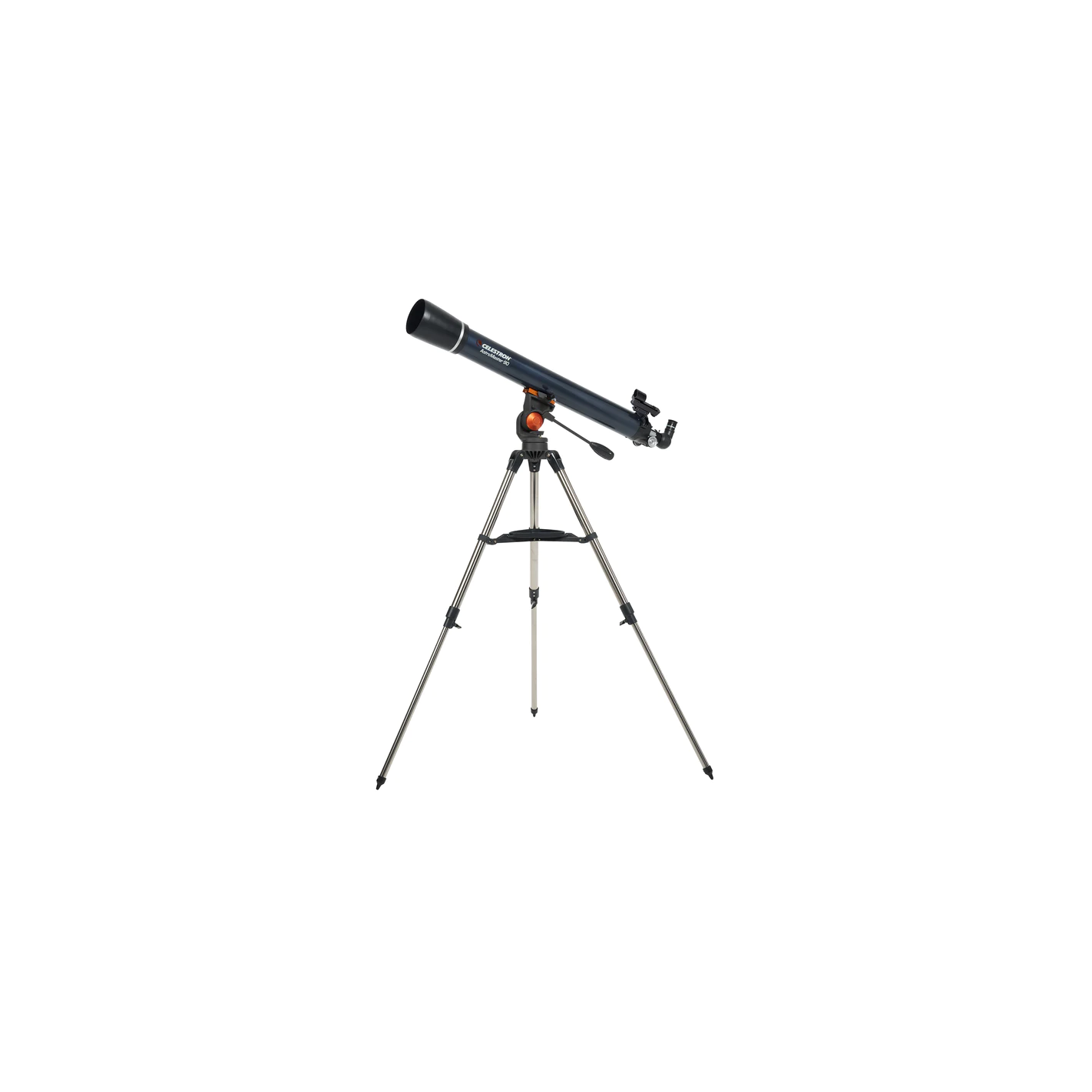

- Adjustable height tripod
- Download Starry Night Basic software with a database of 36,000 objects, printable sky maps and enhanced images including 3D renderings of stars, exoplanets and galaxies.
Specifications:
Optical design: Refractor
Aperture: 90 mm (3.54")
Focal length: 1000 mm (39")
Focal ratio: f/11
Eyepiece focal length 1: 20mm (.8")
Eyepiece magnification 1: 50x
Eyepiece focal length 2: 10 mm (.4")
Eyepiece magnification 2: 100x
Barlow lens: Not included
Viewfinder: StarPointer Red Dot Finder
Star Diagonal: Straight Image Diagonal - 1.25
Optical Tube: Aluminum
Maximum useful magnification: 213x
Minimum useful magnification: 13x
Limiting stellar magnitude: 12.3
Resolution (Rayleigh): 1.55 arcseconds
Resolution (Dawes): 1.29 arc seconds
Light gathering power (Compared to the human eye): 165x
Optical Coatings: Fully Coated
Optical tube length: 770 mm (30.3")
Optical tube diameter: 90 mm (3.54")
Optical tube weight: 2 kg (4.4 lb)
Dovetail: CG-5 dovetail
Mounting information:
Mount Type: Manual Altazimuth
Height adjustment range (includes mount and tripod): 812.8mm - 1295.4mm (32" - 51")
Tripod leg diameter: 31.75mm (1.25") steel
Accessory tray: Yes
Tripod weight: 3.6 kg (7.9 lbs) including mount weight
Swivel Speeds: Manual
Dovetail compatibility: CG-5 Mount Plate
Software: Celestron Starry Night Basic Edition Software and SkyPortal App
Total kit weight: 12.3 lbs (5.58kg)
Items included:
Optical tube
Tripod and mount (pre-assembled)
20mm and 10mm eyepieces
Red dot viewfinder
90° diagonal straight image
Manual
Sun Warning
Never look directly at the sun with the naked eye or with an optic (unless you have the proper sunscreen). Permanent and irreversible eye damage may result.
Never use the optics to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories connected to it.
Never leave the optics unattended. Ensure that an adult familiar with proper operating procedures is with your optic at all times, especially when children are present.
