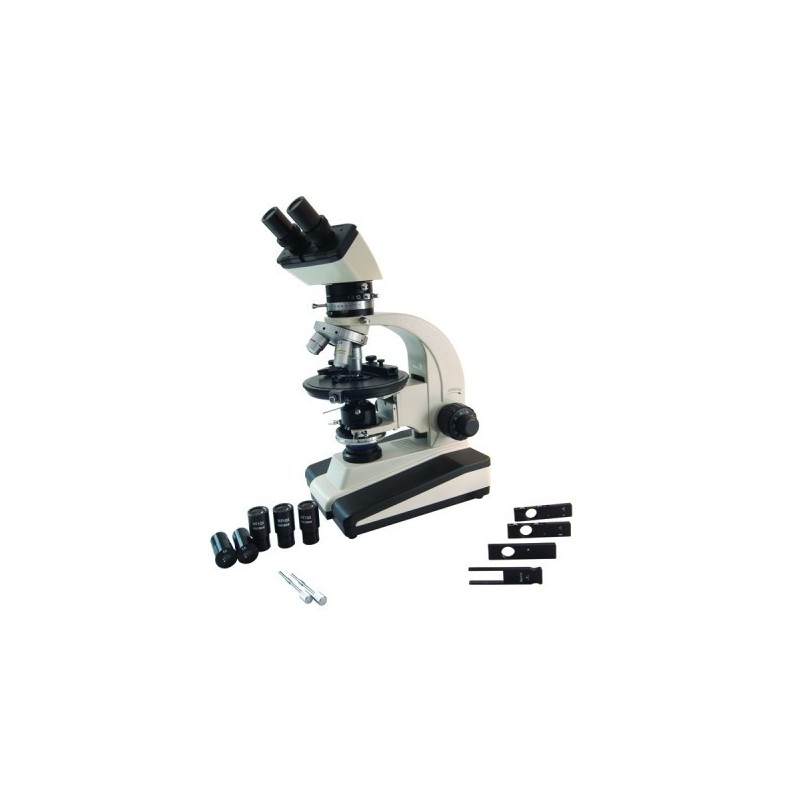

Trinocular polarizing microscope BMS E1-223 POL SP

Trinocular polarizing microscope BMS E1-223 POL SP.

This triocular polarizing microscope is ideal for geology, petrology, mineralogy and medicine.

Technical specifications:

• • • • • Eyepieces: 10x / 18mm WF with built-in cross line reticle.
        • Trinocular head: with an interpupillary distance range 55mm to 75mm, integrated Bertrand lens and analyzer, all of which can be removed from the optical path, allowing brightfield and polarization uses.
        • Stage: The fully rotatable stage has a diameter of 160 mm, ball bearing movement, removable clips, adjustable screw stop and graduation markings.
        • Objectives: DIN Semi Flat 4x, 10x, 20x and 40x with 40x, 100x, 200x and 400x magnification
        • Condenser: Abbe 1.25 NA with iris and rotating filter holder (including blue filter), controllable by rack and pinion movement.
        • Focusing mechanism: coaxial coarse and fine adjustment with steel inner gears for precise focusing movements.
        • Illumination: built-in 6v 30w universal power supply, variable halogen light source.
        • Objectives and condenser are centerable to ensure correct polarized viewing.

Included with the microscope is a quartz wedge compensator, 1/4 wavelength mica compensator, single wavelength gypsum compensator.

This model is supplied with a five-year warranty and a one-year extended warranty for a total of six years.

Trinocular polarizing microscope BMS E1-223 POL SP.
