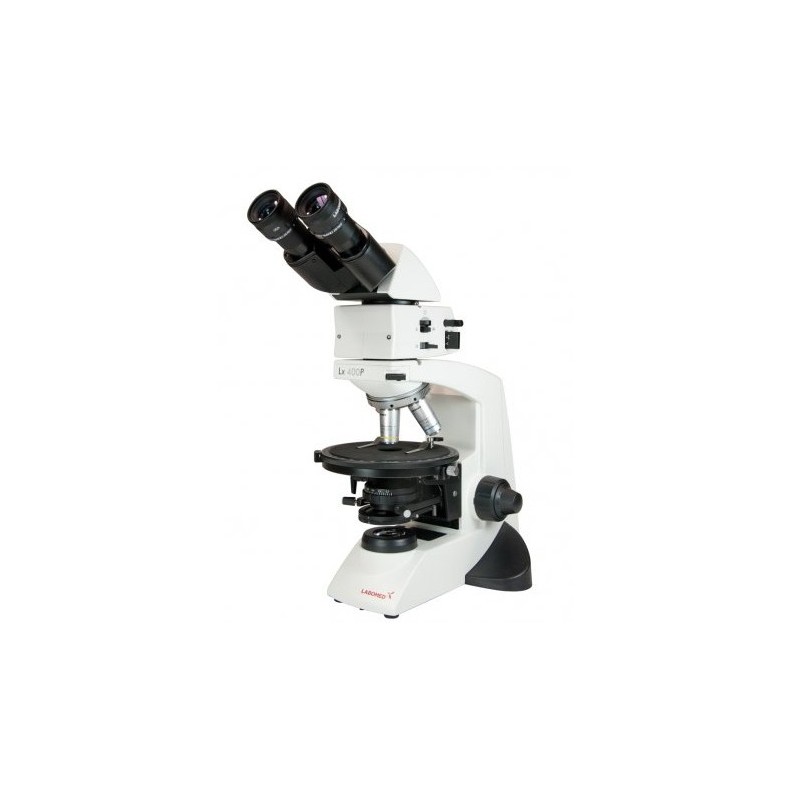

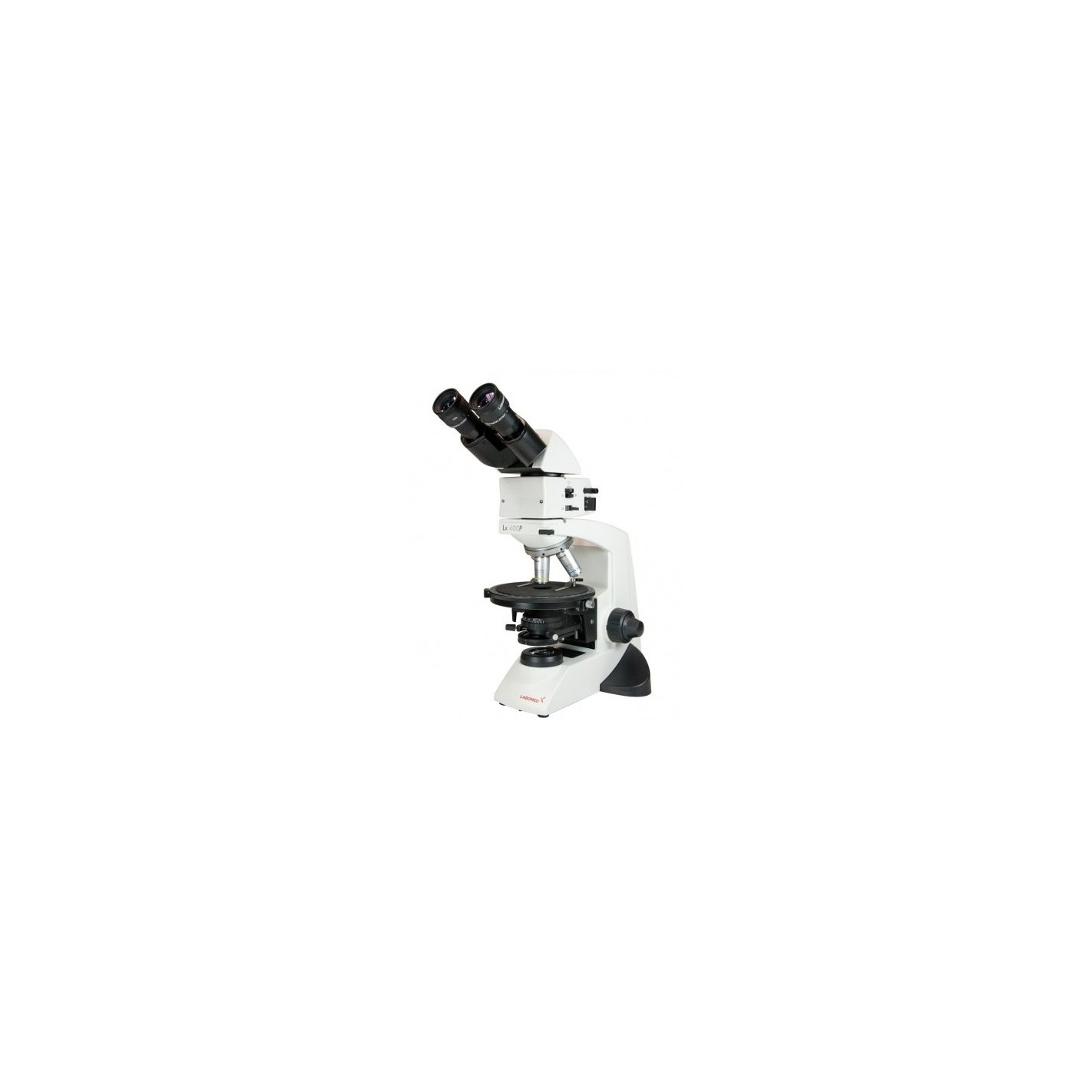

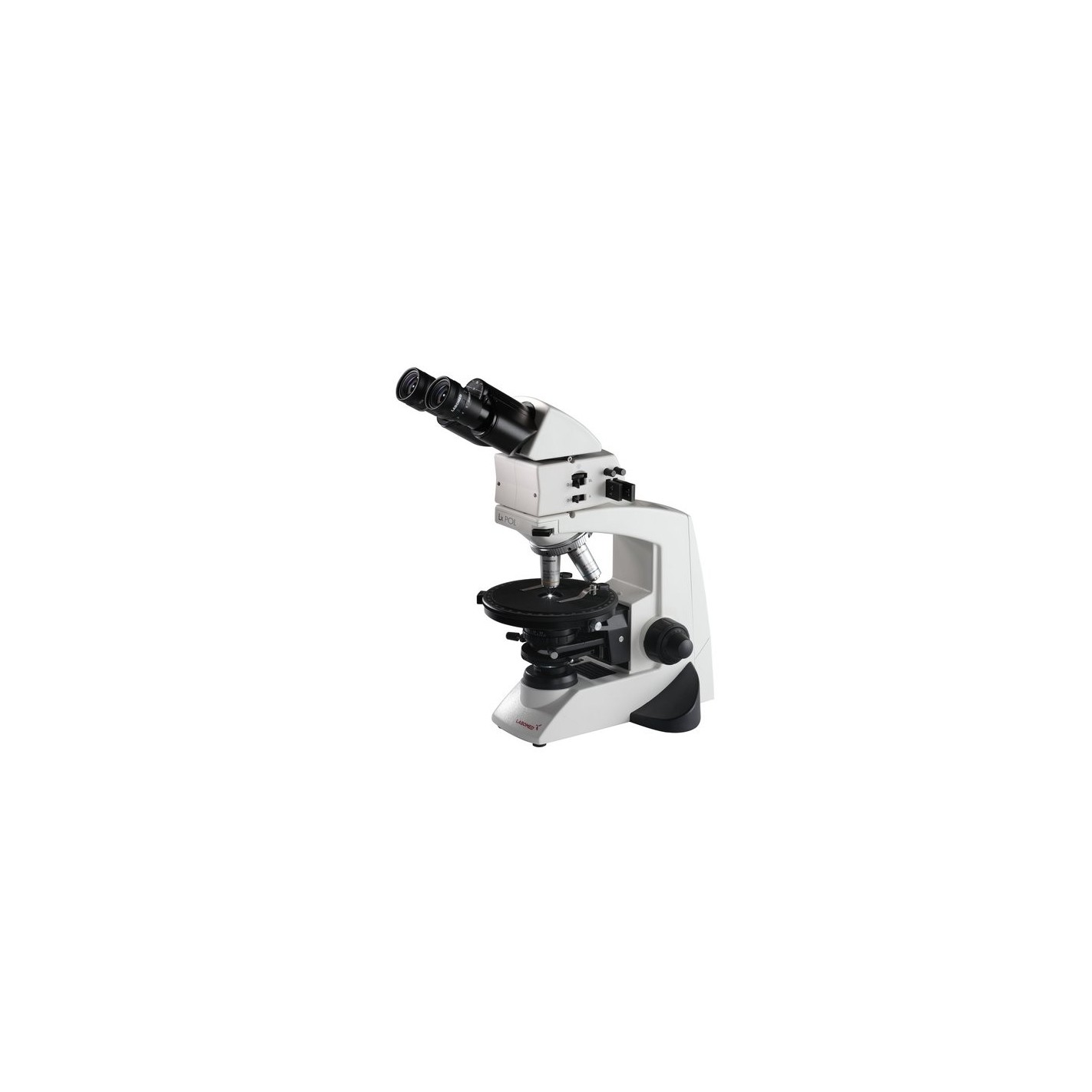

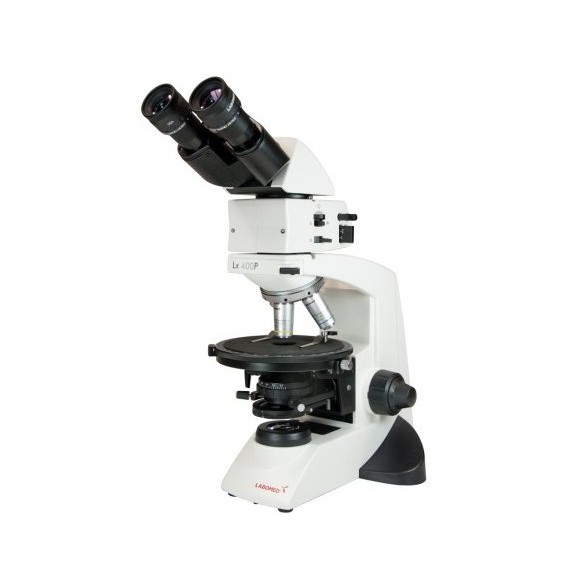

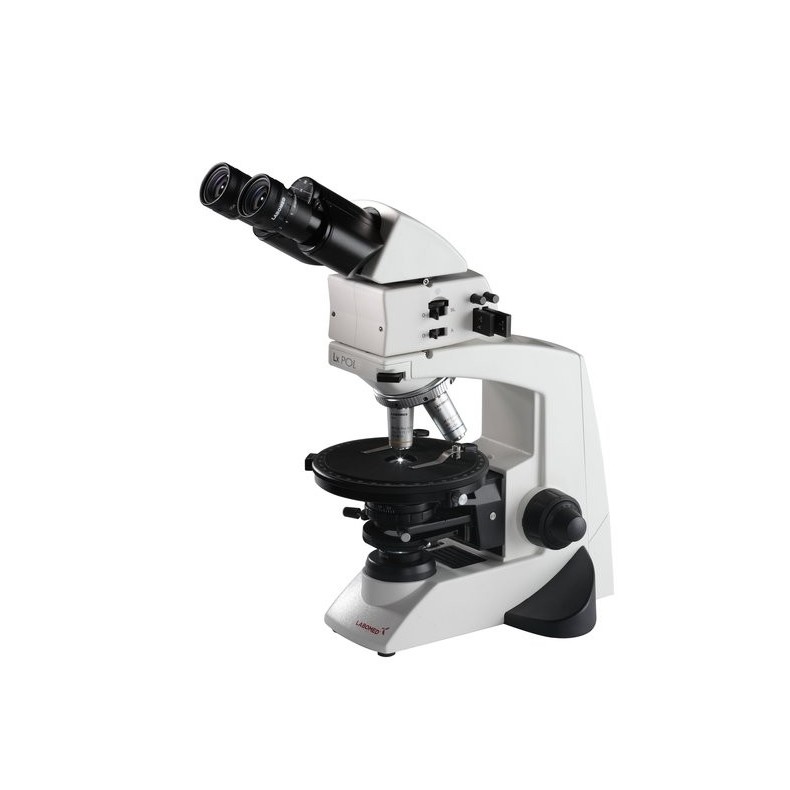

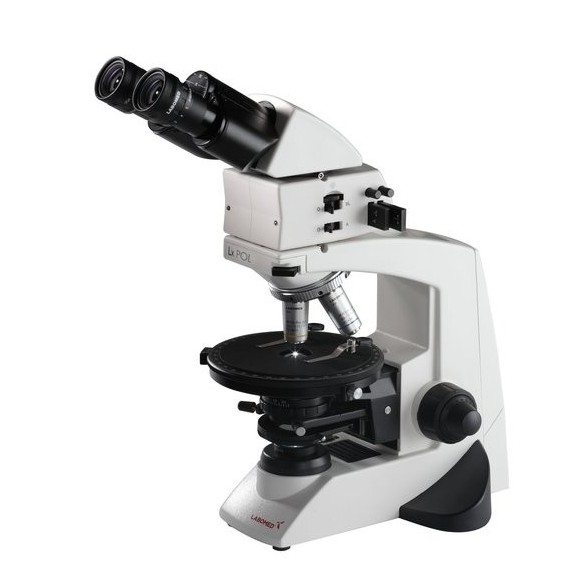

Binocular Polarizing Microscope LABOMED LX-400 POL

Binocular Polarizing Microscope LABOMED LX-400 POL

From the most basic to the most complex laboratory applications, the Lx 400 stands out as a truly modular system. With an infinity-corrected achromatic plan optics system, users will enjoy sharp images with excellent color fidelity and high precision image reproduction for a broad spectrum of specimens.

Equal attention is paid to the quality of the mechanical components of this system, resulting in solid performance over the lifetime of your microscope. With the cost-effective synergy of the beauty and brains of the LX series, a balanced microscope no longer has to be something reserved for the financially privileged.

Infinity-corrected plano-achromatic objectives and extra-widefield eyepieces deliver brilliant images with pristine color fidelity and excellent contrast. The system allows for the introduction of accessories into the optical path without loss of performance. Low-power LED or high-efficiency halogen light source options are available. Together with well-designed optics, the system provides brilliant images.

Stress-free operation is provided through an extremely ergonomic design with comfortable hand rests and a conveniently located focusing unit.

General features:

• Stand: rugged single-mold stand with anti-rust materials. Extended base for better stability
• Viewing body: Siedentopf trinocular head, inclined 30°, rotatable 360°, interpupillary distance 48 - 75 mm
• Diopter adjustment: 6 diopters
• Eyepiece: 10x/20 mm wide field eyepiece with foldable eyepiece protector, anti-fungus
• Revolver: Reversed angle quadruple revolver (ball bearing type) with click stops and rubber grip
• Polarizer accessory: Bertrand lens, Lamda, Quarter Lamda, quartz wedge and locking polarizer
• Objectives: plan achromatic objectives corrected to infinity and RP series DIN standards: 4x (W.D. 30.0MM), 10x (W.D. 7.00MM), 40x (W.D. 0.65MM), (spring-loaded, oil), anti fungus
• Stage: circular, 360° rotatable, 160 mm diameter graduated vernier scale and spring clips provided
• Condenser: Abbe NA 1.25 secondary stage condenser with aspheric lens*. Iris diaphragm with blue daylight filter. Rack and pinion movements on stainless steel guides
• Focusing: Coaxial coaxial coarse and fine focusing on ball drive system for smooth operation
• Illumination: 6V20W halogen illumination with variable illumination control. Up to 500 hours halogen lamp life
• Electrical: Universal input 100V - 240V AC, 50/60Hz. Built-in voltage stabilizer
• Optional accessories: Zernike phase contrast kit with RP series 10x/20x/40x/40x/100x phase objectives, darkfield kit, Dual View accessory, fluorescence accessory; Video adaptor

Binocular polarization microscope LABOMED LX-400 POL
