PegasusAstro 12V 10A EU XT60 Power Supply (for UPB v2 / V3)

Name: PegasusAstro 12V 10A EU XT60 Power Supply (for UPB v2 / V3)
Brand: Pegasus Astro
SKU: PEG-PSU-XT60
Price: 57.81 EUR
Availability: PreOrder

Reference PEG-PSU-XT60

Stock at Supplier

57.81 60.74 -2.93

VAT excluded Shipping 5/7d

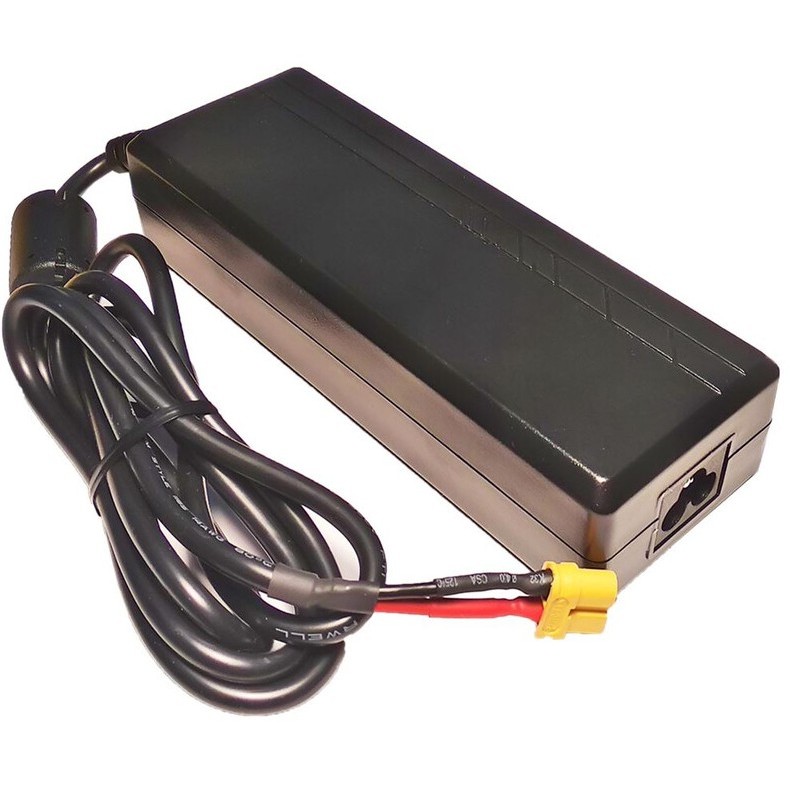

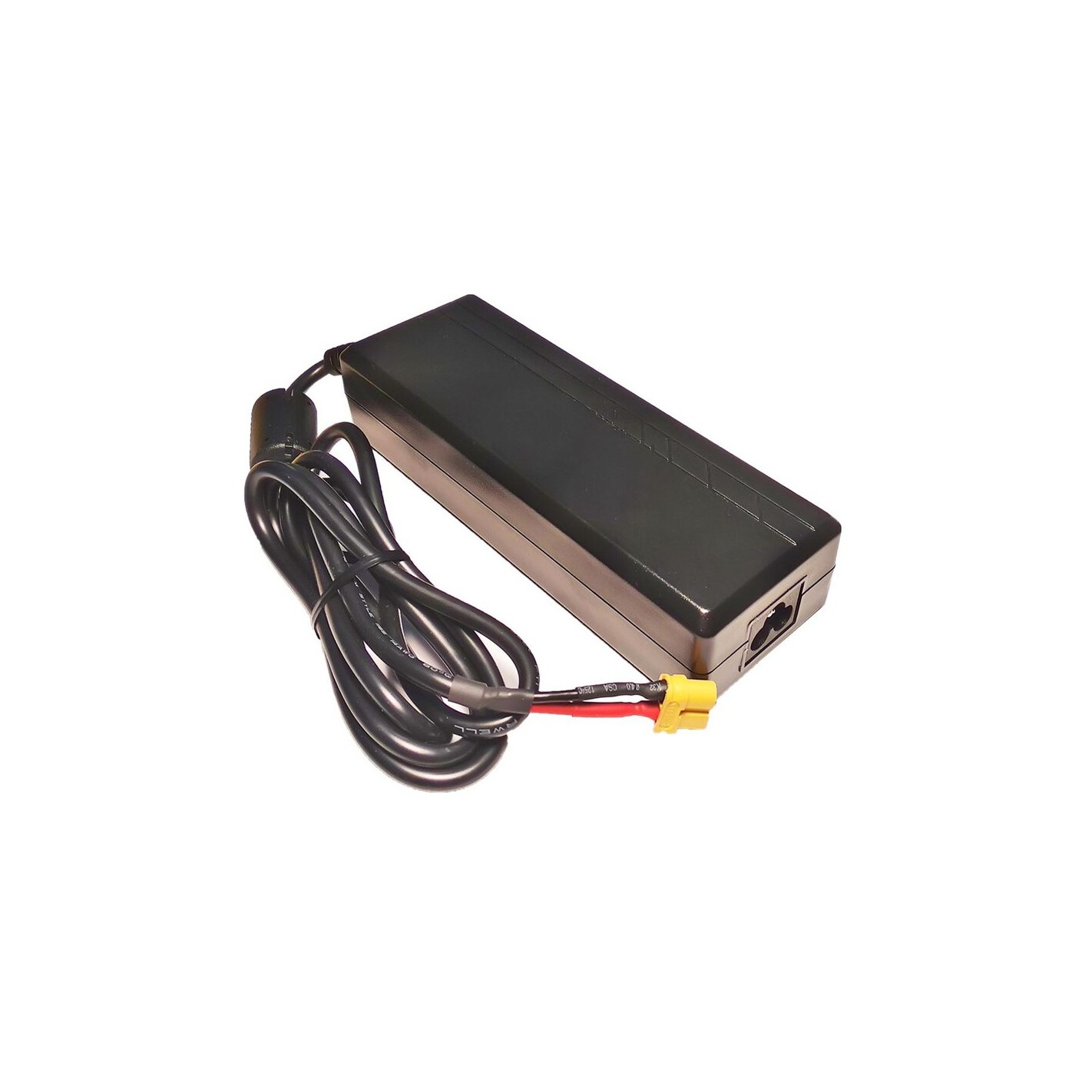

This sealed and certified switching power supply is the perfect complement for Pegasus Astro products. It can provide 12V and up to 10Amps (120W total power). Its great stability guarantees that it will provide the necessary and correct power flow to your precious equipment. It comes with a power cable (1,8m) for your country type.

Buy it now and receive it between on Monday, 7 October and Monday, 14 October with Home delivery - International

Delivery Options

Carrier		Description	Estimated Delivery
	Home delivery - International	Home delivery - International	Monday, 7 October - Monday, 14 October

Home delivery - International

Estimated delivery:
Monday, 7 October - Monday, 14 October

✖

Description
Product Details

PegasusAstro 12V 10A EU XT60 power supply (for UPB v2)

Specification:

Output voltage: 12V
Load: 0-10 Ampere
Max. Power : 120 Watt
Input voltage range: 90-264V
Frequency: (47-63)Hz
Sealed/protected enclosure (no moisture/dust can enter)
Safety agency requirements and EMI/EMS certified
Efficiency level (ErP) : VI
CE and FCC certificate acquired

Protections:

Overcurrent/short circuit protection : The power supply is self-protected from any output to ground and automatically recovers when abnormal circuit faults are removed. An output short circuit is defined as any output impedance less than 0.1 ohms.
Overvoltage: The power supply will auto-recover when faults clear the input protection: F1: 6.3A 250V fuse The power supply will be protected against power line overvoltages and any abnormal conditions
No-load protection The power supply is provided with no-load operation to prevent damage to the power supply and the system.
Protection class I, (ITU-T K.21 Surge 6KV on request)

PegasusAstro 12V 10A EU XT60 power supply (for UPB v2)
