Adapter TS Tilter antiflexion of the optical train

Name: Adapter TS Tilter antiflexion of the optical train
Brand: TS
SKU: TKSTST2Tilter
Price: 41.28 EUR
Availability: InStock

Reference TKSTST2Tilter

Last items in stock

41.28 41.93 -0.65

VAT excluded Shipping 24/48h

This mechanism compensates for tilted focal planes in focusers, accessories and camera sensors, avoiding out-of-focus corners.

Buy it now and receive it between on Wednesday, 11 December and Wednesday, 18 December with Home delivery - International

Delivery Options

Carrier		Description	Estimated Delivery
	Home delivery - International	Home delivery - International	Wednesday, 11 December - Wednesday, 18 December

Home delivery - International

Estimated delivery:
Wednesday, 11 December - Wednesday, 18 December

✖

Description
Product Details

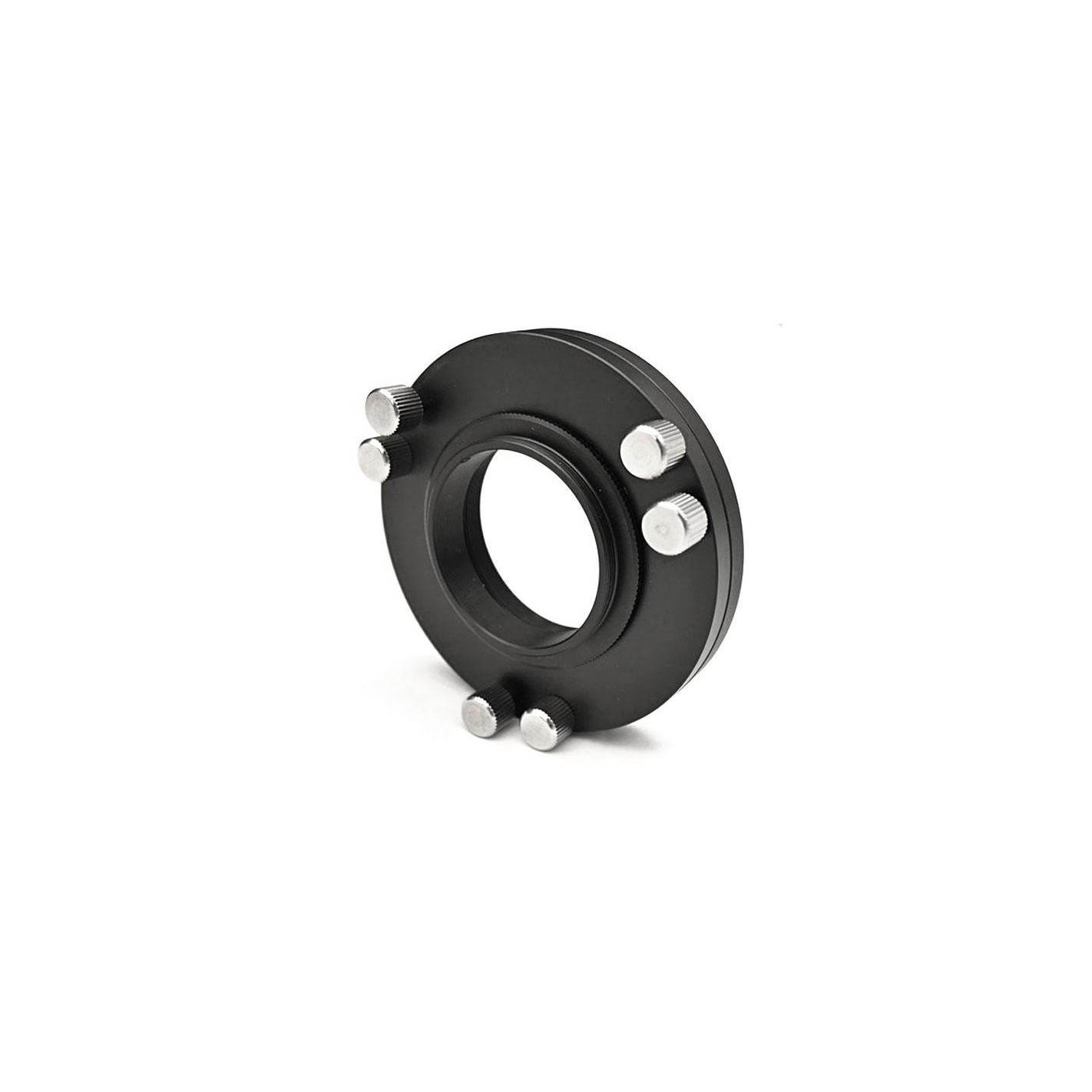

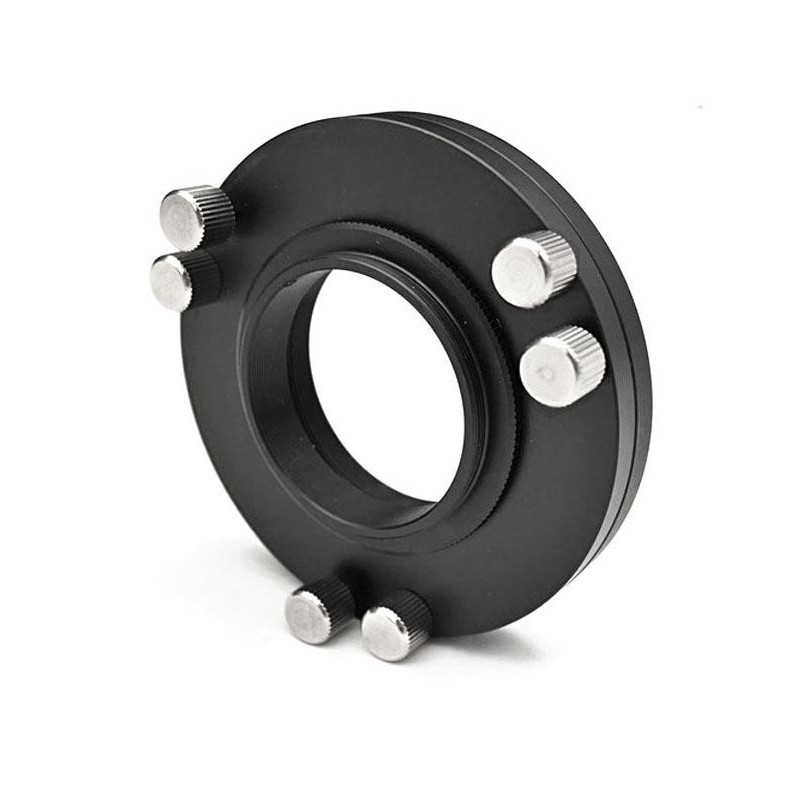

Adapter TS Tilter anti-flexion of the optical train

The TS Tilter Adapter compensates for bending of the optical train, allowing correct alignment of the focal plane and orientation of the camera sensor.

Many astronomical photographers know the problem: you focus as accurately as possible, but in one or two corners, the stars are not dots. Often, the result is either a compromise by "cheating" the focus to a point where most of the image field has the best possible focus or you end up cropping the image.

Some possible causes of this problem:

Skewed camera sensor (tenths of a millimeter are sufficient)
Tilted focuser
Inclined focal plane of the telescope (common in Newtonian telescopes)
Inclined optical accessories due to inaccurate clamping

Here is the solution:

With the TS T2 Tilter, the camera sensor is aligned with the focal plane regardless of the cause of the tilt. The orientation of the entire optical train is maintained.

The adjustment is done by means of knurled screws, can be performed quickly and avoids loss of tools.

Technical features:

T2 thread connection
Only 11 mm optical path from female T2 thread to female T2 thread
T2 conversion adapter included: converts T2 female thread to T2 male thread
Stable metal design
Easy adjustment without tools
Diameter: 78 mm
Interface: T2 - each side
Adjustment: by means of knurled screws

Adapter TS Tilter antiflexion of the optical train
