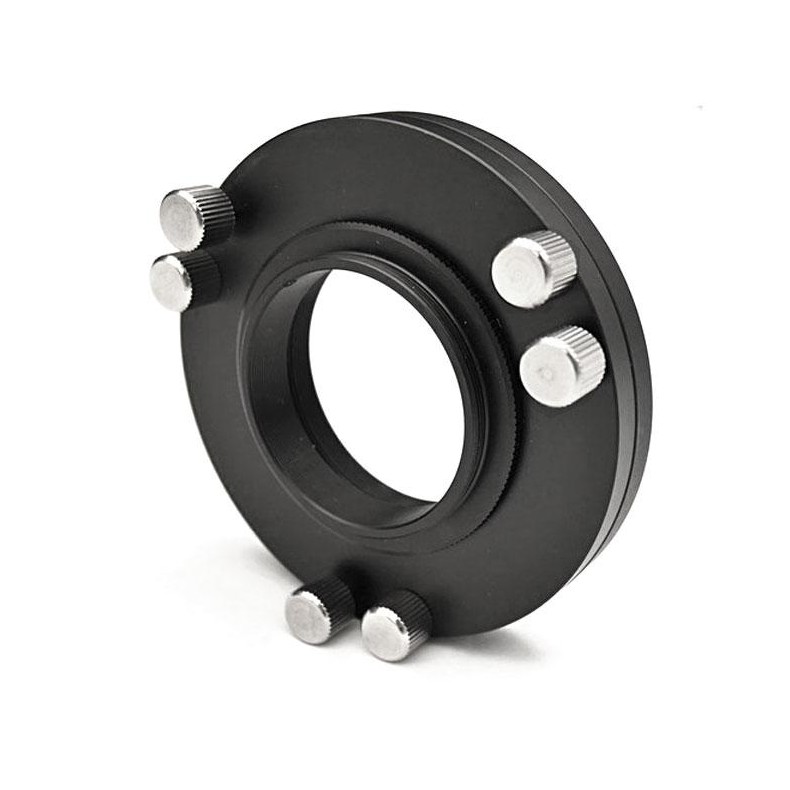

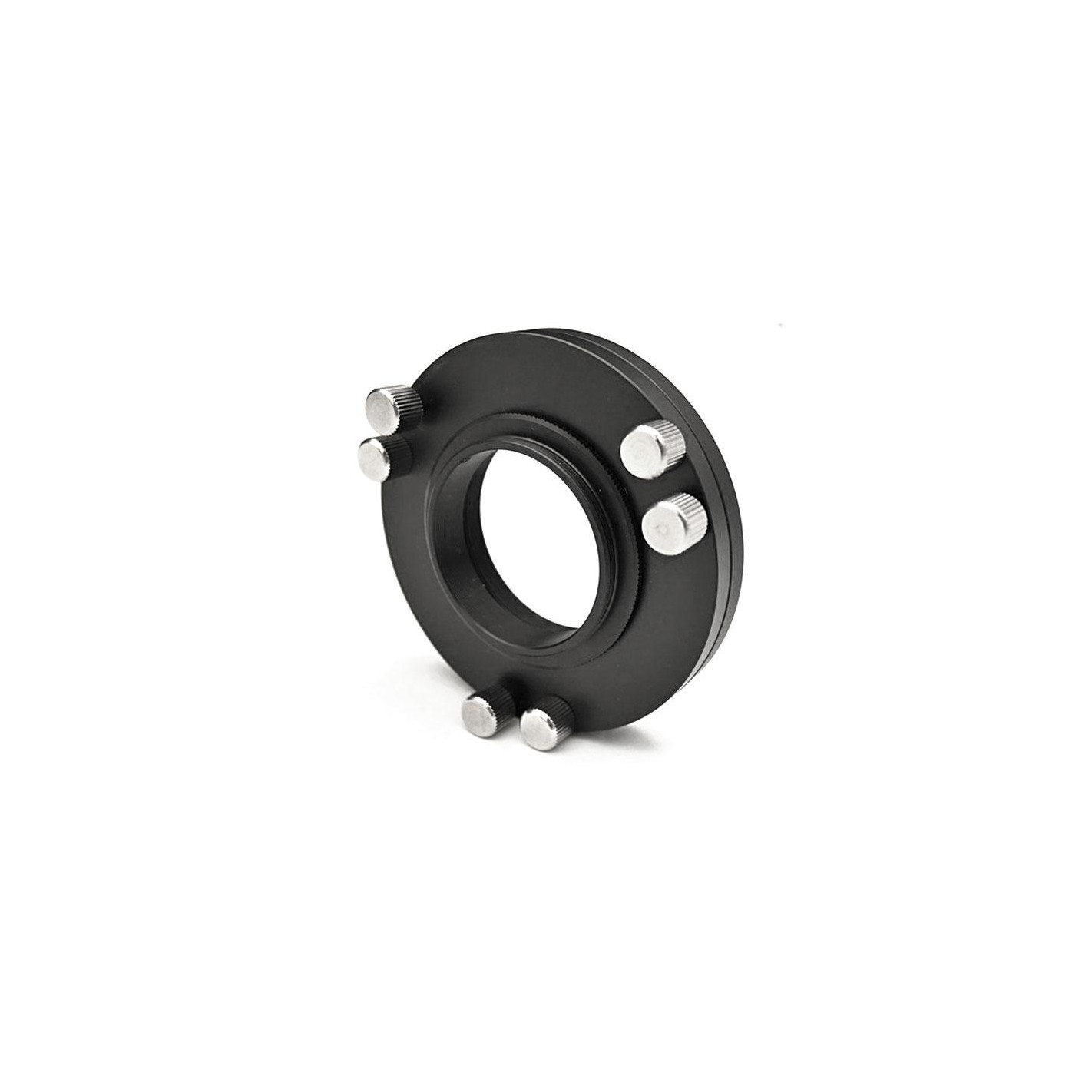

Tilting mechanism for M48 connection - TS-Optics M48 Tilter

Name: Tilting mechanism for M48 connection - TS-Optics M48 Tilter
Brand: TS
SKU: TKSTSM48Tilter
Price: 49.47 EUR
Availability: InStock

Reference TKSTSM48Tilter

Last items in stock

49.47 55.79 -6.32

VAT excluded Shipping 24/48h

Tilting mechanism with M48 connection: for individual correction of the visual field by tilting.

Order it before 6 hours and 17 minutes and receive it between on Thursday, 28 November and Thursday, 5 December with Home delivery - International

Delivery Options

Carrier		Description	Estimated Delivery
	Home delivery - International	Home delivery - International	Thursday, 28 November - Thursday, 5 December

Home delivery - International

Estimated delivery:
Thursday, 28 November - Thursday, 5 December

✖

Description
Product Details

♦ Connection via M48x0.75 thread

only 11 mm optical path

♦ Robust metal construction

♦ Easy adjustment without tools by means of knurled screws

♦ You can unscrew the M48 reversing ring and thus decide on which side you have the external thread.

Adjusting the image plane and sensor position

Many astrophotographers know the problem: you focus as best as possible and in 1-2 corners the sharpness is still not satisfactory. The result is a lazy compromise by changing the focus setting until the stars appear relatively uniformly "sharp" or by simply cropping the corner.

Some possible causes of this problem:

A slight tilt of the camera sensor (a few fractions of a millimeter is sufficient).

A tilt of the focuser.

A slight tilt of the telescope field plane (very common in Newtonian telescopes).

A tilt of the eyepiece side accessories during clamping.

Here is the solution:

With the TS M48-Tilter you only have to adjust the camera chip to the telescope field, no matter where the cause of the tilt comes from. Then you only have to maintain the orientation of the entire adapter, the correctors and the camera at all times.

Adjustment is done with thumbscrews, it is easy and avoids losing tools.

Features:

Diameter: 88 mm

Connection: M48x075 internal thread on both sides

Height: 11 mm without reversing adapter

M48 thread reversal: reverses the M48 internal thread to an external thread on one side - height 2 mm

Adjustment: by means of knurled screws
