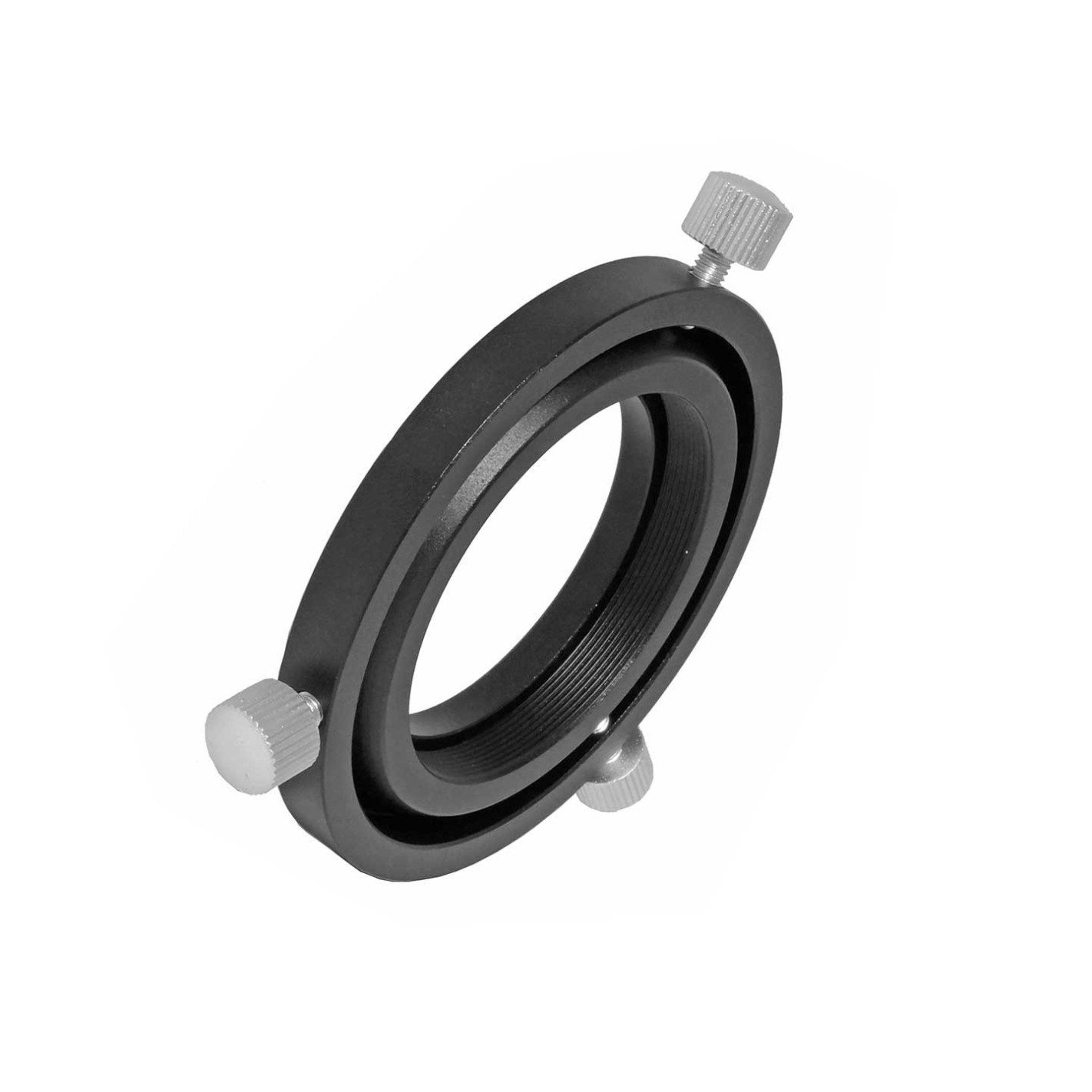

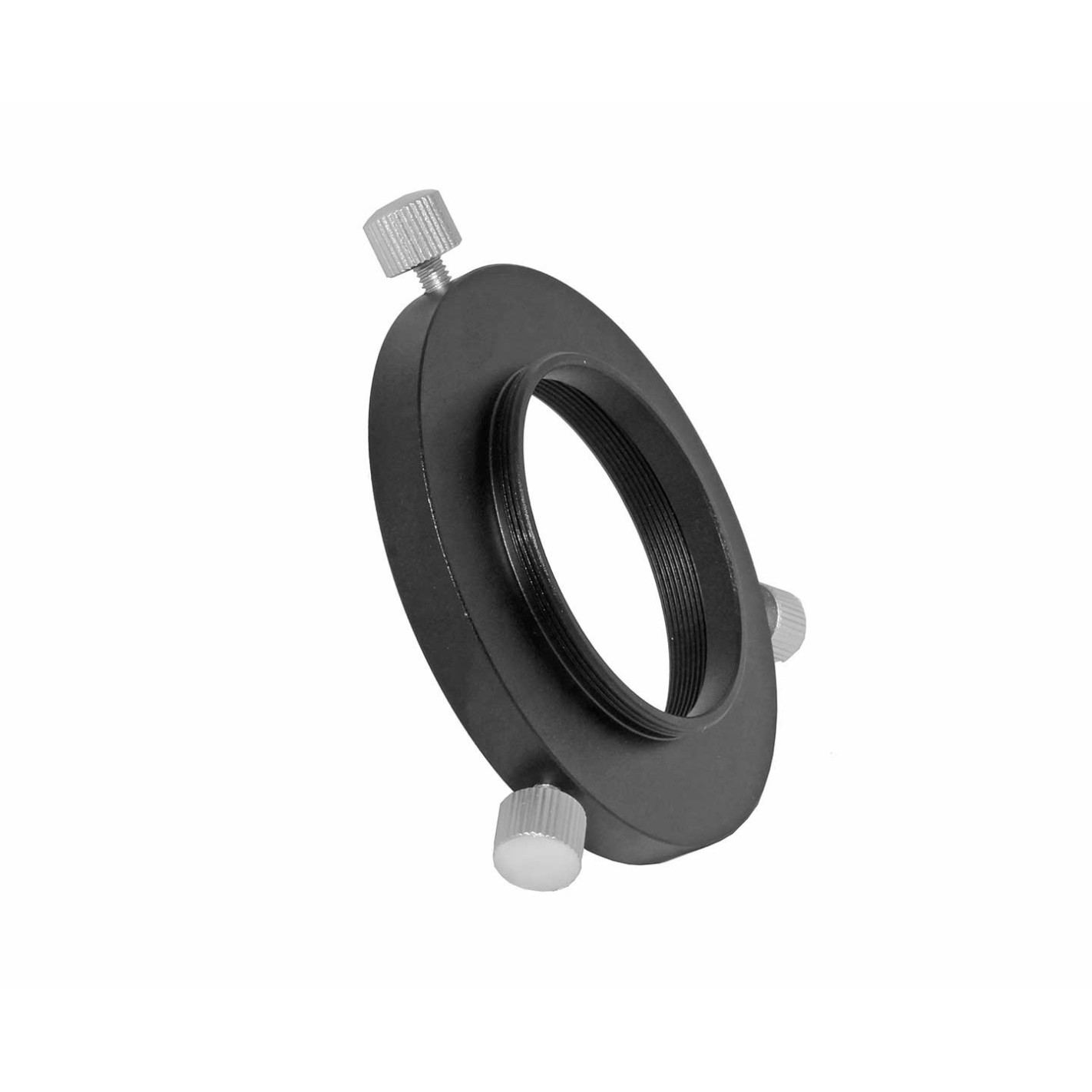

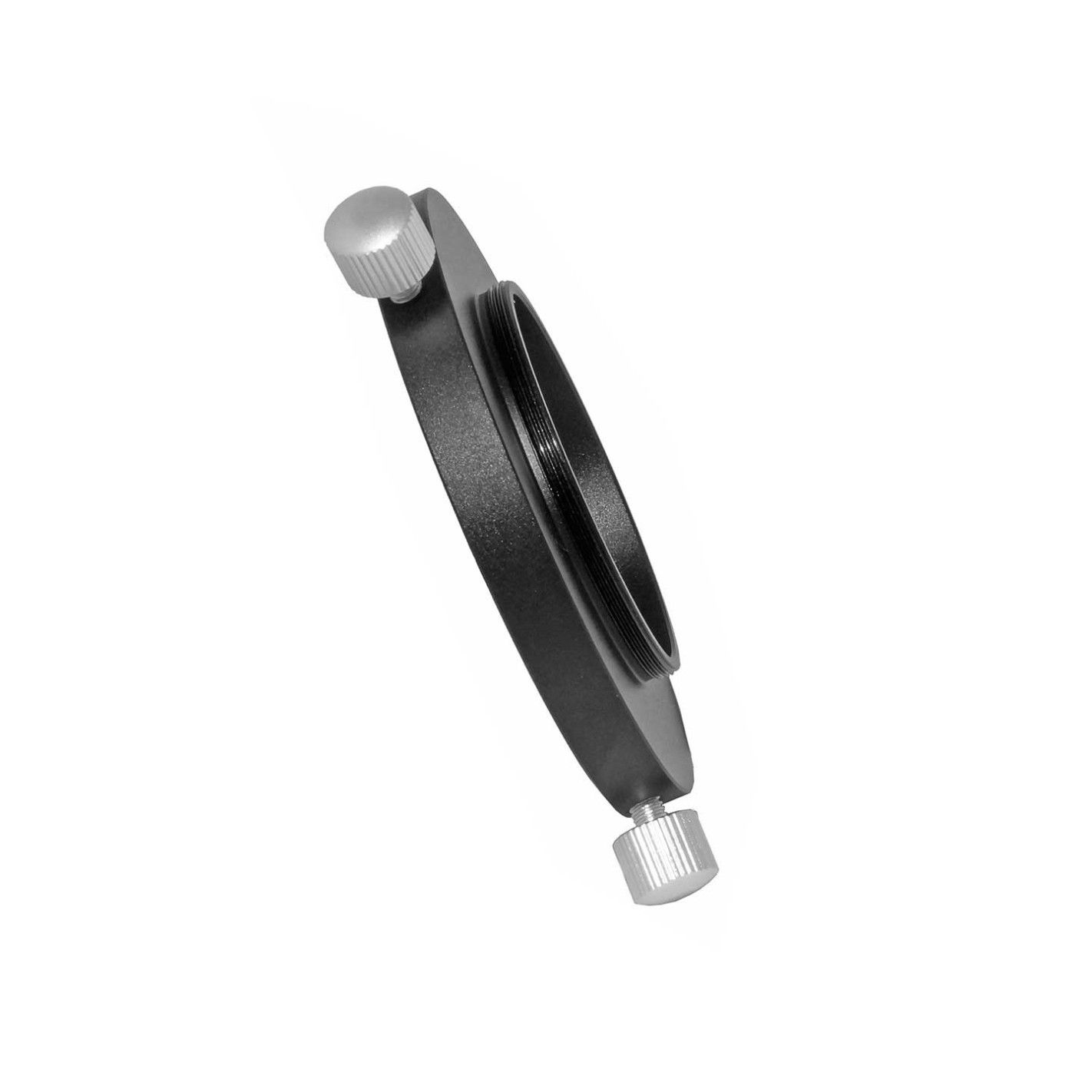

Quick-Changer and Rotation TS-Optics M48 with only 8 mm length
This M48 adapter is a true Teleskop Service problem solver for all astrophotographers working with the ZEISS style M68x1 professional thread system. The adapter provides quick changeover and 360° rotation with minimal length. The non-slip knurled head screws allow handling even when wearing gloves.

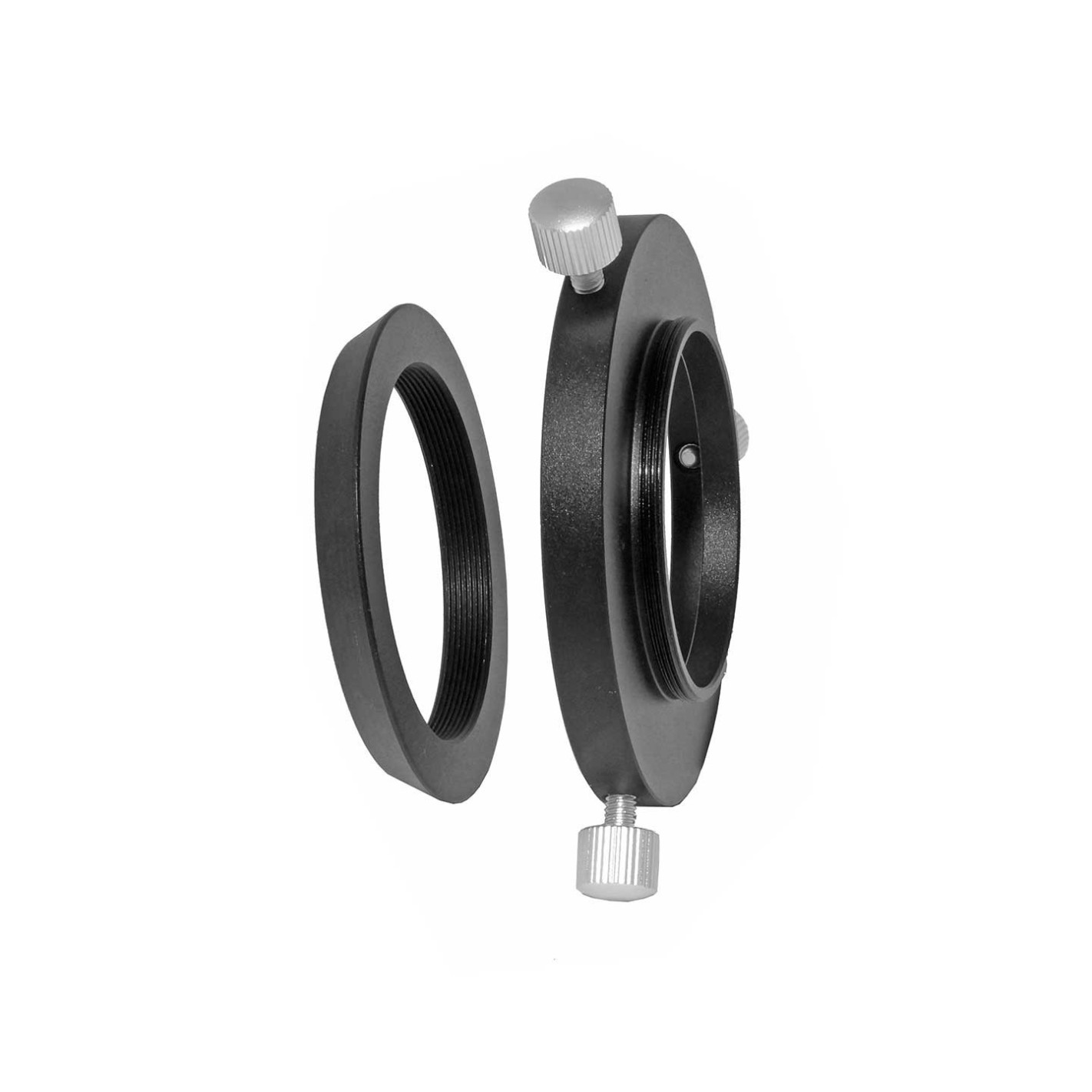

The rotation adapter consists of two parts. The inner, tapered adapter establishes the connection to the telescope. The outer adapter holds the connection adapter with three screws and establishes the connection to the camera.

The advantages of the TSM48ROT adapter:

♦ Only 8 mm optical path - ideal for short adaptations.
♦ Perfect centering - the inner ring of the adapter is always in the center - when clamped, it tightens automatically.
♦ Thanks to the strength of the generously dimensioned walls and the long threads, even heavy accessories can be securely attached.

The fields of application of the TSM48ROT adapter:

♦ Quick change: ... you can detach the camera in a matter of seconds, e.g. to remove dust from the sensor. Unscrewing is prevented, cables cannot get tangled.
♦ 360° rotation: ... you can rotate the camera 360°, thus achieving optimal positioning of the object on the camera sensor.
♦ Improved search for a guide star when using an off-axis guider: ... if you insert the TSROTM48 in front of the off-axis guider, you can rotate the guider and have a wider field to find a bright guide star.

General features:

♦ Telescope side connection thread: M648x0.75 (female) - length 5 mm

♦ Camera side connection thread: M48x0.75 (male) - length 4 mm

♦ Optical travel: only 8 mm.

♦ You can disassemble the camera in a matter of seconds without awkward threads.

♦ Attach the nebula or galaxy to the camera sensor by simply turning the adapter.

Technical specifications:

• Telescope side connection thread M48x0.75 (female) - length 5 mm
• Camera side connection thread: M48x0,75 (male) - length 4 mm
• Optical pitch 8 mm (without M48 male thread)
• Diameter: 73.5 mm
• Mounting: Locking of the adapter position by means of 3 M4 knurled screws
