Large OAG-L off-axis radial guide from ZWO with 12x12mm prism

Large OAG-L off-axis radial guide from ZWO with 12x12mm prism

Name: Large OAG-L off-axis radial guide from ZWO with 12x12mm prism
Brand: ZWO
SKU: ZWOAG-L
Price: 198.3 EUR
Availability: InStock

Reference ZWOAG-L

Last items in stock

198.30 206.61 -8.31

VAT excluded Shipping 24/48h

OAG-L has a large prism size of 12 * 12 mm, much larger than M68 OAG. The larger clear aperture provides a wider field of view when guiding. It is easy to use and suitable for users interested in long focal length photography.

Order it before 5 hours and 44 minutes and receive it between on Thursday, 28 November and Thursday, 5 December with Home delivery - International

Delivery Options

Carrier		Description	Estimated Delivery
	Home delivery - International	Home delivery - International	Thursday, 28 November - Thursday, 5 December

Home delivery - International

Estimated delivery:
Thursday, 28 November - Thursday, 5 December

✖

Description
Product Details

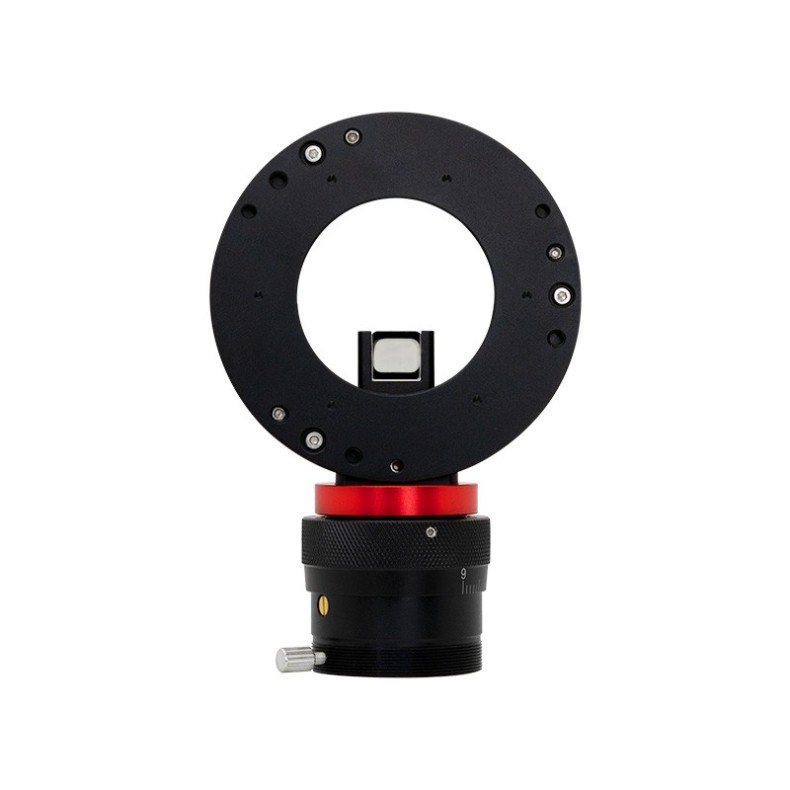

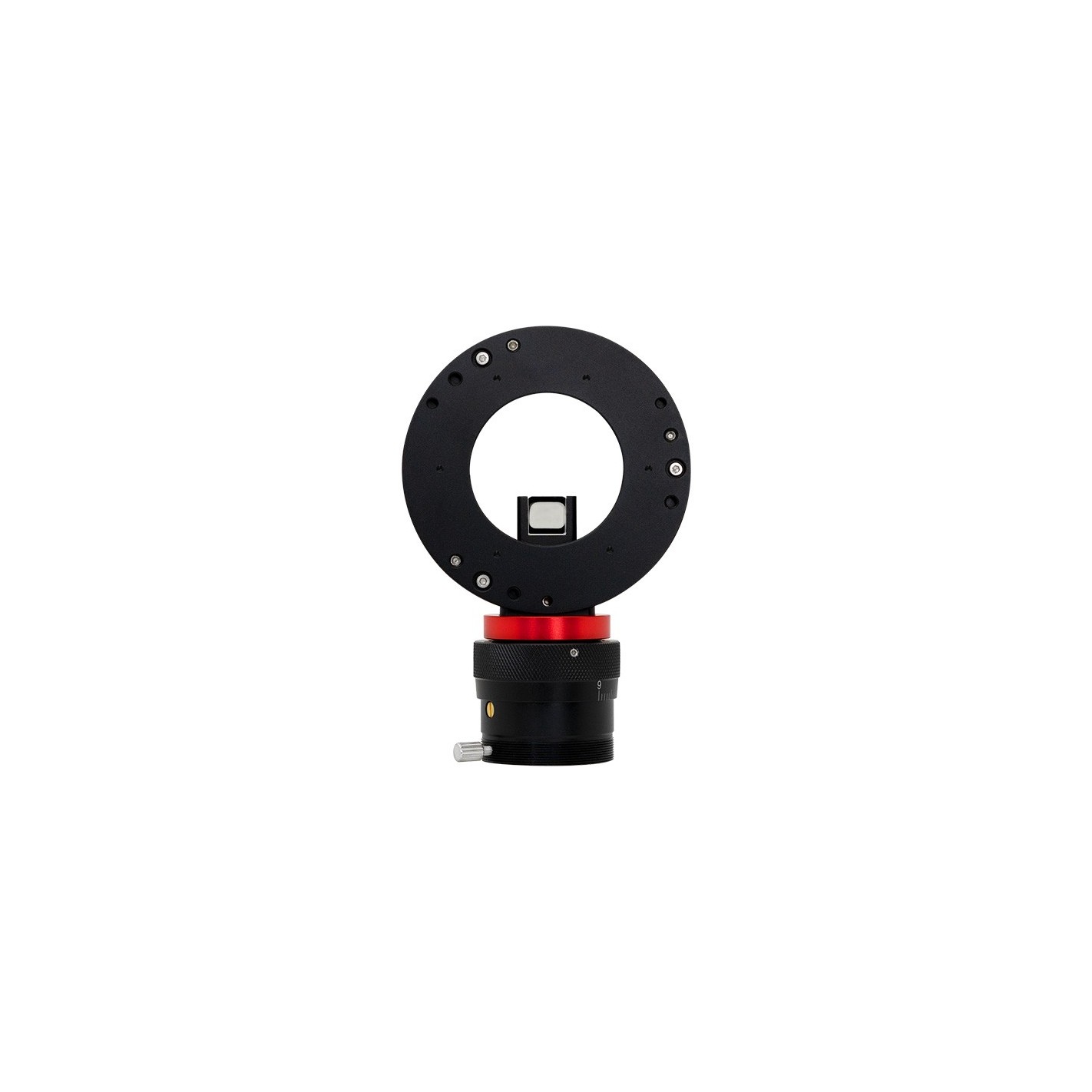

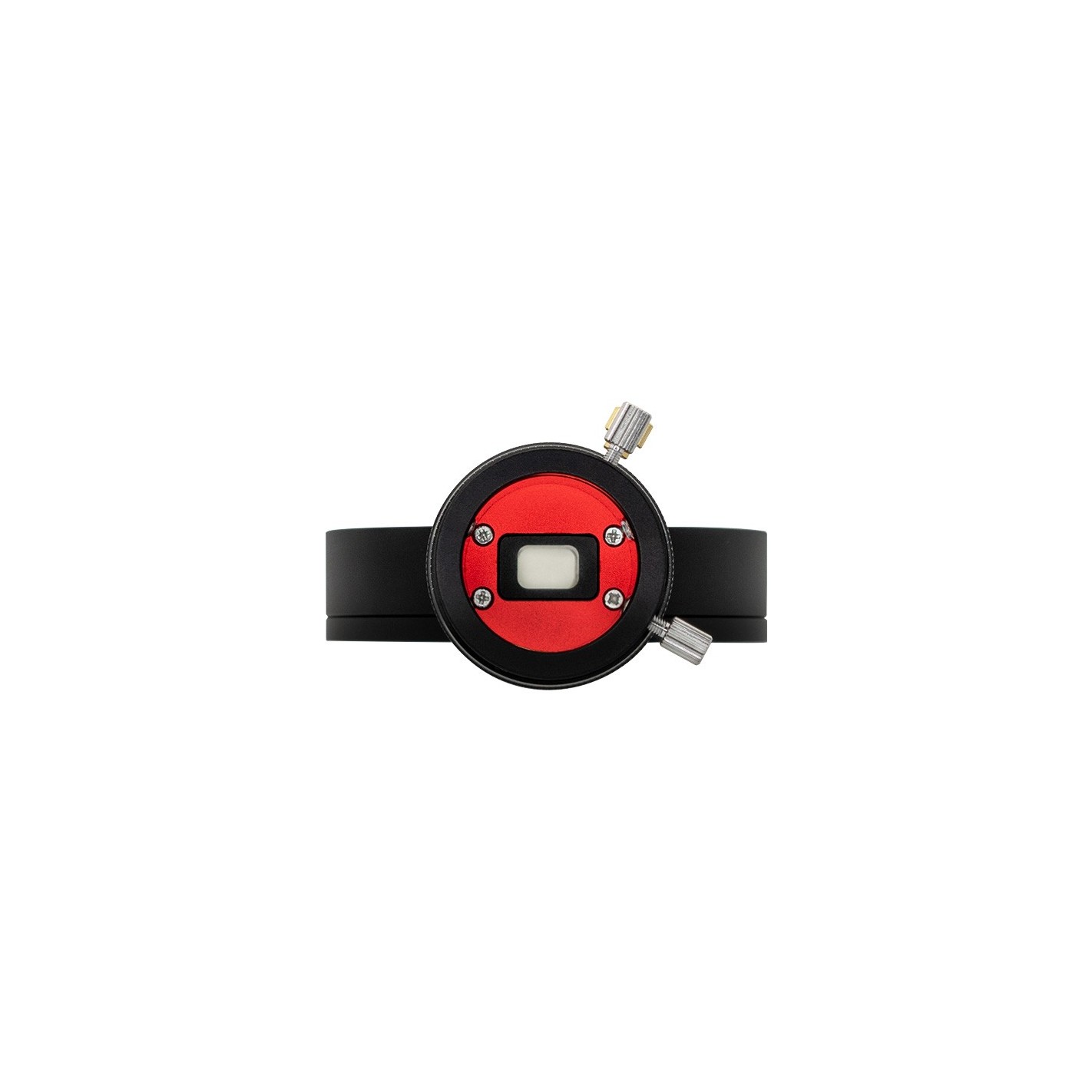

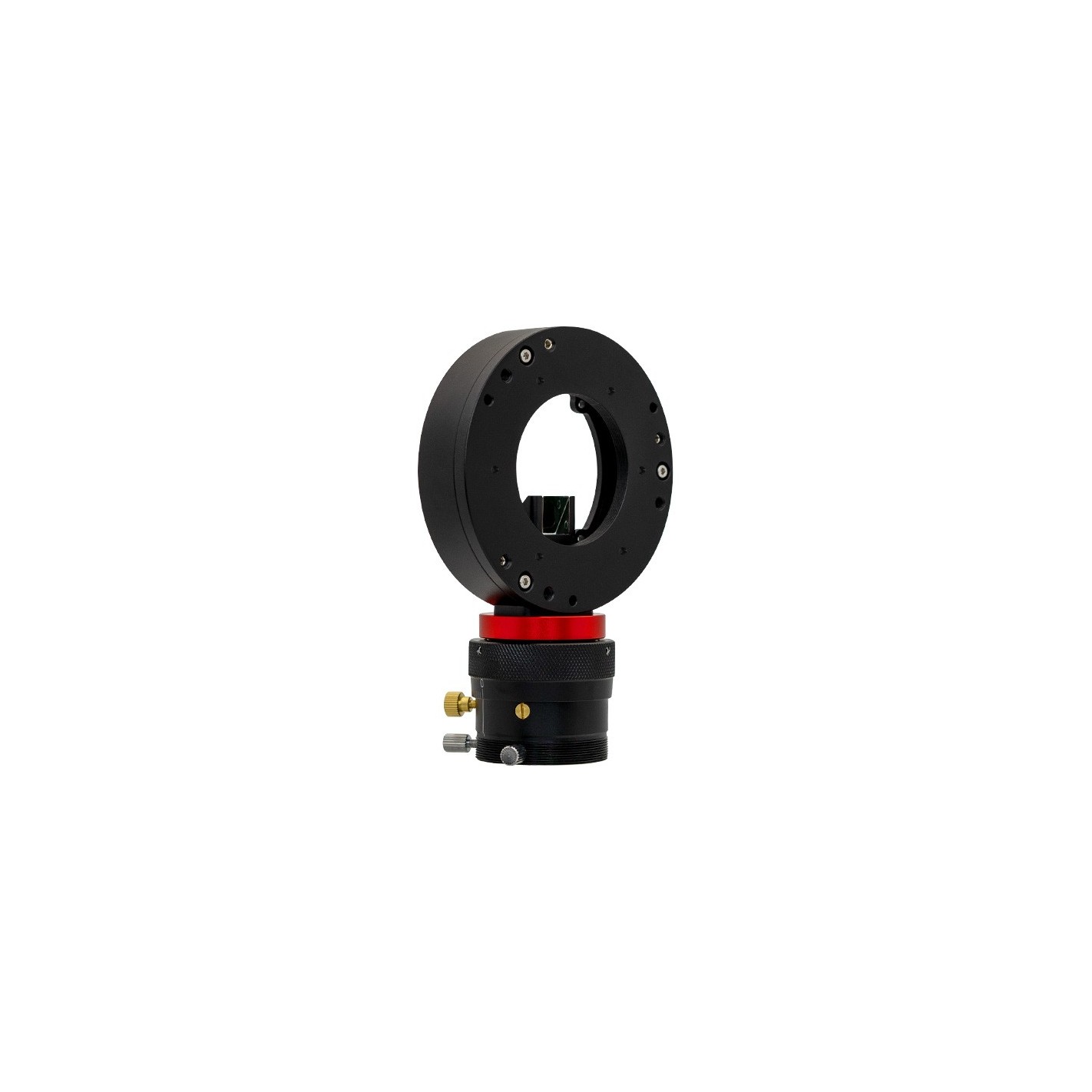

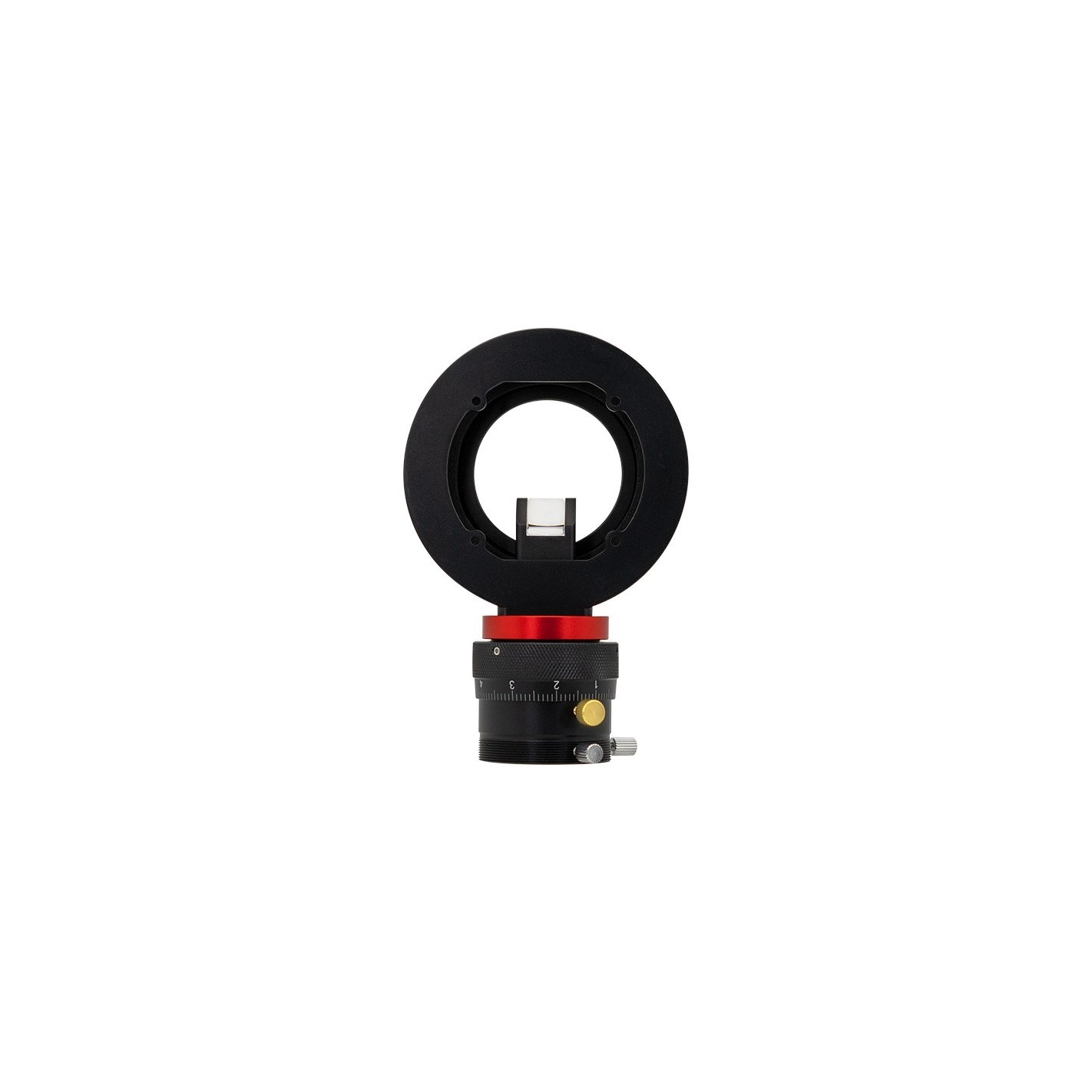

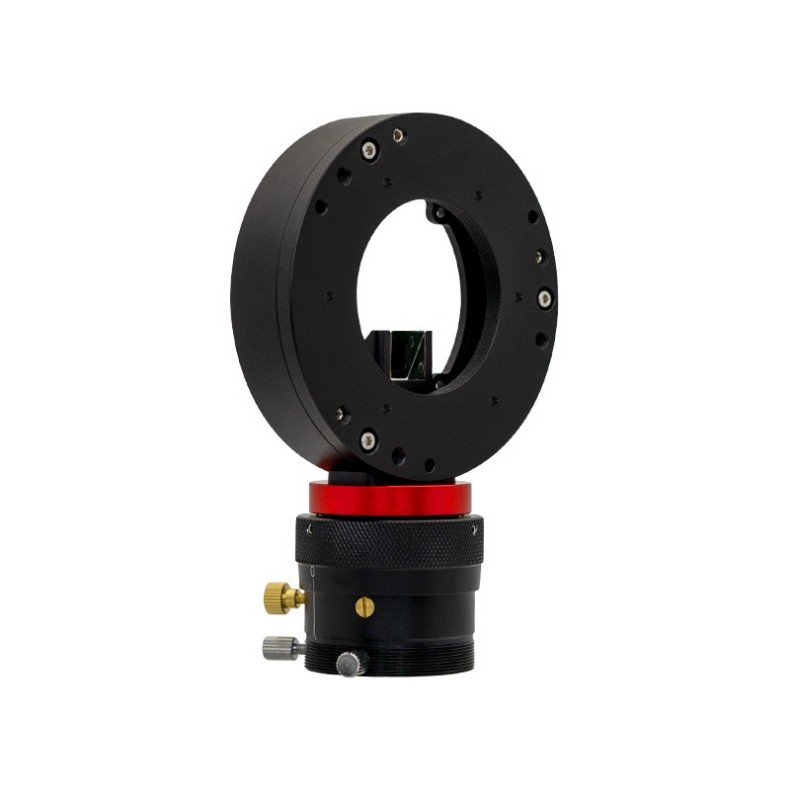

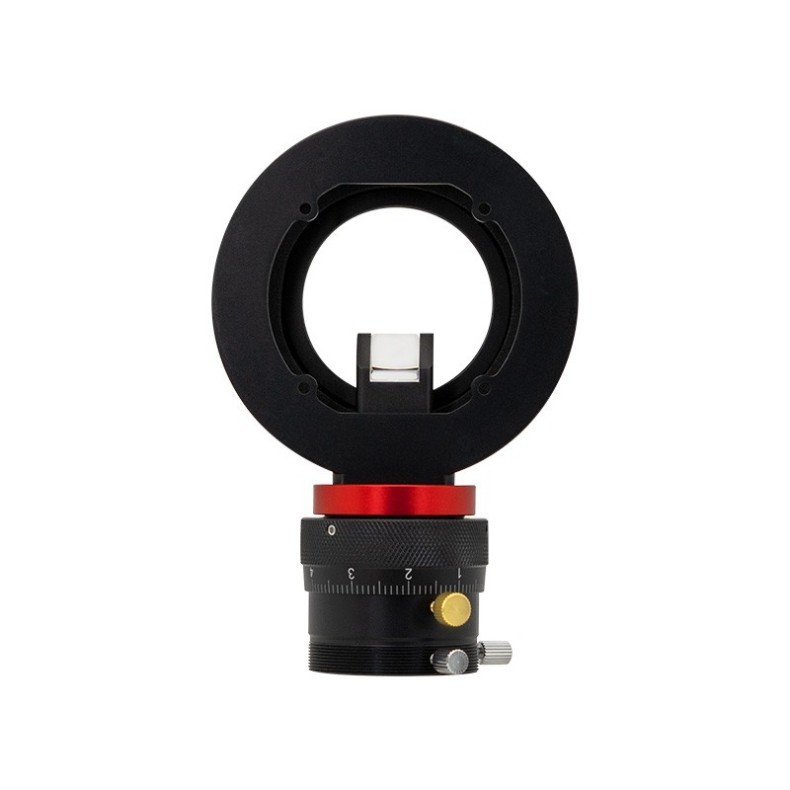

Large Off-Axis Radial Guide OAG-L from ZWO with 12x12mm prism

OAG-L has a large prism size of 12 * 12mm, much larger than M68 OAG. The larger clear aperture provides a wider field of view when guiding. It is easy to use and suitable for users interested in long focal length photography.

To get the most out of it, we recommend that you combine it with large format guiding cameras.

Features:

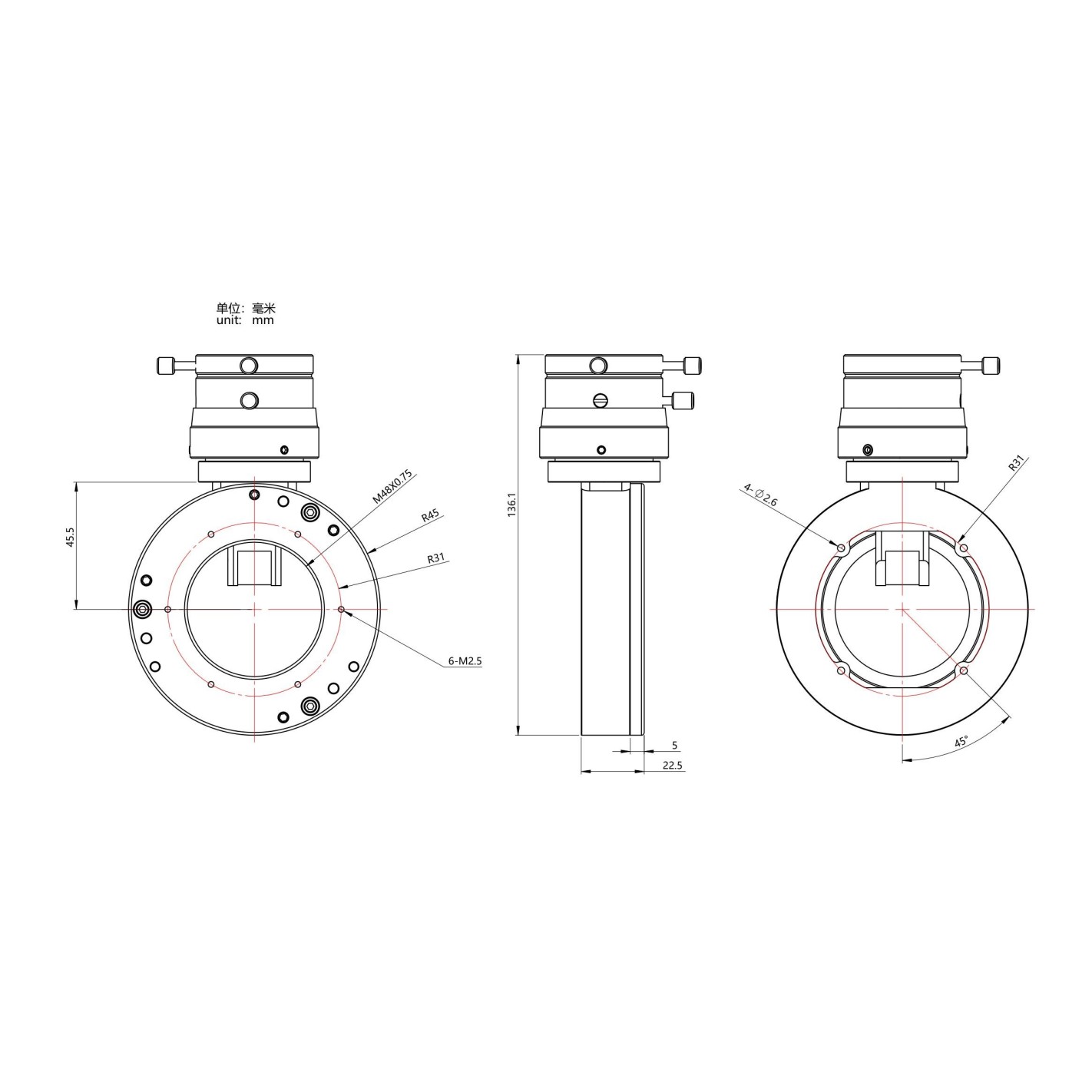

Lightweight and exquisite, 17.5mm thick.

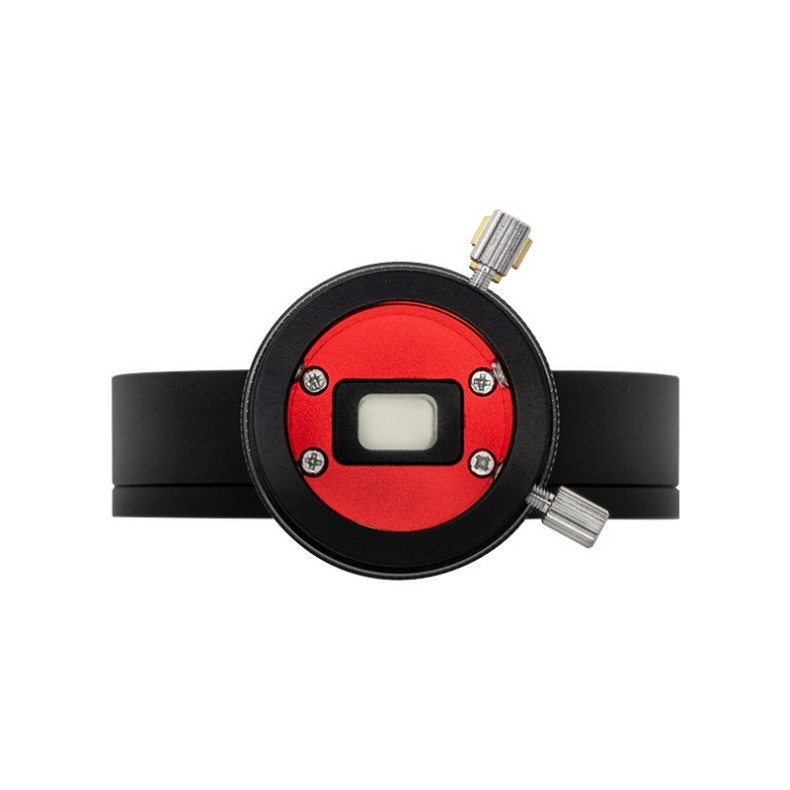

Prism size: 12 * 12 mm.
The effective aperture of light passage is 11.7mm * 8.3mm.
Can be used to connect the main camera and guide camera simultaneously. No guide telescope is required.

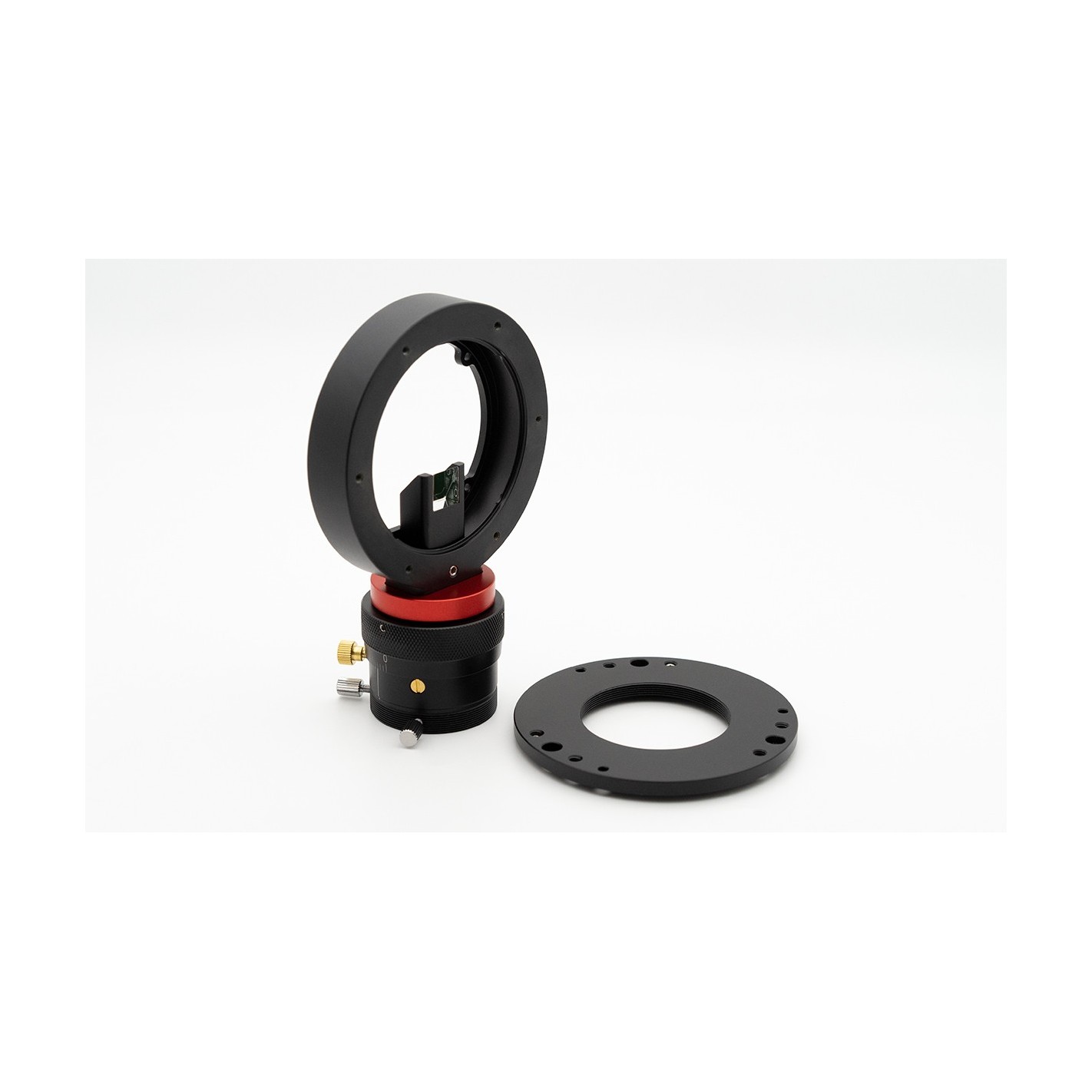

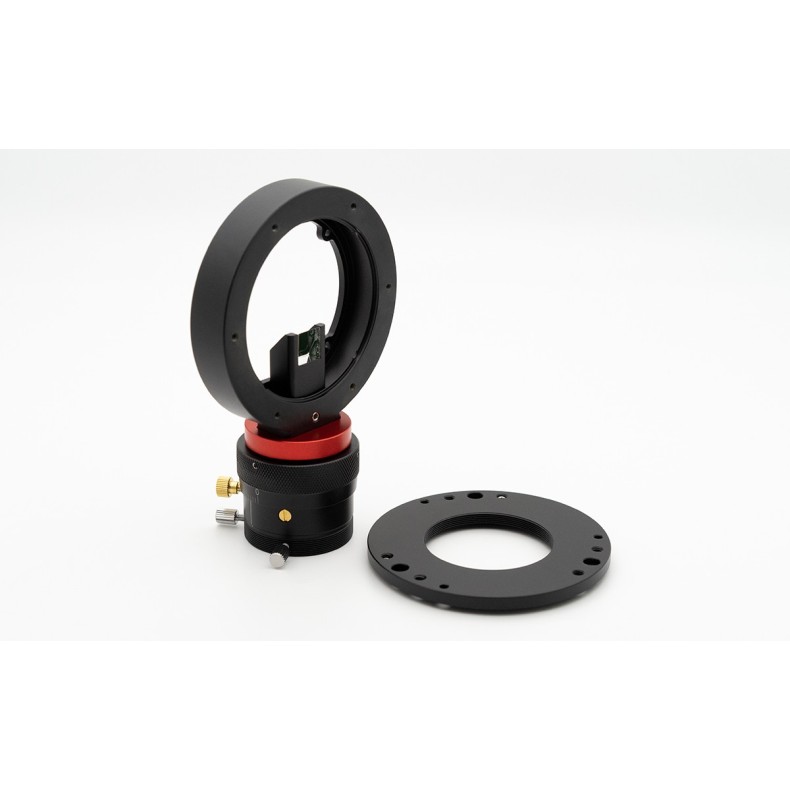

Packaged with M48 (5 mm) sensor tilt plate.

Operating guide:

For guiding, OAG-L can only work with ASI Mini cameras such as ASI174MM Mini, ASI290MM Mini and ASI120MM Mini.
Considering the large size of the prism, we do not recommend using OAG-L with telescopes whose clear aperture is smaller than M48.

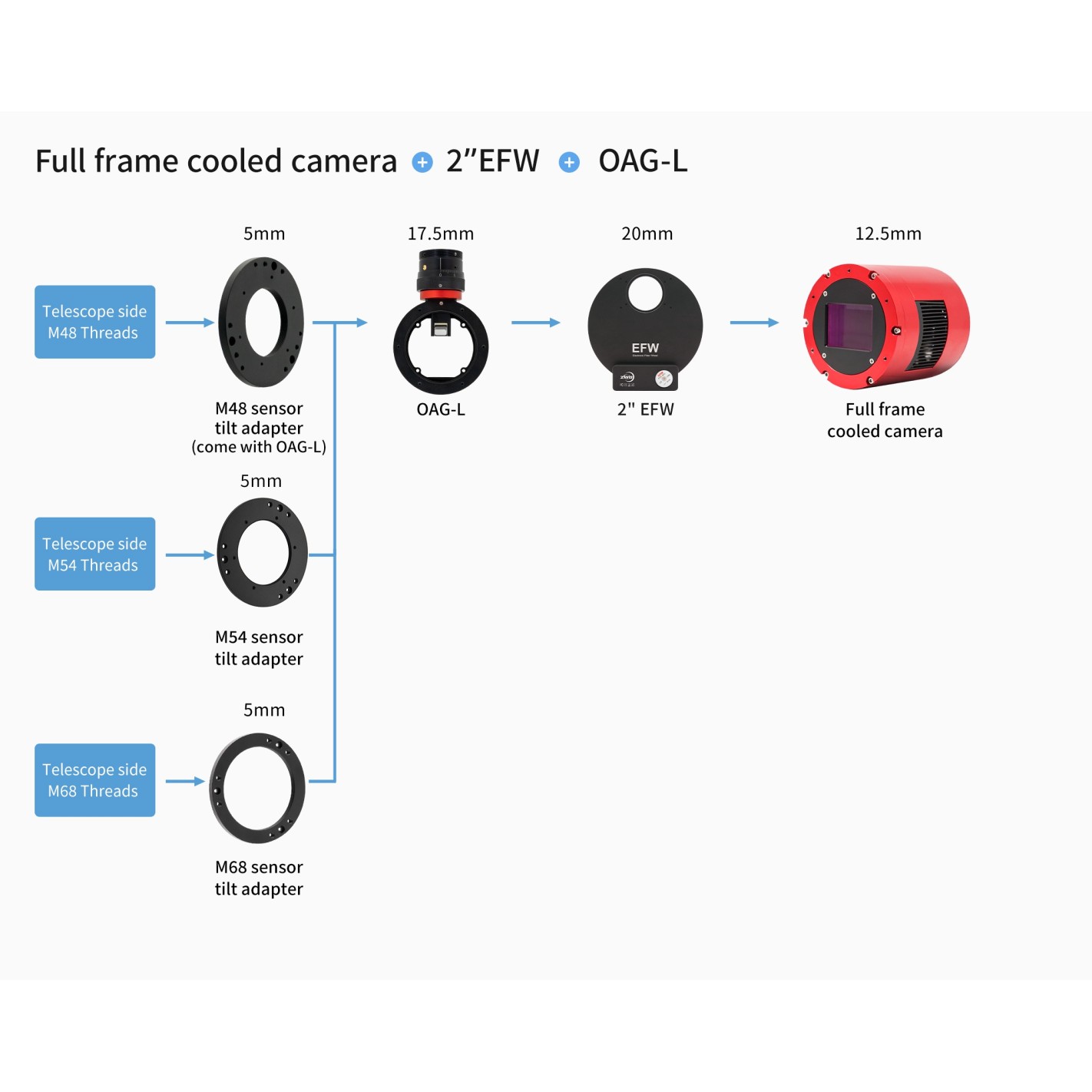

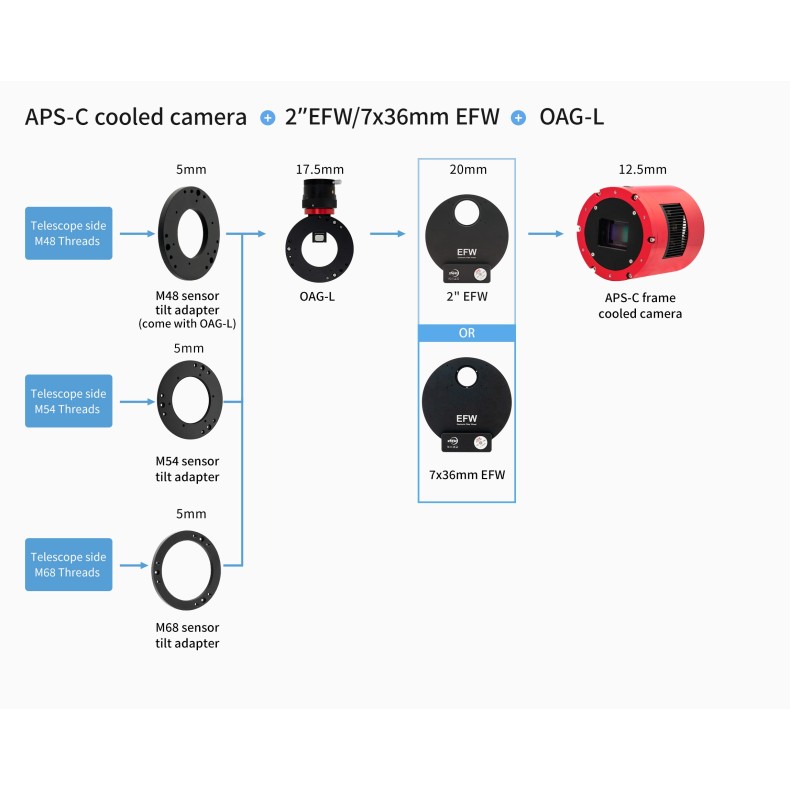

However, it is recommended for use with 2" EFW or 7x36mm EFW and with APS-C cameras (ASI2600) or full frame cameras (ASI6200 / 2400). The large clear aperture supports full frame cameras without vignetting.

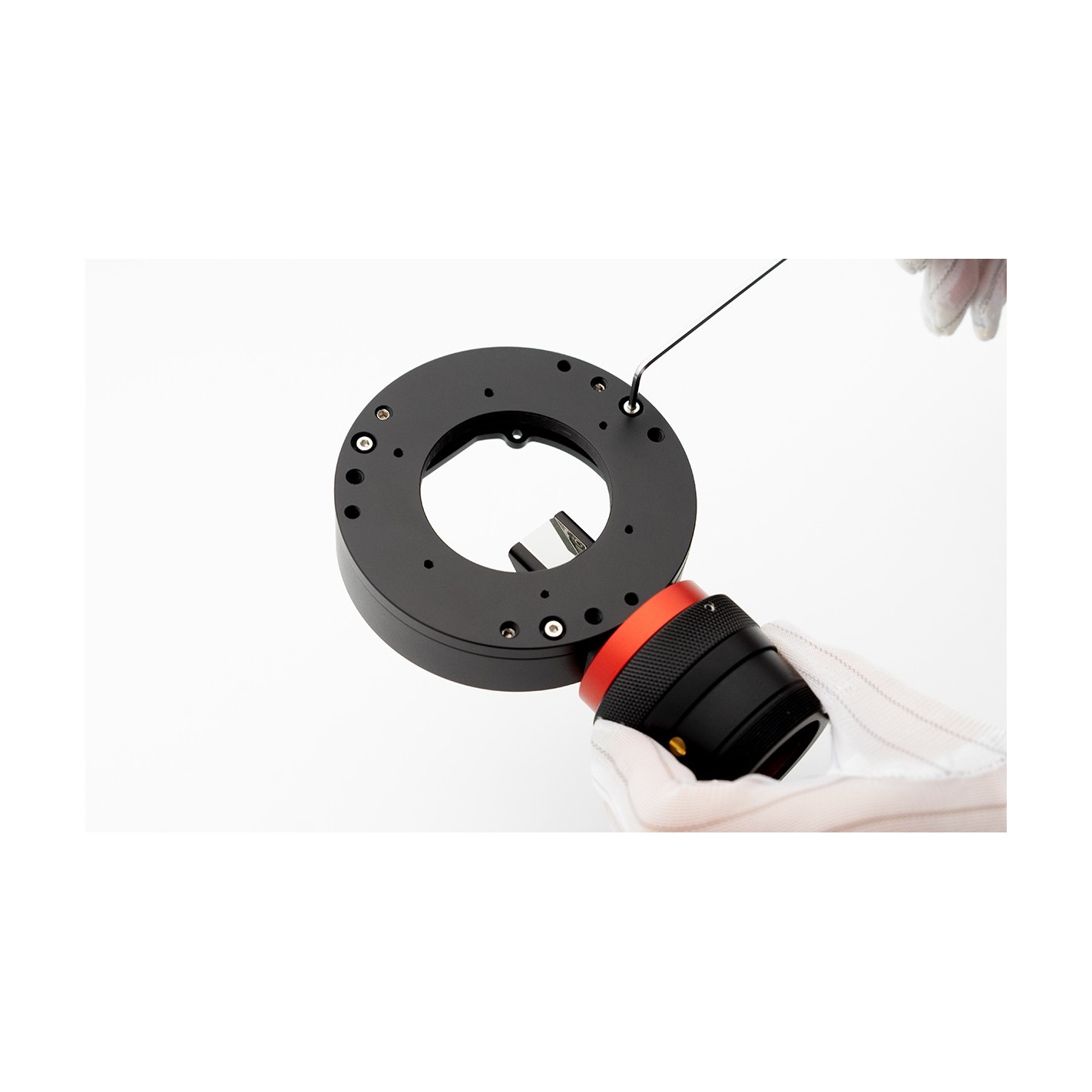

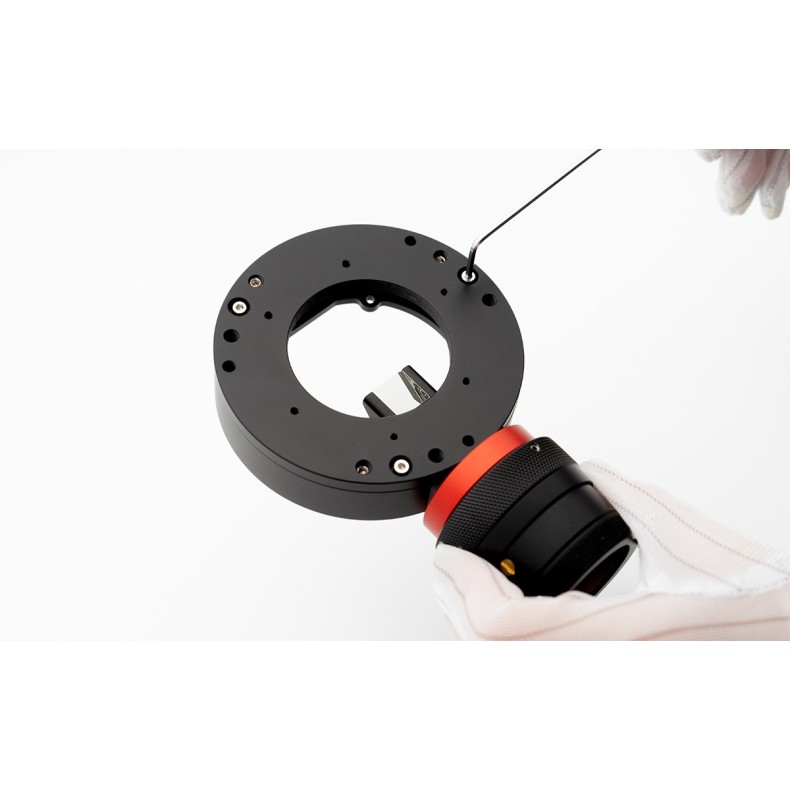

The main differences between OAG-L and M68 OAG are the size of the prism and the threads. OAG-L removed the internal threads so you can use the screws directly to attach it to other equipment.
If the thread on the side of your telescope is M48, then you don't need to remove the M48 sensor tilt plate that comes with OAG-L. Instead, you should remove it and use some other sensor tilt plate on the corresponding thread of your telescope.

Large Off-Axis Radial Guide OAG-L from ZWO with 12x12mm prism
