OAG off-axis radial guide ZWO for astrophotography

OAG off-axis radial guide ZWO for astrophotography

Name: OAG off-axis radial guide ZWO for astrophotography
Brand: ZWO
SKU: ZWOAG
Price: 132.19 EUR
Availability: InStock

Reference ZWOAG

In stock

132.19 139.67 -7.48

VAT excluded Shipping 24/48h

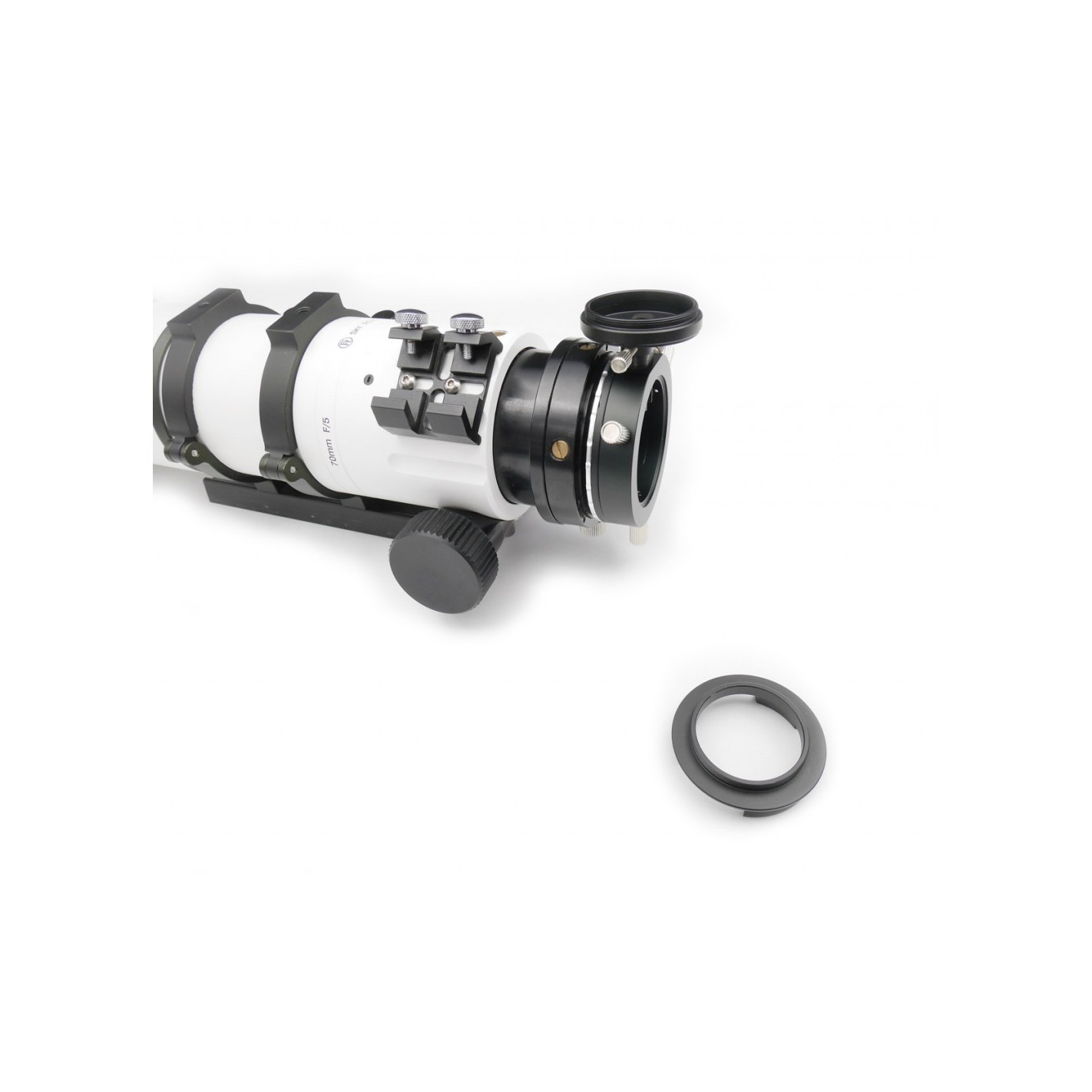

Off-axis radial guide ZWO OAG for astrophotography with cameras ZWO. The simplest and most compact way to enjoy an OAG.

Buy it now and receive it between on Wednesday, 25 September and Wednesday, 2 October with Home delivery - International

Delivery Options

Carrier		Description	Estimated Delivery
	Home delivery - International	Home delivery - International	Wednesday, 25 September - Wednesday, 2 October

Home delivery - International

Estimated delivery:
Wednesday, 25 September - Wednesday, 2 October

✖

Description
Product Details

OAG off-axis radial guide ZWO for astrophotography

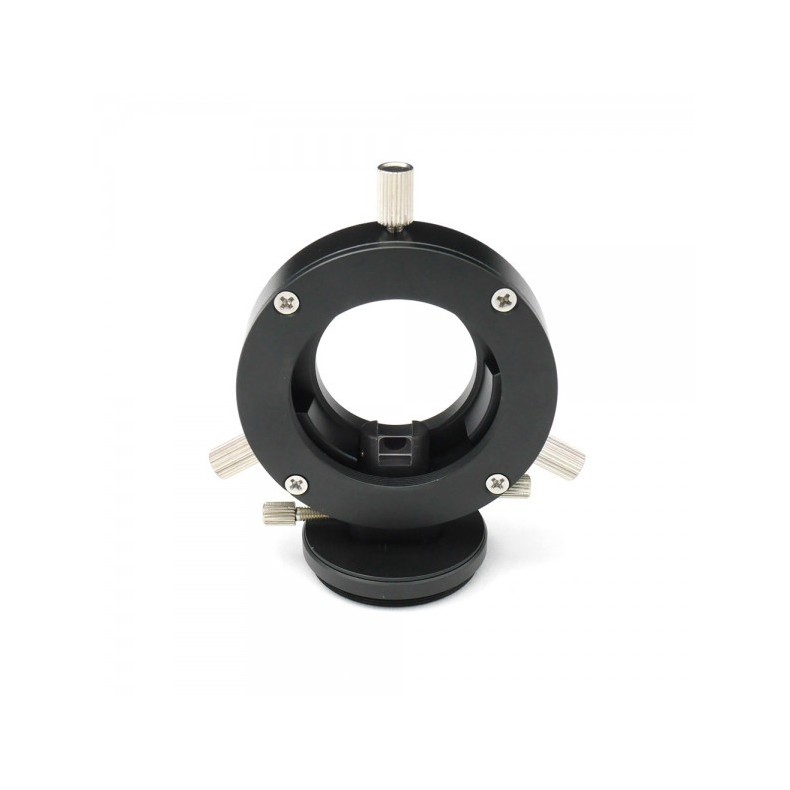

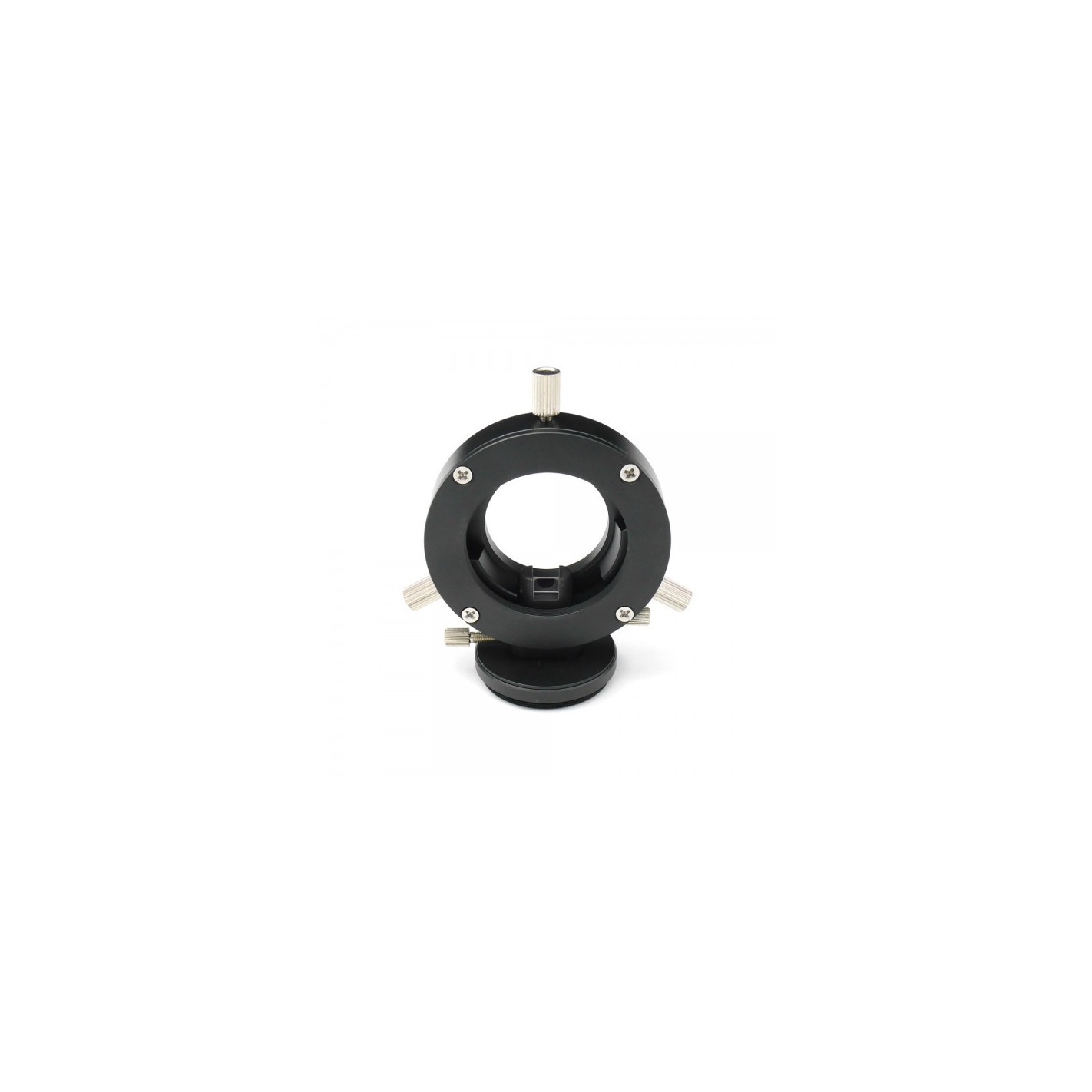

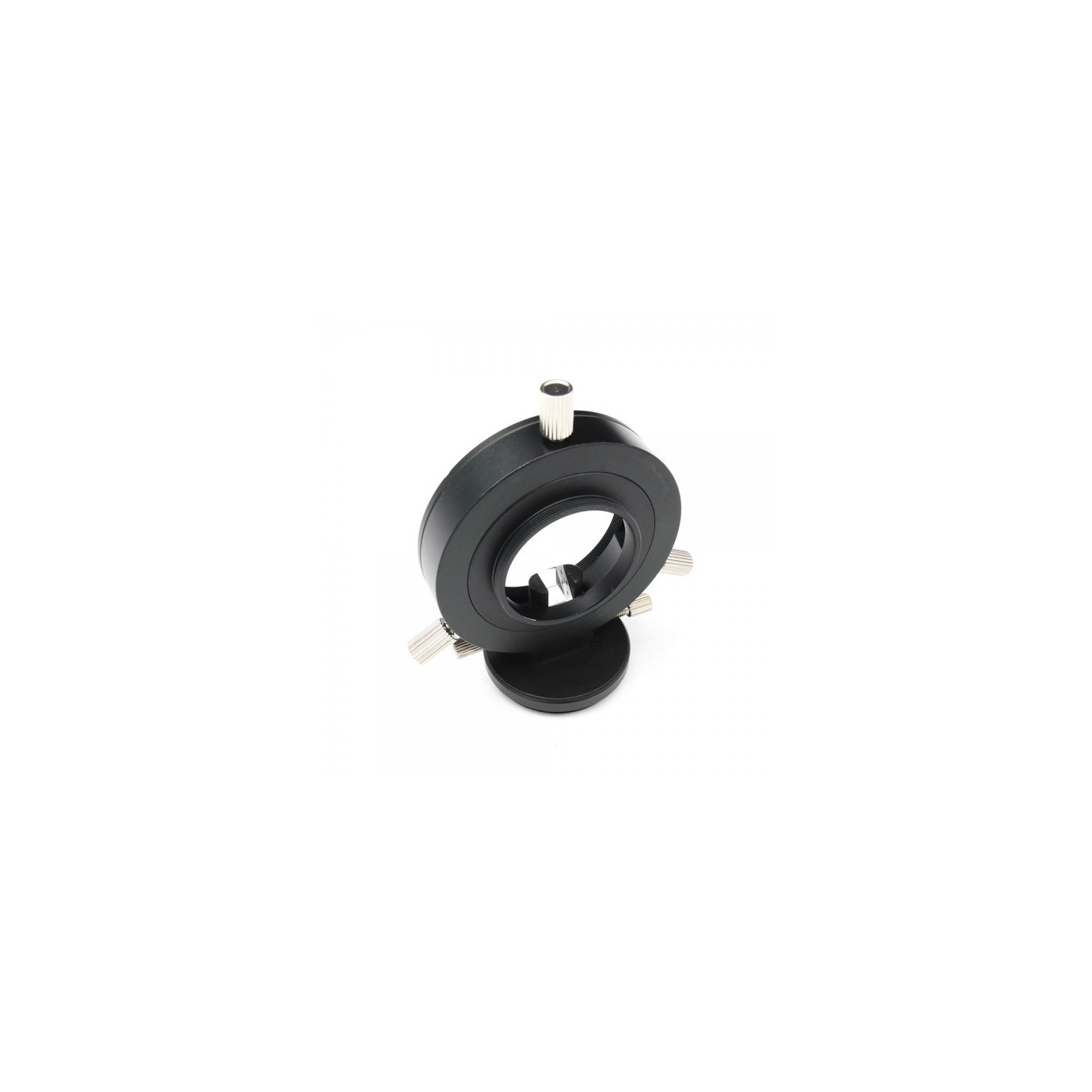

Off-axis radial guide ZWO OAG for astrophotography with cameras ZWO. The simplest and most compact way to enjoy an OAG.

General features:

1. Lightweight and 16.5mm thick

2. Large prism dimensions: 8x8mm

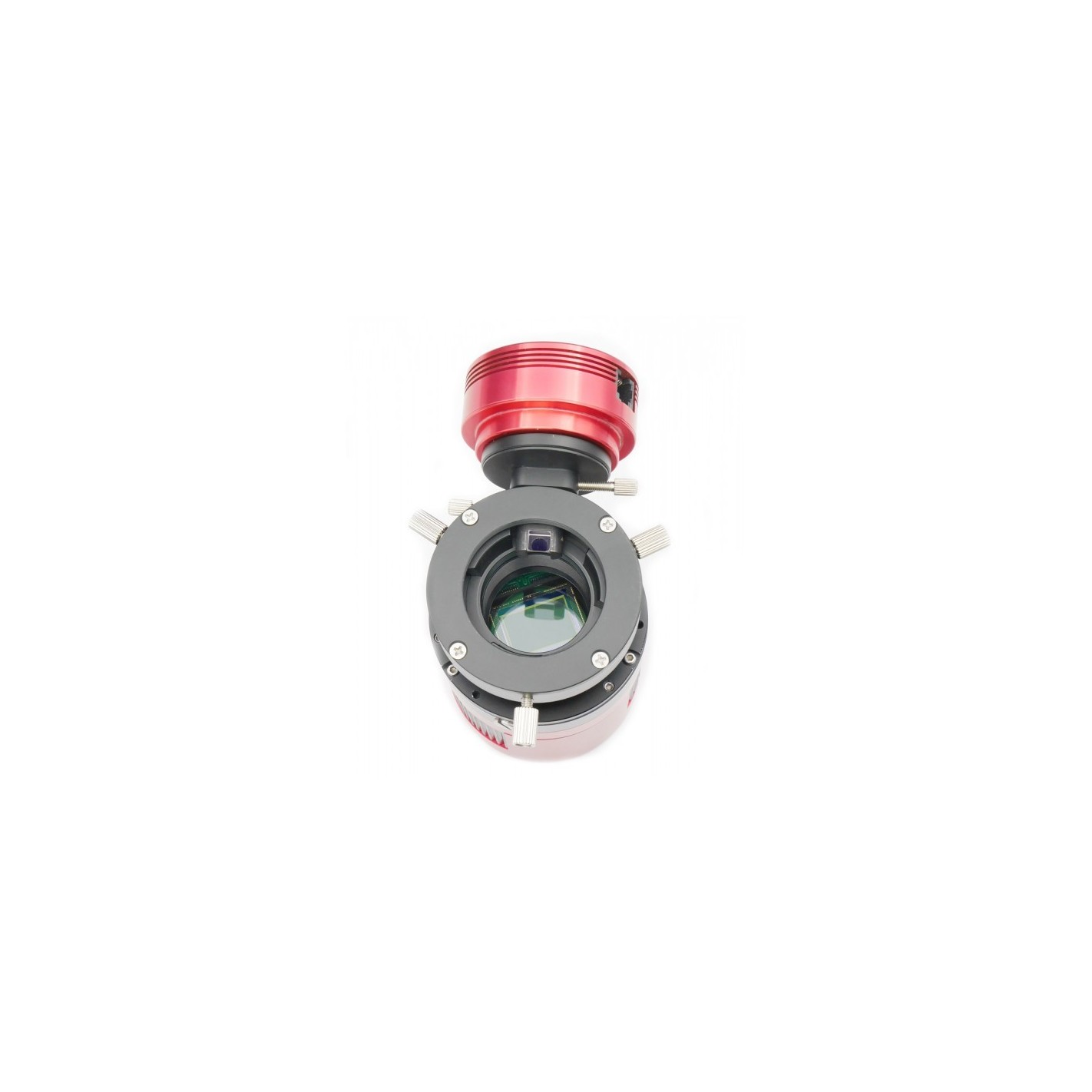

3. Connect both the main camera and the guiding camera. No need for guide tube!

4. Versatile adaptation to your camera and telescope, via M42 and M48 threads.

5. Fully compatible with all ZWO ASI cameras.

6. Good stability and robust connection to the telescope.

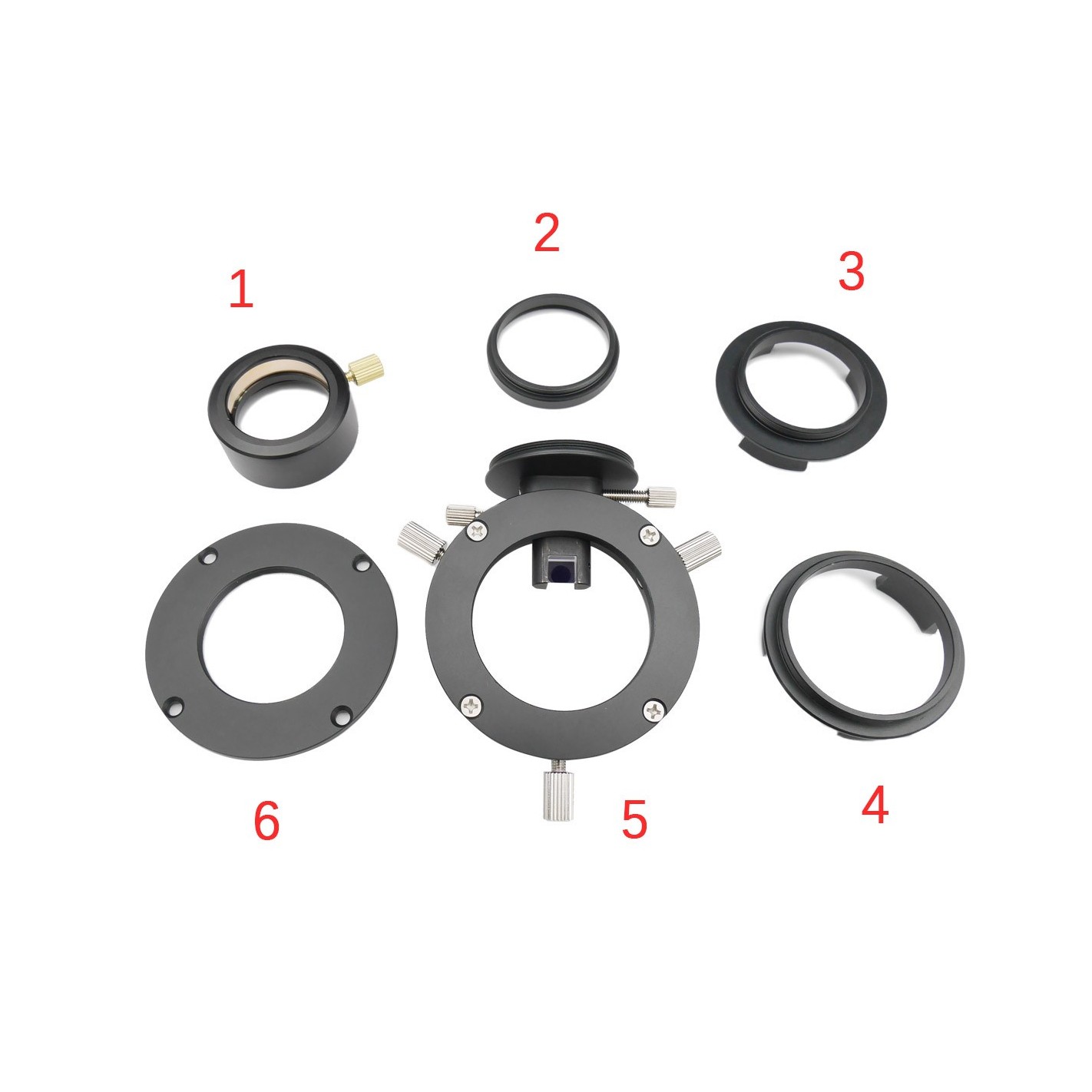

The ZWO OAG is supplied with all the accessories you will need for photography and guiding.

1. 1.25" bracket for 1.25" guided camera

2. 5mm T2 extender for ASI guided camera with 12.5mm backfocus such as ASI120, ASI224MC, ASI290 etc.
3.M42 adapter for main camera
4. M48 adapter for main camera
5. OAG body with M48 telescope adapter
6. Telescope adapter via M42

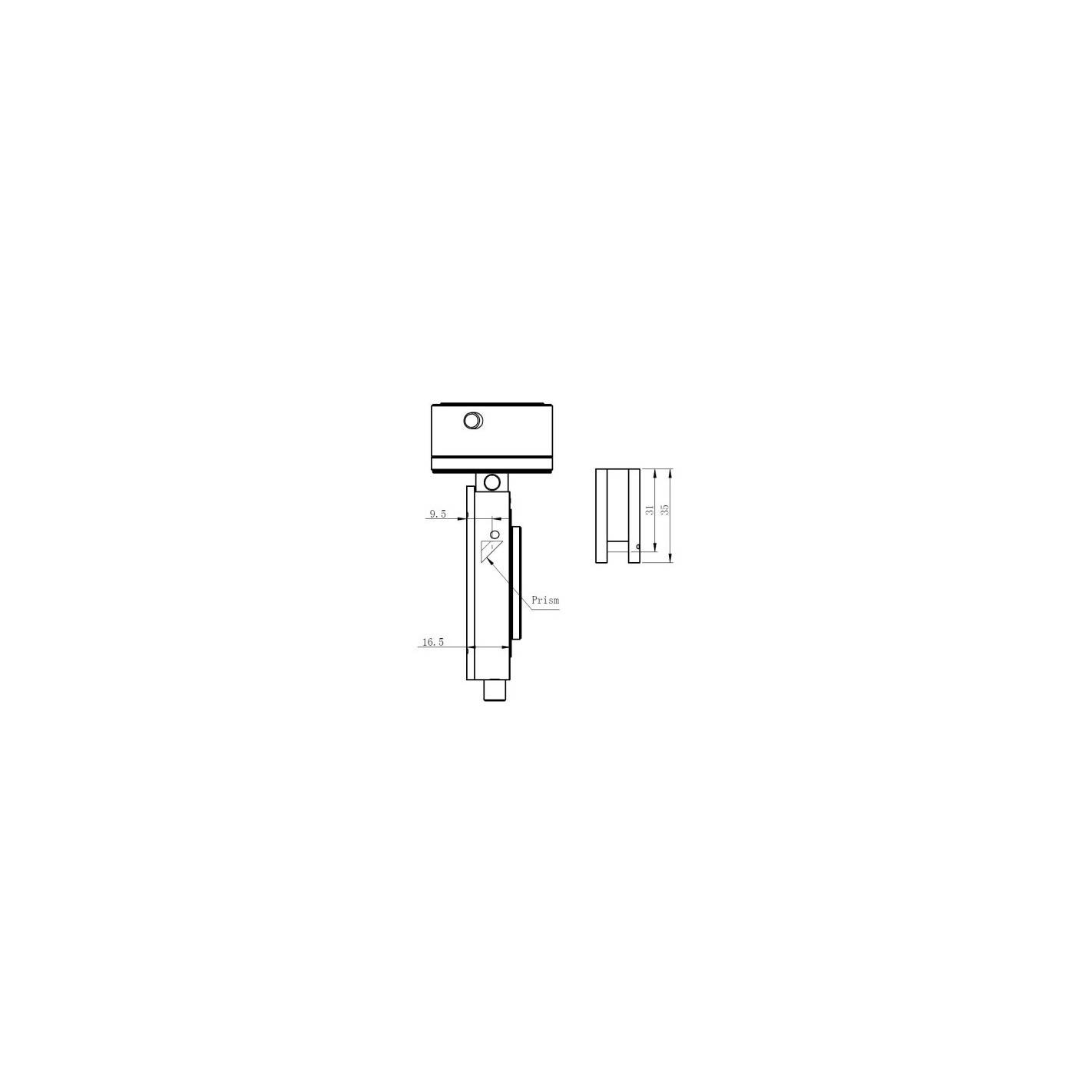

Mechanical schematic:

OAG-DRAW

Recommendation to keep in mind:

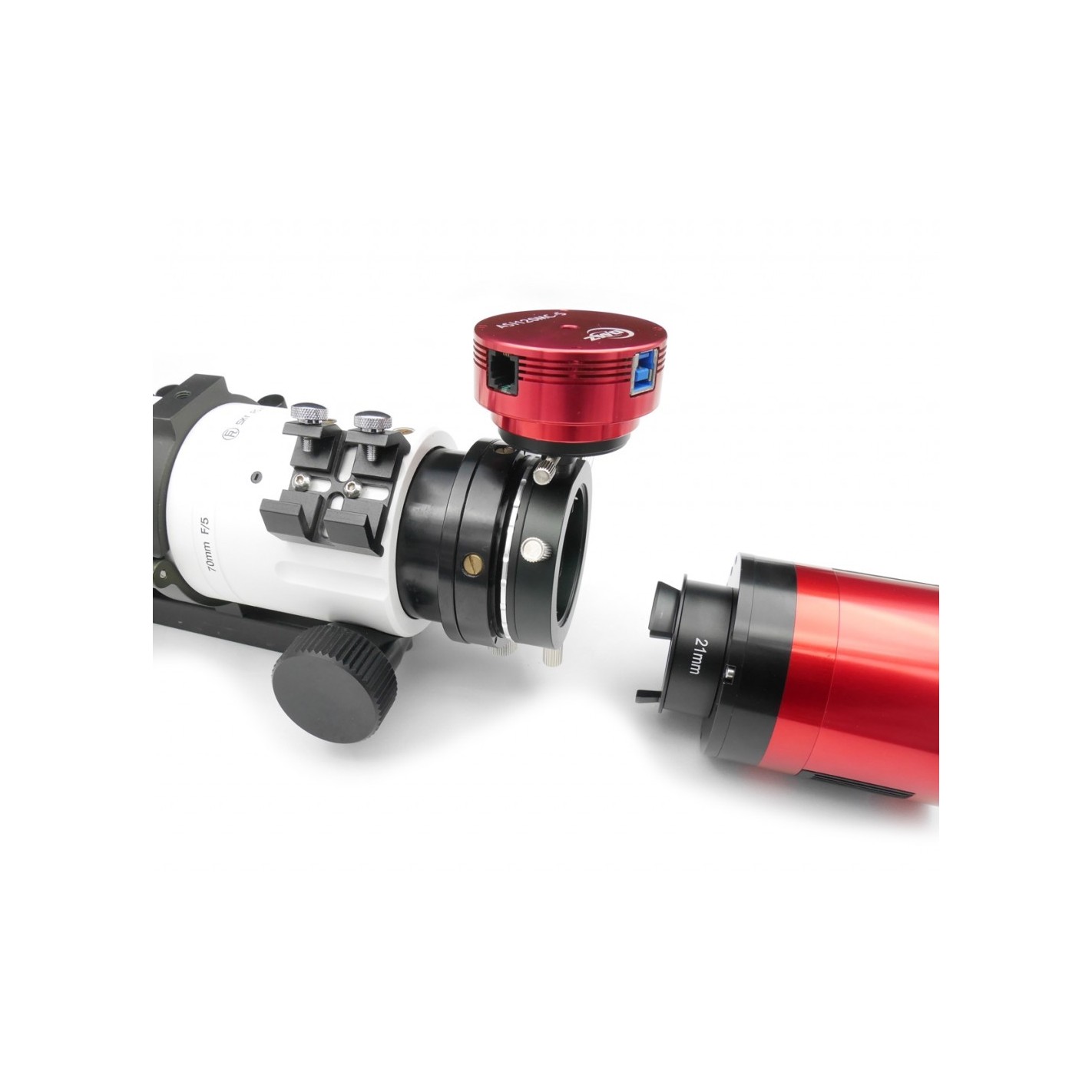

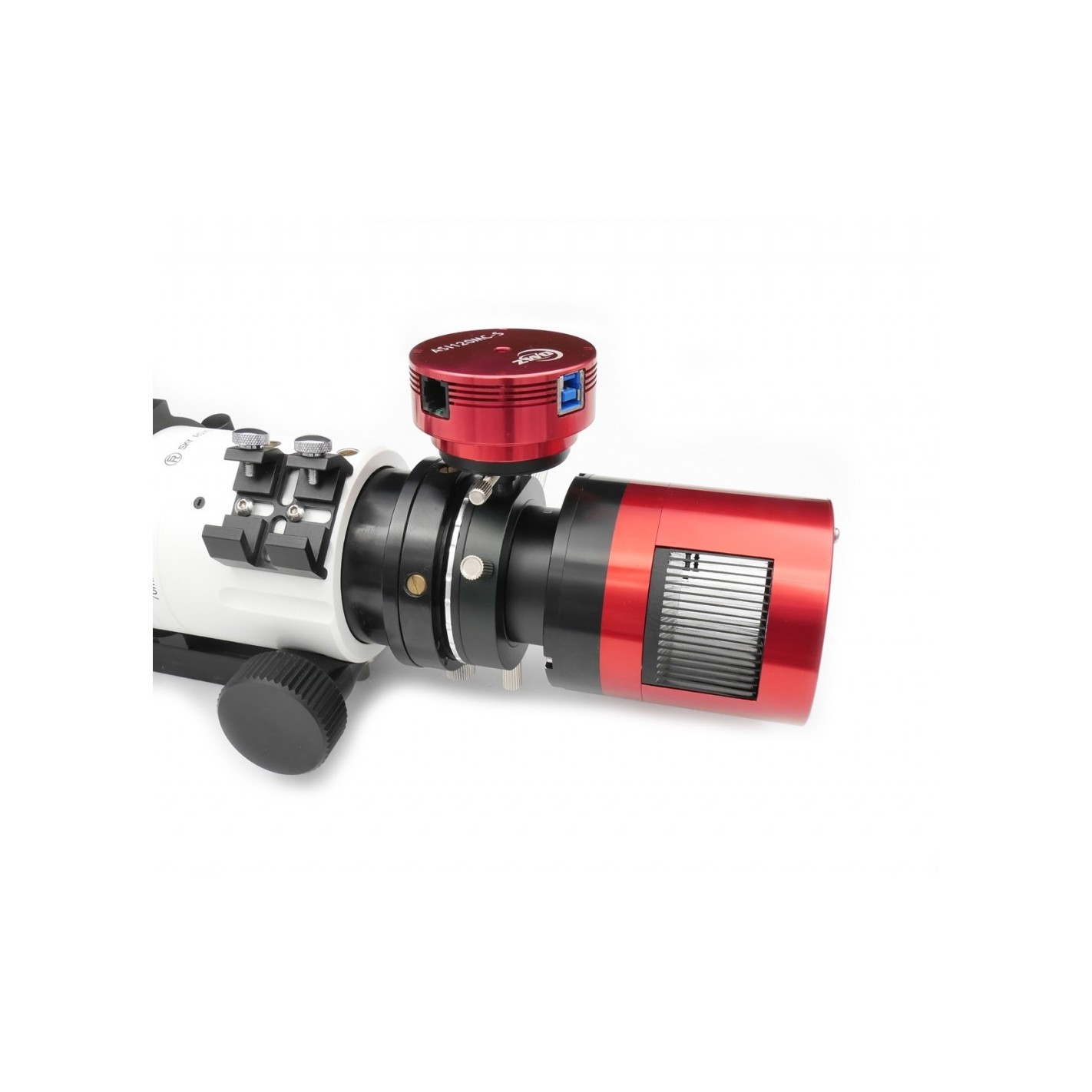

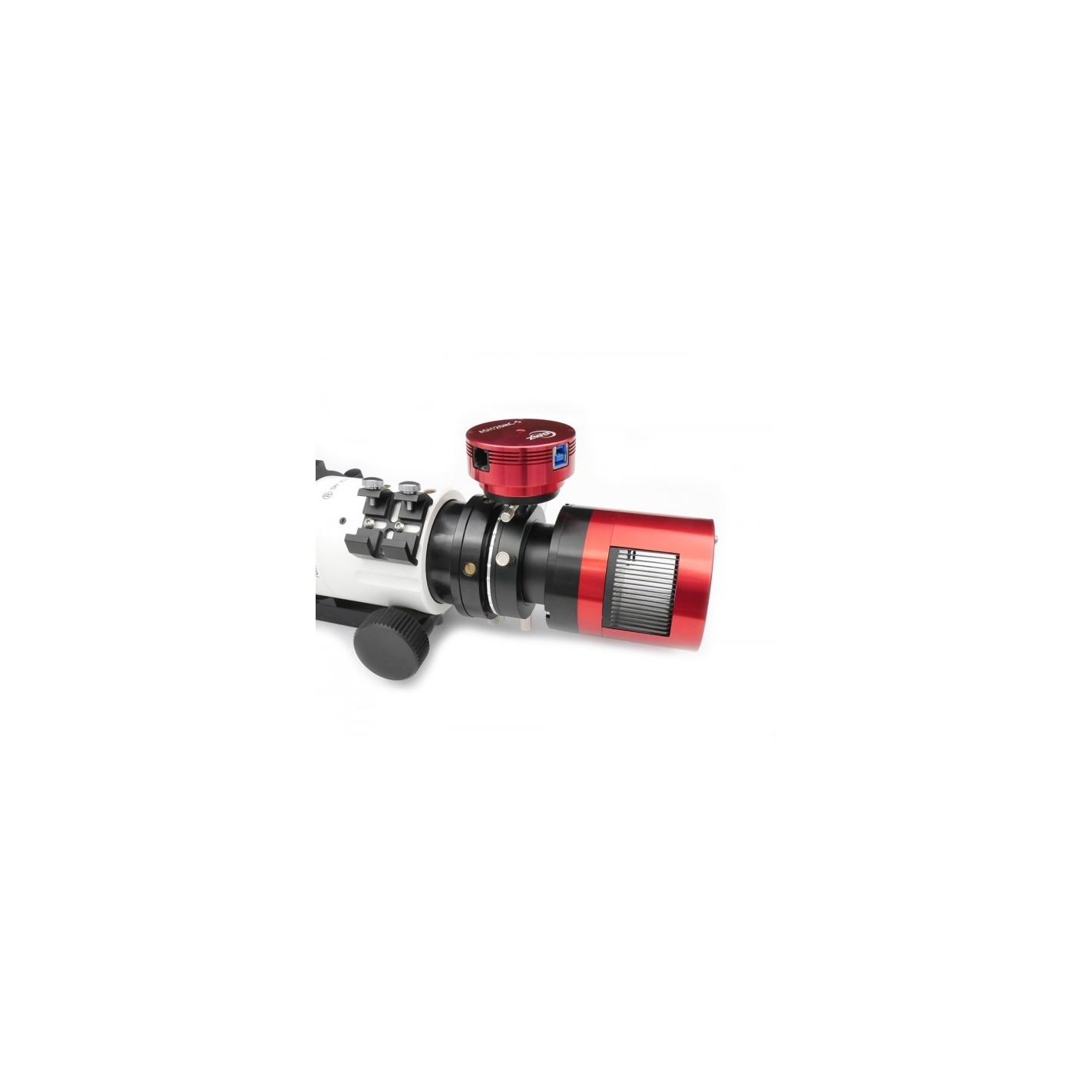

The main and most important thing before making the assembly is that you correctly calculate the proper distance you need for your optical train. For example: you will need to attach a 21mm extender to the ASI071 in order to reach the 55mm backfocus. That will be 17.5 + 21 +16.5mm = 55mm.
