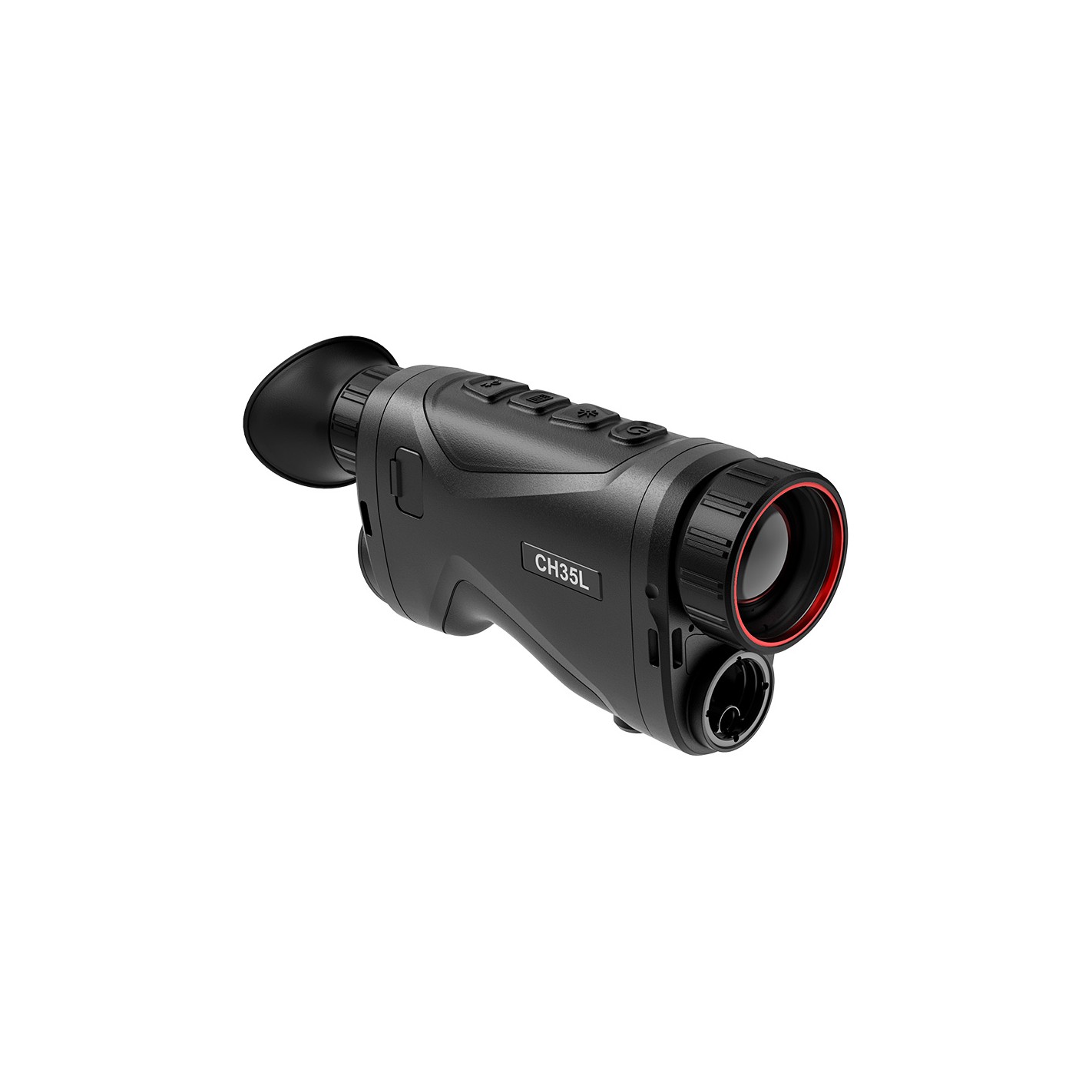

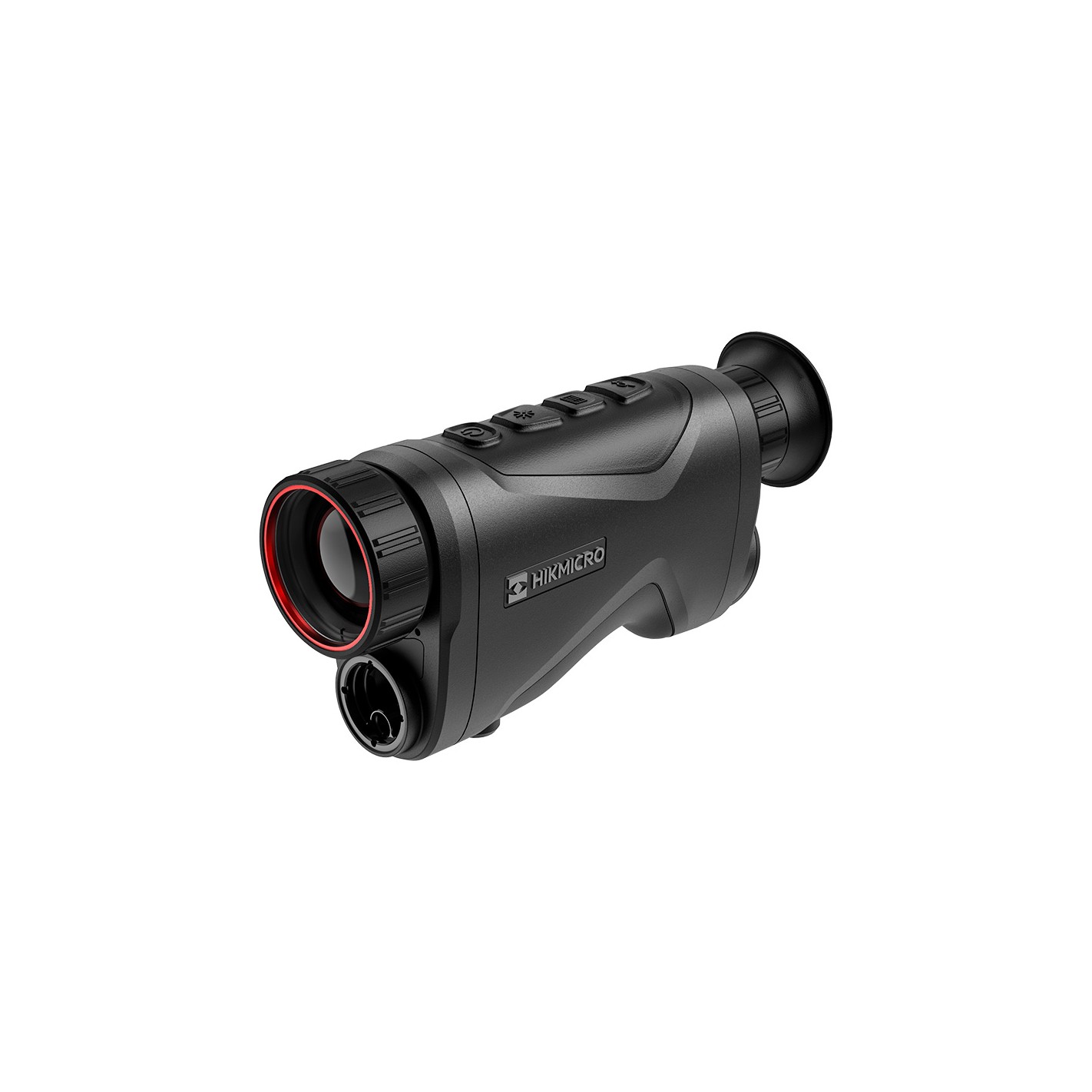

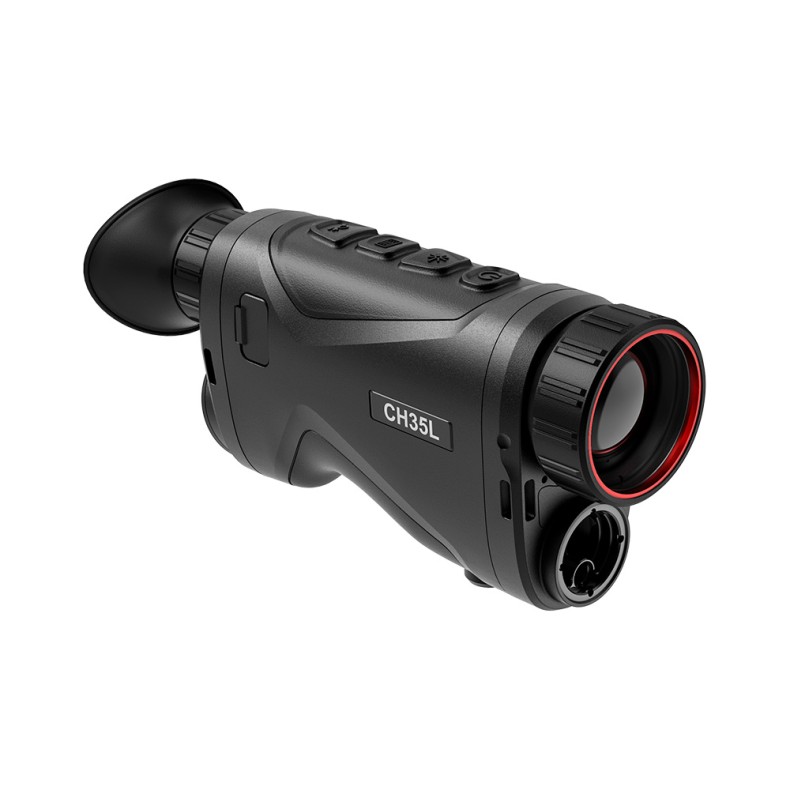

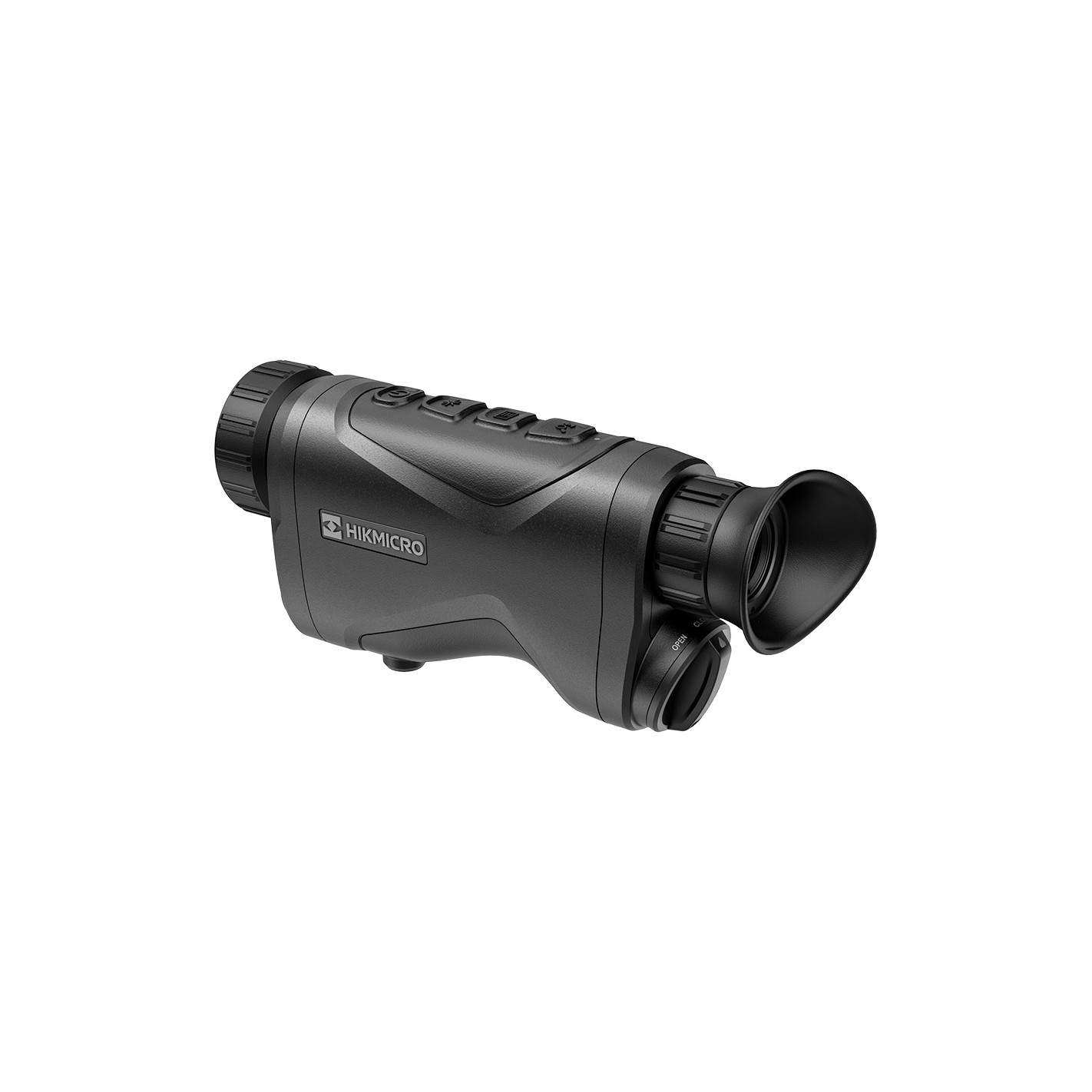

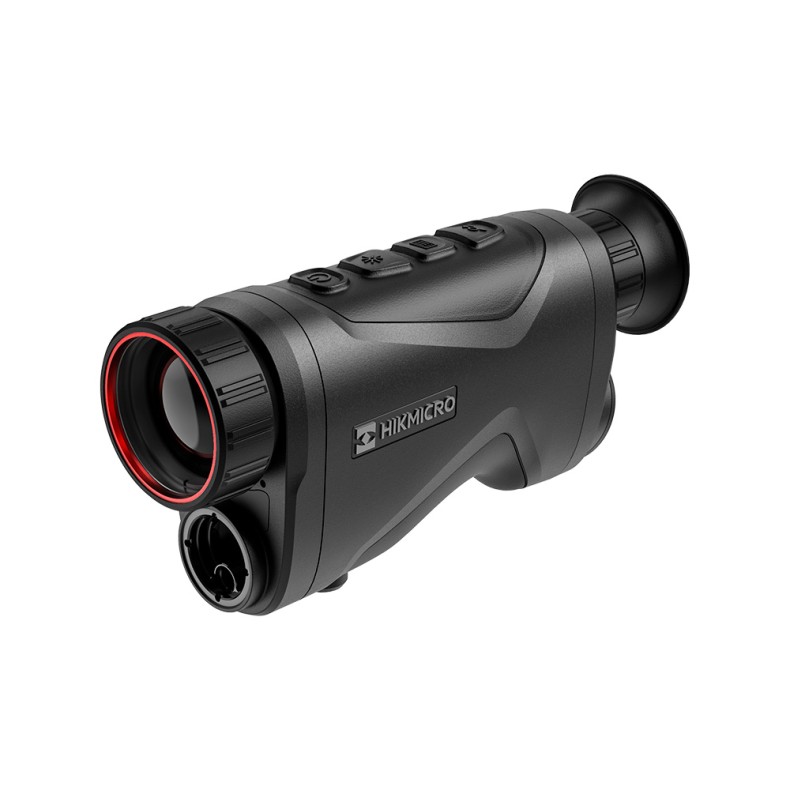

The HIKMICRO CONDOR CH35L thermal monocular is equipped with a 384 × 288 @ 12 μm thermal sensor and a 1024 × 768 OLED display. With a NETD of less than 20 mK, representing high thermal sensitivity, it ensures perfect image quality and detail recognition even in the harshest weather conditions.
Its built-in laser rangefinder up to 1,000 meters can accurately measure the distance when you are observing in low light conditions. It can be mainly used in forest hunting, bird watching, animal searching and adventures.
Main features
- High sensitivity NETD thermal module
- 384 × 288 resolution with 12 μm detector
- 0.39-inch OLED display with 1024 × 768 resolution
- Advanced image processing technology
- Image Pro for enhanced detail recognition
- Zoom Pro for digital zoom without loss of image quality
- Replaceable and rechargeable lithium-ion battery
- Up to 4.5 hours of continuous operation
- 400 grams of weight with a compact and ergonomic design
Technical Specifications
- Image sensor: Uncooled focal plane arrays VOx 384 × 288
- Pixel spacing: 12 μm
- Waveband response: 8 μm 14 μm
- Lens: 35 mm
- NETD: Less than 20 mK (@ 25 ° C), F# = 1.0
- Field of view: 7.5 ° × 5.6 ° ( H × V)
- Magnification: 3.5 to 28x (8x)
- Monitor: OLED 1024 x 768 px
- Frame Rate: 50 Hz
- Color palettes: Vivid black, vivid white, vivid red, fusion
- Hot track: Yes
- Detection range: 1,800 meters
- Laser rangefinder: Class 1
- Wavelength: 905 nm
- Maximum measuring range: 1,000 meters
- Minimum measuring range: 10 meters
- Measurement accuracy: ± 1 m
- Video recording: Yes
- Snapshot capture: Yes
- Wifi: Yes
- Standby mode: Yes
- Power: Replaceable and rechargeable lithium-ion battery
- Operating Time: Up to 4.5 hours continuous operation.
- Protection: IP67
- Working Temperature: From -30°C to 55°C
- Dimensions: 184.9 mm × 53 mm × 87.8 mm
- Weight: 400 gr (without battery)
- Warranty: 36 months
- Sensor warranty: 10 years
App HIKMICRO SIGHT for IOS and Android
Download the HIKMICRO SIGHT APP to be able to control the monocular from your smartphone or tablet. HIKMICRO SIGHT will allow you to use all the features of the monocular as if you were controlling it from the device itself. You will also be able to download the images and videos stored in the internal memory of the monocular and for all those models that have a distance meter, it can be activated from the APP HIKMICRO SIGHT. Compatible with all HIKMICRO thermal monocular models.
Ultra-sharp image, impressive detail recognition
The powerful, high-sensitivity thermal detector (NETD＜20 mK) of the HIKMICRO CONDOR thermal imaging monocular helps you easily and clearly identify fine details of objects and backgrounds in different conditions
The specifically designed imaging algorithm provides stunning image quality.
HIKMICRO's in-house developed imaging algorithms enable the HIKMICRO CONDOR thermal monocular to obtain highly optimized images and remarkable details. The development of these algorithms is based on extensive analysis of various hunting scene images and thermal imaging features.
Accurate distance measurement
The distance to the prey is essential to ensure safe shooting. The laser rangefinder built into the HIKMICRO CONDOR thermal monocular allows the user to measure a distance of up to 1000 m with an accuracy of ±1 meter in various scenarios, enjoying the most accurate measurement of the
situation.

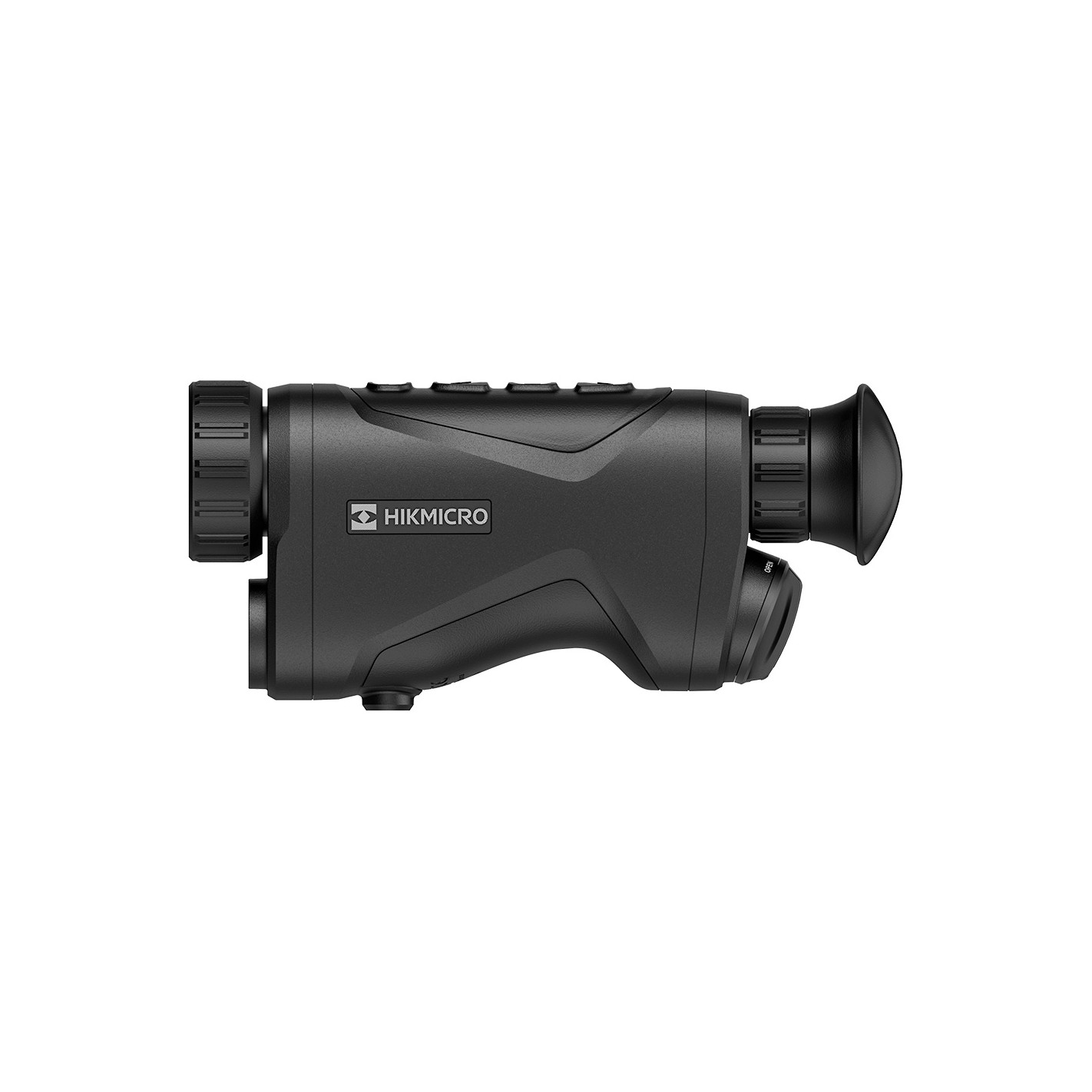

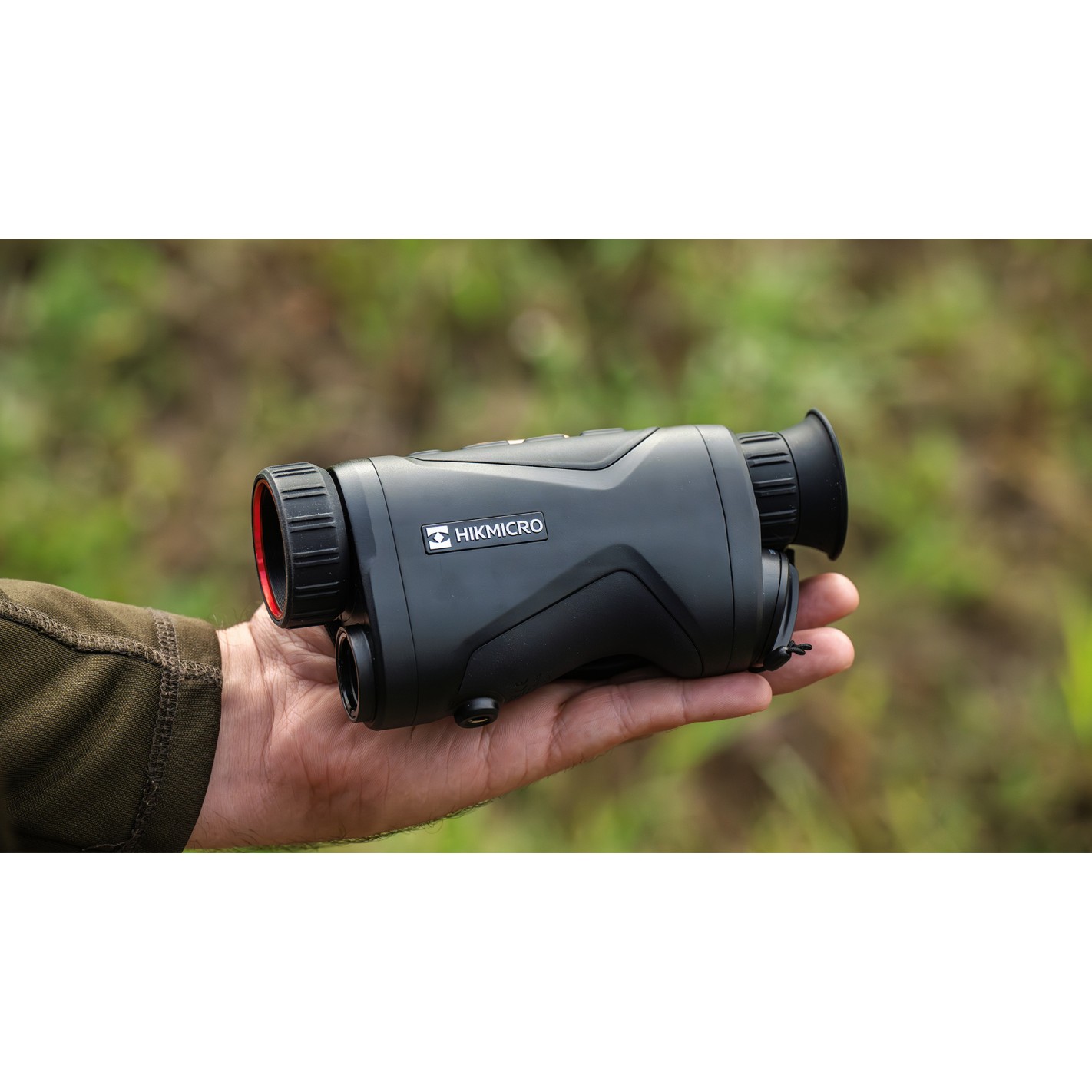

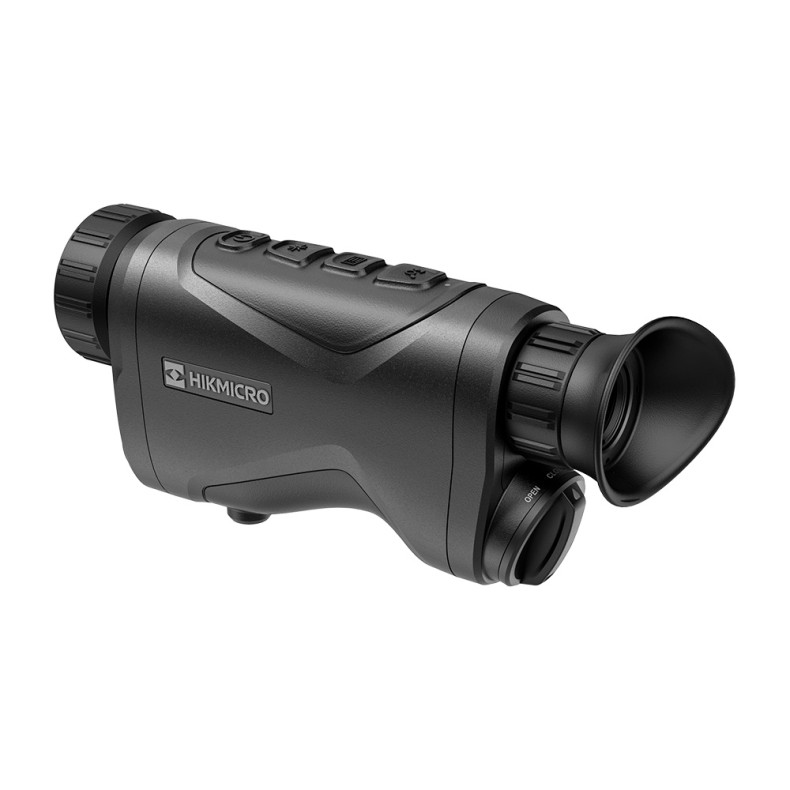

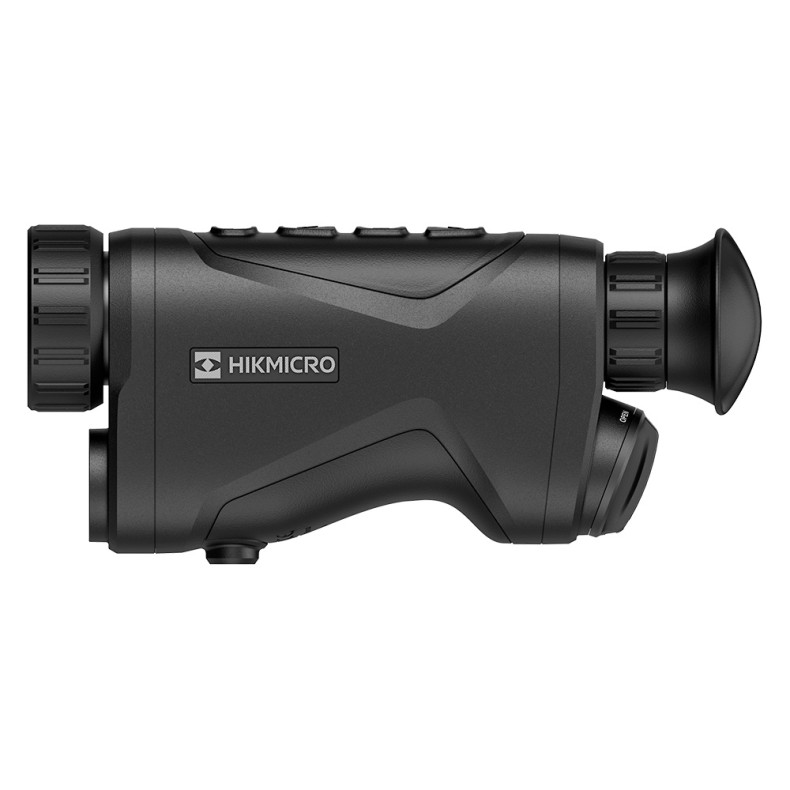

Ergonomic grip design for a better user experience
The compact and easy-grip design of the HIKMICRO CONDOR fits perfectly in the hand. It adopts soft and skin-friendly material to ensure better handling for both right-handed and left-handed users.
Robust magnesium alloy housing design for long time use
The magnesium alloy design gives the HIKMICRO CONDOR thermal monocular a robust structure with light weight and improves stability, to enable prolonged use in any adverse environmental conditions.
The quick start function and replaceable batteries provide longer use.
The quick start in 3 s makes the HIKMICRO CONDOR always ready for use.
HIKMICRO ensures that users never have to worry about running out of battery. The HIKMICRO CONDOR thermal monocular comes with three replaceable and rechargeable 18 650 batteries, providing 13.5 hours of continuous operation. Thanks to longer battery life, users can endlessly enjoy hunting without worrying about the battery, capturing all the exciting moments without interruption.
The automatic screen shutdown automatically dims the display to save power and extend battery life.
The built-in algorithm automatically detects the exact position of the HIKMICRO CONDOR and activates the display auto-off function when it is not needed. The HIKMICRO CONDOR will automatically stop at a side tilt of 75°, as well as at a downward or upward tilt of 70°.

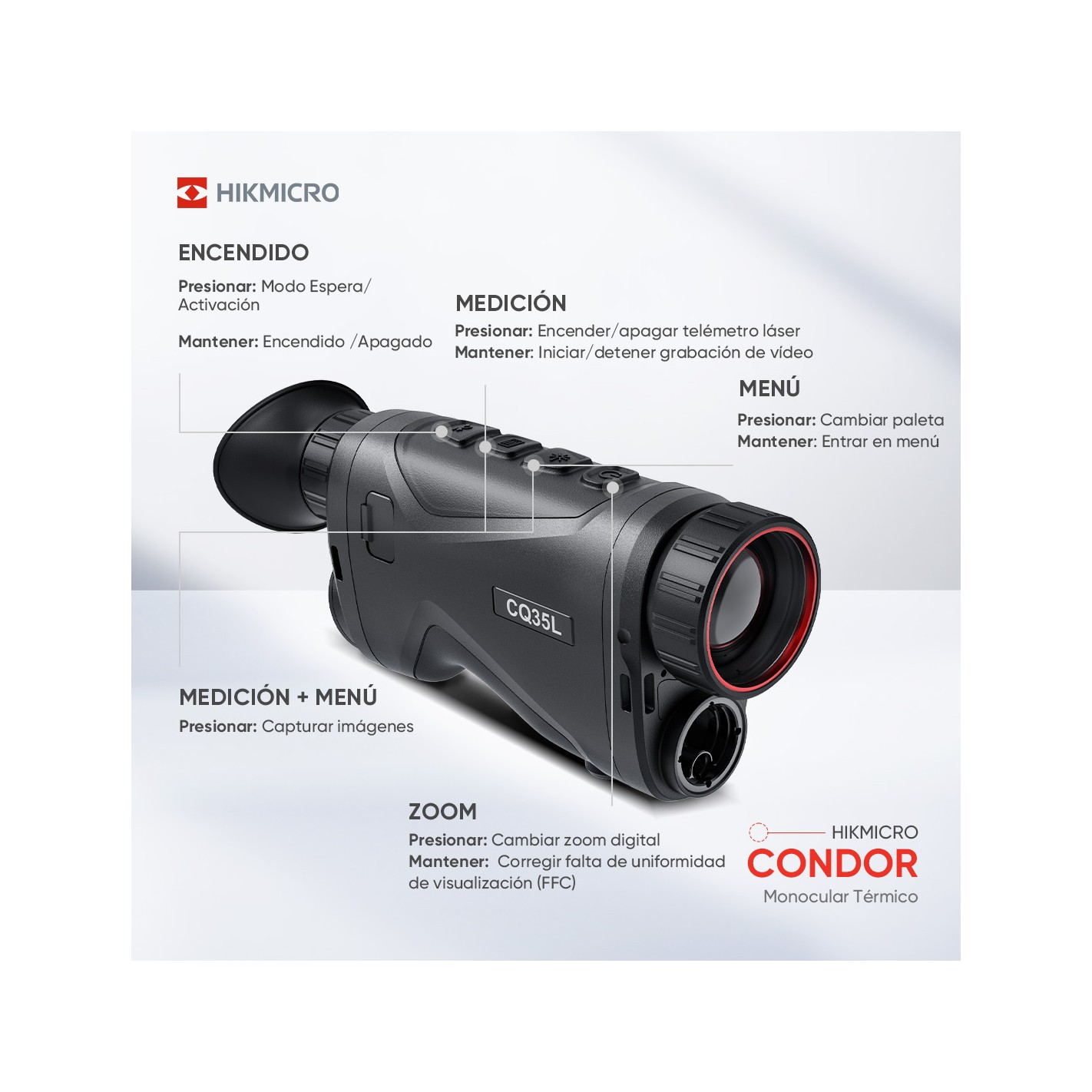

Customized settings available for a better viewing experience
The HIKMICRO CONDOR thermal monocular features a hierarchical menu, which prioritizes the most frequently used functions according to the user's habits. Users can customize their viewing experience to the highest level of comfort by adjusting parameters such as contrast, sharpness and other personalized options.
