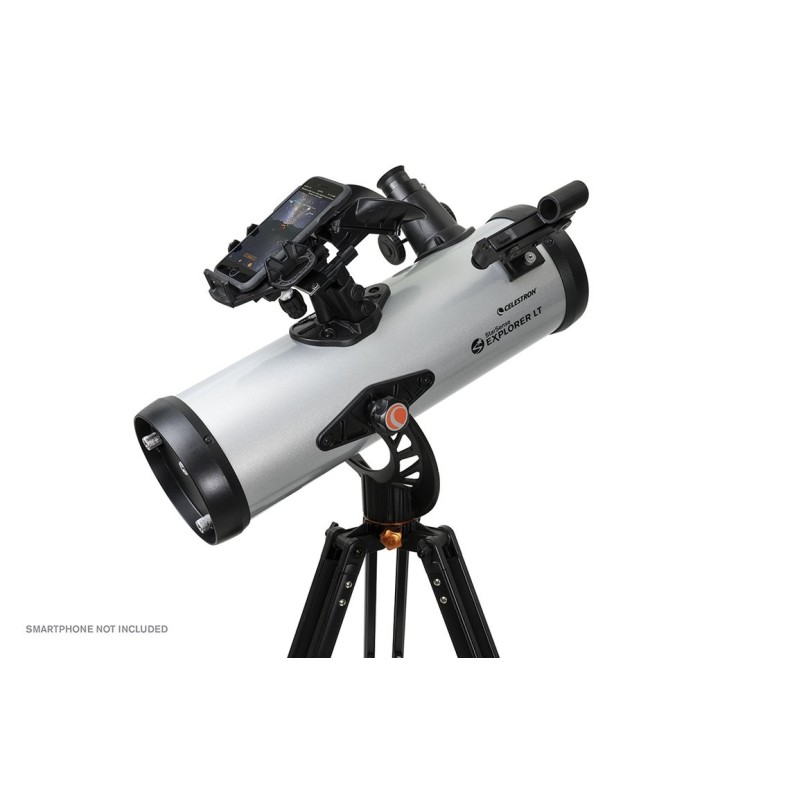

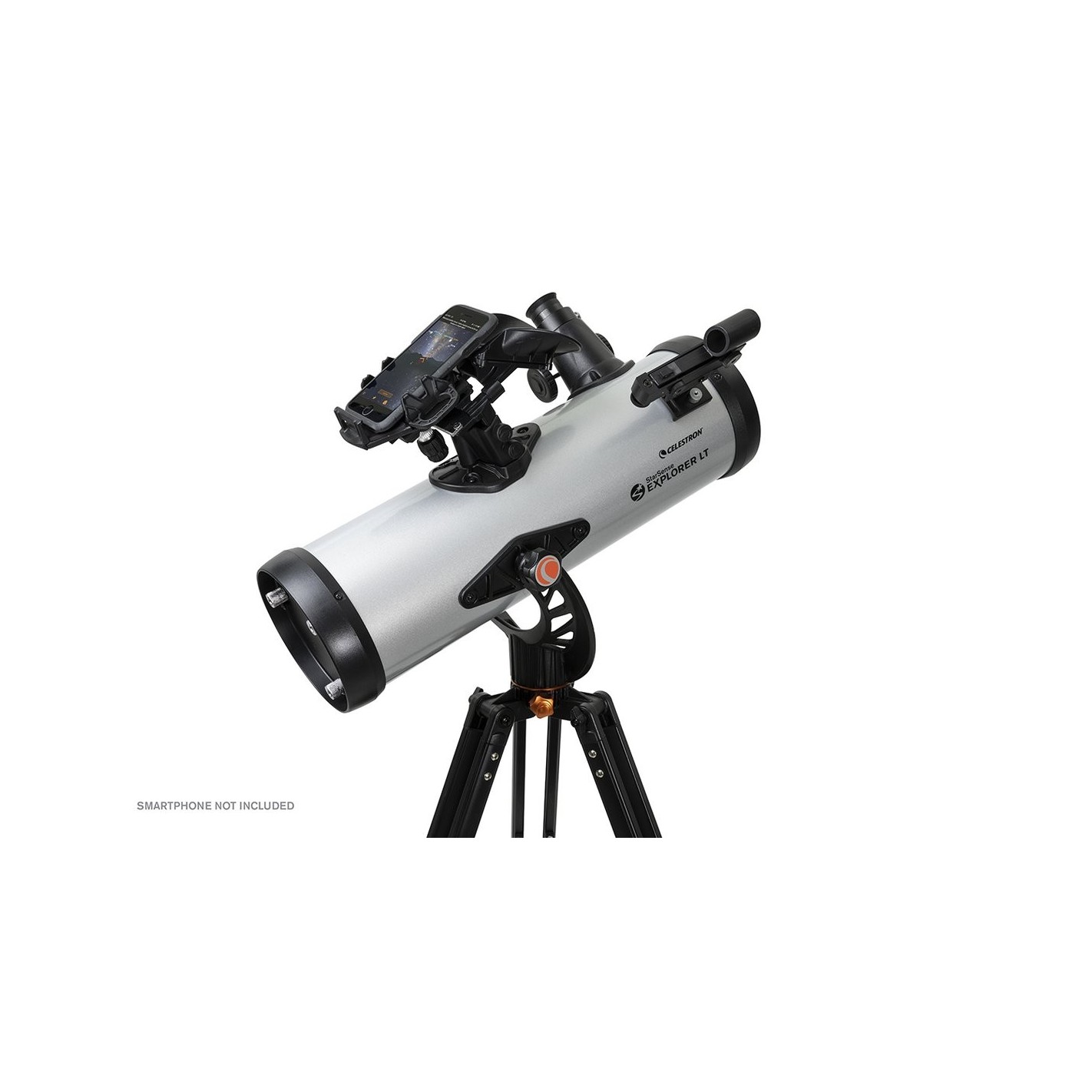

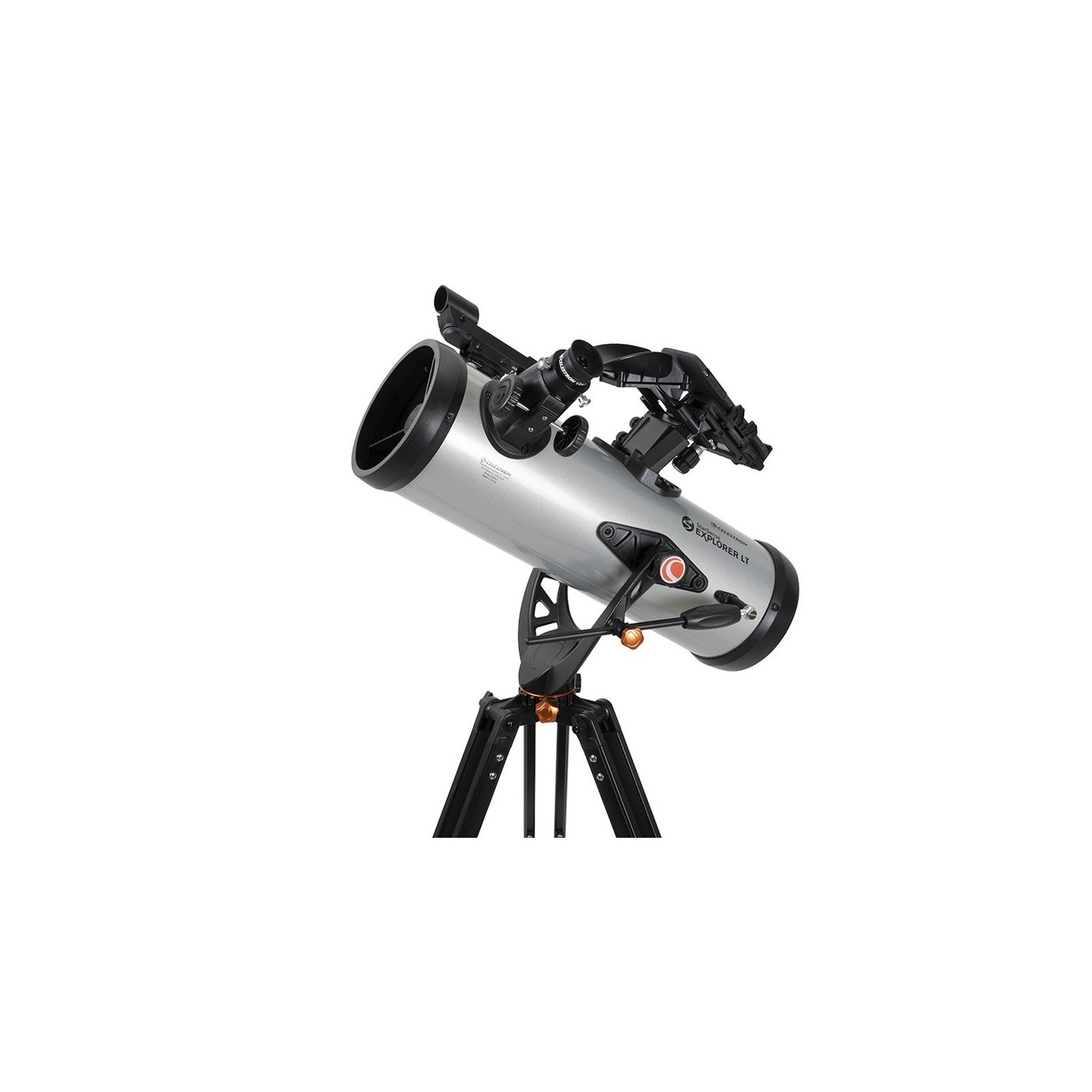

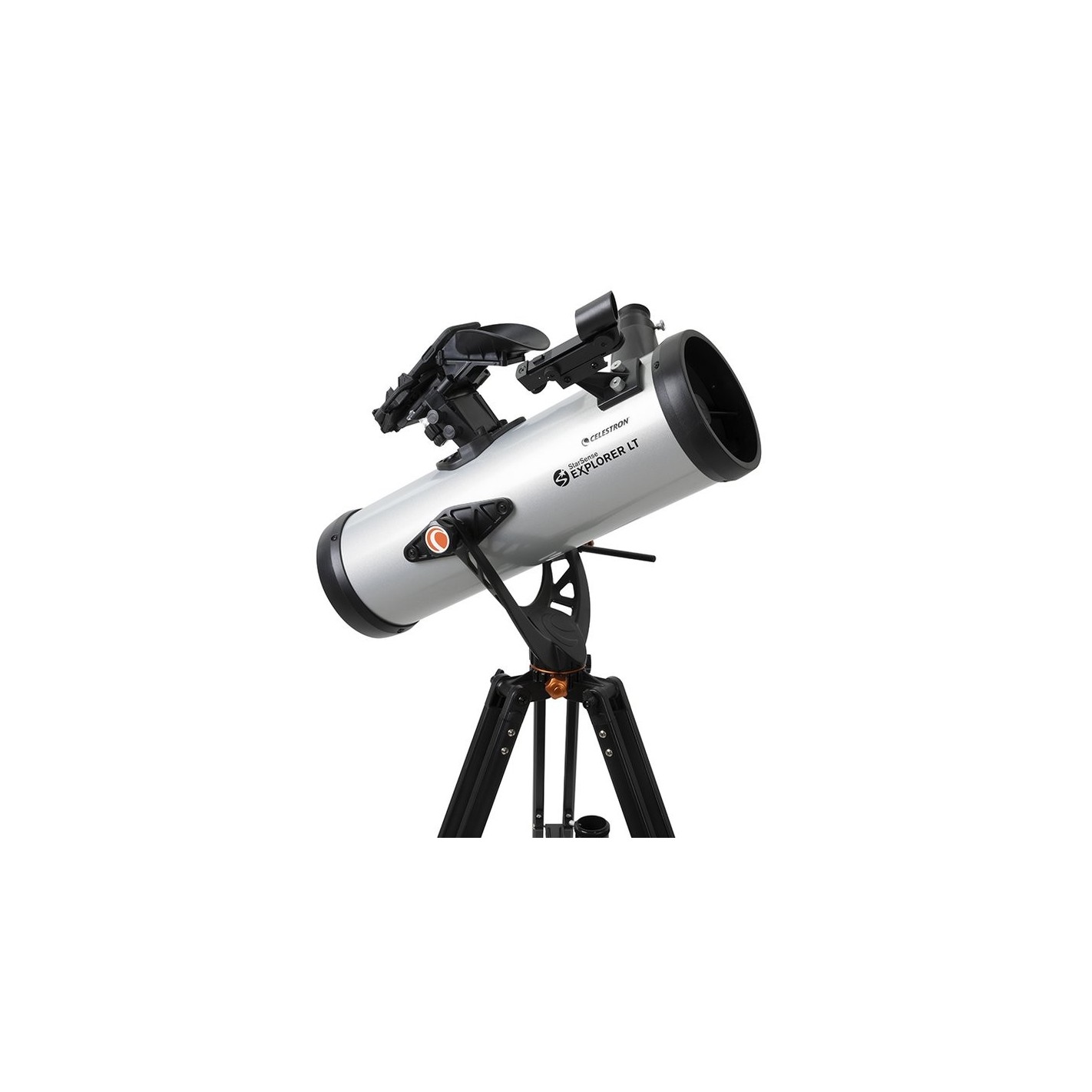

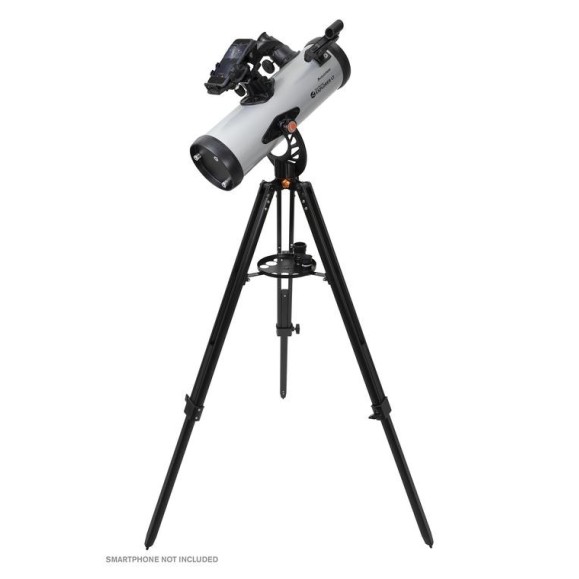

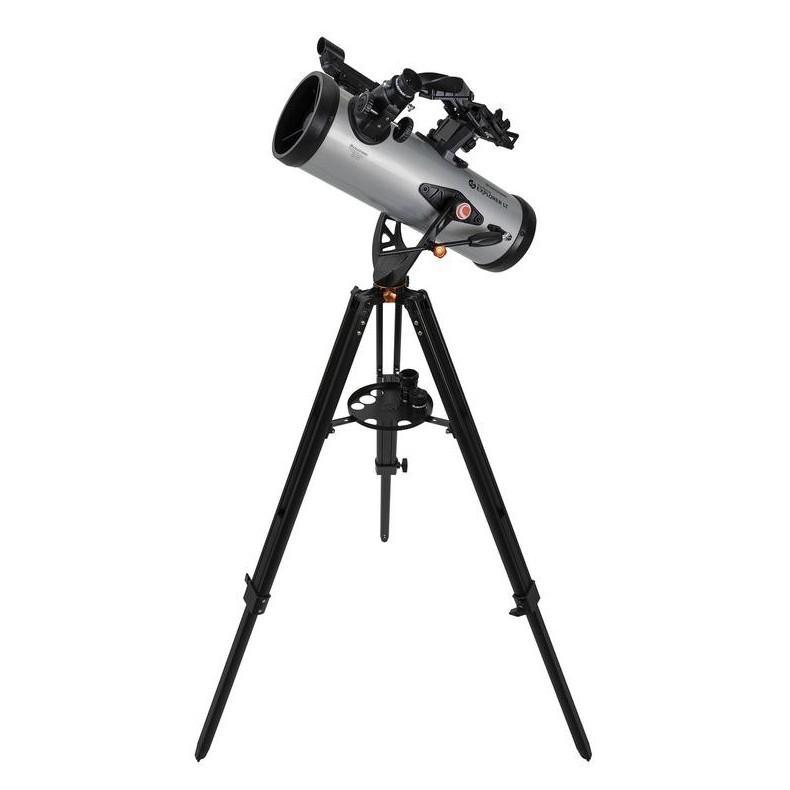

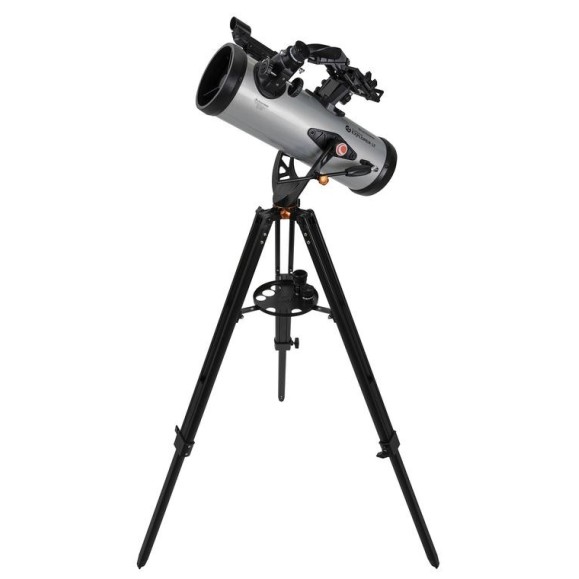

Reflector Telescope Celestron StarSense Explorer LT 114AZ Newton

Reflector Telescope Celestron StarSense Explorer LT 114AZ Newton

ATTENTION: Starsense Explorer series telescopes are not always compatible with cell phones manufactured before 2016. Phone requirements are: Android 7.1.2 or higher / iPhone 6 or higher. The cell phone has to be equipped with camera, gyroscope and accelerometer (refer to the list of compatible phones at the bottom of the datasheet of this product).

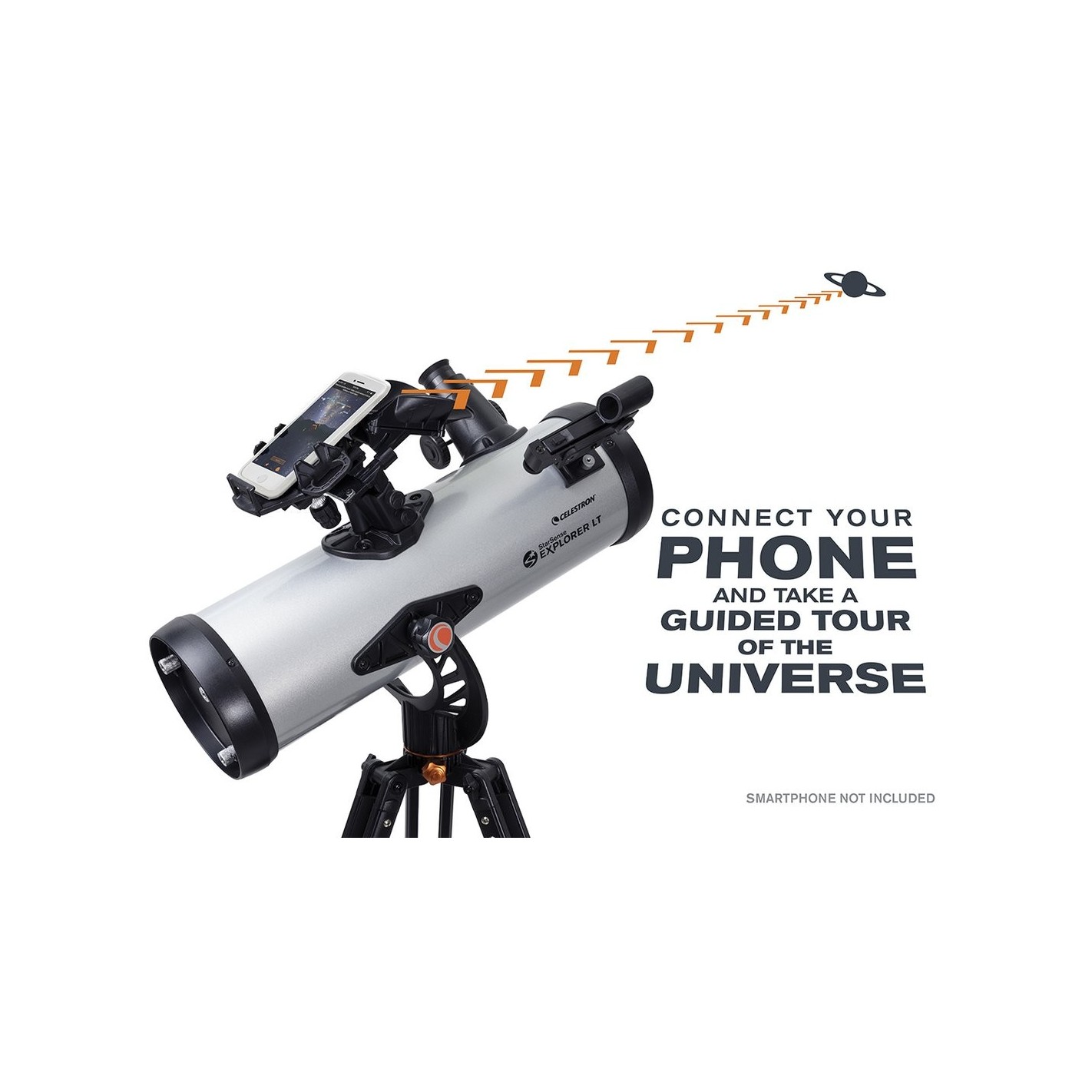

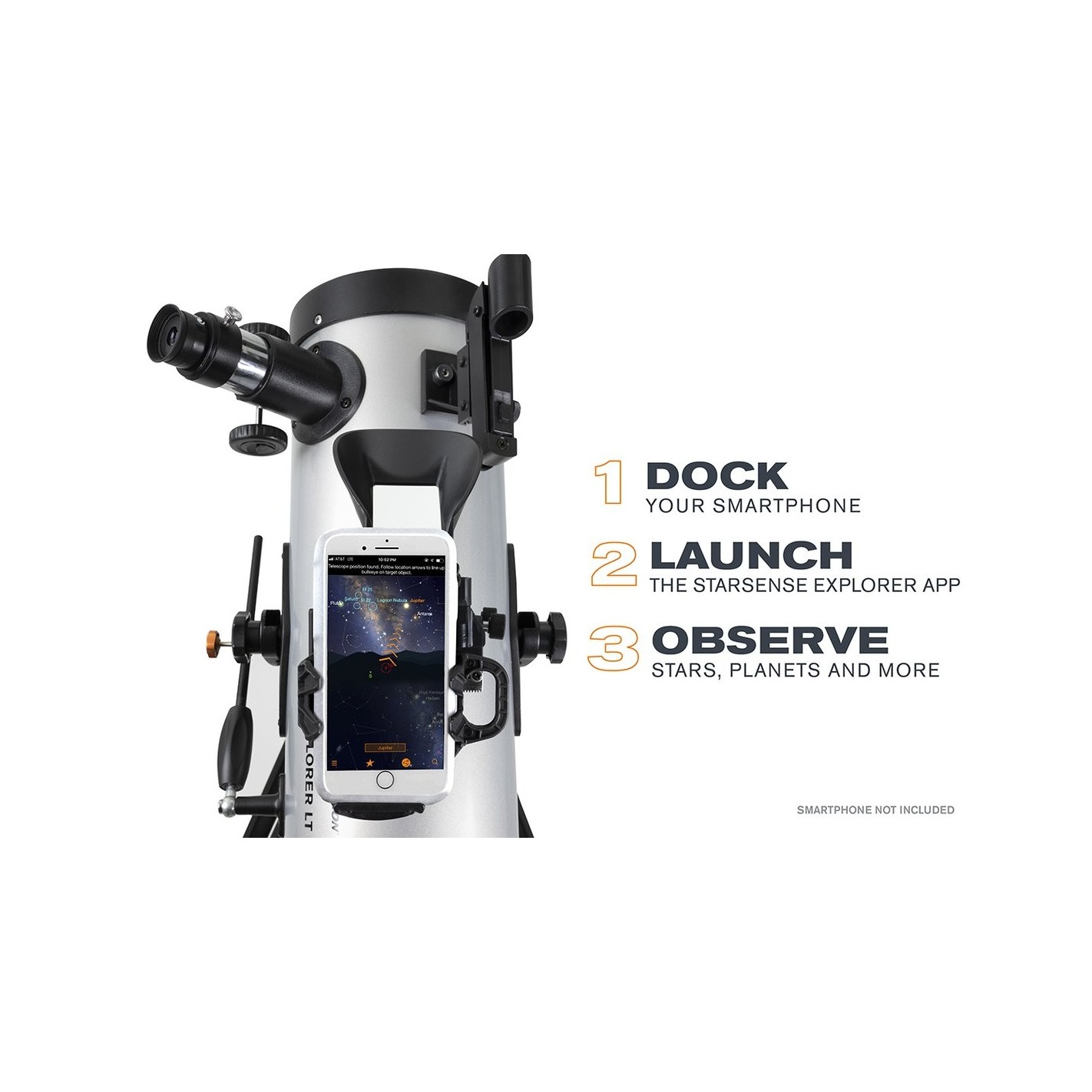

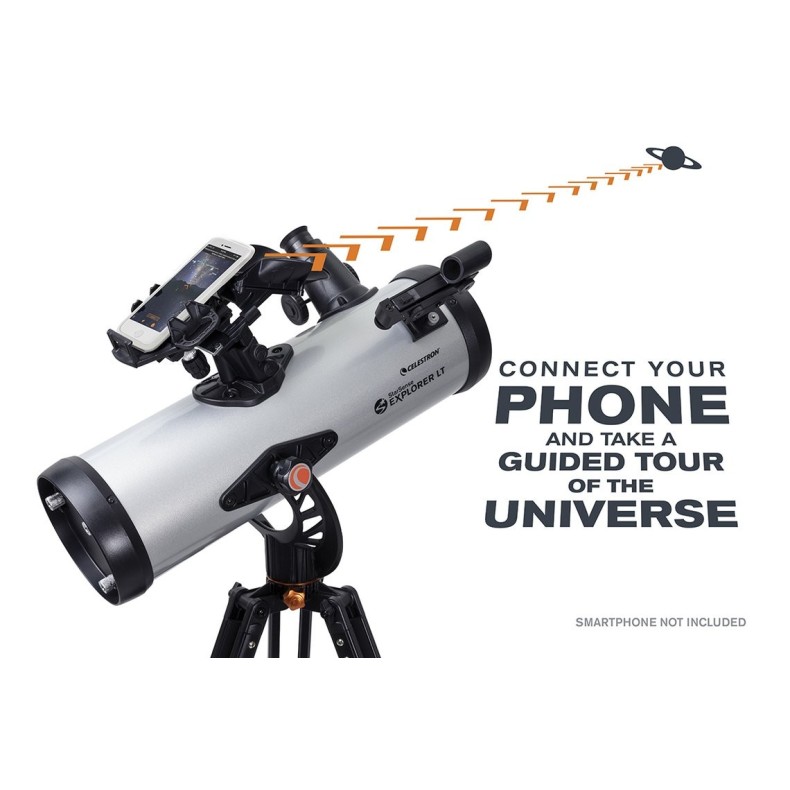

Celestron has reinvented the handheld telescope with StarSense Explorer, the first telescope that uses your cell phone to analyze the night sky and calculate the position of stars in real time. StarSense Explorer is ideal for beginners thanks to the app's easy-to-use interface and detailed tutorials. It's like having your own personal night sky tour guide.

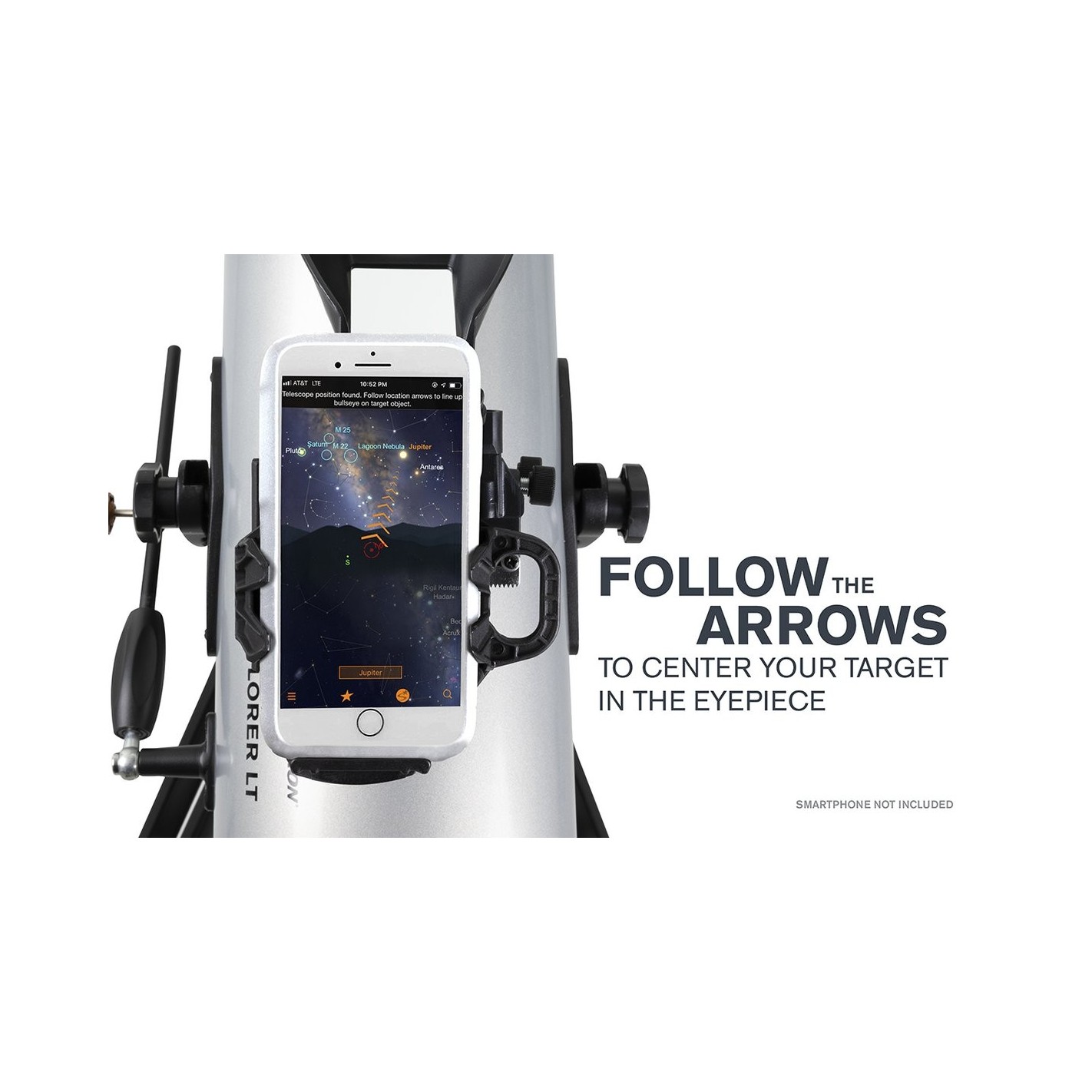

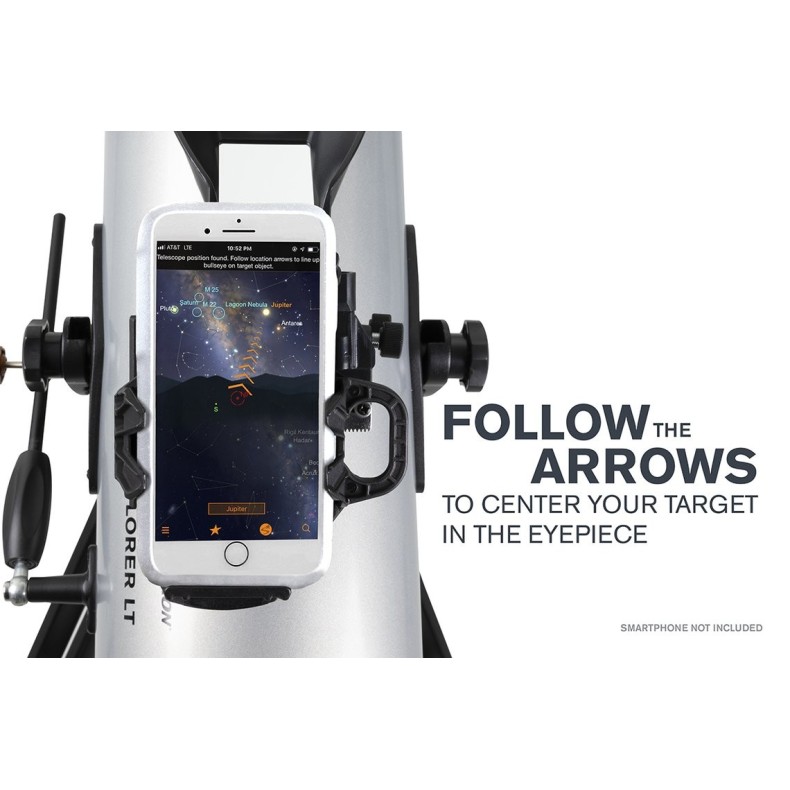

The StarSense Explorer application automatically generates a list of currently visible objects. See planets, bright nebulae and galaxies, star clusters and double stars even from the city. Or take your telescope to darker skies to view faint and deep sky objects.

Forget complicated star charts, inaccurate planetary applications and expensive computerized mounts. With telescopes Celestron Star Sense Explorer, finding celestial objects has never been so easy and fast. Place your cell phone in the holder on top of the telescope and launch the StarSense Explorer application. Once the phone is aligned with the telescope (a process that only takes a couple of minutes), you will have all the beauties of the night sky ready to be observed. Once the desired object has been selected from those currently visible, simply follow the instructions on the screen of your cell phone, moving the telescope to center the celestial object you wish to observe, be it the Moon, a planet, galaxy or nebula. When the object is ready to see, the target turns green.

An algorithm such as those used by orbiting satellites to reorient themselves correctly (LISA) helps the application match the star patterns it detects with those stored in its internal database.

While other astronomy apps may claim to be able to help you find objects, they rely solely on the phone's gyroscopes and accelerometers, which are not as accurate as LISA technology. No other app can accurately tell you when your target is visible in the eyepiece.
StarSense Explorer works with most modern smartphones, including iPhone 6 and above, and most devices running Android 7.1.2 or later manufactured since 2016.

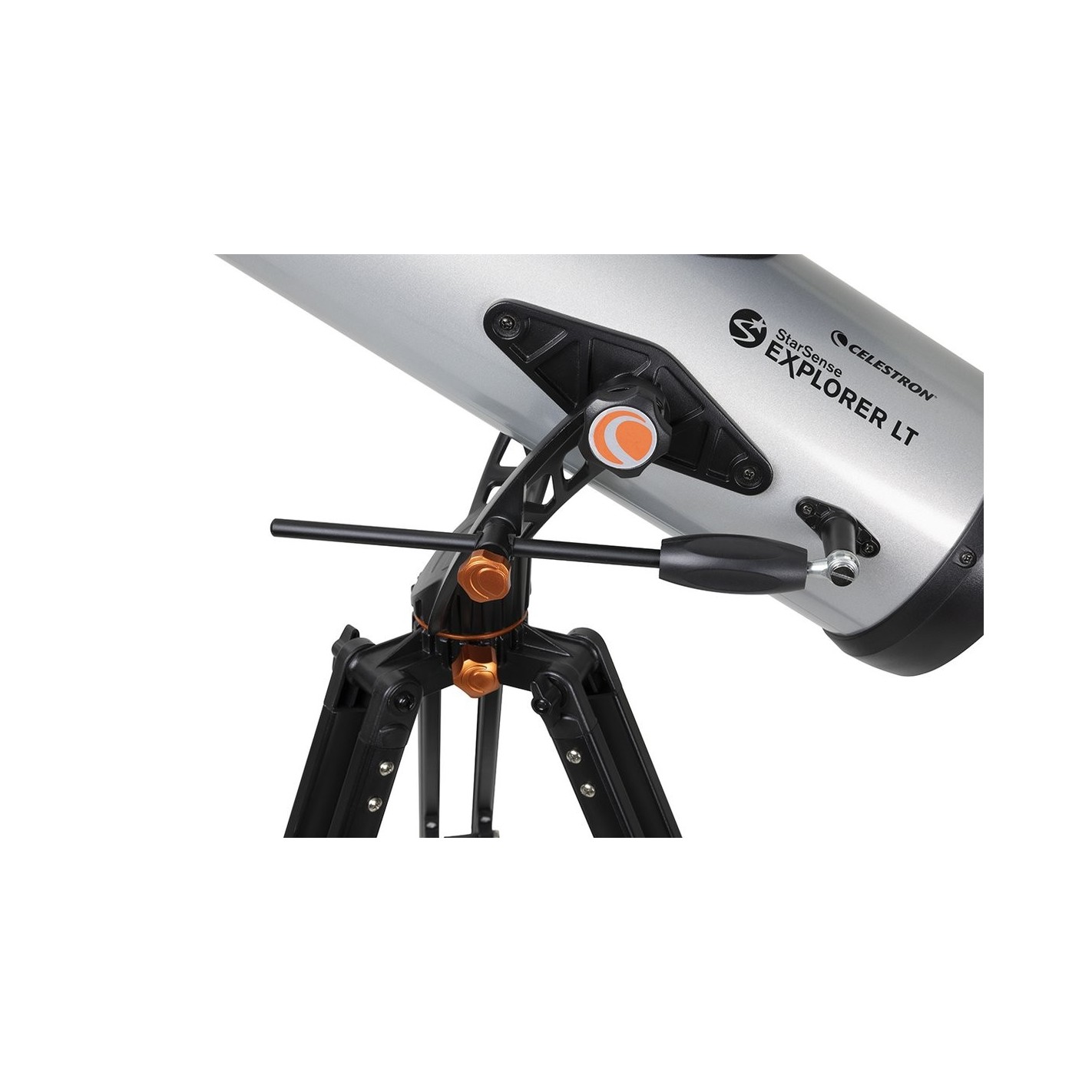

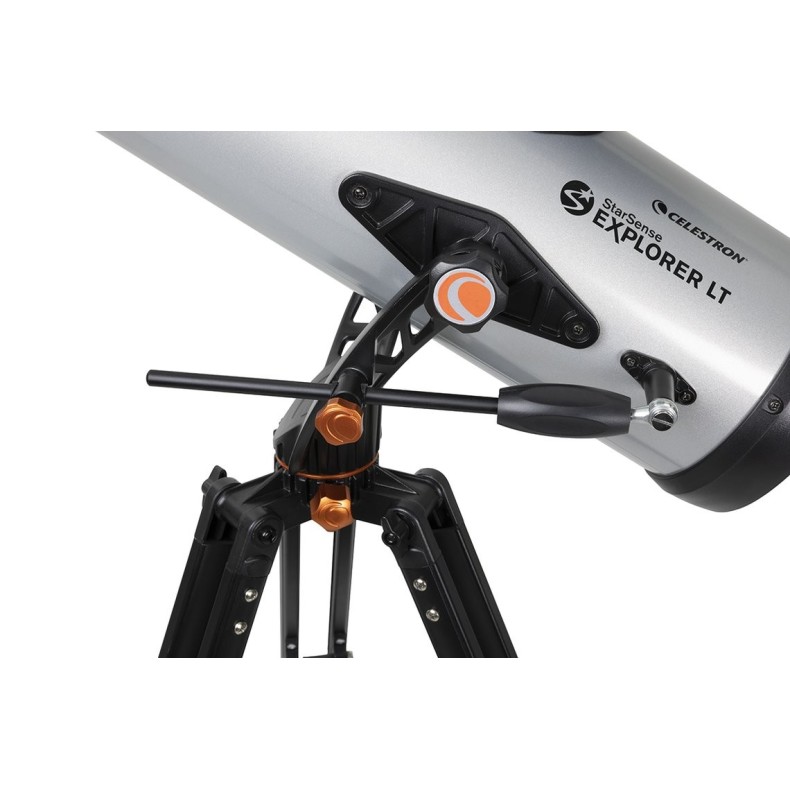

StarSense Explorer LT's single altazimuth mount makes it easy to move the telescope to find your target. A sliding knob slow-motion height adjustment system helps you adjust the position the telescope is pointed at and track objects as they appear to move across the night sky. Everything is securely supported by a full-height adjustable tripod.

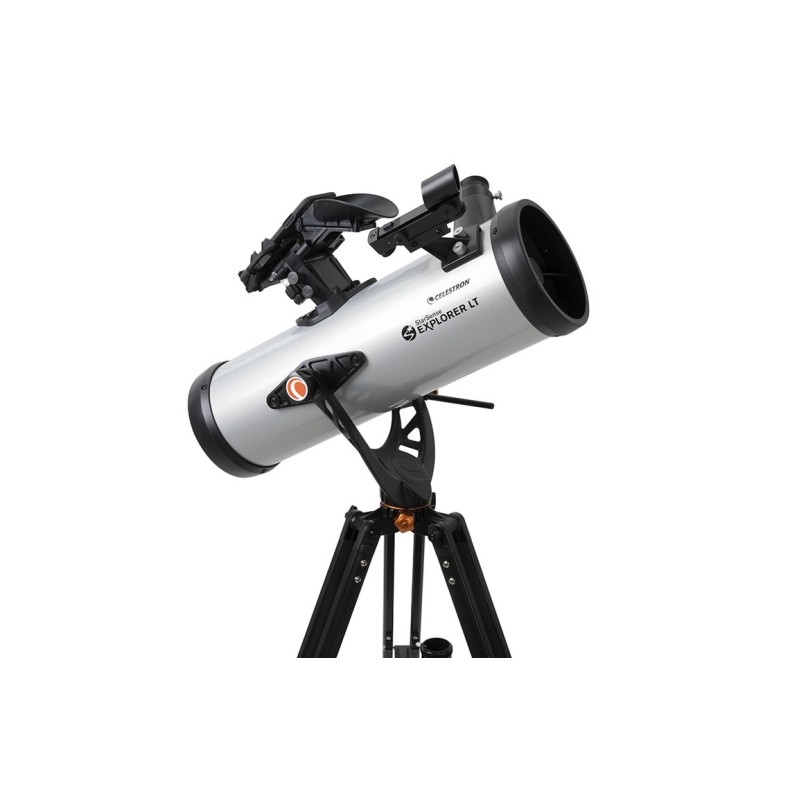

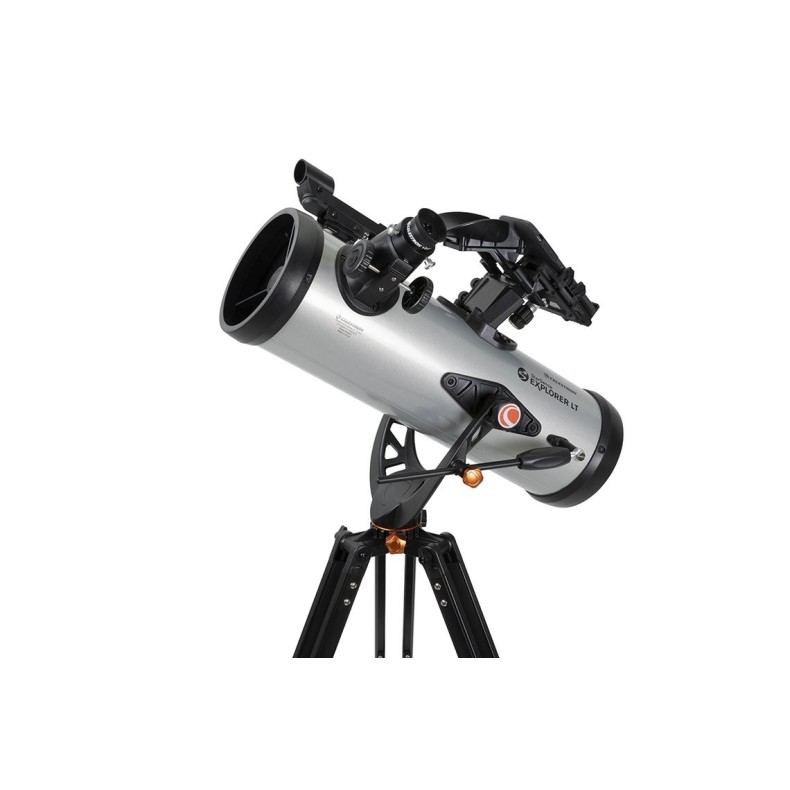

This 114 mm (4.5") large objective Newtonian reflector with highly reflective coatings has enough light-gathering power to bring out fine details in celestial objects. You can expect sharp, bright views of Jupiter's four Galilean moons, its cloud bands and Great Red Spot, Saturn's rings, the trapezoid in the Orion Nebula, and the beautiful Pleiades Open Star Cluster.

Even if you live in a light-polluted city, StarSense Explorer is advanced enough to pick out Jupiter, Saturn, Venus, the Orion Nebula, double stars and some of the most famous celestial objects. But if you can take the telescope to an even darker location, many more objects will be seen. With this 4.5" Newtonian reflector and in a relatively dark sky, the Andromeda galaxy, the Hercules star cluster and many more are easily within reach.

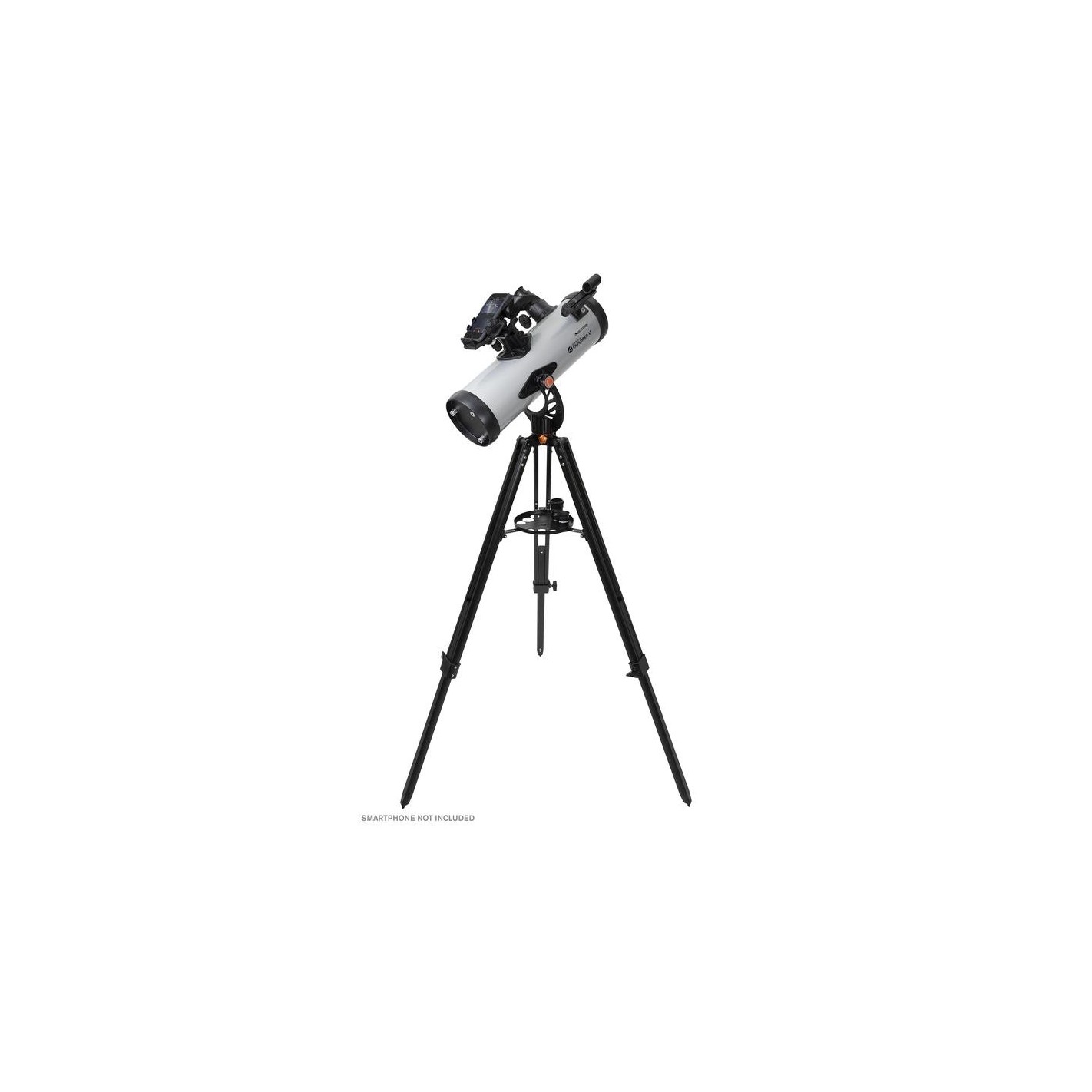

The complete telescope kit weighs only 4.7 kg, making it perfectly portable and easy to take along on your next camping trip or to a remote observing site.

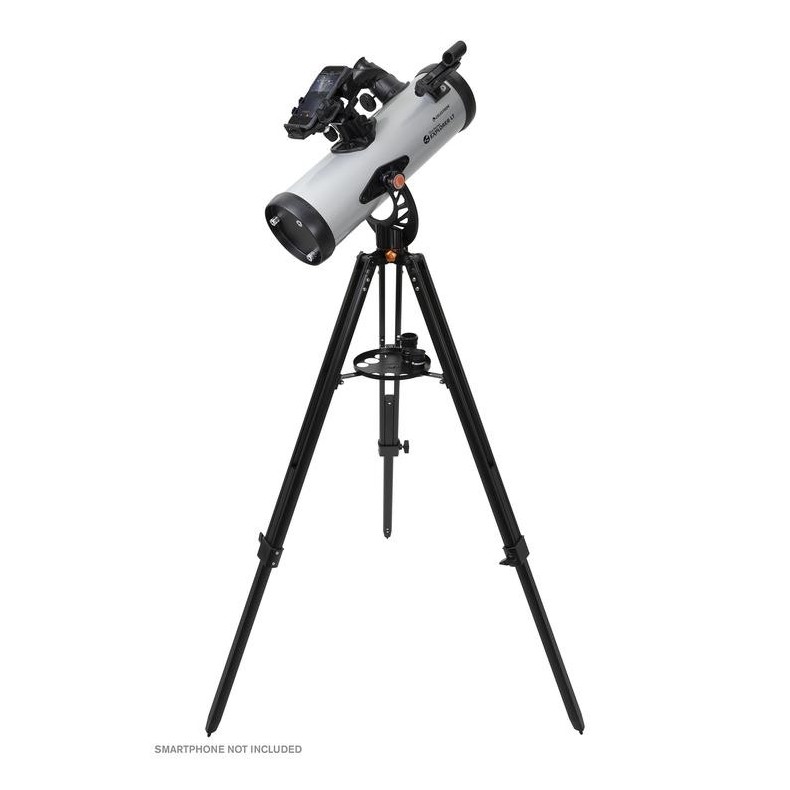

When you unpack your new StarSense Explorer LT, you'll find everything you need to observe right away:

• 114 mm newtonian reflector optical tube

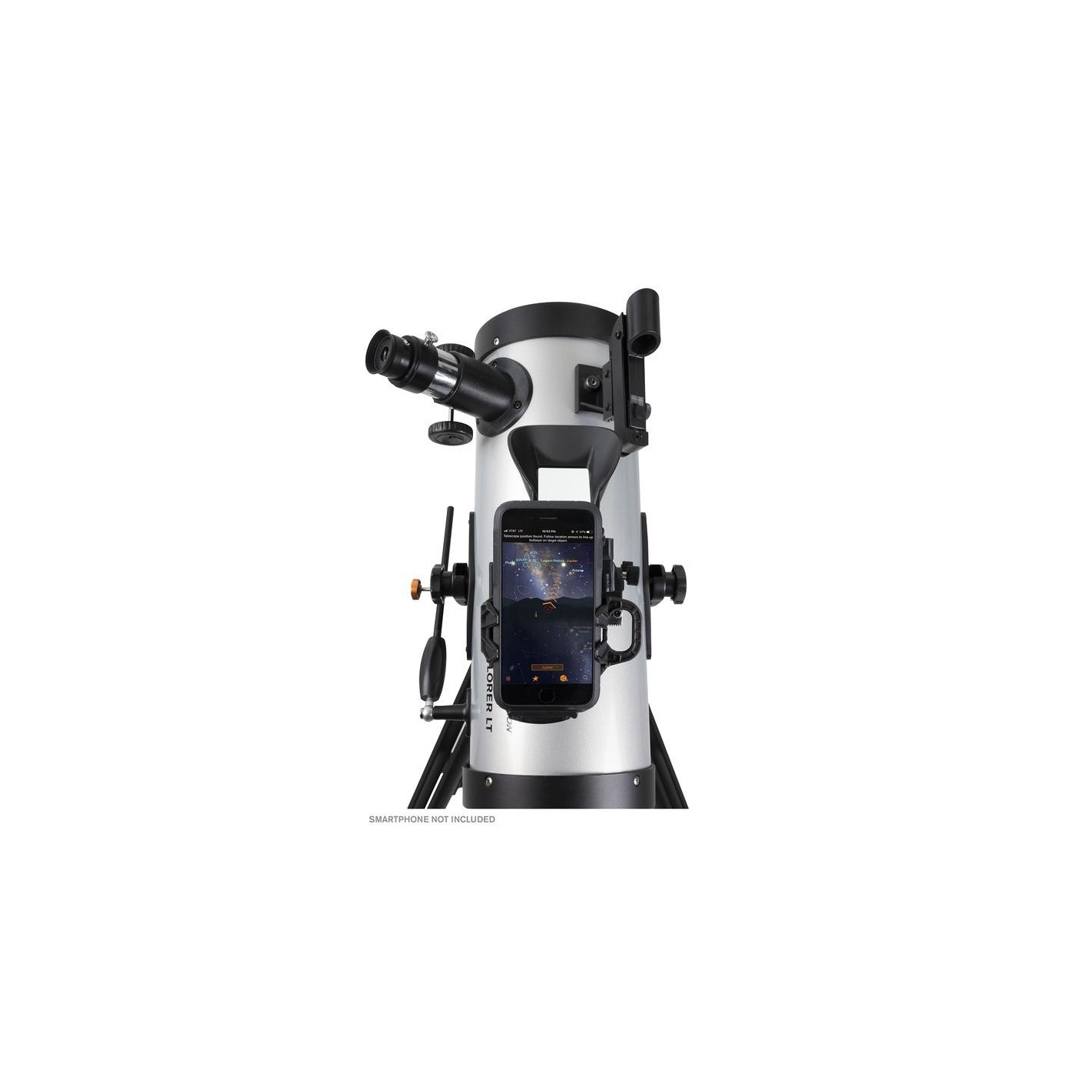

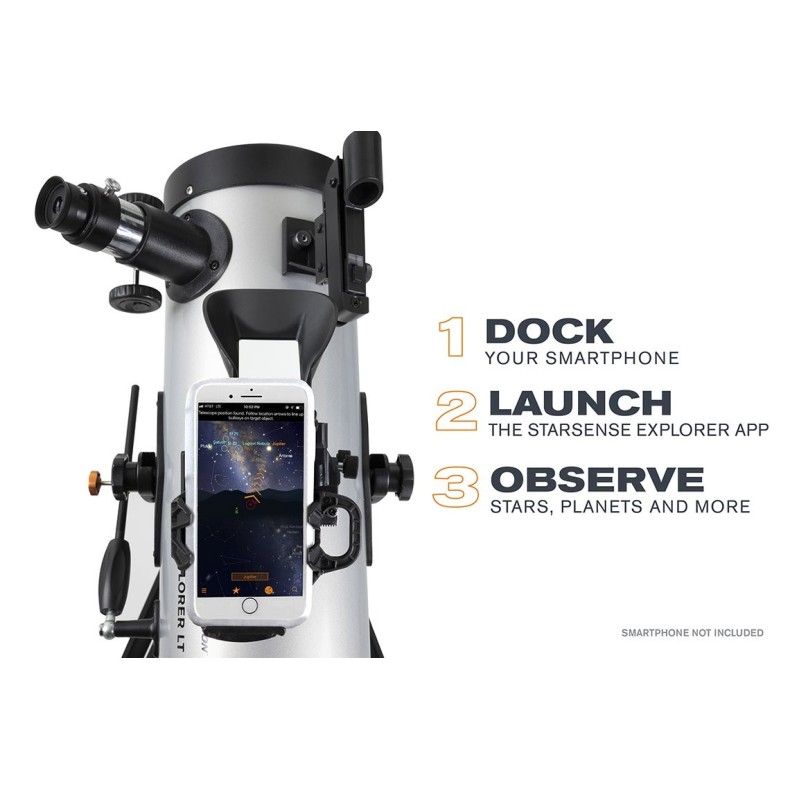

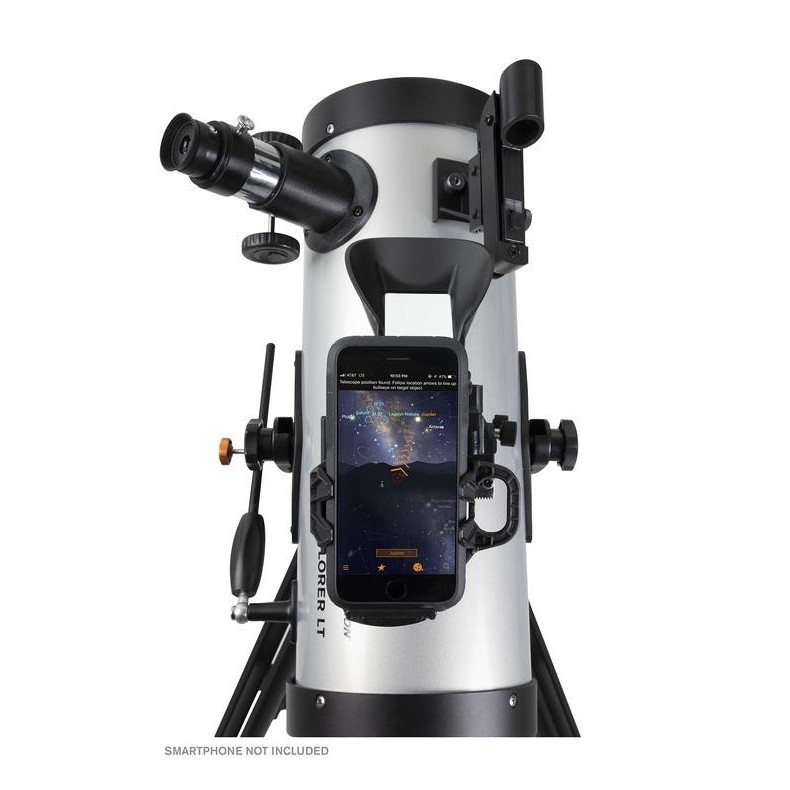

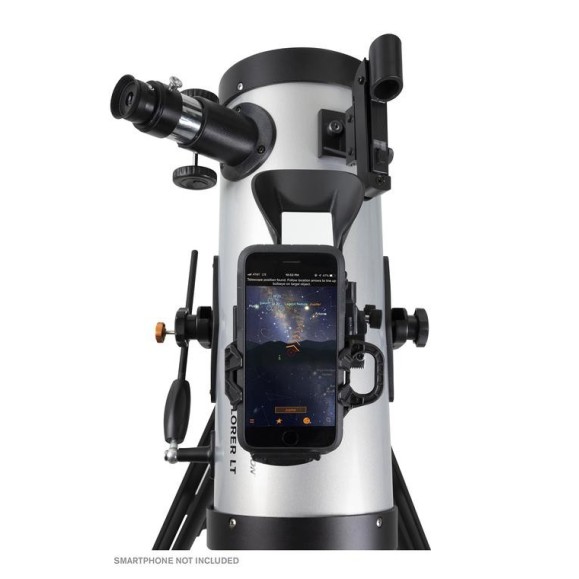

• StarSense base for your cell phone

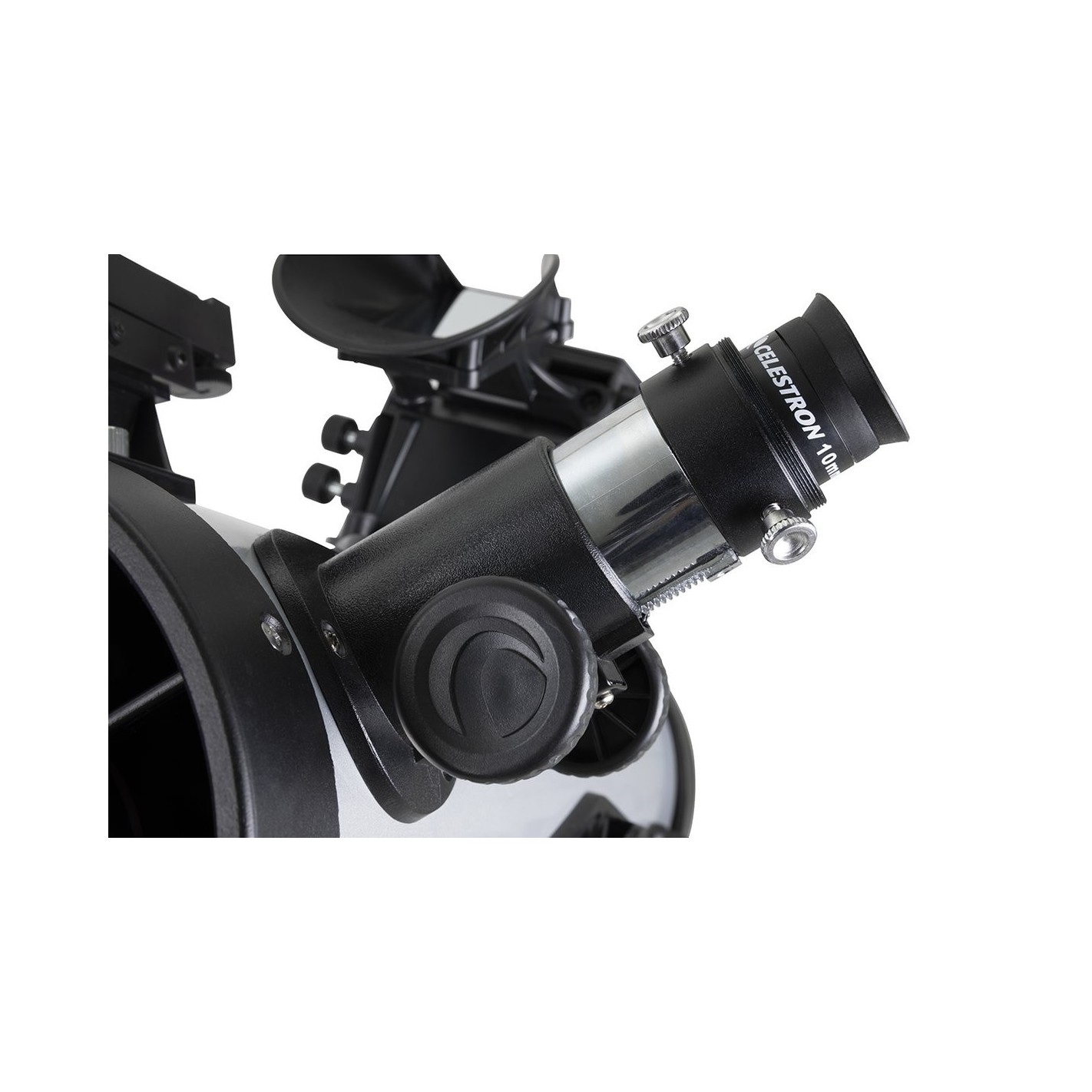

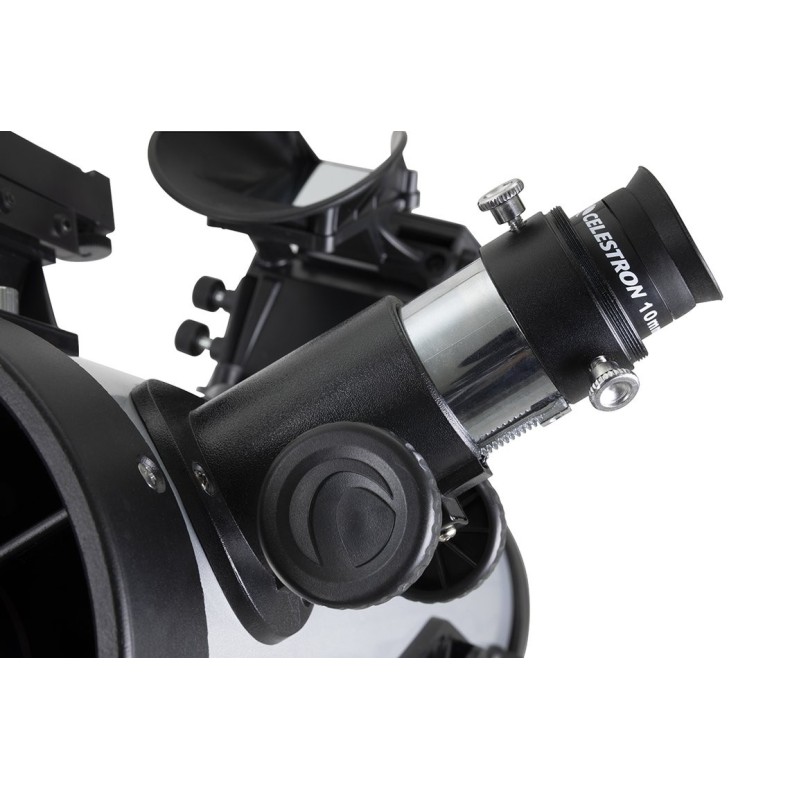

• Low power (25 mm) and high power (10 mm) eyepieces
• 2 Barlow lenses for doubling the power of each eyepiece

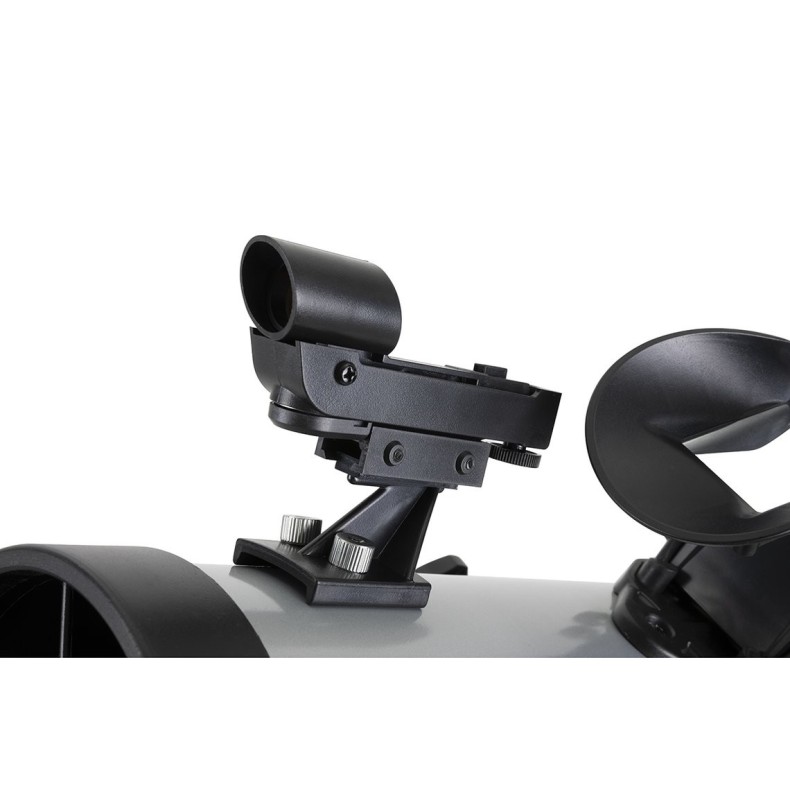

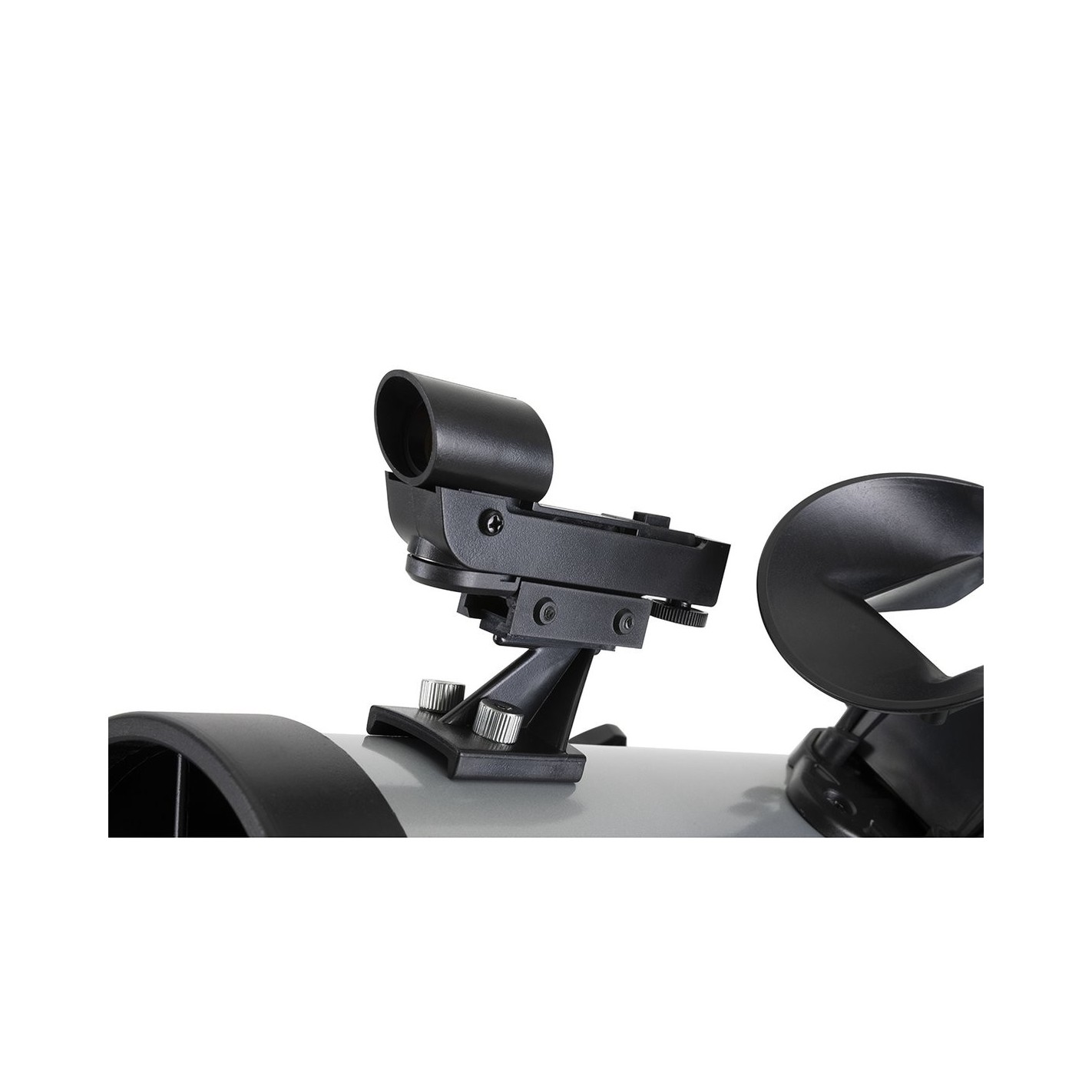

• StarPointer red dot finder, perfect for using the telescope during the day or without the StarSense Explorer application
• Altacimutal mount with slow motion control knob

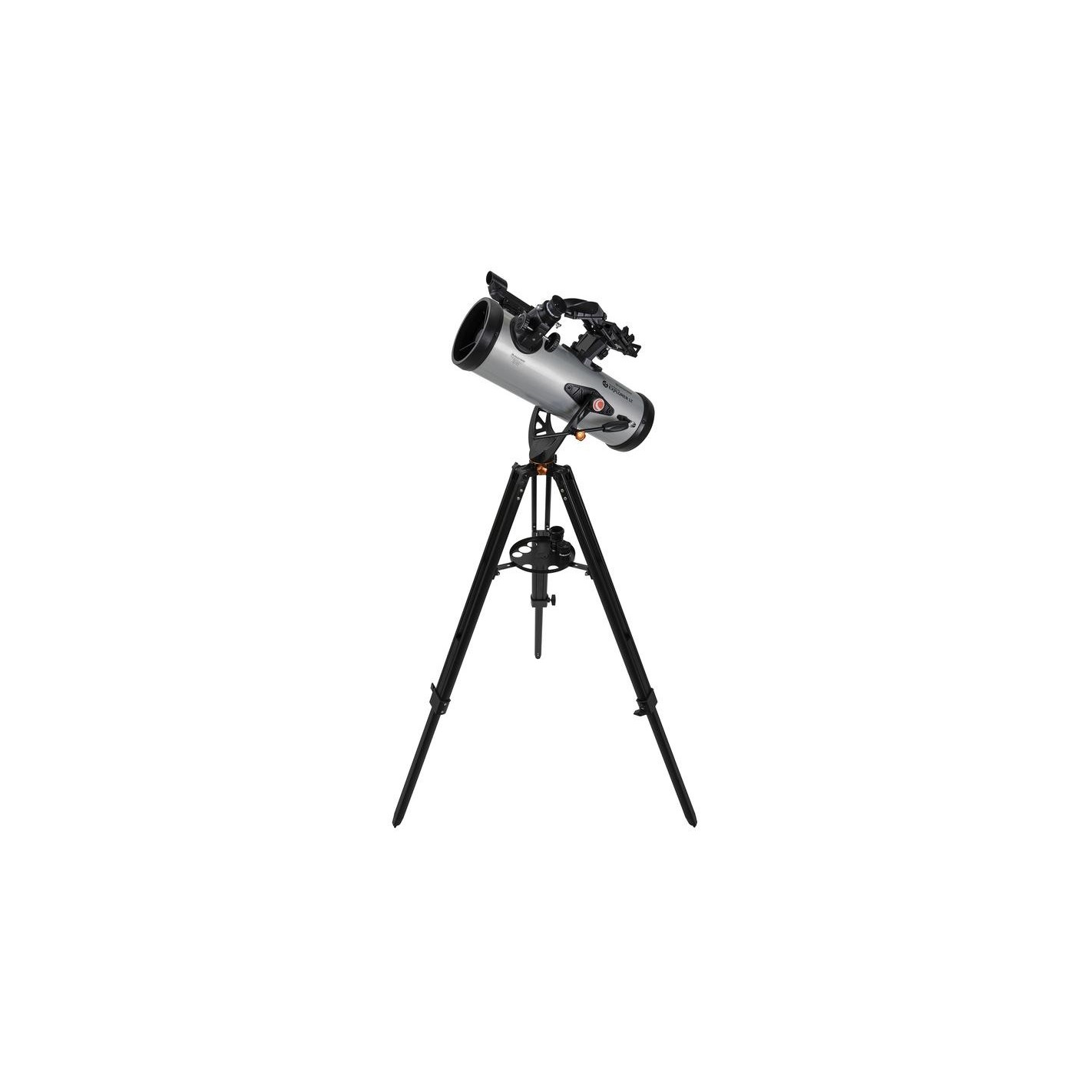

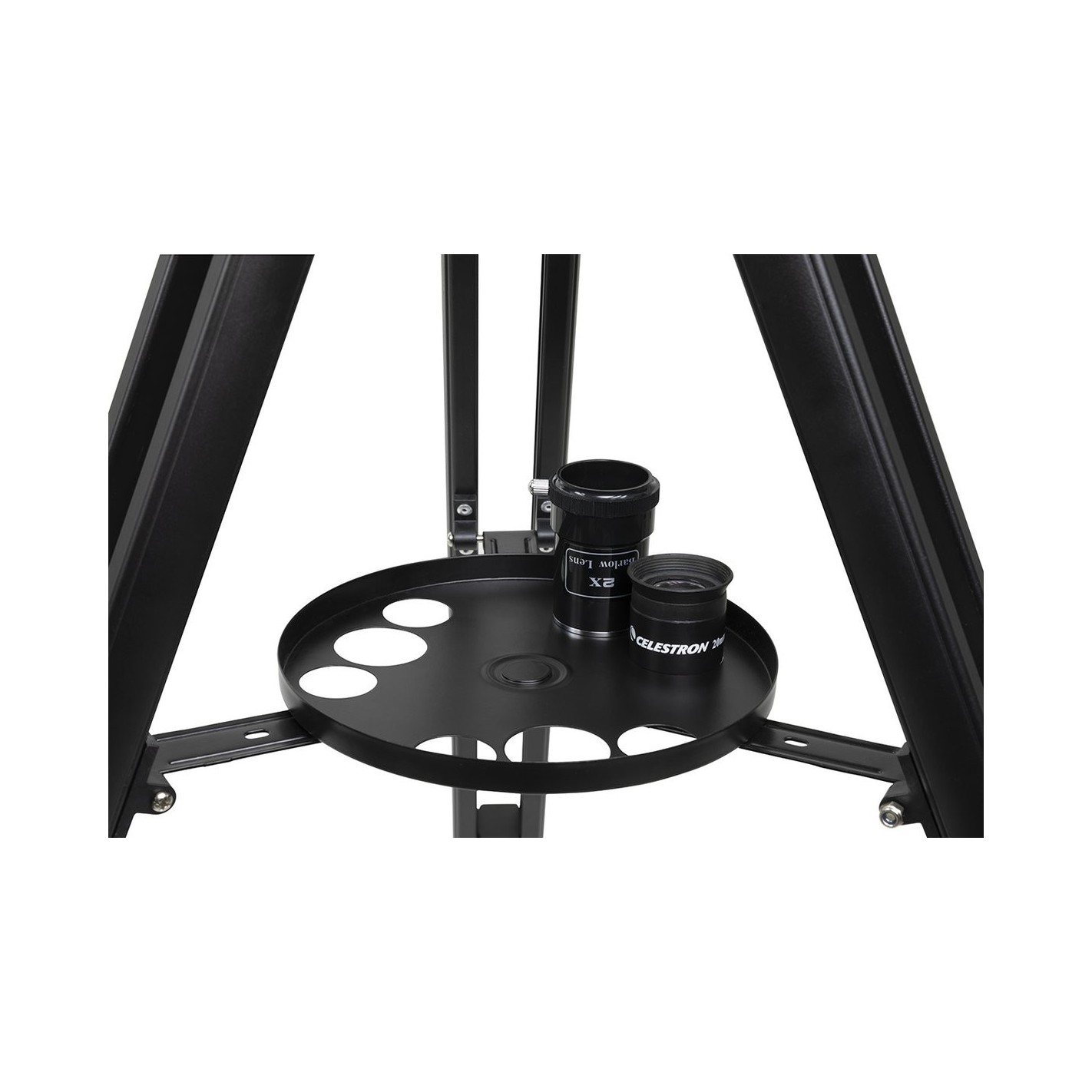

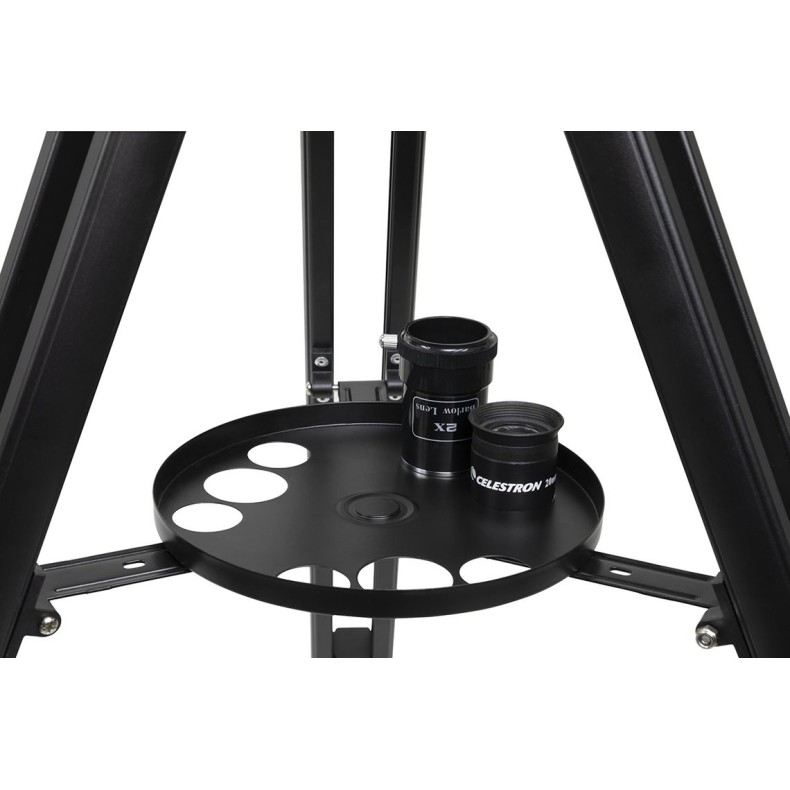

• Full-height tripod with an accessory tray to keep you organized

Technical specifications:

• Optical design: Newtonian reflector
• Aperture: 114 mm (4.5 ")
• Focal length: 1000 mm
• Focal ratio: f / 9
• Eyepiece focal length 1: 25 mm (0.98 ")
• Eyepiece magnification 1: 40x
• Eyepiece focal length 2: 10 mm (0.39 ")
• Eyepiece magnification 2: 100x
• Barlow lens: 2x (1.25 ")
• Finderscope: StarPointer™ red dot finder
• Optical tube: steel
• Highest useful magnification: 269x
• Lowest useful magnification: 16x
• Stellar limit magnitude: 12.8
• Resolution (Rayleigh): 1.22 arc seconds
• Resolution (Dawes): 1.02 arc seconds
• Light collecting power (compared to the human eye): 265x
• Secondary mirror obstruction: 44 mm (1.73 ")
• Secondary mirror obstruction by diameter: 38%
• Secondary mirror obstruction by area: 14%
• Optical coatings: aluminum-coated glass mirrors and SiO₂
• Optical tube length: 609.6 mm (609.6 mm)
• Optical tube diameter: 147 mm
• Optical tube weight: 2.99 kg
• Type of mounting: Manual Altazimutal
• Maximum height adjustment range (including stand and tripod): maximum height of 1320.8 mm (4.5 in.)
• Diameter of tripod leg: 31.75 mm steel
• Accessory tray: yes
• Tripod weight: 1.72 kg
• GPS: uses the phone's GPS
• Power requirements: none (PowerTank Glow recommended to keep the phone charged while using the application)
• Alignment procedures: use the StarSense Explorer application
• Software: StarSense Explorer application | SkyPortal application | Software Celestron Starry Night Basic Edition
• Total kit weight: 4.71 kg

The following models have been tested and are compatible with Starsense Explorer technology:

Apple iPhone 11

Apple iPhone 11 Pro

Apple iPhone 11 Pro Max

Apple iPhone 6

Apple iPhone 6s

Apple iPhone 6s Plus

Apple iPhone 7

Apple iPhone 7 Plus

Apple iPhone 8

Apple iPhone 8 Plus

Apple iPhone SE

Apple iPhone X

Apple iPhone XR

Apple iPhone XS

Apple iPhone XS Max

Asus 5Z

Asus ASUS ASUS_I001DA

Asus ASUS ASUS_I01WD

Asus ASUS ASUS_Z017D

Asus ASUS ASUS_Z01BDC

Asus ASUS ASUS_Z01GD

Asus ASUS ASUS_Z01HD

Asus ASUS ASUS_Z01KD

Asus ASUS ASUS_Z01MD

Bq Aquaris X

BullittGroupLimited S61

Cat S52

CUBOT X20 PRO

FUJITSU F-02L

Google Pixel

Google Pixel 2

Google Pixel 2 XL

Google Pixel 2XL

Google Pixel 3

Google Pixel 3 XL

Google Pixel 3a

Google Pixel 3a XL

Google Pixel 4

Google Pixel 4 XL

Google Pixel 4a

Google Pixel XL

HMD Global Nokia 3.1 A

HMD Global Nokia 3.1 Plus

HMD Global Nokia 6

HMD Global Nokia 6.1

HMD Global Nokia 6.1 Plus

HMD Global Nokia 7 plus

HMD Global Nokia 7.2

HMD Global Nokia 9

HMD Global TA-1004

HMD Global TA-1033

HTC HTC 2Q4R100

HTC HTC U Ultra

HTC HTC U12+

HUAWEI ALP-L09

HUAWEI BKL-L09

HUAWEI BLA-A09

HUAWEI BLA-L09

HUAWEI BLA-L29

HUAWEI BND-L21

HUAWEI BND-L34

HUAWEI CDY-AN90

HUAWEI CLT-L04

HUAWEI COL-L29

HUAWEI COR-AL10

HUAWEI COR-L29

HUAWEI ELE-L04

HUAWEI EML-L29

HUAWEI EVA-AL00

HUAWEI EVR-L29

HUAWEI FIG-LA1

HUAWEI HMA-AL00

HUAWEI Honor 8X

HUAWEI HRY-LX1

HUAWEI JSN-L21

HUAWEI LLD-L31

HUAWEI LYA-L09

HUAWEI LYA-L0C

HUAWEI MAR-LX1A

HUAWEI MAR-LX1B

HUAWEI Mate 10

HUAWEI Mate 10 X EVR-AL00

HUAWEI Mate 20 Pro

HUAWEI Mate 30 Pro

HUAWEI Mate 9

Huawei Nexus 6P

HUAWEI P Smart

HUAWEI P10

HUAWEI P20

HUAWEI P20 Lite

HUAWEI P20 lite

Huawei P20 lite

HUAWEI P20 Pro

Huawei P20 Pro

HUAWEI P30

HUAWEI P30 Pro

HUAWEI POT-LX1

HUAWEI POT-LX2J

HUAWEI PRA-LX1

HUAWEI PRA-LX2

HUAWEI SNE-LX1

HUAWEI SNE-LX2

HUAWEI SNE-LX3

HUAWEI STF-L09

HUAWEI STK-LX1

HUAWEI TAS-AN00

HUAWEI VKY-L09

HUAWEI WAS-LX1A

HUAWEI Y9 2019

HUAWEI Y9 Prime 2019

HUAWEI YAL-L21

KYOCERA KYV45

LGE G4

LGE G4 Sprint

LGE G5

LGE G6

LGE G7

LGE G7 ThinQ

LGE G8 ThinQ

LGE LG-H700

LGE LG-H850

LGE LG-H870DS

LGE LG-H918

LGE LG-H930

LGE LG-H932

LGE LG-LS993

LGE LG-M700

LGE LG-M703

LGE LGL423DL

LGE LGL722DL

LGE LGUS997

LGE LM-G710VM

LGE LM-G810

LGE LM-G850

LGE LM-K500

LGE LM-Q610(FGN)

LGE LM-Q710.FG

LGE LM-Q710(FGN)

LGE LM-Q730

LGE LM-Q910

LGE LM-V450

LGE LM-V600

LGE LM-X220

LGE LM-X410L

LGE LML713DL

LGE Nexus 5X

LGE Stylo 5

LGE V20

LGE V35 ThinQ

LGE V40 ThinQ

LGE VS996

LGE Xpression Plus 2

Motorola G7

Motorola Moto G Power

Motorola moto g power

Motorola Moto G Stylus

Motorola moto g(6) (XT1925DL)

Motorola moto g(6) plus

Motorola moto g(7) optimal (XT1952DL)

Motorola moto g(7) play

Motorola moto g(7) supra

Motorola moto g(8) plus

Motorola Moto G6

Motorola Moto G6 Plus

Motorola Moto G7

Motorola Moto G7 Plus

Motorola Moto G7 Power

Motorola Moto Z Droid

Motorola Moto Z2

Motorola Moto Z3

Motorola Moto Z3 Play

Motorola Moto Z4

Motorola motorola one

Motorola motorola one action

Motorola motorola one hyper

Motorola motorola one vision

Motorola motorola one zoom

Motorola Nexus 6

Motorola One

Motorola REVVLRY+

OnePlus 6T

OnePlus GM1900

OnePlus GM1903

OnePlus GM1910

OnePlus GM1913

OnePlus GM1917

OnePlus HD1900

OnePlus HD1903

OnePlus HD1905

OnePlus HD1907

OnePlus HD1913

OnePlus HD1925

OnePlus IN2010

OnePlus IN2017

OnePlus IN2019

OnePlus IN2023

OnePlus OnePlus 5T

OnePlus OnePlus 6

OnePlus OnePlus 7 Pro

OnePlus OnePlus 8

OnePlus ONEPLUS A3000

OnePlus ONEPLUS A3003

OnePlus ONEPLUS A5000

OnePlus ONEPLUS A6000

OPPO CPH1823

OPPO CPH1907

OPPO CPH1937

OPPO CPH1941

OPPO CPH1951

OPPO CPH1969

OPPO CPH1979

OPPO CPH2069

OPPO Find X2

OPPO PBBM00

OPPO PCEM00

OPPO RX 17 Pro

Razer Phone

Razer Phone 2

Realme RMX1901

Realme RMX1921

Realme RMX1931

Samsung Galaxy S10+

Samsung Galaxy A21s

Samsung Galaxy A30

Samsung Galaxy A40

Samsung Galaxy A5

Samsung Galaxy A50

Samsung Galaxy A7

Samsung Galaxy A70

Samsung Galaxy Fold

Samsung Galaxy J3

Samsung Galaxy J5

Samsung Galaxy J7

Samsung Galaxy J7 Crown

Samsung Galaxy J7 Prime

Samsung Galaxy Note 10+

Samsung Galaxy Note 8

Samsung Galaxy Note 9

Samsung Galaxy Note10

Samsung Galaxy Note10+

Samsung Galaxy Note8

Samsung Galaxy Note9

Samsung Galaxy S10

Samsung Galaxy S10+

Samsung Galaxy S10e

Samsung Galaxy S20

Samsung Galaxy S6

Samsung Galaxy S6 Edge

Samsung Galaxy S7

Samsung Galaxy S7 Edge

Samsung Galaxy S8

Samsung Galaxy S8 Active

Samsung Galaxy S8 Plus

Samsung Galaxy S8+

Samsung Galaxy S9

Samsung Galaxy S9 Plus

Samsung Galaxy S9+

Samsung Galaxy Z Flip

Samsung Samsung Galaxy A50

Samsung SAMSUNG-SM-G891A

Samsung SAMSUNG-SM-G935A

Samsung SAMSUNG-SM-J727A

Samsung SAMSUNG-SM-J727AZ

Samsung SC-01M

Samsung SC-02H

Samsung SC-02K

Samsung SC-03L

Samsung SCV41

Samsung SM-A305YN

Samsung SM-A307FN

Samsung SM-A307G

Samsung SM-A505FM

Samsung SM-A505G

Samsung SM-A505U1

Samsung SM-A515F

Samsung SM-A515W

Samsung SM-A530F

Samsung SM-A530W

Samsung SM-A600A

Samsung SM-A600FN

Samsung SM-A600P

Samsung SM-A600T1

Samsung SM-A7050

Samsung SM-A705F

Samsung SM-A705U

Samsung SM-A705YN

Samsung SM-A715F

Samsung SM-A716U

Samsung SM-A730F

Samsung SM-A750G

Samsung SM-A750N

Samsung SM-A908N

Samsung SM-F700U

Samsung SM-F707U

Samsung SM-G892U

Samsung SM-G930K

Samsung SM-G930P

Samsung SM-G930R4

Samsung SM-G930T1

Samsung SM-G930U

Samsung SM-G930W8

Samsung SM-G935P

Samsung SM-G935W8

Samsung SM-G955U1

Samsung SM-G955W

Samsung SM-G960N

Samsung SM-G9650

Samsung SM-G965N

Samsung SM-G965W

Samsung SM-G970N

Samsung SM-G970U1

Samsung SM-G970W

Samsung SM-G9730

Samsung SM-G975U1

Samsung SM-G975W

Samsung SM-G977B

Samsung SM-G977N

Samsung SM-G980F

Samsung SM-G981B

Samsung SM-G981U

Samsung SM-G981U1

Samsung SM-G985F

Samsung SM-G986B

Samsung SM-G986U

Samsung SM-G986U1

Samsung SM-G986W

Samsung SM-G988B

Samsung SM-G988U

Samsung SM-G988U1

Samsung SM-G988W

Samsung SM-J530F

Samsung SM-J730F

Samsung SM-J730G

Samsung SM-J737A

Samsung SM-J737P

Samsung SM-J737T

Samsung SM-J737U

Samsung SM-J737VPP

Samsung SM-M205M

Samsung SM-M215F

Samsung SM-M307FN

Samsung SM-M315F

Samsung SM-N770F

Samsung SM-N935S

Samsung SM-N9500

Samsung SM-N950N

Samsung SM-N950W

Samsung SM-N960N

Samsung SM-N970U1

Samsung SM-N971N

Samsung SM-N975F

Samsung SM-N975U1

Samsung SM-N975W

Samsung SM-N976U

Samsung SM-N976V

Samsung SM-N981U

Samsung SM-N981U1

Samsung SM-N981W

Samsung SM-N985F

Samsung SM-N986U

Samsung SM-N986U1

Samsung SM-S205DL

Samsung SM-S367VL

Samsung SM-S767VL

SHARP S1

SHARP S3-SH

Sony 802SO

Sony 901SO

Sony 902SO

Sony G8141

Sony H8416

Sony H9493

Sony J8110

Sony J8170

Sony SO-01L

Sony SO-02K

Sony SO-03L

Sony SO-04J

Sony SO-05K

Sony SOV37

Sony SOV38

Sony SOV39

Sony SOV41

Sony Xperia 1

Sony Xperia XZ Premium

Sony Xperia XZ1

Sony Xperia XZ1 Compact

Sony XQ-AU52

Ulefone Armor_7

Alive alive 1906

Alive alive 1907

Vivo vivo vivo 1920

Vodafone Smart N10

Xiaomi M2003J15SC

Xiaomi M2004J19C

Xiaomi Mi 10

Xiaomi Mi 10 Lite

Xiaomi MI 8

Xiaomi MI 8 Pro

Xiaomi Mi 9

Xiaomi Mi 9 Lite

Xiaomi Mi 9 SE

Xiaomi Mi 9T

Xiaomi Mi 9T Pro

Xiaomi Mi MIX 2S

Xiaomi Mi MIX 3

Xiaomi Mi Note 10

Xiaomi Mi Note 10 Lite

Xiaomi Mi Note 10 Pro

Xiaomi POCO F1

Xiaomi POCOPHONE F1

Xiaomi Redmi 7A

Xiaomi Redmi 8

Xiaomi Redmi Note 7

Xiaomi Redmi Note 8

Xiaomi Redmi Note 8 Pro

Xiaomi Redmi Note 8T

Xiaomi Redmi Note 9 Pro

Xiaomi Redmi Note 9S

Yulong cp3705A

Yulong cp3705AS

ZTE Axon 7

ZTE Z6201V
