Newton reflector telescope of 200mm diameter and 800mm focal length with double speed focuser and AZ-EQ6 precision mount for quality deep sky astrophotography, with a high precision mount and a very bright astrograph tube at f/4.
| Carrier | Description | Estimated Delivery | ||
|---|---|---|---|---|
 |
Home delivery - International | Home delivery - International |
Friday, 6 December - Friday, 13 December |
|
Home delivery - International
Home delivery - International
Estimated delivery:
Friday, 6 December - Friday, 13 December

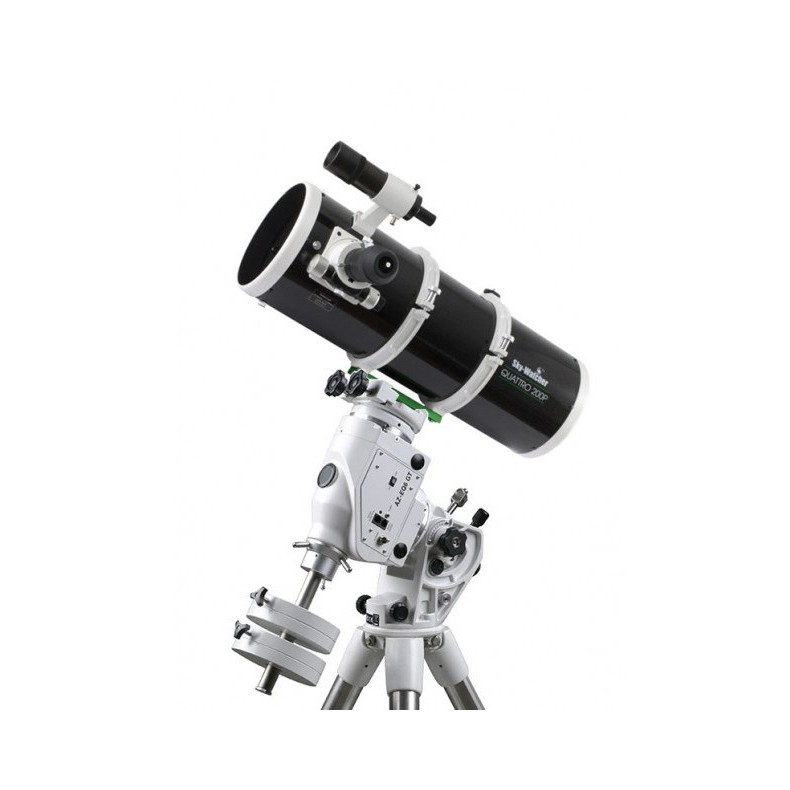

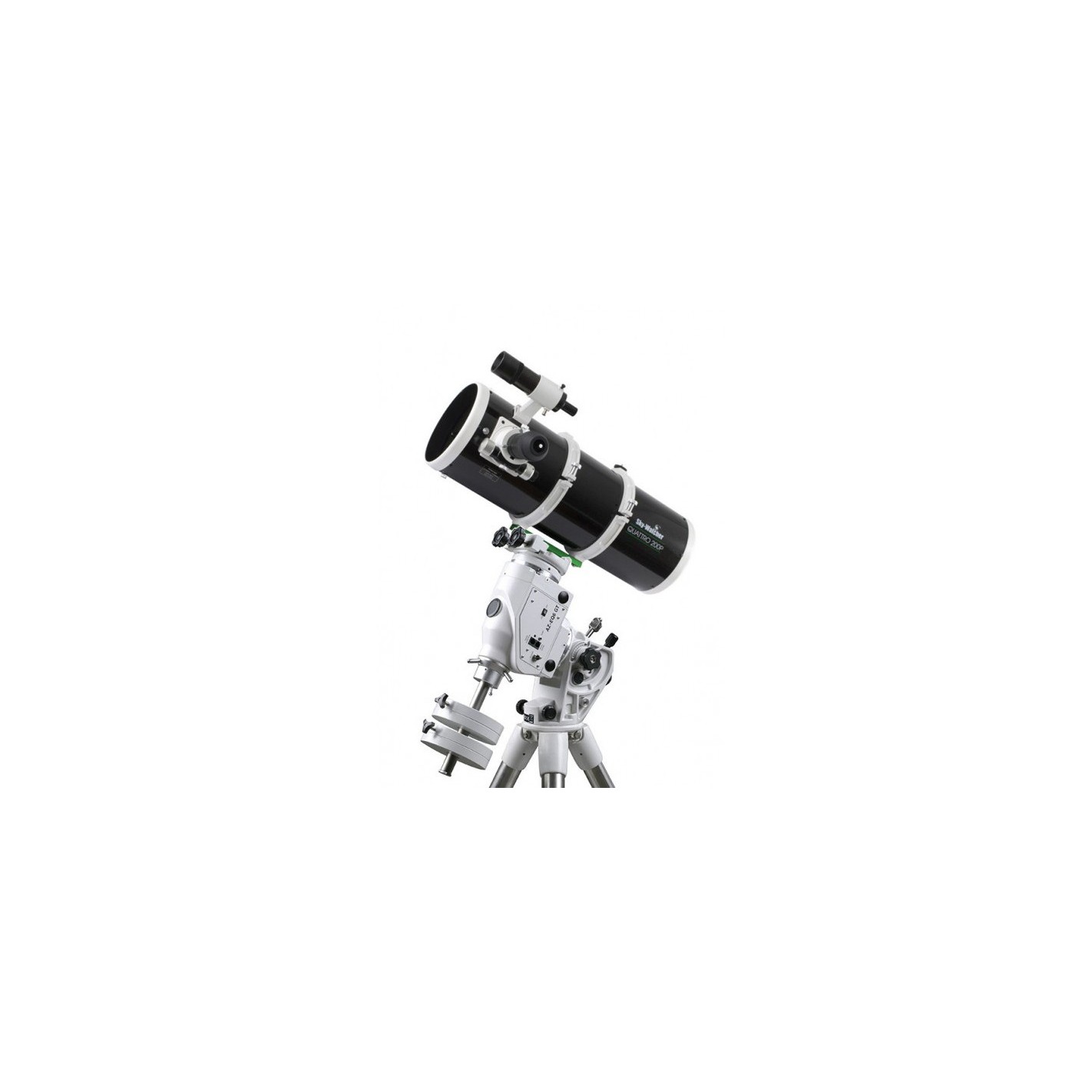

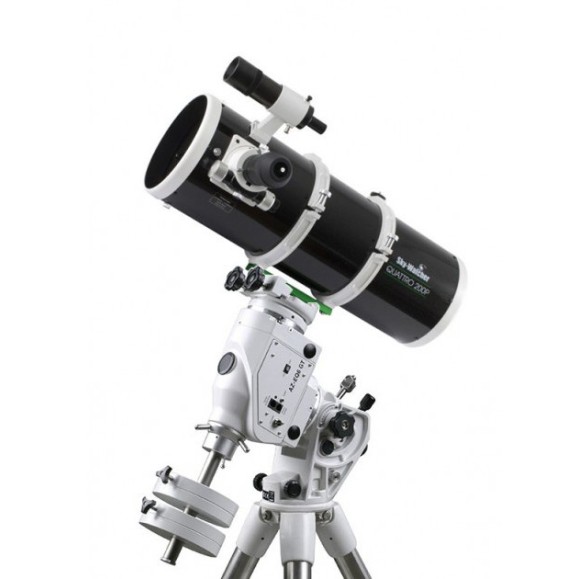

Reflector telescope Skywatcher Black Diamond Dual Speed 200/800 AZ-EQ6 Pro Goto

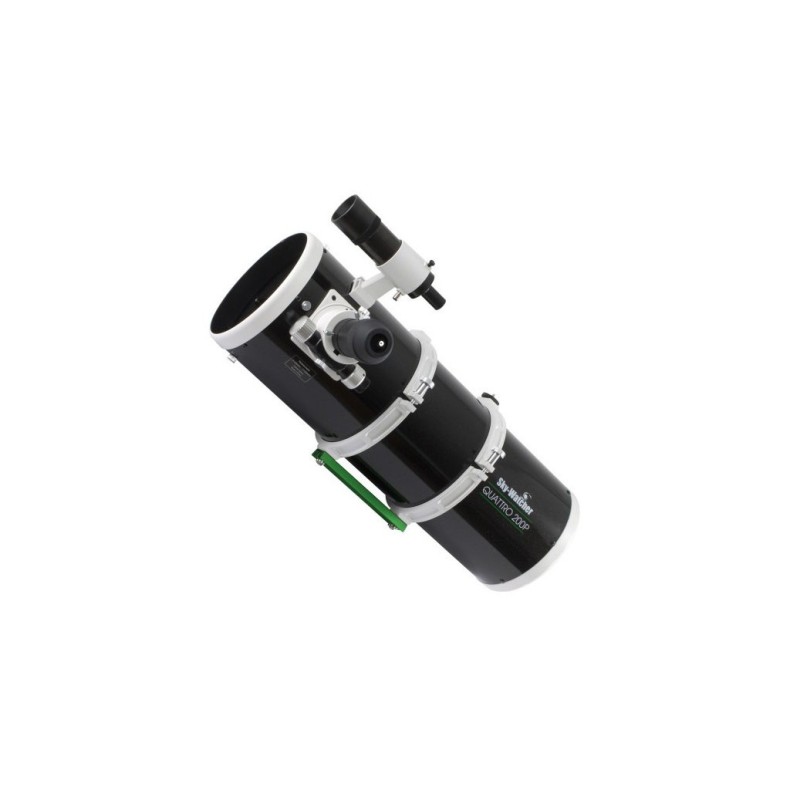

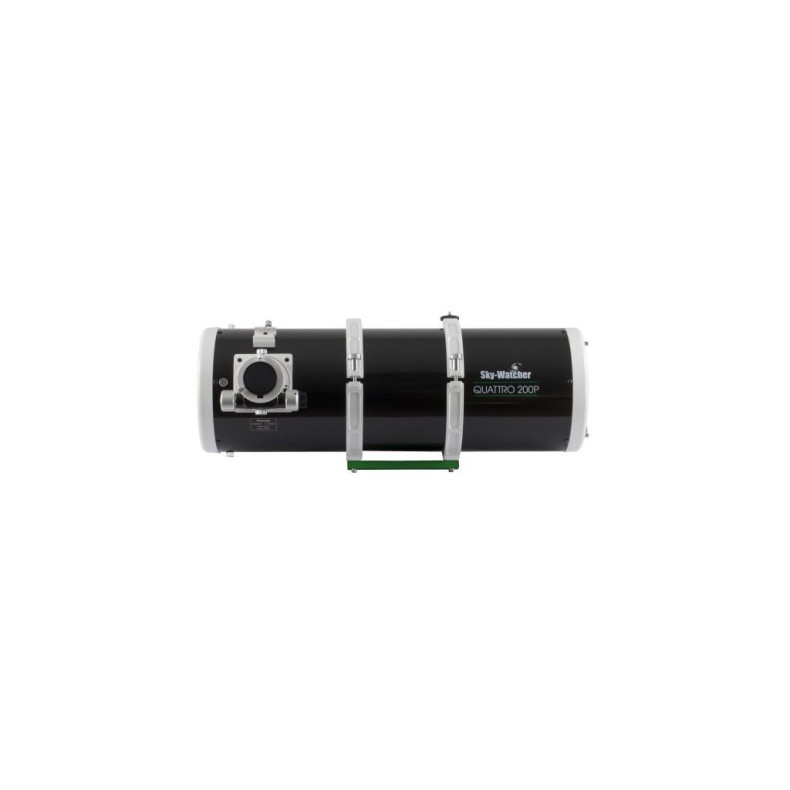

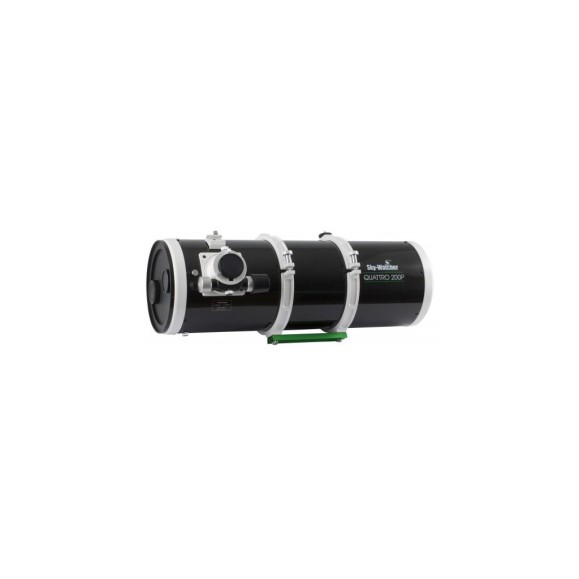

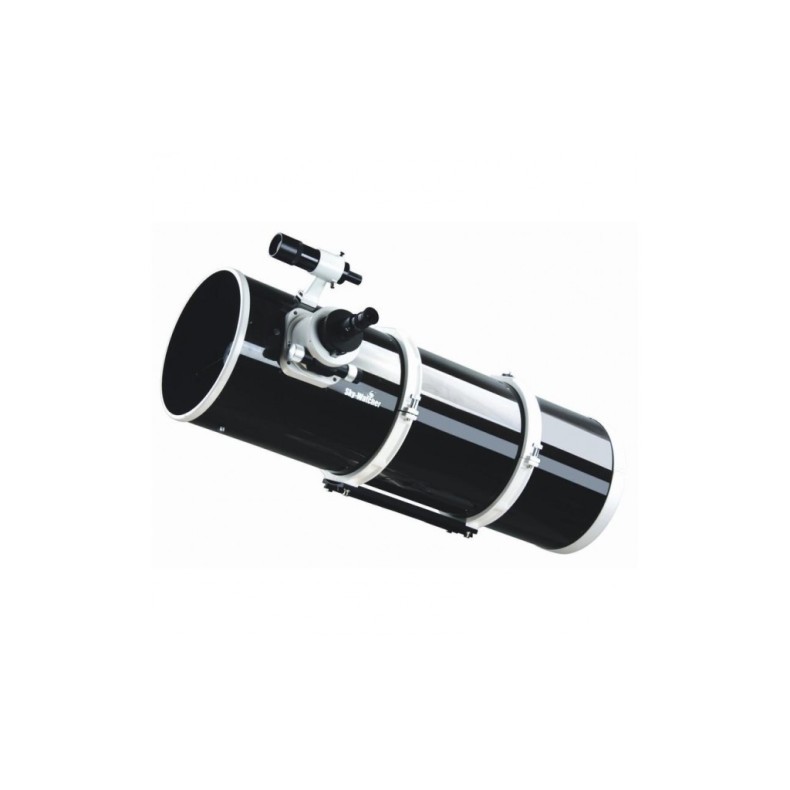

The new BLACK DIAMOND reflector telescopes from SKYWATCHER take the traditional parabolic mirror systems typical of conventional reflectors to the next level.

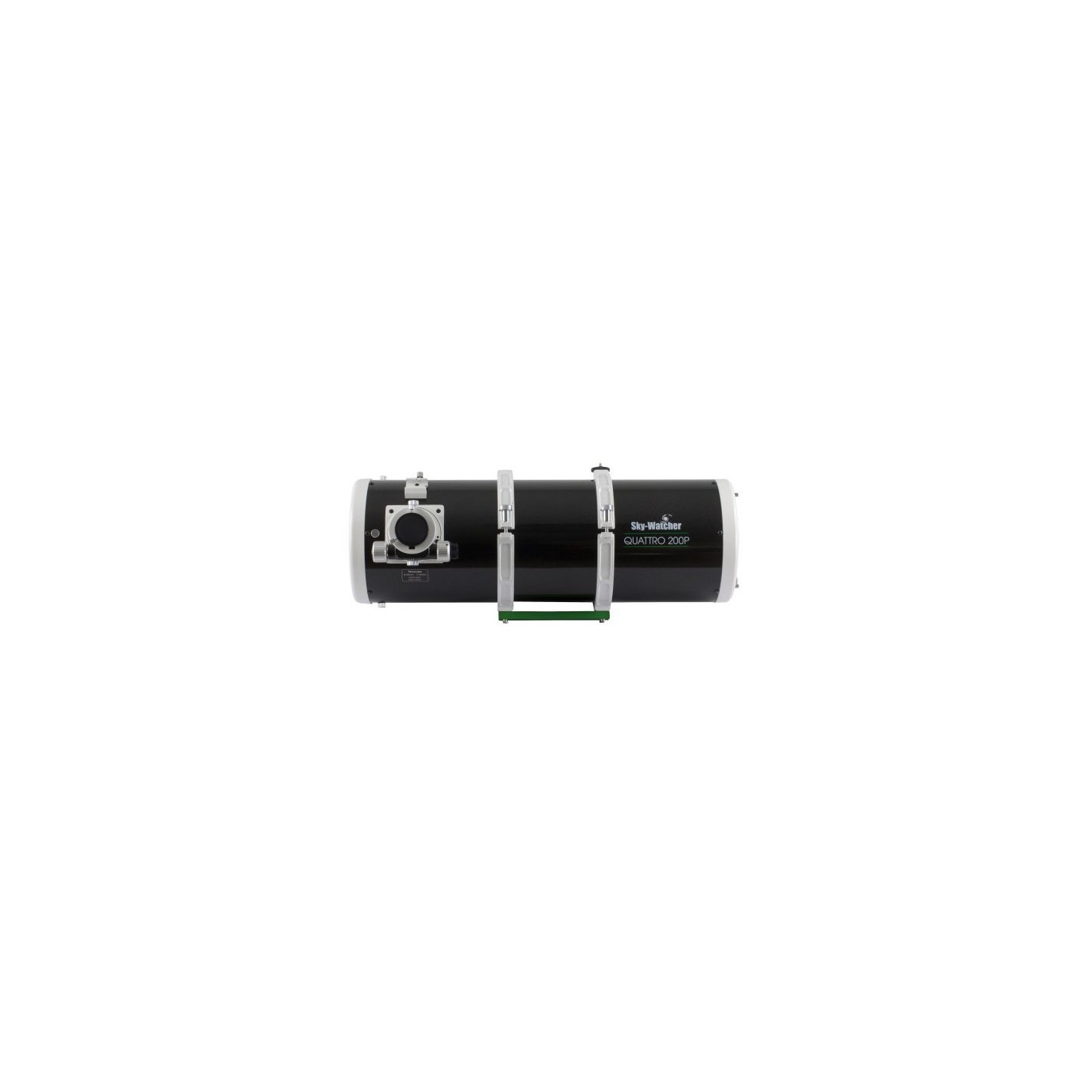

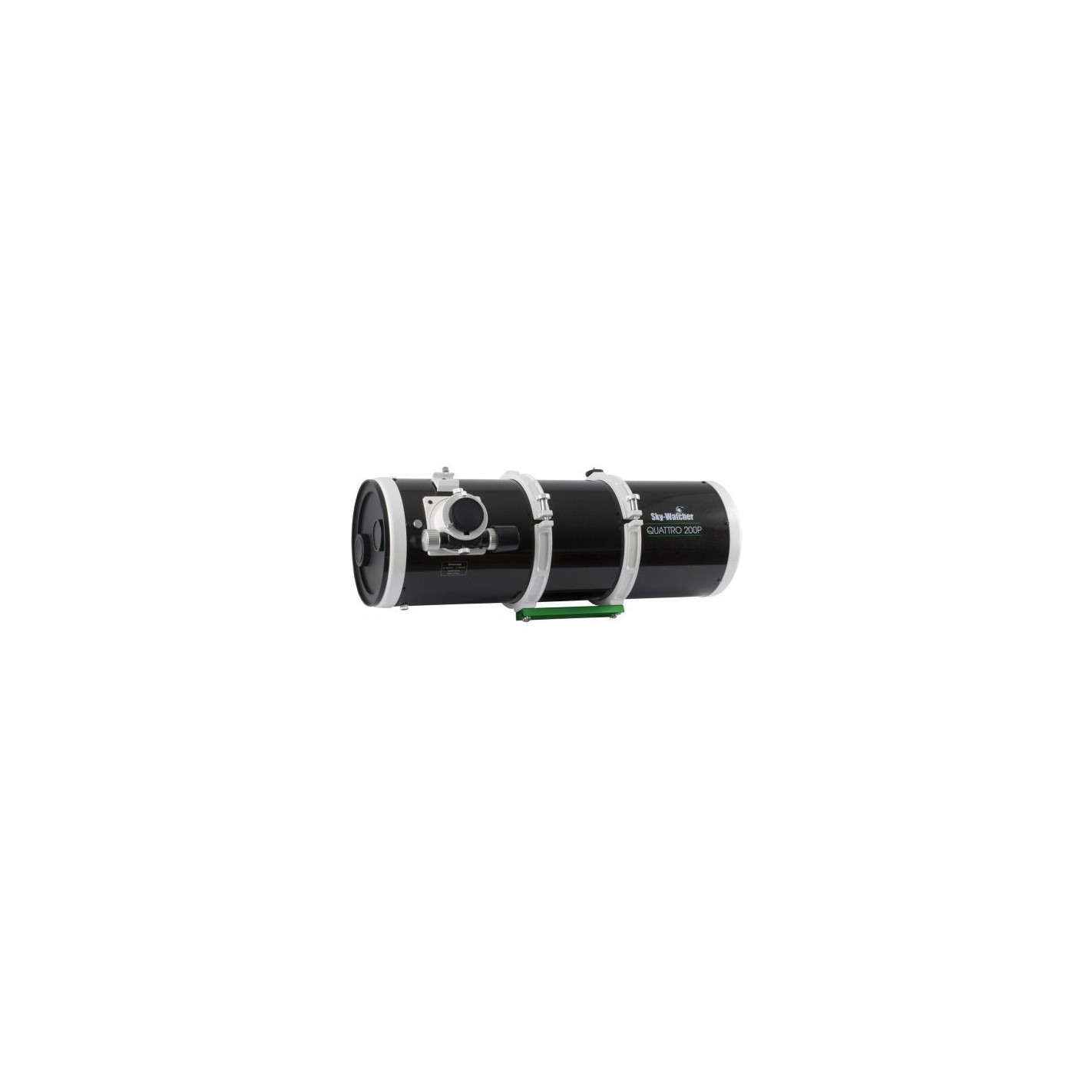

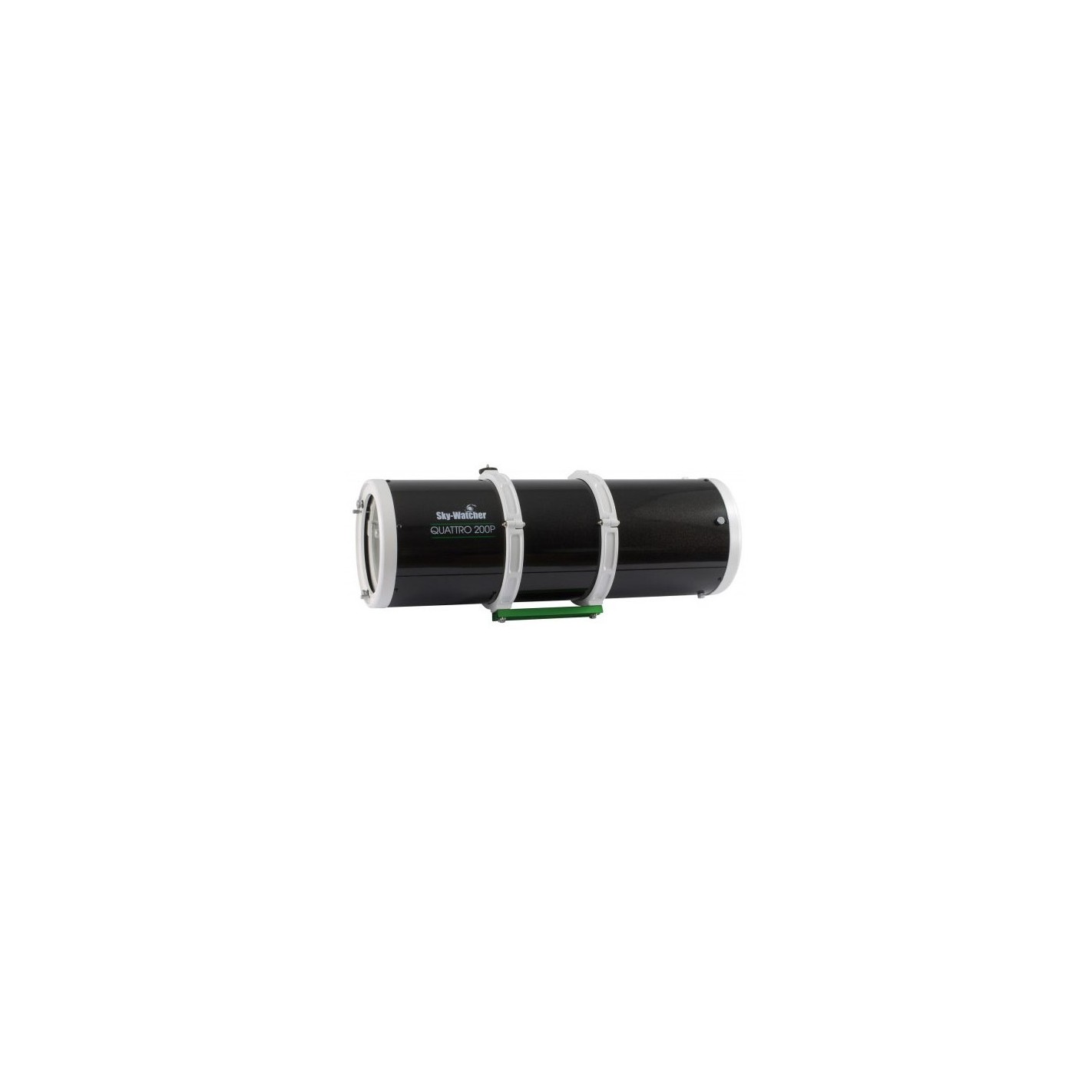

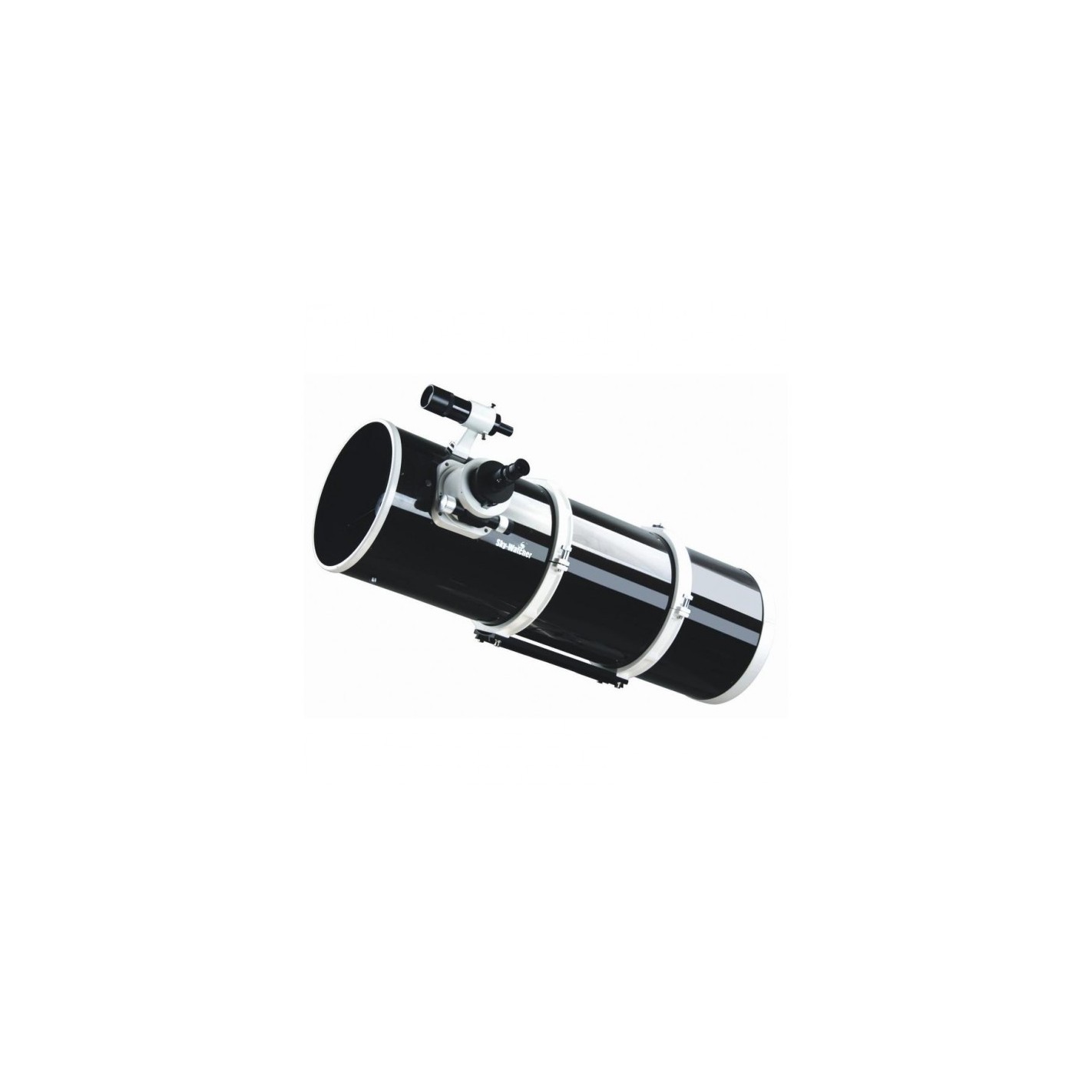

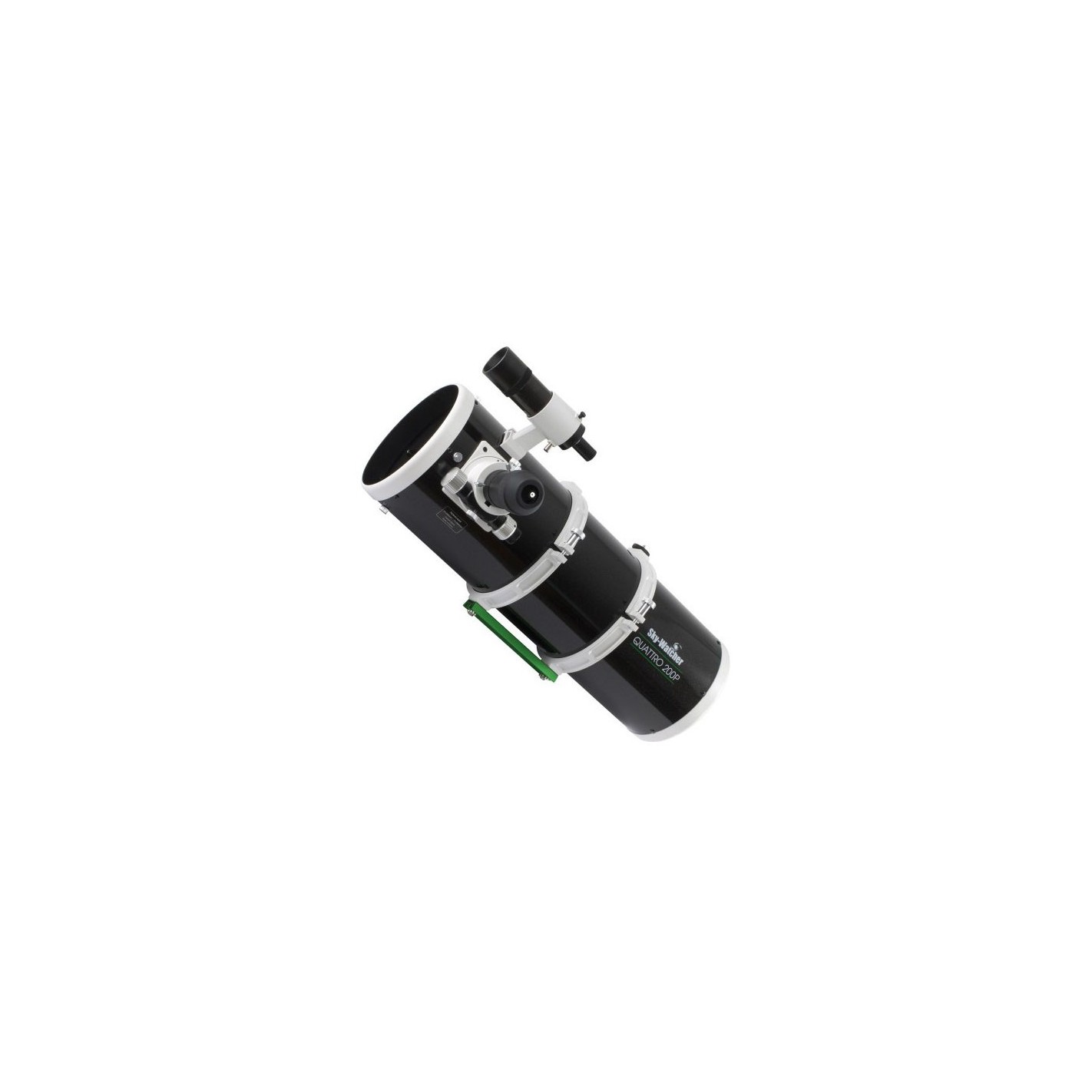

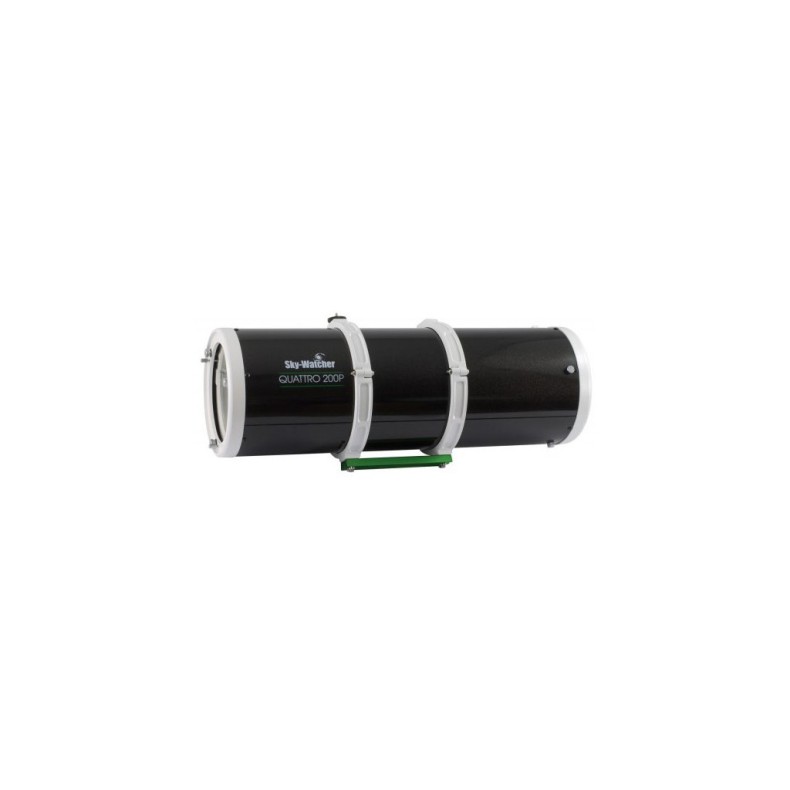

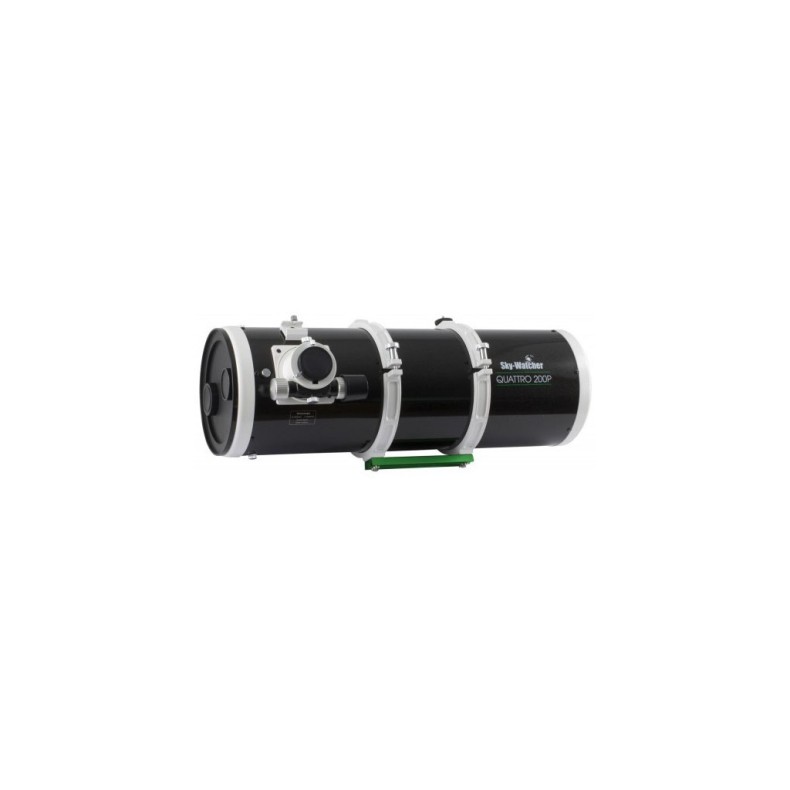

The SKYWATCHER BLACK DIAMOND 200/800 model presented here has been designed so that the optical system offers a faster focal ratio of F/4, whose extraordinary brightness will allow us to make shorter exposures and at the same time achieve higher quality/brightness images.

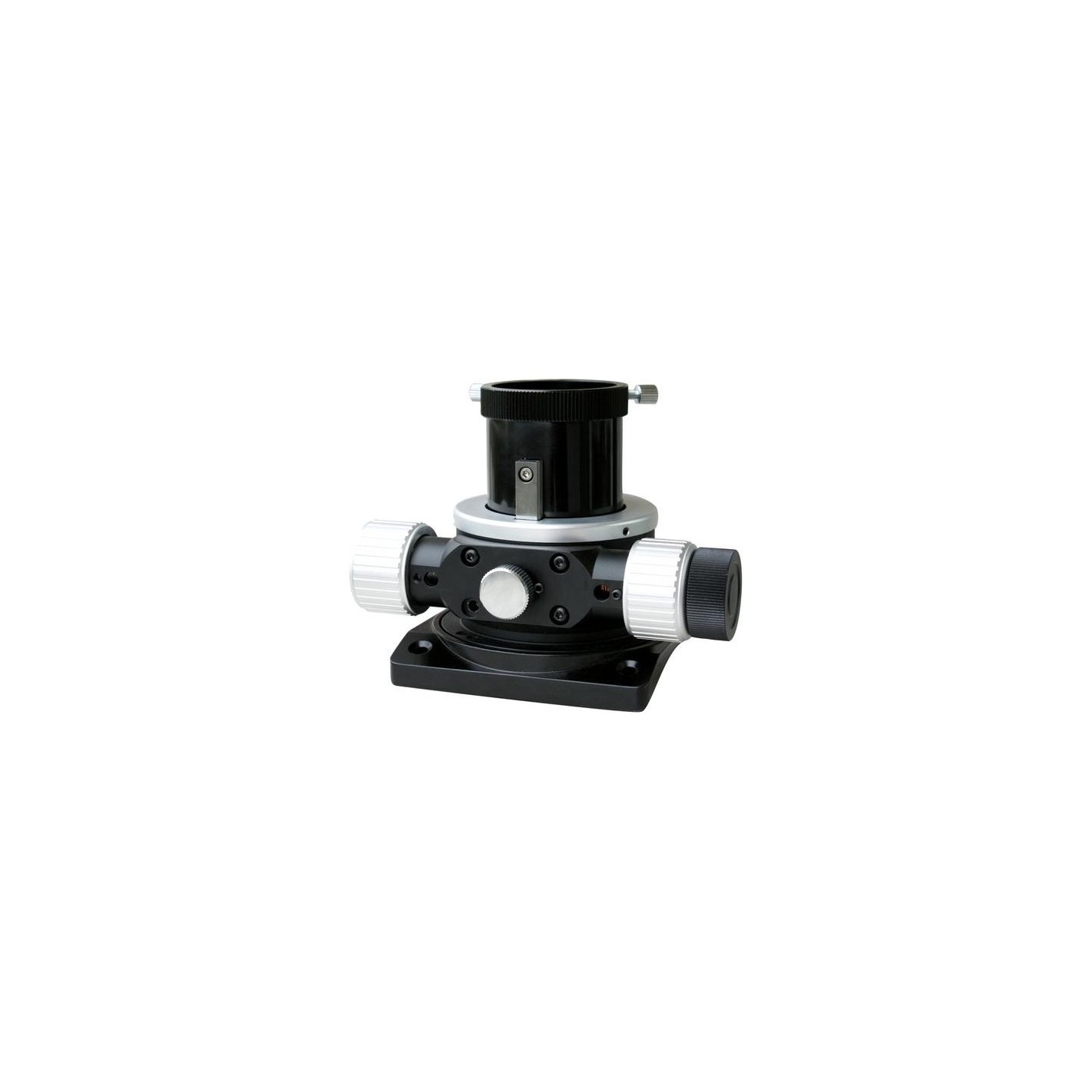

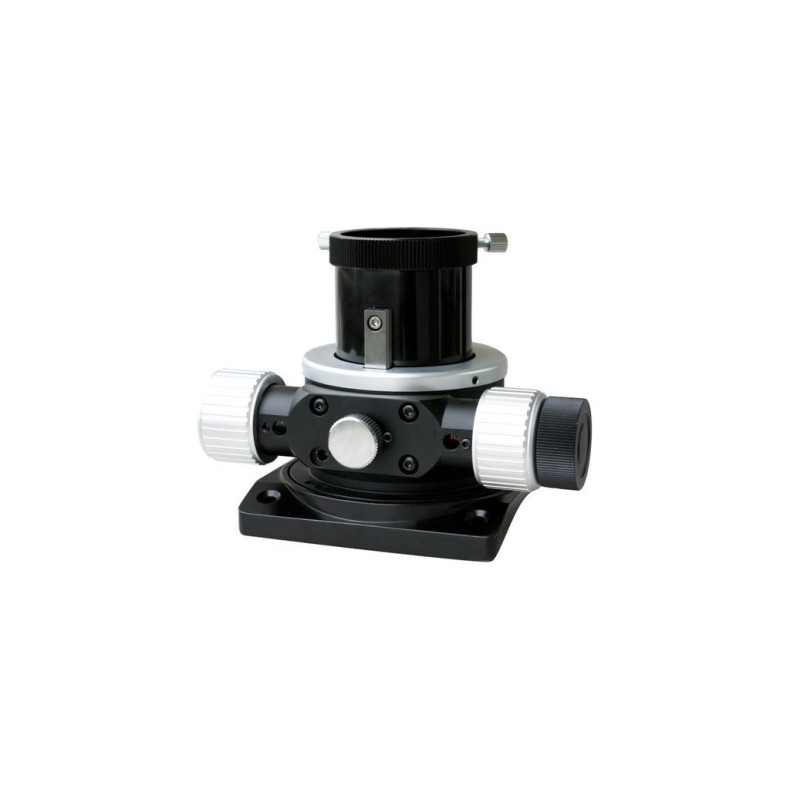

The SKYWATCHER BLACK DIAMOND 200/800 also comes standard with the powerful 2" DUAL SPEED focuser. This focuser is capable of carrying heavy weights without any variations in its position for a smooth and precise focusing process. The SKYWATCHER BLACK DIAMOND 200/800 is not only an excellent photographic equipment, it is also ideal for visual observation.
Technical specifications of the tube:

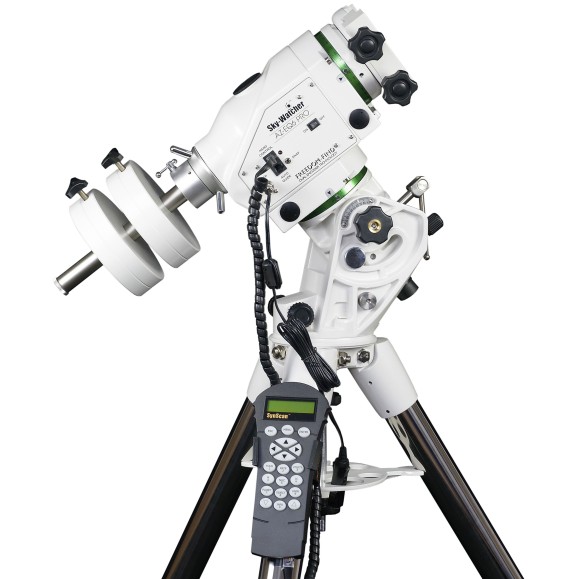

New mount Skywatcher AZEQ6 with dual Equatorial/Altacimutal functionality with integrated position finders. The best mount on the market that combines portability with the ability to work in two formats is here. SkyWatcher AZEQ6 also allows you to work with two large telescopes in parallel.

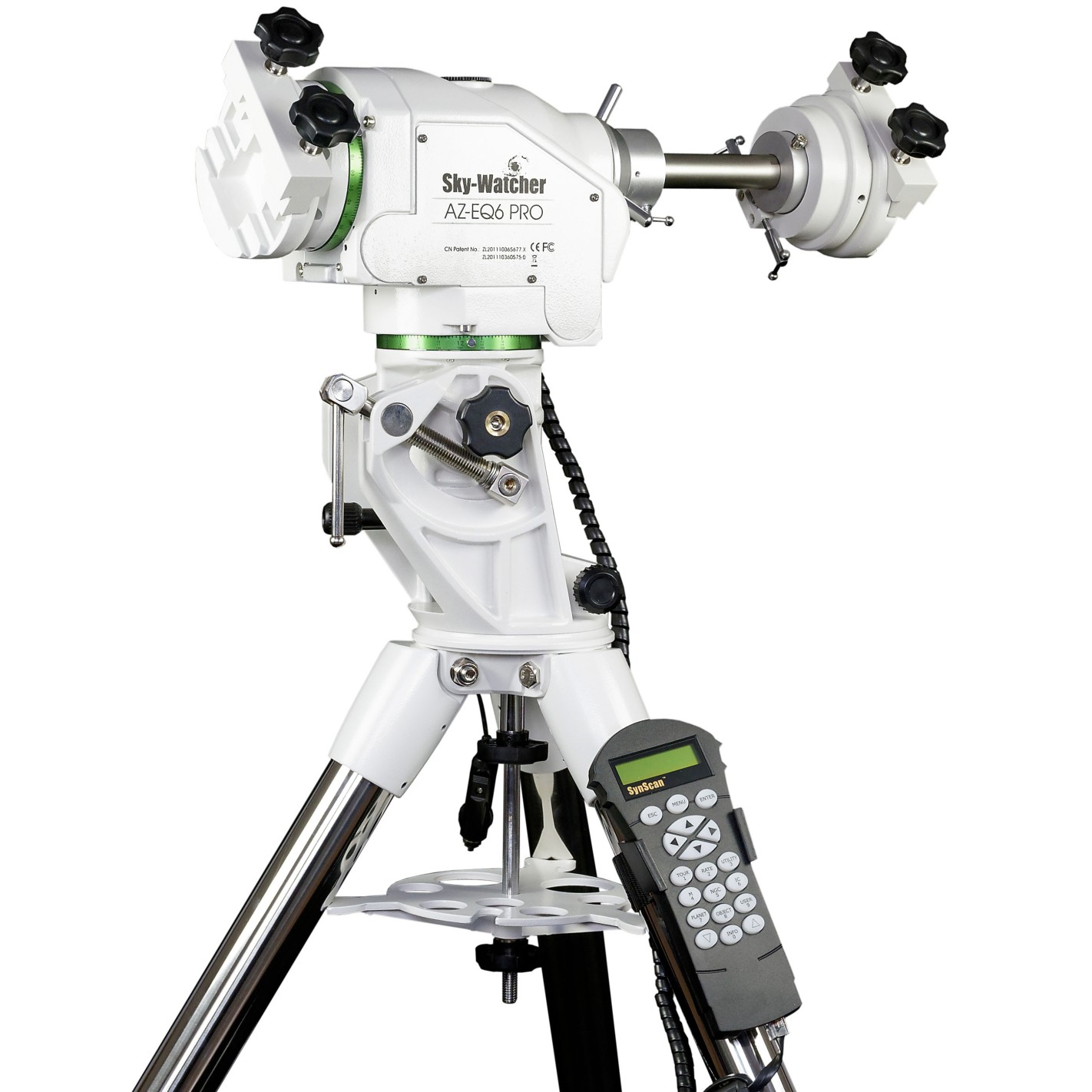

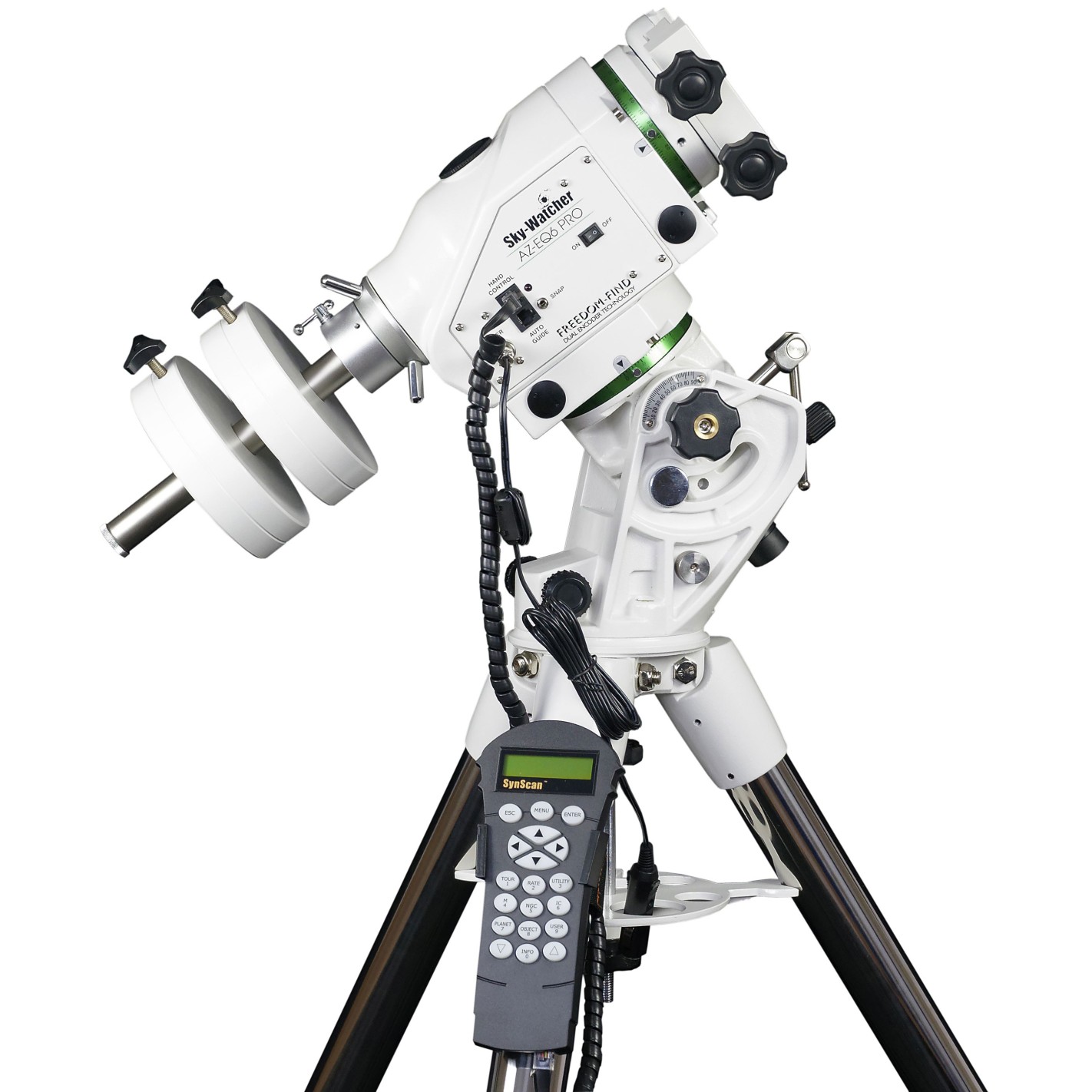

The new SKYWATCHER AZ-EQ6 SYNSCAN mount offers optimal stability and pointing precision for a wide range of heavy professional photographic and video equipment. It is a hybrid mount with the possibility to work in Altazimuthal format for general use and also in Equatorial format for astrophotography. The SKYWATCHER AZ-EQ6 SYNSCAN mount is supplied with the SYNSCAN control knob that includes dual firmware for both AZ and EQ formats. It can track and locate more than 42,900 celestial objects stored in its database.
The SKYWATCHER AZ-EQ6 SYNSCAN mount is capable of carrying heavy professional photography or video equipment. It is also a very easy to transport and efficient mount because it weighs only 15Kg and has a load capacity of 25Kg (excluding counterweight).
Tracking made easy -- Freedom Find™
With the patented FREEDOM FIND (dual-encoder) technology the telescope can be moved either manually or electronically, on both axes and without losing information about its position or alignment. After moving to a new object, the telescope will automatically start tracking the new object precisely. There will be no need to re-align the telescope during the entire observing session. This technological feature is very positively valued by Telescopiomania as it incorporates a functionality that until now was only available to users with professional mounts.
New features:
The best innovations according to Telescopiomania:

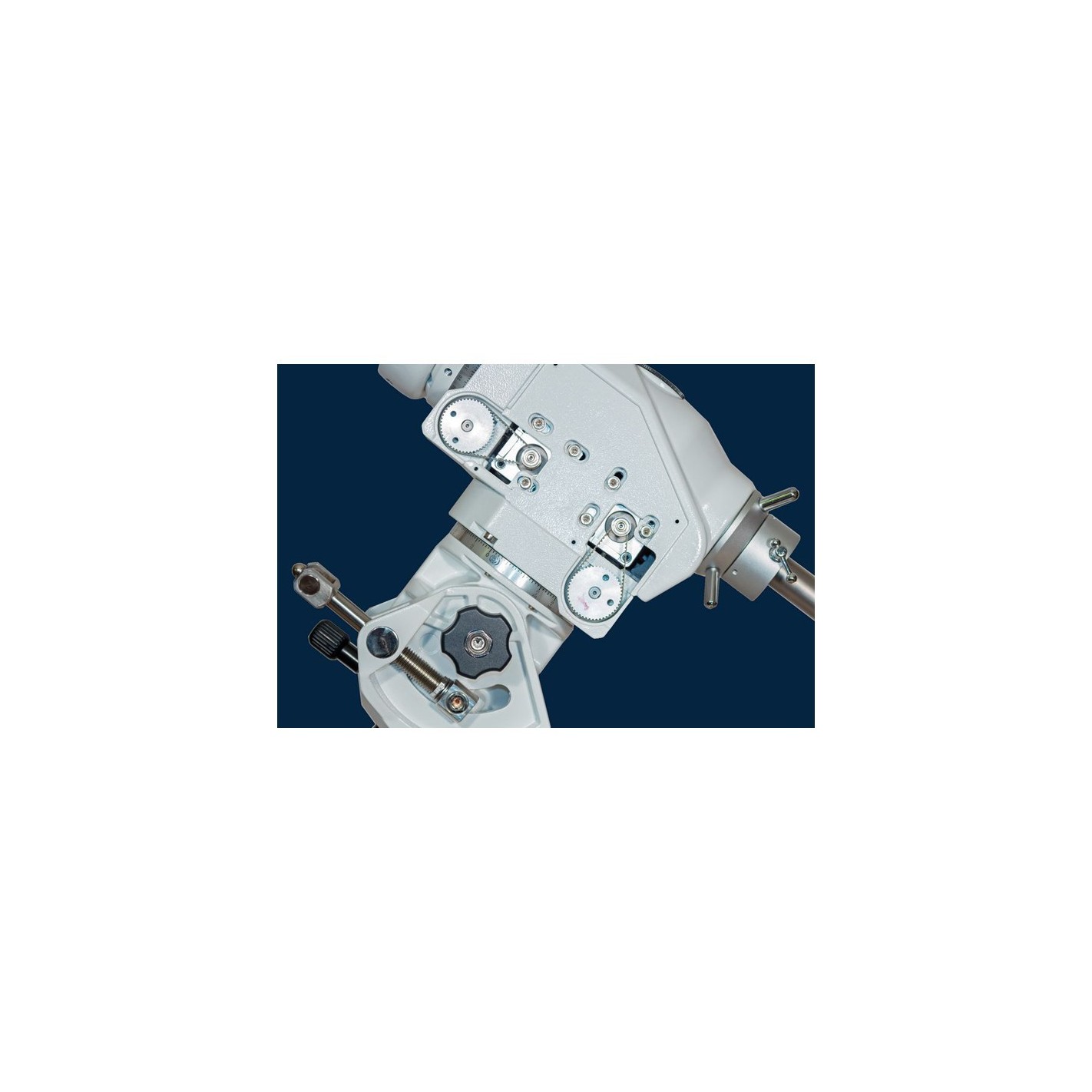

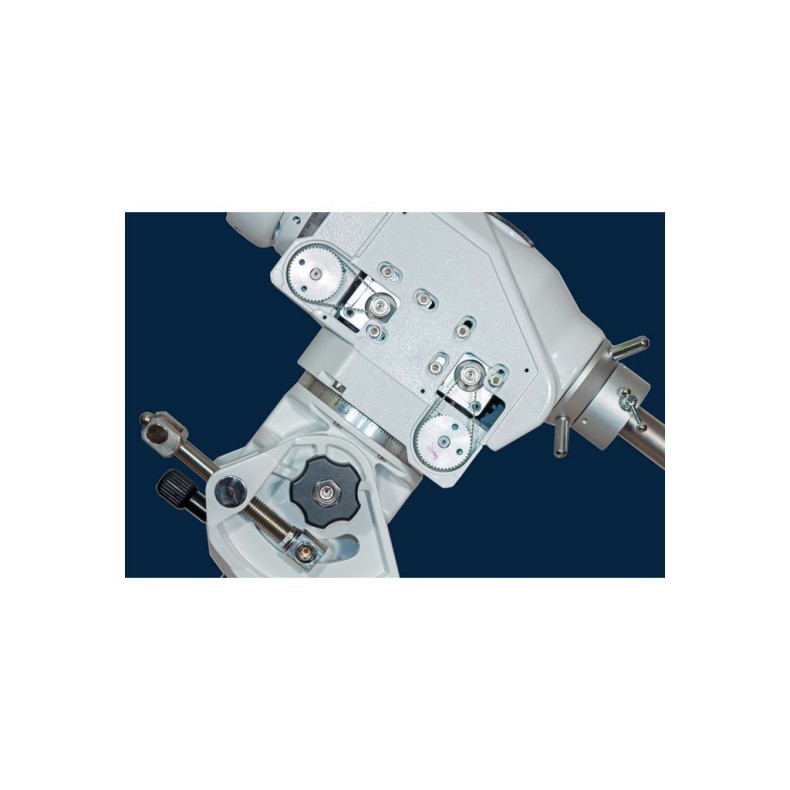

- Belt-driven axis displacement.
- Very smooth movement minimizing the Periodic Error.
- Virtually no backlash.
- Quieter than other frames in its class.
- Programmable shutter control for DSLR cameras.
- Motor controller board for increased torque and precision.

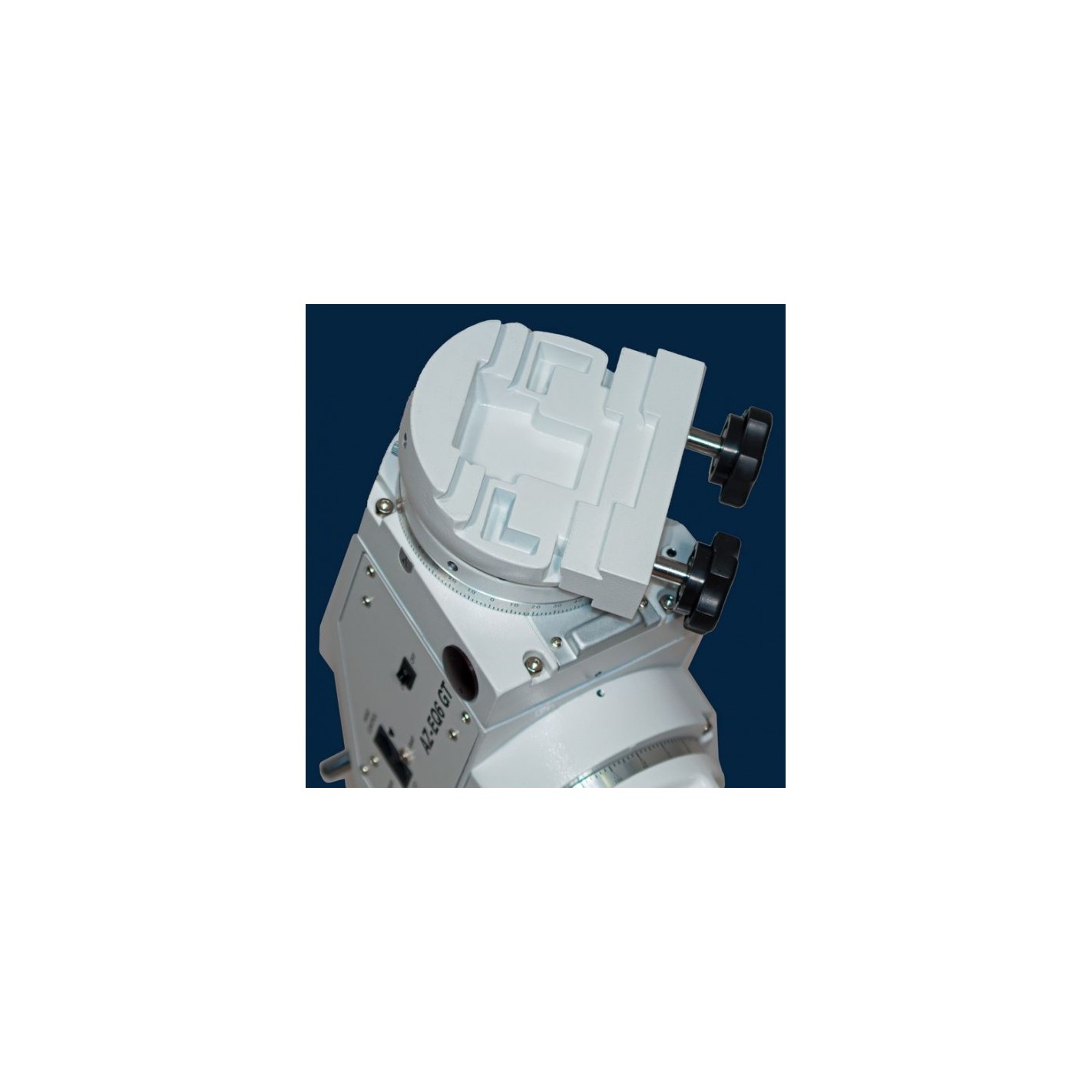

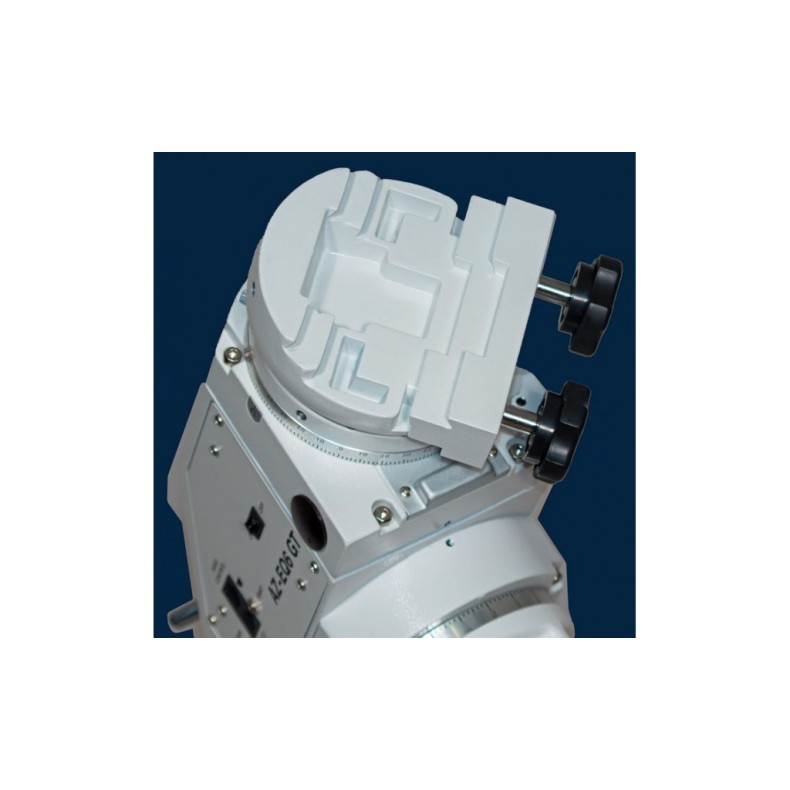

- Mount head prepared to accept VIXEN and LOSMANDY type dovetails (45/75mm)
- Illuminated polar finder is included as standard.
We also highlight:
- Motion resolution: approximately 0.14 arc seconds.

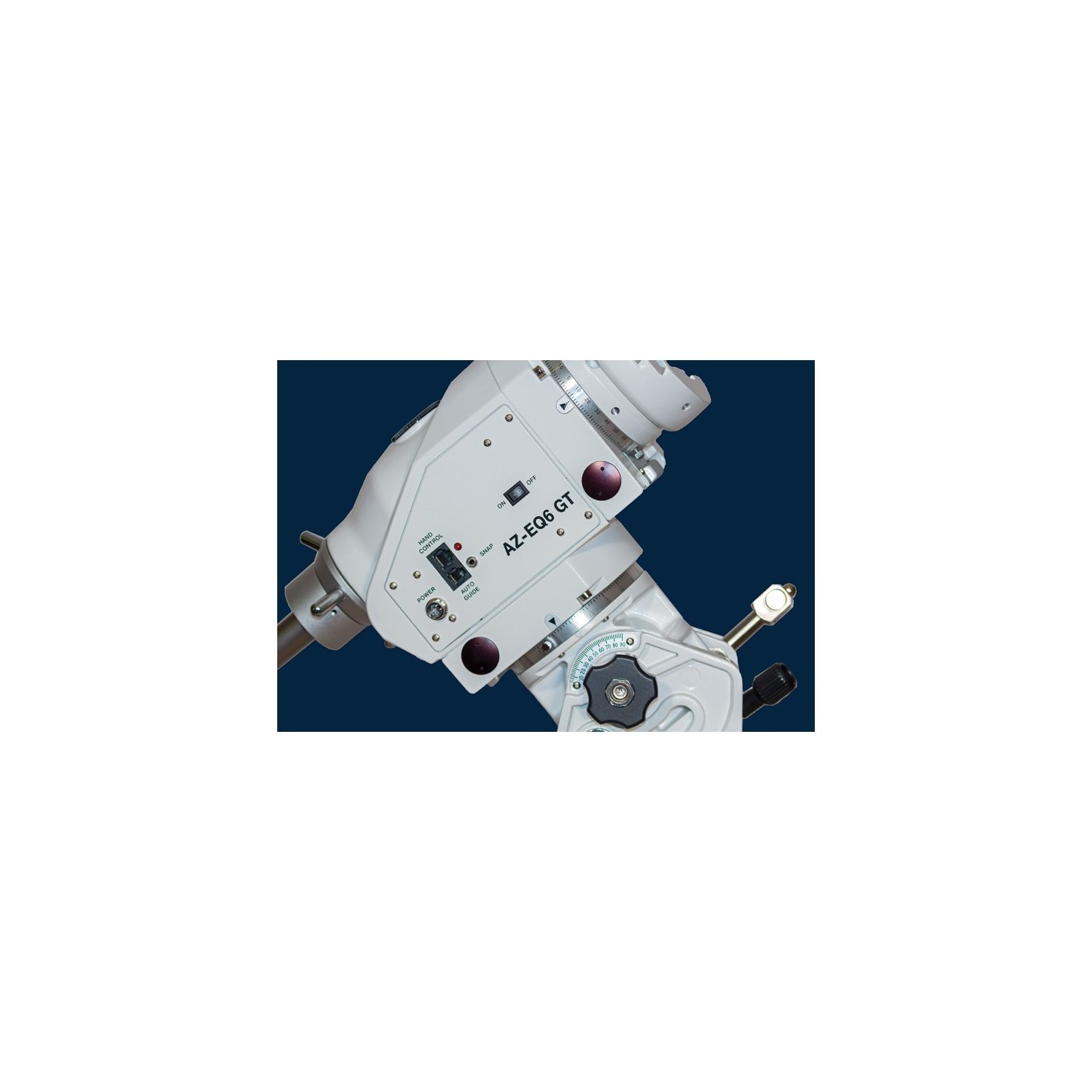

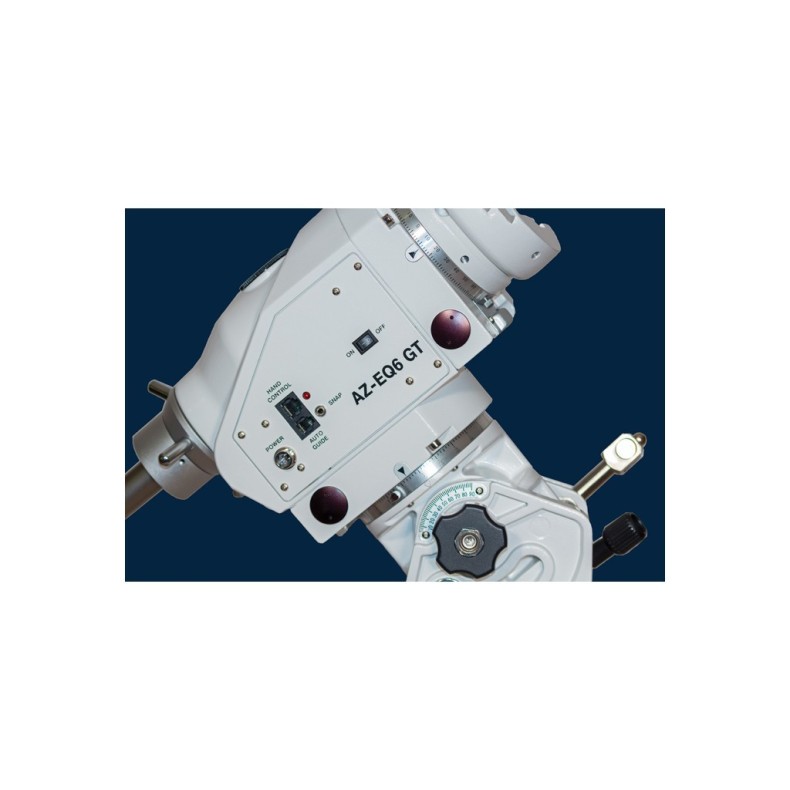

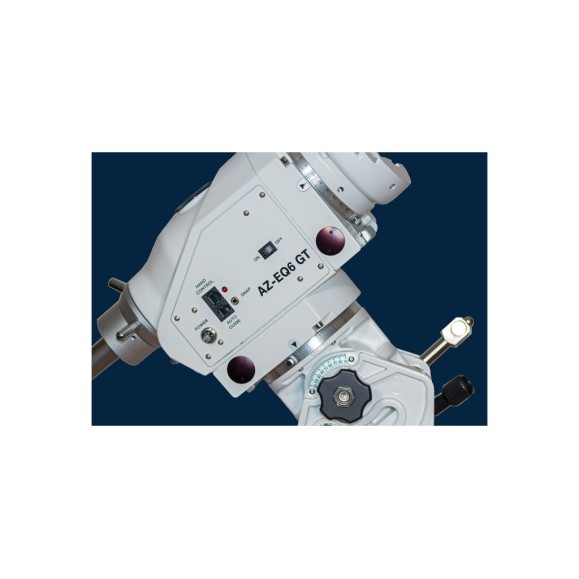

- Includes electronic shutter control port for DSLR.
- Autoguiding port.
- PEC control in EQ mode.
- Polar alignment facilitated by the included illuminated polar finder.
- Alignment methods: 1, 2 or 3 stars (EQ) / alignment to 2 stars or to the brightest star (AZ)
- Connection to the telescope: 2 clamps are supplied that accept VIXEN and LOSMANDY type dovetails.
- AR/DEC crowns: D=92.5mm, 180 teeth, made of brass.
- AR/DEC shafts: D=40mm, made of steel.
- Latitude adjustment range: 10º to 70º (EQ), 90º (AZ)
- Azimuth adjustment range: over ± 9o
Special applications of NEQ6 PRO and AZEQ6 PRO mounts:
Telescopiomania would like to point out that the SKYWATCHER NEQ6 PRO and AZEQ6 PRO mounts are not simple GOTO mounts whose application is reduced to the astronomical field. Some customers also use GOTO mounts of this type as a stable and precise platform to perform specific positioning or to follow the rotational motion of the Earth (installation of solar panels, oil extraction platforms, etc).
Technical Specifications:
- Mount Type: Dual EQ/Alt-Az Mode
- Counterweights: 2 x 5Kg
- Motors: Hybrid stepper 1,8º
- GOTO: SYNSCAN control command
- Tripod height: 127cm
- Tripod weight: 7,5Kg; steel tripod with 2" legs
- Weight of boxes: 21Kg + 15Kg
- Boxes dimensions: 117x28x21cm3; 100x50x50x50 cm3
-Power supply: DC12 V, only the car cigarette lighter cable is supplied
- Load capacity: 25Kg (excluding counterweight)
- Tracking modes: Altacimutal / Equatorial
- Tracking Speeds: Sidereal / Solar / Lunar
- GOTO speeds: up to 4.2°/second (800x sidereal speed)
- Guidance speeds: from 0.125x, 0.25x, 0.5x, 0.75x, 1x
Reflector Telescope Skywatcher Black Diamond Dual Speed 200/800 AZ-EQ6 Pro Goto
