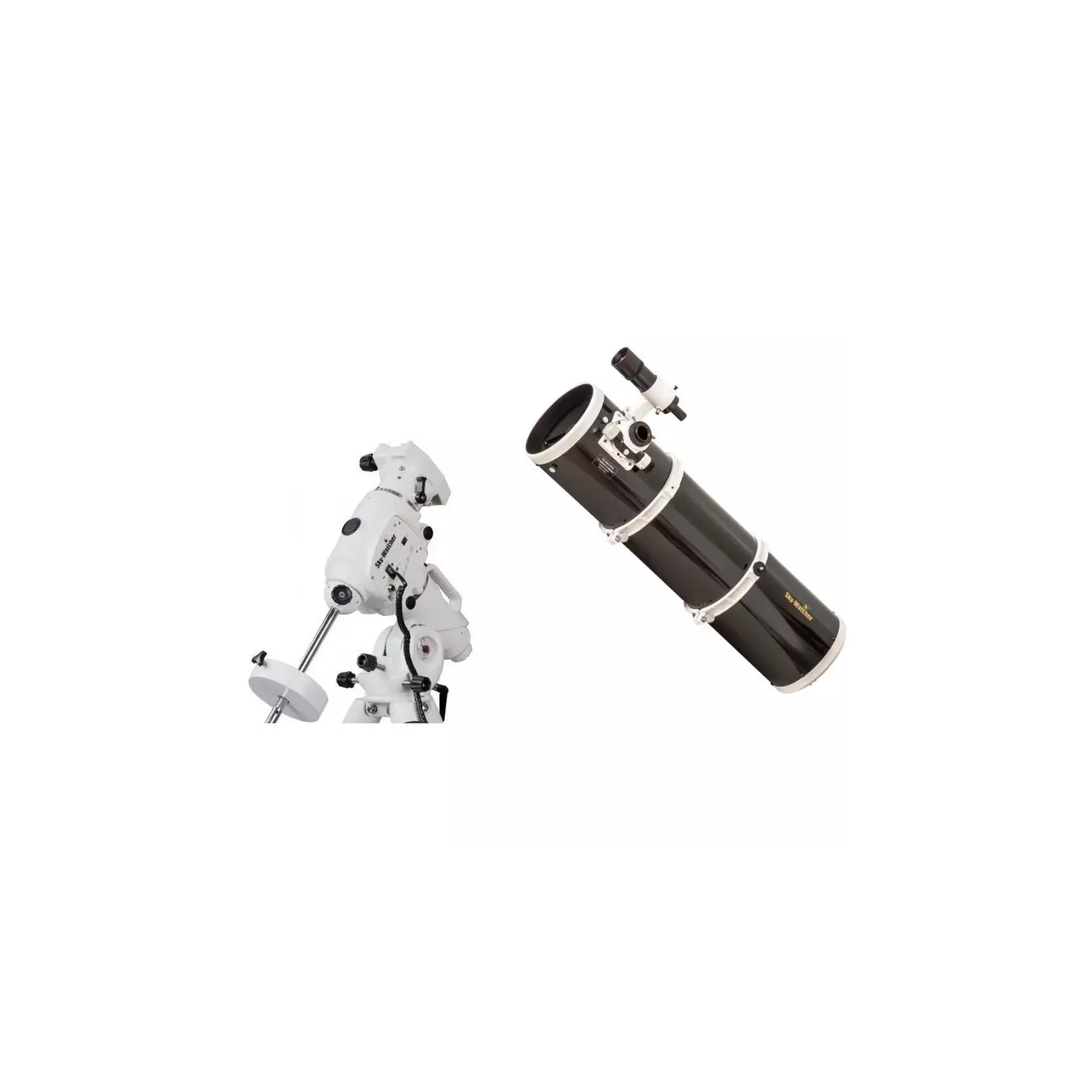

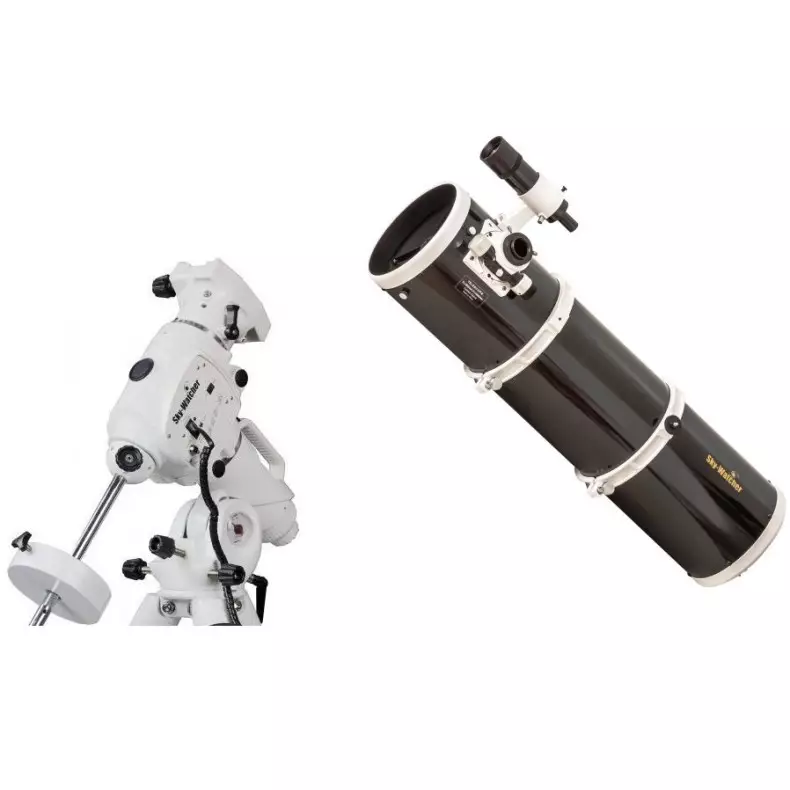

SkyWatcher BD DUAL SPEED 250/1200 EQ6-R Pro GoTo SkyWatcher Telescope Pack with customized astrophotography course

SkyWatcher BD DUAL SPEED 250/1200 EQ6-R Pro GoTo SkyWatcher Telescope Pack with customized astrophotography course

IN TELESCOPIOMANIA WE OFFER YOU NOW TOGETHER WITH YOUR TELESCOPE, OUR PERSONALIZED COURSE OF ASTRONOMY AND ASTROPHOTOGRAPHY INITIATION.

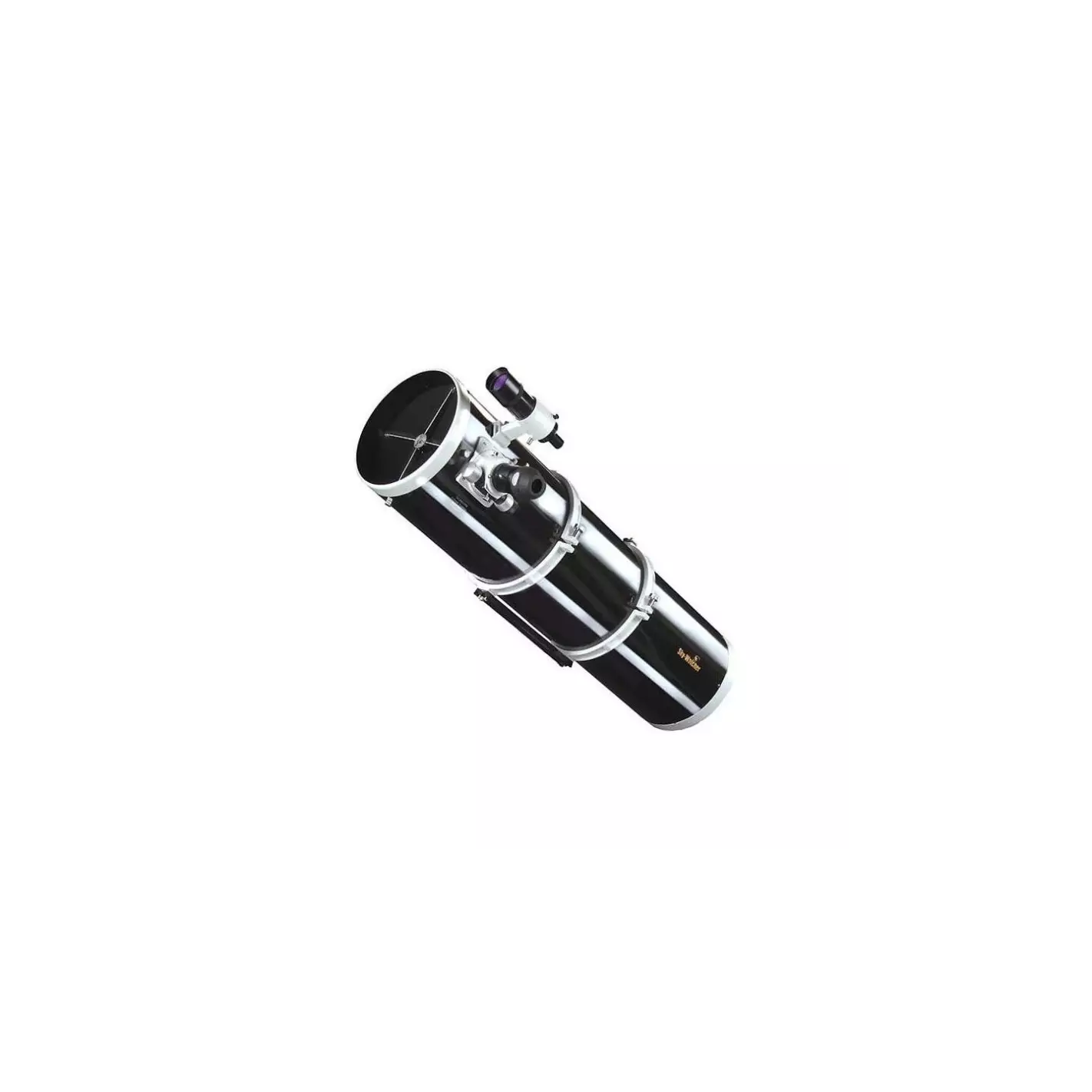

Newton optical reflector tubes feature high light gathering capability combined with high portability. They are capable of distinguishing outstanding, fine details of solar system and deep sky objects. Their large aperture allows you to observe galaxies, nebulae and star clusters the way you've always wanted to see them.

SKYWATCHER's attention to detail, and its high level of exigency, ensure that the user will always have in his hands a telescope that will give him the maximum of its possibilities. The mirrors used have the most complete aluminization treatments, guaranteeing the durability of the equipment.

SKYWATCHER is aware that the amateur astronomer places high expectations on the equipment he or she purchases. In this sense SKYWATCHER has been able to guarantee the satisfaction of the users of its equipment for decades.

The Newton reflecting telescopes supplied by Telescopiomania.com are equipped as standard with the SKYWATCHER focuserCrayford Dual Speed(with double speed reducer).

Another important feature of this tubeDUAL SPEEDIs the fact that it has a slightly shorter length than normal to improve the performance of the equipment when performing prime focus astrophotography. Its performance can be greatly enhanced with a coma corrector such as theMPCCfromBAADER PLANETARIUM.

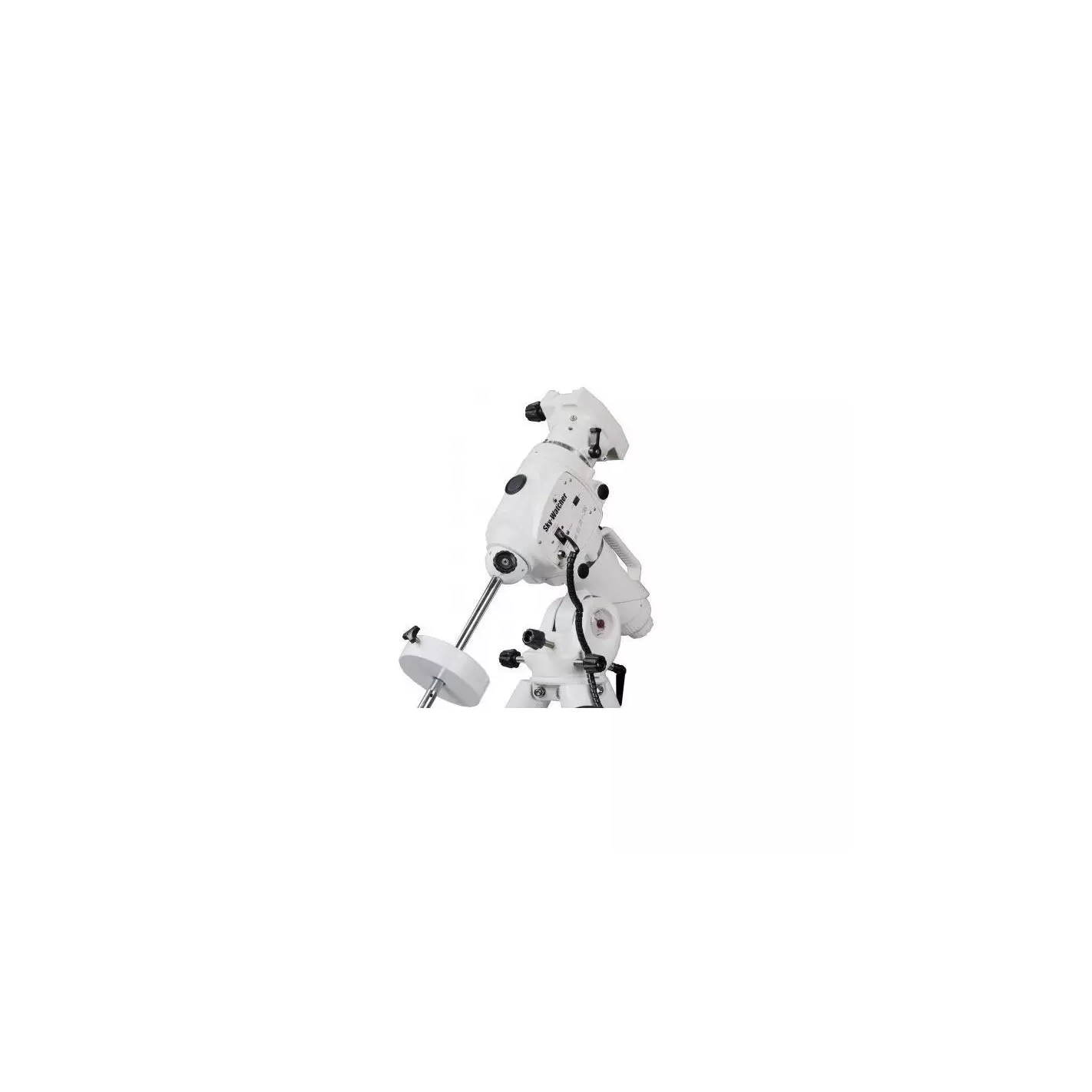

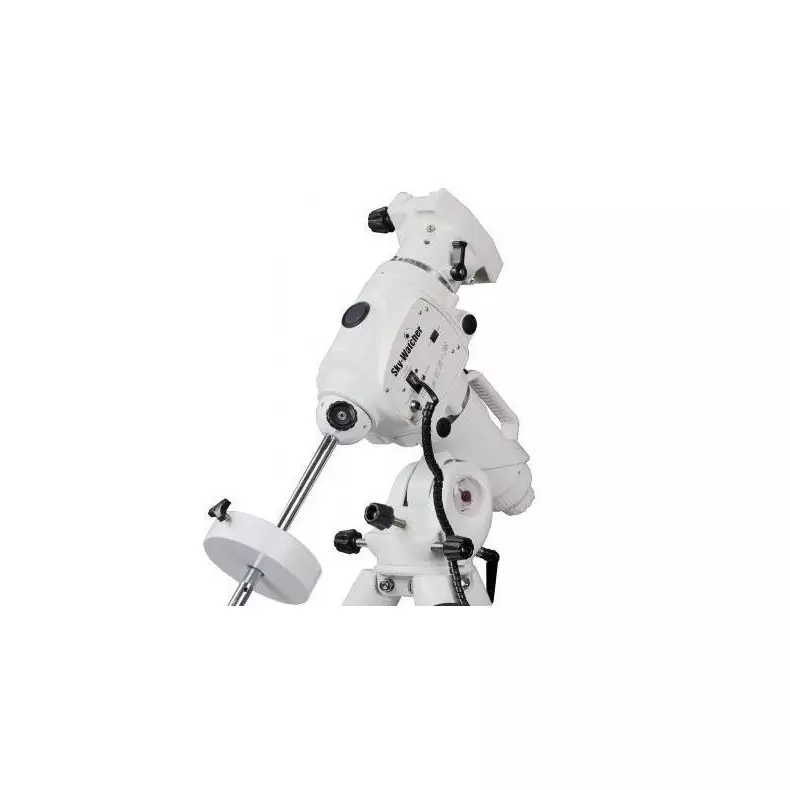

Without a doubt, the SkyWatcher EQ6-R PRO GOTO equatorial mount is the new jewel in SkyWatcher's crown. With unmatched reliability and robustness, the EQ6-R equatorial mount is the guarantee to start doing deep sky photography with guarantees and at a price as economical as possible for a mount that works with belts and pulleys (not going with crowns and bezels virtually eliminates the presence of backlash or gear backlash to zero).

The German SKYWATCHER equatorial mounts with integrated SynScan system are high-quality observation platforms with sophisticated mechanics and electronics.

The main features of the German GOTO equatorial mounts are summarized below:

PC operation:

SKYWATCHER SynScan mounts come standard with the revolutionary SynScan Computer Controller. Locating an astronomical object has never been so easy and fun. The telescope responds immediately to keystrokes on the control knob, executing the indicated operations. The SynScan series telescopes can also be remotely controlled from a PC using any Planetary software (Cartes du Ciel, The Sky, etc) and via RS-232 connection to the control knob. There is even the possibility to optionally purchase a GPS to facilitate the most accurate entry of time, date and location. The SynScan firmware can be upgraded via internet with a specific and free software.

Tracking speeds and modes:

The versatility of the SynScan system allows various search and guidance speeds to be selected. The tracking modes are: Lunar, Solar and Sidereal. The mount is compatible with use in both the Northern and Southern hemispheres.

Database:

The SynScan computer includes a database of more than 40,000 objects in memory. The library includes objects for advanced studies, following the existing catalog system: NGC, IC, Caldwell, Messier and other lists plus 25 user-definable objects (comets, asteroids, etc).

EQ6-R PRO SYNSCAN ™ - A NEW LEGEND IS BORN!

The new EQ6-R PRO Synscan ™ computerized mount is an exciting evolution of the legendary EQ6 PRO mount. The optimized modern design of the EQ6-R PROincorporates new features that discerning astrophotographers will immediately appreciate, such as:

• Increased ruggedness and increased payload capacity of 20kg for astrophotography
• Even quieter, smoother operation and better guiding results due to new motors and gears
• Precise and backlash-free power transmission due to synchronous belt drive
• Improved latitude adjustment controls for greater accuracy and wider range of latitudes possible
• Built-in SNAP camera control port
• PPEC and periodic error correction function with enhanced electronics with microstepping module and increased torque for optimum accuracy even without guidance
• Improved, built-in ergonomic carrying handle for comfortable and safe transportation
• Selection of the desired menu language (English, French, German, etc.)

Technical characteristics:

• Equipment name: EQ6-R PRO Synscan ™
• Frame type: German equatorial
• Maximum load (without counterweights): 20 kg (for astrophotography)
• Latitude adjustment range: 5º to 65º
• Azimuth adjustment range: approximately ± 9º
• Weight of the mount (without tripod): 17.3 kg
• Counterweights supplied: 2 x 5kg
• Complete weight: 34.8 kg
• Tripod supplied: 2-inch stainless steel legs, 7.5 kg weight
• Counterweight rod: diameter 18mm, length 240mm + 180mm
• Power supply: DC11 ~ 16V 4A
• Motors: 1.8 th stepper hybrid
• Transmission: 180: 1
• Fine transmission: + 48:12
• Timing belt drive: + 64 microsteps
• 1.8° stepper motor drive
• Gear ratio: 720
• Resolution: 9216000 Counts/Revolution, approx. 0.14 arc sec
• Maximum rotational speed: 4.2 degrees / second
• Tracking speed: sidereal, solar, lunar
• Tracking mode: equatorial
• Automatic guiding speed: 0.125X, 0.25X, 0.5X, 0.75X, 1X
• PEC: 100 Permanent PEC segments (PPEC)
• Manual controller:SynScan ™
• Control language configurable to different languages
• Database: + 42000 Objects
• Catalog of Celestial Objects: Messier, NGC, IC, SAO, Caldwell, Double Stars, Variable Stars, Major Stars, Planets
• Aiming accuracy: up to 5 arcminutes (RMS)
• Integrated SNAP camera control port
• Double coupling head for 45 mm / 75 mm dovetails
• Illuminated polar finder

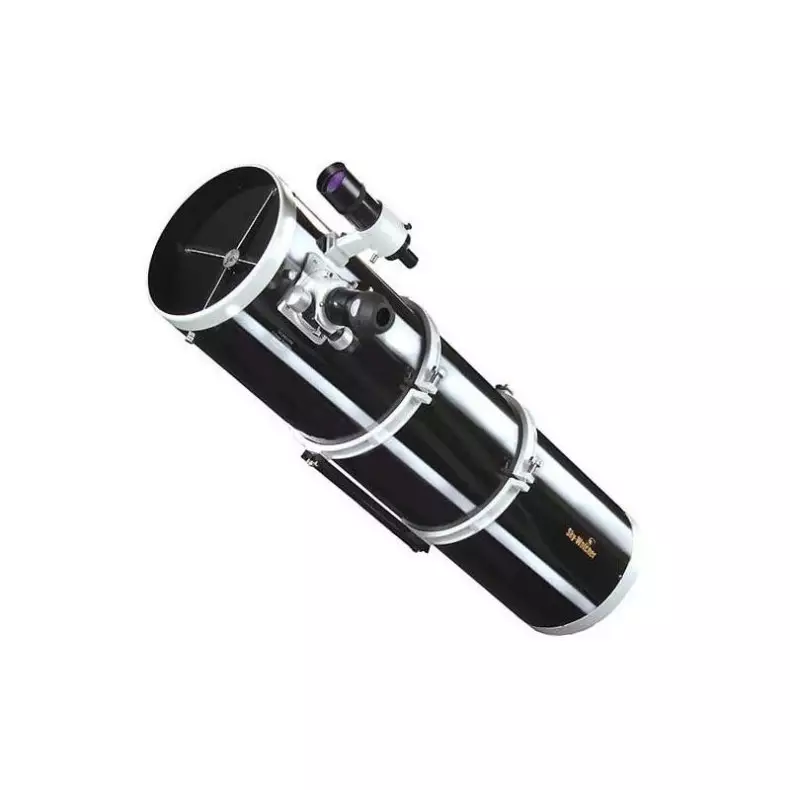

Technical Specifications tube:

• Optical design: Newton Reflector
• Diameter: 254mm
• Focal length: 1200mm
• Focal ratio: f/4.8
• Maximum recommended magnification: 508x
• Limiting stellar magnitude: 14.1
• Resolving power: 0.47 arc seconds
• Eyepiece holder: 2" (with adapter to 1.25")
• Pipe dimensions: 288 x 1120mm
• Weight: 14.38Kg
• Eyepiece: LET 28*
• Seeker: 8x50

COURSE OFFER DETAIL:

You will learn the following concepts:

- Basic concepts in astronomy, know the sky, objects and movements

- Get to know all the parts of the telescope

- How to increase telescope performance with accessories

- Collimation and optical testing of your equipment

- How to organize an observation night

- Astrophotography of bright night objects: Moon and planets. Learn the techniques to obtain the best planetary images. Learn how to make the most of the photographic capabilities of your SLR or CCD planetary camera.

- Astrophotography of stars and deep sky objects. We will enter the fascinating world of astrophotography of faint objects such as nebulae and galaxies. Learn how to use your reflex or CCD camera to obtain amazing results.

- Get to know books, processing applications and apps

GIFT INCLUDED of this magnificent book:https://www.telescopiomania.com/astronomy-books/10116-book-astrophotography-of-deep-sky-and-planets-9788426733610.html

This course will be personalized for all attendees and will be conducted via zoom or in person at our headquarters in Girona with the possibility of making all the necessary consultations to expand the knowledge acquired, these courses are done with a certain frequency in time where we offer different dates so you can adapt to the one that best suits your needs, we will inform you in advance of the calendar to make the reservation.

The people teaching the course are experts in Astronomy and Astrophotography with more than 30 years of experience using astronomy equipment and performing outreach activities where they can share with you their experiences with their equipment and the night skies.

ALL THE TRAINING WE OFFER IS PROVIDED LIVE BYwww.astroxperiences.comWITHOUT ANY MEANS OF RECORDING WHERE YOU CAN INTERACT WITH THE EXPERT TO SOLVE YOUR DOUBTS

Duration 2,5h

Via zoom or live in person at our Girona store

It is recommended that you have your own equipment to start practicing

This training can be extended with field observation practices (not included in this course)
