Pack Newton SkyWatcher Black Diamond Dual Speed 150/750 NEQ5 PRO GOTO Newton SkyWatcher Black Diamond Telescope with customized

Pack Newton SkyWatcher Black Diamond Dual Speed 150/750 NEQ5 PRO GOTO Newton SkyWatcher Black Diamond Telescope with customized introductory course

IN TELESCOPIOMANIA WE OFFER YOU NOW TOGETHER WITH YOUR TELESCOPE, OUR PERSONALIZED COURSE OF INITIATION OF ASTRONOMY AND USE OF YOUR GOTO TELESCOPE.

The SKYWATCHER telescopes of the NEQ5 series offer high optical quality astronomical telescopes for the discerning amateur. The newton reflecting telescopes feature high light gathering capability combined with portability. They are capable of distinguishing outstanding, fine details of solar system and deep sky objects. Their large aperture allows you to observe galaxies, nebulae and star clusters the way you've always wanted to see them.

SKYWATCHER's attention to detail and high standards ensure that the user always has a telescope in his hands that will give him the best of its capabilities.

SKYWATCHER is aware that the amateur astronomer places high expectations on the equipment he or she purchases. In this sense SKYWATCHER has been able to guarantee the satisfaction of the users of its equipment for decades.

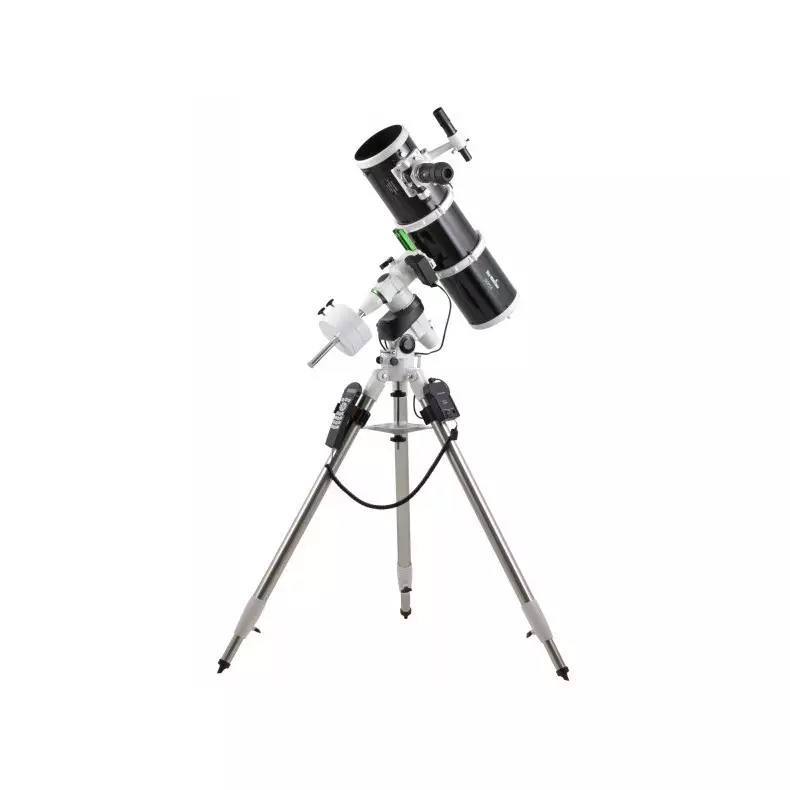

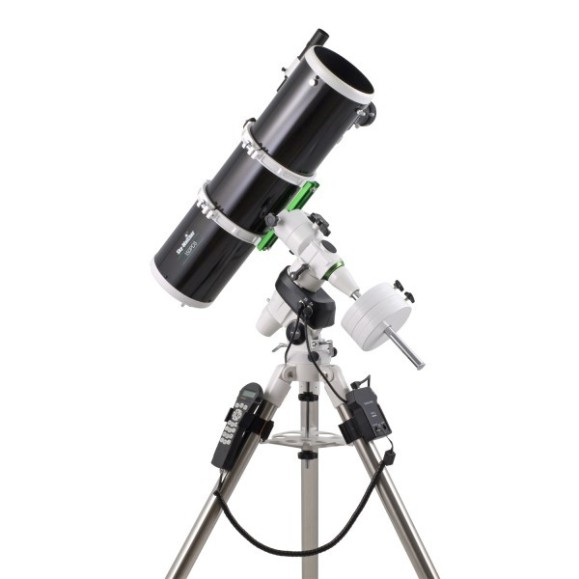

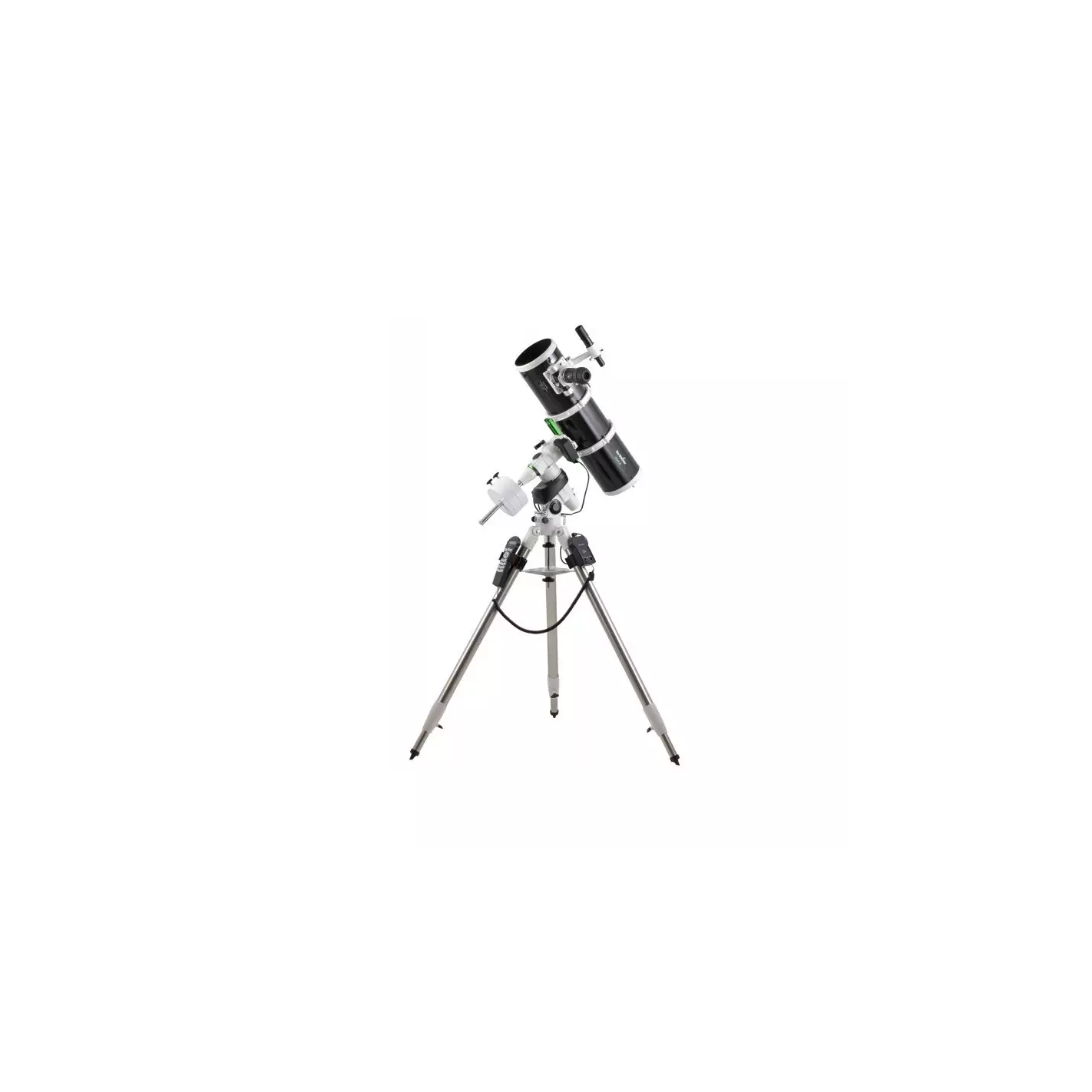

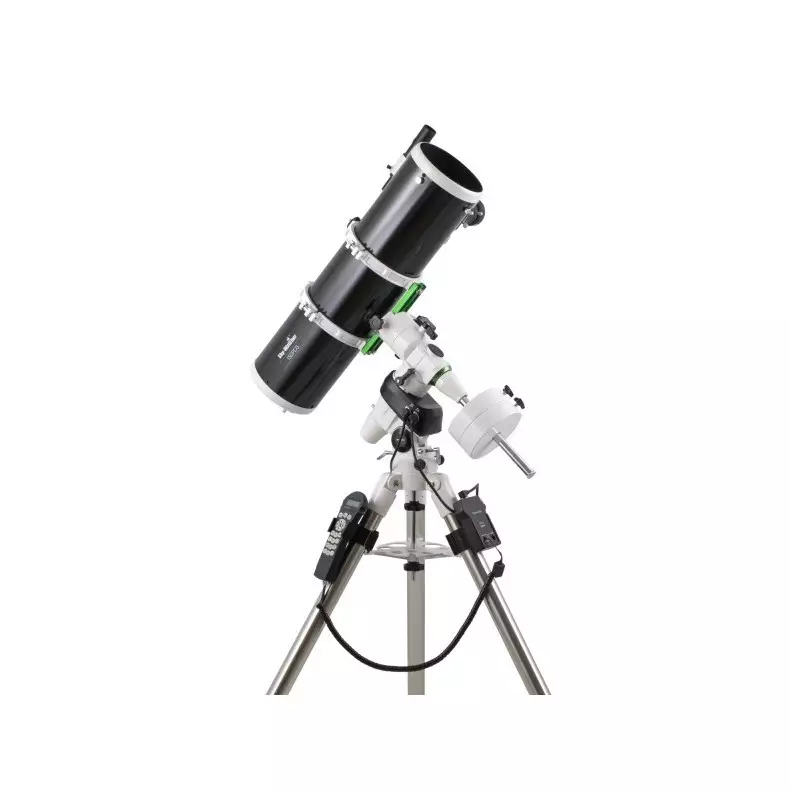

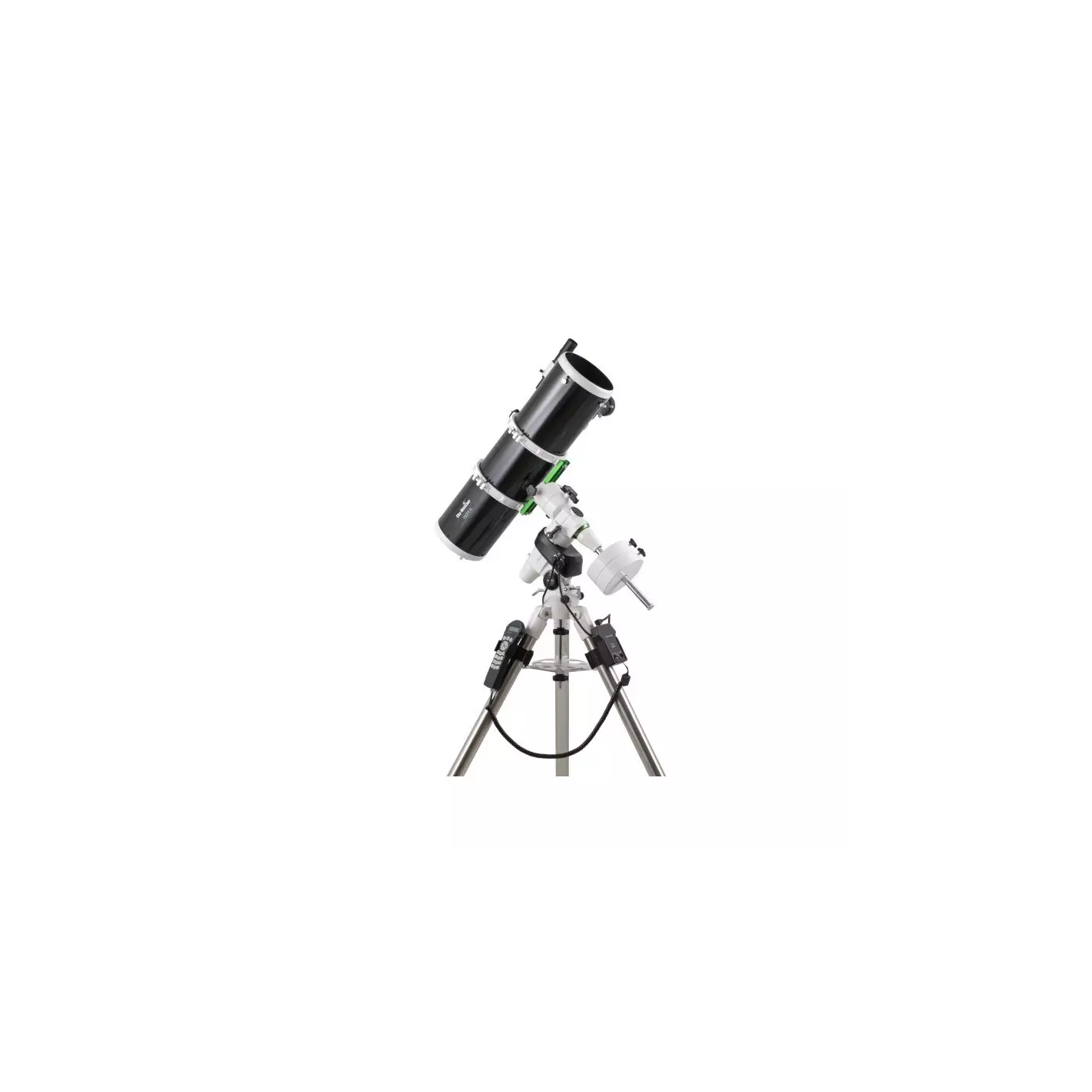

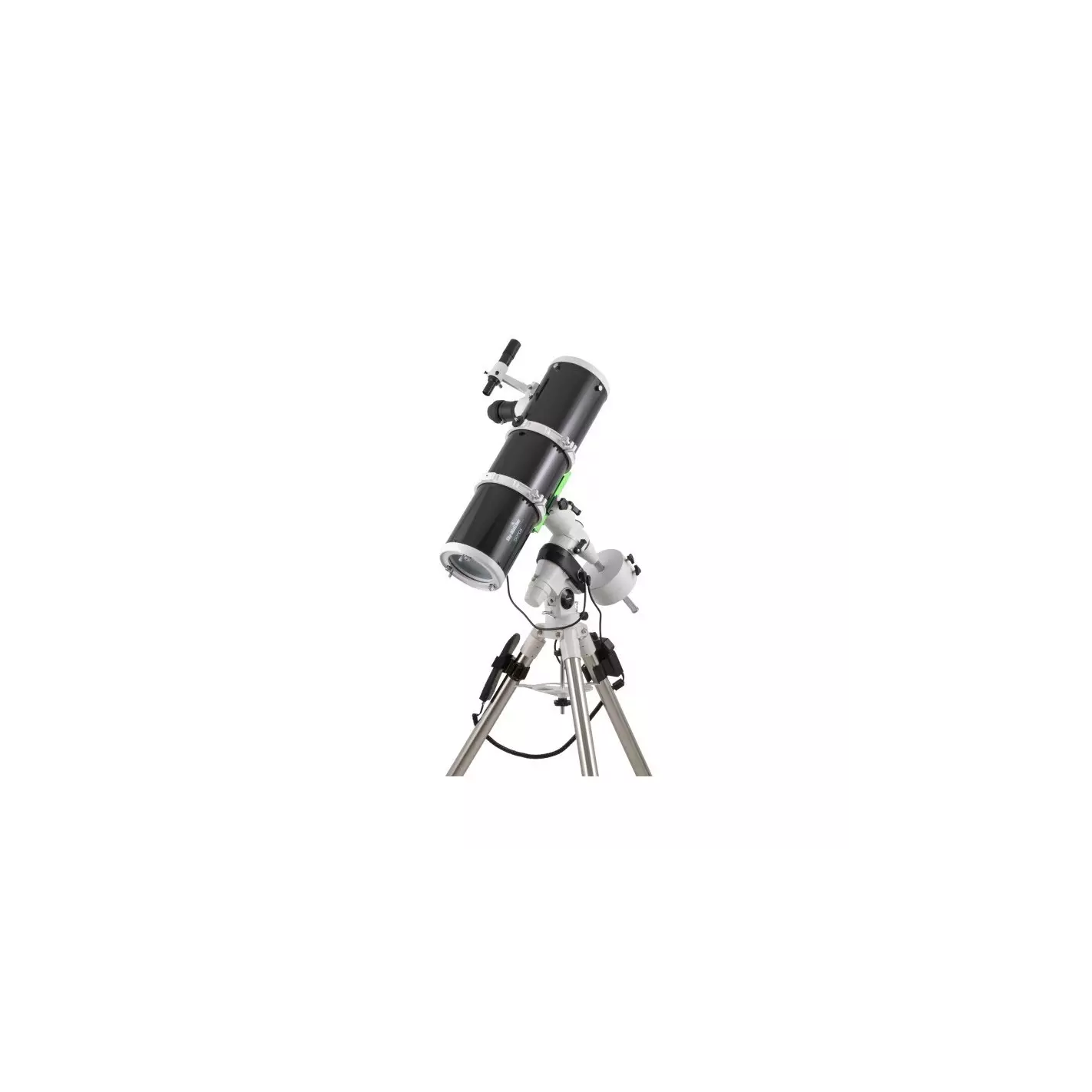

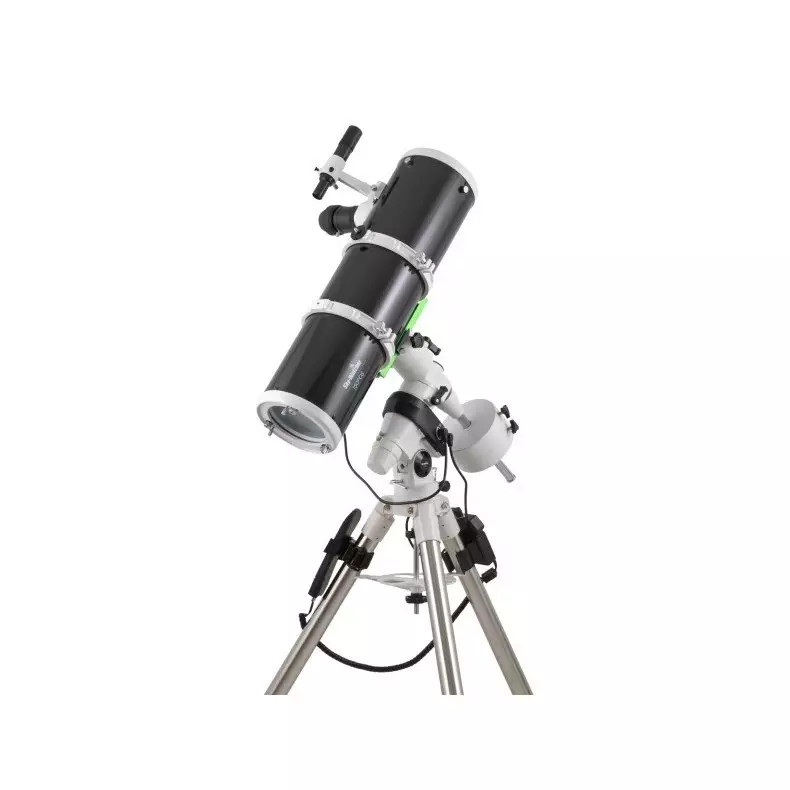

This equipment consists of a newton 150/750mm reflector optical tube and the German NEQ5 PRO GOTO equatorial mount.

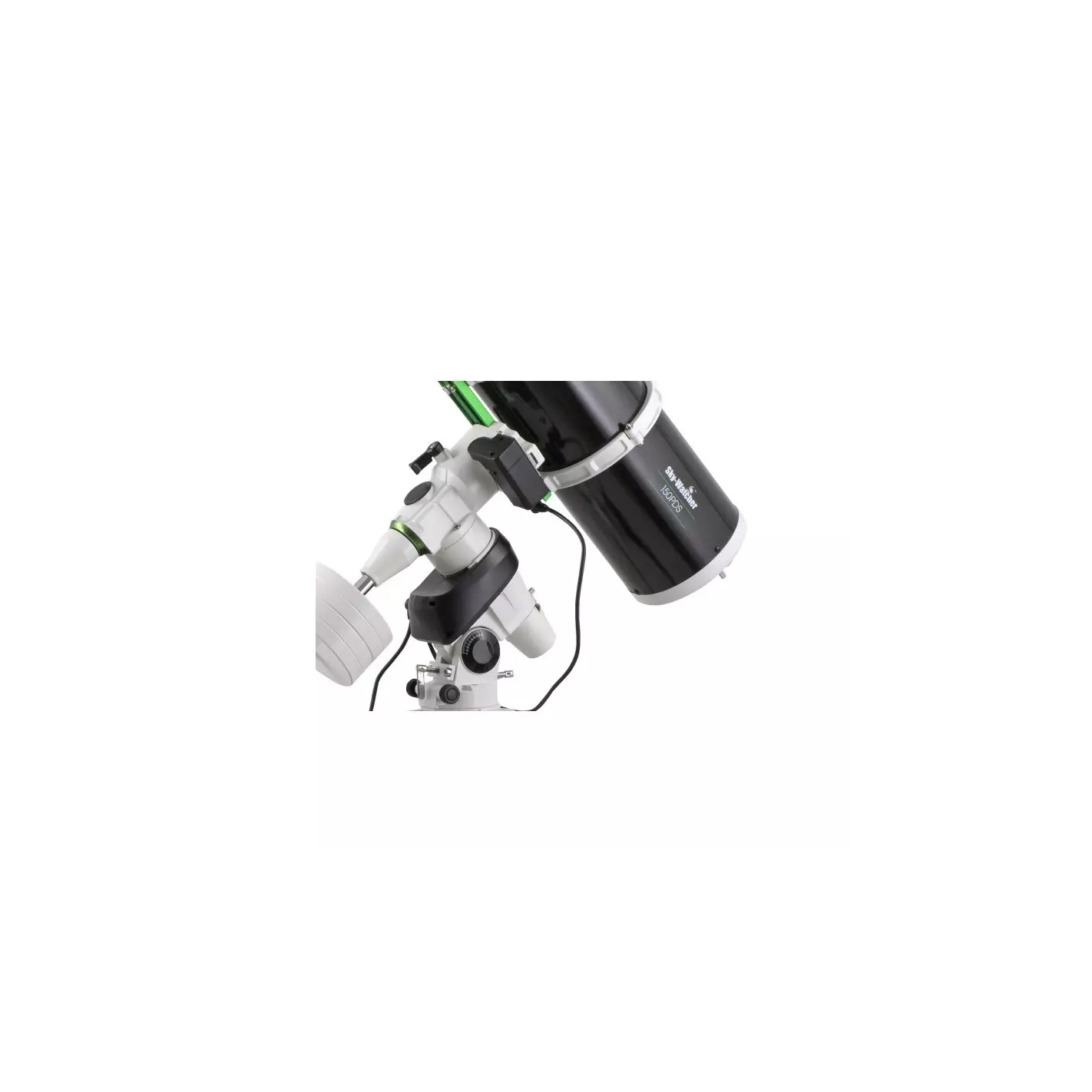

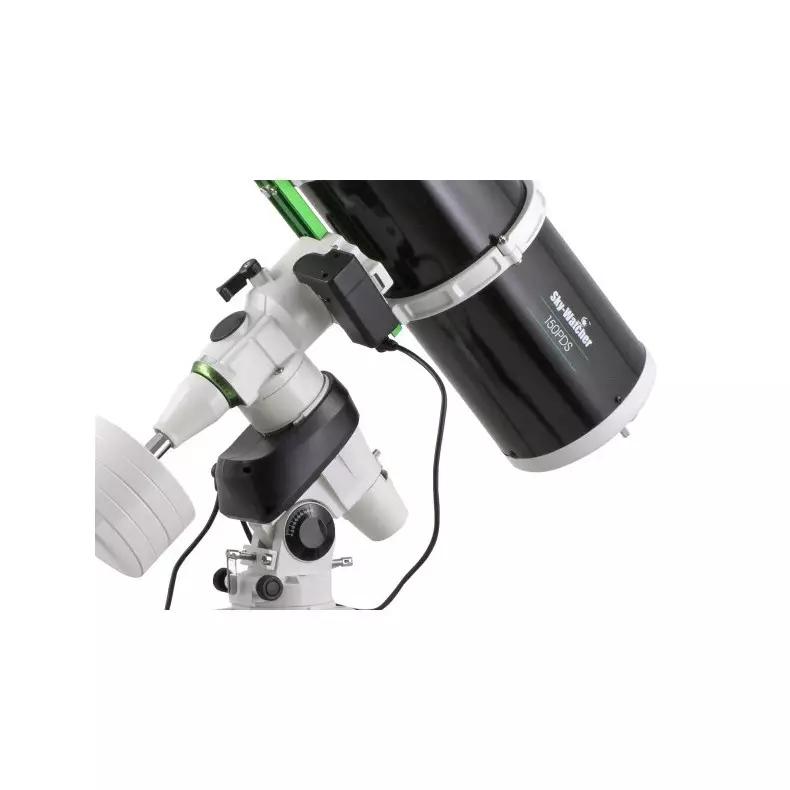

The saddleSKYWATCHER NEQ5Provides the precision and stability needed to start making observations in a more serious way. Equipped with motors and GOTO, the mountSKYWATCHER NEQ5Becomes the perfect instrument for deep sky astrophotography.

Standard specifications include: space for the polar finder (not included), latitude adjustment with integrated micrometer, azimuth adjustment for polar alignment, aluminum position circles, slow-moving knobs and spirit level.

The saddleSKYWATCHER EQ5Provides the precision and stability needed to begin more serious observations. The telescopesSKYWATCHERSupplied with a German equatorial mount with integrated SynScan system are high quality observation platforms with well thought-out mechanics and electronics.

The main characteristics of the systemsGOTOAre summarized below:

PC operation:

The SynScan mounts ofSKYWATCHERInclude the revolutionary SynScan Computer Controller as standard. Locating an astronomical object has never been so easy and fun. The telescope responds immediately to keystrokes on the controller, executing the indicated operations. The SynScan series telescopes can also be remotely controlled from a PC using any Planetary software (Cartes du Ciel, The Sky, etc) and via RS-232 connection to the control knob. There is even the possibility to optionally purchase a GPS to facilitate the most accurate entry of time, date and location. The SynScan firmware can be upgraded via internet with a specific and free software.

Motors, slewing rings and bearings:

SaddlesSKYWATCHERThe SynScan series uses DC stepper motors with high torque capacity and micro-stepping control technology for maximum precision. Bronze crown and worm gear system for precision mechanical incremental movement to minimize gear backlash.

Tracking speeds and modes:

The versatility of the SynScan system allows various search and guidance speeds to be selected. The tracking modes are: Lunar, Solar and Sidereal. The mount is compatible with use in both the Northern and Southern hemispheres.

Database:

The SynScan computer includes a database of more than 40,000 objects in memory. The library includes objects for advanced studies, following the existing catalog system: NGC, IC, Caldwell, Messier and other lists plus 25 user-definable objects (comets, asteroids, etc).

Astrophotography:

Astrophotography enthusiasts will greatly appreciate the presence of the AUTO-GUIDER port that allows autoguider functions to be performed through a PC. The SynScan firmware includes the SynScangramming algorithm for periodic error correction (this error is natural and inherent to all corona-bisenfin systems). In addition, this algorithm can be complemented with the Backlash compensation function (technical term to describe gear backlash) for both AR and DEC. In this way it is possible to have uniform GOTO's and tracking.

Technical specifications frame:

• Type of mount: German Equatorial manual.
• Dovetail bracket: 1.75" dovetail
• Motion control: AR and DEC axes
• Control Command: EQ SynScan
• Piggyback Support
• Accessory tray: Yes
• Load capacity: 9.1Kg
• Motors: step by step
• Weight of the frame: 5.71Kg
• Weight of mount with tripod: 10.41Kg
• Counterweights: 2 x 5.1Kg
• Tripod: stainless steel with adjustable height 750-1270mm.

Technical Specifications tube:

• Optical design: Newton Reflector
• Parabolic mirror
• Diameter: 150mm
• Focal length: 750mm
• Focal ratio: f/5
• Maximum recommended magnification: 280x
• Stellar magnitude limit: 13.5
• Resolving power: 0.8 arc seconds
• Eyepiece holder: 2" (with adapter to 1.25")
• Tube dimensions: 18.2x69mm
• Weight: 9.1Kg
• Search engine: 6x30
• Piggybak Support
• 2" Crayford and reducer to 1.25"
• Barlow 2x
• LET 28mm 2" Eyepiece

COURSE OFFER DETAIL:

With this course you will be able to make the most of your initiation into this exciting hobby, astronomy, and you will also be able to get the most out of your Goto telescope so that your observations will be as enriching as possible and you will be able to observe and learn about the maximum number of celestial objects.

You will learn the following concepts:

• Basic concepts in Astronomy, know the sky, objects and movements.

• Main objects that can be observed

• Get to know all the parts of the telescope

• How to increase telescope performance with accessories

• Align the telescope and look for the first objects

• Collimation and optical testing of your equipment

• How to organize an observation night

• How to take my first astrophotographs

• Get to know books, celestial chart applications and apps



This course will becustomizedFor all attendees and will be conducted via zoom or in person at our headquarters in Girona with the possibility of making all the necessary consultations to expand the knowledge acquired, these courses are made with a certain frequency in time where we offer different dates so you can adapt to the one that best suits your needs, we will inform you in advance of the calendar to make the reservation.

The people teaching the course are experts in Astronomy with more than 30 years of experience using astronomy equipment and performing outreach activities where they will be able to share with you their experiences with their equipment and the night skies.

ALL THE TRAINING THAT WE OFFER IS GIVEN LIVE BYwww.astroxperiences.comWITHOUT ANY MEANS OF RECORDING WHERE YOU CAN INTERACT WITH THE EXPERT TO SOLVE YOUR DOUBTS

• Duration 2,5h


• Via zoom or live in person at our Girona store


• It is recommended that you have your own equipment to start practicing


• This training can be extended with field observation practices (not included in this course)
