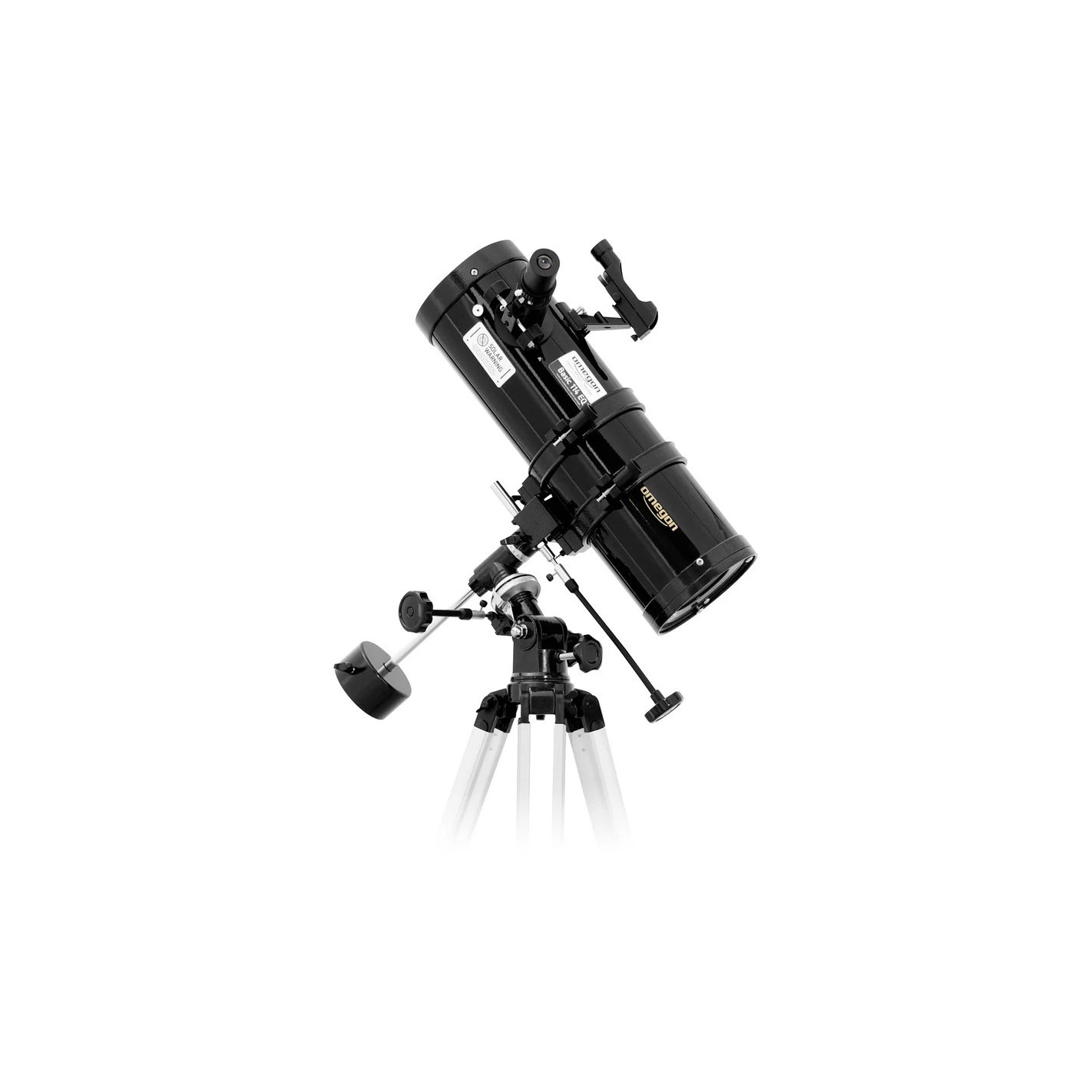

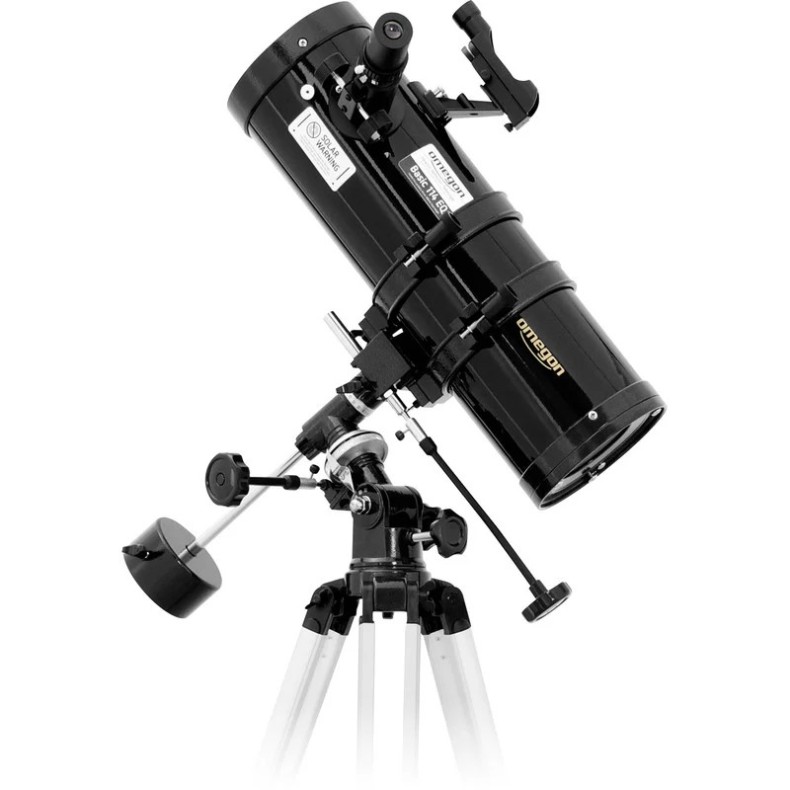

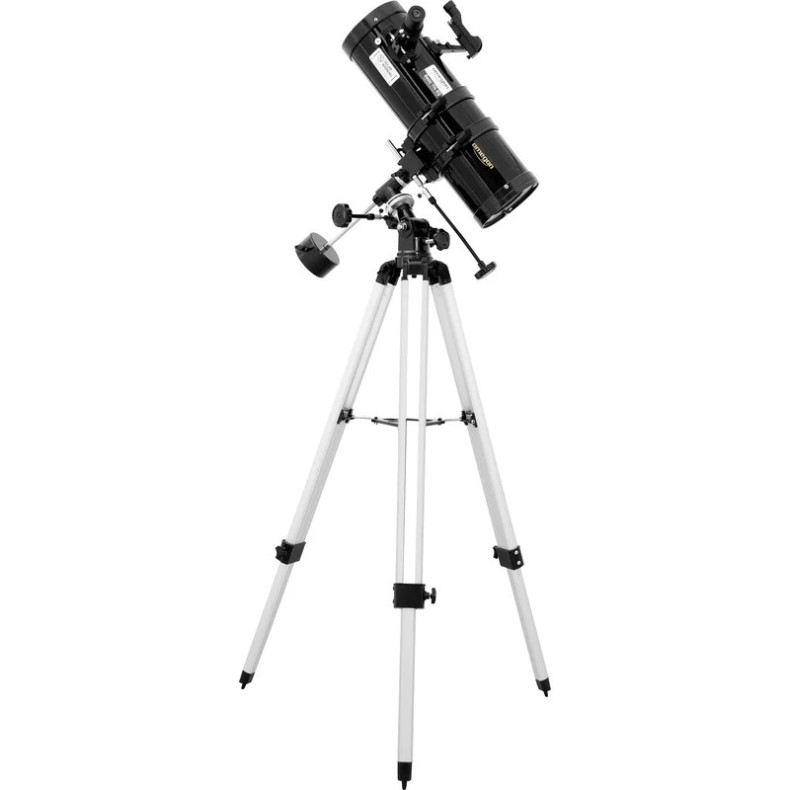

Reflector Telescope Omegon N 114/500 EQ-1

With this telescope you can see the rings of Saturn, Jupiter with its clouds and moons, which look more like a separate small solar system, as well as colorful nebulae and regions of star formations, such as the Orion nebula.

PRODUCT DESCRIPTION

Details:

• Lightweight and portable
• Very easy to handle
• Specific accessories

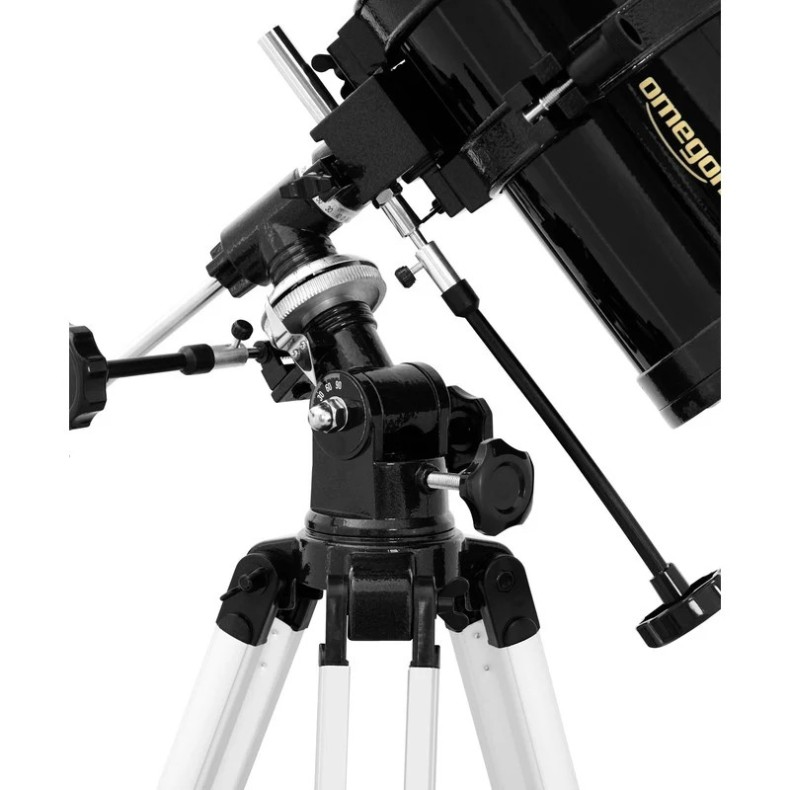

The EQ-1 mount:

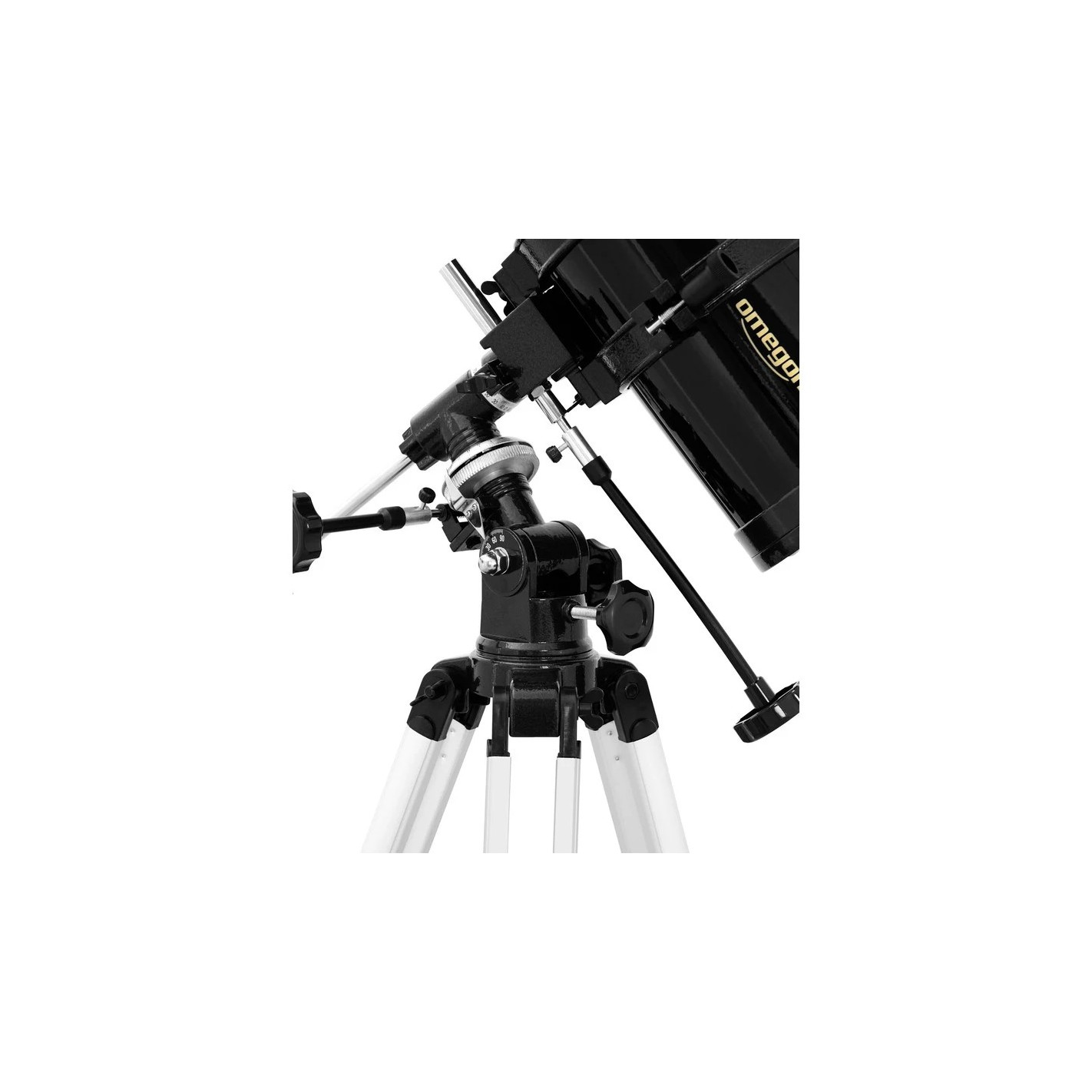

This equatorial mount already offers the possibility to adjust optical systems exactly to the North Star. The polar distance with respect to latitude can be adjusted for each observation site. Through the fine movement of the right ascension and declination axes it is possible to adjust and track objects sensitively, a counterweight ensures the correct balance of the optical system.

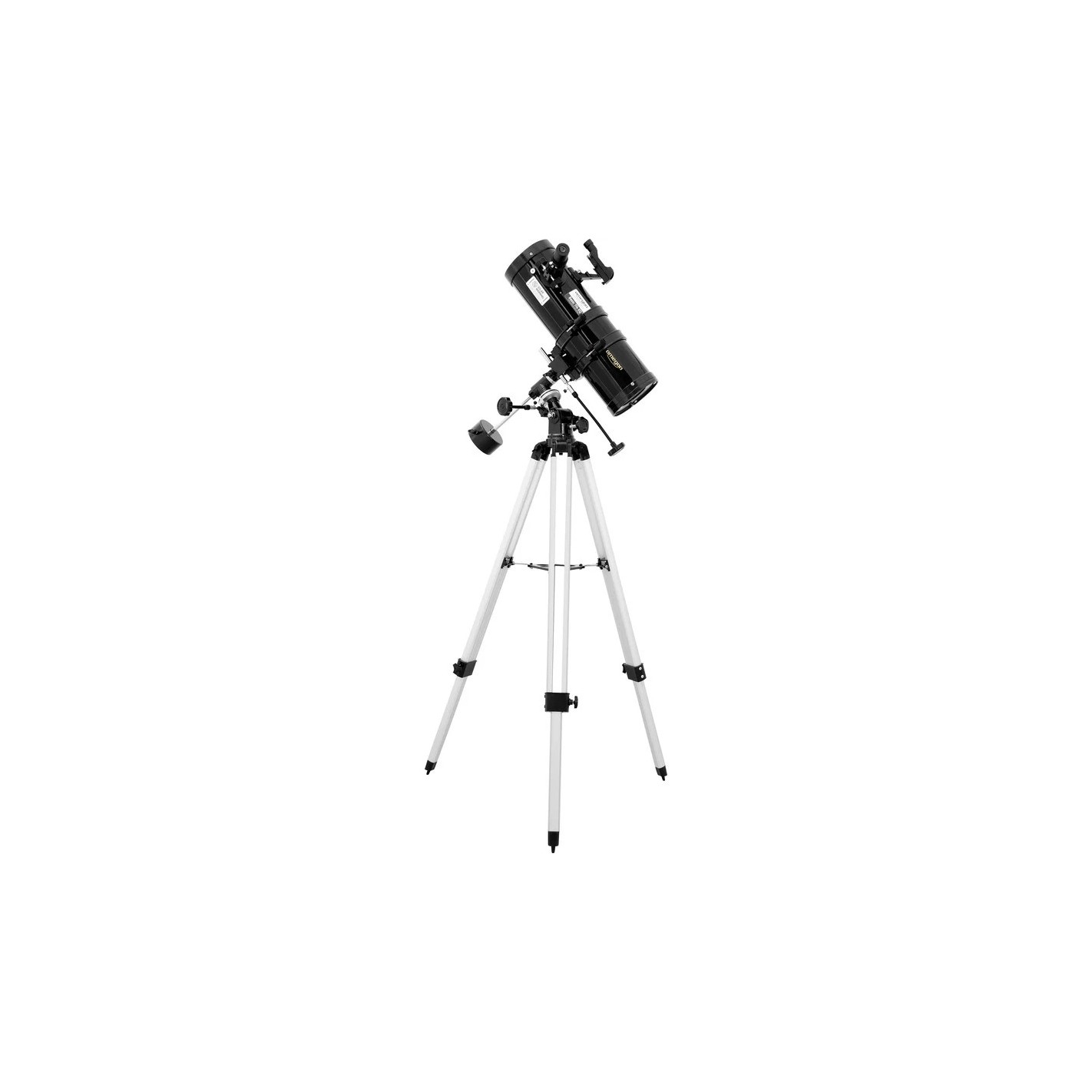

We supply the EQ-1 mount in two variants, with floor tripod or table tripod; details can be found in the technical documentation. The floor tripod can be adjusted and positioned with a height between 70cm and 120 cm, in the accessory holder you can place eyepieces or other accessories. The table tripod is very compact and lightweight, making it the ideal choice for excursions or travel. The smaller EQ mount is extremely light and compact, it fits in almost any travel bag. Beginners can mount it without any problems, even children are able to use it. As an option we offer a tracking motor for mounting on the straight ascent axis.

Product supplied:

• EQ-1 equatorial mount
• Tripod
• Adapted counterweight

SPECIFICATIONS

Optical system

• Type: Reflector
• Construction type: Newton
• Aperture (mm): 114
• Focal Length (mm): 500
• Aperture ratio (f/): 4.4
• Resolution capability: 1.01
• Limit value (mag): 12.1
• Light gathering capacity: 270
• Maximum useful magnification: 228
• Tube construction: Full tube

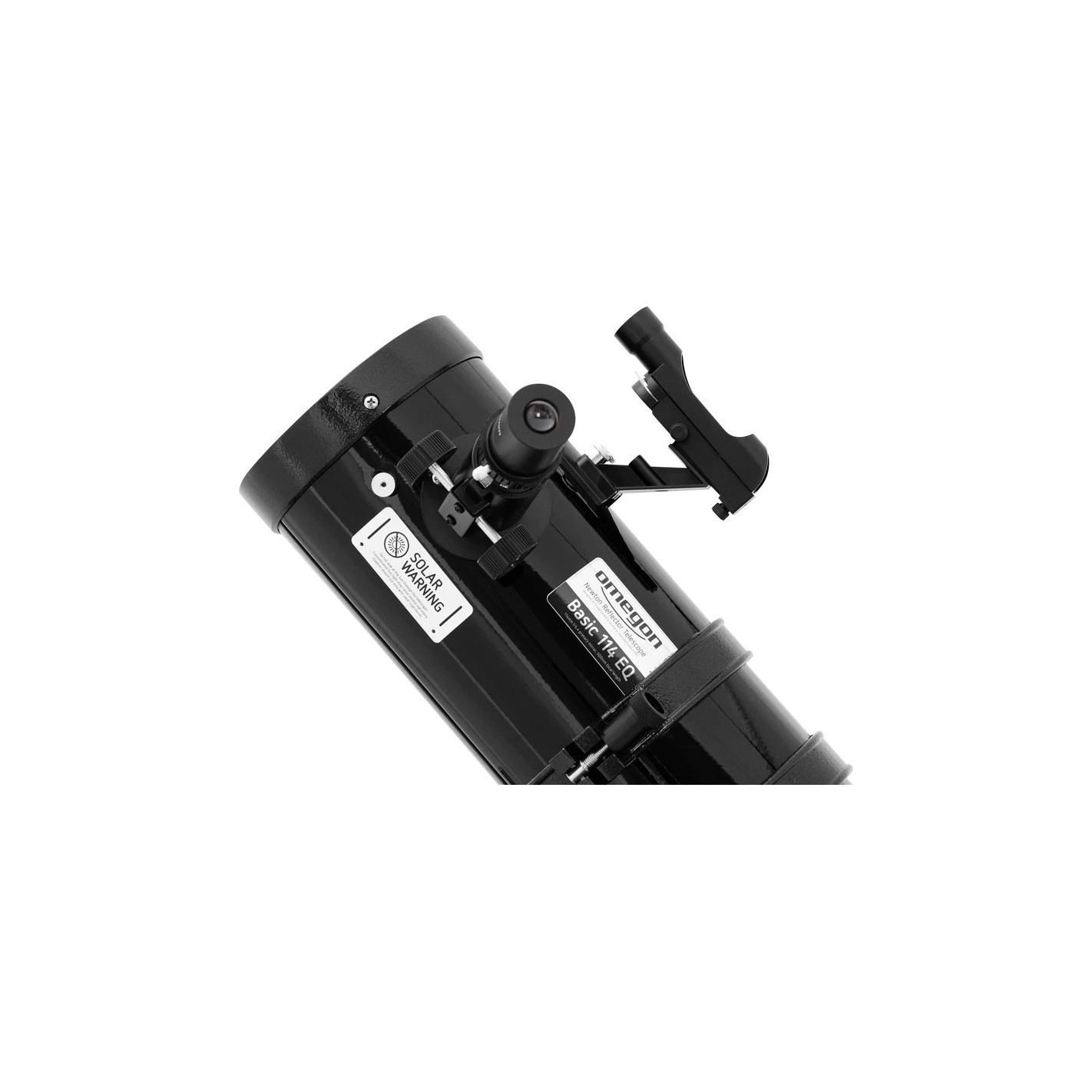

Telescopic eyepiece tube

• Construction type: Serrated bar
• Connection (eyepiece side): 1.25

Mount

• Construction type: EQ-1
• Mount Type: Equatorial
• GoTo: no

Tripod

Material: Aluminum

Included accessories

• 1.25" Eyepieces: 25mm, 10mm
• Telescope eyepiece: Bright spotting scope
• Barlow lens: 2x

Overall

• Total weight (kg): 11.5
• Series: Basic
• Special recommendation: yes

Applications

• Moon and planets: yes
• Nebulae and galaxies :yes
• Nature observation: not recommended
• Astrophotography: no
• Sun: not recommended (only with appropriate solar filter)

Recommended for

Beginners: yes

Advanced: no

Observatories: no
