WIFI CCD microscopy camera BMS WCAM 5 Mp 766600720BK1

WIFI CMOS microscopy camera BMS WIFI 1 Mp 766600720BK1

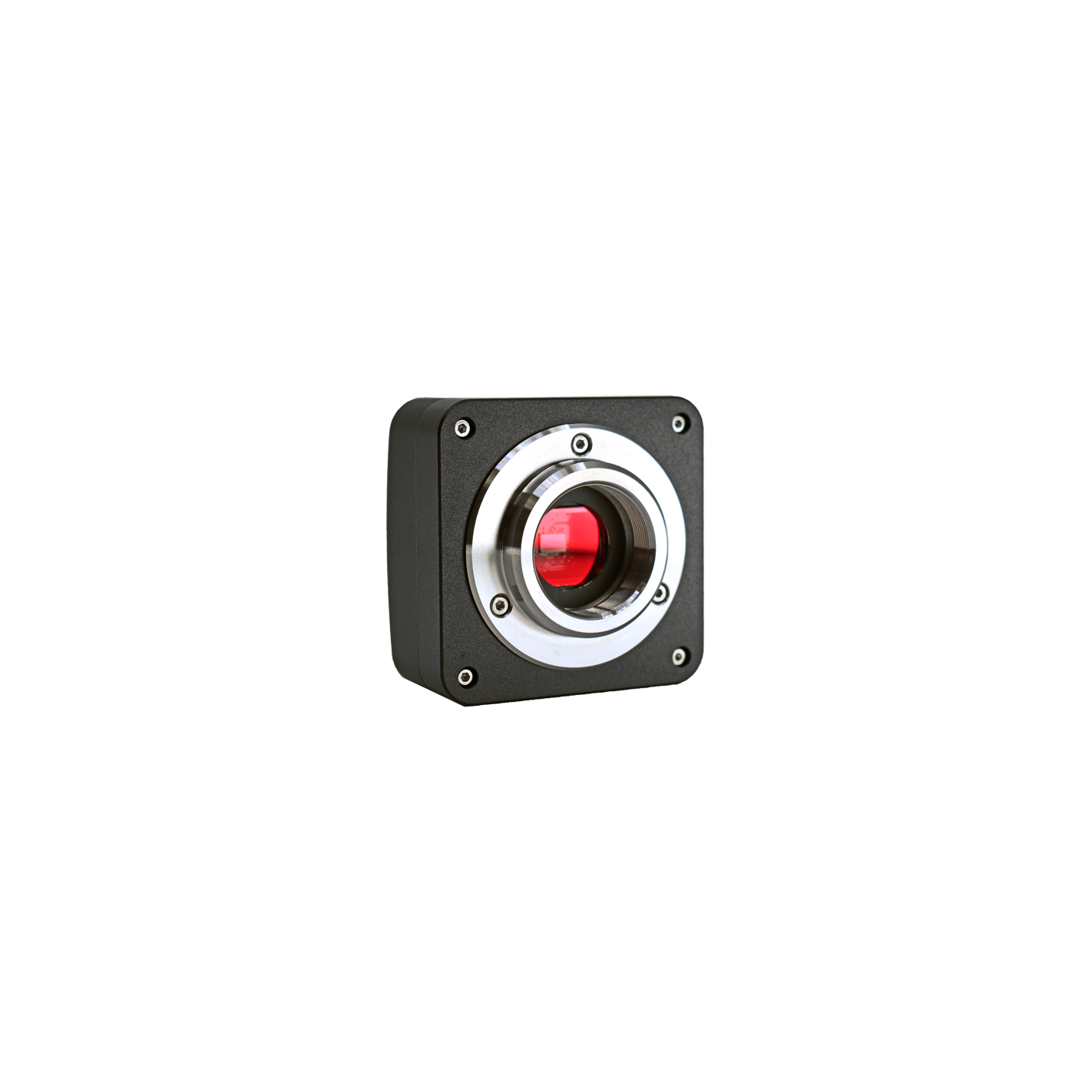

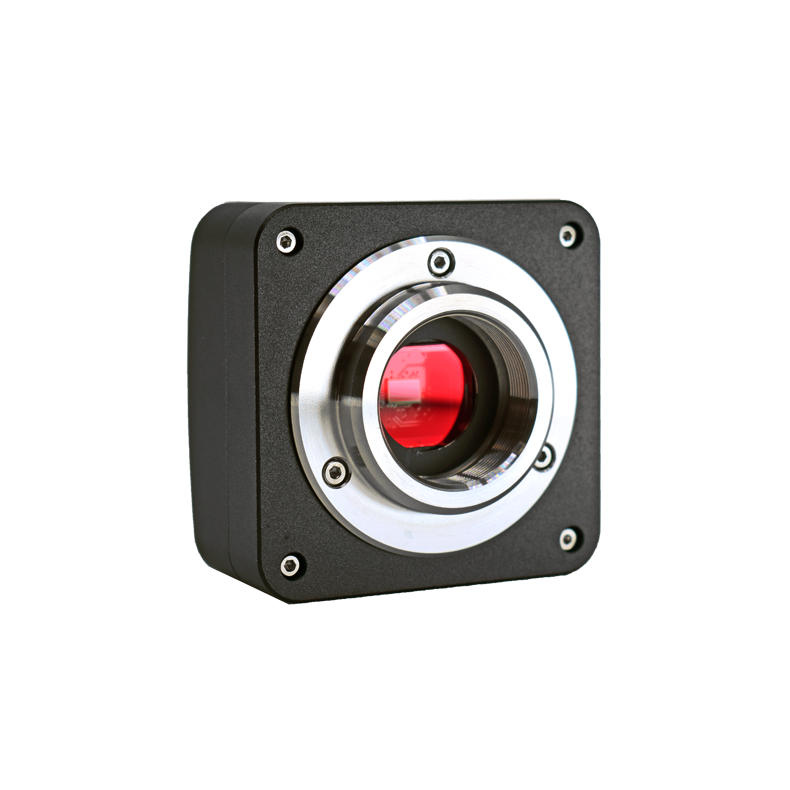

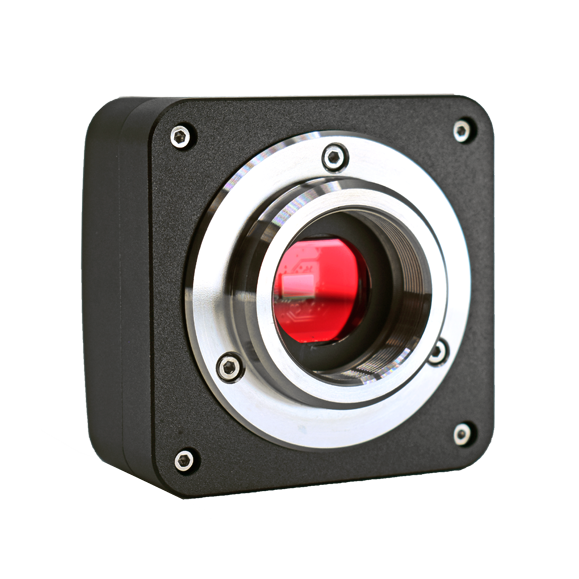

The WCAM body, made of a rugged zinc alloy, ensures a high-strength and durable solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. It has no moving parts. These measures ensure a rugged and robust solution with a longer lifetime compared to other camera solutions.

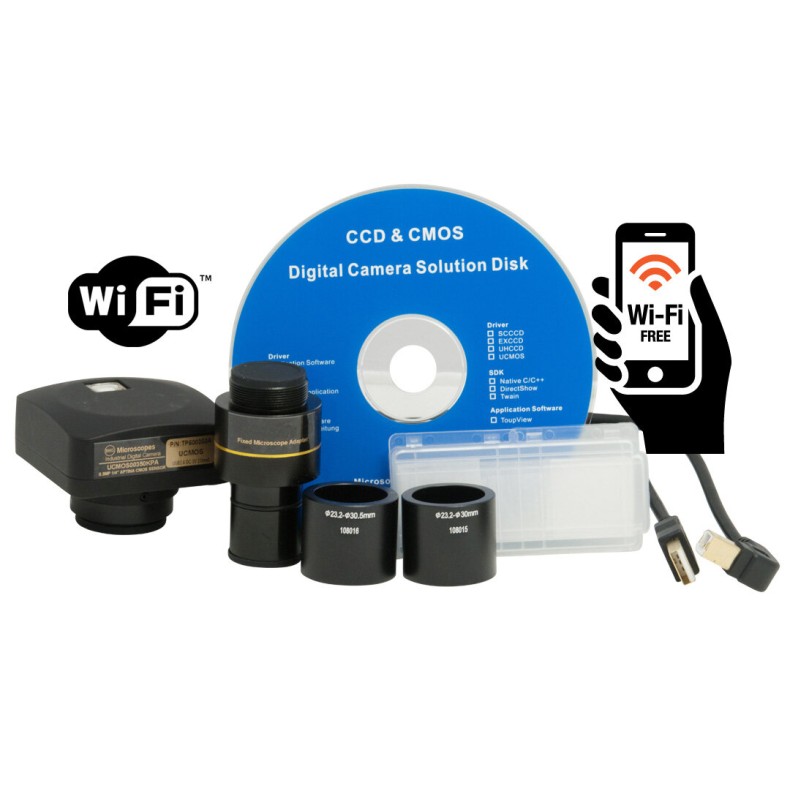

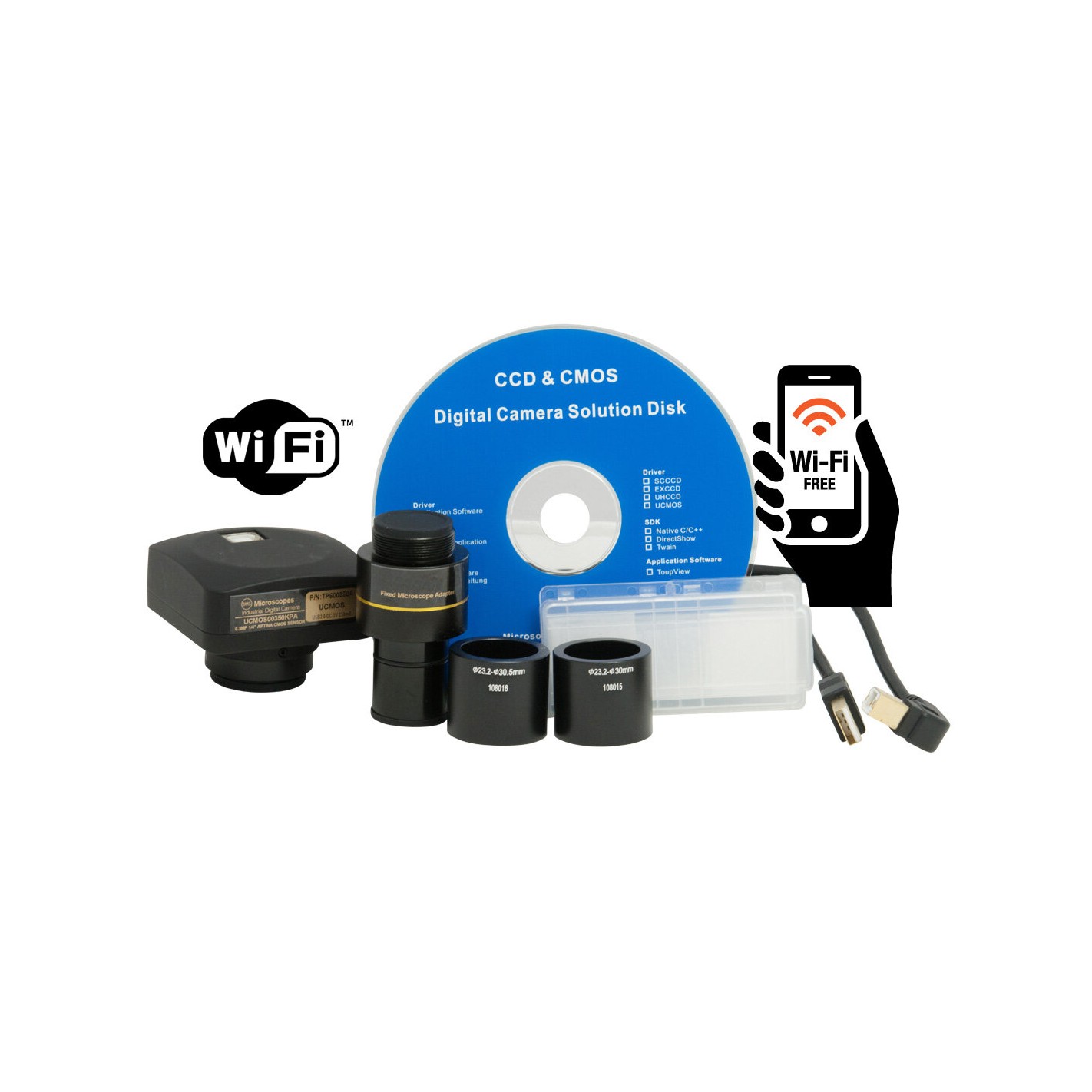

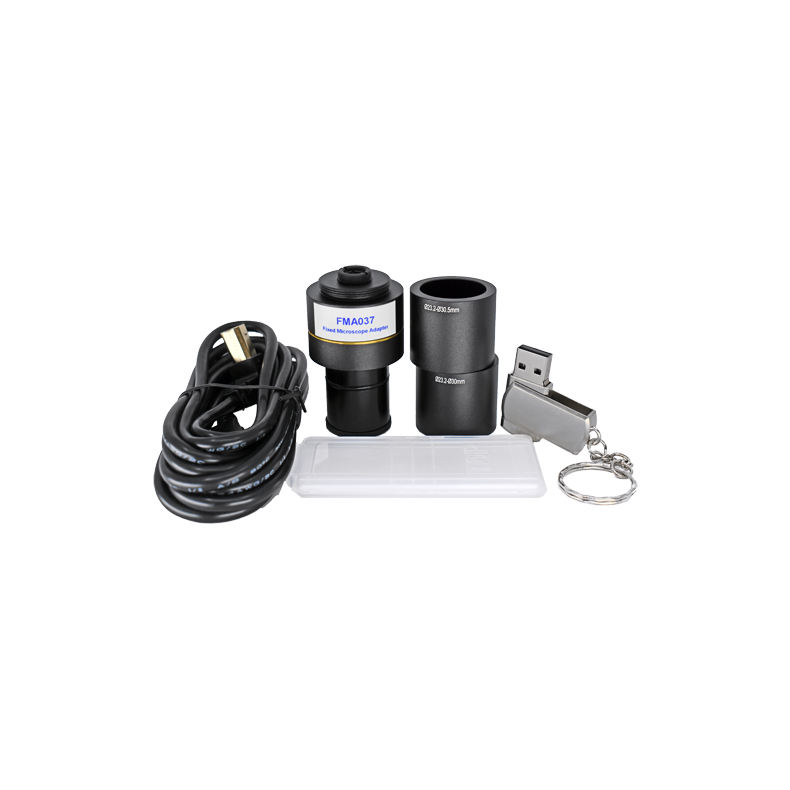

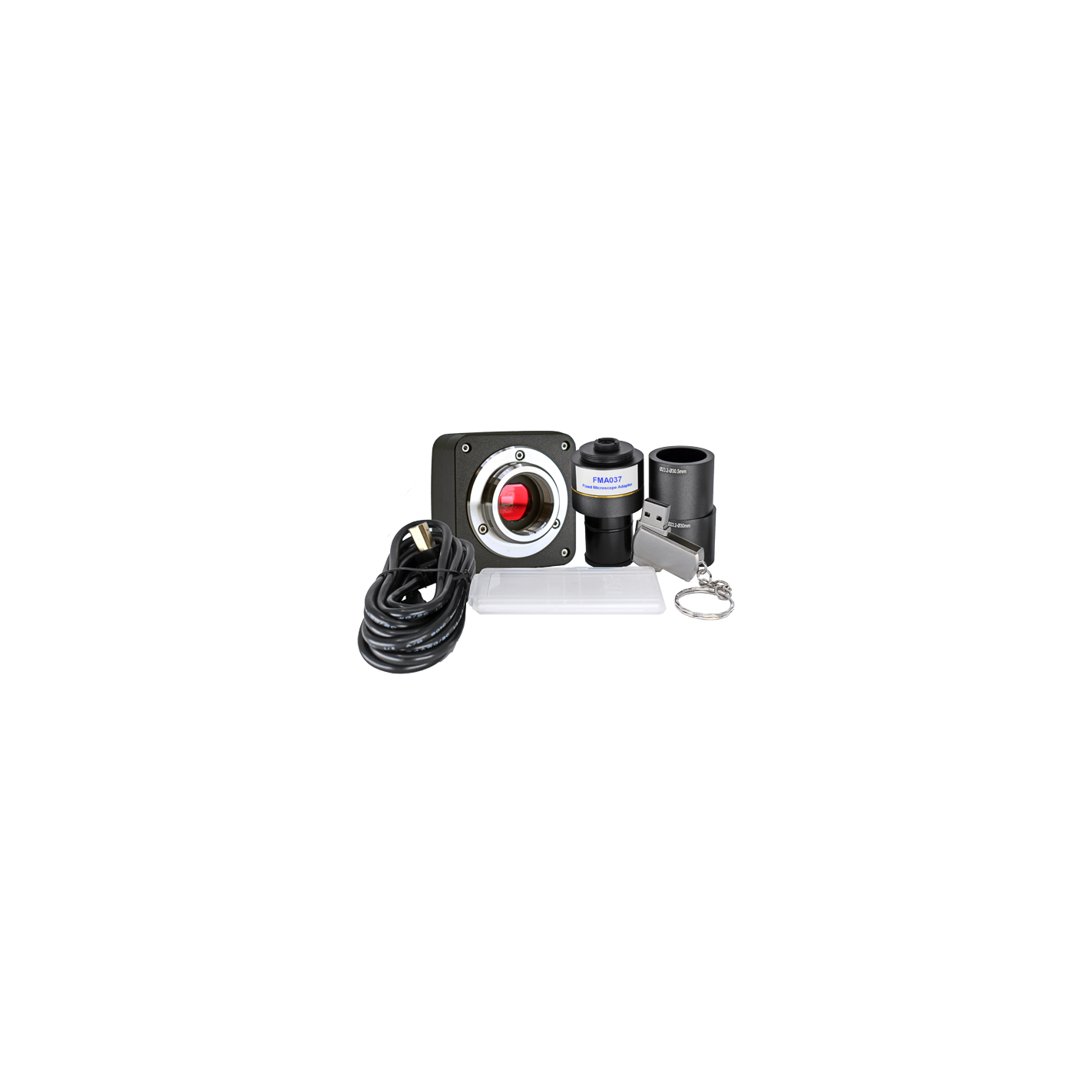

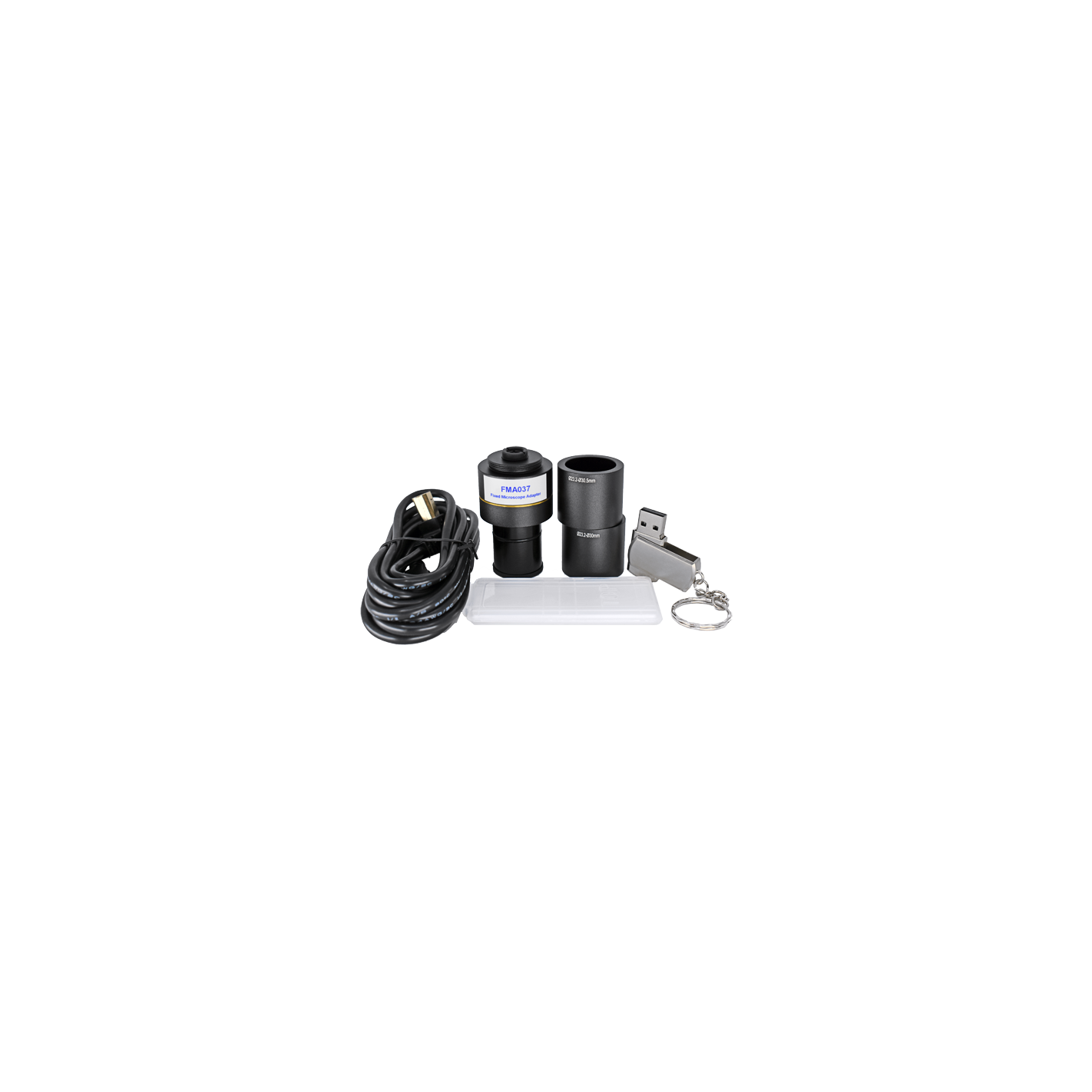

This uniquely designed 720p Wi-Fi digital microscopy camera is supplied with a reduction lens, USB cable and two adapters. The digital camera captures microscopy still images, streams live video to your computers and is compatible with Windows, Mac OS X and Linux. The user-friendly Windows software offers advanced functions such as Stitching, EDF (extended depth of focus), video recording and measurement functions. Live video and still image capture can be set simultaneously in different resolutions. The 0.5X reduction lens offers a larger field of view. Images can be edited and processed similar to PhotoShop.

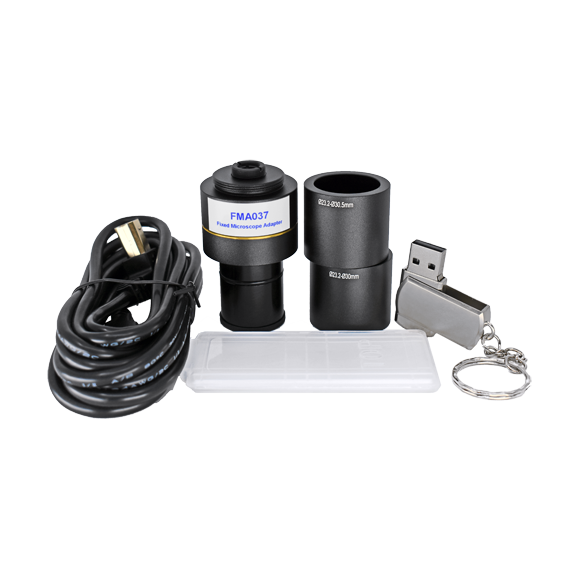

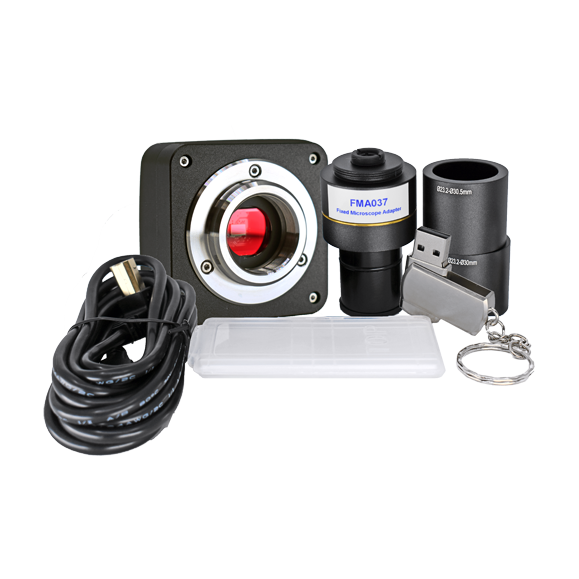

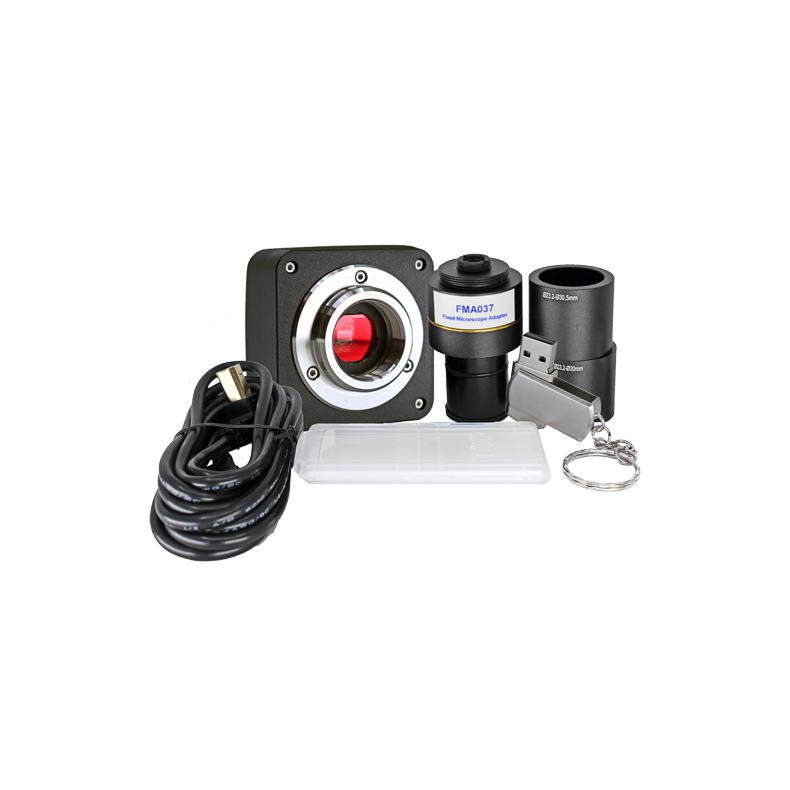

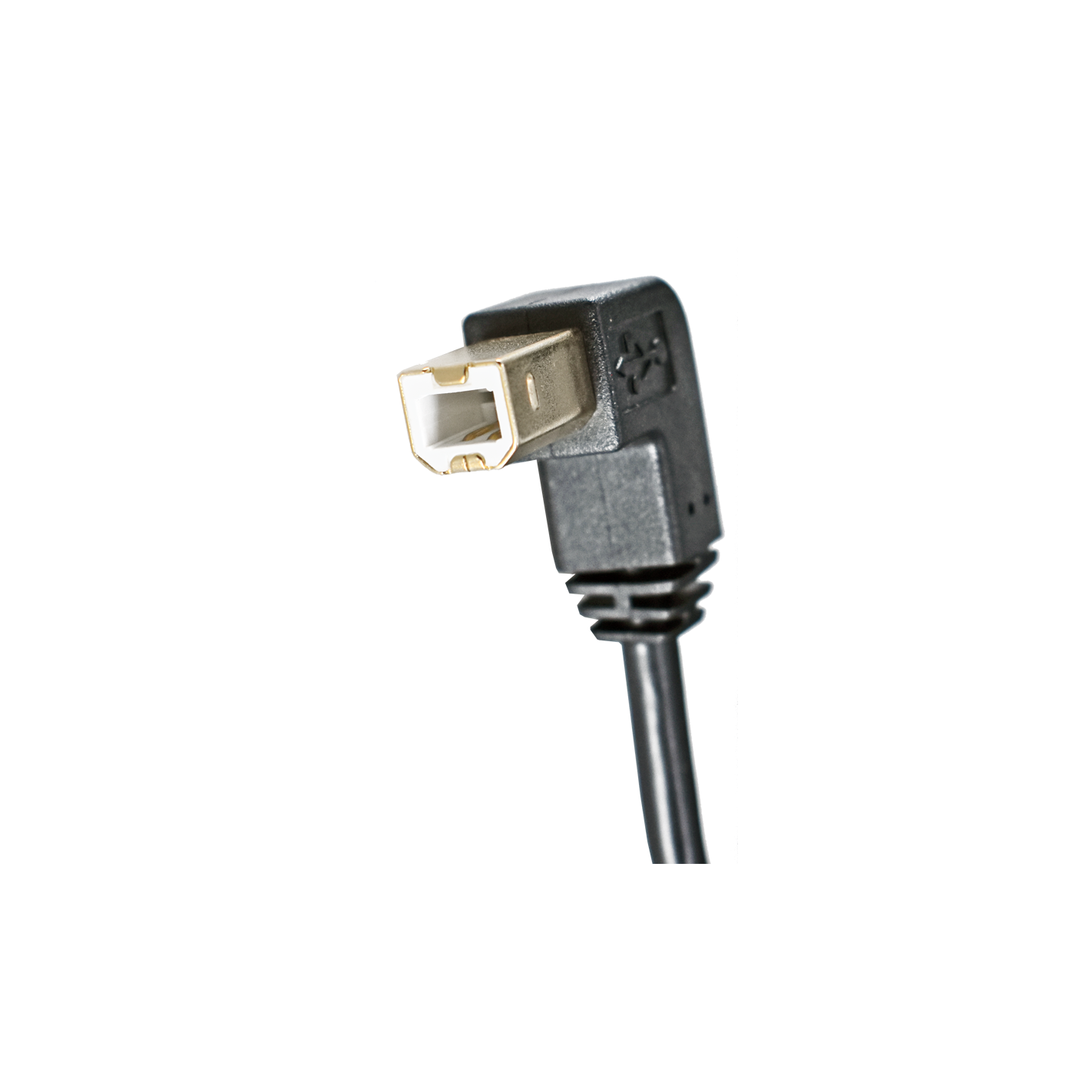

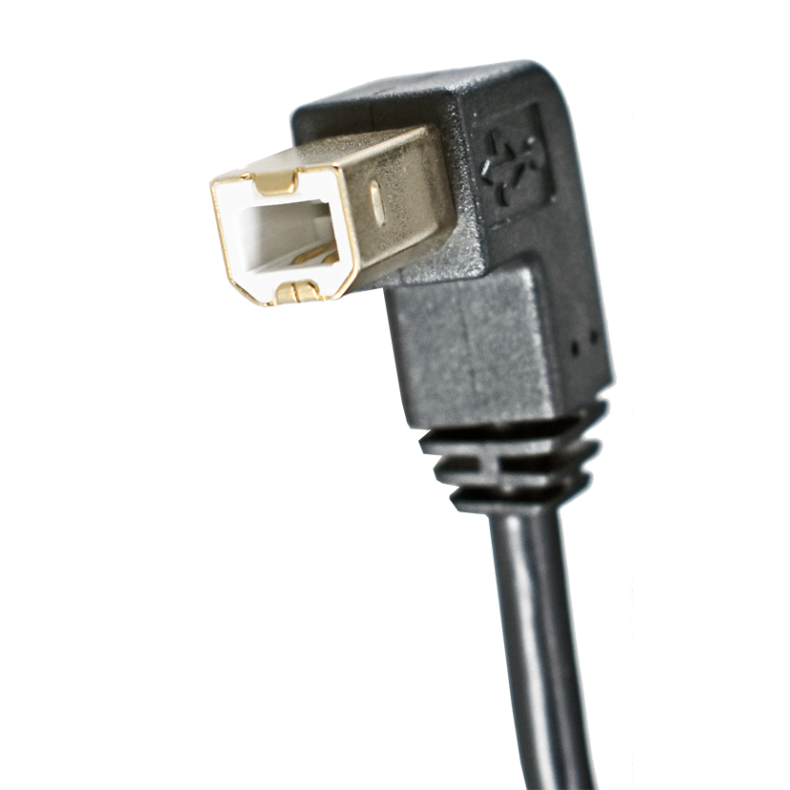

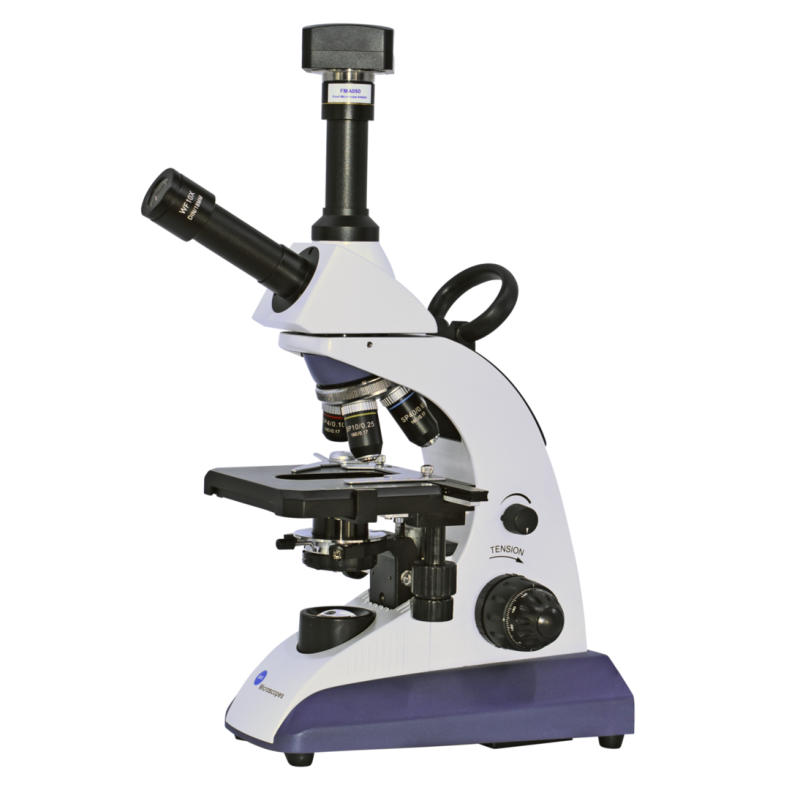

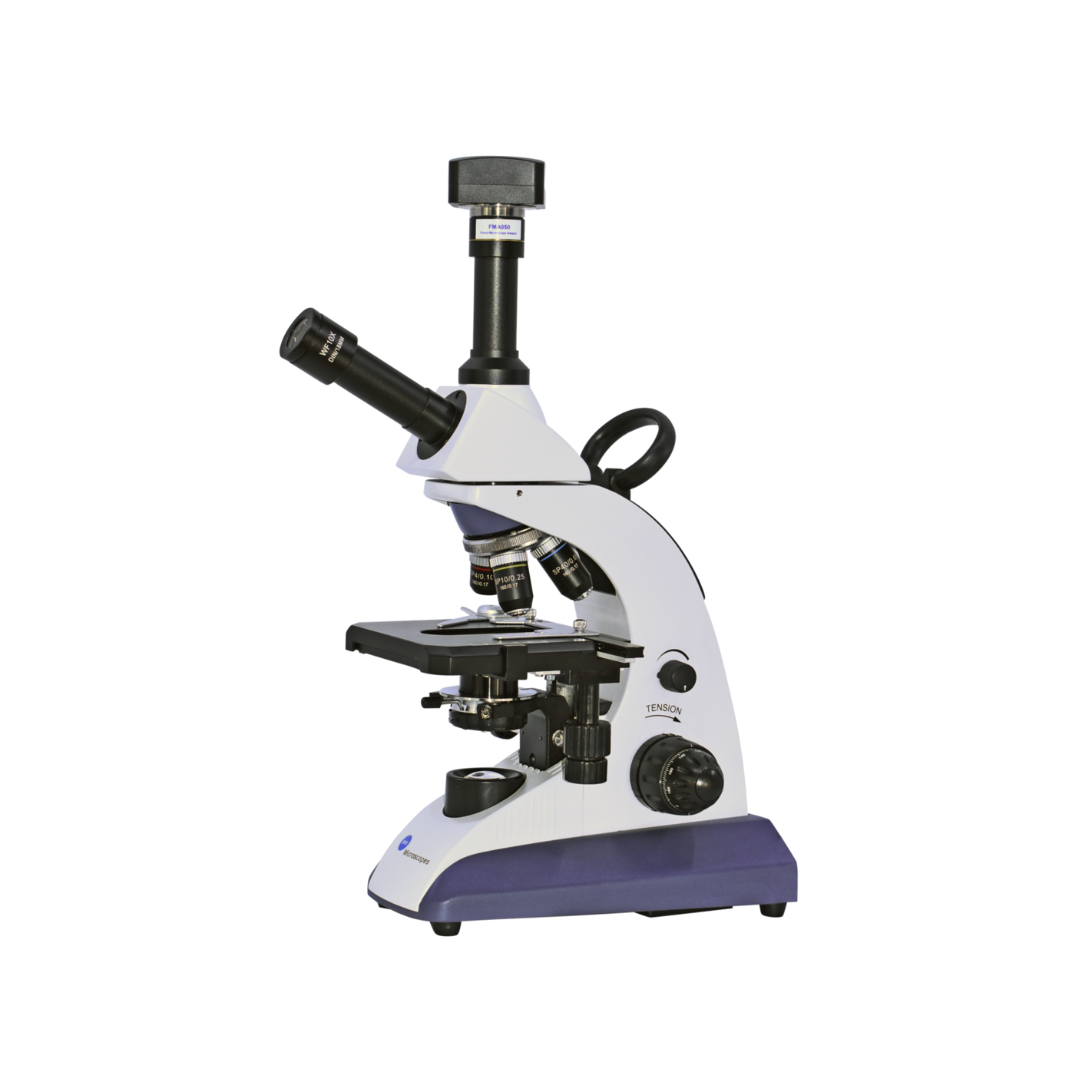

The camera can be connected to a desktop computer or compatible mobile device via WiFi. The USB port is used for power only, from a USB-bus connection, or by using the included USB power adapter. Thanks to its built-in C-mount compatibility and 23 mm reducer lens adapter, our camera can be attached to any instrument with a 23 mm, 30 mm and 30.5 mm C-mount or photo port. The camera is equipped with a color CMOS sensor and is supplied with a Hi-Speed USB 2.0 cable, four mounting sizes (23mm, 30mm, 30.5mm and C-mount) and instructions.

Camera specifications:

• Sensor: Aptina MT9P001(C) CMOS (color)
• Sensor size: 1/2.5" (5.63 x 3.17 mm)
• Reduction lens: 0.5x
• Pixel size: 2.2 x 2.2 µm
• G sensitivity: 1.0 V/lux-sec (550 nm)
• Max frame rate: 30 fps @ 1280x720
• Exposure: Auto
• Scan Mode: Progressive
• Dynamic Range: 61 dB
• A/D converter: 12 bits parallel, 8 bits R.G.B to computer
• SN Ratio: 43 dB
• Spectral range: 380-650 nm (with IR filter)
• Binning: 1x1
• White balance: ROI white balance/manual Temp-Tint adjustment
• Color reproduction technique: Ultra-fine color engine
• Capture/control API: Native C/C?, C# for Windows OS
• Recording system: Still image and video
• Cooling system: Natural
• Operating Temperature: -10 °C ~ 50 °C
• Storage temperature: -20 °C ~ 60 °C
• Operating Humidity: 30 ~ 80% RH
• Storage Humidity: 10 ~ 60% RH
• Power supply: DC 5 V via USB port
• Operating system: Support Windows 8/10 &11 (32 & 64 bit), OSx (Mac OS X) & Linux
• Computer requirements: CPU equal to Intel Core2 2.8GHz or above, Memory: 2GB or more, USB2.0 port
• Advanced software for Windows:

- offers stitching, EDF, video recording and measurement functions

- performs measurements of lengths, angles, arcs, areas, etc.

- saves still images in BMP, TIFF, JPG, PICT, PTL or other formats

- edits and processes microscopy images similar to PhotoShop

- live video and still image capture can be set up simultaneously in different resolutions

More functions: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, grain size, diffusion; transform images using edge detection, digital image warping; perform measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; add notes, measurements, text, arrows, labels, etc., using customizable text with different sizes and colors; perform measurements in microns, millimeters, centimeters, inches, feet, etc., at any magnification and with the desired tolerances. with customizable text of different sizes and colors; perform measurements in microns, millimeters, centimeters, inches, feet, etc., at any magnification and with the desired tolerances.

The body of the Wifi, made of a resistant zinc alloy, guarantees a robust and resistant solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts are included. This design ensures a robust and rugged solution with a longer lifetime compared to other industrial camera solutions.
