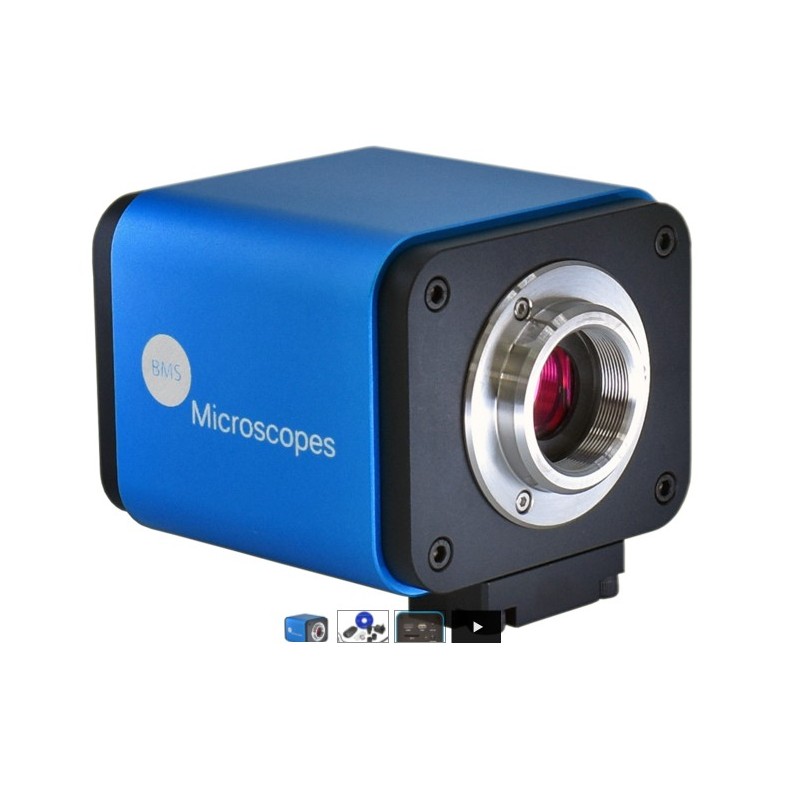

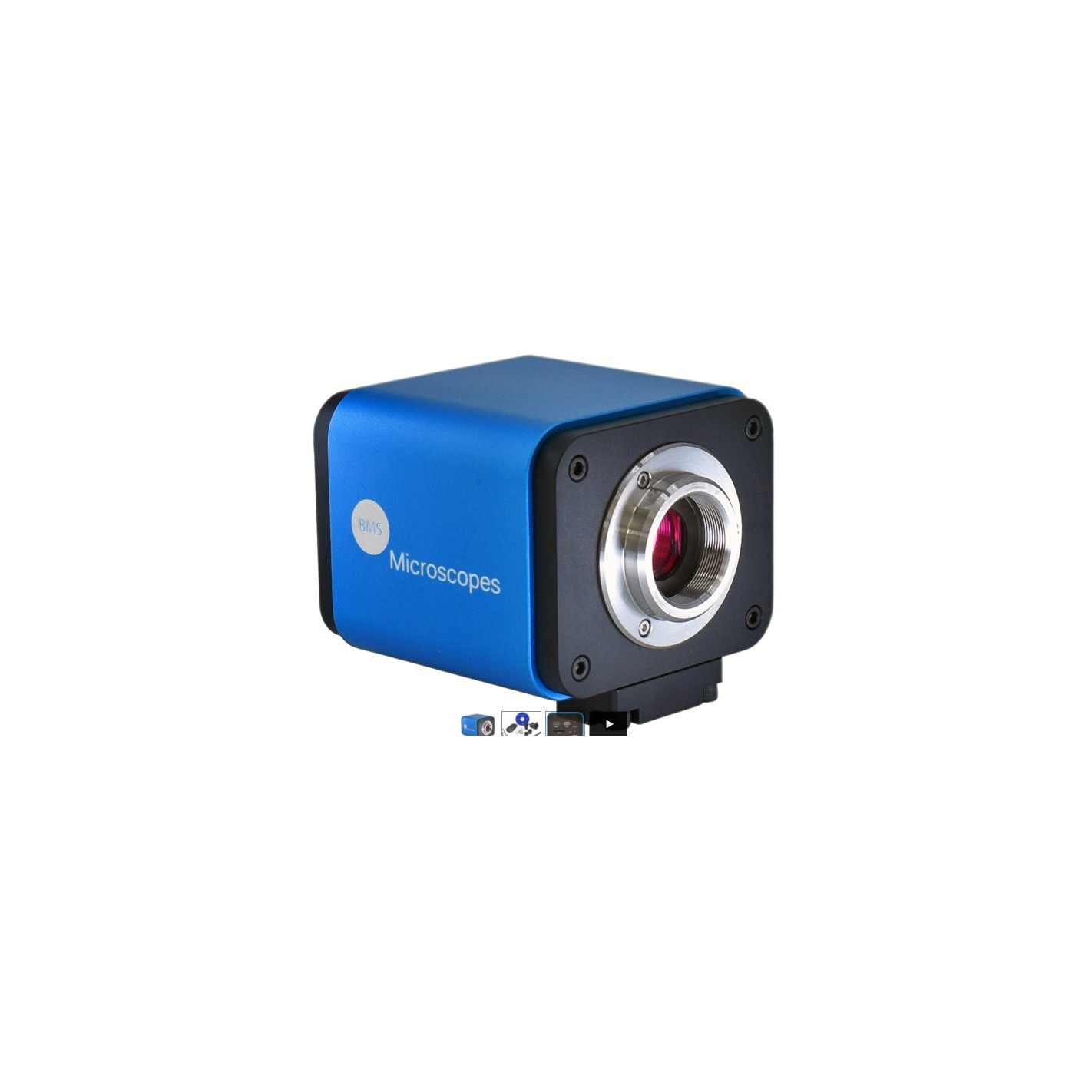

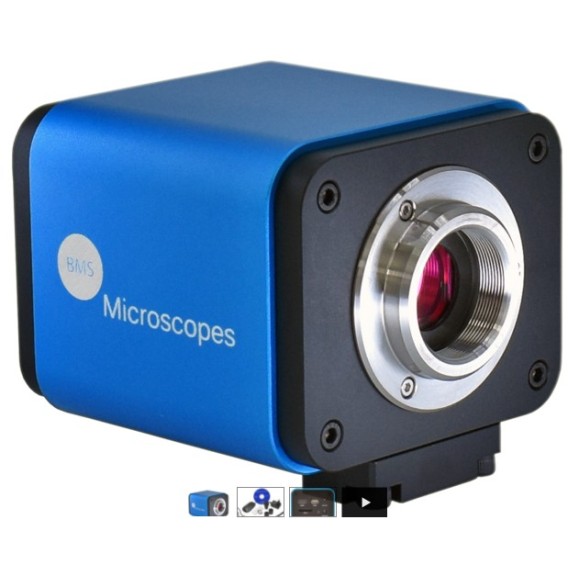

Camera BMS AUTOFOCUS WIFI and HDMI 2.0 MP connection
BMS76601080HAAF
Stock at Supplier
619.83
669.83
-50.00
VAT excluded
Shipping 5/7d
Auto focus camera HDMI and WiFi output. USB mouse operation on the screen ideal for use with stereo microscope.
Delivery Options
| Carrier | Description | Estimated Delivery | ||
|---|---|---|---|---|
 |
Home delivery - International | Home delivery - International |
Tuesday, 31 December - Tuesday, 7 January |
|
Home delivery - International
Home delivery - International
Estimated delivery:
Tuesday, 31 December - Tuesday, 7 January
✖
Camera BMS AUTOFOCUS WIFI and with HDMI 2.0 MP connection
CMOS HDMI AUTOFOCUS CAMERA
- All-in-1 (AF, card) C-mount camera with high sensitivity CMOS sensor;
- Simultaneous HDMI and WiFi output;
- Integrated mouse control with USB mouse;
- Built-in image capture and video recording on SD card;
- Integrated camera control panel for mouse control;
- Built-in toolbar including zoom, mirror, compare, freeze, cross, browser functions;
- Built-in navigation, display and playback of images and videos;
- Ultra-thin color engine with perfect color reproduction capability (USB);
- With advanced image and video processing application BMS_pix3;
- Support UVC standard for Windows / Linux / Mac (USB);
CNC housing molding design
AutoFocus camera is a multi-interface CMOS camera and adopts ultra-high performance CMOS sensor as image selection device. USB2.0 is used for mouse or WiFi antenna connection. For HDMI and WiFi output, a camera control panel and a toolbar are superimposed on the HDMI screen, in this case, the USB mouse can be used to set up the camera, browse and compare the captured image, playback the video. For USB2.0 output, disconnect the mouse and connect the WiFi antenna, then the video transmission can be transferred to the computer with the advanced software BMS_pix3. With BMS_pix3, you can control the camera, process the image like the other camera series of BMS. The AutoFocus camera can be used for microscopes, industrial stereo microscopes and inline inspection.
The following images are recorded with an autofocus camera BMS.
Technical specifications:
| Code | Sensor & Size (mm) | Pixel(mm) | G Sensitivity Dark Current |
FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
|
1080PHAAF |
1080P/Sony IMX236(C) |
2.8x2.8 |
510 mv with 1/30 s |
60@1920x1080 |
1x1 |
0.4 ms~999 ms |

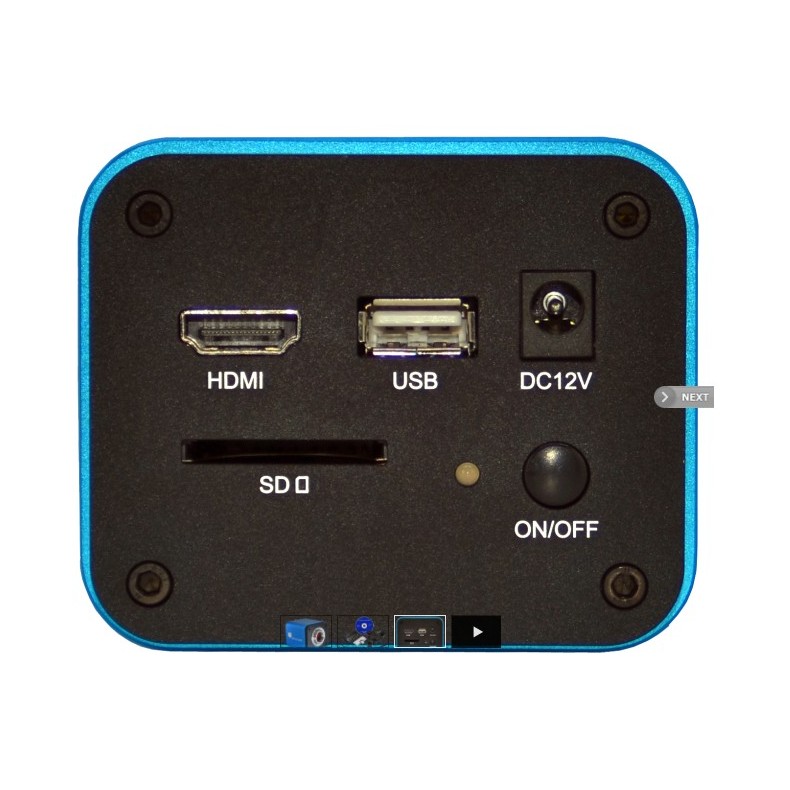

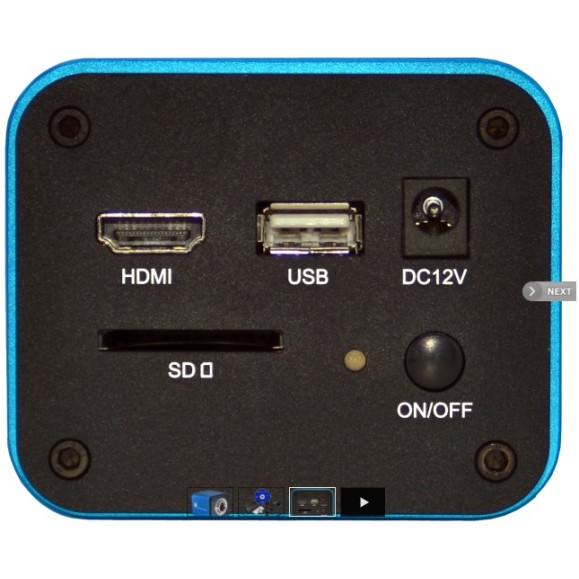

| Interface & Button Functions | |||||
|---|---|---|---|---|---|
|
USB |
USB Mouse of WiFi output |
||||
|
HDMI |
HDMI Output |
||||
|
DC12V |
12V Power in |
||||
|
SD |
SD Card Slot. SD-card format FAT32, Max SD-card size 32 Gb |
||||
|
ON/OFF |
Power On/Off Switch |
||||
| LED | Power On Indicator | ||||
| Other Specification for HDMI Output | |||||
| UI Operation | With USB Mouse | ||||
| Image Capture | High Speed in SD Card | ||||
| Video Record | 1080P 30fps in SD Card | ||||
| Camera Control Panel | AutoFocus, including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control |
||||
| Toolbar | Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function |
||||
| Other Specification for USB Output | |||||
| White Balance | Auto White Balance | ||||
|
Color Technique |
Ultra-Fine Color Engine (USB) |
||||
|
Capture/Control API |
Standard UVC for Windows/Linux/Mac(USB) |
||||
|
Recording System |
Still Picture or Movie (USB) |
||||
| Software Environment (for USB2.0 Connection) | |||||
|
Operating System |
Microsoft® Windows® XP /Vista /7/8/8.1/10(32 & 64 bit) |
||||
|
System Requirements |
CPU: Equal to Intel Core2 2.8 GHz or Higher |
||||
|
Memory: 4 GB or more |
|||||
|
USB Port: USB2.0 High-speed Port |
|||||
|
Monitor: 19" or higher |
|||||
|
CD-ROM |
|||||
| Operating Environment | |||||
|
Operating Temp |
-10~ 50 °C |
||||
|
Storage Temp |
-20~ 60 °C |
||||
|
Operating Humidity |
30~80% RH |
||||
|
Storage Humidity |
10~60% RH |
||||
|
Power Supply |
DC 12 V/1 A Adaptor |
||||
| Dimensions | |||||
|
Dimensions |
78 mm (3.07") x 70 mm (2.76") x 92mm (3.62") |
||||
| Weight |
0.47 kg (1.0lbs) |
||||
