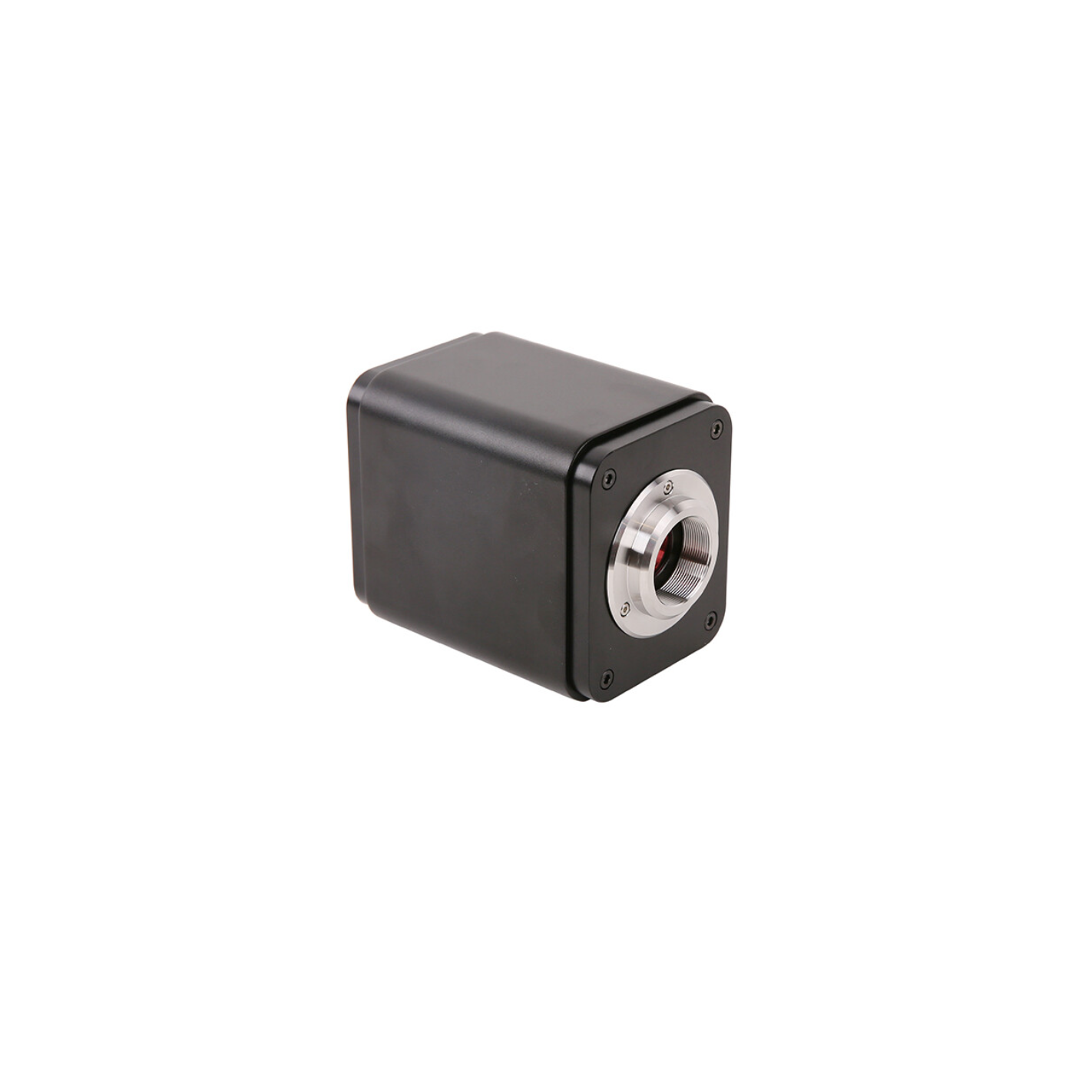

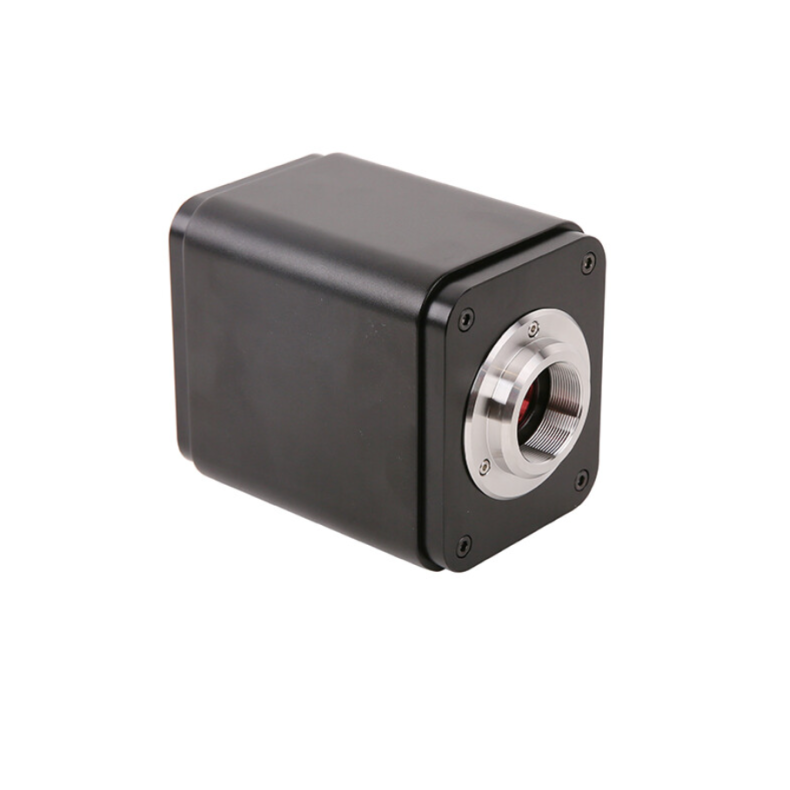

TOUPTEK ToupCam XCAM4K 16MPA camera, color, CMOS, 1/1.06, 2.4 µm, 30/30fps, 16 MP, HDMI/LAN/ WLAN optional

TOUPTEK ToupCam XCAM4K 16MPA, color, CMOS, 1/1.06, 2.4 µm, 30/30fps, 16 MP, HDMI/LAN/ WLAN optional

XCAM4K cameras

The XCAM4K series cameras are the new generation of live image capture systems with 4K resolution (video) from 30 to 60 FPS (depending on model). They incorporate a Sony Exmor CMOS sensor with high sensitivity, low dark current and no speckle due to the adoption of R, G and B primary color mosaic filters. The cameras are suitable for scientific research, as well as for teaching (online classes, demonstrations, academic exchanges) and medical examinations or industrial purposes.

A standard C-mount interface ensures maximum compatibility with various microscopy systems. The cameras can be used as a stand-alone system without a PC in conjunction with an HDMI monitor or TV, or transmitted live to a PC via Gigabit Ethernet (LAN) for image and video recording.

All cameras in the series include the advanced ToupView/ToupLite video and image processing application. It is compatible with Windows/Linux/macOS/Android (native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc).

Scope of delivery:

camera, power adapter, USB mouse, HDMI 2.0 cable, USB 3.0 cable, CD (driver and software)

Technical specifications:

Capacity

• Megapixel: 16 MP

Camera

• Pixel size: 2.4
• Photo resolution: 3840x2160
• Video resolution: 3840x2160
• adapter required: 1x c-mount
• Frame rate per second (fps): 30
• Image transmission: HDMI
• Chip size (″): 1/1.06
• Expandable memory: yes
• Color camera: yes
• Shutter: Rolling Shutter
• Megapixel: 16
• cooling: no

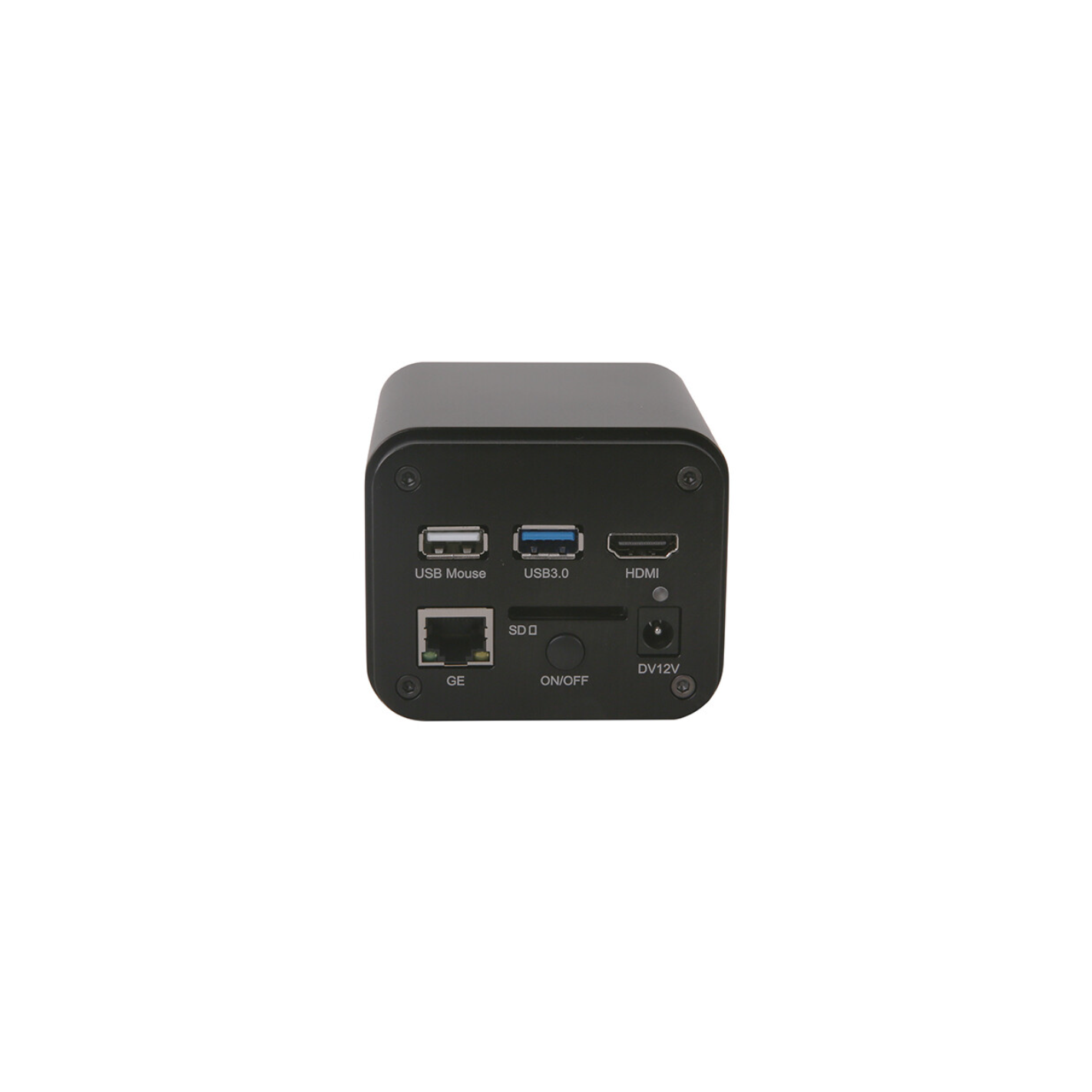

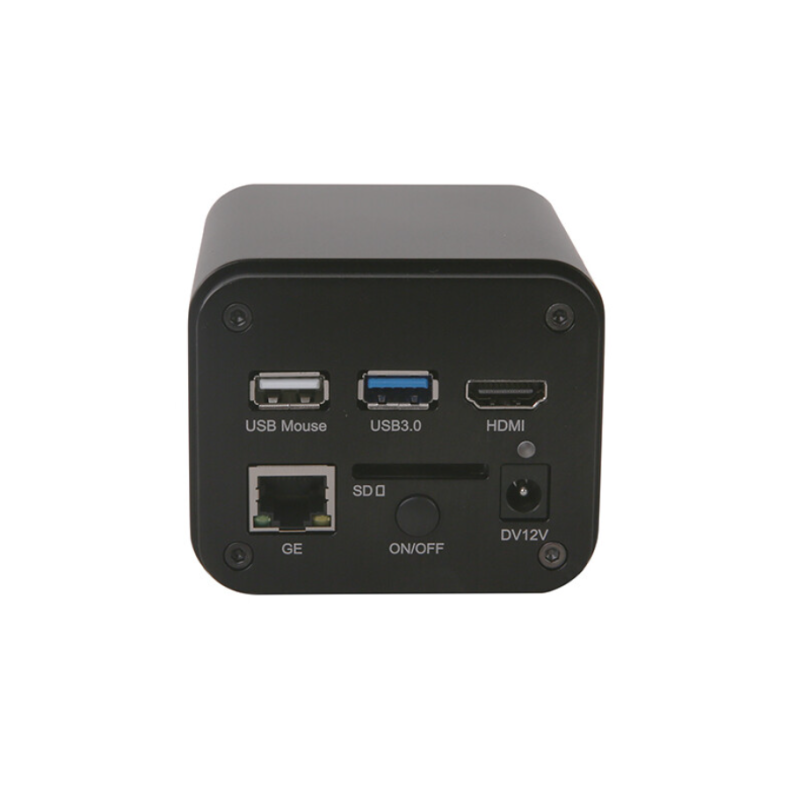

• Interface: HDMI, USB 3.0, LAN, SD-Karte
• sensor: CMOS (Sony Exmor)
• Software: ToupView/ToupLite
• Supported service system: Windows, Linux, macOS, iOS, Android
• Video function: yes
• sensitivity (mV/s): 461

Overall

• Width (mm): 98.3
• Height (mm): 78
• Length (mm): 65
• Weight (g): 470
• Series: XCAM4K

Field of application

• Medical: yes
• Hobby: yes
• Industry: yes
• Education: yes
