TOUPTEK ToupCam X7CAM4K 8MPB camera, color, CMOS, 1/1.2, 2.9 µm, 75 fps, 8 MP, HDMI/LAN/USB

TOUPTEK ToupCam X7CAM4K 8MPB camera, color, CMOS, 1/1.2, 2.9 µm, 75 fps, 8 MP, HDMI/LAN/USB

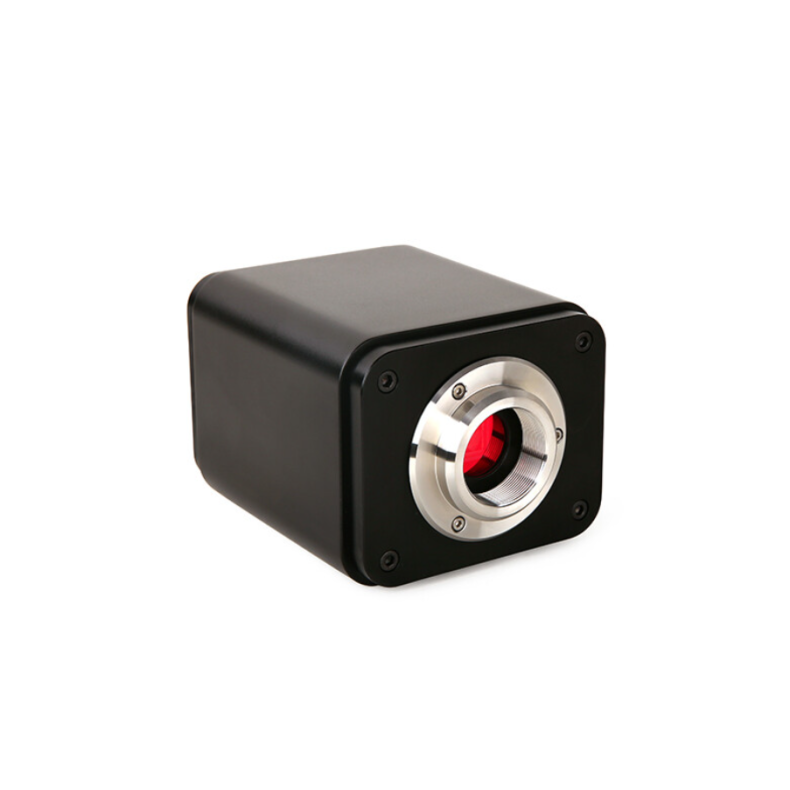

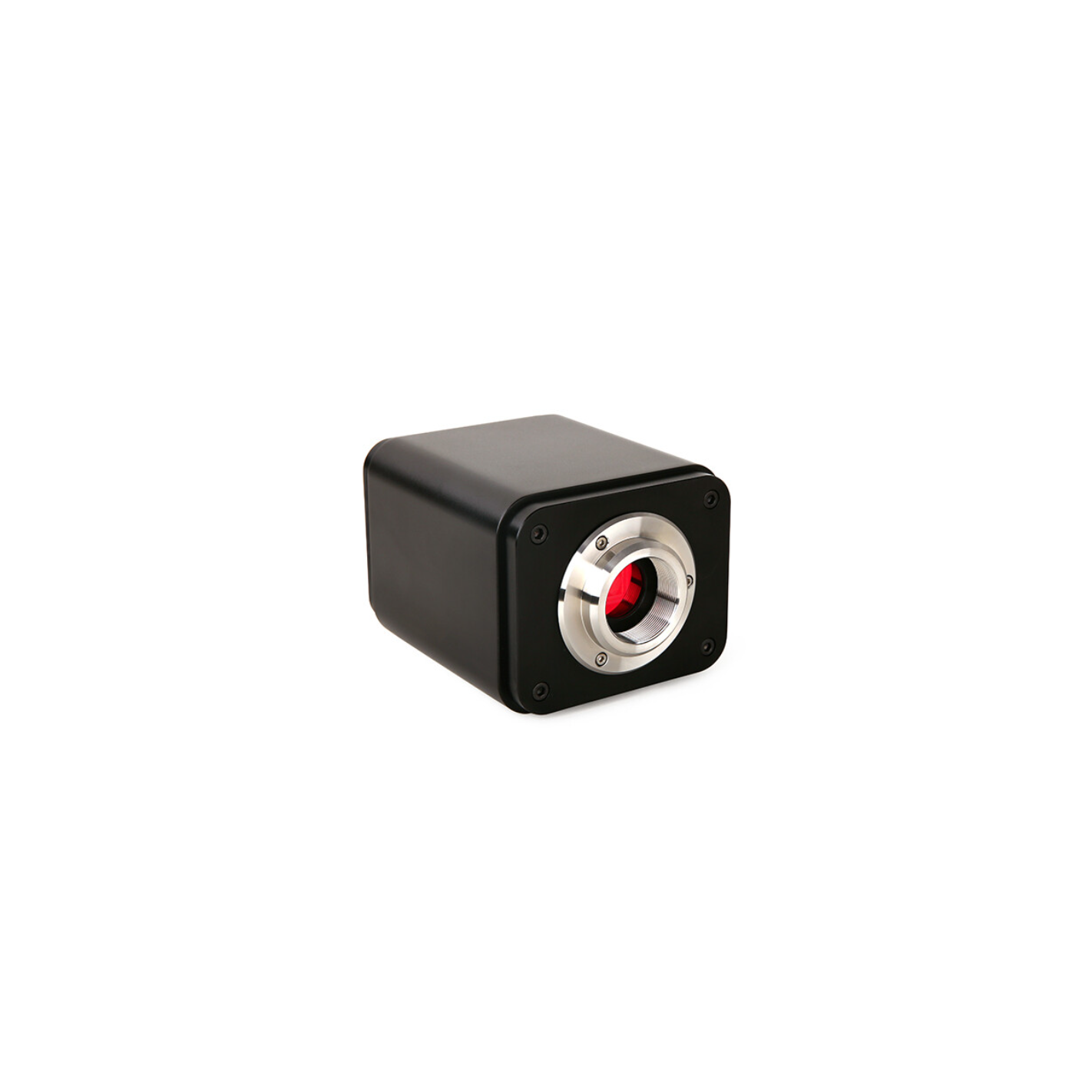

X7CAM4K Cameras

The X7CAM4K series cameras are state-of-the-art live image systems with 4K (video) resolution up to 75 FPS (depending on model). They incorporate a Sony CMOS sensor with high sensitivity, low dark current and no speckle due to the adoption of R, G and B primary color mosaic filters. The cameras are suitable for scientific research, as well as for teaching (online classes, demonstrations, academic exchanges) and medical examinations or industrial purposes.

A standardC-mount interface ensures maximum compatibility with various microscopy systems. The cameras can be used as a stand-alone system without a PC in conjunction with an HDMI monitor or TV, or transmitted live to a PC via Gigabit Ethernet (LAN) for image and video recording.

All cameras in the series include the advanced ToupView/ToupLite video and image processing application. It is compatible with Windows/Linux/macOS/Android (native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc).

Scope of delivery:

camera, power adapter (EU and US standard), USB mouse, HDMI cable, USB 3.0 cable, CD (driver and software)

Technical specifications:

Capacity

• Megapixel: 8 MP

Camera

• Pixel size: 2.9
• Photo resolution: 3840x2160
• Video resolution: 3840x2160
• adapter required: 0.83x, 0.85x, 1x c-mount
• Frame rate per second (fps): 75
• Image transmission: HDMI
• Chip size (″): 1/1.2
• Expandable memory: yes
• Color camera: yes
• Shutter: Rolling Shutter
• Megapixel: 8
• cooling: no

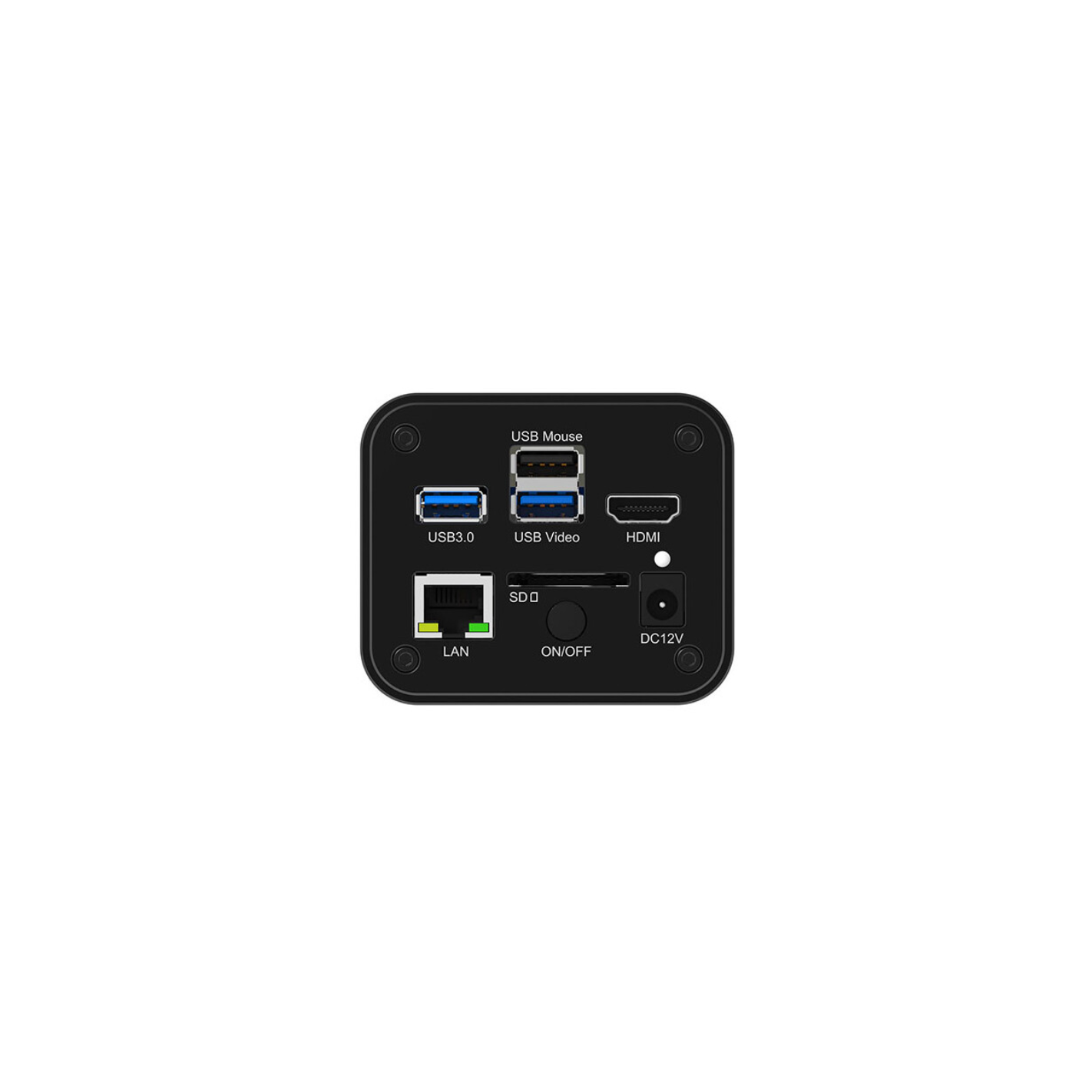

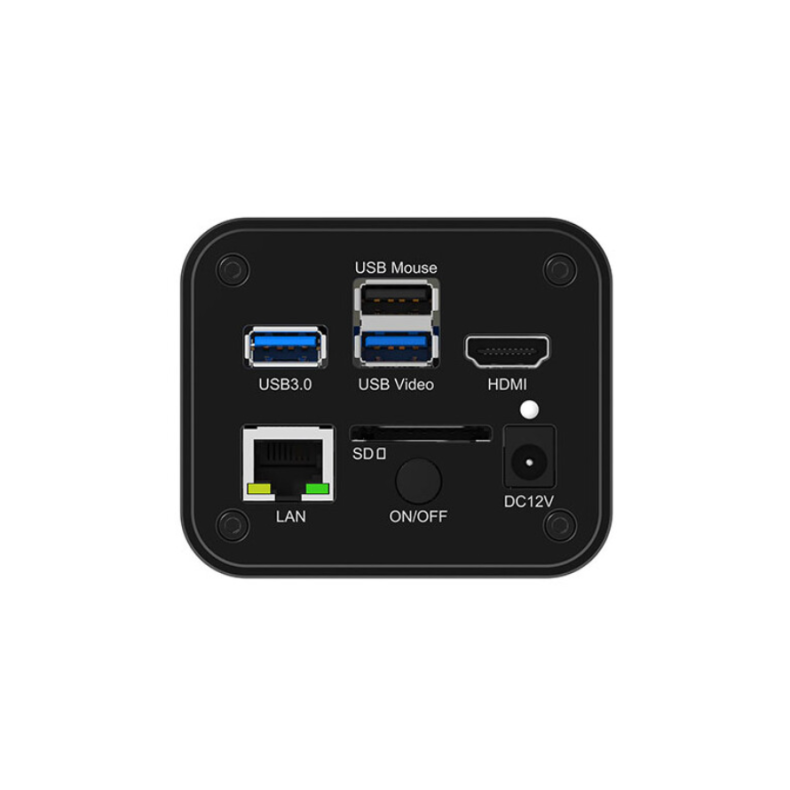

• Interface: HDMI, USB 3.0, LAN, SD-Karte
• sensor: CMOS (Sony Exmor)
• Software: ToupView/ToupLite
• Supported service system: Windows, Linux, macOS, iOS, Android
• Video function: yes
• sensitivity (mV/s): 1028

Overall

• Width (mm): 98.3
• Height (mm): 78
• Length (mm): 65
• Weight (g): 470
• Series: X7CAM4K

Field of application

• Medical: yes
• Hobby: yes
• Industry: yes
• Education: yes
