TOUPTEK ToupCam WECAM 5MPA camera, color, CMOS, 1/1.8", 2.4μm, 30fps, 5 MP, WLAN/LAN

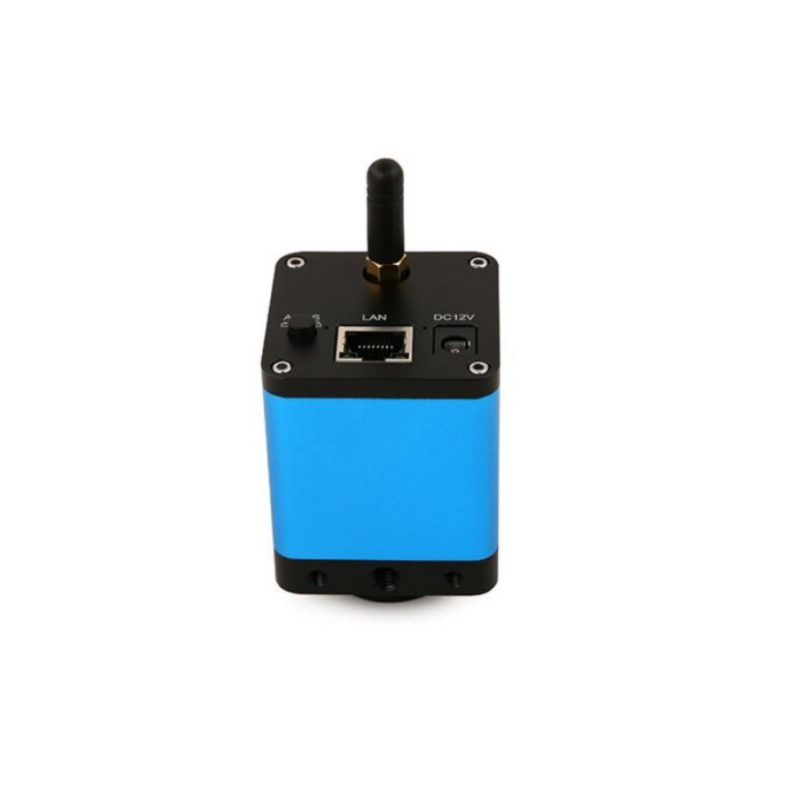

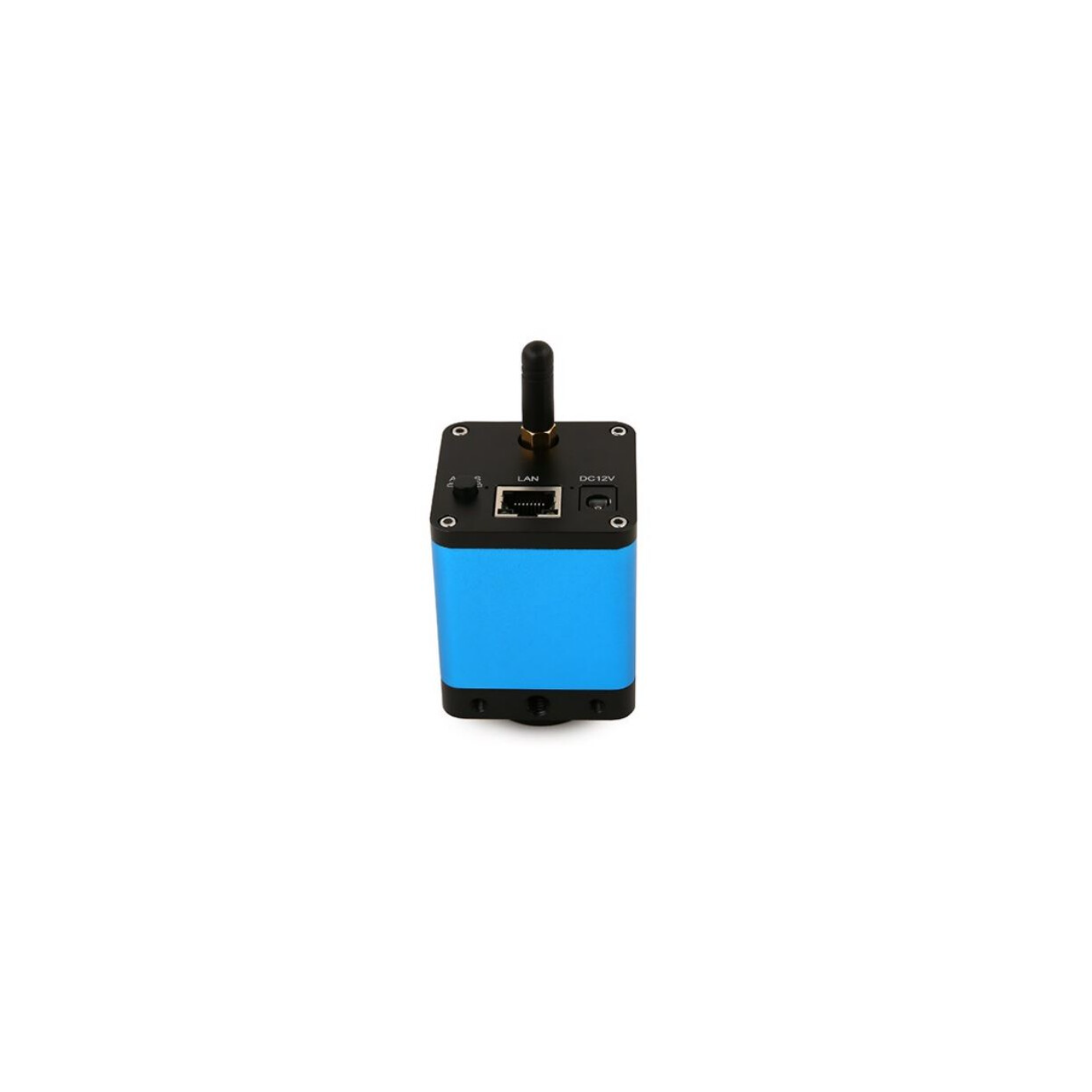

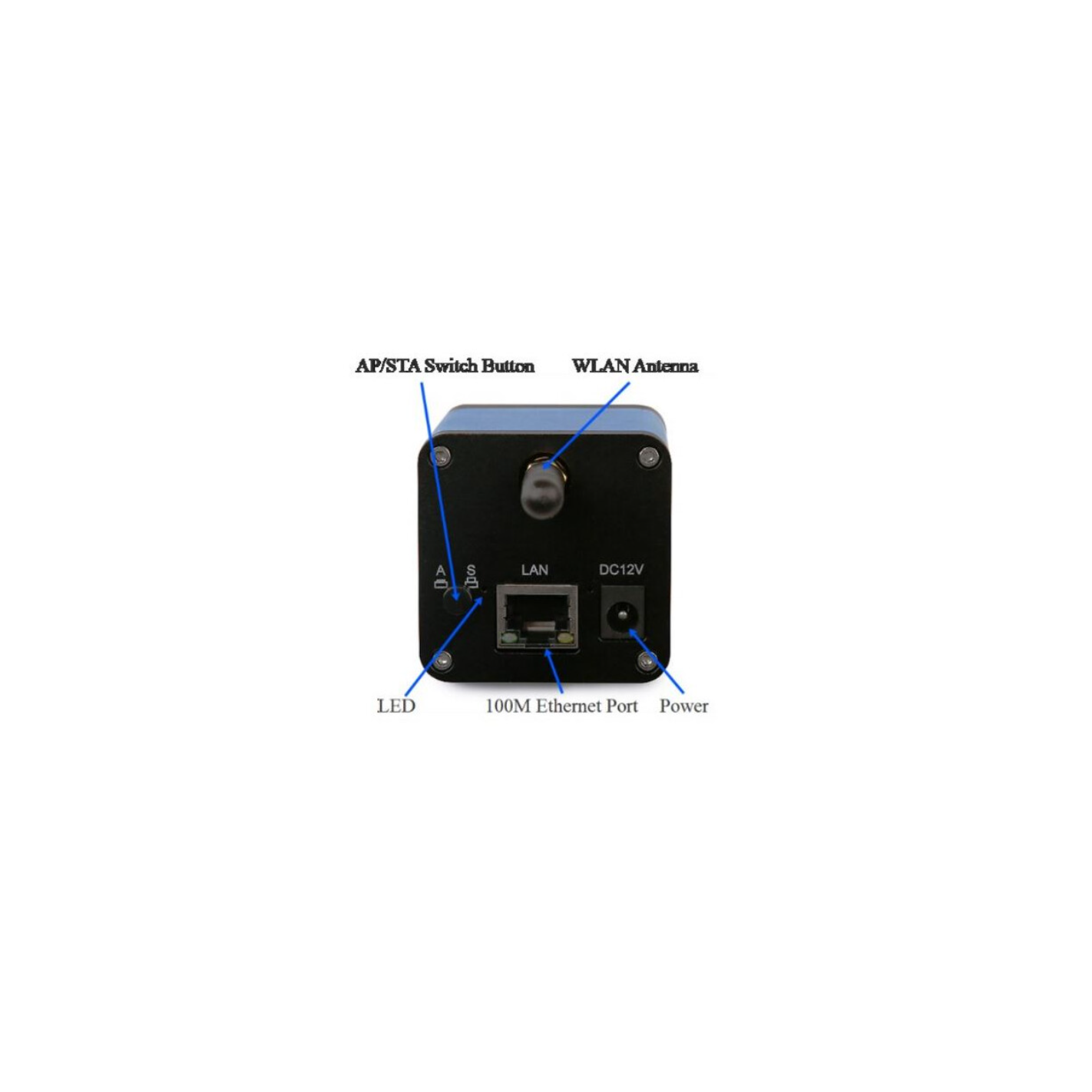

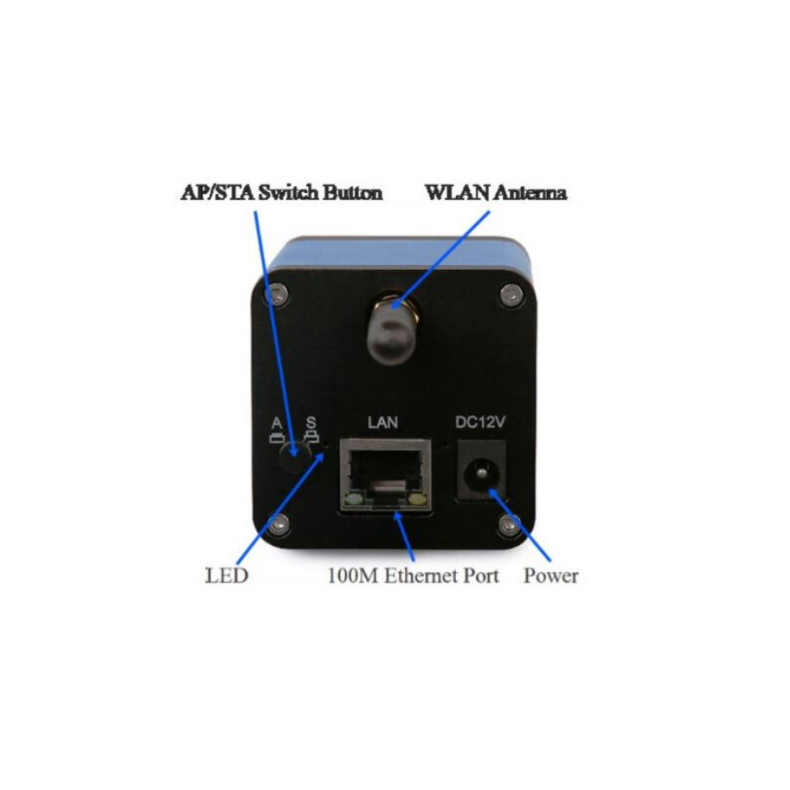

The WECAM series cameras have a Sony Exmor CMOS sensor. They are equipped with a Wifi (WLAN) video output and a LAN (Ethernet) video output.

Via the Wifi video output, the cameras can be connected to mobile devices such as smartphones, tablets and computers. The ToupView app can be used on iOS, Android and Windows. It allows viewing and saving videos on iOS and Android, as well as small image acquisition options. In addition, two modes can be selected: Access Point (AP) and Station Mode (STA). This allows the cameras to join an existing Wifi network (STA) as well as act as an access point (AP).

The cameras can be connected to a router or computer via the LAN video output. In this way, they can be controlled with ToupView via the computer. They are also compatible with C/C++, C#VB.Net, Python, Java, DirectShow, Twain, etc.

Videos can be recorded over both Wifi and LAN, but not simultaneously.

A standard C-mount interface ensures maximum compatibility with various microscope systems.

Technical specifications:

Capability

• Megapixels: 5MP

Camera

• Pixel size: 2.4
• Photo resolution: 2592x1944
• Video resolution: 2592x1944
• adapter required: 0.5x, 0.55x, 0.6x, 0.65x c-mount
• Frame rate per second (fps): 30
• Image transmission: WiFi
• Chip size (″): 1/1.8
• Expandable memory: no
• Color camera: yes
• Shutter: Rolling Shutter
• Megapixel: 5
• cooling: no
• Interface: Wifi, LAN
• sensor: CMOS (Sony Exmor)
• Software: ToupView/ToupLite; iOS/Android App
• Supported service system: Microsoft Windows XP/Vista/7/8/10 (32 & 64 bit), Linux, OSx (Mac), iOS, Android
• Video function: yes
• sensitivity (mV/s): 425

Overall

• Width (mm): 59
• Height (mm): 50
• Length (mm): 50
• Series: WECAM

Field of application

• Medical: yes
• Hobby: yes
• Industry: yes
• Education: yes

Applications

• High school: yes
• University: yes
• High school: yes
• Technical training: yes
