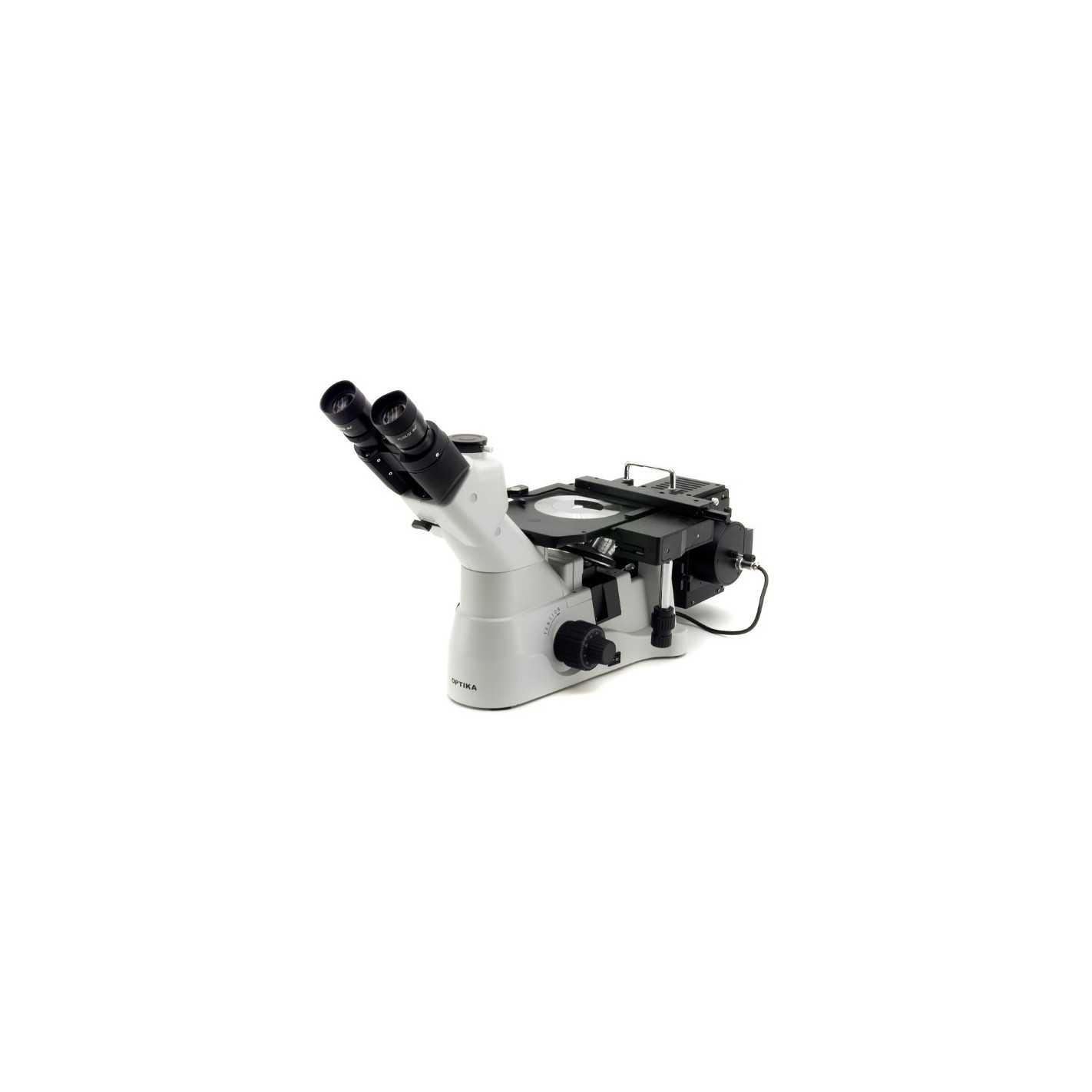

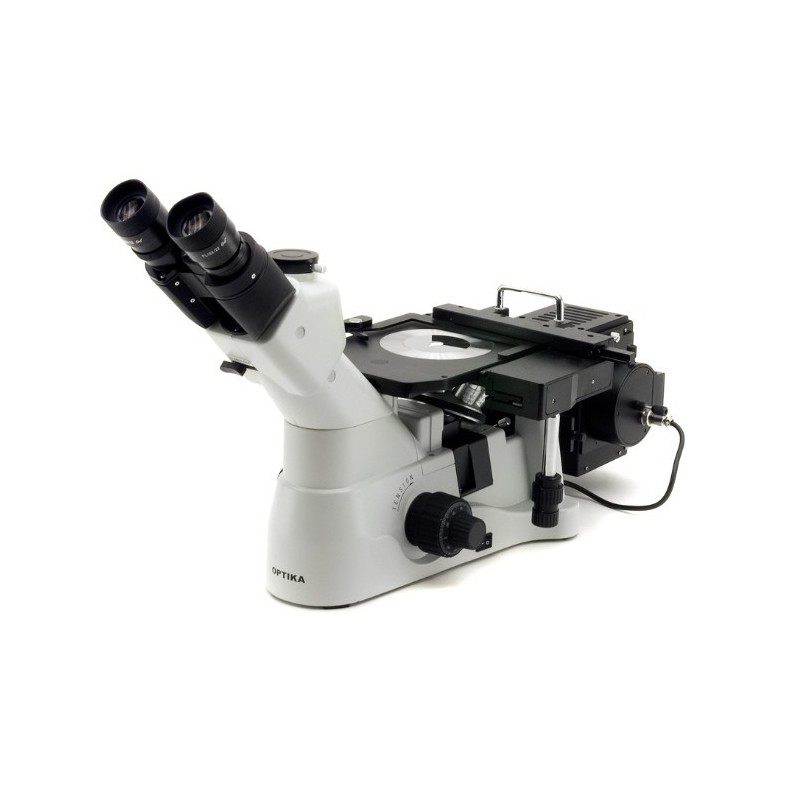

Inverted Metallographic Microscope OPTIKA IM-3MET

Name: Inverted Metallographic Microscope OPTIKA IM-3MET
Brand: OPTIKA
SKU: OPKIM3MET
Price: 2422 EUR
Availability: PreOrder

Reference OPKIM3MET

Stock at Supplier

2,422.00

VAT excluded Shipping 5/7d

Inverted metallographic microscopes are ideal for industrial inspection of metal samples of a certain volume.

Buy it now and receive it between on Tuesday, 15 October and Tuesday, 22 October with Home delivery - International

Delivery Options

Carrier		Description	Estimated Delivery
	Home delivery - International	Home delivery - International	Tuesday, 15 October - Tuesday, 22 October

Home delivery - International

Estimated delivery:
Tuesday, 15 October - Tuesday, 22 October

✖

Description
Product Details

Trinocular inverted metallographic microscope, LWD MET IOS objectives, X-LED illumination

Inverted metallographic microscopes are ideal for industrial inspection of metal samples of a certain volume. With metallographic samples there is no need for a transmitted illumination system; incident illumination is sufficient. In addition, in metallographic microscopes the illumination is transmitted through the objectives so that the light is concentrated with maximum intensity on the area of the sample observed.

Often, when a visual inspection of a sample has to be made, we do not have the necessary tools to make a thin slice only a few microns thick to use a straight metallographic microscope. For this reason, inverted metallographic microscopes are most recommended for the Industrial sector.

TECHNICAL SPECIFICATIONS:

Model: IM-3MET
Head: Trinocular, inclined 45º
Eyepieces: WF10X/22mm
Revolver: Quintuple
Objectives: Long working distance (LWD) MET plan (uncovered preparations) IOS (infinity optical system) 5x/0.15, 10x/0.3, 20x/0.45, 50x/0.55
Magnifications: 50x, 100x, 200x, 500x
Focusing system: Coaxial macro and micro focusing system
Stage: 250x230mm, with built-in sliding mechanical stage
X-Y range: 120x80mm.
Diaphragms: Iris and field aperture (centerable)
Illumination: External, halogen bulb 12V/50W. Centering system and intensity regulator
Filters: Blue, polarizer and analyzer.

Inverted Metallographic Microscope OPTIKA IM-3MET

By level of use: Expert
