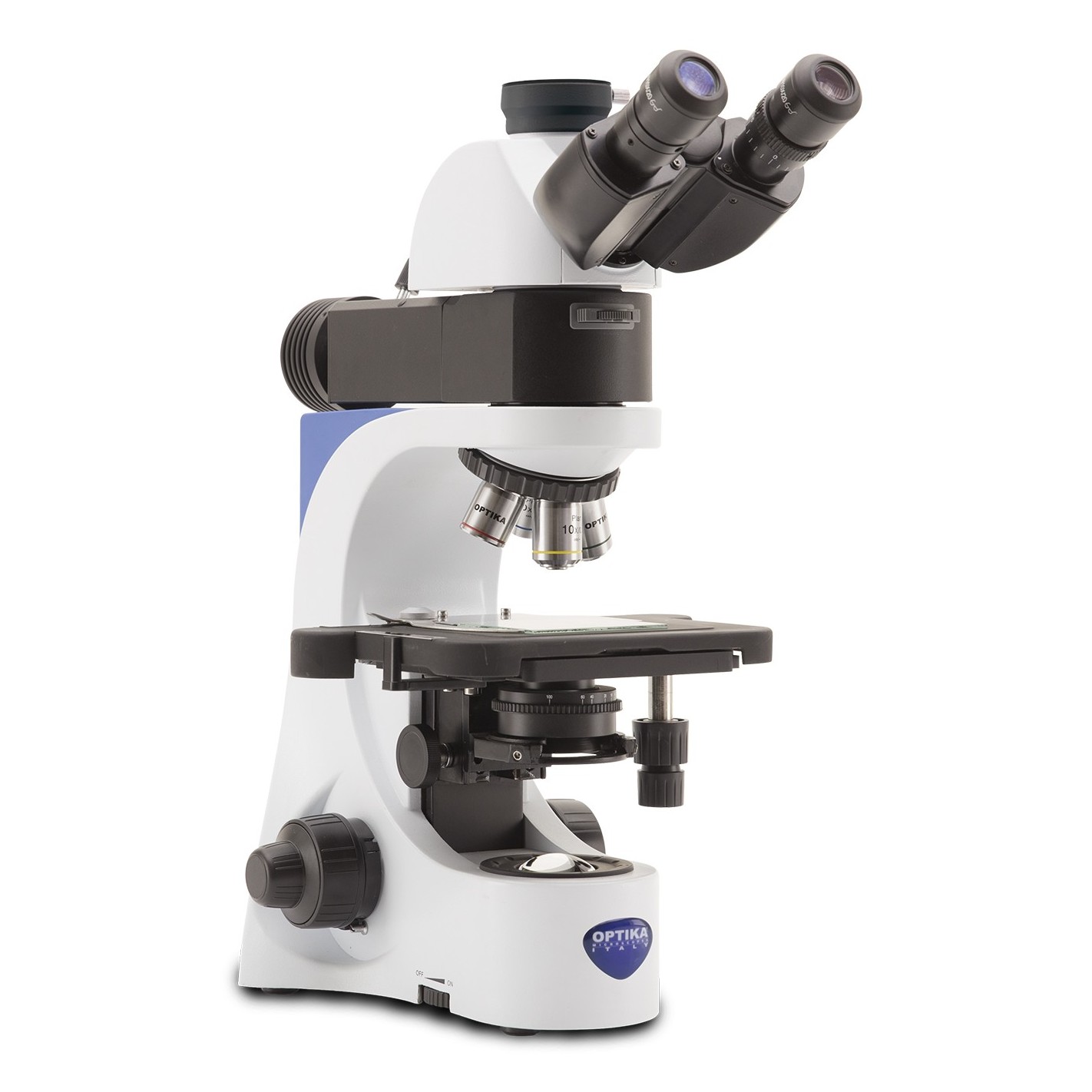

Metallographic Microscope OPTIKA B-383MET
Metallographic microscopes are ideal for industrial inspection of metal samples. With metallographic samples it is not necessary to have a transmitted illumination system, incident illumination is sufficient. In addition, in metallographic microscopes the illumination is transmitted through the objectives so that the light is concentrated with maximum intensity on the area of the sample observed.
TECHNICAL SPECIFICATIONS:
- Observation mode: brightfield, incident polarized light.
- Epi-illumination and polarizing filters: X-LED3 with 3.6 W (6,300 K) white LED with brightness control. Field and aperture diaphragms, polarizing filters and analyzers.
- Head: Trinocular (fixed 50/50), inclined 30°, rotatable 360°.
- Interpupillary distance: Adjustable between 48 and 75 mm.
- Dioptric adjustment: On the left eyepiece tube.
- Eyepieces: WF10x/20 mm, high aiming point and screw fixing.
- Objective revolving nosepiece: Quintuple objective revolving nosepiece, rotation on ball bearings.
- Objectives (without tension):
- IOS W-PLAN MET 5x/0.12
- IOS W-PLAN MET 10x/0.25
- IOS W-IOS MET PLAN 20x/0.40
- PLAN W-IOS MET 50x/0.75
- All with anti-fungus treatment.
- Specimen stage: double-layer frameless mechanical stage, 233 × 147 mm, X-Y range 78 × 54 mm. With tempered glass plate. Focusing: coaxial coarse (tension adjustable) and fine focusing
- mechanism with stopper to avoid contact between objective and specimen.
- Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable.
- Transmitted illumination (fixed Koehler type): X-LED3 with 3.6 W (6,300 K) white LED with brightness control. External multi-plug power supply 100-240Vac/6Vdc.
