Microscopio biológico triocular LABOMED LX-500

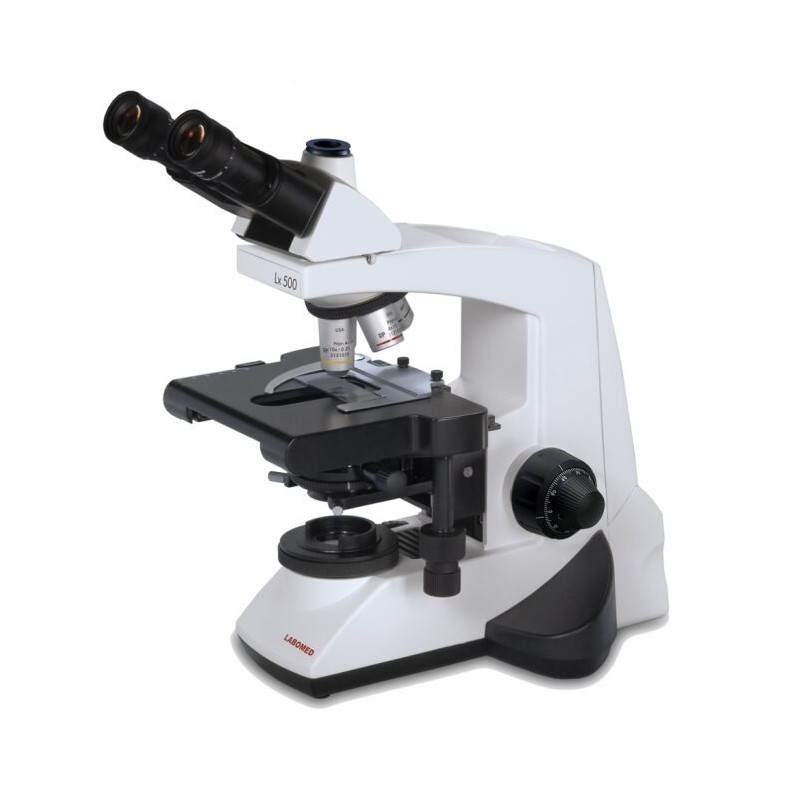

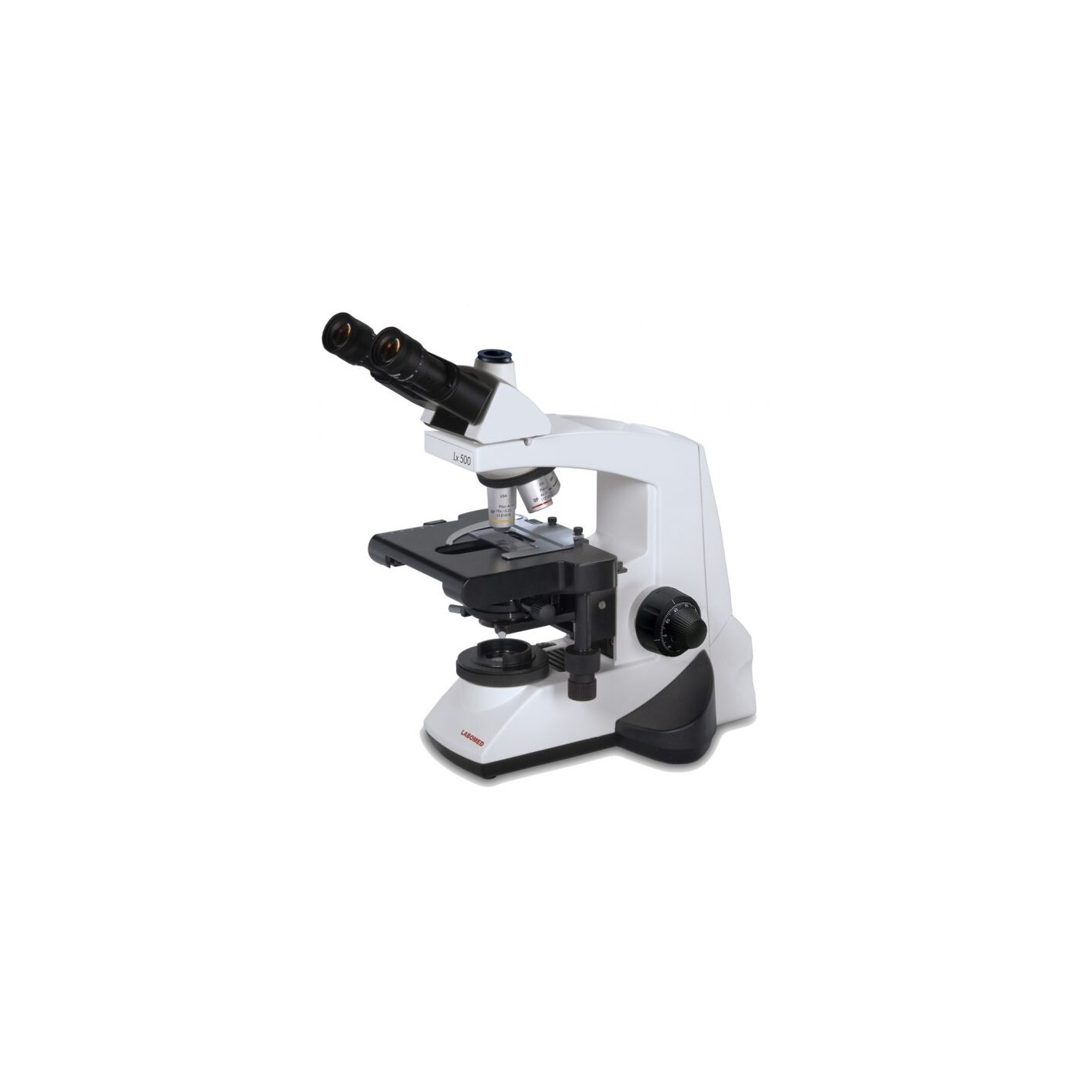

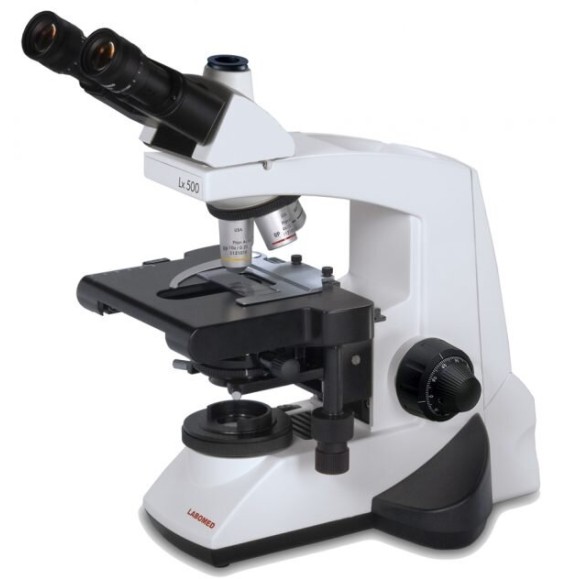

Triocular biological microscope LABOMED LX-500

The Lx 500 clinical microscope is the result of world-class technologies and design innovations. Highly modular and accessory-friendly, the Lx 500 is a versatile, fully extendable clinical microscope that boasts elegant symmetry and performance thanks to its ergonomic and optical features.

Advantages of the Lx 500:

1. RP2 series infinitely corrected Super Plan optics provide a virtually flat field of view at all magnifications, with impeccable contrast and color fidelity. Patented MaxLite coatings further enhance optical performance.
2. With an optional ergonomic articulating head, the viewing angle will adjust to the user to provide a more comfortable sitting posture.
3. A frameless stage ensures safety and maximizes working space. A ceramic surface promises scratch resistance during use.
4. True Kohler illumination and a standard flip-up condenser ensure excellent contrast at 2.5x to 100x magnification.
5. Rechargeable LED illumination (approx. 100,000 hours).

Microscope

Stand Sturdy single-mold stand with rust-proof materials. Extended base for better stability

Head Trinocular head 30 degrees, interpupillary distance 47-75 mm with height adjustment

Eyepieces 10x / 22 mm wide field focusable eyepieces with folding eyecups, with anti-fungus coating

Revolver Reversed angle quintuple objective lens holder (ball bearing type) with click stoppers and rubber grip

Objectives DIN plan achromatic objectives with infinite correction RP2 series 4x, 10x, 40x (spring-loaded), 100x (spring-loaded, oil), antifungus coated

Stage Rackless X-axis Ceramic double plate stage, size 200 x 160 mm, X/Ytravel range 76 x 50 mm. Double specimen holder

Condenser Rackless ceramic double plate stage, X-axis, size 200 x 160 mm, X/Ytravel range 76 x 50 mm. Double specimen holder

Focusing Coaxial coaxial coarse and fine focusing on gear systems for smooth operation. Fine adjustment 0.3 mm / rotation

Illumination Real Köhler illumination with 6 V / 30 W halogen lamp with variable illumination control. LED option available.

Electronics Universal input 100V - 240V AC, 50/60 Hz. Built-in voltage stabilizer

Package contents:

• Power cord (6 ft.)
• Cargille immersion oil
• Nylon dust cover and cleaning cloth
• Polystyrene housing
• Accessories (Optional)
• Micrometer pointers and reticles
• Phase (single and Zernike), polarization, fluorescence and darkfield kits
• Dual viewing bridge
• Auxiliary objectives and eyepieces
• Cable suspension kit
• Adapters and digital cameras
• Soft carrying case
