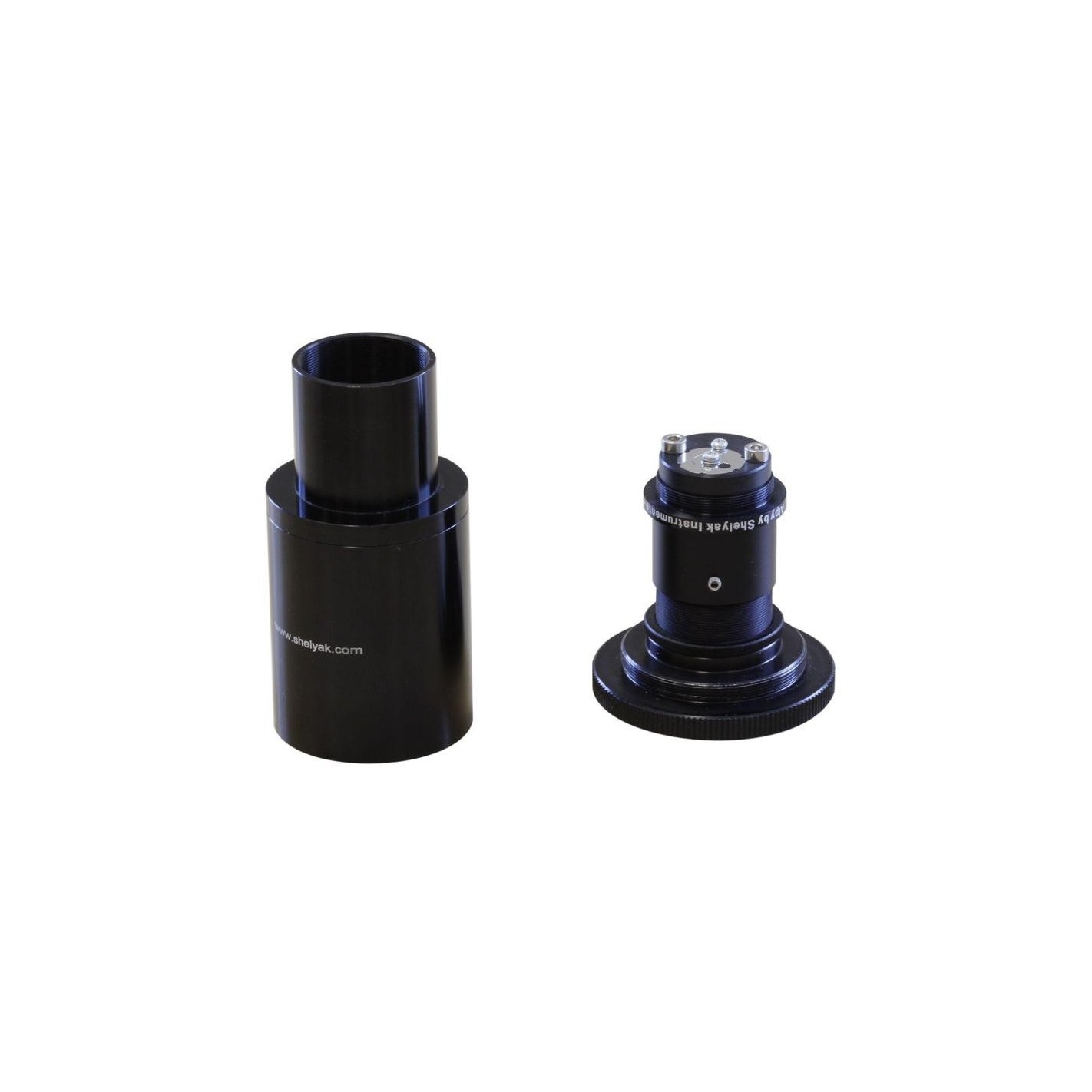

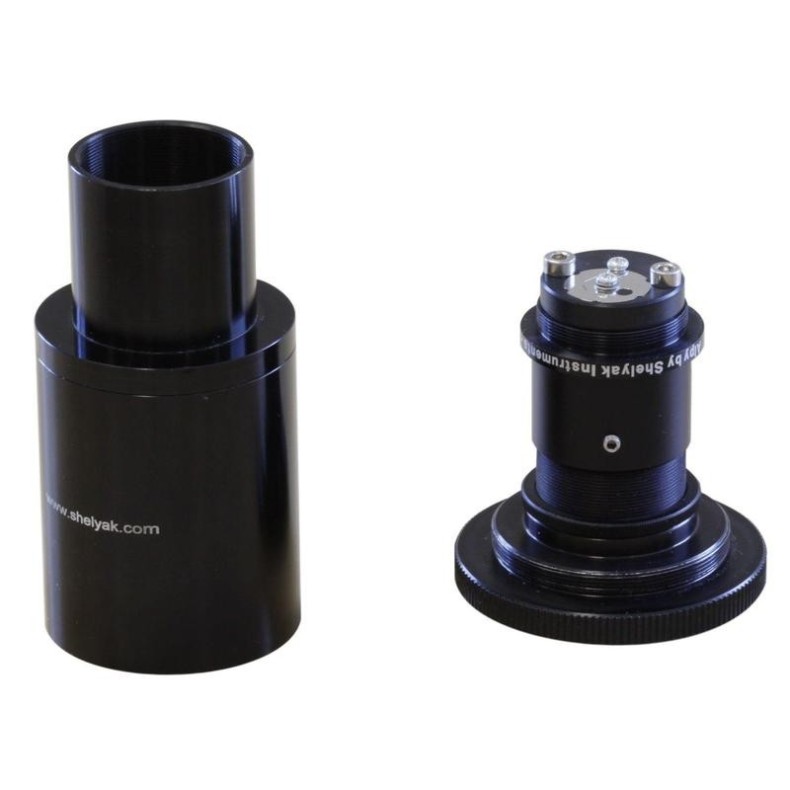

Shelyak Alpy 600 Spectroscope
Spectroscopy in astronomy fills the gap between Space and the Atom. It connects the infinite width with the microcosm. Astronomical spectroscopy allows you to characterize and classify different types of astronomical objects (stars, galaxies, nebulae, comets, planets and the interstellar medium), their surface temperature, their composition, their mass and even their proper motions.
It is the way to explore the bestiary of celestial objects in greater detail to measure their physical parameters, to observe the evolution of stars and to follow the "dance" of binary systems. Through spectroscopy, you will be able to see that the sky is constantly changing...
Spectroscopic analysis will give you the opportunity to participate in cooperative programs, share a great educational tool with others and enter the international scientific community. Astronomical spectroscopy will give you the key to have a better understanding of the Universe and even, at a more advanced level, participate in the discovery of Exoplanets!!!!
The Shelyak Alpy 600 spectroscope the centerpiece of the ALPY product line, with a 600gr/mm reticle plus prism assembly. The Shelyak Alpy 600 offers portability as it is very compact, low resolution (R-600 resolving power) and a dispersion fully compatible with most CCD cameras for astronomy on the market today
Technical specifications:
- R~600 resolution (approx. 10A resolution) for 25µm slit
- Spectroscope at F/5
- Slit/no-slit mode (25µm hole; 25µm, 50µm, 100µm, 300µm slits; 3mm hole / 5µm tolerance)
- Slit length: 3mm
- Weight: 200gr
- Size: 65mm length with a diameter of 45mm
- Supplied as standard with 1.25" telescope adapter with thread for M42x0.75 filters, backfocus (from 1.25" adapter to slit): 3.8mm
- For attachment to CCD cameras M42x0.75 thread, backfocus 10.5-21mm
Recommended accessories for working with the Shelyak Alpy 600 (ask Telescopiomania for a quote)
- Guidance module, mandatory when used with a telescope
- CCD camera for image acquisition
- CCD camera for guiding
- Guiding eyepiece holder to avoid having to guide with a CCD guiding camera.
- Calibration module for easy spectrum calibration.
- Barlow Alpy for DSLR to focus with DSLR cameras.
- Photometric slit for spectroscopy and photometry
- FC connector to use Alpy 600 with fiber optics
- C thread adapter for connecting to C thread CCD cameras
- Adapter for SBIG ST cameras
- Power supply
